Motorised Swage & Jenny ETB-25, Electric Sheet Metal Bead Bending Machine

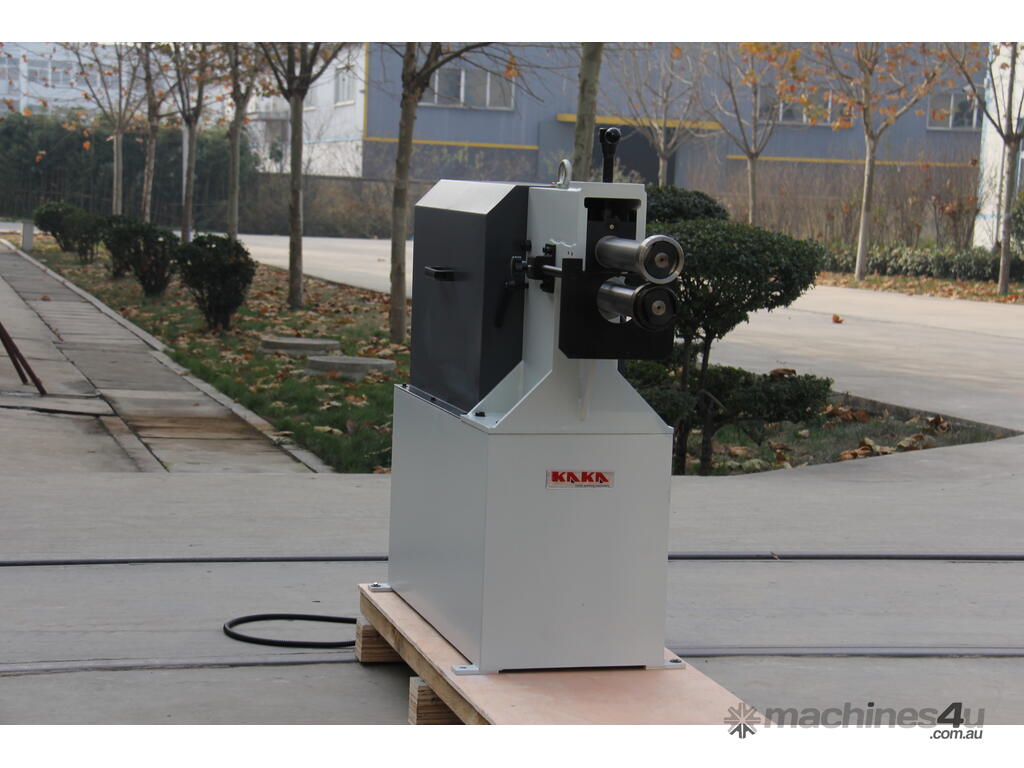

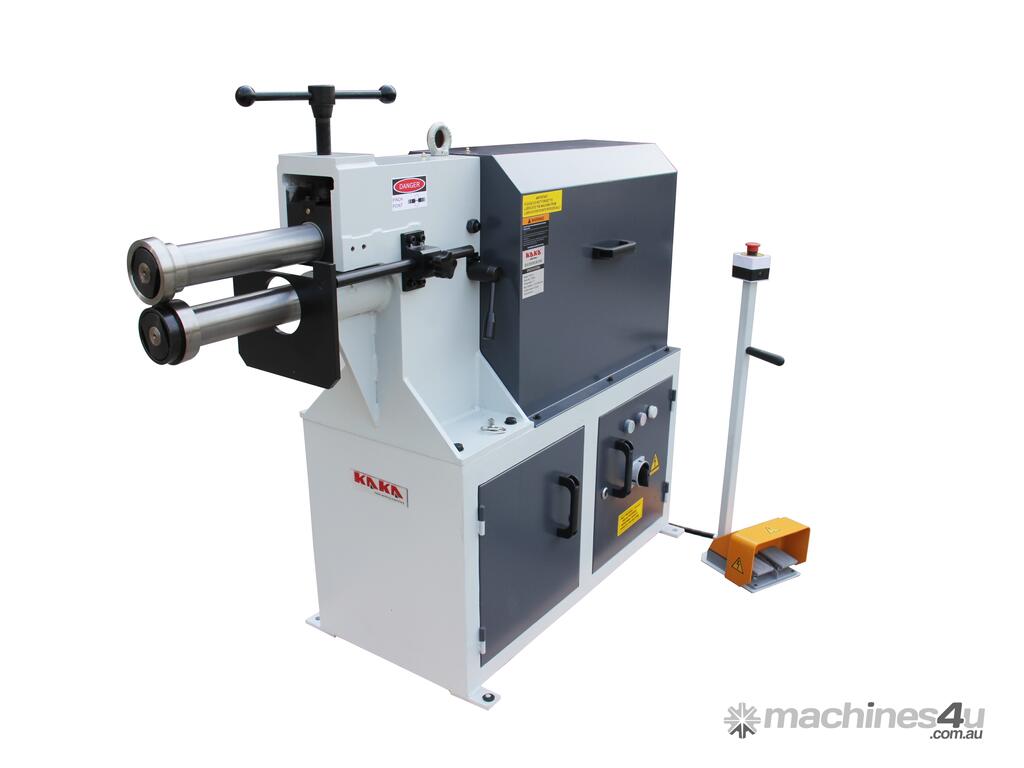

Swage & Jenny ETB-25

The KANG ETB-25 Motorised Swaging Jenny is a heavy-duty, motorised sheet metalworking tool engineered for professional fabrication tasks such as swaging, jennying, beading, crimping, and edge forming. It boasts a robust cast-iron construction with a 2.5mm mild steel capacity, 280mm throat depth for handling larger workpieces. Powered by a 1.5kW brake motor typically running on 415V three-phase electricity, it operates at 20 rpm for efficient, fatigue-free performance. The machine includes self-braking motor features, an adjustable bottom spindle, and comes with four standard roll sets for immediate versatility.

Enhanced Productivity with Motorisation. The motorised swaging machine features a 1.5 kW motor and 20 rpm speed, enabling efficient, hands-free operation, reducing manual labour for fabricators in high-output shops like automotive restoration or HVAC, allowing more pieces to be processed daily without operator fatigue.

Superior Capacity and Durability Sheet Beading Machine. Handles up to 2.5mm mild steel with a deep 280mm throat, built from heavy cast iron to withstand rigorous use in diverse climates, from coastal humidity to inland dust, ensuring longevity for professional workshops.

Versatile and Out-of-Box Ready Beading Machine. Includes 4 roll sets (Shearing, Crimping, Beading and Flanging) for various forming tasks, ideal for small to medium Aussie businesses or hobbyists in metalworking, minimising additional purchases and supporting custom projects like panel beating or duct fabrication.

User-Friendly Design Sheet Metal Forming Machine. Superior precision with the brake motor. The brake motor stops the roller instantly when releasing the foot pedal, ensuring high precision. The reduction gearbox delivers high torque, preventing overheating and premature motor failure, ensuring the beading machine can handle continuous industrial use in a busy workshop.

Versatile Applications of Motorised Swager/Jenny Machines. Motorised swager/jenny machines are highly versatile tools for sheet metal fabrication: HVAC and Ducting Fabrication, Automotive Restoration and Custom Panels, General Sheet Metal Fabrication, Roofing and Architectural Metalwork, Custom and Artistic Projects

Features

Powerful 1.5 kW motor runs on 415V-3PH power

Up to 280 mm throat depth

Cast iron construction

Industrial-grade gearbox

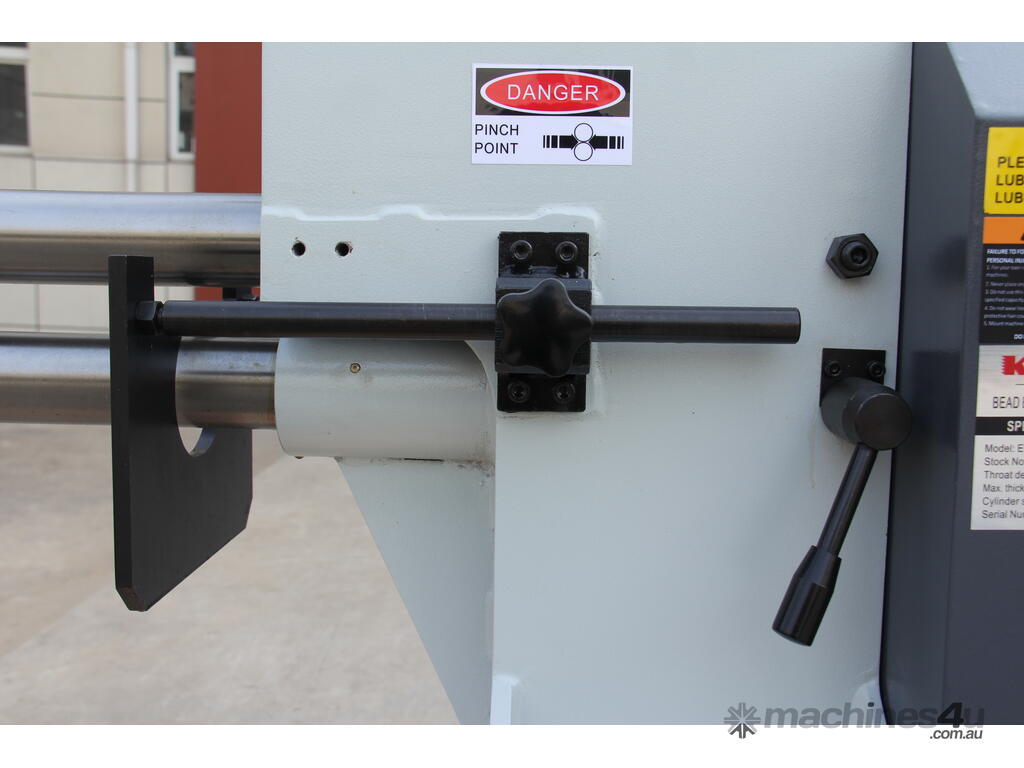

The adjustable plate depth stop provides a solid surface to guide you and get a straight bead

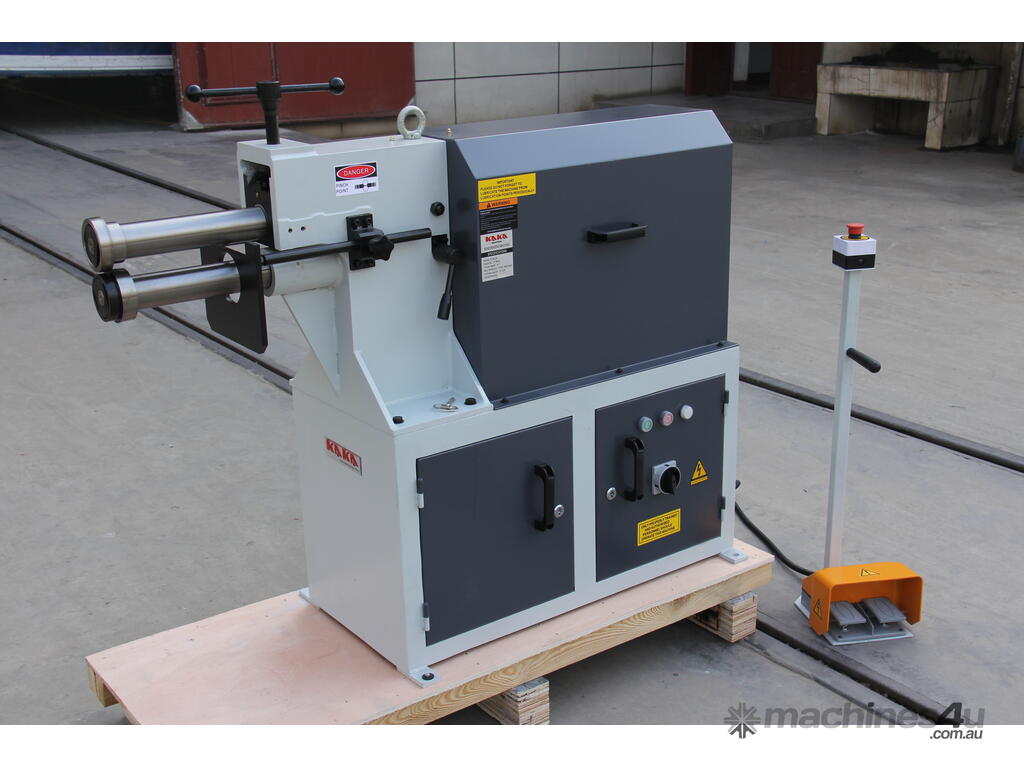

Foot pedal control, let your hands be free to hold the material

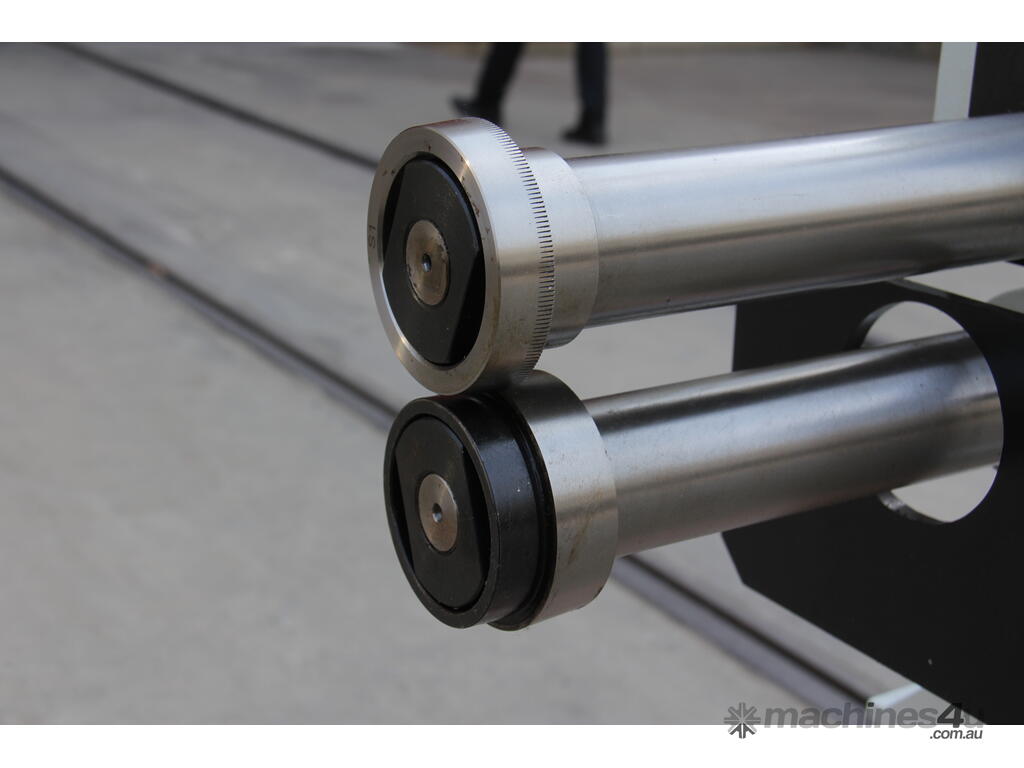

Standard with 4 sets of tooling: Shear, Crimple, Round Bead, and Step Bead

Specifications
SKU 173803
Model ETB-25
Max. thickness 2.5 mm
Throat depth 280 mm
Cylinder speed 20 rpm
Motor power 1.5 kW
Packing size 147x58x135 cm
N.W./G.W. 235/300 kg
