Motorized Plate Curving Rolls ESR-5116, 1300x1.5mm Sheet Metal Curve Rollers & 75mm Dia. Roller

KANG Industrial ESR-5116 1.5x1300 mm motorised plate rolling machine

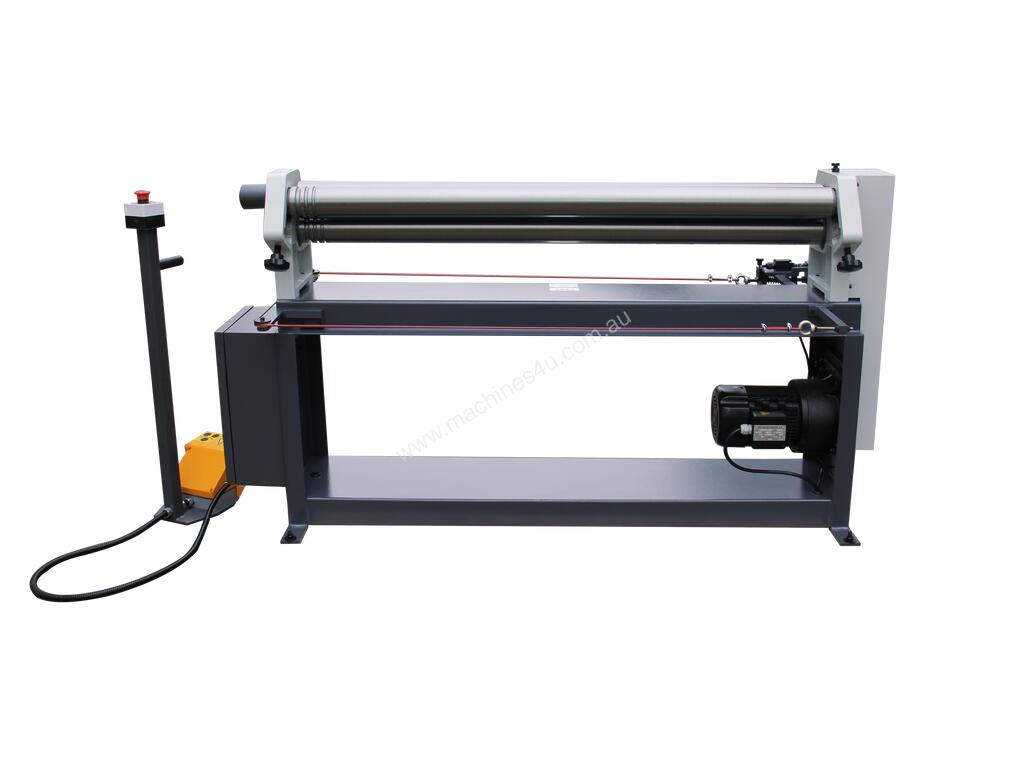

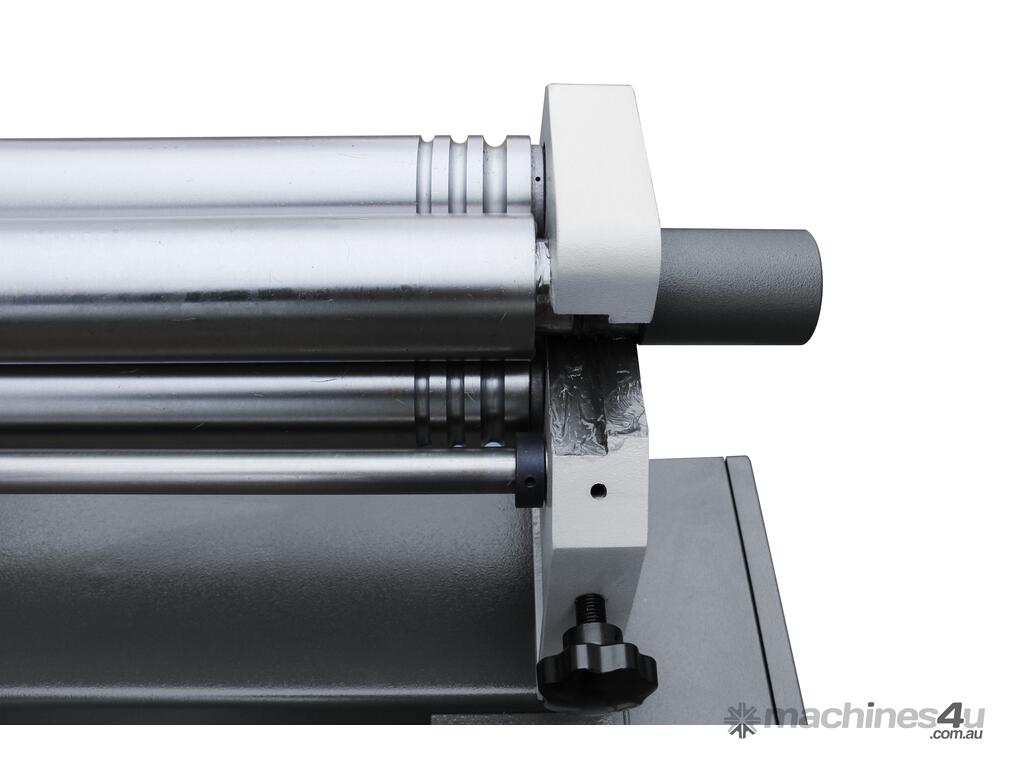

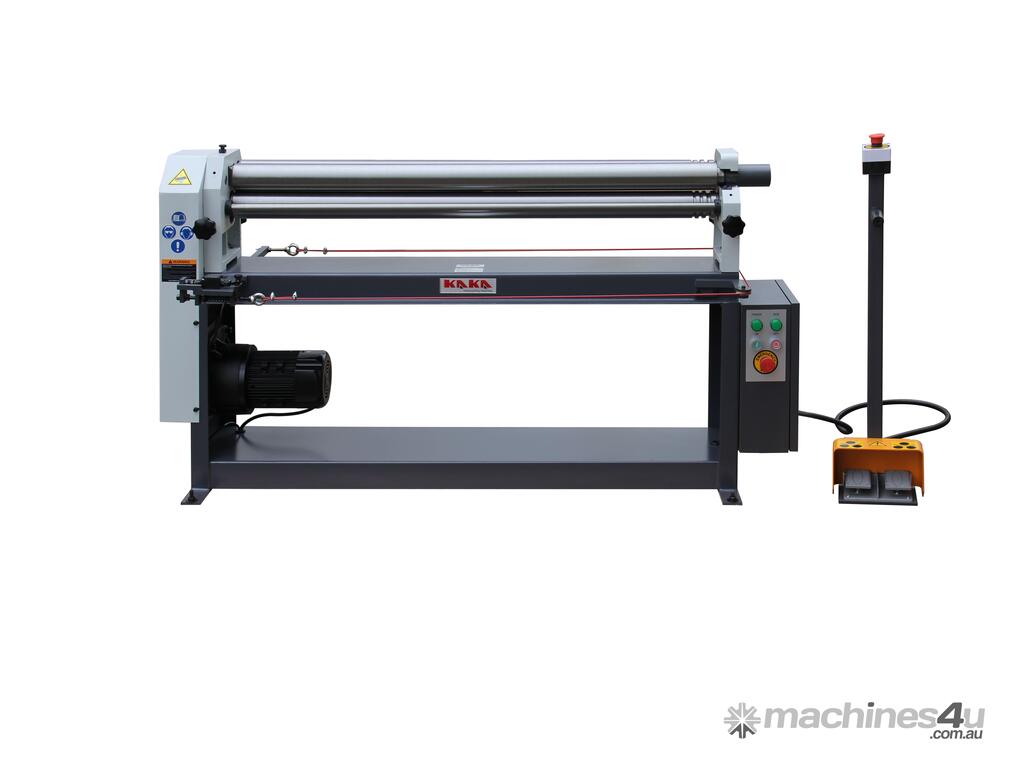

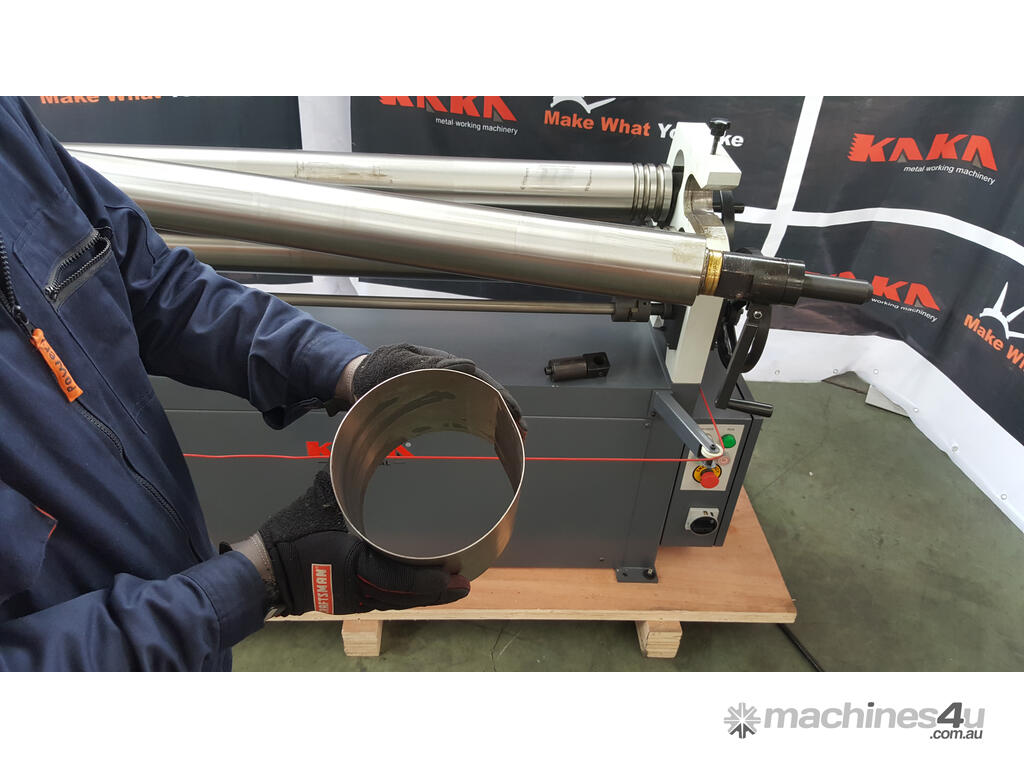

The KANG Sheet Roller ESR-5116 is an asymmetrical motorised sheet roller with a forward-swivelling upper roller (75mm Diameter) for quick workpiece removal. It features easy handwheel adjustments for the lower and rear rollers, plus a powerful drive motor (1.1 kW) for smooth, uniform rolling. Safety is enhanced with a separate foot pedal (including an emergency stop) and a safety rope that automatically stops the machine. The rollers are made of high-quality steel and include wire grooves for rolling rods or wires. A conical bending device is included as standard.

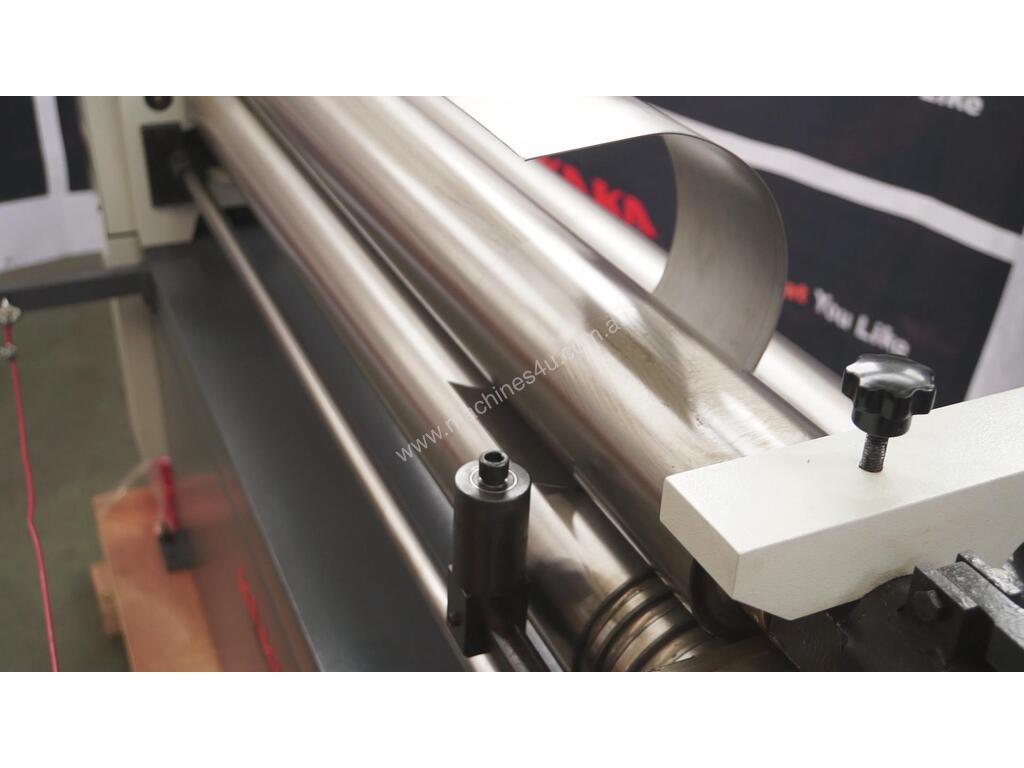

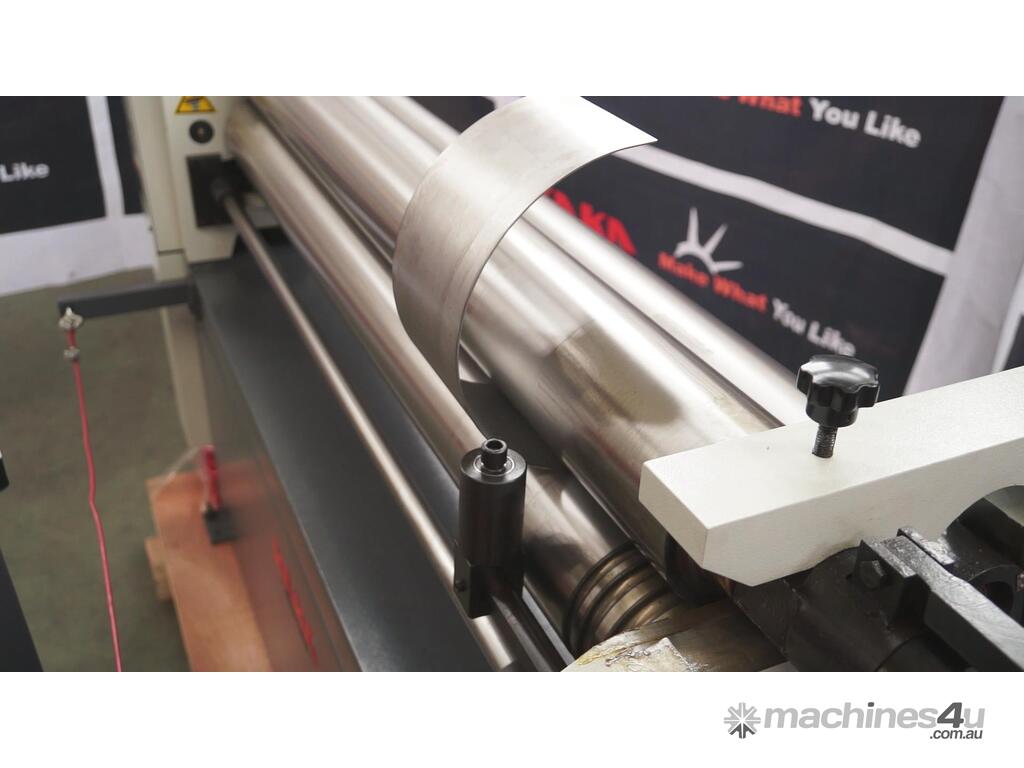

It excels at rolling mild steel sheets up to 1.5mm thick over a 1300mm width, making it ideal for fabricating cylinders, cones, tubes, ductwork, or curved panels.

User-Friendly Operation Slip Roller.& Forward-swivelling top roller and handwheel adjustments make loading and unloading fast and simple.

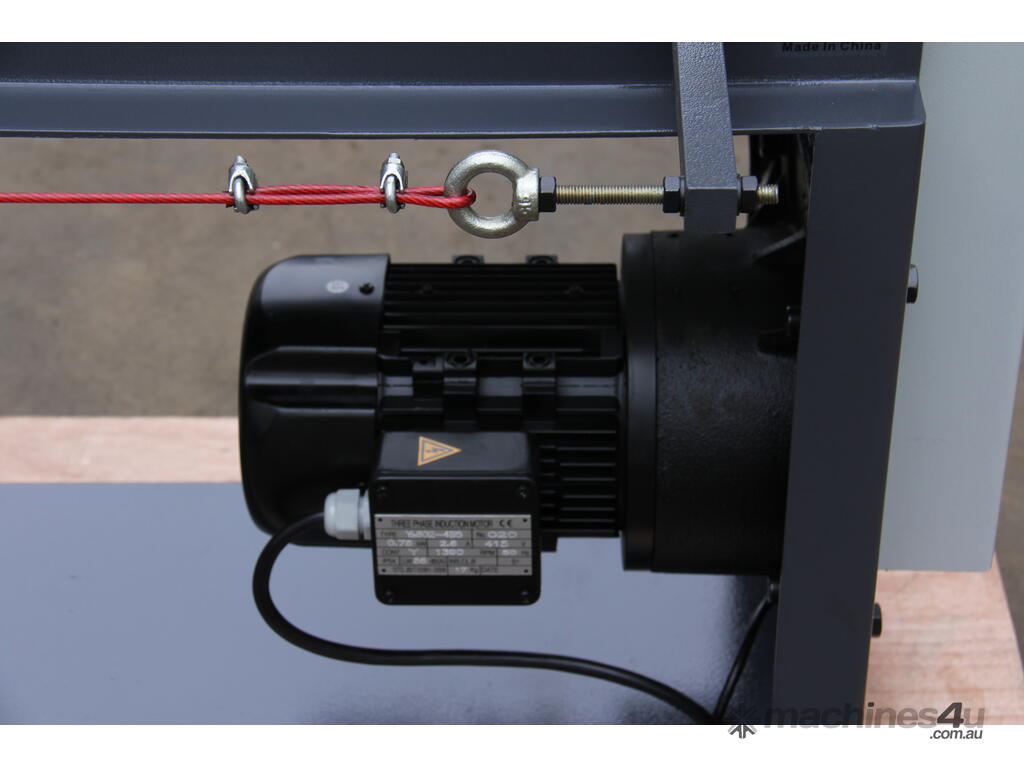

Motorised Efficiency. 1.1 kW Single-Phase motor with foot-pedal control (forward/reverse) allows hands-free rolling for higher productivity.

Versatile & Precise. Handles mild steel up to 1.5mm, wire grooves, and conical device expand capabilities. Handwheel for rear roller with simultaneous end adjustment for accurate, repeatable rolling.

Compact & Durable Slip Roller 300kg is built in a relatively small footprint (under 1m height,) suits workshops with limited space while providing professional reliability.

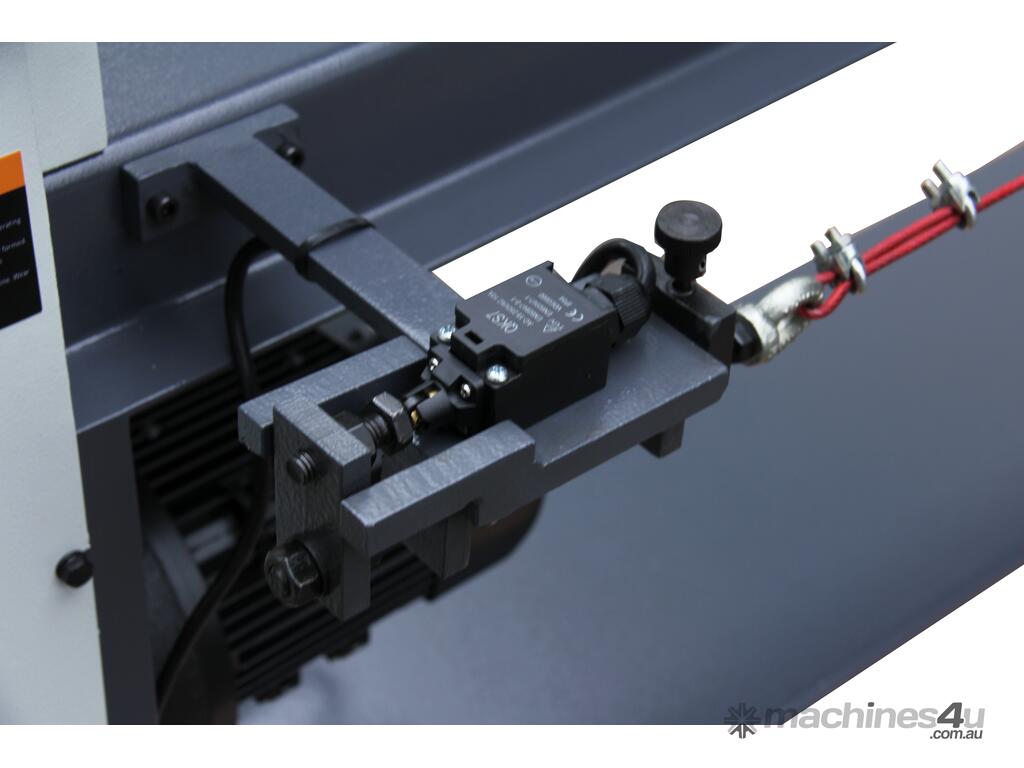

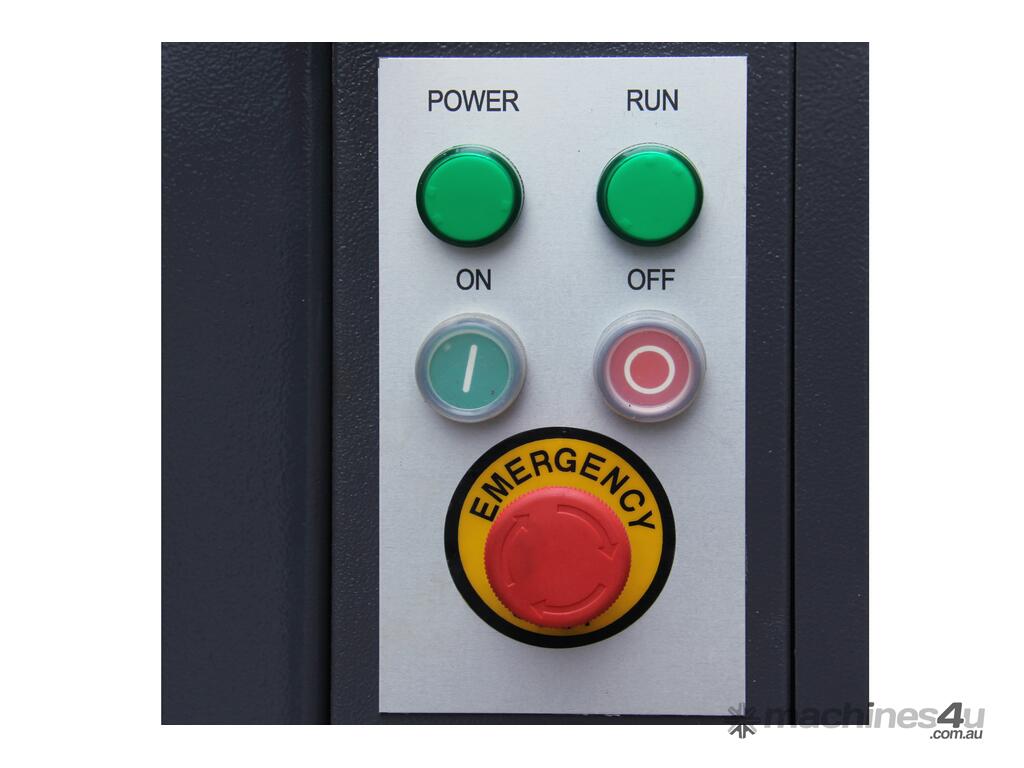

Enhanced Safety. Integrated emergency stop via foot pedal and safety rope reduces risks in busy workshops.

Features

Runs on 240V, single-phase power plate curve rollers

Working width up to 1300mm

Could rolling a 1.5mm plate at the full width

Cast iron mainframe, sturdy structure, sheet metal curving roller

2 driven rolls for more powerful rolling

Easy to operate with a movable foot pedal



Specifications
SKU 191101
Model ESR-5116
Max. thickness 1.5 mm
Max. width 1300 mm
Dia. of roll 75 mm
Motor power 1.1 kW
Packing size  179x59x110 cm
N.W./G.W. 300/357 kg
