Motorized Plate Curving Rolls HER-6103, Sheet Metal Roll Curving Machine

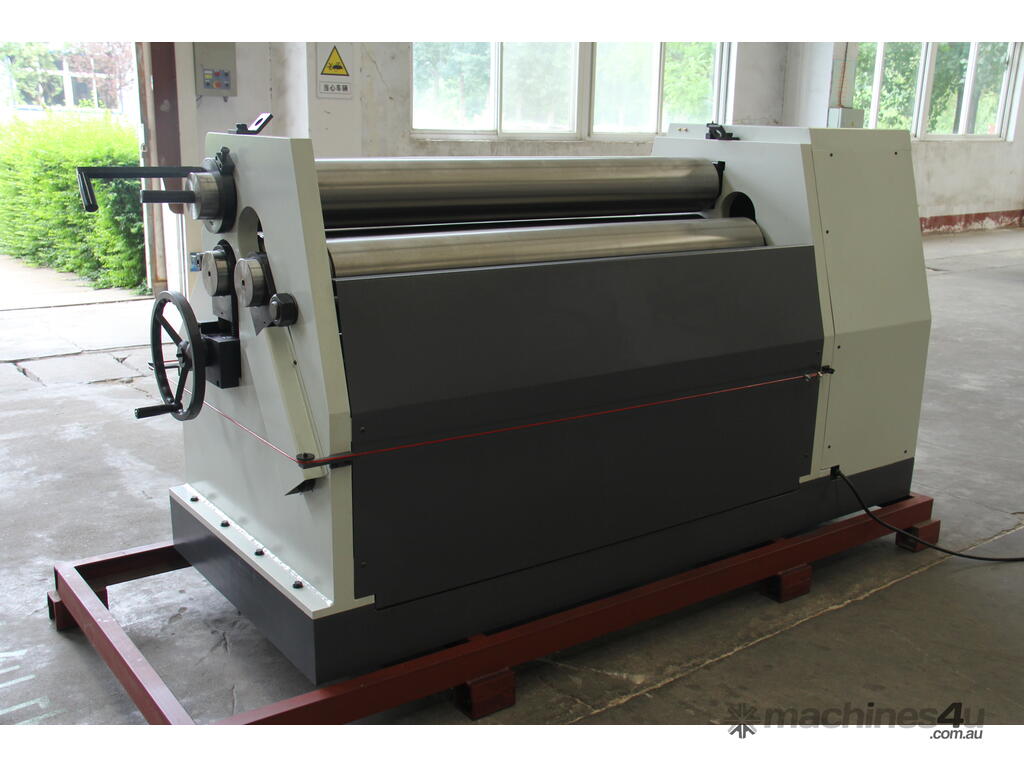

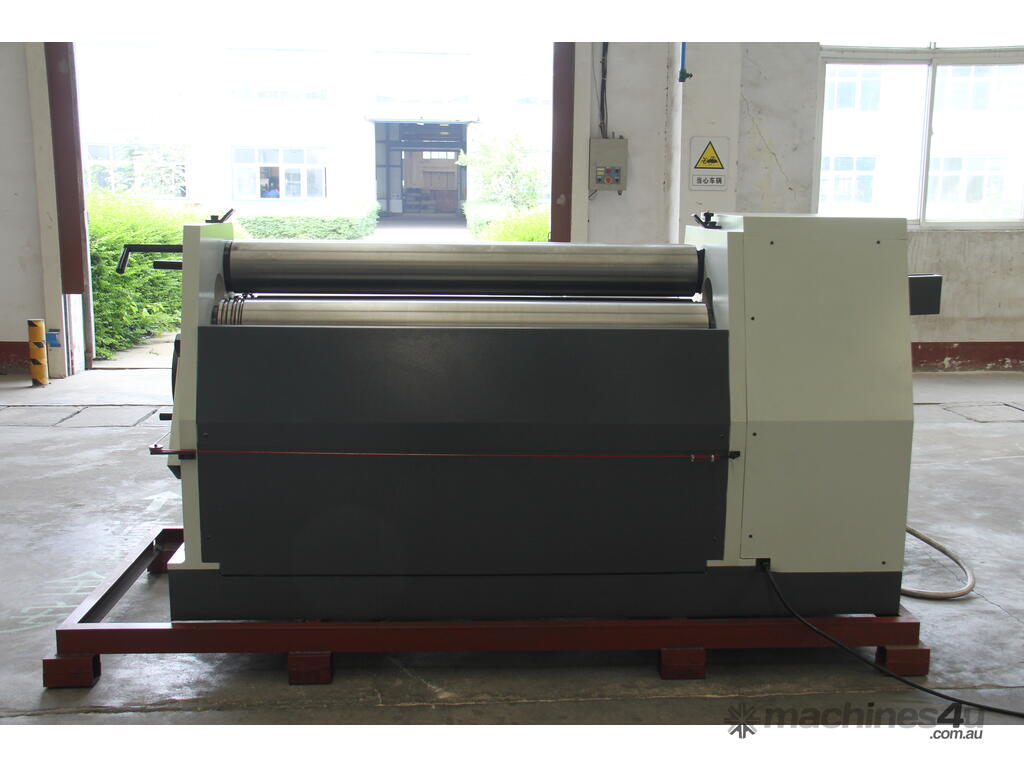

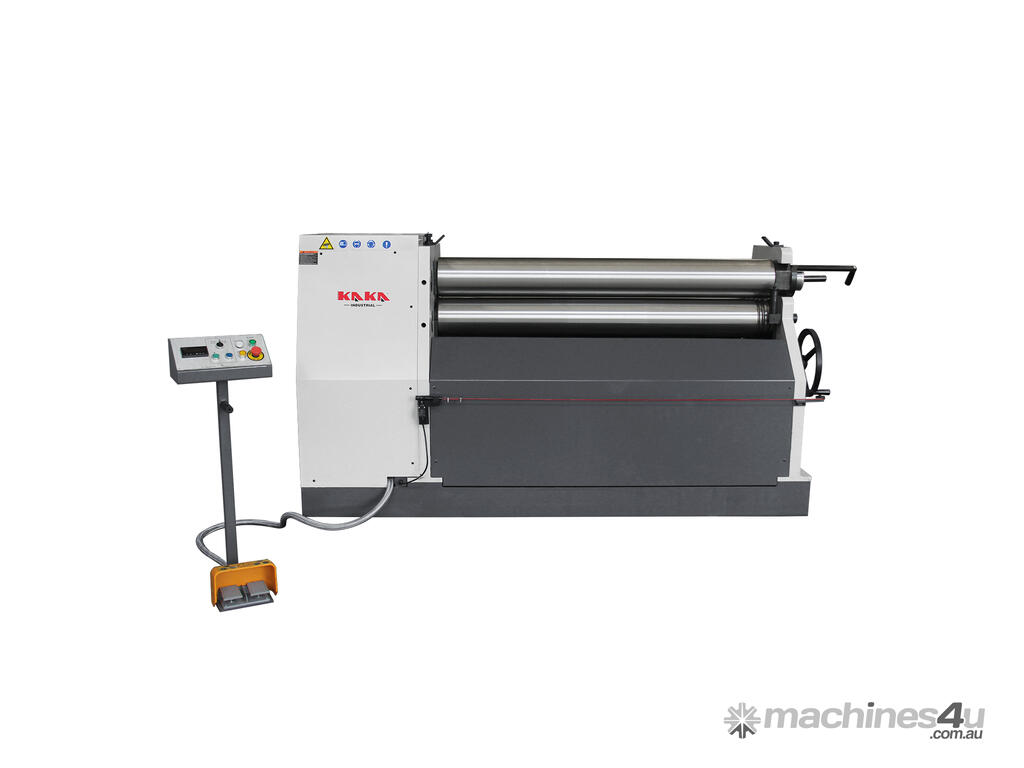

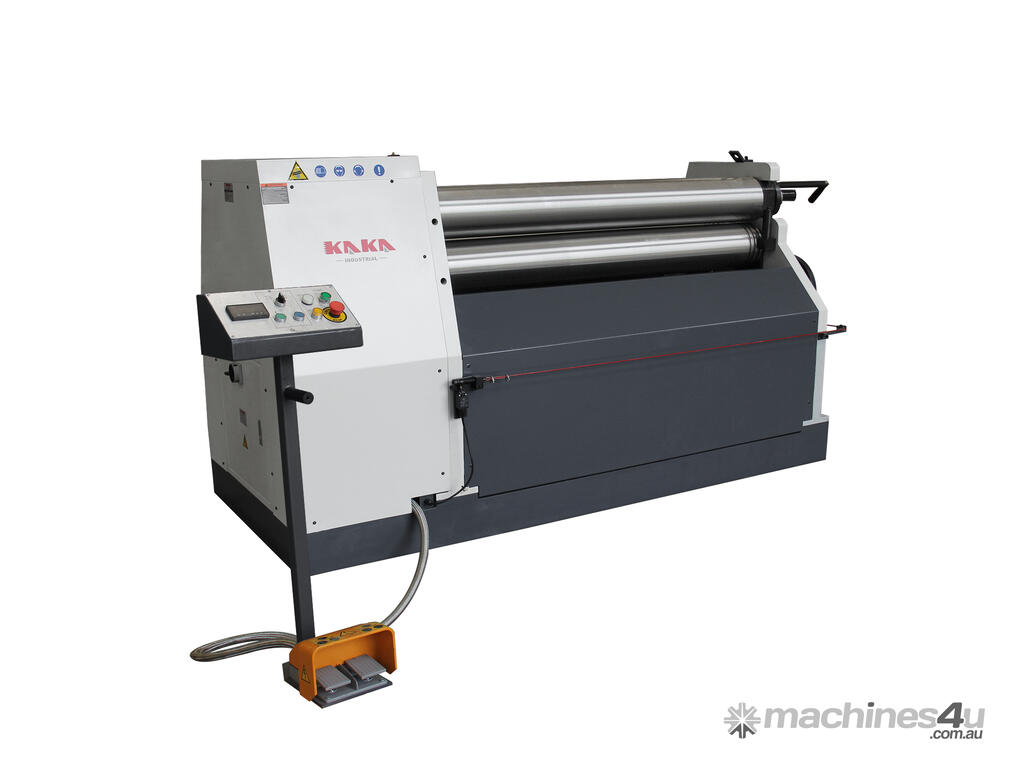

Kang Industrial HER-6103 Motorized Plate Curving Rolls

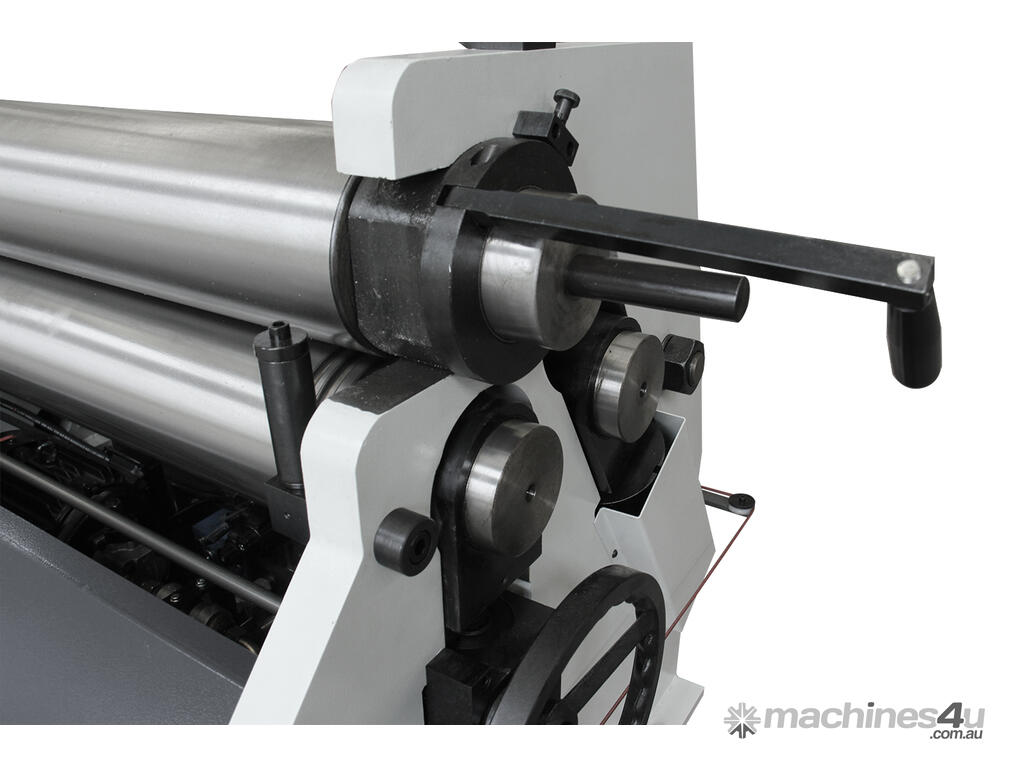

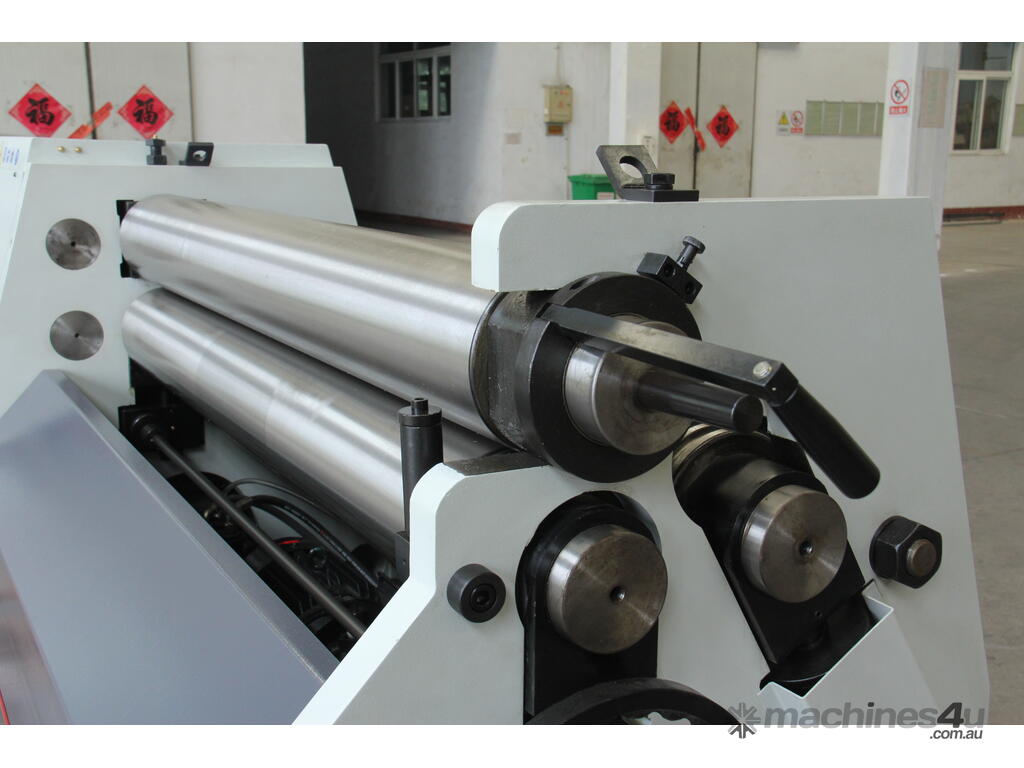

The KANG HER-6103 is a heavy-duty Hydraulic Initial Pinch Plate Curving Roller designed for professional sheet metal forming. It features a rolling length of 1550 mm and can handle up to 6.5 mm thick mild steel across its full width, making it suitable for thicker materials compared to lighter rollers. The machine has three 181 mm diameter rolls. All three rolls are hydraulically driven for powerful, smooth operation, with synchronous hydraulic adjustment for the pinch/side rolls. Powered by a 4.0 kW motor, it achieves a roll speed of 4.2 rpm and includes a digital readout for precise pinch roll positioning, a manual lower pinch roll adjusting wheel, foot pedal control with forward/reverse and up/down functions, and a single-side up/down button for cone bending. The top roll swivels out for easy workpiece removal, and the rigid construction ensures long-term reliability.

Heavy-Duty Plate Curve Roller for Thicker Materials. Rolls up to 6.5 mm mild steel over 1550 mm width, ideal for the fabricators working on structural panels, tanks, cylinders, or heavy-duty roofing/ductwork where lighter rollers fall short.

Hydraulic Precision and Power Rolling. All three rolls are hydraulically driven with synchronous pinch adjustment provide consistent, powerful rolling without flat spots, offering smoother and more accurate bends than manual or electric-only models.

Versatile Cone Rolling. Single-side up/down control allows easy forming of conical shapes, expanding applications for custom funnels, hoppers, or tapered components common in manufacturing and agriculture.

User-Friendly and Efficient Plate Rolling. Digital readout for pinch position, foot pedal controls, and swivel top roll simplify setup and operation, boosting productivity for operators in busy workshops.

Enhanced Safety Features. Emergency stop cable and protective controls align with workplace safety standards, reducing risks during heavy-duty use.



Features

Max. 1550 mm forming width

Roll up to 6.5 mm mild steel sheet metal at the full width

4.0 kW powerful motor runs on 415V-3PH power

All 3 driven rolls by the hydraulic system let you shape more material faster and increase productivity

Steel-hardened rolls up to HRC 55

Emergency stop cables are located on both the front and back of the machine

Digital readout comes standard, tracking the position of the back roll for increased accuracy and less waste

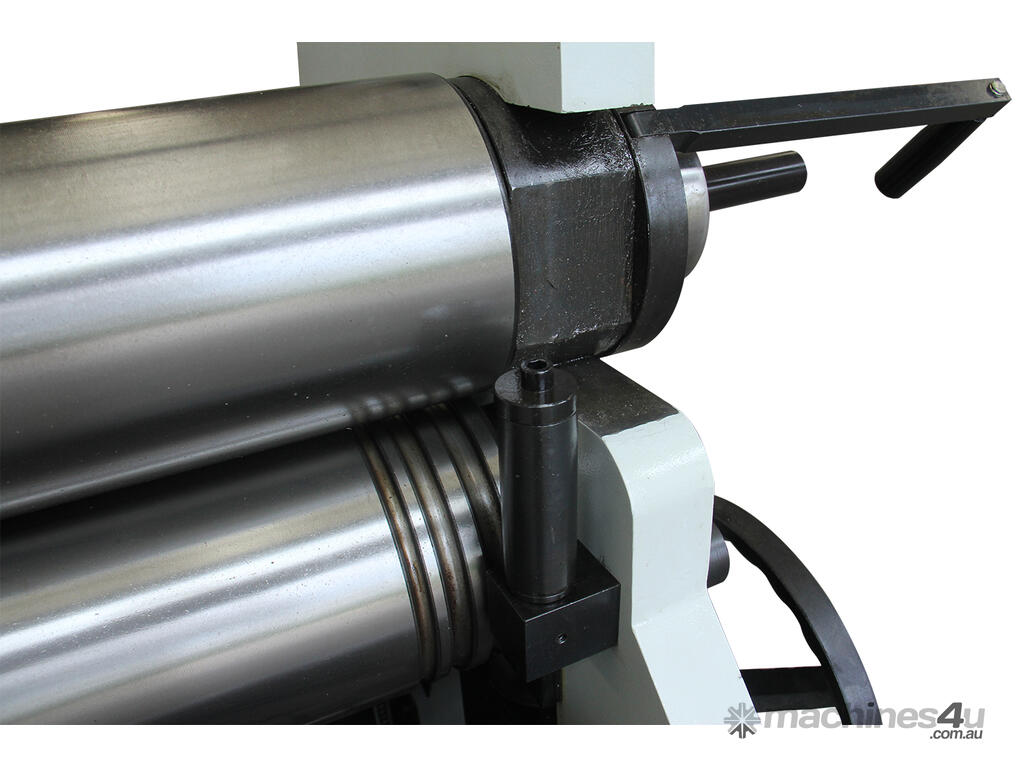

Cone rolling attached

Optional Hydraulic Oil.

Different sizes are available: HER-5103 (1300x6.5mm), HER-6108 (1550x4.5mm), HER-8008 (2070x4.5 mm), HER-8003 (2070x6.5mm)

Specifications
SKU 191123
Model HER-6103
Rolling width 1550 mm
Rolling thickness 6.5 mm
Roller dia. 181 mm
Min. rolling dia. 200 mm
Roller speed 4.2 rpm
Motor power 4.0 kW
Packing size 267x111x147 cm
N.W./G.W. 2570/2650 kg
