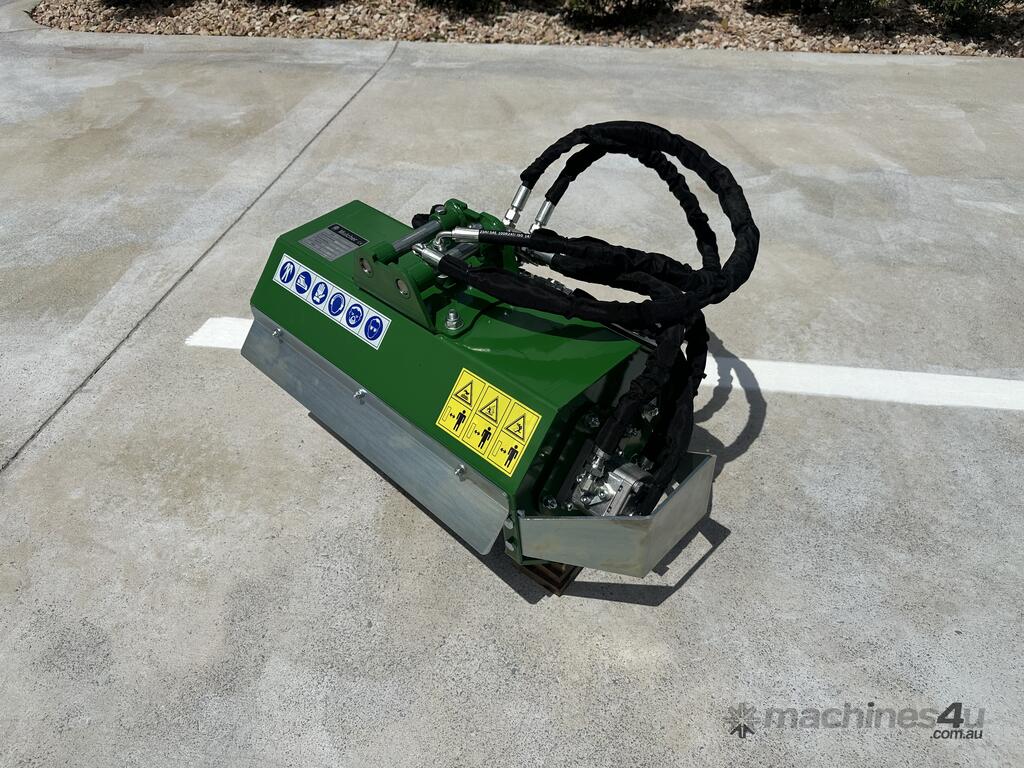

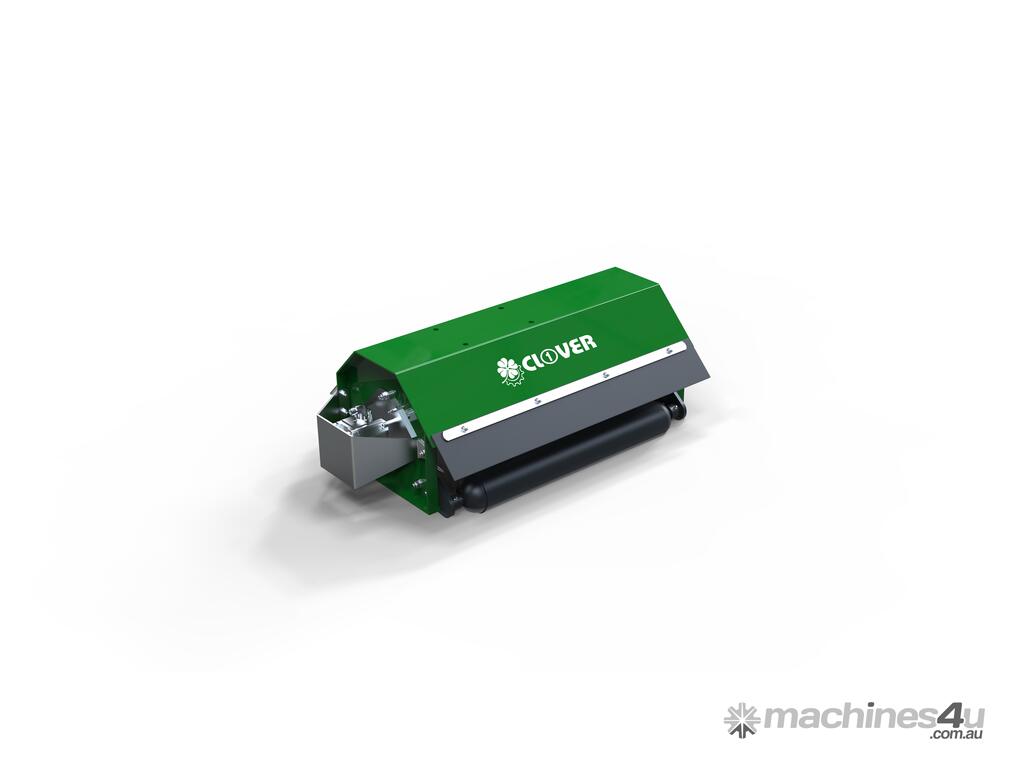

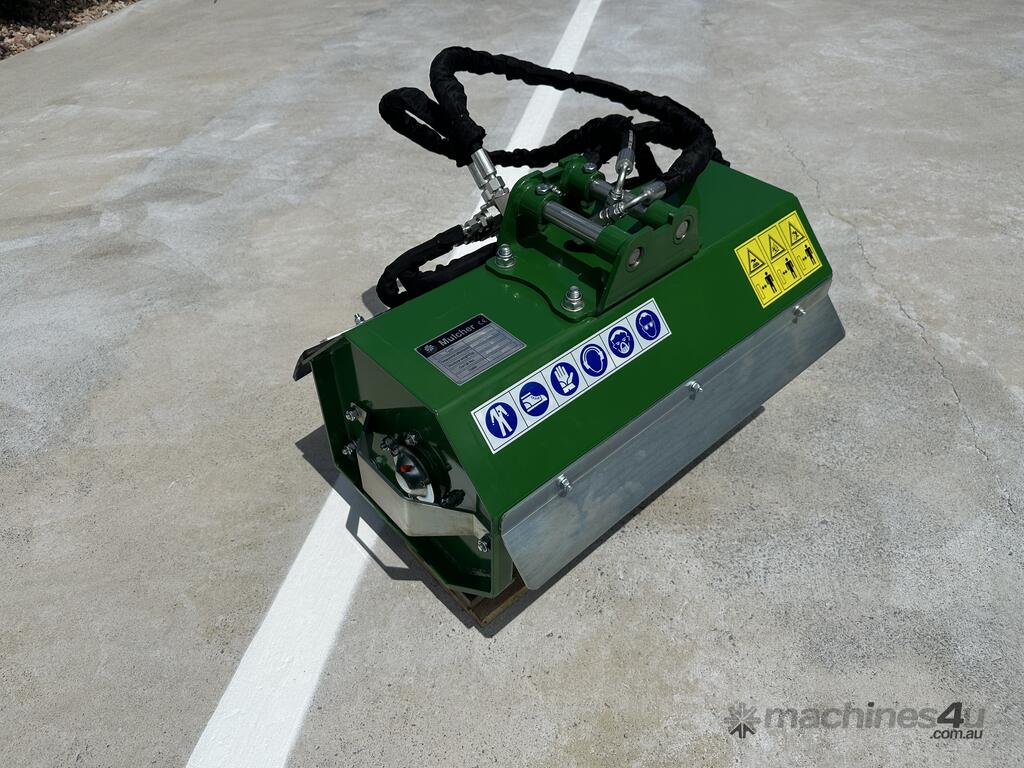

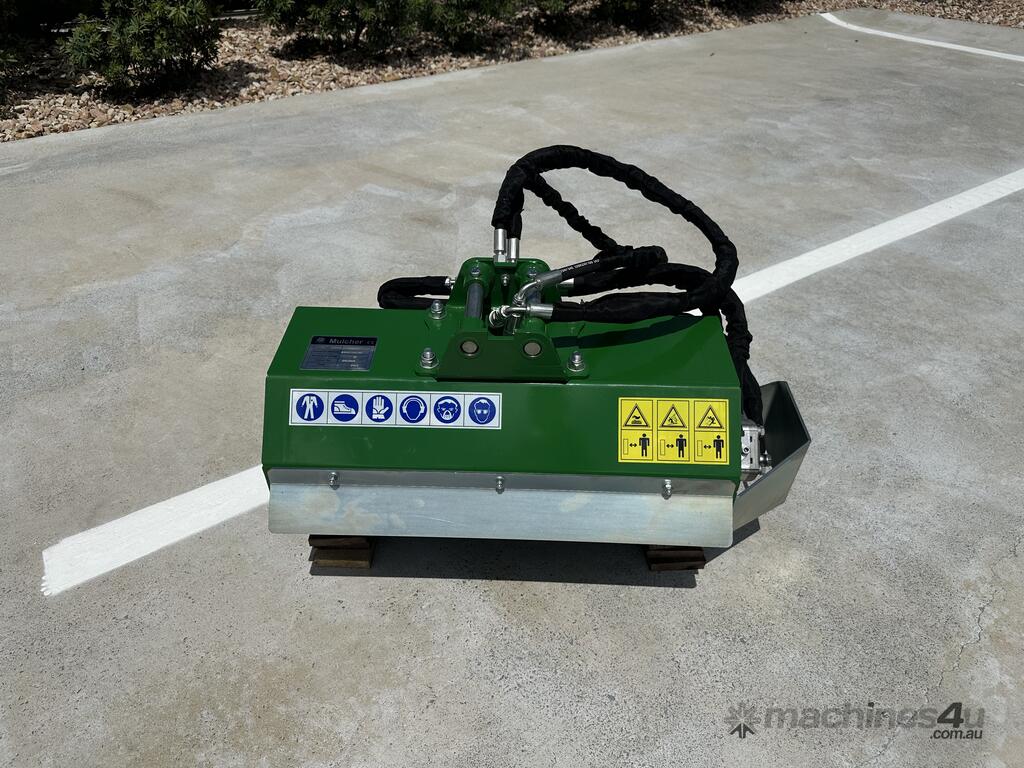

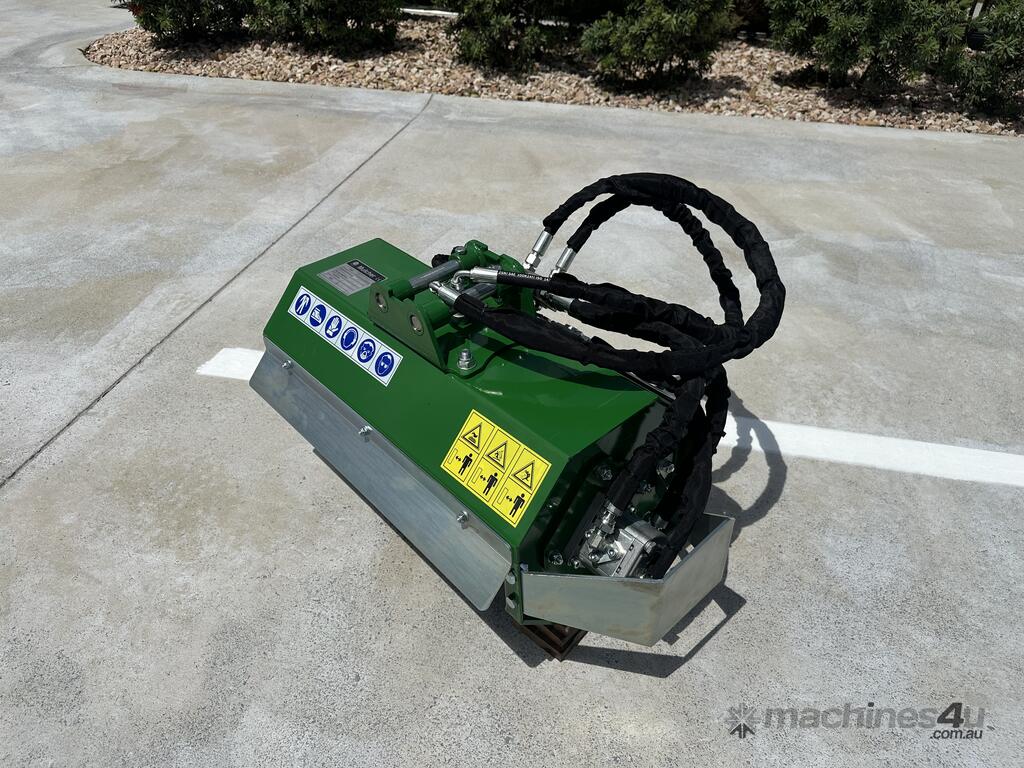

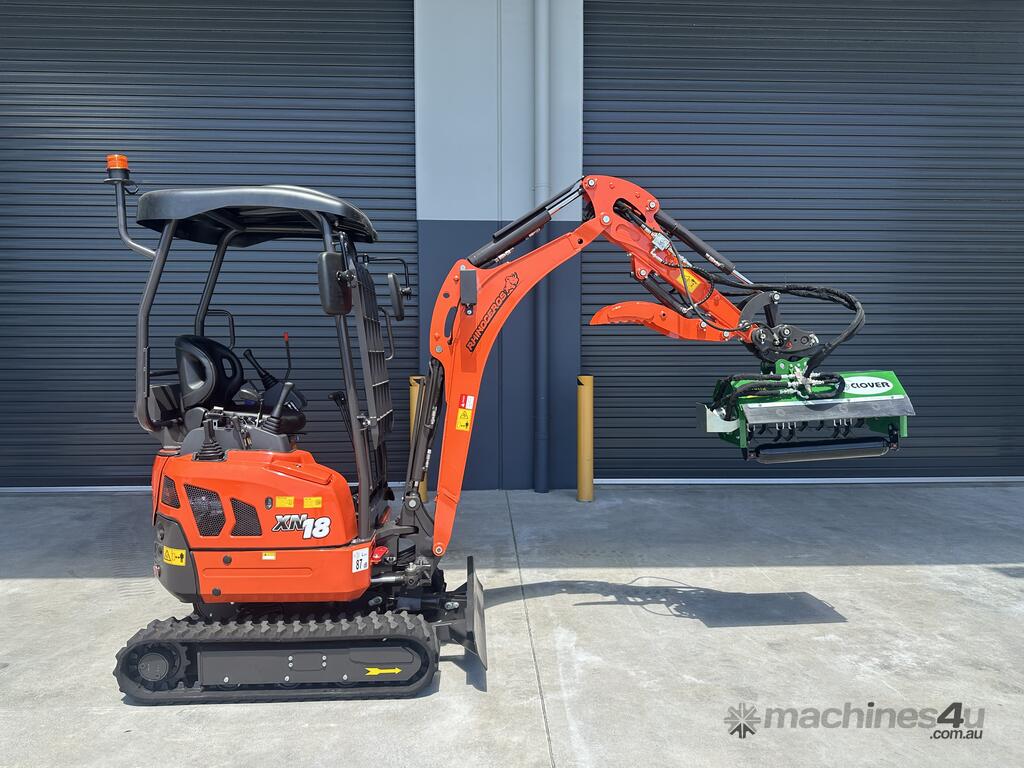

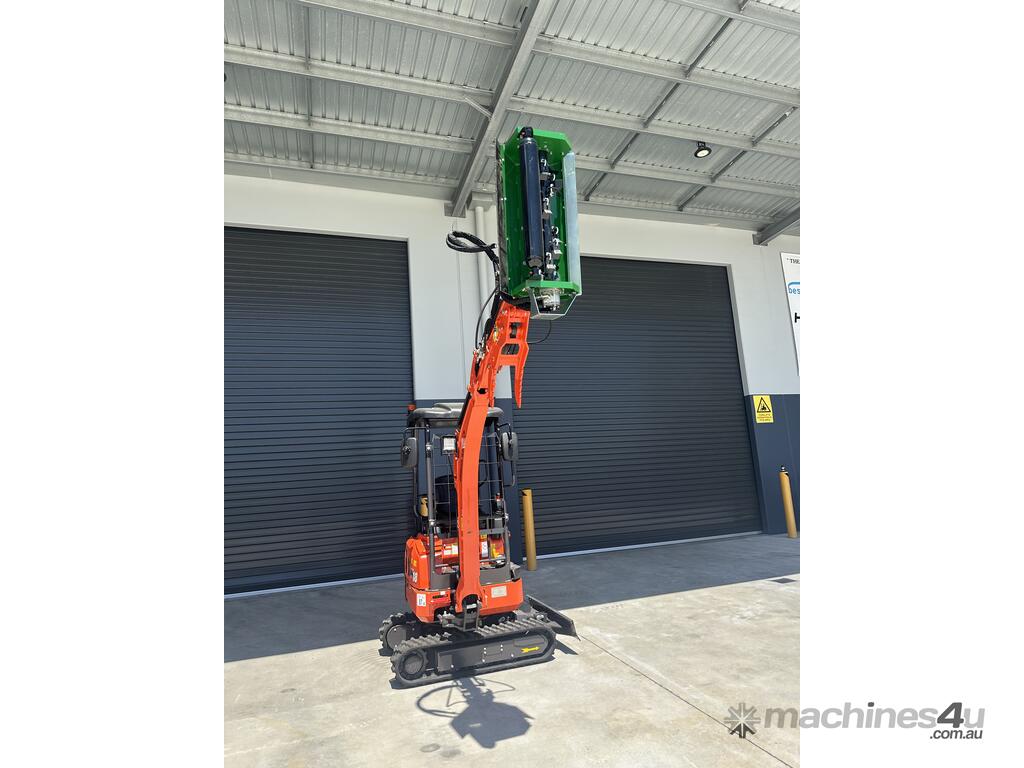

NEW CLOVERAGRI C SERIES MINI EXCAVATOR MOWER HEAD

C Series Mini Excavator Mower Head, Hydraulic, 3-Way Flow Control Valve - 2 x Hydraulic Hose Italian motor - Cloveragri

C60SC1 $4,990.00 inc gst ( hitch suit Chinese mini excavators 1.2T to 1.5T min 25L/min hydraulic flow )
C80SC2 $5,990.00 inc gst ( hitch suit Chinese mini excavators 1.7T to 2T min 35L/min hydraulic flow )
C80SC2 $5,990.00 inc gst ( hitch suits Kubota U17-3 and other similar models )

The Cloveragri C Series mini excavator mower heads offer versatile compatibility with various excavators up to 2T, ensuring adaptability for a wide range of applications. They feature advanced hydraulic components, and a robust construction, making them a reliable choice for efficient and precise operations in diverse conditions.

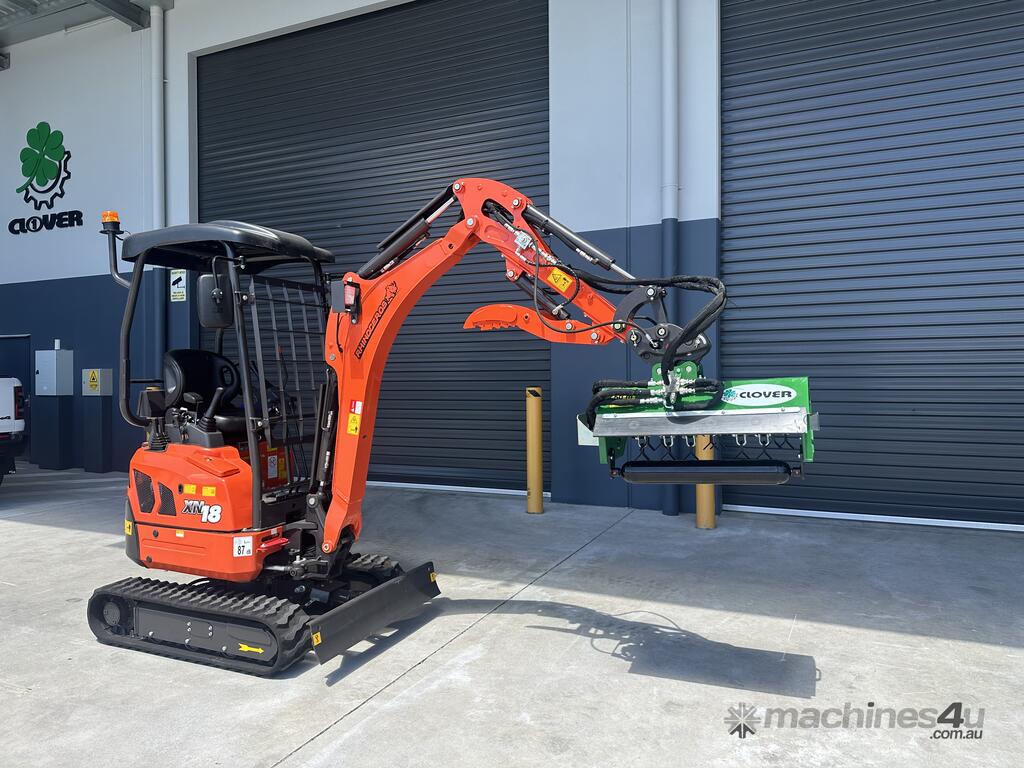

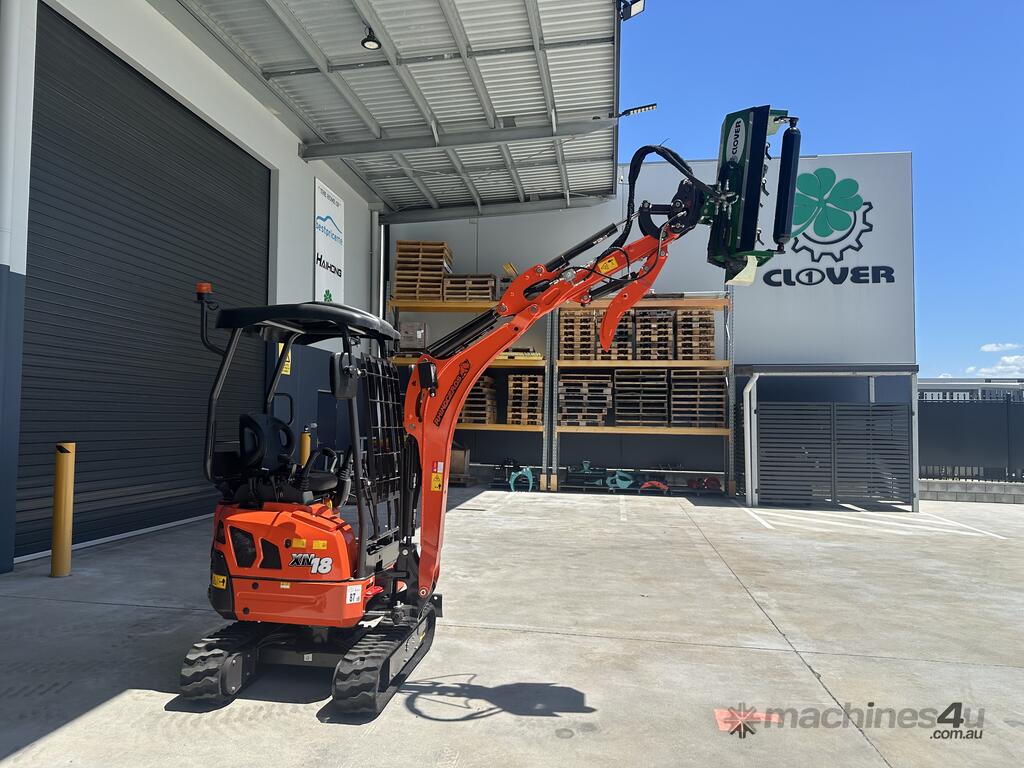

Mower Heads for mini excavators from 1.2T - 2T.

Suitable for : brush-cutter for brambles, bushes, ditches, banks, embankments, branches etc.

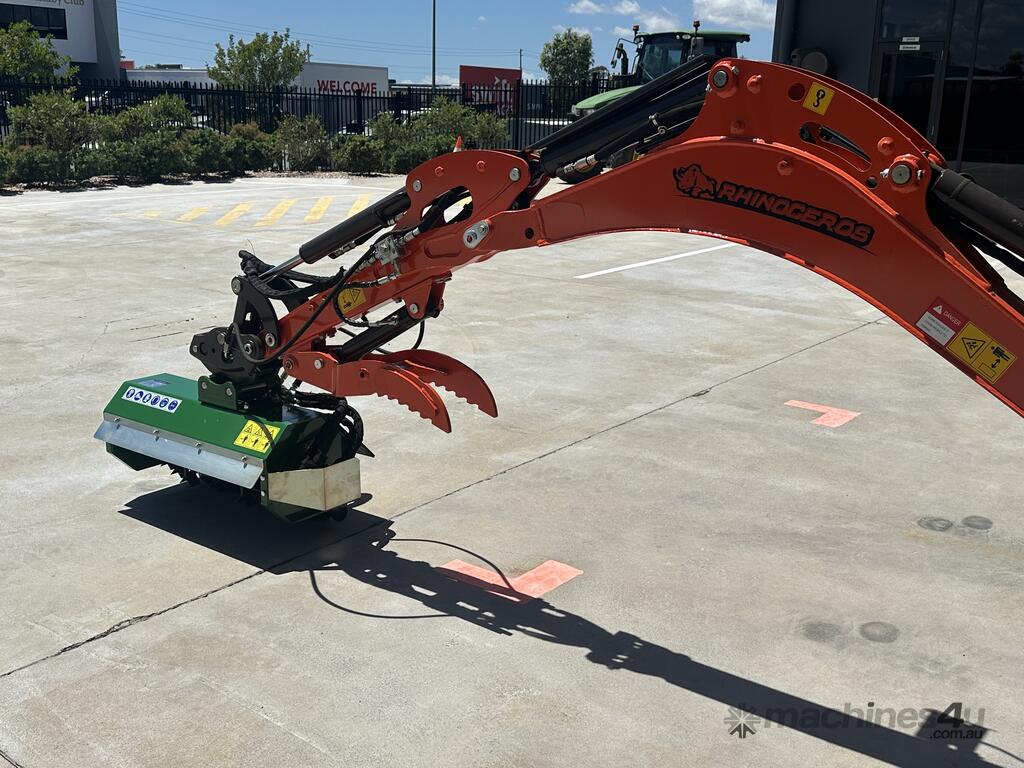

Suitable for Mini-excavator brands as Haihong, Rhinoceros, Various Chinese mini excavators, Caterpillar, Takeuchi, Kubota, JCB, Case, Komatsu, Kubota, Yanmar, Rhinoceros etc.

Requirements for the operating machine:

a) Preferable with double gear pump or piston pump:

1 for tracking

1 for operation of the mulcher (C60 pump capacity at least 25 to 30 L/min)

b) The rotation of the knives goes in both directions (a double-acting pedal is necessary).

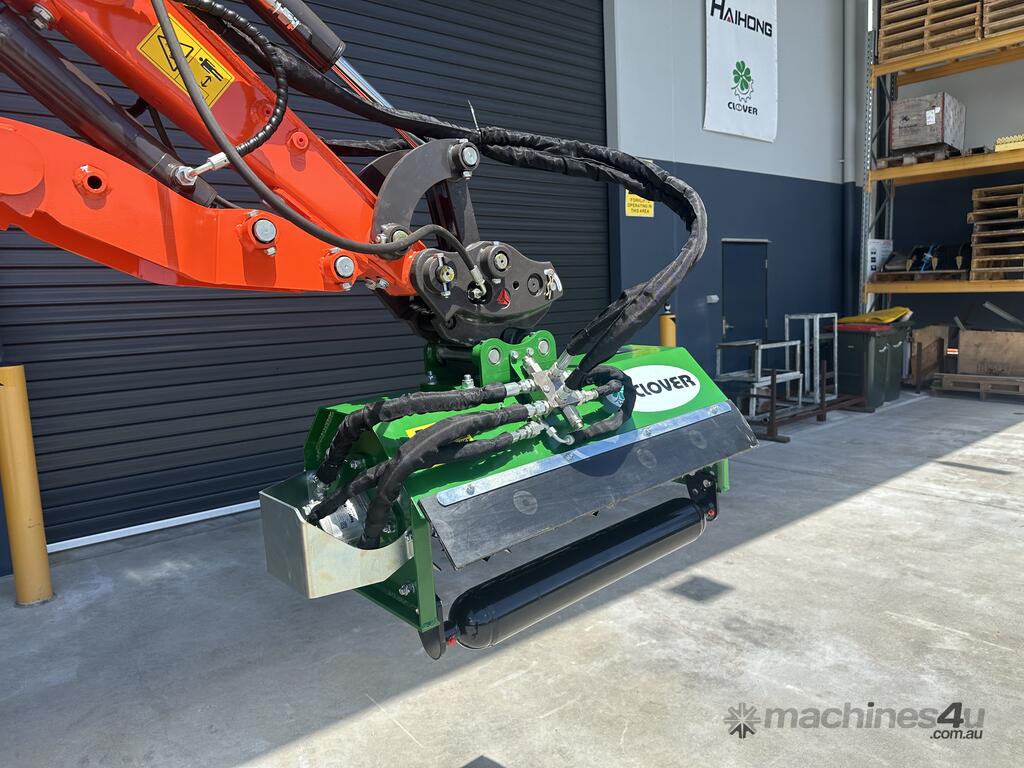

d) C60SC1 - connecting hitch supplied suit 25mm pins / 85mm pin centres / 91mm between the ears. ( fit most Chinese mini excavators 1.2T to 1.5T, hydraulic cooler required min 25L/min )

d) C80SC2 - connecting hitch supplied suit 30mm pins / 127mm pin centres / 105mm between the ears.( fit most Chinese mini excavators 1.8 to 2T, Hydraulic cooler required, 40L/min )

d) C80 _connecting hitch supplied suit 30mm pins / 85mm pin centres / 95mm between the ears.( fit Kubota U17-3 mini excavators 1.7T and similar models Hydraulic cooler required, 40L/min )

e) 2 x hydraulic hose designed valve with anti-cavitation. ( 3rd case drain hose not required. )



OVERVIEW

The C Series Light Flail Mower Heads offer remarkable versatility by seamlessly connecting to a wide array of excavators, making them an invaluable tool for a diverse range of applications. Whether you're working with compact or larger excavators, these flail heads adapt with ease.

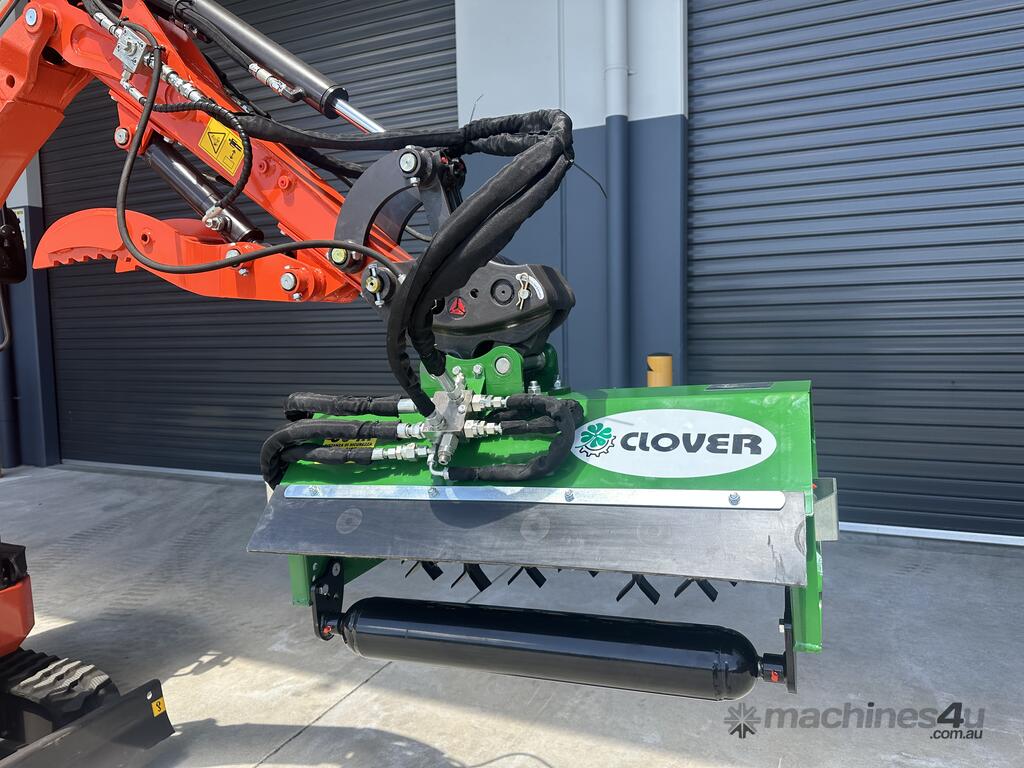

In addition to their adaptability, light flail heads incorporate a host of advanced features designed to enhance their performance and longevity. These features include a pressure relief and anti-cavitation valve, which safeguards the hydraulic system from potential damage, ensuring uninterrupted operation. Furthermore, a 3-way flow control valve with pressure compensation provides you with precise control over the flail head's movements, allowing you to tailor its performance to specific tasks. Hydraulic pipes and connections are protected to prevent wear and tear, extending the flail head's service life even in rugged environments. With a hydraulic gear motor capable of handling up to 30 bar of back pressure during discharge, you can confidently tackle challenging tasks.



BENEFITS & FEATURES
Versatile compatibility with various excavators up to 2t for diverse applications.
Seamless adaptation to compact mini excavators
Enhanced performance and system protection with a pressure relief and anti-cavitation valve.
Customisable movements using a 3-way flow control valve with pressure compensation.
Durability in rugged environments with protected hydraulic components.
Efficient handling of challenging tasks, thanks to a robust hydraulic gear motor.

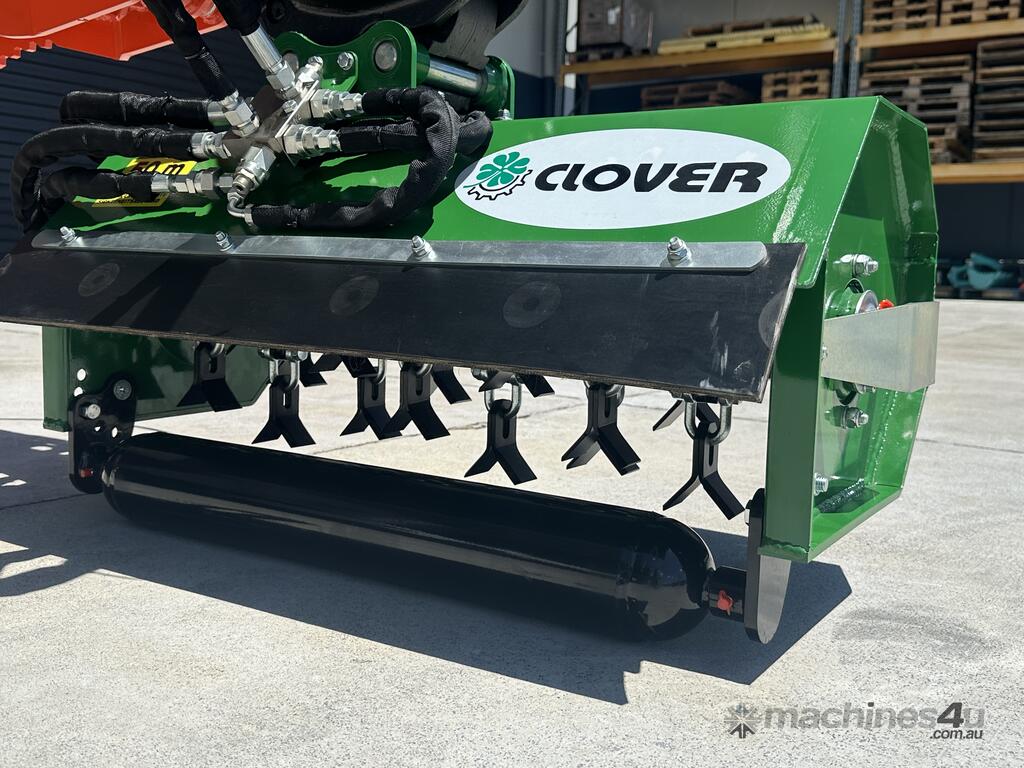

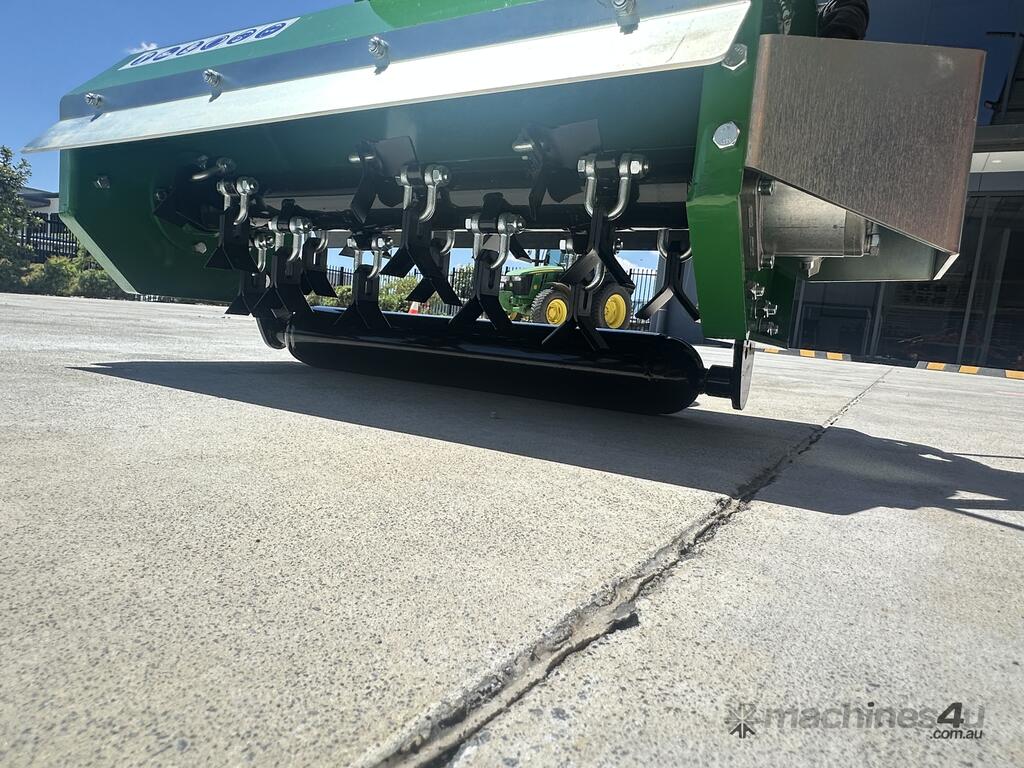

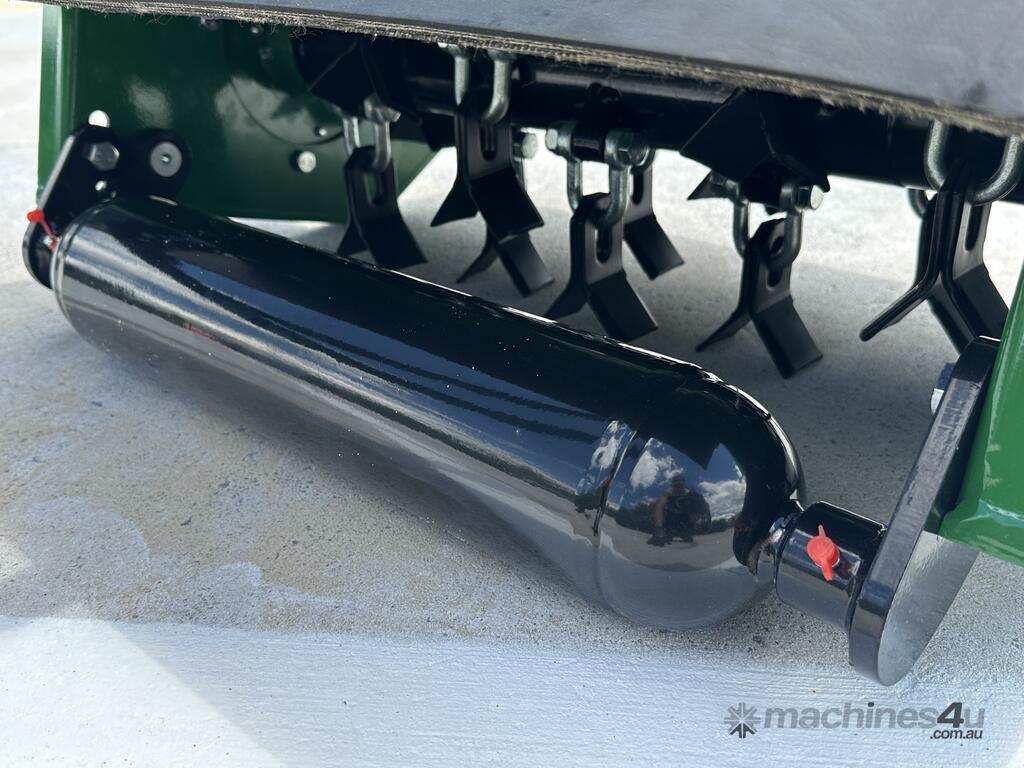

Adjustable rear roller.

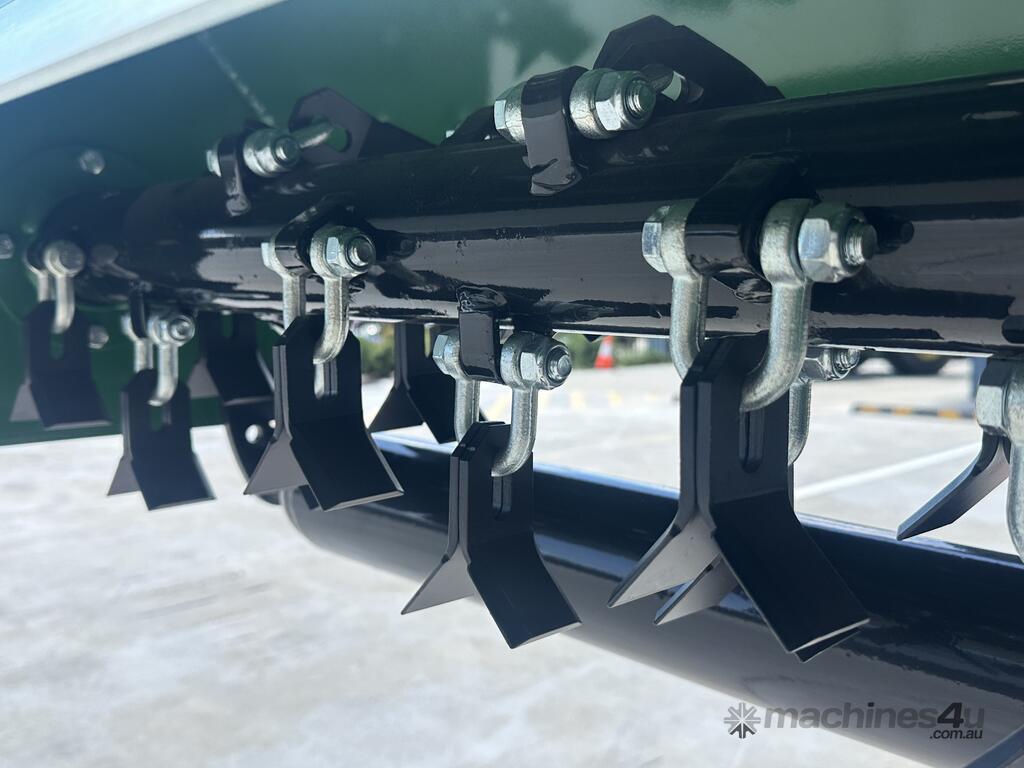

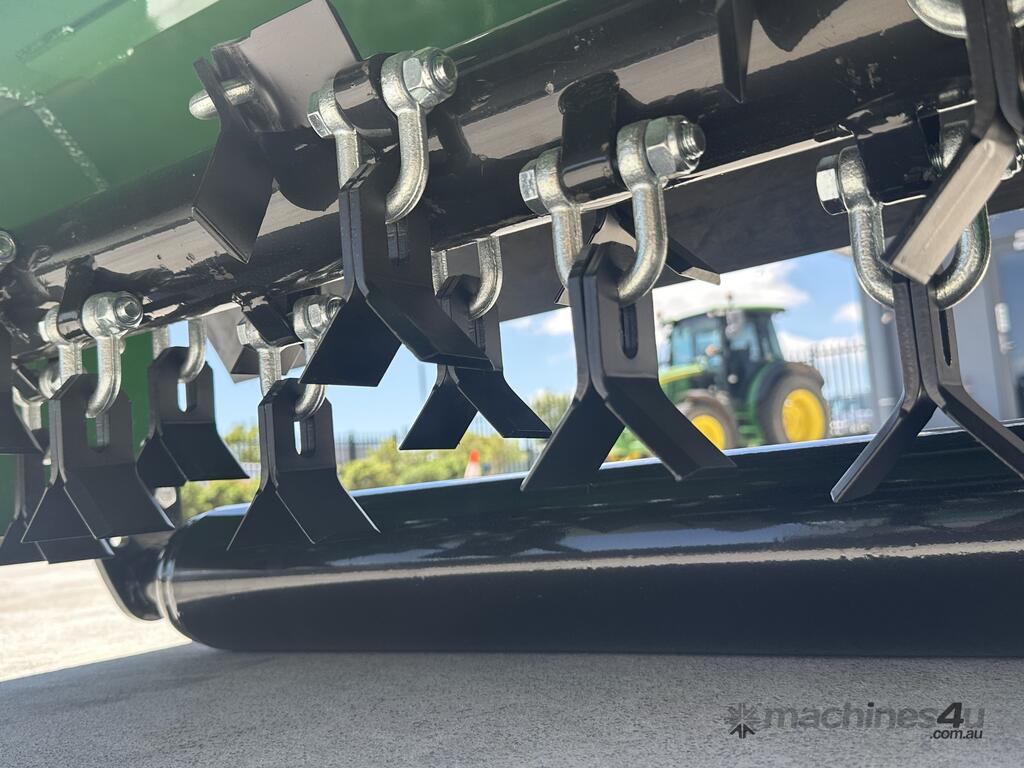

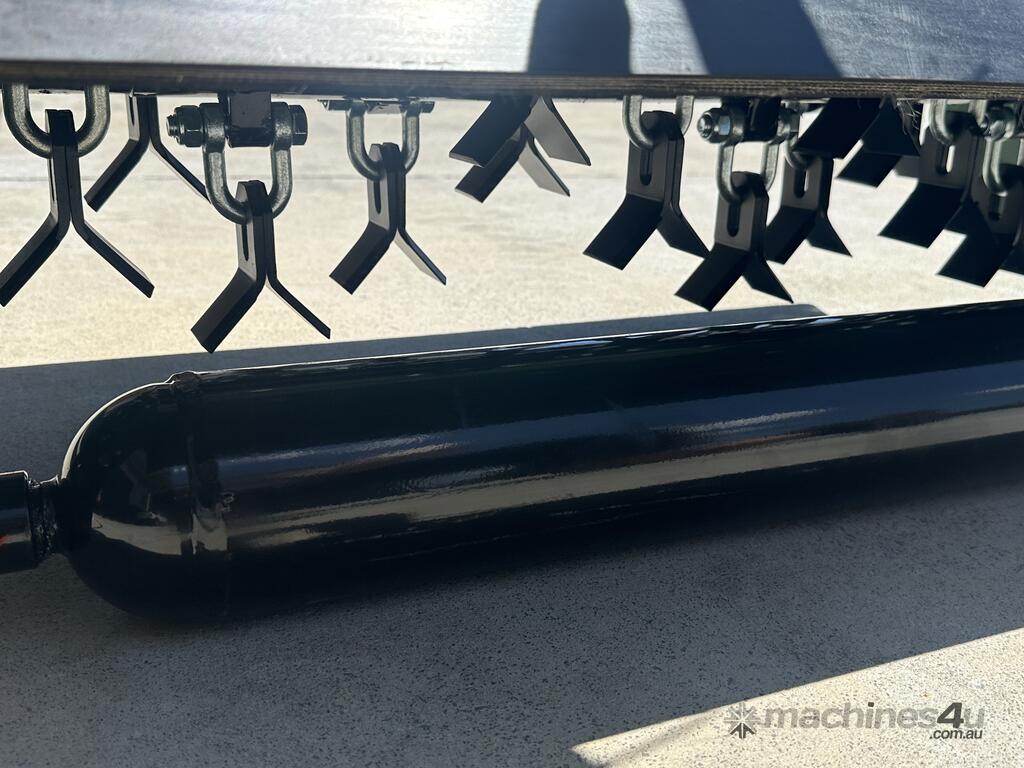

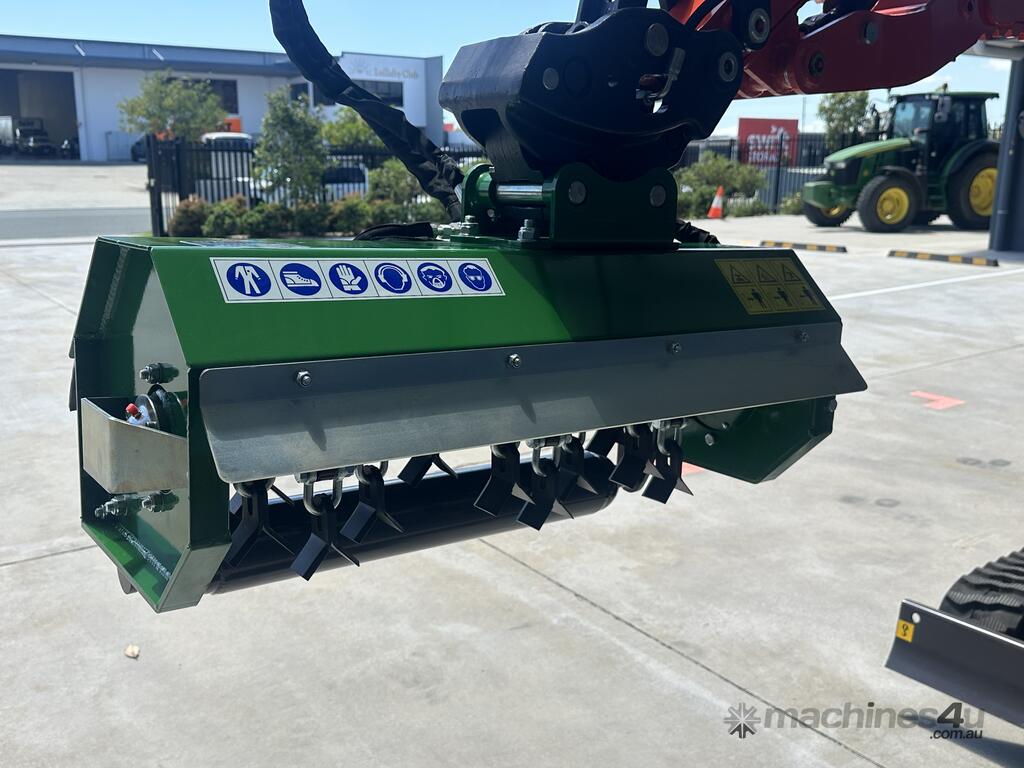

Y-Blades.

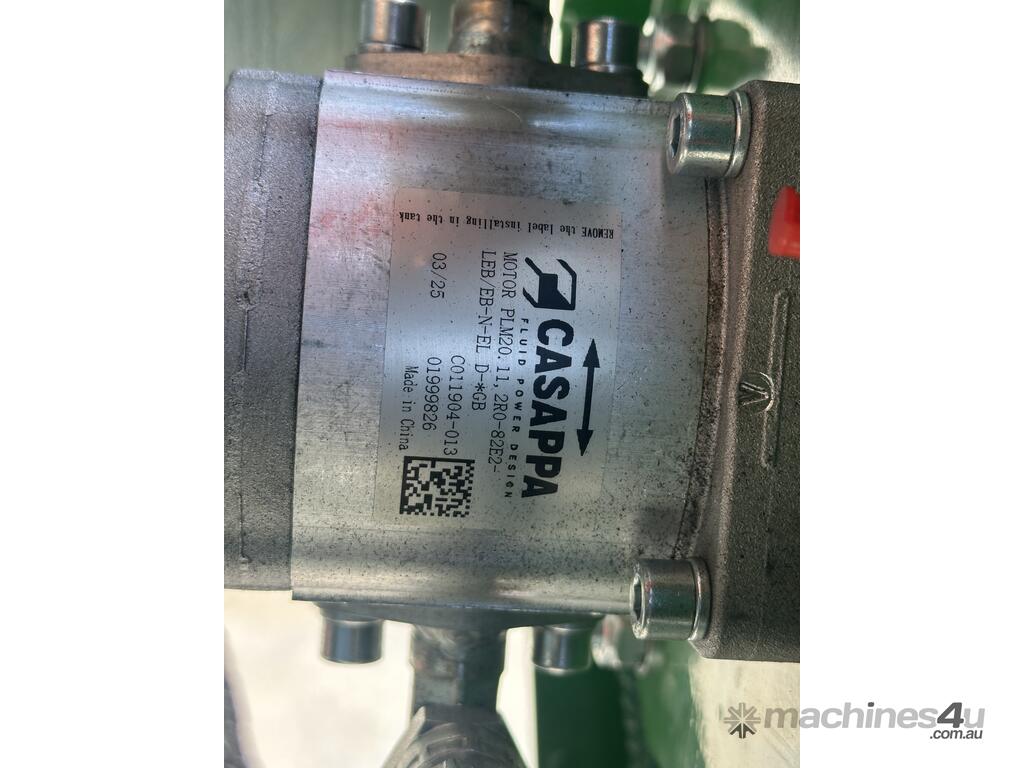

Casappa Pump - Italian designed - High Quality
