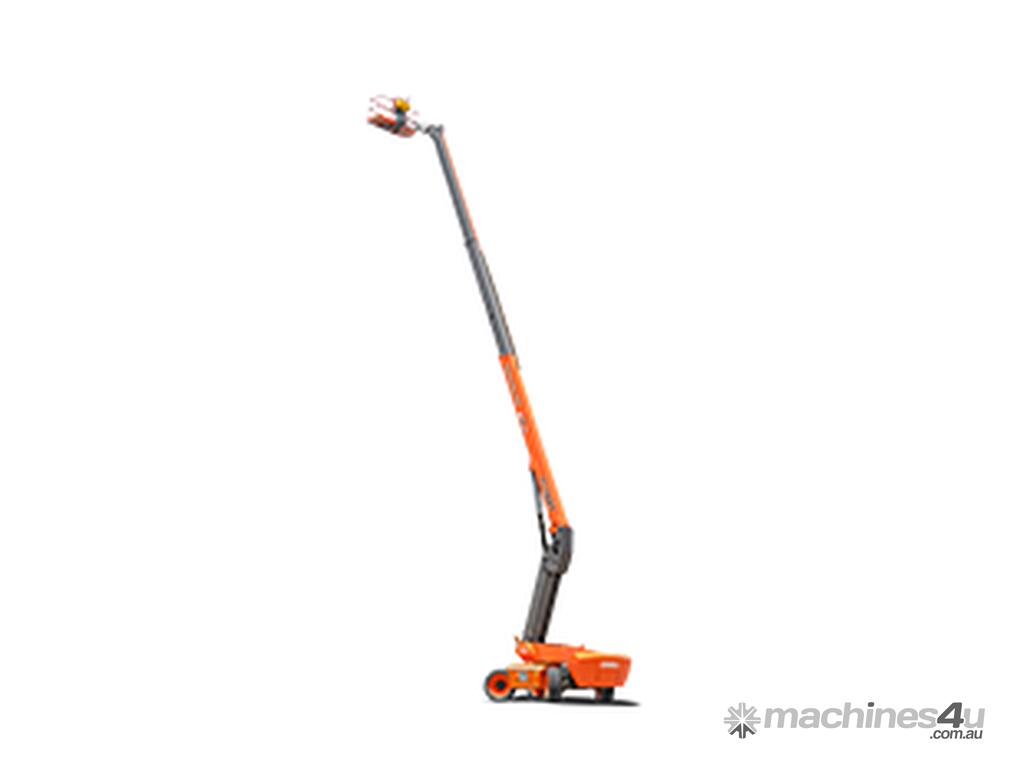

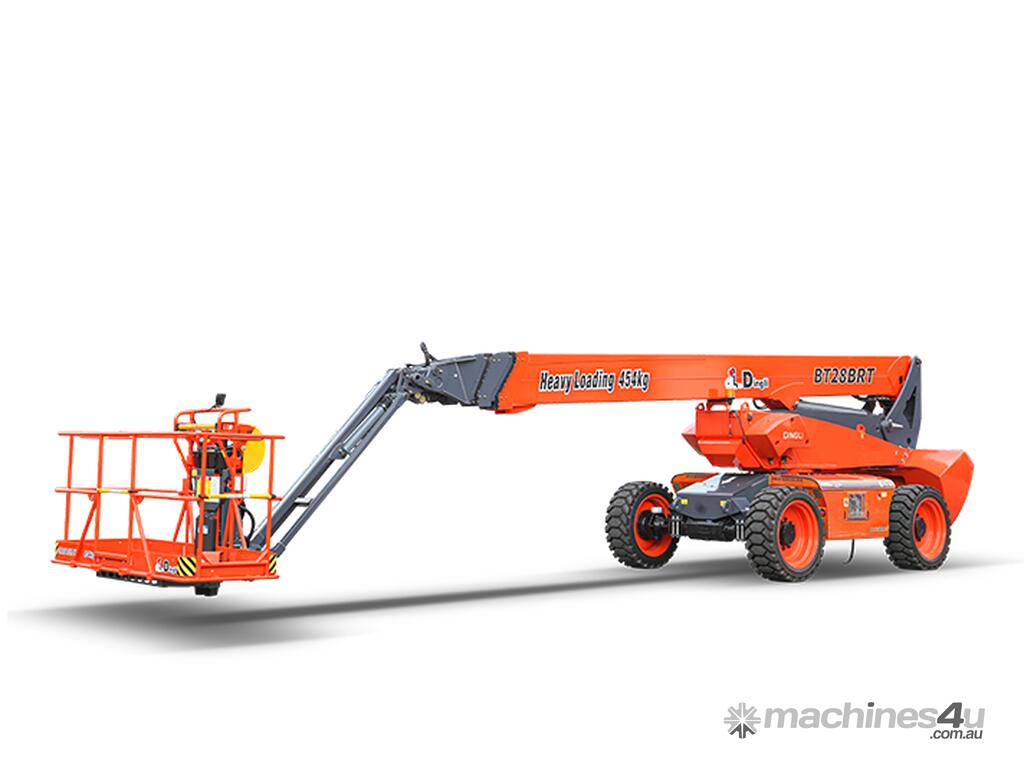

NEW DINGLI BT28RT (87ft) Telescopic Boom *** HIGH CAPACITY ***

Dingli EWP

Dingli is currently the largest supplier of EWP's in the Australian market, and the 3rd largest supplier in the world. Leading the charge with quality and innovation, Dingli products will not disappoint.

Product Highlights & Benefits
- Large load, strong power, easy maintenance, high chassis, energy saving, stable control, and easy transport
- Family modular design: entire series developed on the same platform base, with 90% of main components and over 95% of structural parts common across models – lowering storage costs and making maintenance more efficient
- Unique design lowers the overall center of gravity, improving machine stability
- All components positioned on both sides of the chassis for easier servicing
- Integrated four-wheel drive system with axles for superior off-road performance

Why Choose Dingli?
- Global Top 3 Aerial Work Platform Manufacturer
- Australia’s New Market Leader in Aerial Access Equipment
- More than 80 different specifications available
- Over 300 new patents, driving innovation with global scientific research
- Strong technical support services with full national capability

Additional Benefits
- Shipping Australia-wide
- Affordable finance and repayment packages
- Demonstrations and private viewings available
- Reliability, innovation, and safety at the core of every machine

???? Call us today!

Dimensions
- Max Working Height: 28.60 m
- Max Platform Height: 26.60 m
- Max Operating Range (+0.6 m): 21.90 m
- Max Platform Range: 21.30 m
- Overall Length (Stowed): 11.66 m
- Overall Length (Transport): 11.82 m
- Overall Width (Stowed): 2.50 m
- Overall Width (Transport): 2.28 m
- Overall Height (Stowed): 2.87 m
- Overall Height (Transport): 2.59 m
- Platform Size (L × W): 2.44 m × 0.91 m
- Turntable Tailswing: 1.61 m
- Ground Clearance: 0.41 m
- Wheelbase: 2.80 m

Performance
- Safe Working Load (S.W.L): 454 kg
- Max Occupants: 3
- Gradeability: 45%
- Travel Speed (Stowed): 6.0 km/h
- Travel Speed (Raised): 1.1 km/h
- Max Working Slope: X-5° / Y-5°
- Turret Rotation: 360° continuous
- Platform Rotation: 180°
- Jib Movement: 135°
- Main Boom Maximum Angle: 68°
- Turning Radius (Inside/Outside): 1.87 m / 3.22 m
- Tyres: 385/45-28

Weight
- Overall Weight: 18,400 kg

Power
- Emergency Power System: 12V
- Diesel Engine: Deutz TD2.9 L4 / 55.4 kW
- Diesel Tank: 135 L
- Hydraulic Tank: 165 L
