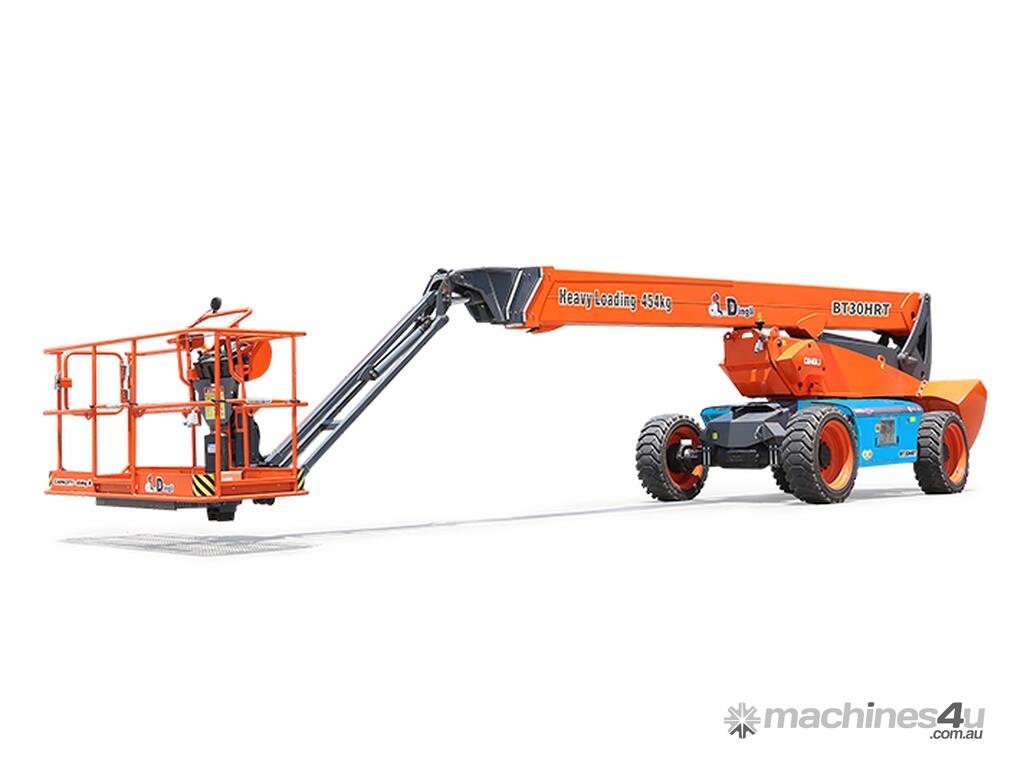

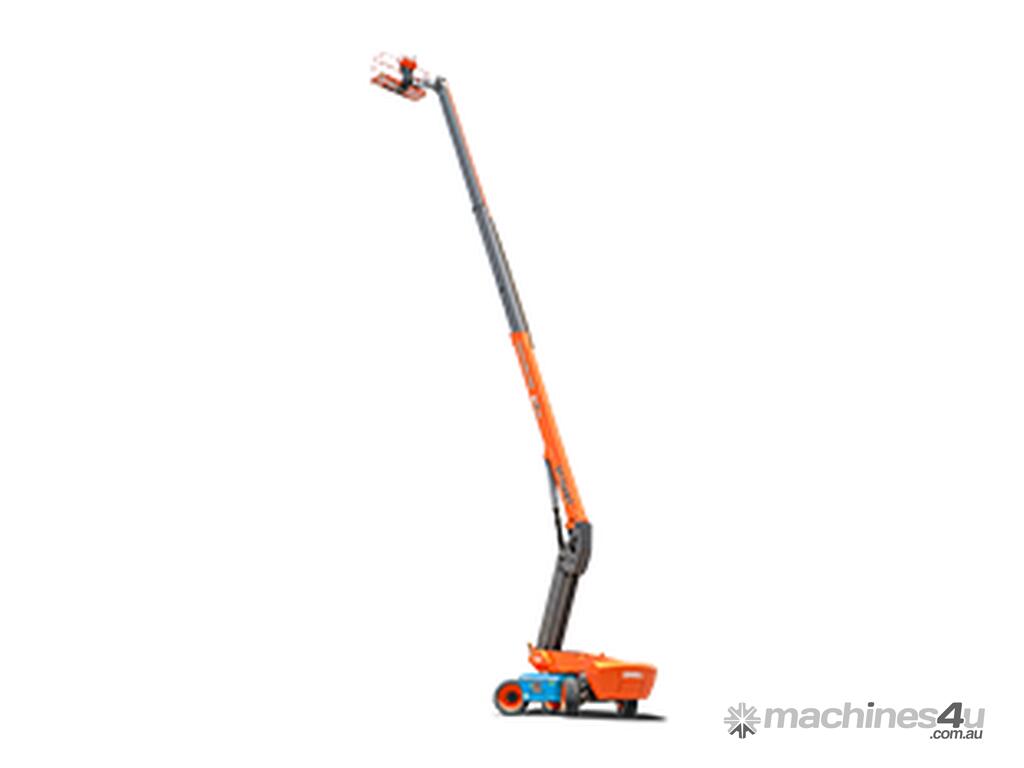

NEW DINGLI BT30HRT (92ft) TELESCOPIC BOOM LIFT ***HYBRID MODEL***

Dingli EWP

Dingli is currently the largest supplier of EWP’s in the Australian market, and the 3rd largest supplier in the world. Leading the charge with quality and innovation, Dingli products will not disappoint.
- Product Highlights & Benefits
- Large load capacity, strong power, easy maintenance, high chassis, energy saving, stable control, and easy transport
- Family modular design: entire series developed on the same platform base, with 90% of main components and over 95% of structural parts common – lowering storage costs and improving maintenance efficiency
- Range-extended hybrid boom series equipped with an 80V (420Ah) lithium battery pack; built-in universal range extender generates electricity when no external charging facilities are available
- With a tank of fuel, the range extender recharges the lithium batteries, enabling up to 30 days of continuous on-site use
- Unique design lowers the center of gravity, improving machine stability
- All components located on both sides of the chassis for easier maintenance
- Integrated four-wheel drive system with axles for superior off-road performance

Dimensions
- Max Working Height: 30.20 m
- Max Platform Height: 28.20 m
- Max Operating Range (+0.6 m): 23.00 m
- Max Platform Range: 22.40 m
- Overall Length (Stowed): 12.30 m
- Overall Length (Transport): 12.00 m
- Overall Width (Stowed): 2.50 m
- Overall Width (Transport): 2.28 m
- Overall Height (Stowed): 2.87 m
- Overall Height (Transport): 2.59 m
- Platform Size (L × W): 2.44 m × 0.91 m
- Turntable Tailswing: 1.61 m
- Ground Clearance: 0.41 m
- Wheelbase: 2.80 m

Performance
- Safe Working Load (Unrestricted/Restricted): 300 kg / 454 kg
- Max Occupants: 3
- Gradeability: 30%
- Travel Speed (Stowed): 6.0 km/h
- Travel Speed (Raised): 1.1 km/h
- Max Working Slope: X-5° / Y-5°
- Turret Rotation: 360° continuous
- Platform Rotation: 180°
- Jib Movement: 135°
- Main Boom Maximum Angle: 68°
- Turning Radius (Inside/Outside): 1.87 m / 3.22 m
- Tyres: 385/45-28

Weight
- Overall Weight: 18,900 kg

Power
- Lithium Battery: 420Ah / 80V
- Emergency Power System: 12V
- Driving Motor: 54VAC / 18kW
- Range Extended Engine: Kubota Z482 / 9.8 kW
- Diesel Tank: 110 L
- Hydraulic Tank: 165 L
