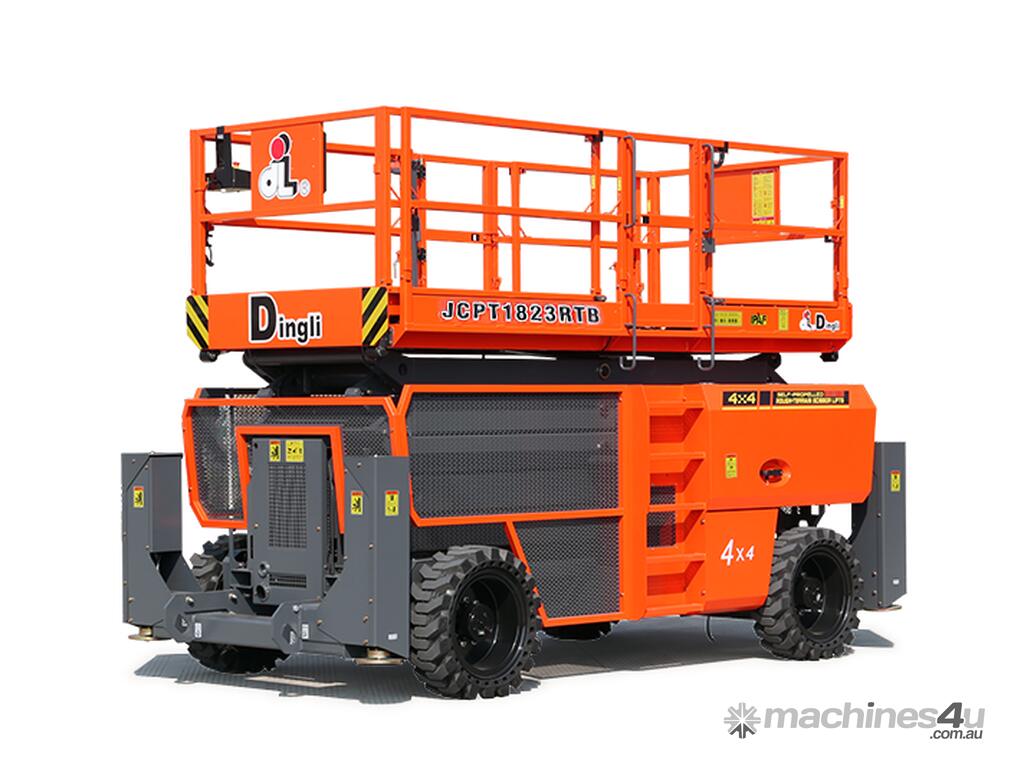

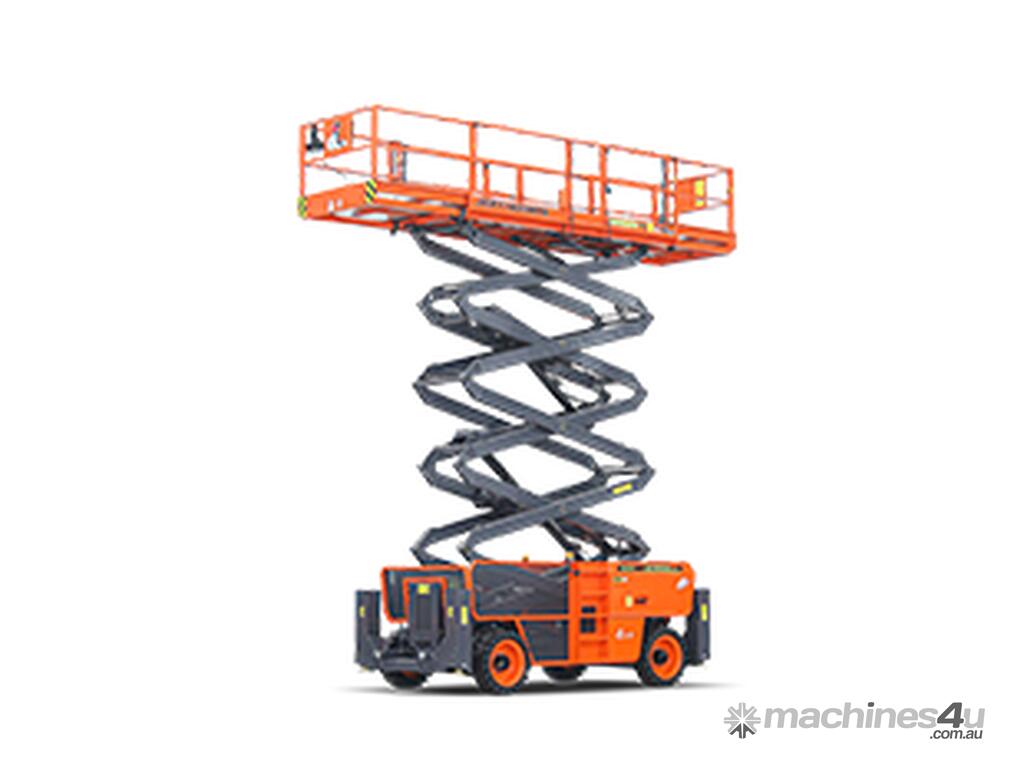

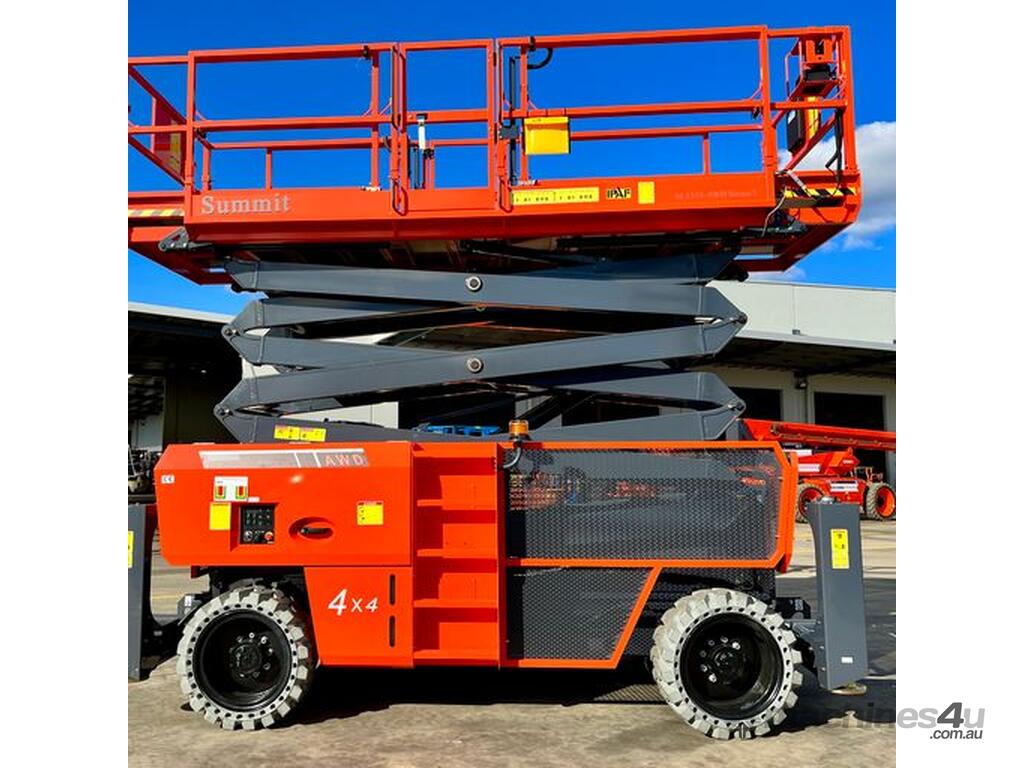

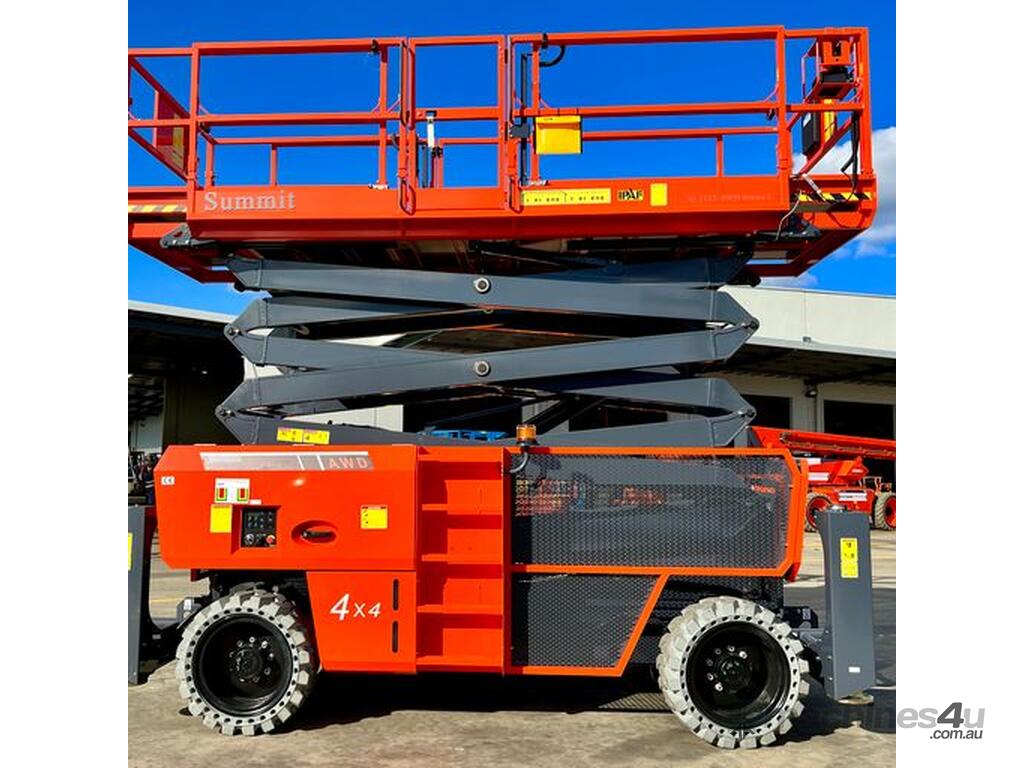

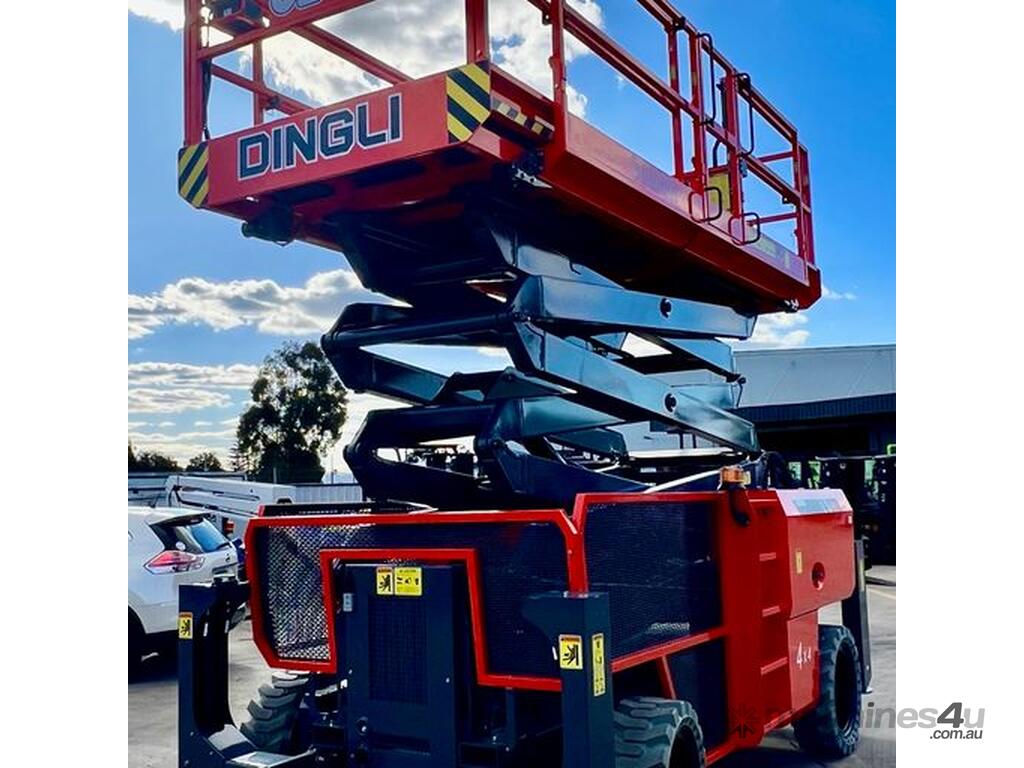

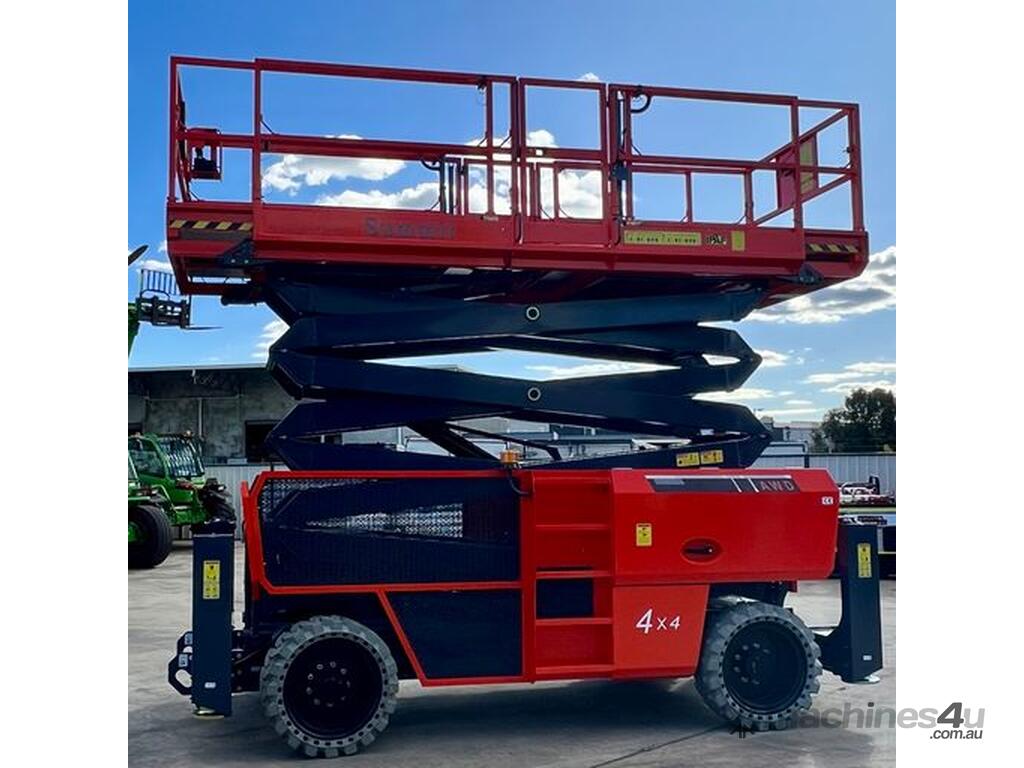

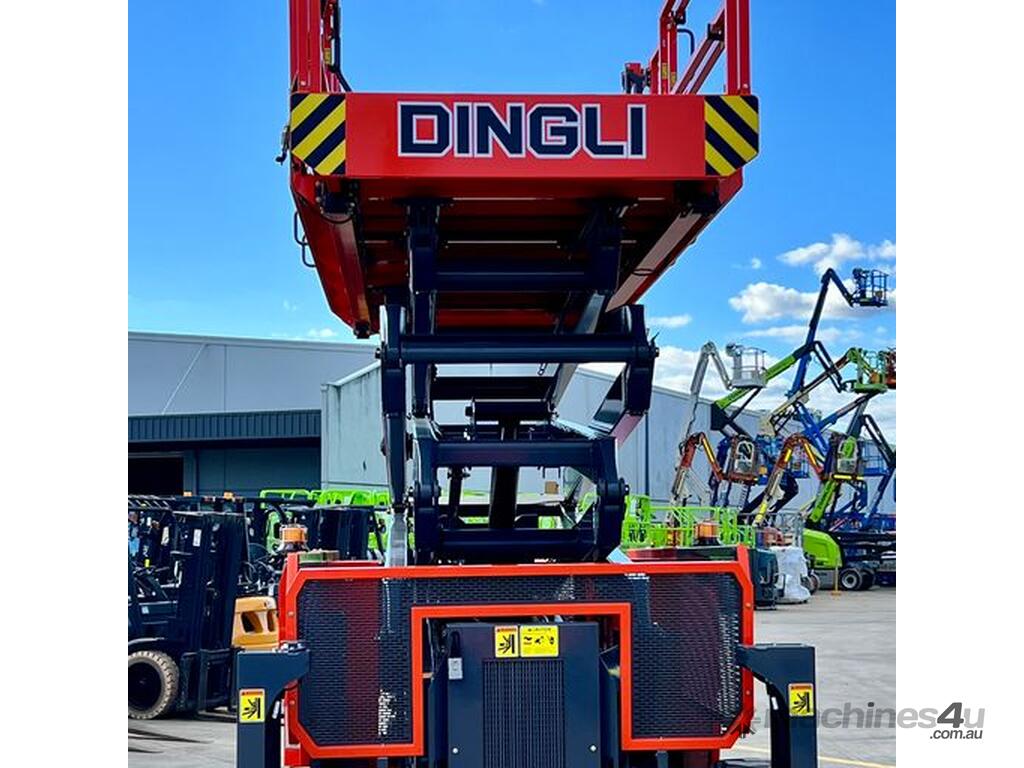

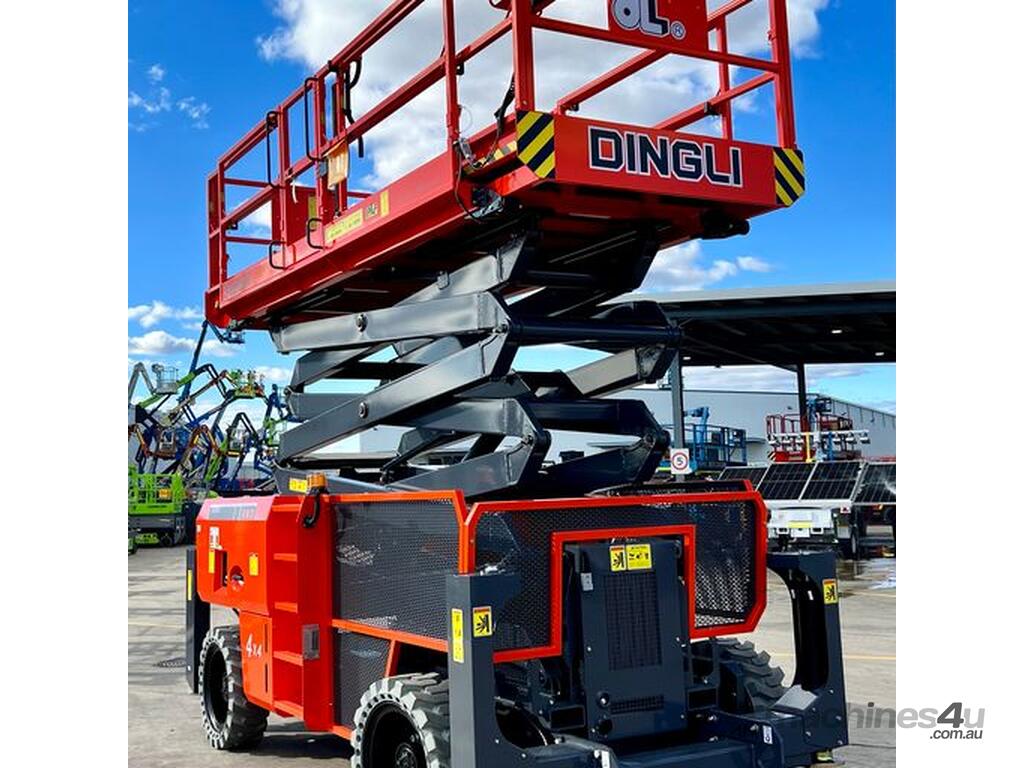

NEW DINGLI SL1623AWD (5390RT) ROUGH TERRAIN SCISSOR LIFT

Dingli EWP

Dingli is currently the largest supplier of EWP’s in the Australian market, and the 3rd largest supplier in the world. Leading the charge with quality and innovation, Dingli products will not disappoint.

Product Highlights & Benefits
- Strong off-road ability
- Large extension platform with wide working range
- Automatic hydraulic leveling outriggers for good stability
- Folding guardrails for easy transportation
- Driving speed of 6.1 km/h for high efficiency

Dimensions
- Max Working Height: 18.00 m
- Max Platform Height: 16.00 m
- Overall Length: 4.88 m
- Overall Width: 2.27 m
- Overall Height (Rails Up): 3.19 m
- Overall Height (Rails Down): 2.49 m
- Platform Size (L × W): 3.98 m × 1.83 m
- Platform Extension Size: 1.43 m / 1.16 m
- Ground Clearance (Stowed/Rail): 0.30 m
- Wheelbase: 2.86 m
- Turning Radius (Inside/Outside): 2.35 m / 5.20 m
- Tyres: 33×12-20

Performance
- Safe Working Load (S.W.L): 680 kg
- S.W.L on Extension: 227 kg
- Max Occupants: 4
- Gradeability: 40%
- Travel Speed (Stowed): 6.1 km/h
- Travel Speed (Raised): 1.0 km/h
- Max Working Slope: X-2° / Y-3°
- Up/Down Speed: 75 / 74 sec

Weight
- Overall Weight: 8,590 kg

Power
- Diesel Engine: 36.8 kW / 2700 rpm
- Diesel Tank: 100 L
- Hydraulic Tank: 130 L
