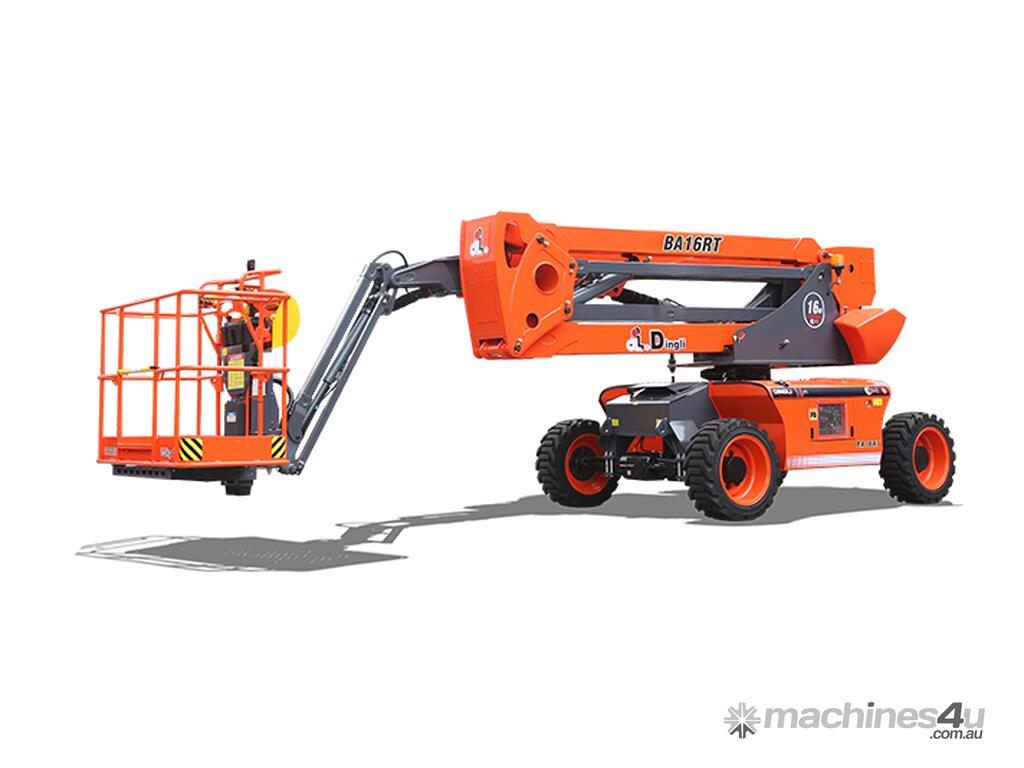

NEW Dingli BA16RT (46ft) Articulating Boom Lift

The Dingli BA16RT is a 46ft diesel articulating boom lift designed for construction, maintenance and industrial access. It provides a working height of 52ft 9in (16.07m), 28ft 8in (8.74m) of horizontal outreach and a 1.50m jib for improved up-and-over capability. Its lowered centre of gravity enhances stability and the axle-integrated 4WD system delivers strong rough-terrain performance.

Features
- Platform Height: 46ft 2in (14.07m)
- Horizontal Outreach: 28ft 8in (8.74m)
- Up and Over Height: 23ft 9in (7.25m)
- Platform Size: 1.83m × 0.79m
- Jib: 1.50m articulating
- Platform Rotation: 180°
- Turret Rotation: 360° continuous
- Drive: 4WD with oscillating axle
- Drive Speed: 6.0km/h stowed, 1.1km/h raised
- Turning Radius: 2.92m inside, 4.29m outside
- Tyres: 315/55 D20
- Power: Kubota D1105, 18kW

Dimensions
- Length: 7.05m stowed, 5.19m transport
- Width: 2.33m
- Height: 2.55m stowed, 2.57m transport
- Ground Clearance: 0.31m
- Wheelbase: 2.30m

Applications
- Construction and building access
- Facility and industrial maintenance
- Electrical and mechanical installation
- Outdoor repair and inspection work
