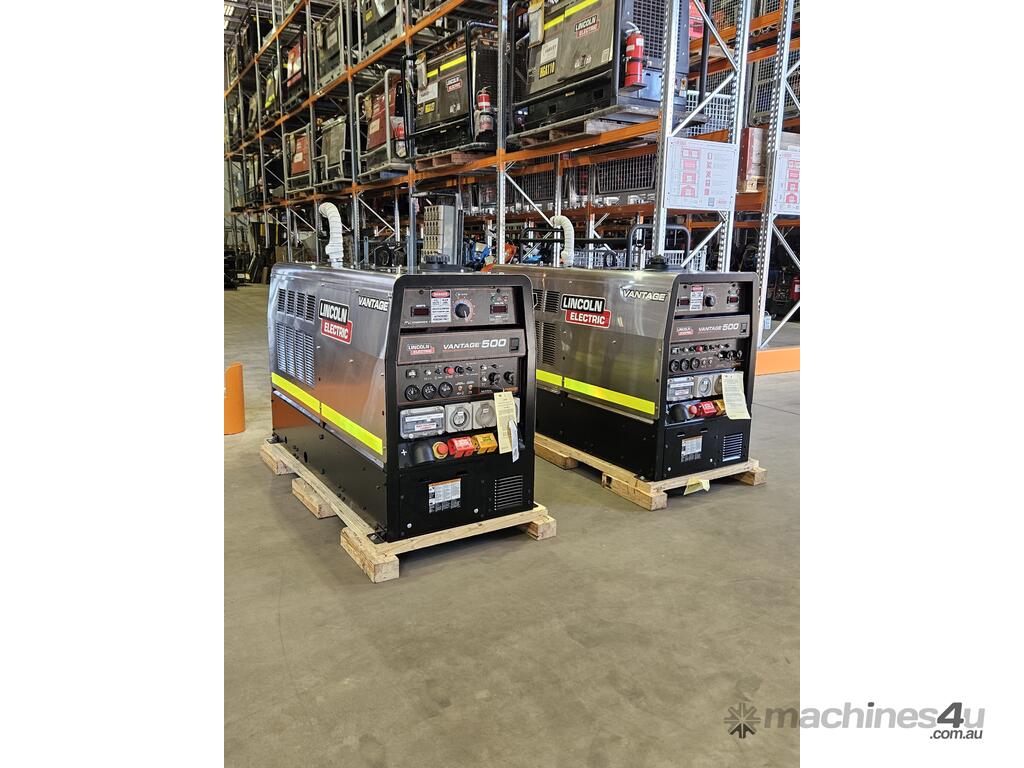

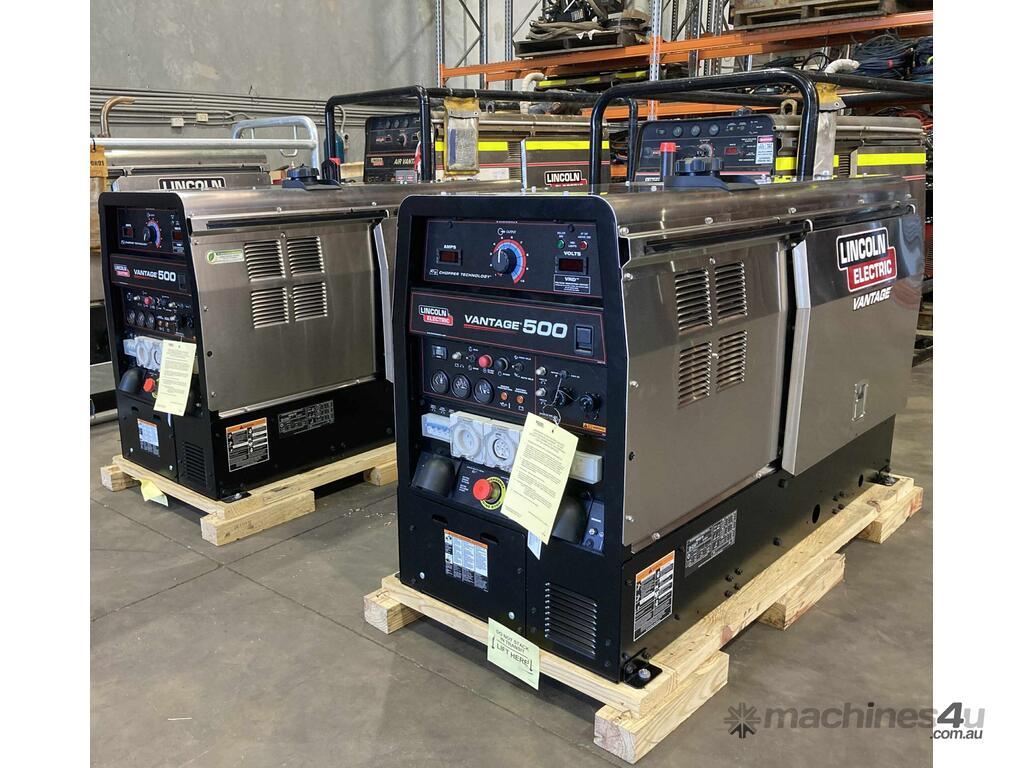

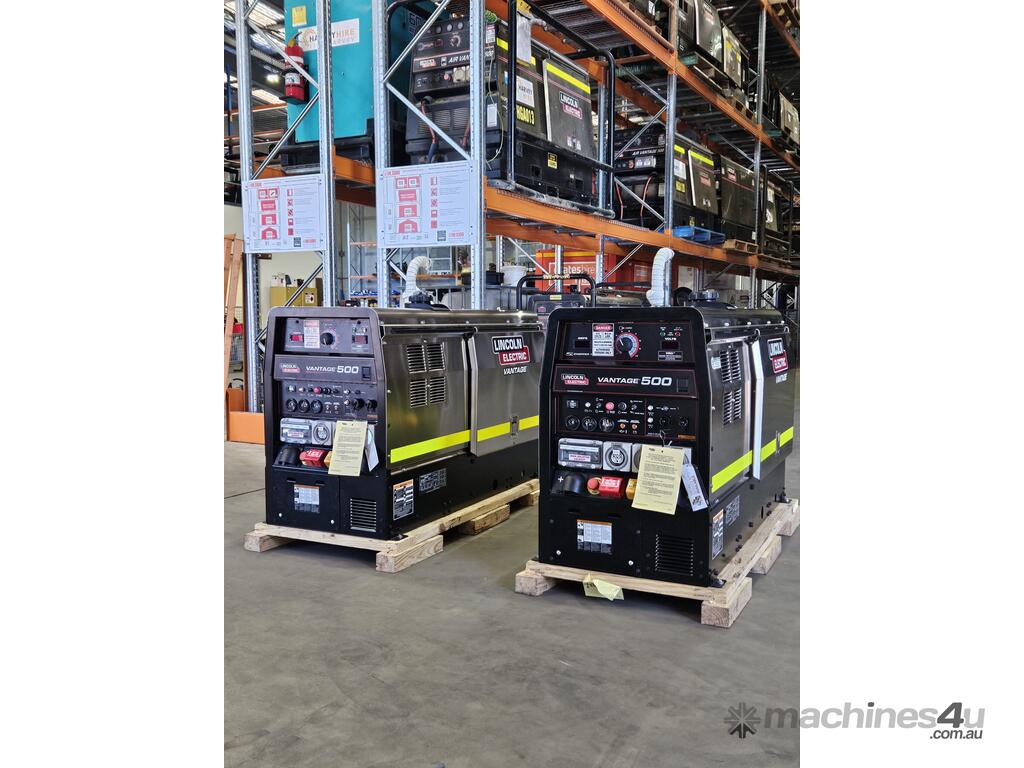

NEW Lincoln Vantage 500 (50HZ)

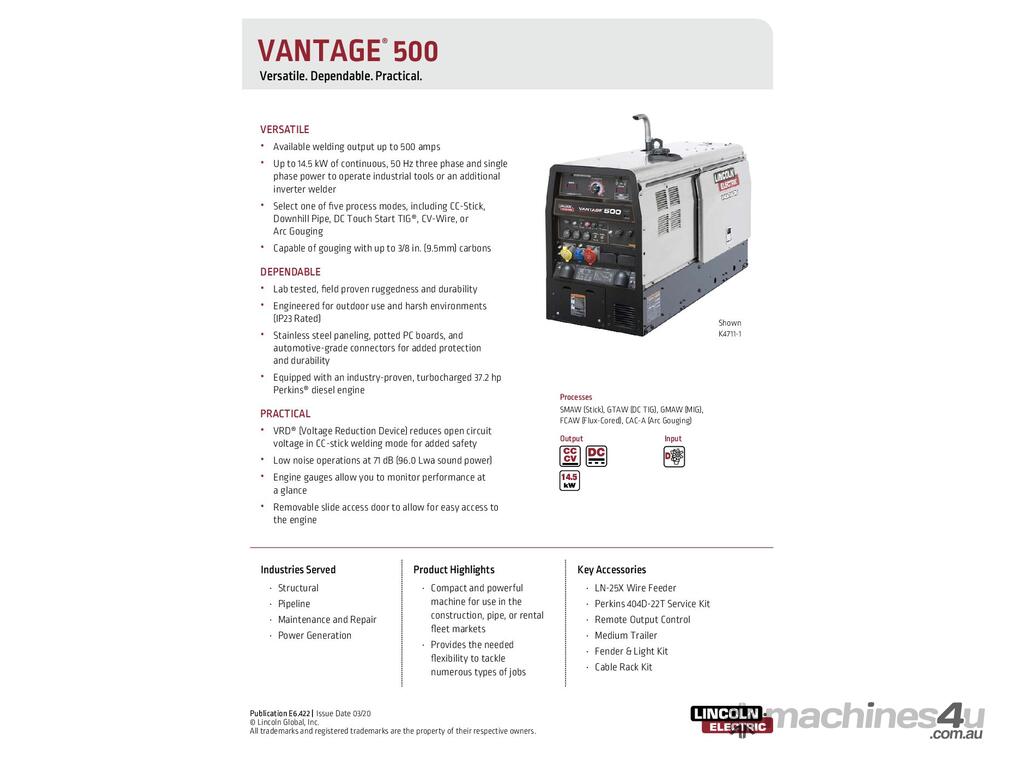

Specifications
Welding output: 400A 100% (Maximum output 500A)
Auxiliary power: 14.5KW Three Phase 415 50Hz, 6.9KW Single Phase 240V 50Hz.

VERSATILE
• Available welding output up to 500 amps
• Up to 14.5 kW of continuous, 50 Hz three phase and single
phase power to operate industrial tools or an additional
inverter welder
• Select one of ?ve process modes, including CC-Stick,
Downhill Pipe, DC Touch Start TIG®, CV-Wire, or
Arc Gouging
• Capable of gouging with up to 3/8 in. (9.5mm) carbons
DEPENDABLE
• Lab tested, Weld proven ruggedness and durability
• Engineered for outdoor use and harsh environments
(IP23 Rated)
• Stainless steel paneling, potted PC boards, and
automotive-grade connectors for added protection
and durability
• Equipped with an industry-proven, turbocharged 37.2 hp
Perkins® diesel engine
PRACTICAL
• VRD® (Voltage Reduction Device) reduces open circuit
voltage in CC-stick welding mode for added safety
• Low noise operations at 71 dB (96.0 Lwa sound power)
• Engine gauges allow you to monitor performance at
a glance
• Removable slide access door to allow for easy access to
the engine

Optional Extras
BMA Mine Upgrades.
VRD Complying with AS1674.2
Galvanized frame with drip tray and fork pockets.
Fire Extinguisher
Earth Stake
