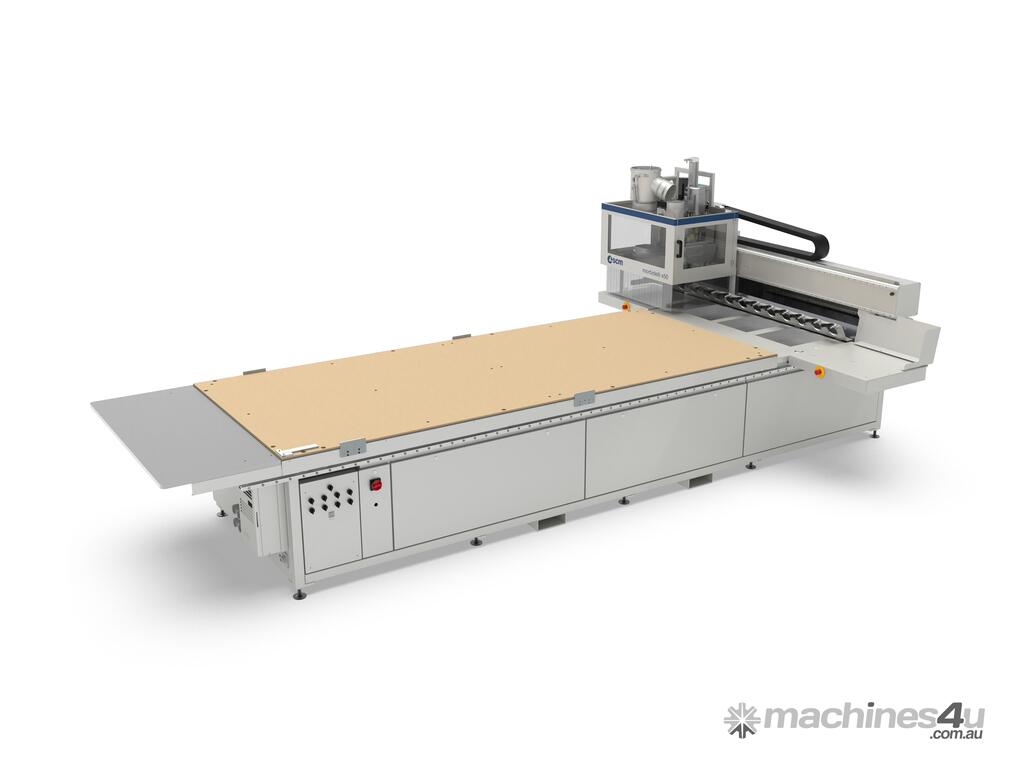

NEW Morbidelli x50 CNC 5-axis Nesting Machine

#### Its time to turn over our SCM Group Technology Centre Demo machines ####
#### First in Best Dressed local or pick up only. Price does not include delivery or installation #####


The new generation of Nesting CNC machining centres meets the needs of a market increasingly oriented towards flexible and batch-1 production, combining excellent performance, maximum configurability with increased flexibility and productivity. Every detail is designed to make any performance accessible, leading to efficiency, quality and business evolution.

ADVANTAGES

NOT ONLY NESTING:
FLEXIBLE
Any machining process without removing the spoilboard and even in 3D thanks to the X-PODs and the JQX (Just Quality eXtreme)
5-axis electrospindle.


FASTER THAN ANY OTHER MACHINE
Nesting processing at 50 m/min, saves 60% of time on drilling cycles thanks to the new drilling heads (also with double saw blade) and less than 15” for the tool change thanks to the FAST tool changer installed on the mobile unit.



MAXIMUM HOLDING:
TOP QUALITY
Thanks to the X-Vacuum System, the vacuum is condensed into the area of the worktable where the workpiece is being processed.
Perfect to process small workpieces or highly breathable materials.


HIGHLY MODULAR
The ultimate solution to simplify work: cell version, available to configure the machine no matter the material flow required.

Technical data
Working areas
X-Y axes dimensions mm 2556x1296
3156x1596
3756x1596
3756x1896
3156x2216
4356x2216

Axes
Vectorial speed X-Y axes m/min 84 (Pro-Space) 113 (Pro-Speed)
Z axis panel passage mm 150

Routing unit
Motor power (3-4 axes up to) kW (hp) 15 (20,5)
Motor power (5-axis up to) kW (hp) 13,5 (18,4)
Rotation speed (up to) rpm 24000
Available tools on tool changer (up to) positions 38

Drilling unit
Independent vertical spindles (up to) n. 21
Independent horizontal spindles (up to) n. 12
Rotation speed (up to) rpm 8000
Integrated blades n. 2
Integrated blade in X, diameter mm 125

0-90° blade unit
Motor power (up to) kW (hp) 2,2 (3)
Rotation speed (up to) rpm 6000

Auxiliary routing unit
Motor power (up to) kW (hp) 5,4 (7,4)
Rotation speed (up to) rpm 24000
