RHINOCEROS XN18 1.8T 3CYL YANMAR DIESEL SWING BOOM ADJUSTABLE TRACKS
****** INCLUDES 400MM BUCKET / HYDRAULIC THUMB GRAB & HYDRAULIC QUICK HITCH *******
The Rhinoceros Company is one of the original Chinese manufactures to produce mini excavators. The company is a major supplier of mini excavators world wide with many satisfied customers. Productions is well over the 5000 units per year ranging from .8ton to 9ton. The Rhinoceros XN18 model is fitted with a genuine Japanese built EPA approved Yanmar 3 Cylinder Diesel engine, 2 speed tracking, swing boom, smooth servo controls and piped for breaker and auger. The Rhinoceros XN18 is set to become Australia's smartest choice for a quality, reliable and most affordable 1.8 mini excavator.
Many components are imported from world leading manufacturing countrys such as the hydrualic system including USA EATON swing motor and KOREAN DONGHYUAN traveling motor.
The Rhinoceros Company takes pride in only suppliing the best quality mini excavators and understands the importance of after sales service. Happy Customers for the long term is the motto.
Buying a Rhinoceros XN18 will save you absolute thousands $$$ of a name brand mini excavator, so why pay more ?
Optional Attachments :
- 200mm Trench Bucket
- 400mm GP Bucket
- 600mm GP Bucket
- 1000mm Tilting Mud Bucket
- Hydraulic Quick Hitch
- Ripper
- Rake

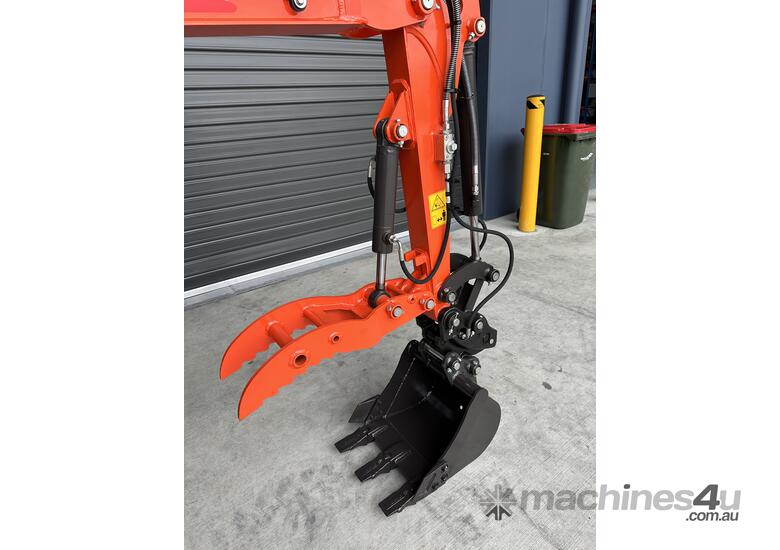

- Hydraulic Thumb
- Filter set and tool box
- Rock Breaker
Optional Trailers :
Plant Trailer 10x5 3.5T
Hydraulic Tipper 10x5 3.5T
SPECIFICATION:
Model : XN18
Manufacturer : SHANDONG RHINOCEROS ENGINEERING MACHINERY CO.,LTD
Brand RHINOCEROS
Operating Weight : 1800kg
Digging bucket capacity : 0.045cbm
Digging bucket width : 400mm
Engine : Yanmar 3TNV74F-SSY
Emissions Regulation : EPA Final Tier 4
Max Rated power : 20.4hp/3600rpm
Displacement : 0.993L
Bore stroke : 74mm x 77mm
Main pump : KDK
Working Pump flow : 39.6L/Min
Valve : BEIFANG
Displacement : 6.8ml/r
Swing motor : EATON
Traveling motor : DONGHYUAN
Fuel tank capacity : 19L
MAIN DIMENSIONS
Overall dimension( LxWxH) : 3160x1040x2377mm
Total length of track : 1670mm
Platform ground clearance : 460mm
Platform back turning radius : 740mm
Stnadard rubber track width : 1130mm
Optional adjustable rubber track model width : (990-1240)mm
Rubber Track only width : 230mm
Chassis ground clearance : 460mm
Track height : 320mm
OPERATING RANGE
Max. Digging depth : 2150mm
Max. Vertical digging depth : 1740mm
Max. Digging height : 3275mm
Max. Dumping height : 2310mm
Max. Digging radius on ground : 3470 mm
Min. Rotation radius : 1440mm
Max. Upgrade height of bulldozer blade : 262mm
Max. Digging depth of bulldozer blade : 192mm
Bucket Digging Force : 13.5kN
