NEW RHINOCEROS XN18L 1.8t KUBOTA DIESEL ENGINE MINI EXCAVATOR

RHINOCEROS XN18L - 1.8T 3CY KUBOTA DIESEL ENGINE.

PRICE $22,990.00 INC GST ( HYDRAULIC QUICK HITCH / 400MM BUCKET / HYDRAULIC THUMB GRAB )

PRICE $24,500.00 INC GST ( HYDRAULIC QUICK HITCH / 200MM, 400MM, 600MM AND 1000MM BUCKETS/ HYDRAULIC THUMB GRAB / RIPPER / STICK RAKE )

NEW MODEL - NEW BOOM WITH MAIN HYDRAULIC CYLINDER LOCATED ON TOP ALSO A MASSIVE 2417MM DIGGING DEPTH !!

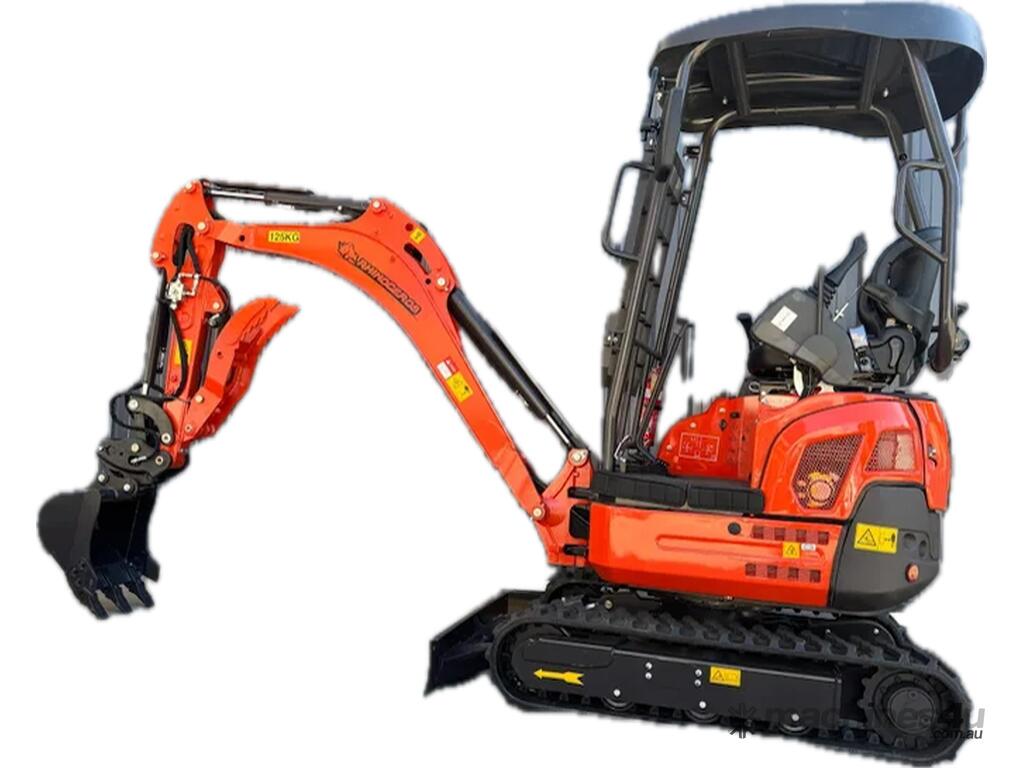

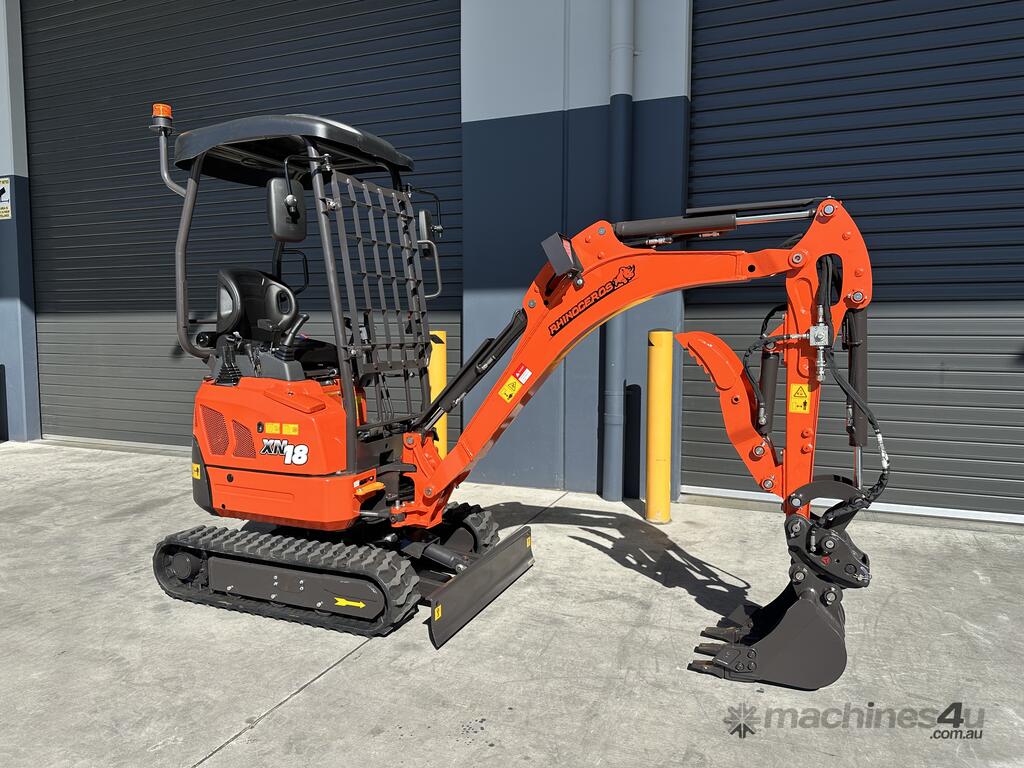

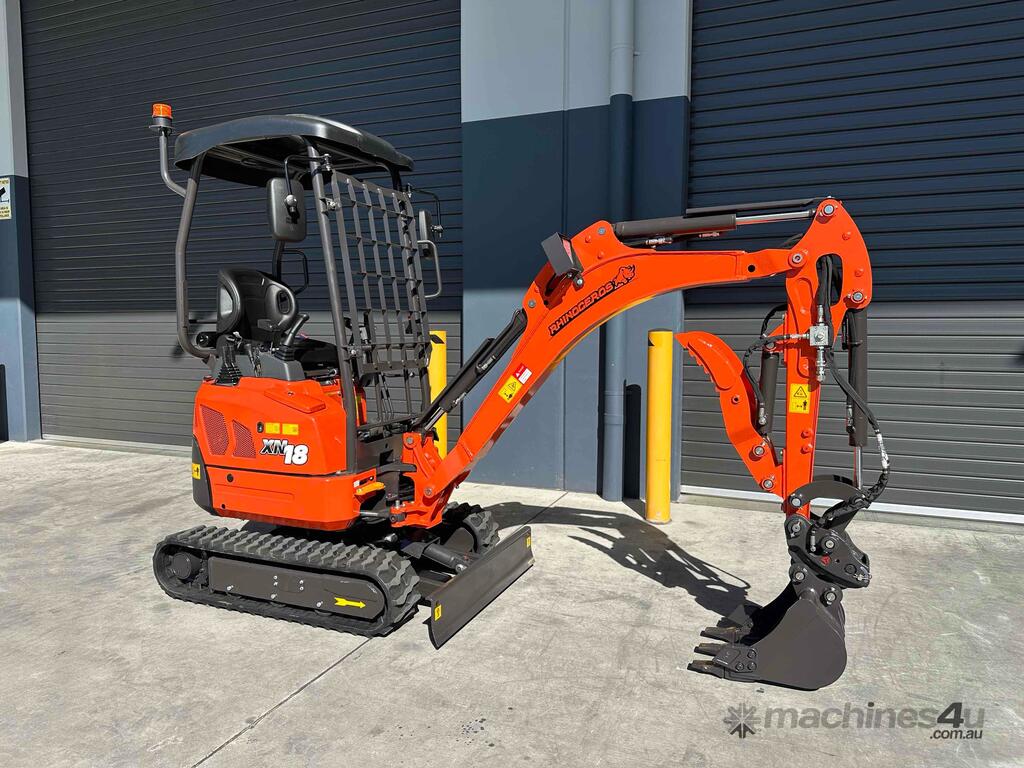

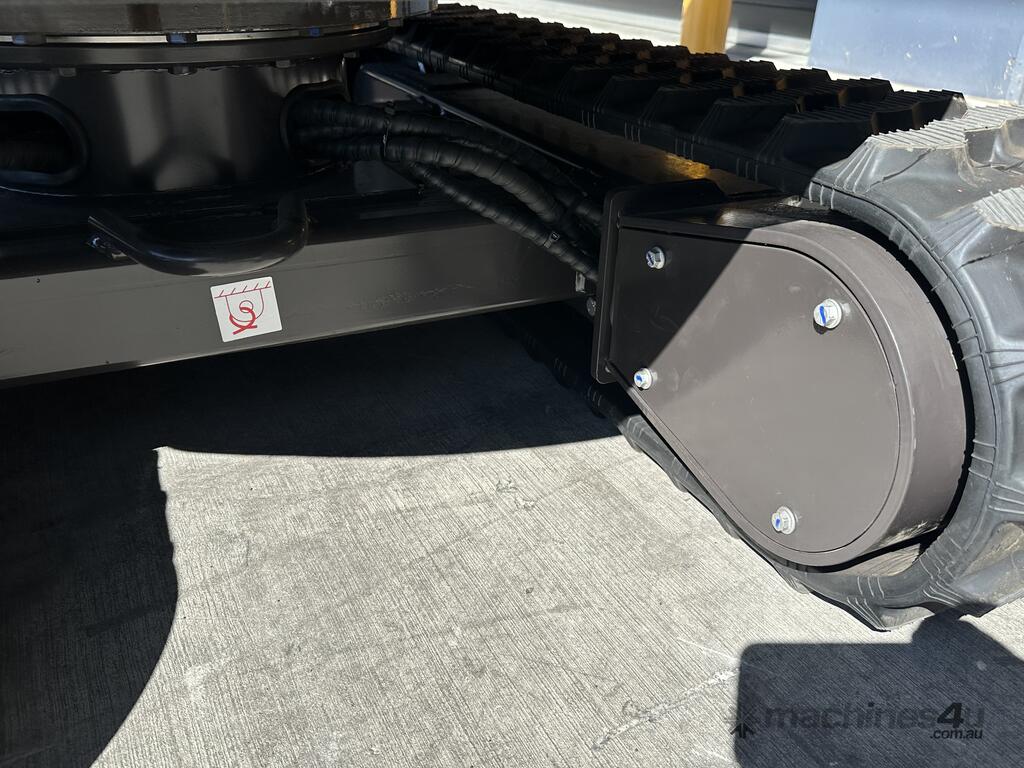

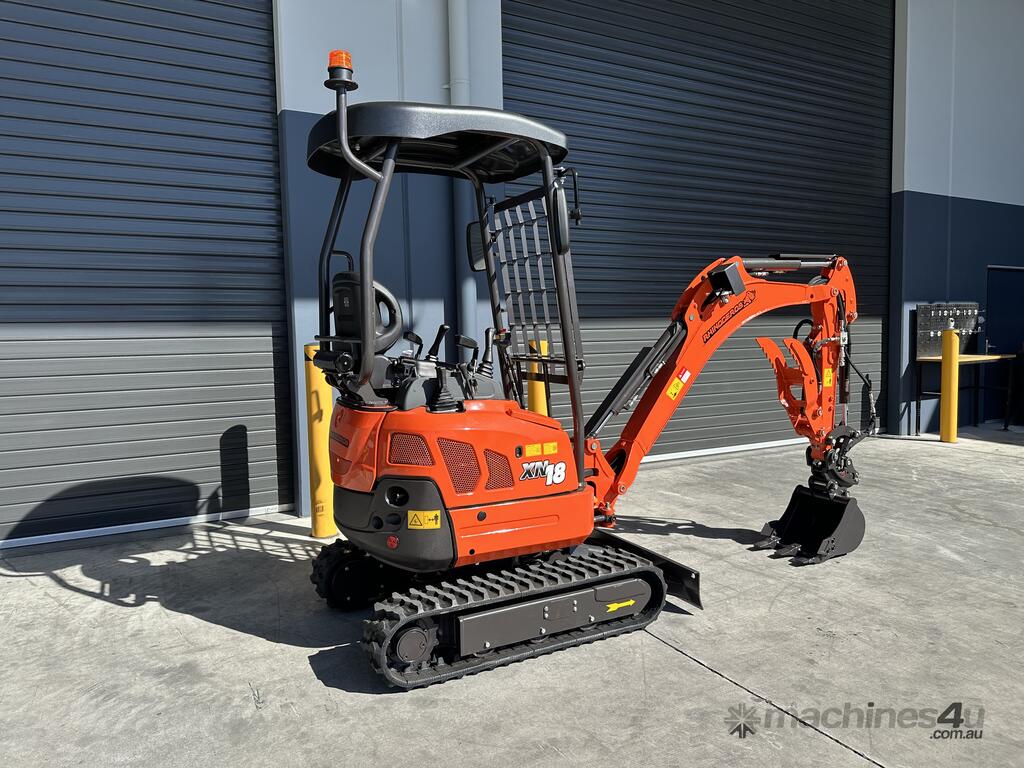

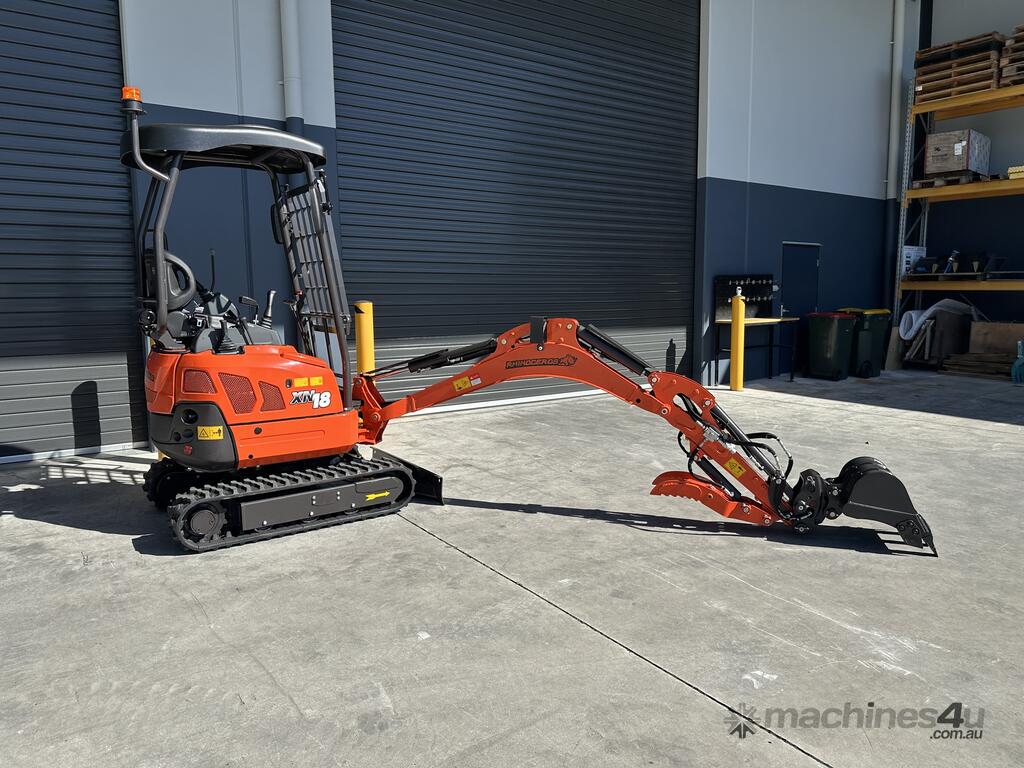

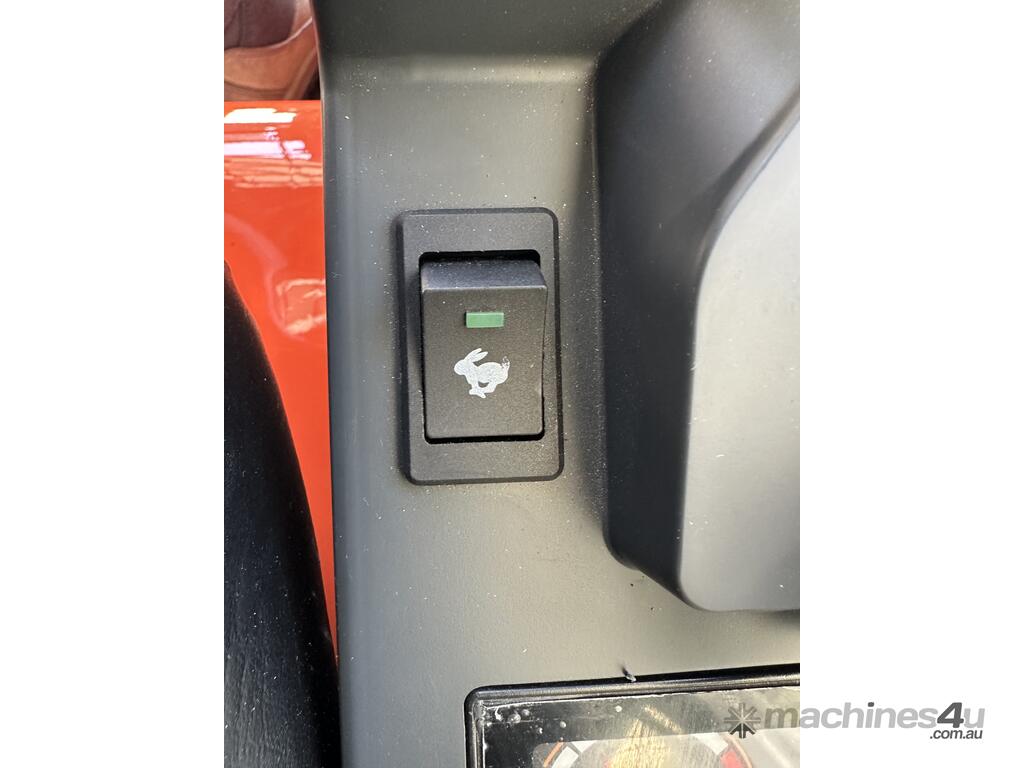

The Rhinoceros XN18L Mini Excavator is a versatile and compact machine weighing 1.8 tons, equipped with a Japanese Kubota D902 3cyl diesel engine, and features 2-speed tracking, hydraulic quick hitch as well as a new swing boom with main lifting hydraulic cylinder located on top . All hydraulic hoses are mounted inside the boom.

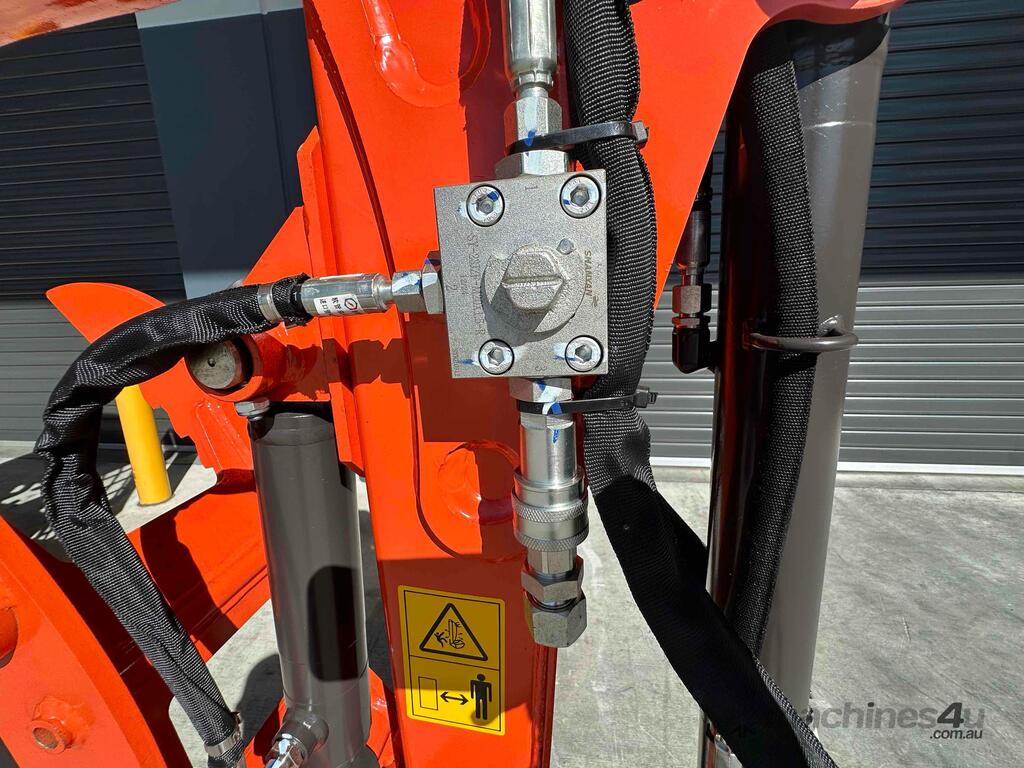

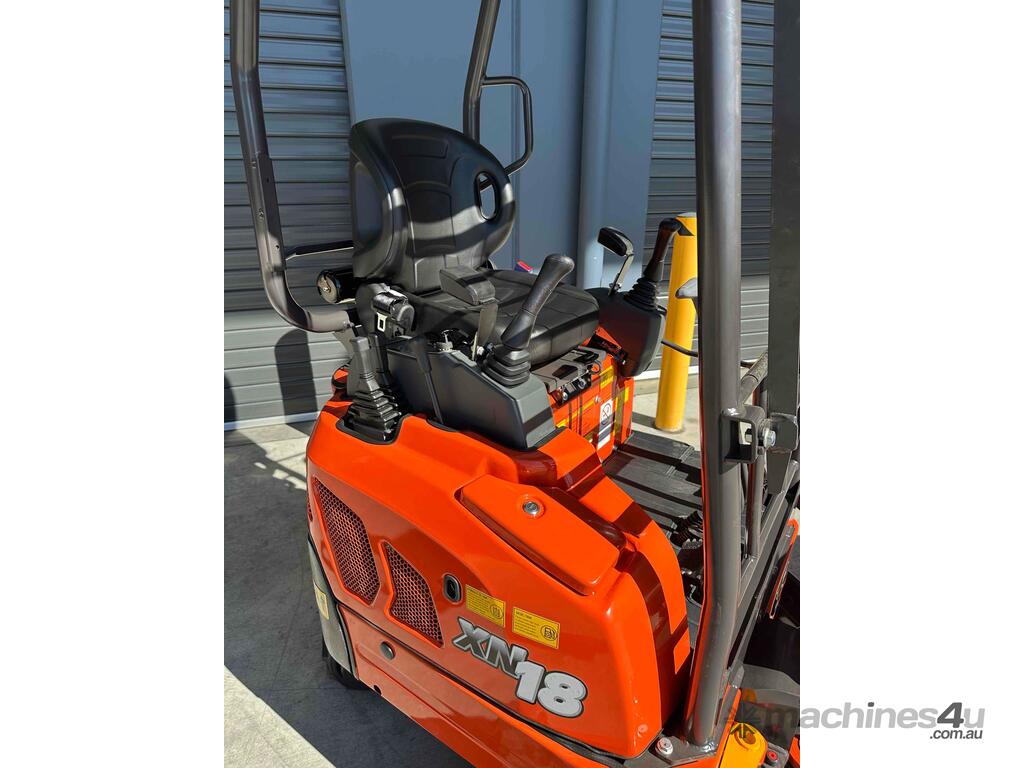

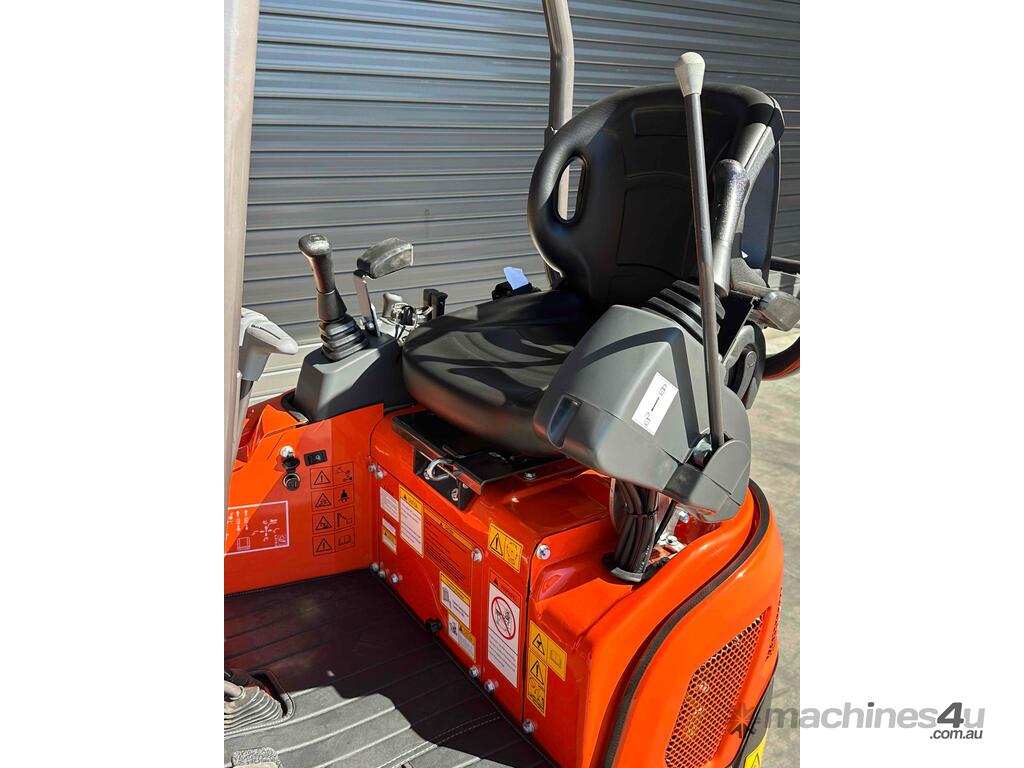

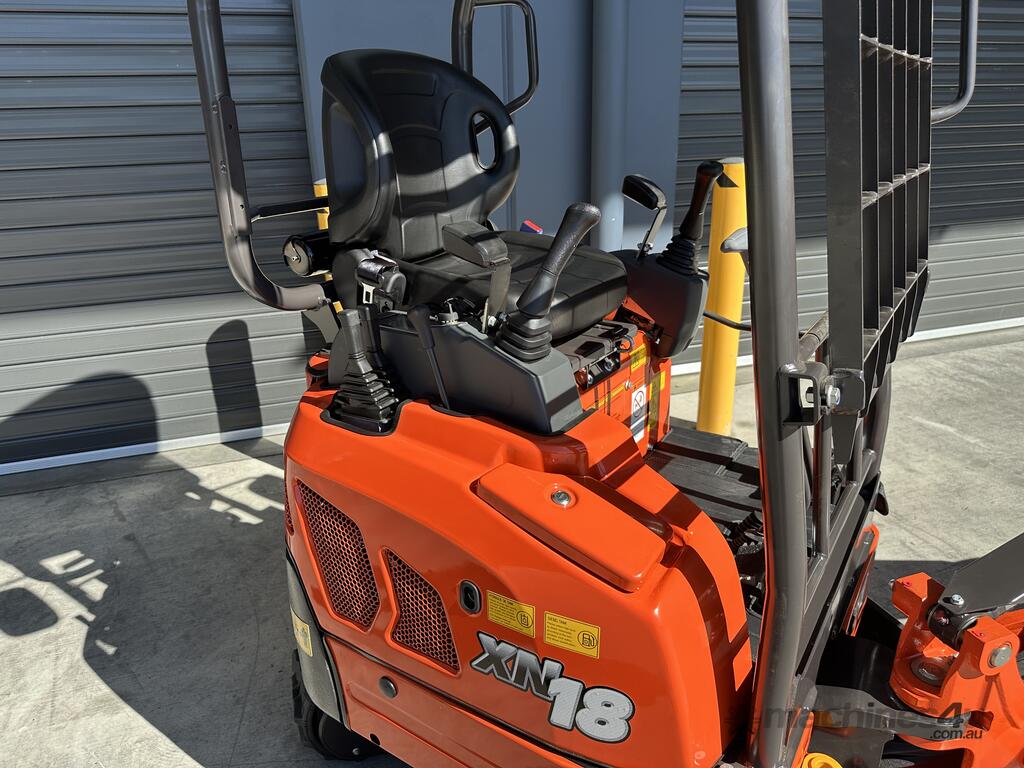

Its ergonomically designed seat mounted pilot control joysticks enhance comfort and precision, while the high-quality hydraulic system, including a constant variable piston pump and auxiliary output, allows for smooth operation and compatibility with various attachments such as post hole diggers, rock breakers and tilting mud buckets .

The swing boom and solid dozer blade further improve its capability to work in confined areas, making it an ideal choice for landscaping, excavation, and construction tasks.

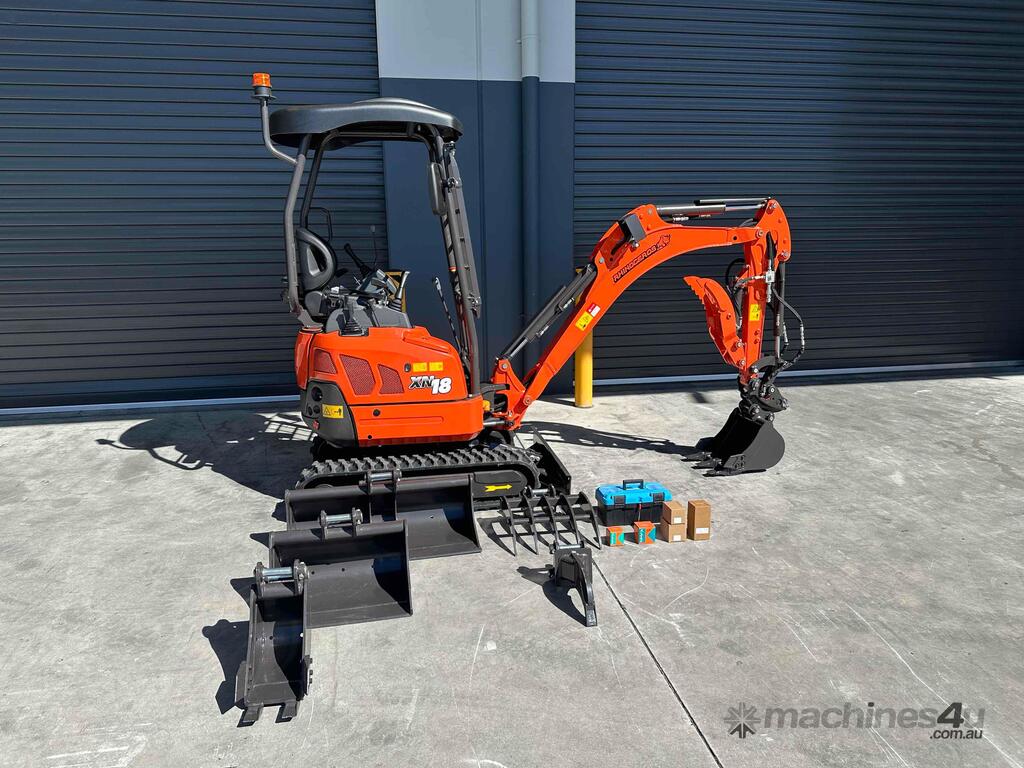

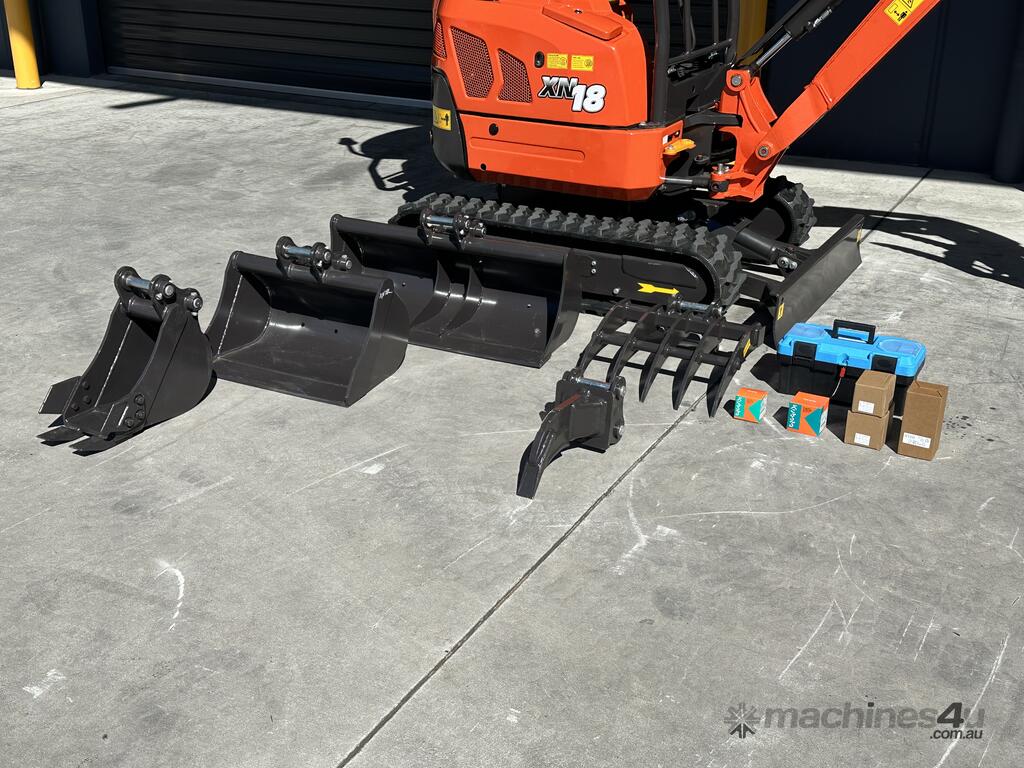

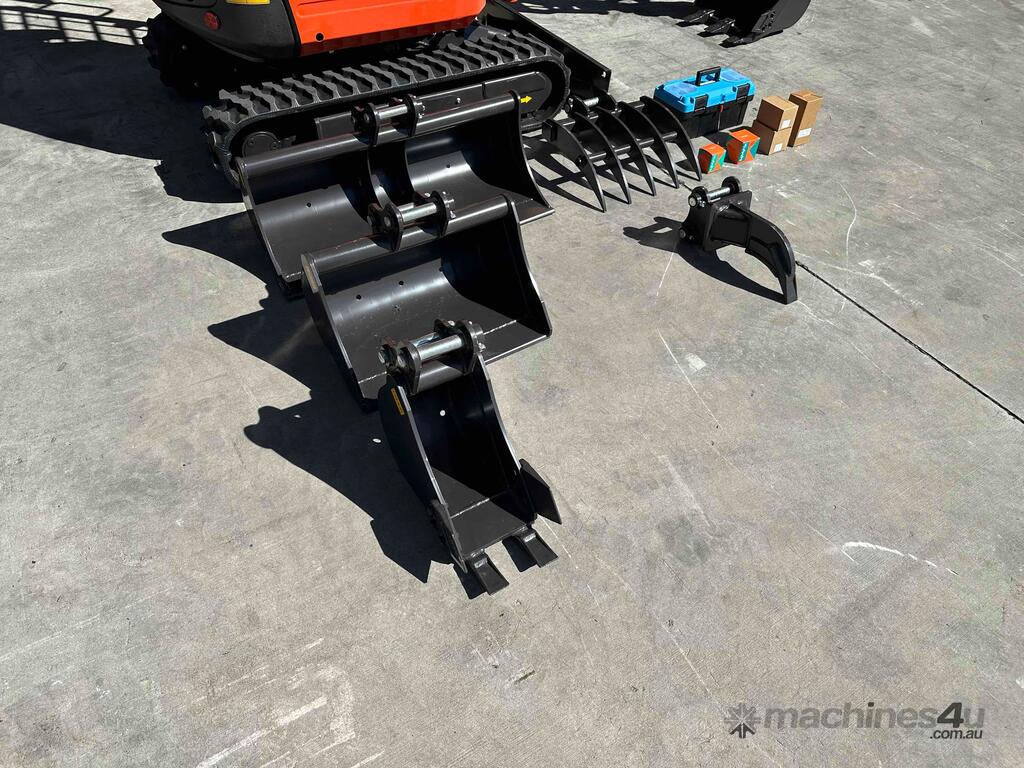

Available Attachments :
- 200mm Trench Bucket
- 400mm GP Bucket
- 600mm GP Bucket
- 1000mm Mud Bucket

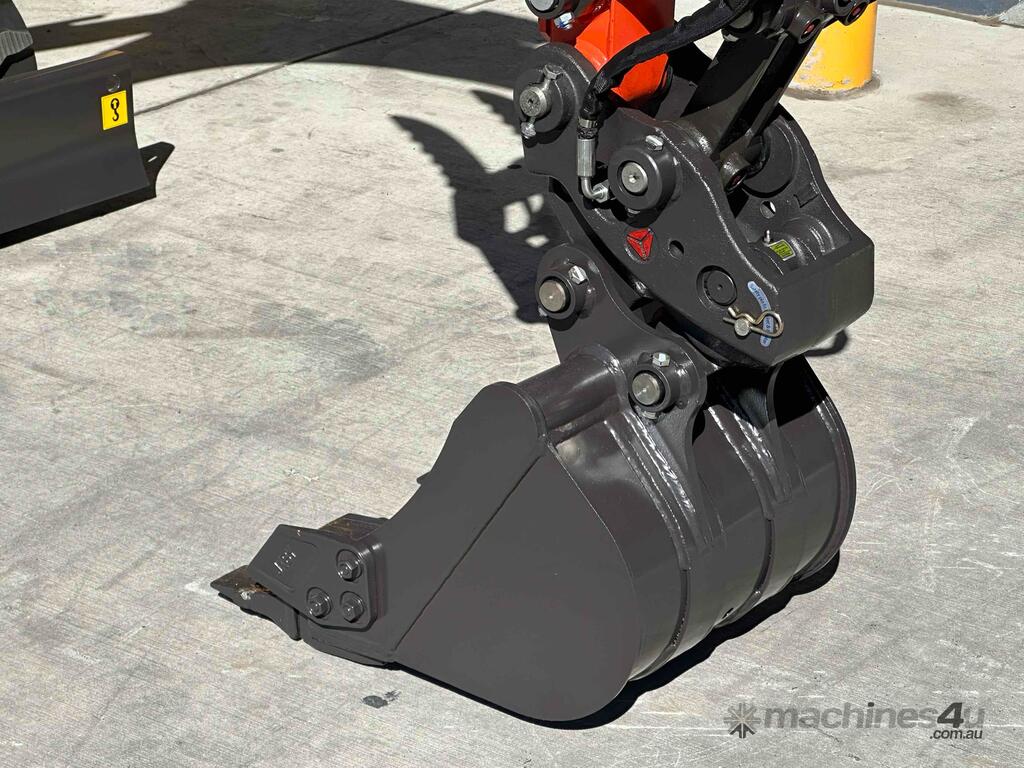

- Hydraulic Quick Hitch
- Ripper
- Rake

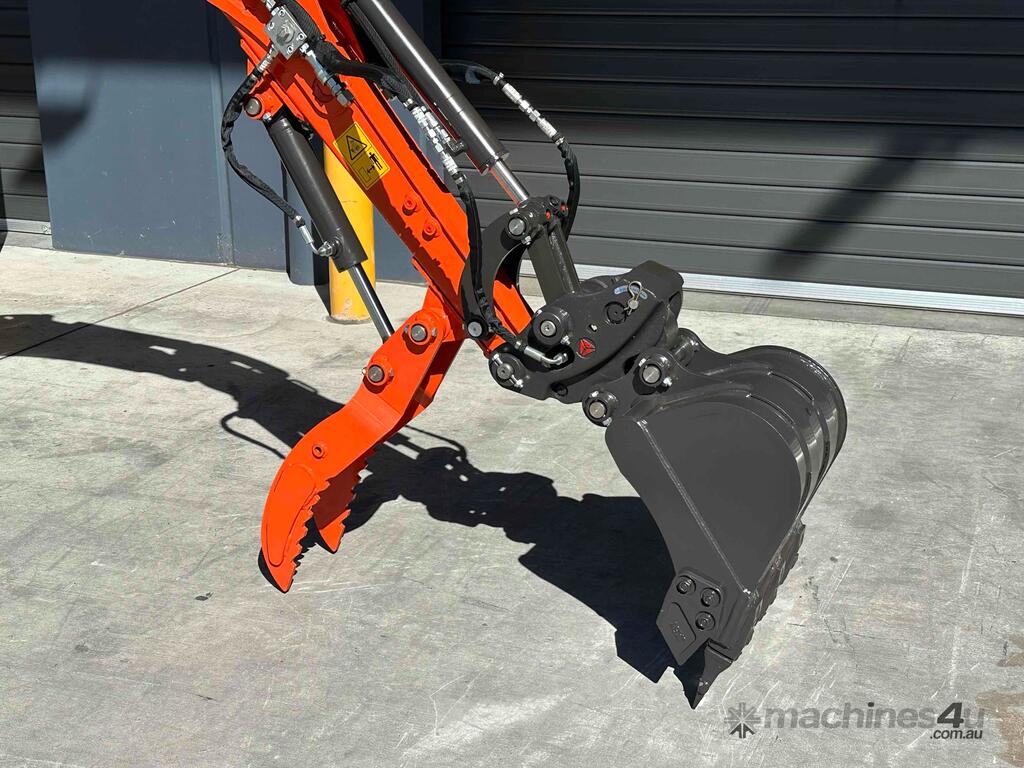

- Hydraulic Thumb Grab

Optional Attachments and Trailers:
Plant Trailer 10x5 3.5T
Hydraulic Tipper 10x5 3.5T
Rock Breaker
1000mm Tilting Mud Bucket

SPECIFICATION:
Model : XN18L
Manufacturer : SHANDONG RHINOCEROS ENGINEERING MACHINERY CO.,LTD
Brand: RHINOCEROS
Operating Weight: 1800kg
Digging bucket capacity: 0.045cbm
Digging bucket width: 400mm

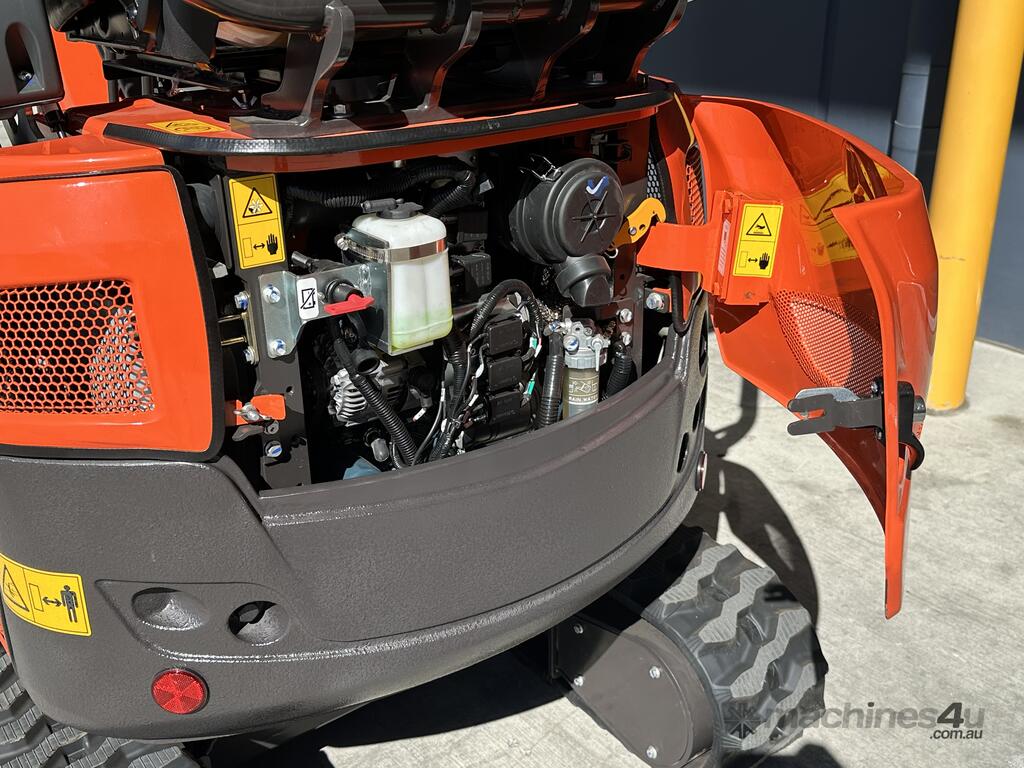

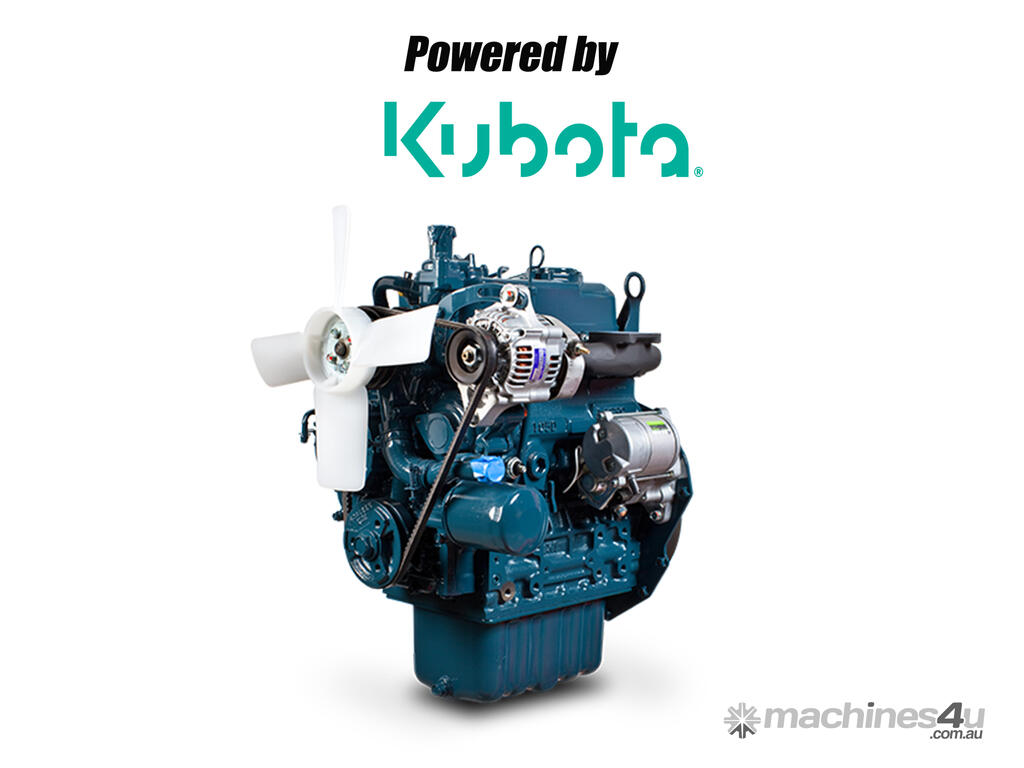

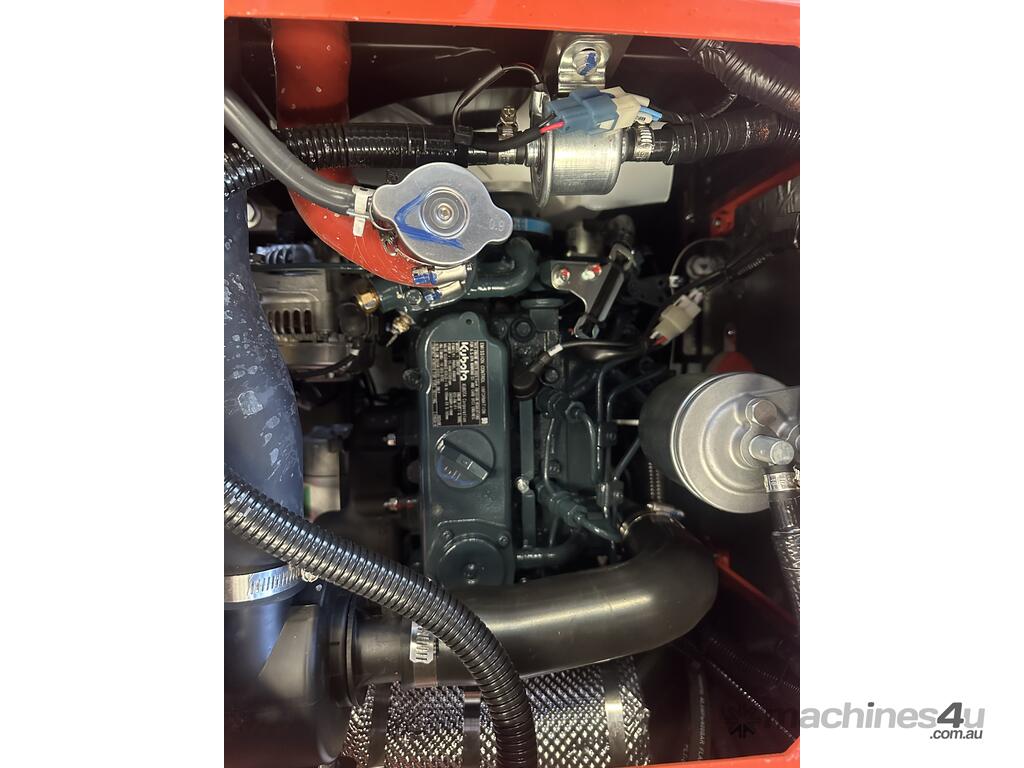

Engine: Kubota D902 3cyl diesel engine
Emissions Regulation: EPA Final Tier 4
Max Rated power: 23hp/3600rpm
Displacement: 0.898L
Bore stroke : 72mm x 73.6mm
Main pump : KDK Variable displacement piston pump
Working Pump flow : 39.6L/Min
Valve : BEIFANG
Displacement : 6.8ml/r
Swing motor : EATON USA
Traveling motor : EATON USA
Fuel tank capacity : 19L


MAIN DIMENSIONS
Overall dimension( LxWxH) : 2360x1150x2320mm
Total length of track : 1450mm
Platform ground clearance : 440mm
Platform back turning radius : 790mm

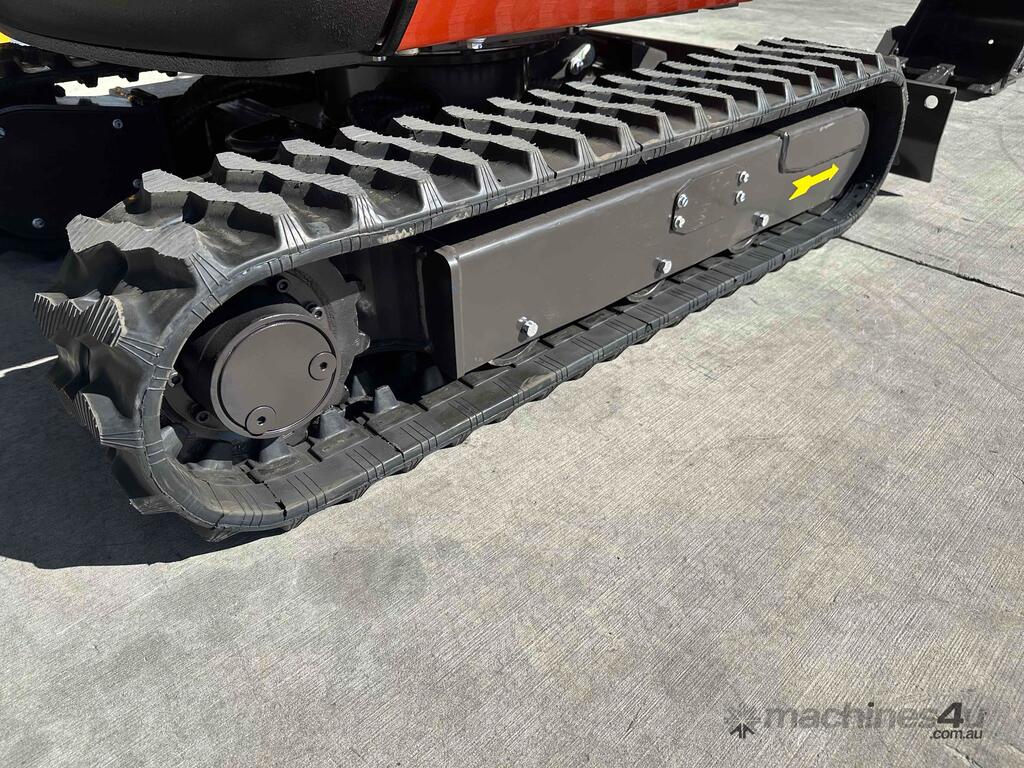

Rubber Track only width : 230mm
Track height : 320mm

OPERATING RANGE
Max. Digging depth : 2417mm
Max. Vertical digging depth : 1740mm
Max. Digging height : 3275mm
Max. Dumping height : 2310mm
Max. Digging radius on ground : 3470 mm
Min. Rotation radius : 1440mm
Max. Upgrade height of bulldozer blade : 262mm
Max. Digging depth of bulldozer blade : 192mm
Bucket Digging Force : 13.5kN
