NEW SIC E-MARK EVO wireless dot peen marking system, Marking window 60x25mm

The E-MARK EVO is a PORTABLE CORDLESS DOT PEEN marking machine that can mark all types of material, from plastic to treated steel with a hardness of up to 62 HRC.

The E-MARK EVO marking gun has a 36V Li-Ion battery offering up to 3 hours of battery life, and comes with two batteries, a storage case, and a fast charger, allowing for continuous work.

This portable marking machine has three interchangeable face plates, adapting to all industrial environments.

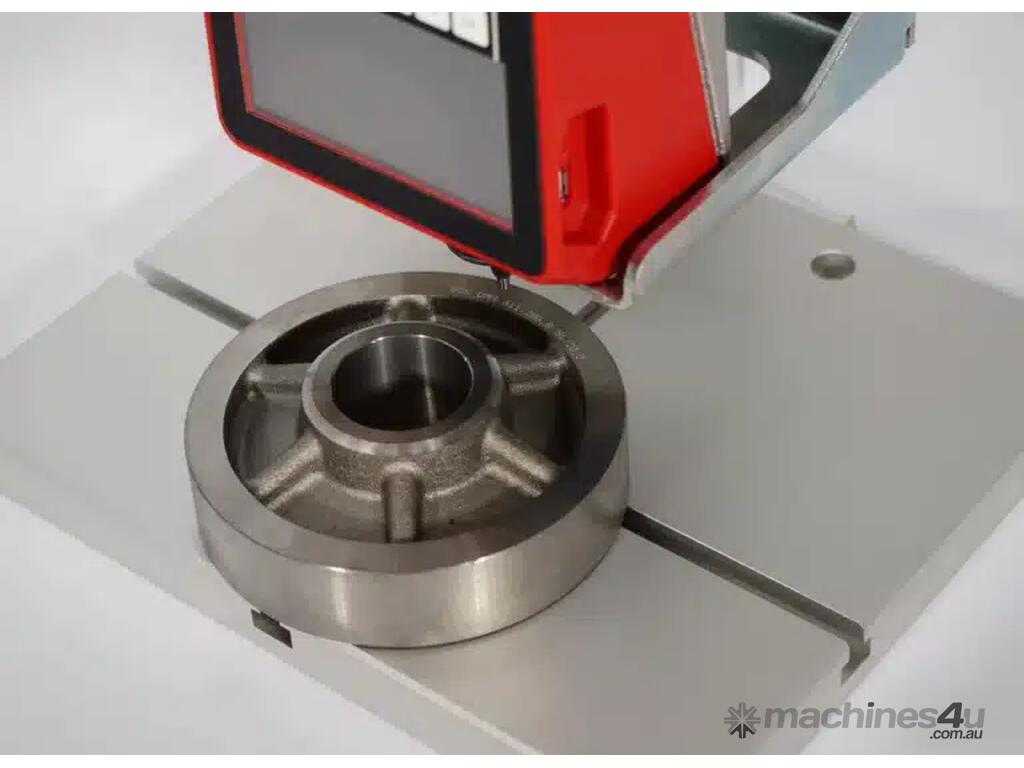

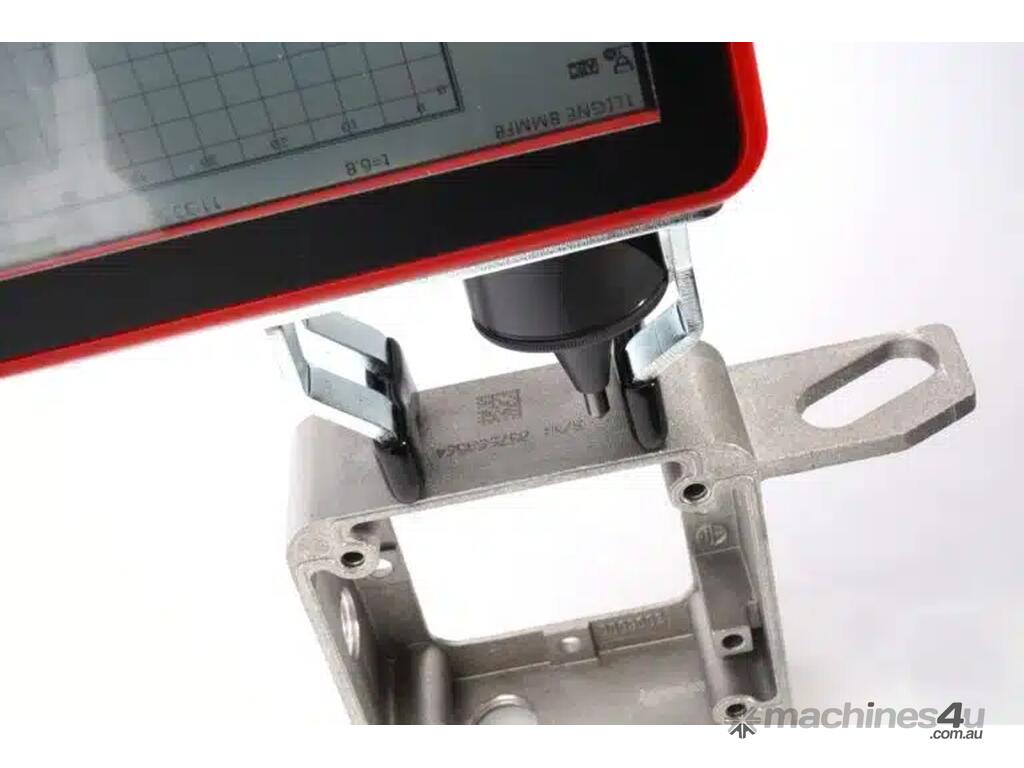

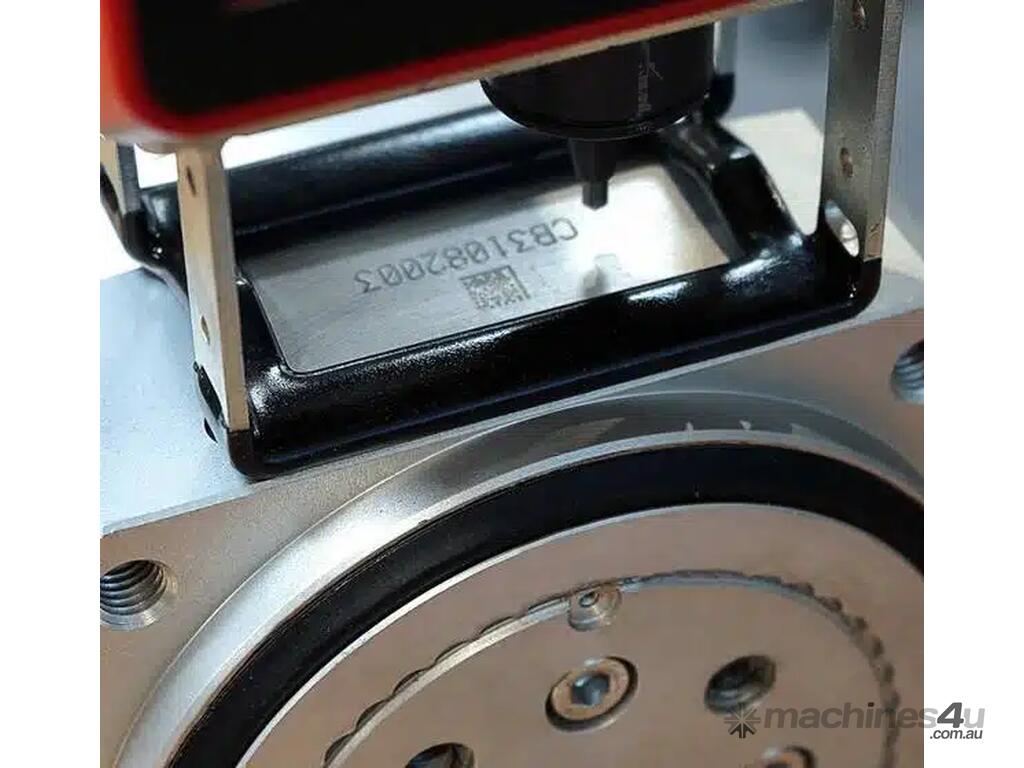

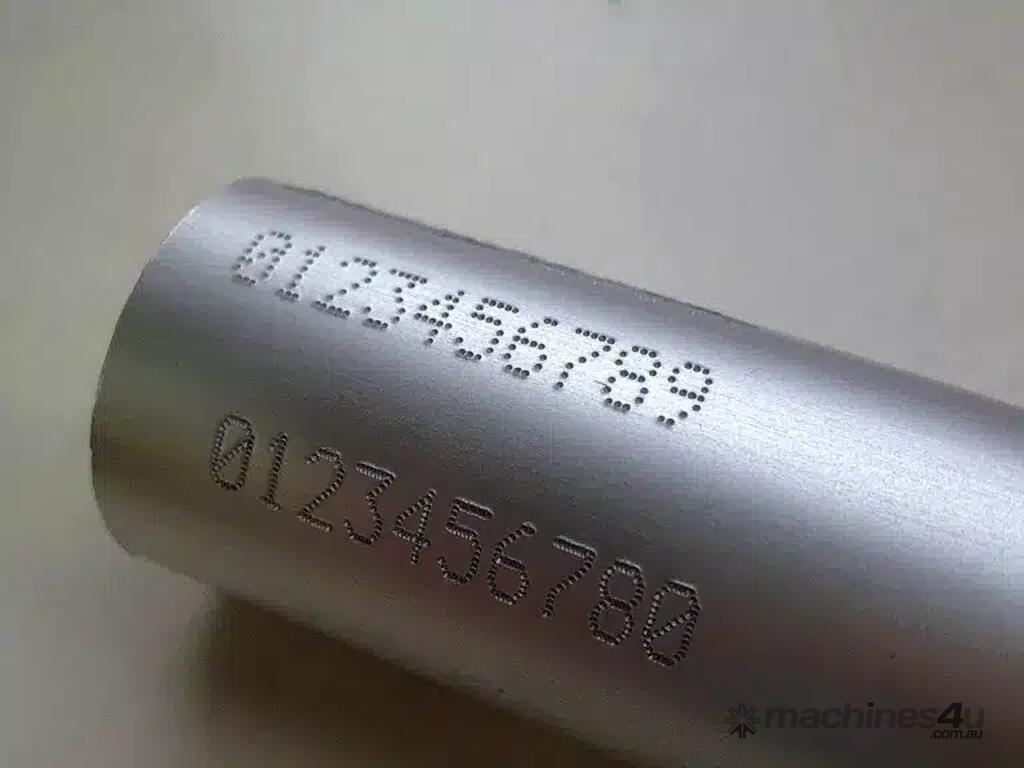

Thanks to its micro-percussion technology and tungsten carbide stylus, it guarantees durable and unalterable marking of your text, logos, and 2D Datamatrix codes. In addition, its booster option allows for even deeper and more visible marking after painting or surface treatment.

ALL-IN-ONE, COMPACT PORTABLE MARKING GUN

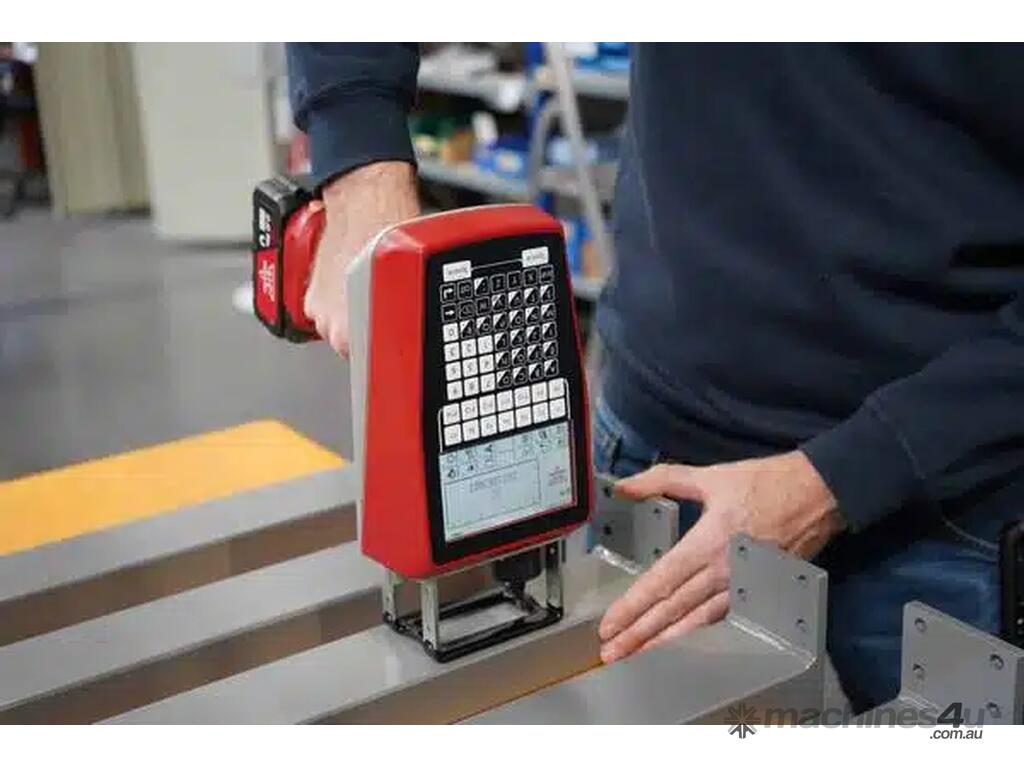

• Lightweight, balanced machine that can be operated with one hand.

• Complete package, including a carrying case, 2 batteries, and a fast charger.

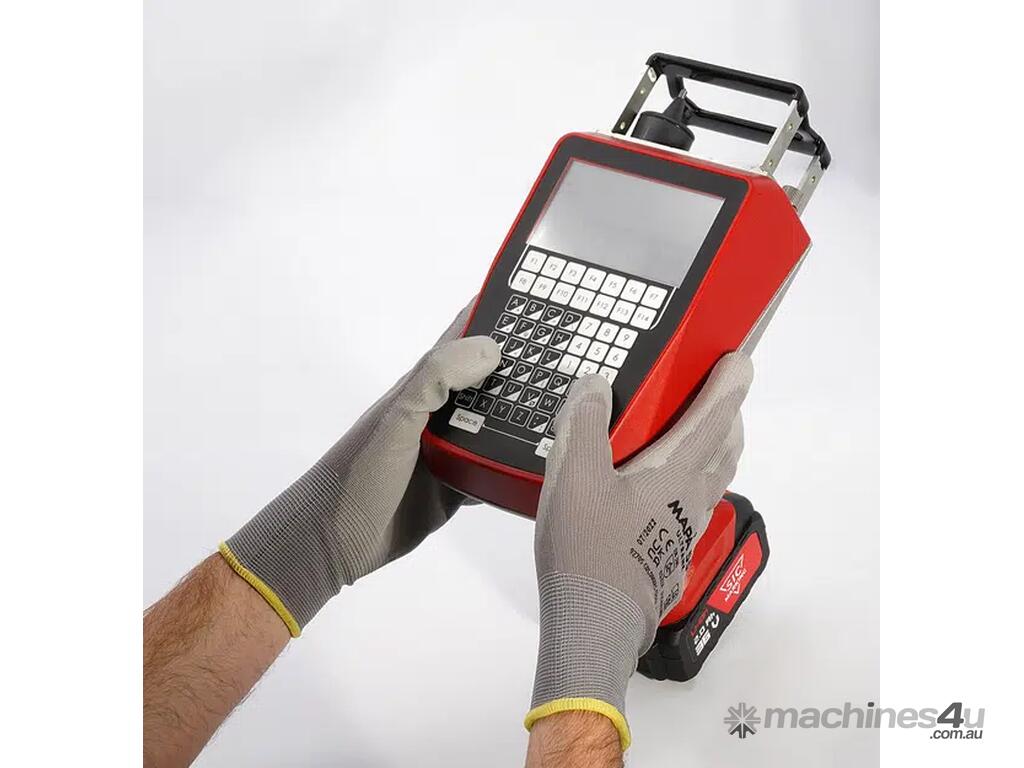

• 100% autonomous solution: control unit with onboard HMI and integrated keyboard.

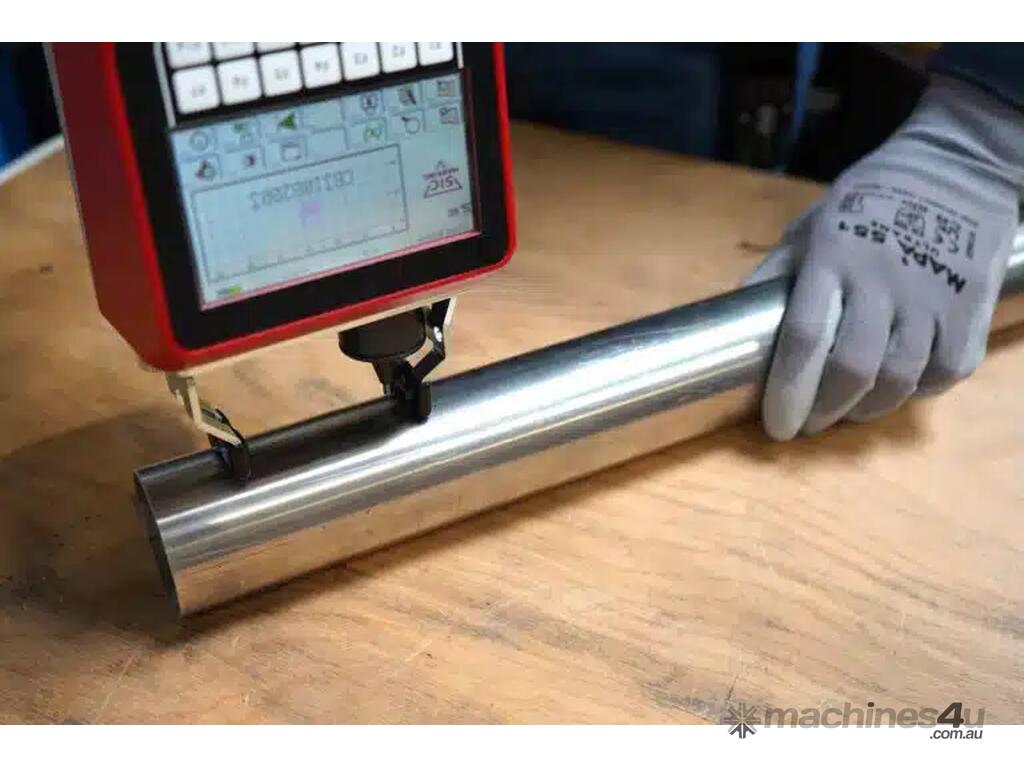

MACHINE SUITABLE FOR ALL TYPES OF PARTS

• Mobile and flexible.

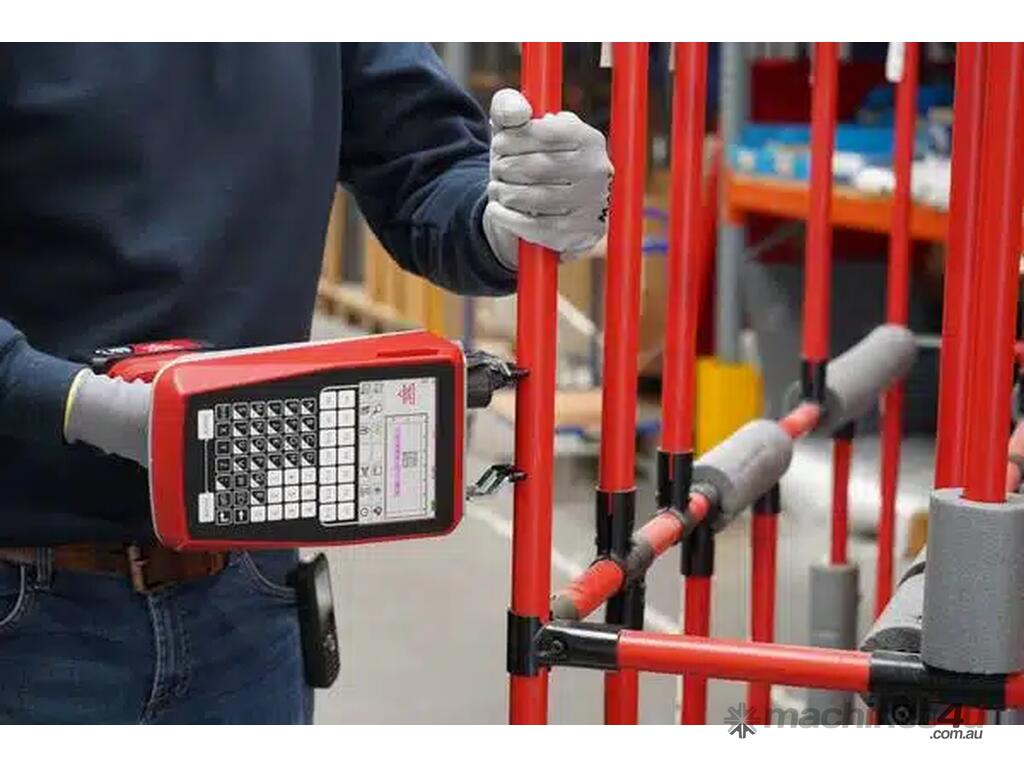

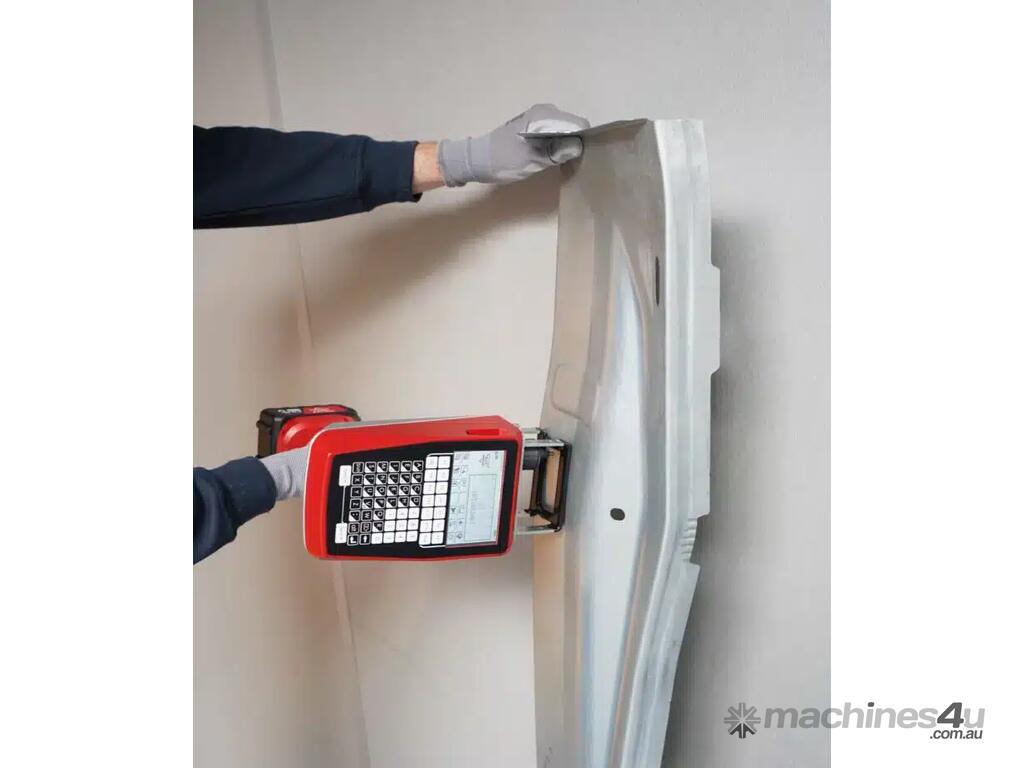

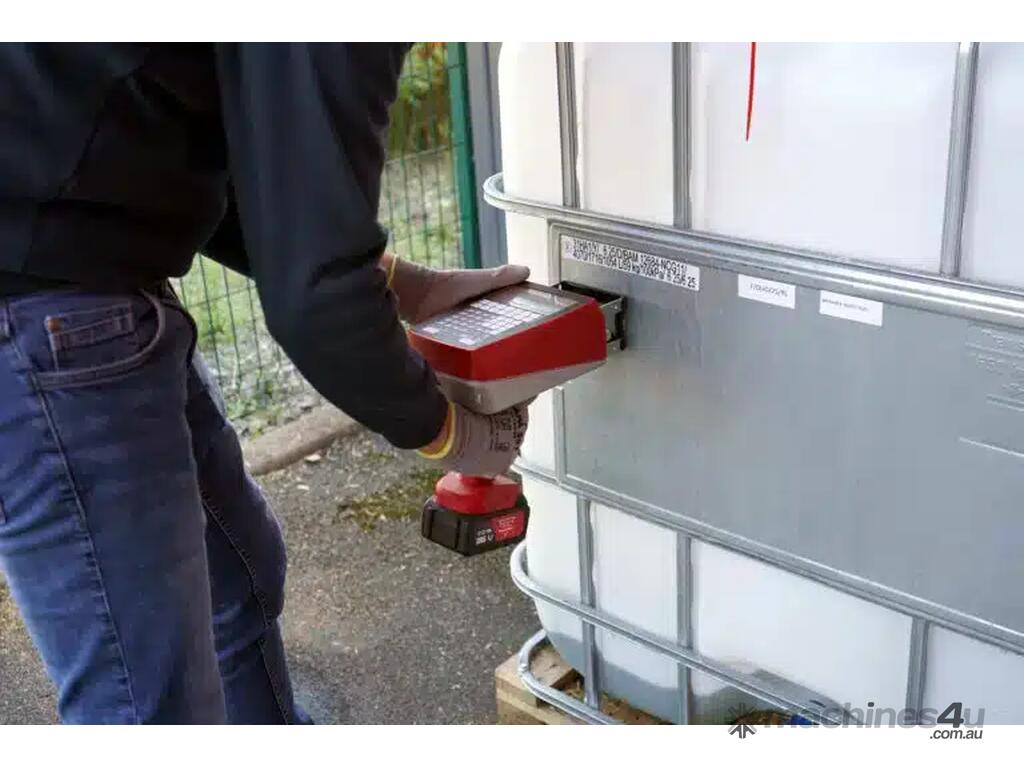

• Easy marking of heavy and bulky parts.

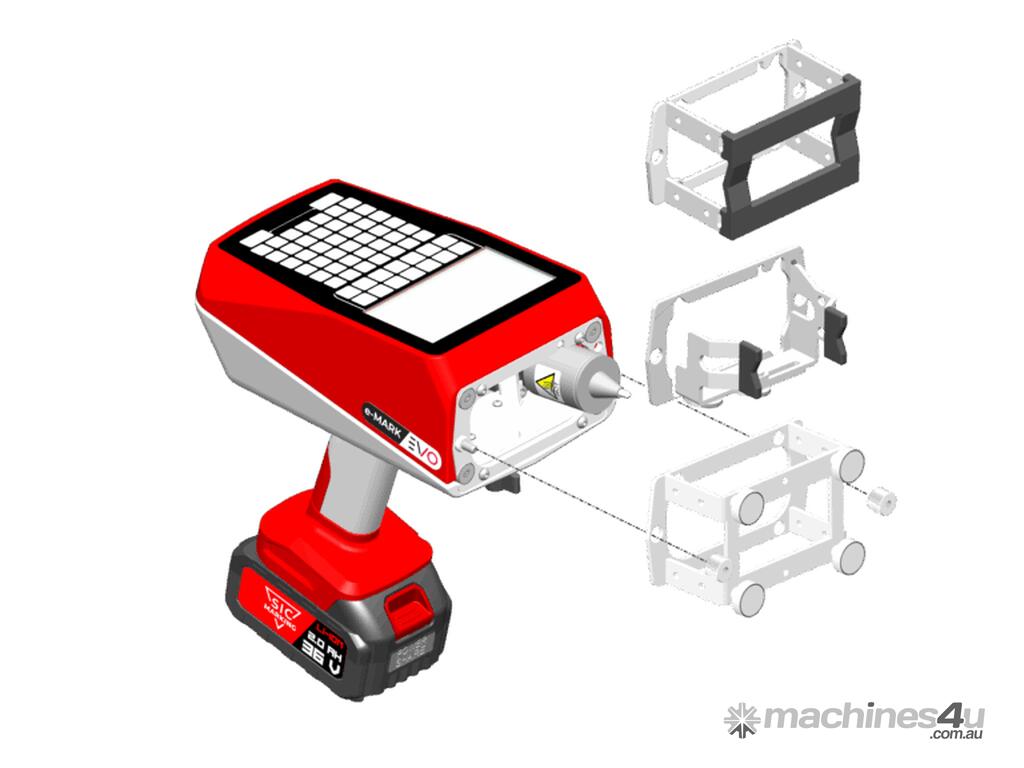

• 3 front face plates available: non-slip, adjustable, and magnetic.

SIMPLE AND RELIABLE MARKING

• Creation and management of files on the machine or from the workstation.

• Flexible use, with operator/supervisor mode allowing critical settings to be locked.

• Secure your markings with duplicate marking detection, alerting the user in the event of repeated serial number.

DESIGN FOR INTENSIVE USE

• Work without interruption thanks to two high-capacity batteries.

• Mark materials up to 62 HRC hardness.

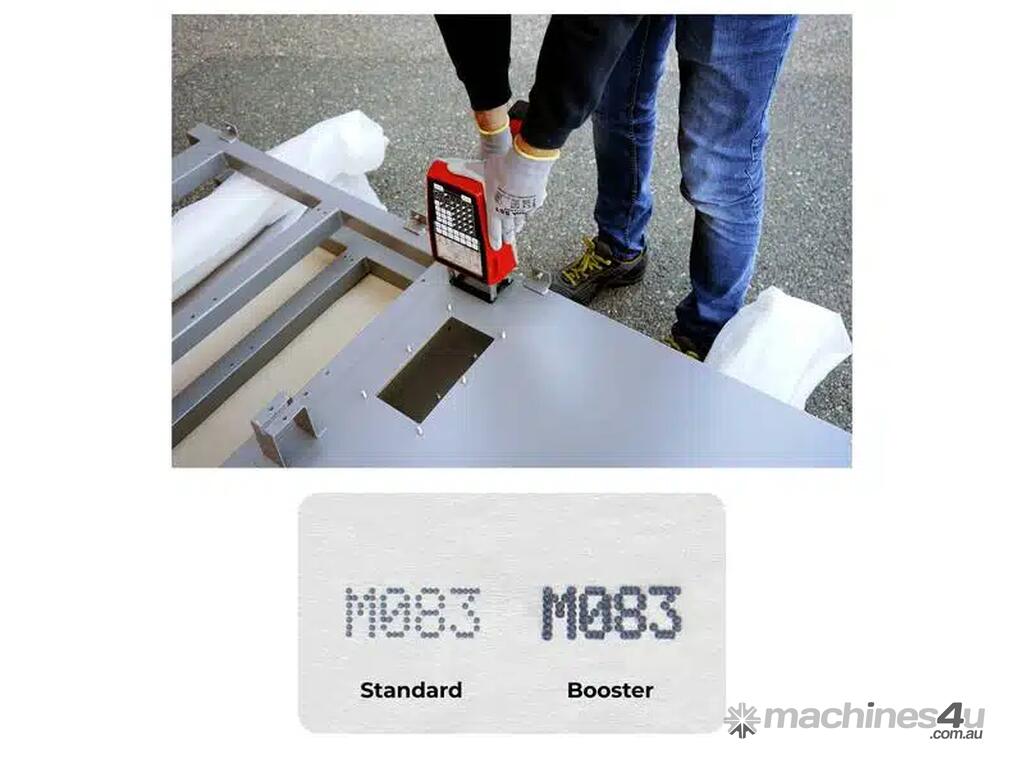

• Choose your machine according to your applications:
• Standard version: Fast and accurate marking.
• Booster version: Fast and accurate marking, but also deep and visible after painting or surface treatment.

Technical specifications
Power supply: 36 V battery
Battery charging time: 1 hour
Battery life: 3 hours
Marking window: 60 x 25 mm
External dimensions: 279 x 280 x 135 mm
Weight: 3,2 kg
Stylus: Tungsten carbide
Memory space: Over 2,000 files

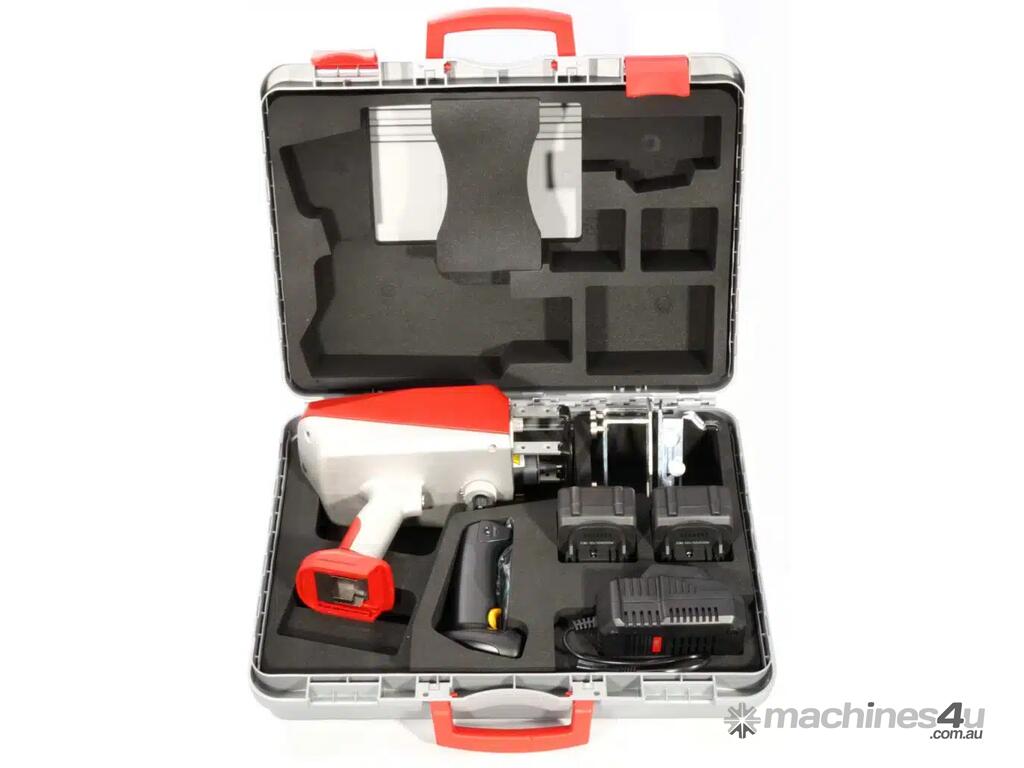

Complete package includes:
• Transport case
• Controller
• PC software
• Two batteries 36V Li-ion + Charger
• Maintenance kit
• Accessories and operating instructions

**Please download the PDF brochure for a complete description**
