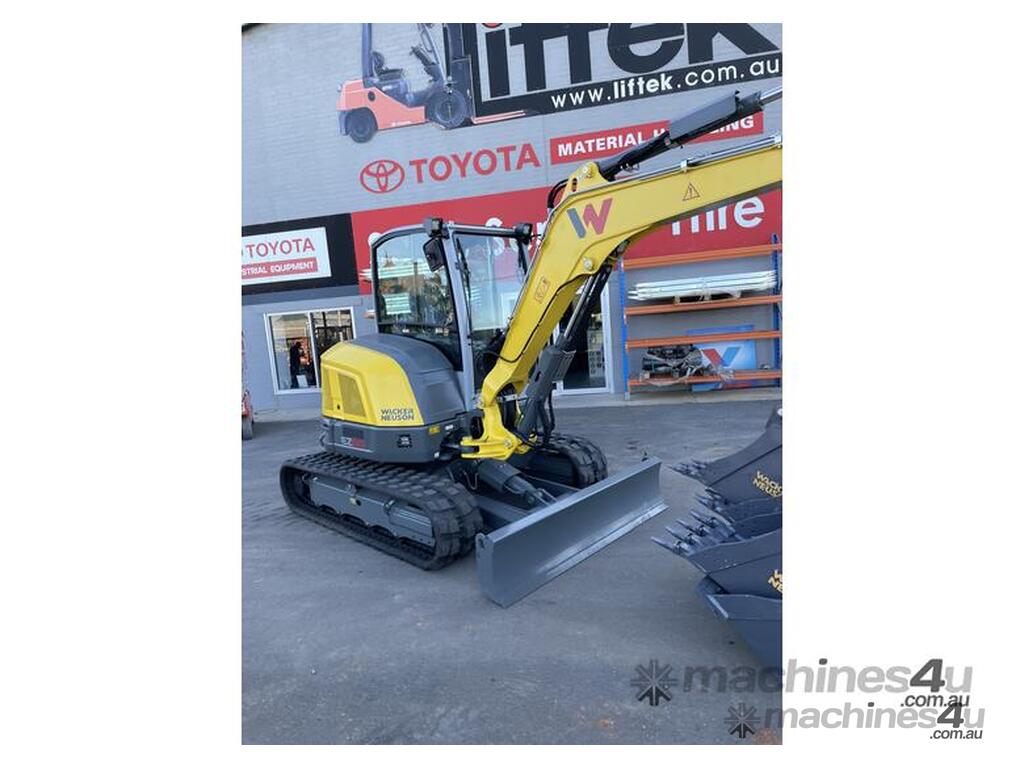

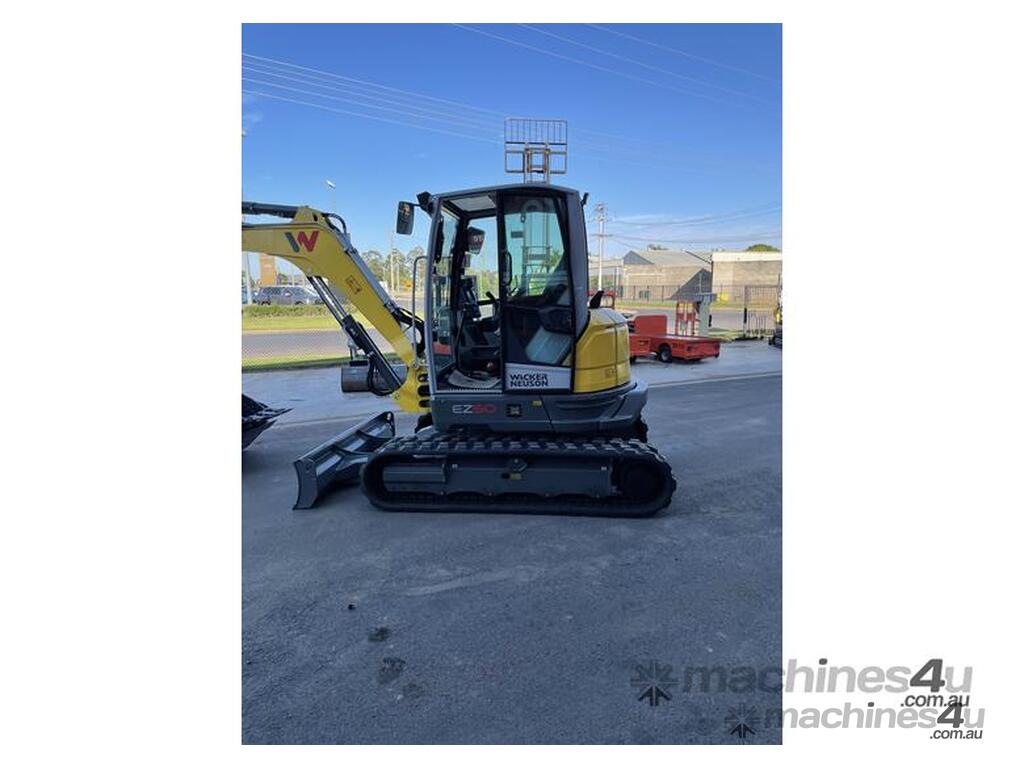

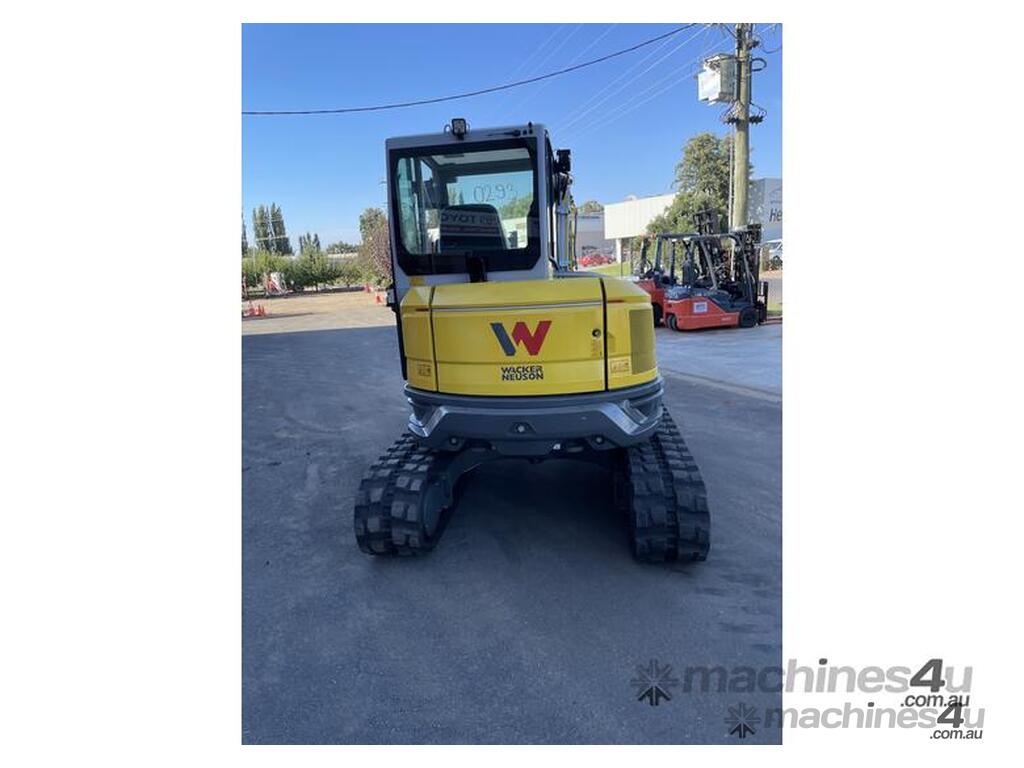

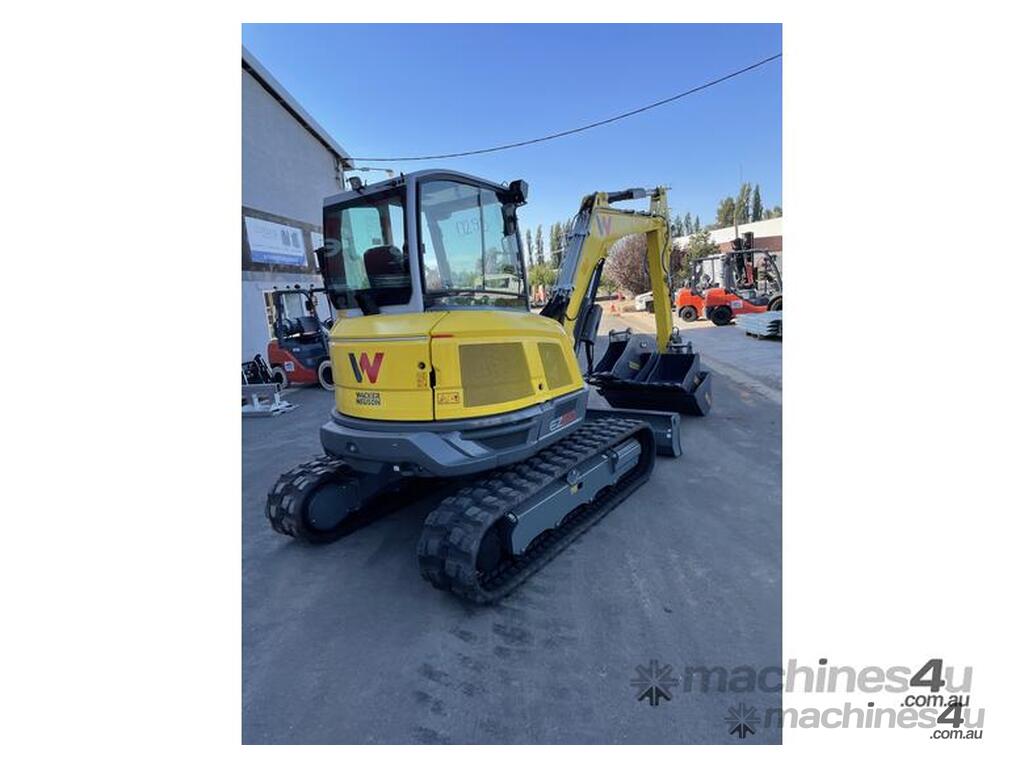

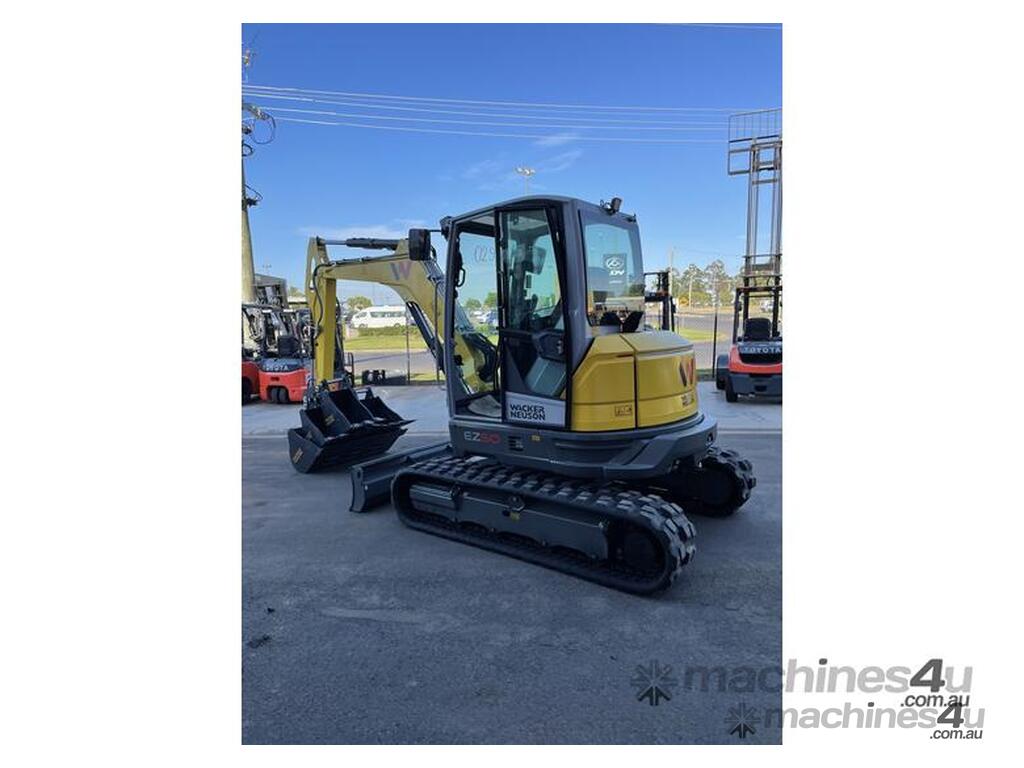

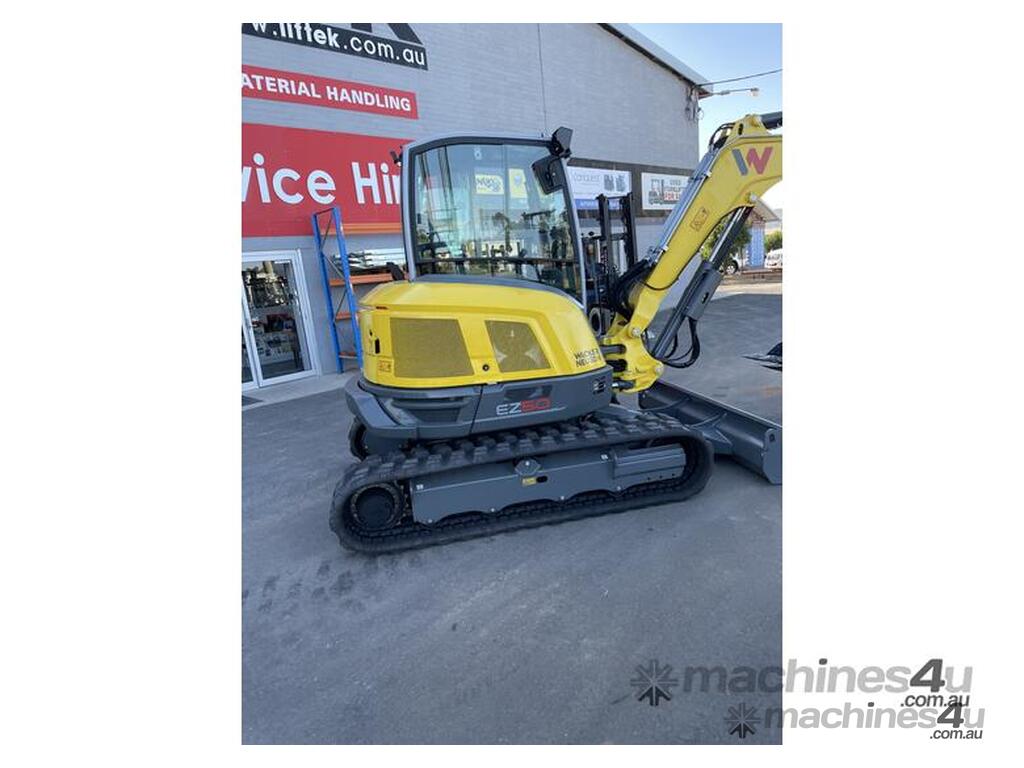

NEW WACKER NEUSON EZ50 5Ton Excavator

Full speed ahead: The EZ50 excavator offers excellent lifting and digging power as well as quick work cycles. Using the newest technologies, the emissions of the excavator were reduced and, at the same time, the efficiency increased. For example, the powerful engine in the EZ50 meets the stage 5 exhaust emission standards. In terms of operator-friendliness, the excavator is impressive. The intuitive operating concept and excellent view of the work area contribute to the easy and comfortable operation of the machine. The EZ50 is also a zero-tail excavator and is well suited for working in narrow spaces.

YES WE HAVE IN STOCK READY FOR IMMEDIATE DELIVERY 1 DEMO UNIT ONLY.

**DEMO UNIT** fully warranty

The ultimate powerful and quiet EZ50 excavator you do not have to wait, put it to work straight away.

IF YOU HAVE NOT OPERATED A WACKER NEUSON WE WELCOME YOU TO COME AND TRY THIS IN YOUR YARD, THIS WILL NOT DISAPPOINT

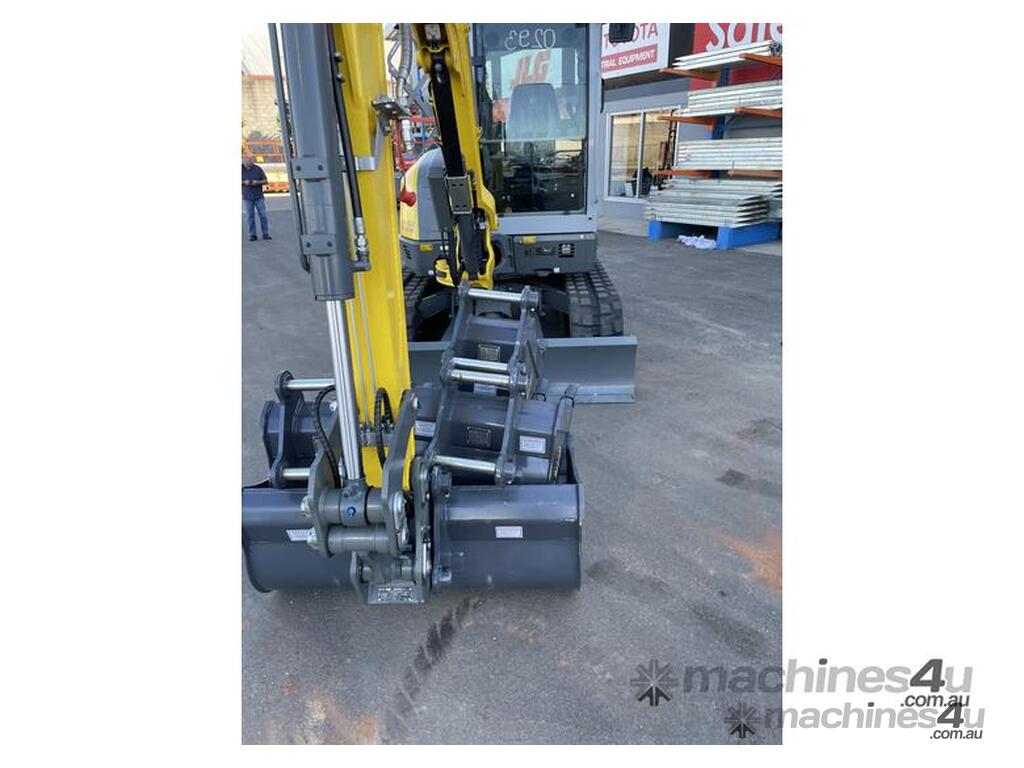

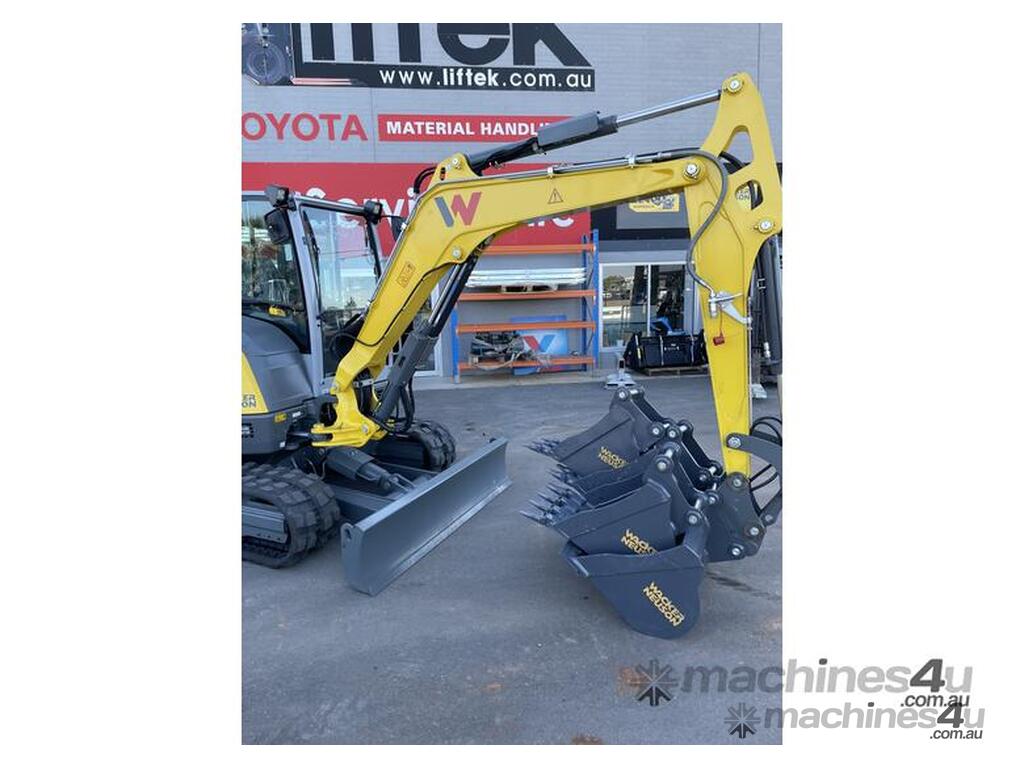

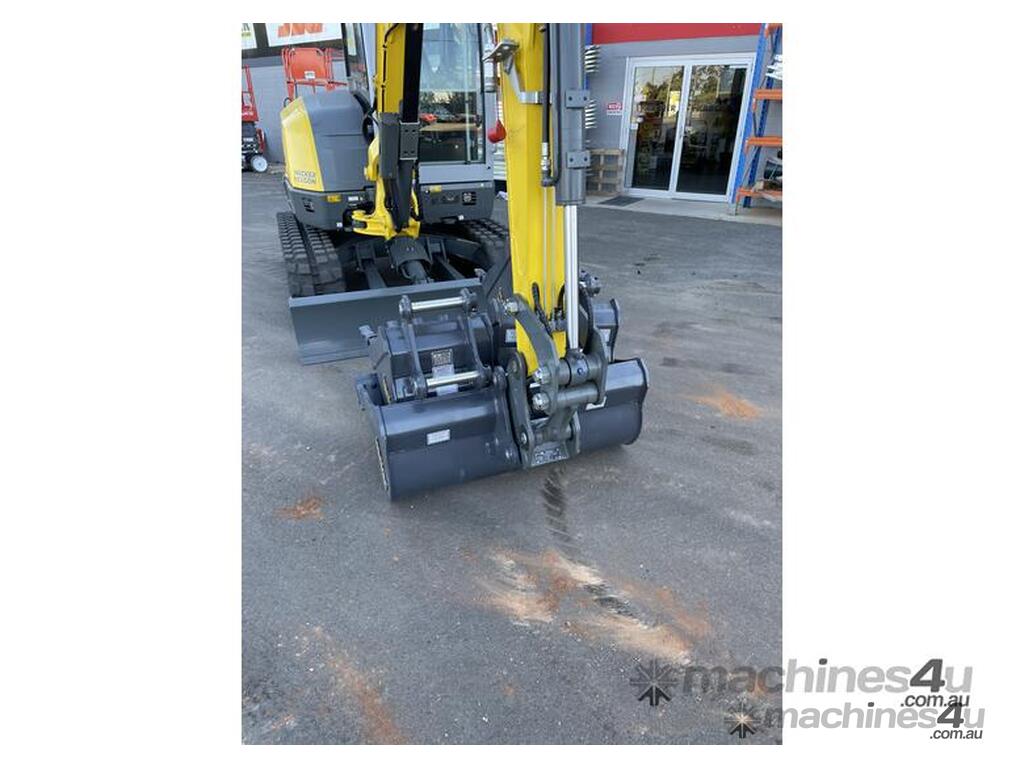

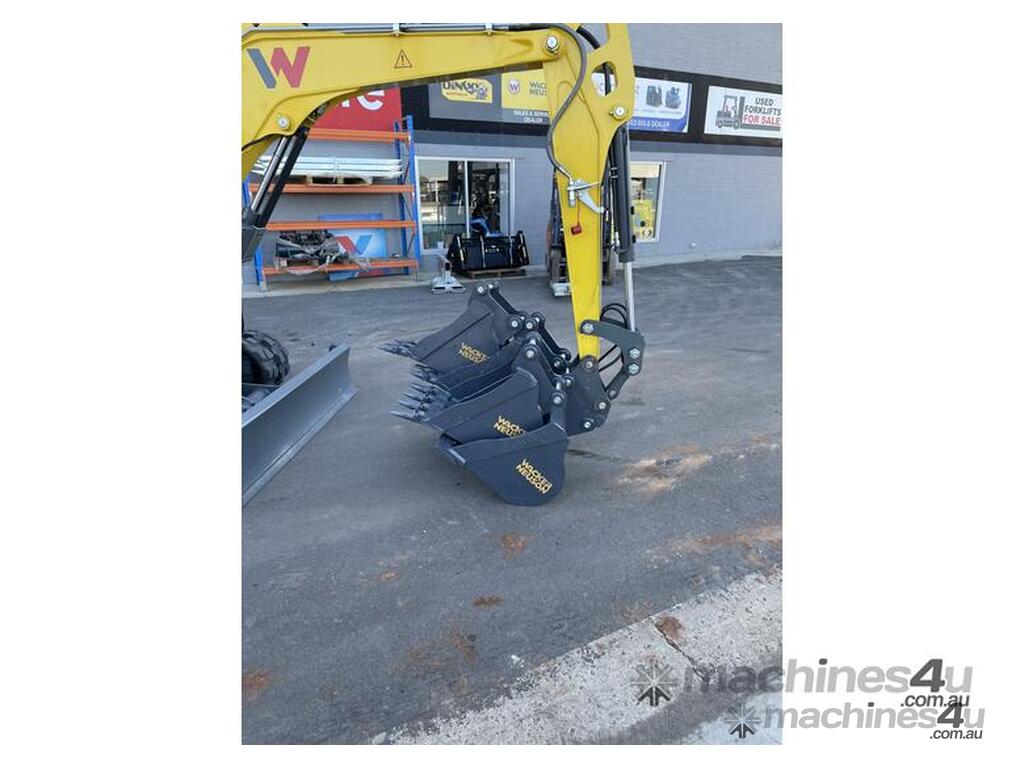

Comes complete with bucket kit

KEY FEATURES
The EZ50 excavator has the expected high lifting and excavation power as well as rapid work cycles.
Thanks to the newest technologies, the emissions of the mini-excavator were reduced and the efficiency simultaneously increased, among other things.
This is how, for example, the powerful engine of the EZ50 fulfills the standards for exhaust emissions stage 5.
The excavator is also impressive in terms of operator-friendliness. Work is no trouble at all thanks to the intuitive operating concept and flawless view of the working area.

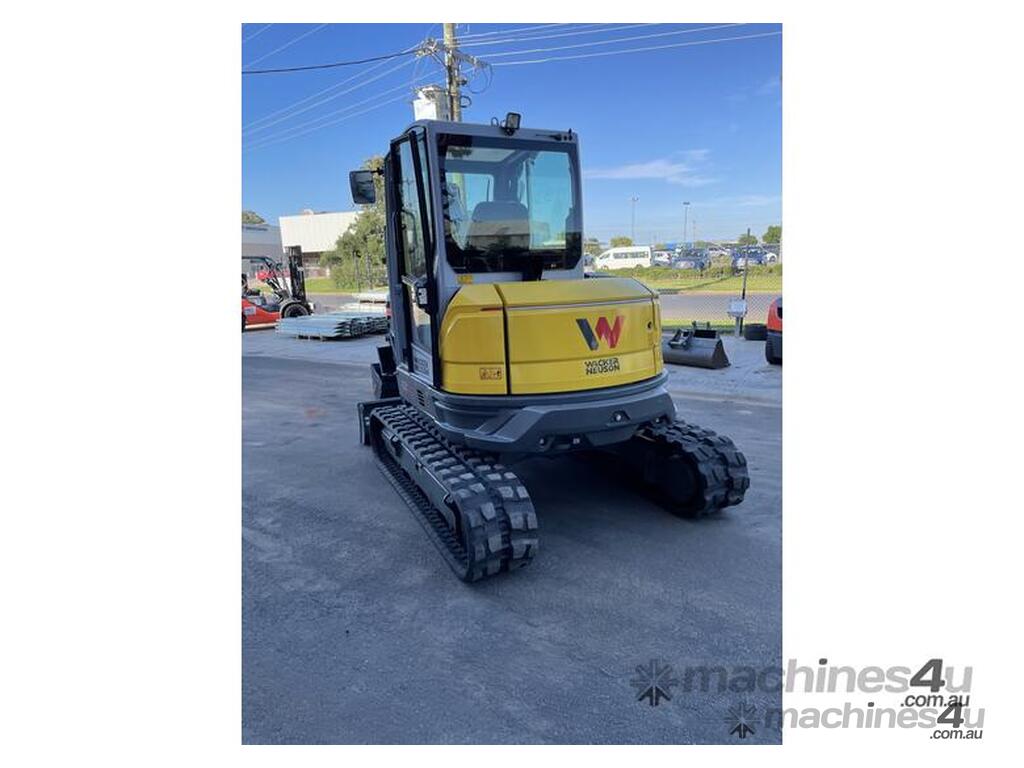

The EZ50 is also a zero tail excavator and thus particularly suited for work in narrow spaces.
3-point kinematics for more breakaway force, insertion depth and dumping height
Four auxiliary control circuits, high lifting and excavation power and thus, rapid work cycles – performance is emphasized here!

Comfortable and fatigue-free joystick control thanks to Load Sensing Flow Sharing
3-point kinematics for more breakaway force, insertion depth and dumping height
Four auxiliary control circuits, high lifting and excavation power and thus, rapid work cycles – performance is emphasized here!
Comfortable and fatigue-free joystick control thanks to Load Sensing Flow Sharing.

Shipping weight: 4,617 - 5,454 kg
Operating weight: 4,847 - 5,685 kg
Biting force max. 24.8 kN
Breakout force max. 36.8 kN
Digging depth max. 3,667 mm
Superstructure slewing speed 9 1/min
L x W x H 5,467 x 1,960 x 2,555 mm
Fuel tank capacity 80 l

Engine / Motor
Engine / Motor manufacturer Perkins diesel engine
Engine / Motor type 403J-E17T
Engine / Motor Water-cooled 3-cylinder turbo engine
Emission standards stage 5
Rated voltage 12 V
Displacement 1,663 cm³
RPM / speed 2,000 rpm
Engine performance 32.5 kW

Undercarriage
Travel speed Max. 4.4 km/h
Chain width 400 mm
Ground clearance 305 mm

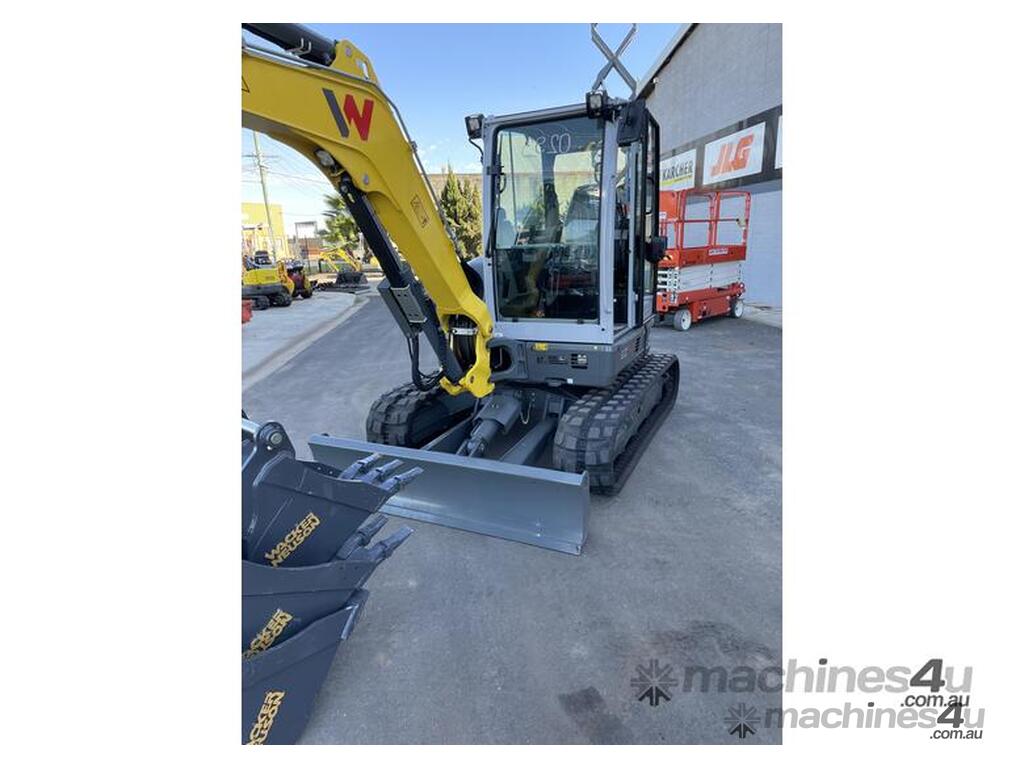

Dozer Blade
Width 1,960 mm
Height 370 mm
Stroke Above subgrade 415 mm
Stroke Below subgrade 455 mm



Located in Griffith and Wagga Wagga, NSW, Liftek Australia serves as the authorized dealer for Toyota Industrial Equipment JLG Access Equipment, Wacker Neuson and a reliable supplier of Karcher Cleaning Products.

Our extensive hire fleet boasts over 200 forklifts, ranging from 1 to 50 tonnes, featuring Petrol, LPG, Diesel, and Electric units. Additionally, we offer a diverse selection of Karcher Cleaning Equipment for both short and long-term rentals. Liftek provide an unparalleled blend of premier products, competitive pricing, and unparalleled backup service.

Go to the Liftek showroom on Machines4u to view the range of machinery, send Liftek a message about the item that you are interested in, or give Liftek a call, we are happy to answer any of your questions.

* CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
