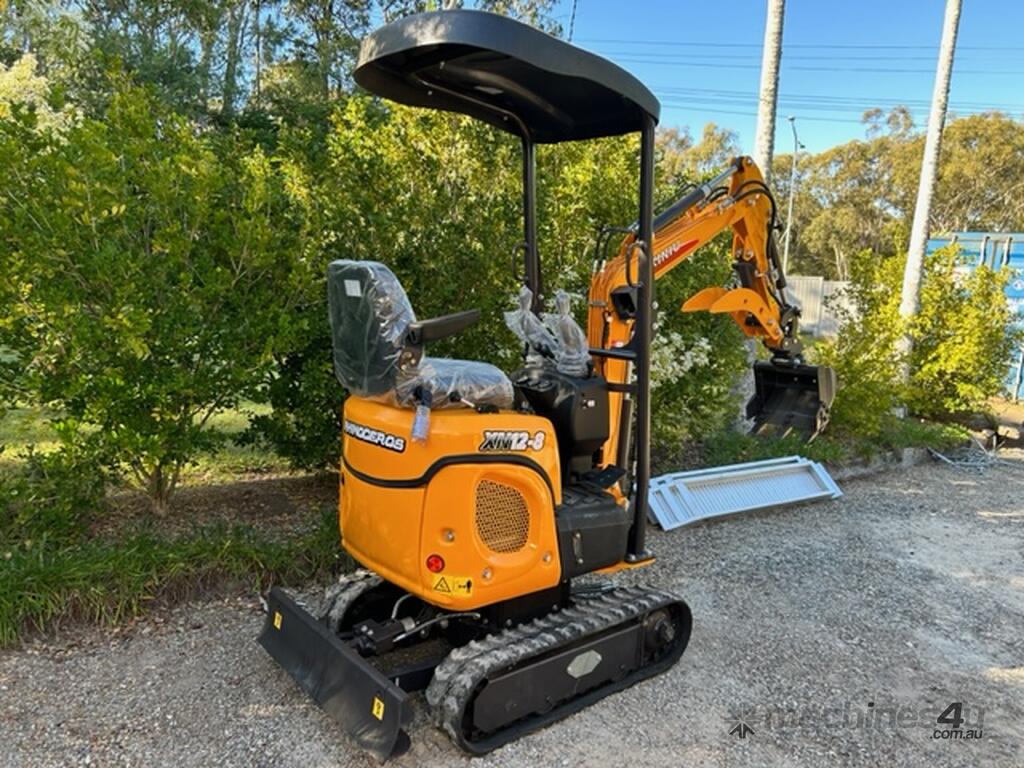

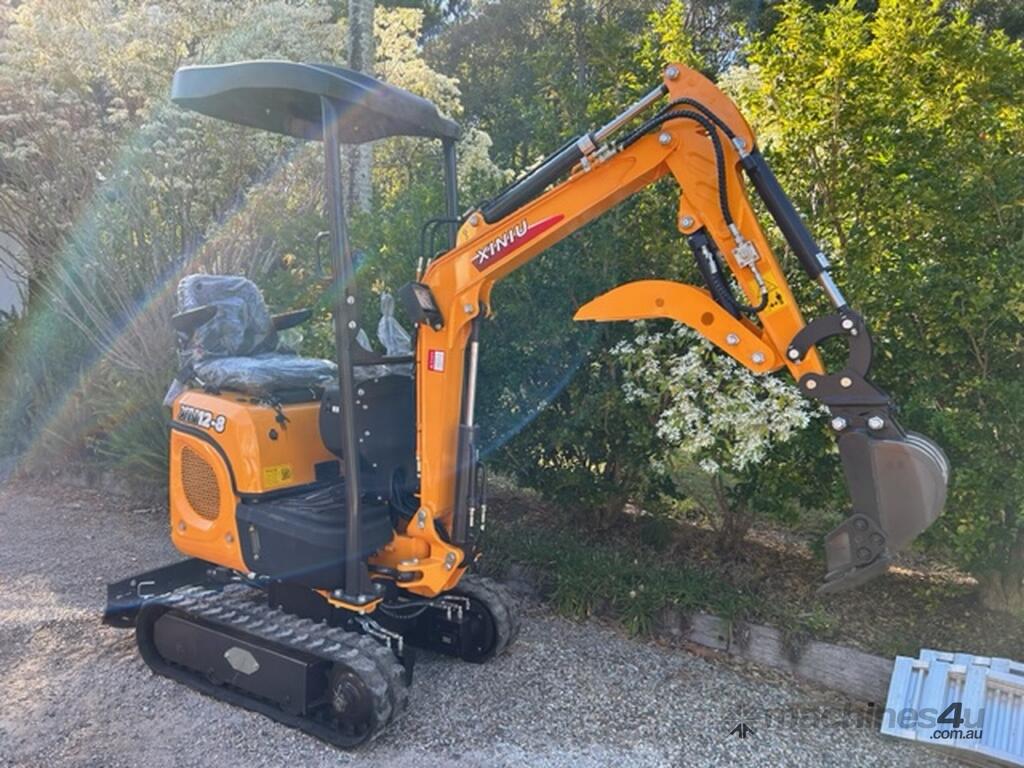

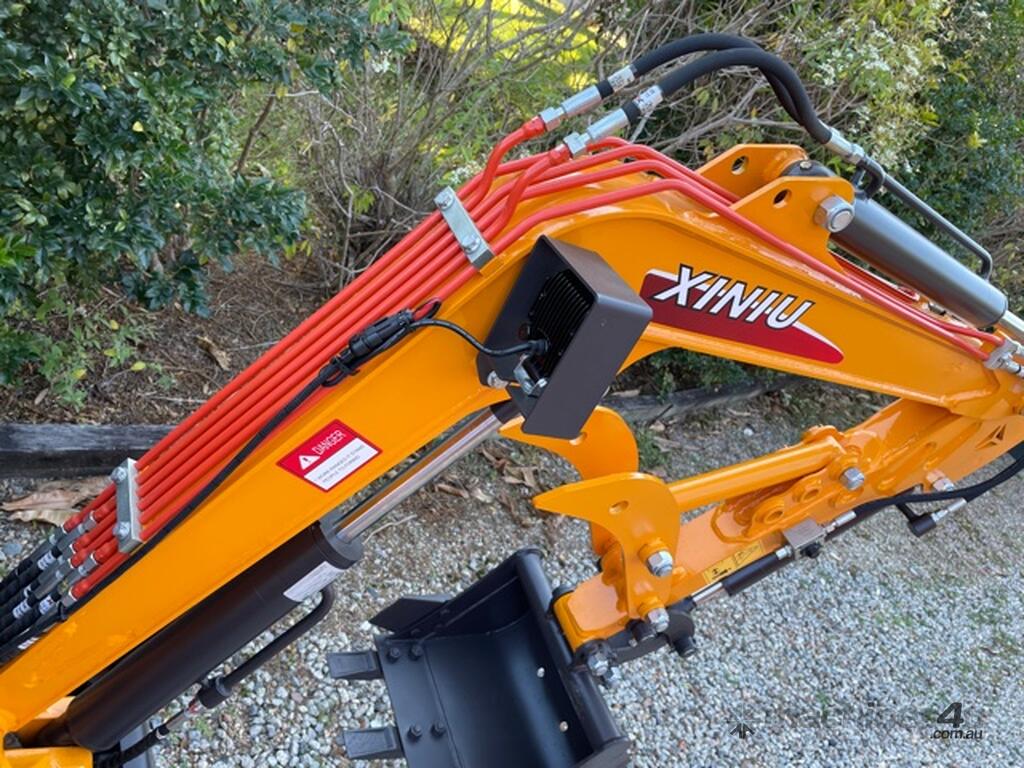

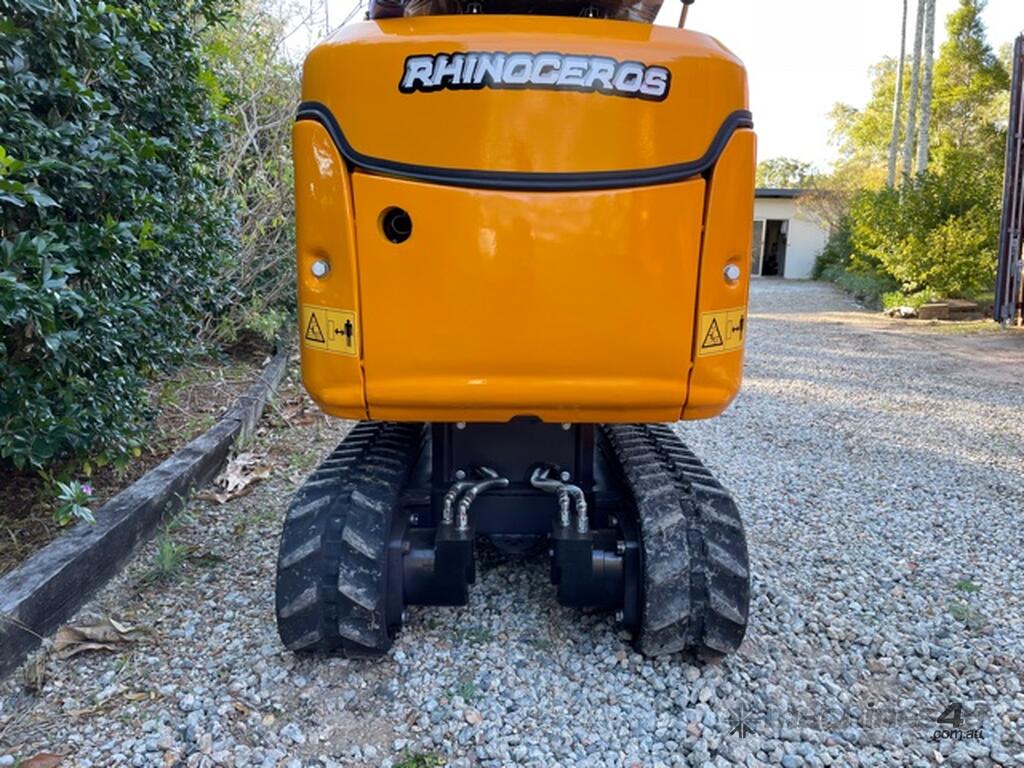

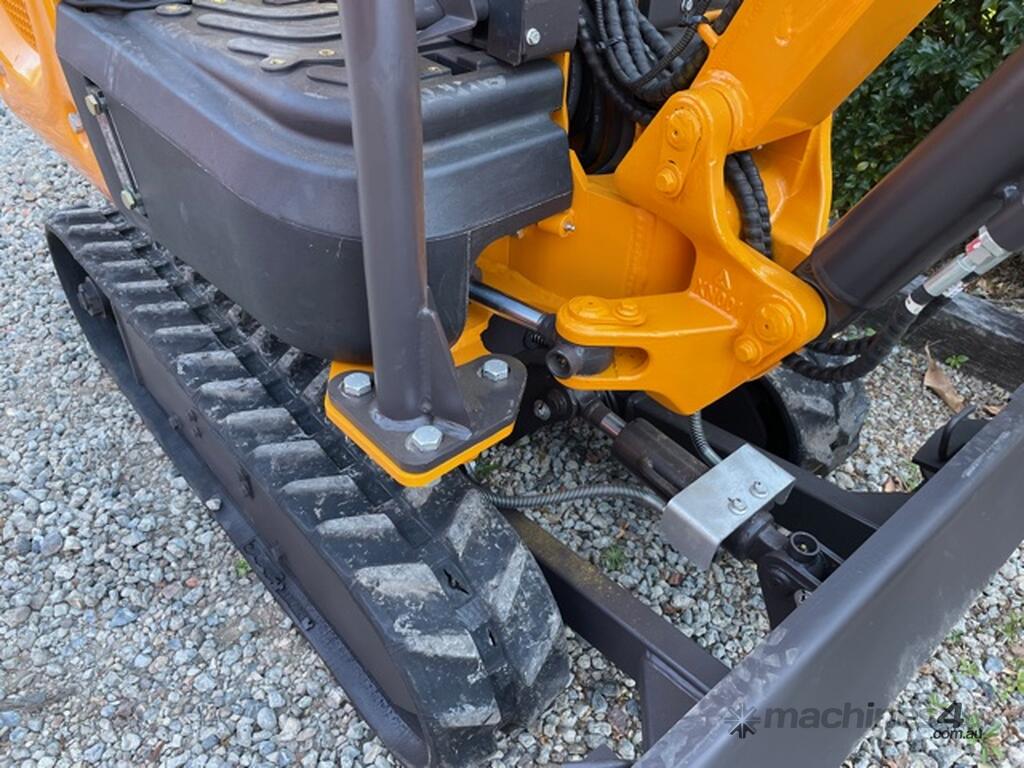

NEW upgradeMODEL XN12-8SE Rhino diesel excavator ,The 3rd generation GENUINE Rhinoceros 1.2 tons mini excavators only from authorised Rhinoceros dealer . EQUIPE WITH JAPAN MADE KUBOTA 3 CYLINDER WATER COOL DIESEL ENGINE , EXPANDABLE TRACK (770MM-950MM) ,WITH SWING BOOM , MORE QUITE, MORE STABLE. MORE ACCESSIBLE . NEW HYDRAULIC PIPES SET UP (METAL MIDDLE PART ) AND MORE......

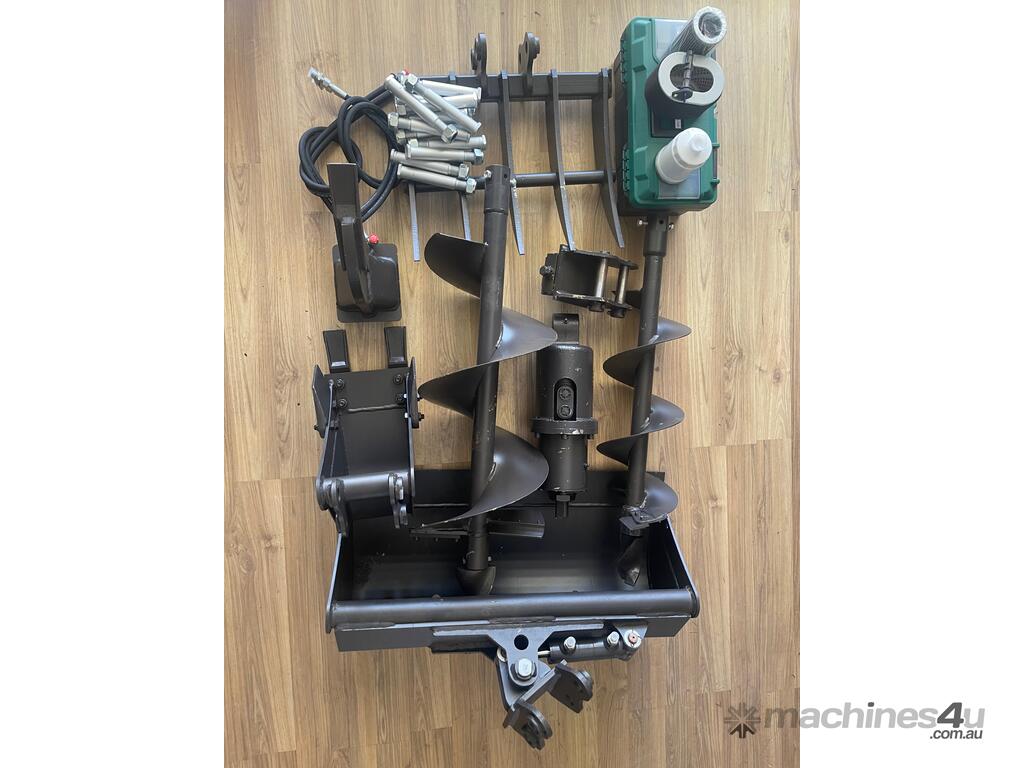

THIS LISTING IS FOR ONE MACHINE WITH ONE 400MM STANDARD DIGGING BUCKET AND A FREE THUMB ONLY . IF YOU NEED FULL ATTACHMENTS,INCL 200MM,400MM,800MM TILTING BUCKET HYDRO THUMB GRAB,RAKE,RIPPER,QUICK HITCH,AND 200MM AND 300MM AUGER. PEICE IS $17990 (GST INCL) . PLEASE CONTACT ME.
Buy from a long-term seller who is committed to serving your technology needs
THE 3RD GENERATION XN12-8SE ,GENUINE RHINOCEROS FROM SHANDONG RHINOCEROS HEAVY INDUSTRAL ,REAL QUALITY. BUY RHINOCEROS WITH WARRANTY AND FUTURE PARTS BACK UP.
Specification for mini excavator
Operating Weight. 1200kg
Bucket width 350mm

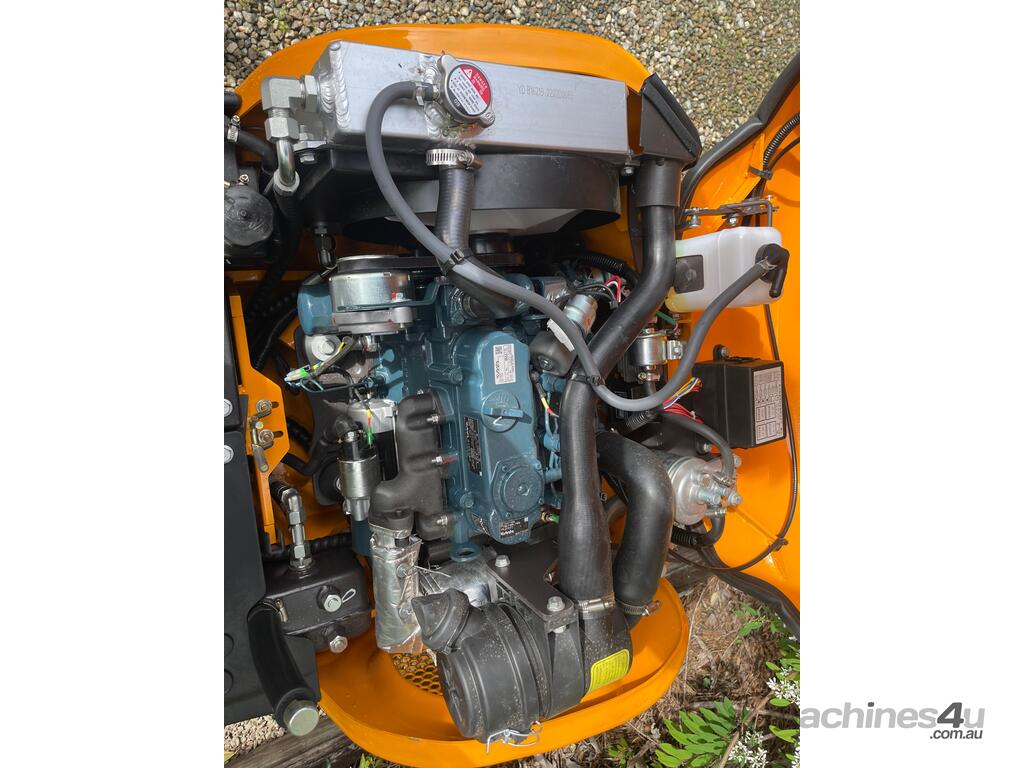

Engine kubota D722 3 cylinder DIESEL
Rated power 14 hp/3000r/min
Displacement 0.899 L
Main pump. Displacement 7.2ml/r
Swing motor. EATON (USA)
Traveling motor EATON (USA)
Travel speed 2.5km/h
MAIN DEMENSIONS
Overall dimension( LxWxH). 2770x896x1490 mm
Total length of track. 1230mm
Platform ground clearance 380 mm
Platform back turning radius. 784 mm
Track width 180 mm
Chassis ground clearance 132 mm
Track height 320 mm
OPERATING RANGE
Max. Digging depth 1650 mm
Max. Vertical digging depth 1375 mm
Max. Digging height 2610 mm
Max. Dumping height 1850 mm
Max. Digging radius on ground 2850 mm
Min. Rotation radius 1330 mm
Max. Upgrade height of bulldozer blade 345 mm
Max. Digging depth of bulldozer blade 255 mm
