Nante NHA Series Wire Rope 12.5T Hoist & Trolley - Exclusive Distributor

Hydromech are the sole Australian Distributors for Nante Crane Components, proudly in partnership for any project size.

Hydromech can provide manufacturing solutions across the country and the world with either locally manufactured goods, or with the backing of a proven ISO accredited company, ensuring your enquiries on big projects are met with quick responses, providing high quality products built in very competitive lead times, with elite engineering capabilities.

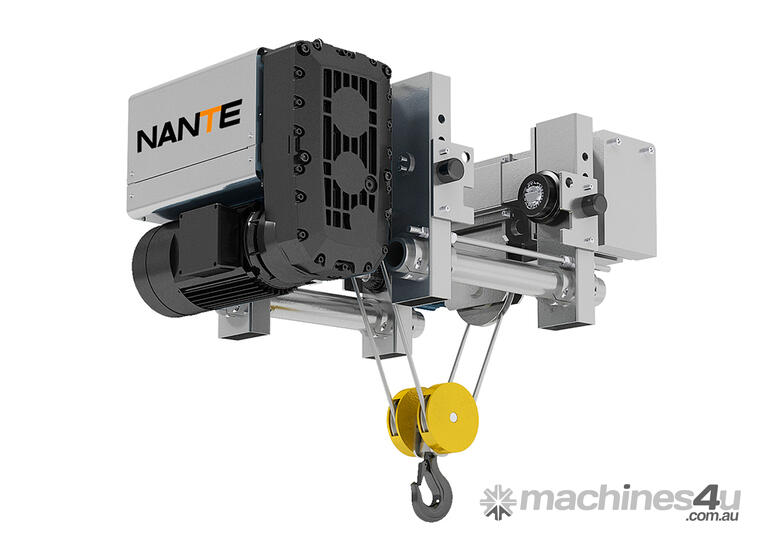

NHA series electric wire rope hoist is NANTE’s new generation hoist. There are many more variations of hoists at different specs available. Significant advantages of this hoist series include:

Compact Design
Low Noise
Low Power Consumption
Easy Installation
Safe Operation
Easy Maintenance

NANTE products offer low headroom, fixed type, monorail type and double girder designs for unique applications. Additionally, NANTE can provide customised designs including advanced functions such as anti-sway, automatic running, and data logger etc.

Key Features Include:

Combined Engineering between Nante & Hydromech to ensure the hoist is designed to meet Australian Standards.

Adheres to international design codes including FEM, CMAA, EN ISO.

Top quality gear motor with IP55, F class and electromagnetic brake (Can be upgraded to IP66 & H class)

High performance and high strength galvanized wire roping provides safe operation and long service life.

Heavy Duty T Class alloy steel enforced hook with 360° rotation and an ergonomic design.

IP55 enclosure with socket for easy operation (follows IEC standard, can be upgraded to IP65) – All electrics designed and manufactured to Australian Standards.

SA2.5 class surface - pre-treated by shot blasting. C3-C5 painting system according to ISO 12944-5.

Overload limiter, over-heat protection, over-current protection, up/down position limiter, phase relay, and other optional functions such as data logger, LED load displayer, etc.

Key Specifications:

Brand: Nante
Model: NHA10t-9m-4/1-M5
Rated Capacity: 10.0T
Class: M5
Hoist Speed: 4.2/0.7m/min
Hoist Motor: SEW G97 9.0/1.4kW
Duty: 30/15%
Load Limiter: Yes.
HOL: 9.0 metres available
Reeving: 4/1
Flange: 200-410mm Max
Trolley Speed: 20/5 m/min - RF27-0.55 (0.95kW) INV Control
Control Electrics: Yes.
Control: By client.
CT Limit: Yes.
Environment: Indoors - Non Aggressive
Supply Voltage: 415V AC 3Ph 50Hz
Control Voltage: 48V AC
Protection/Class: IP55 / F

Contact Us for more information regarding our products and services. We welcome all enquiries about hoists, overhead cranes and crane kits and we are here to assist you with all your needs and requirements. Hydromech are the trusted choice.
