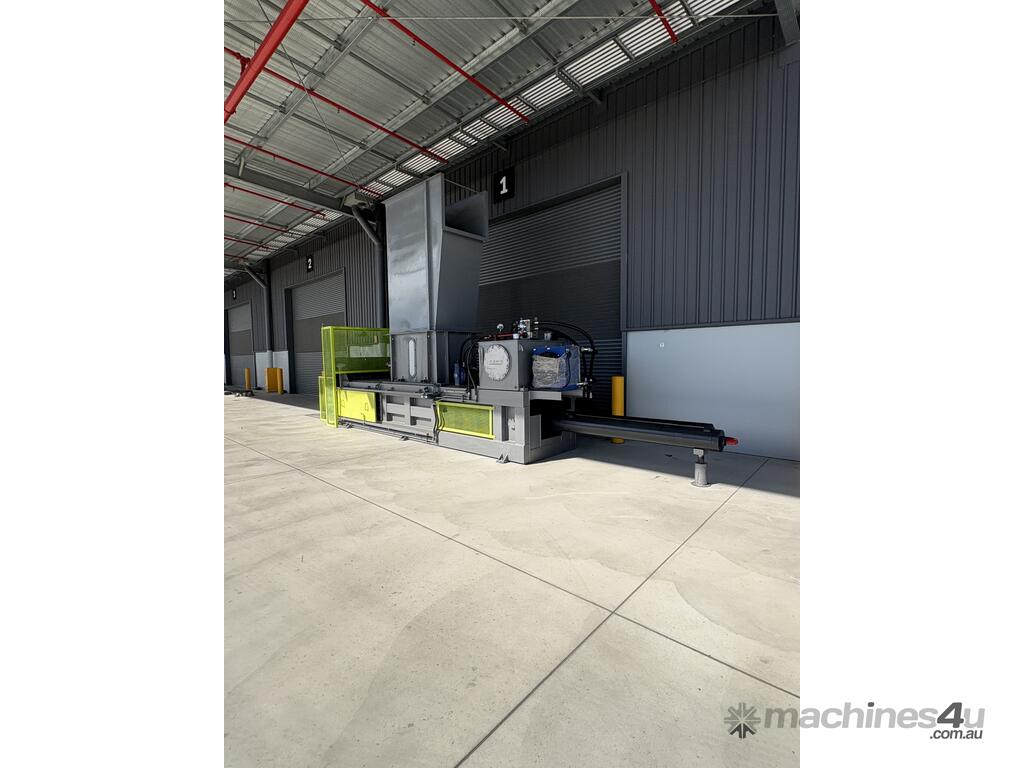

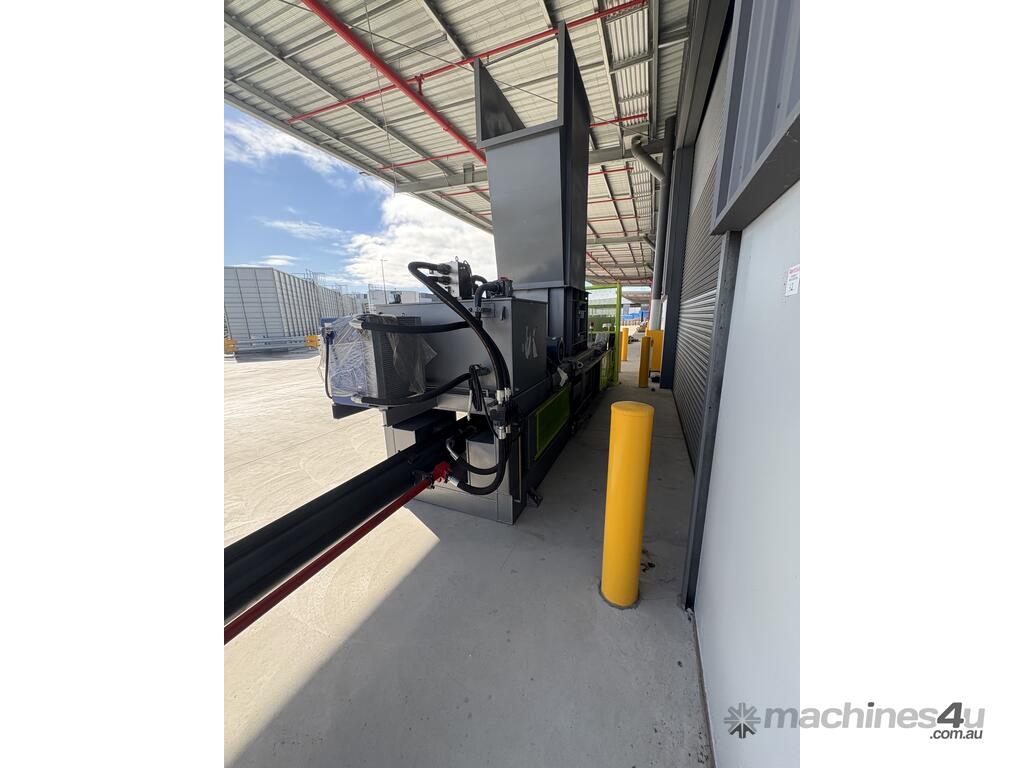

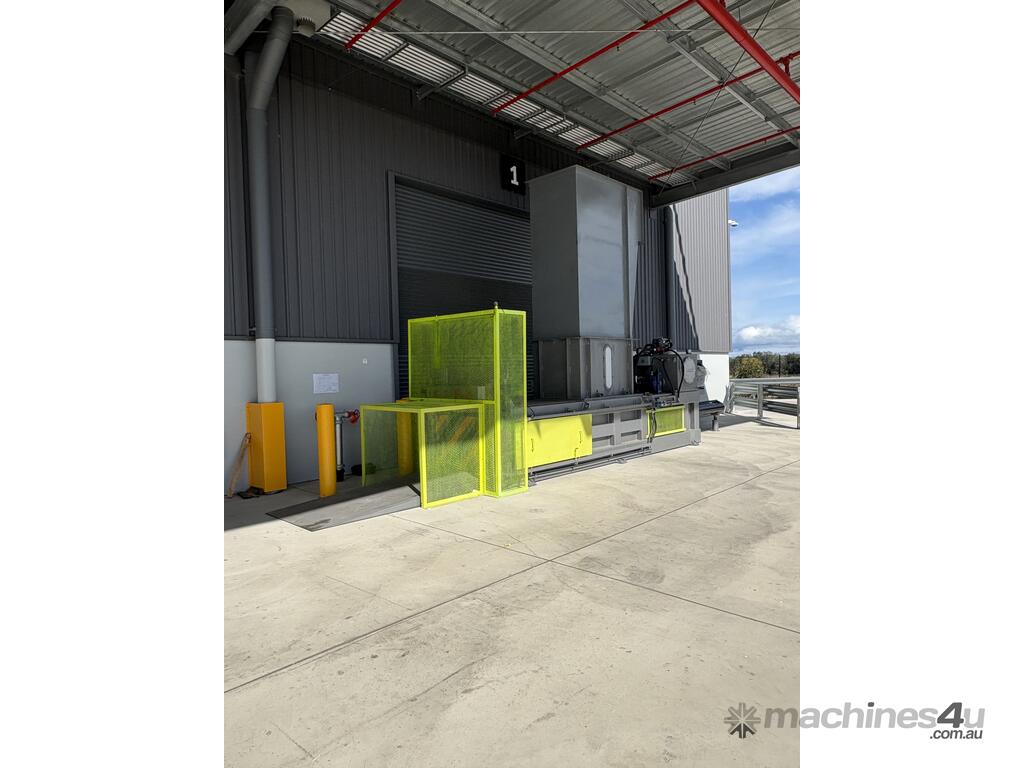

Introducing our high-performance Hydraulic Baling Machine, designed for industrial-grade waste management and recycling. Built with rugged hydraulic power and intelligent controls, it ensures high-density bales and efficient throughput.
Two configurations to choose from:
Main Pressure Cylinder
Door Opening Cylinder
Choose the setup that best fits your application!
Key Features:
Massive Compaction Force:
1000KN (100 tons) Main Pressure Cylinder available for powerful, dense bales.
Flexible Configuration:
Choose between Main Pressure Cylinder or Door Opening Cylinder setups to match your operational needs.
High Output Capacity:
~6 bales per hour at approx. 400 kg/m³ block density (for reference).

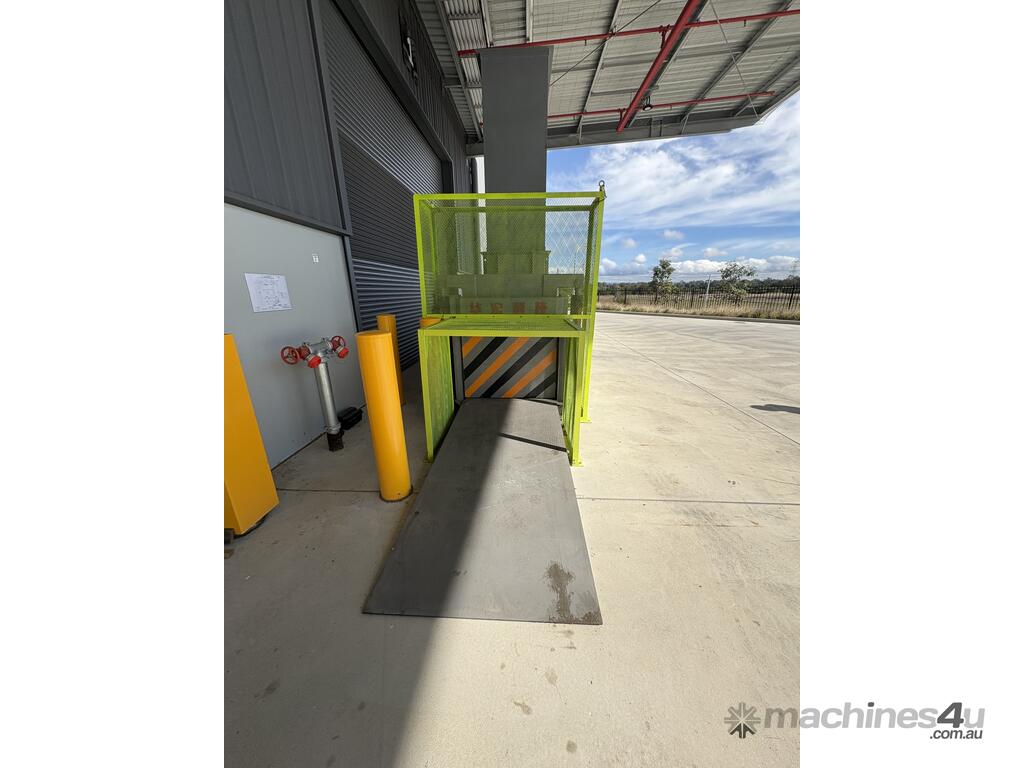

Large Feed & Material Box:
1600×1020mm feed port; 3500×1100×750mm box – great for large volumes.
Efficient Cycle Time:
~45 seconds (no-load) for faster operations.

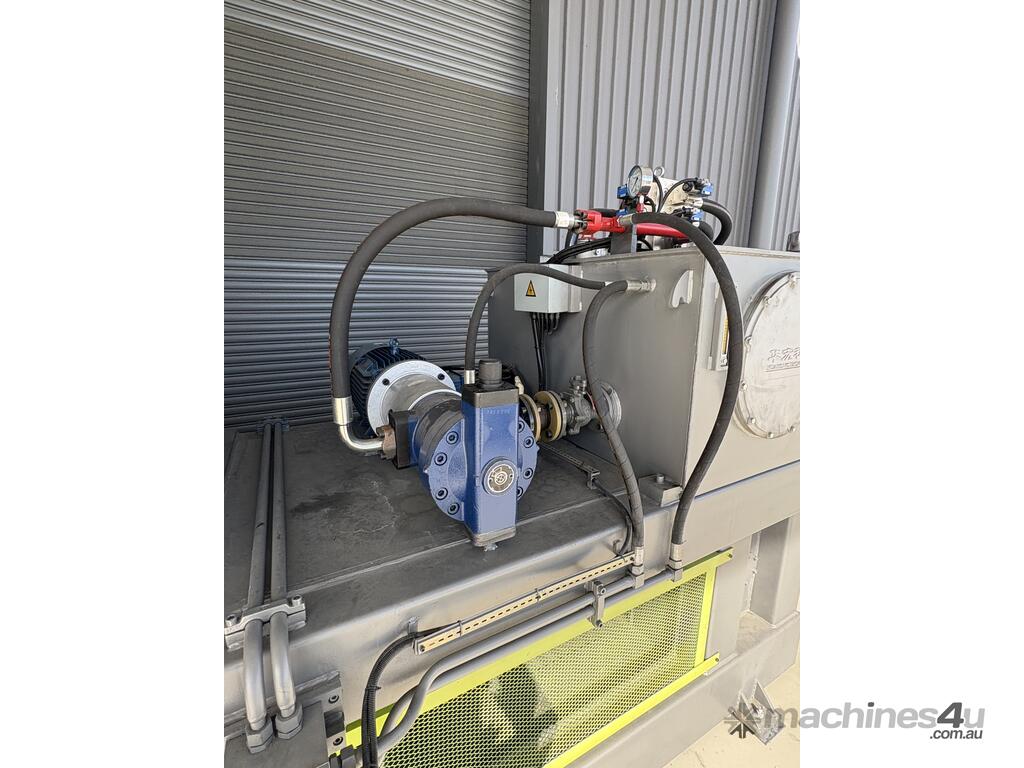

Robust Hydraulic System:

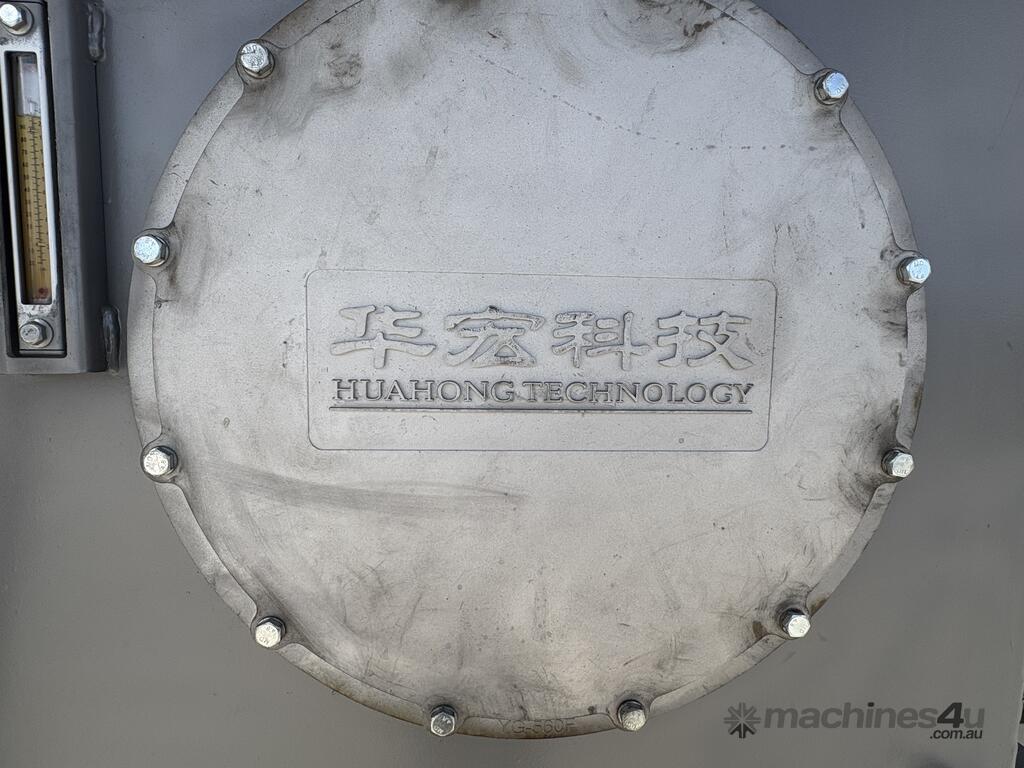

Up to 31.5 MPa pressure, dual oil pumps, and 900L tank capacity.

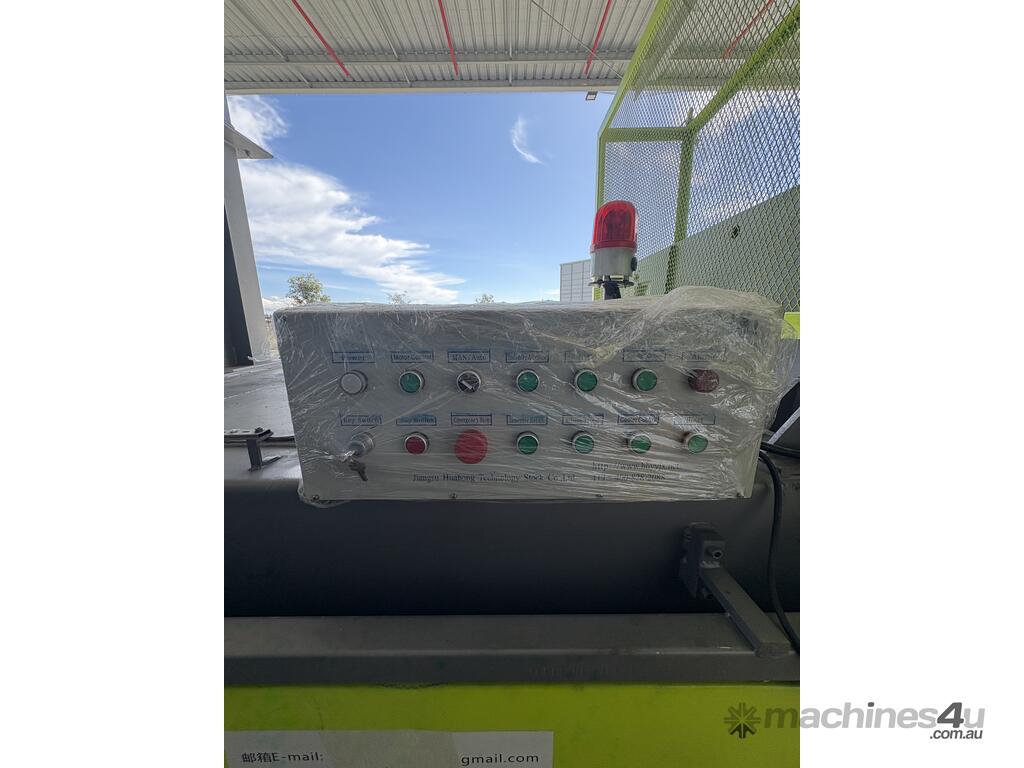

User-Friendly Operation:
PLC control system with manual wire tying (4 ties).
Compact Industrial Footprint:
11300×1700×2520 mm overall size, designed for heavy-duty environments.
