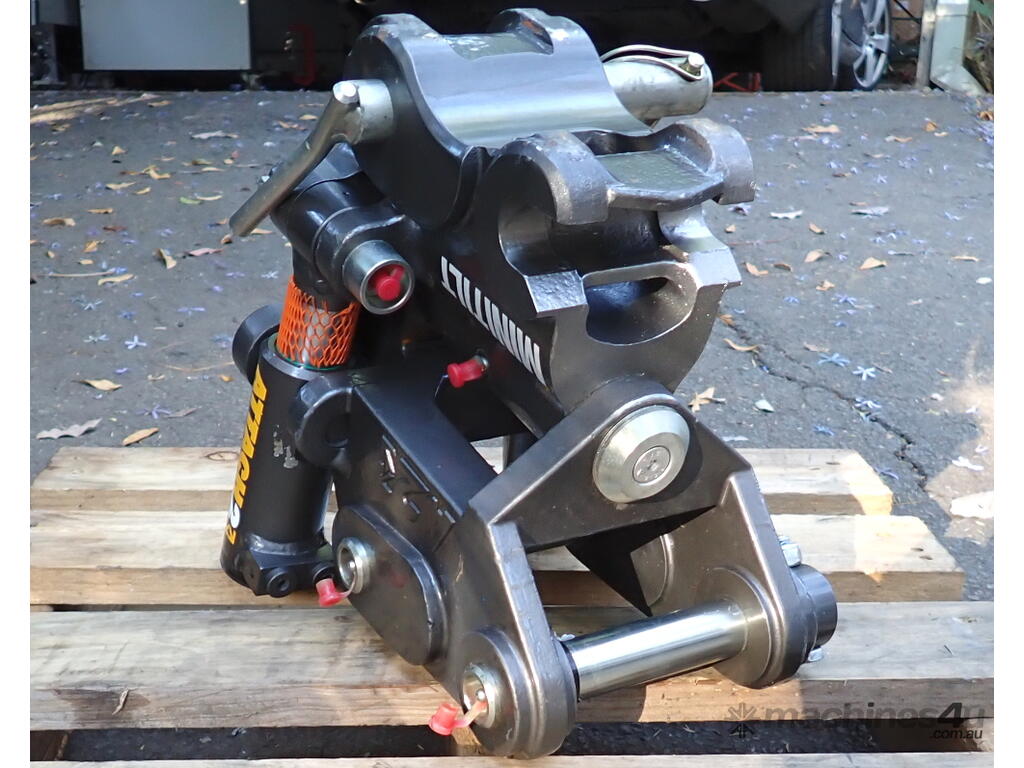

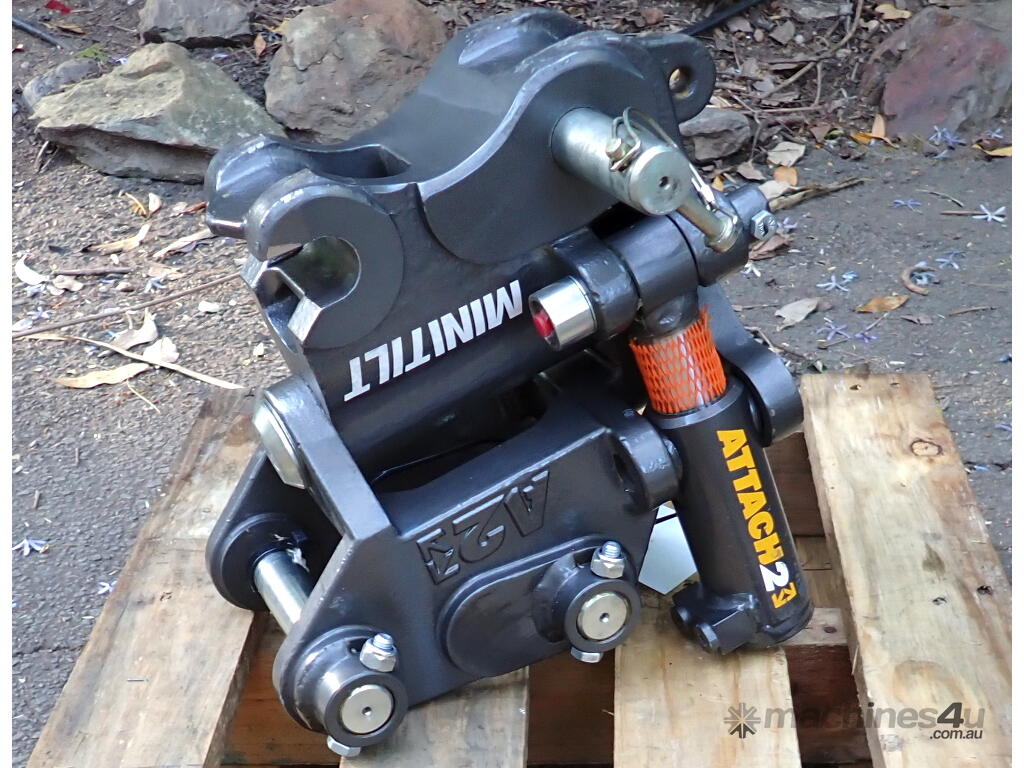

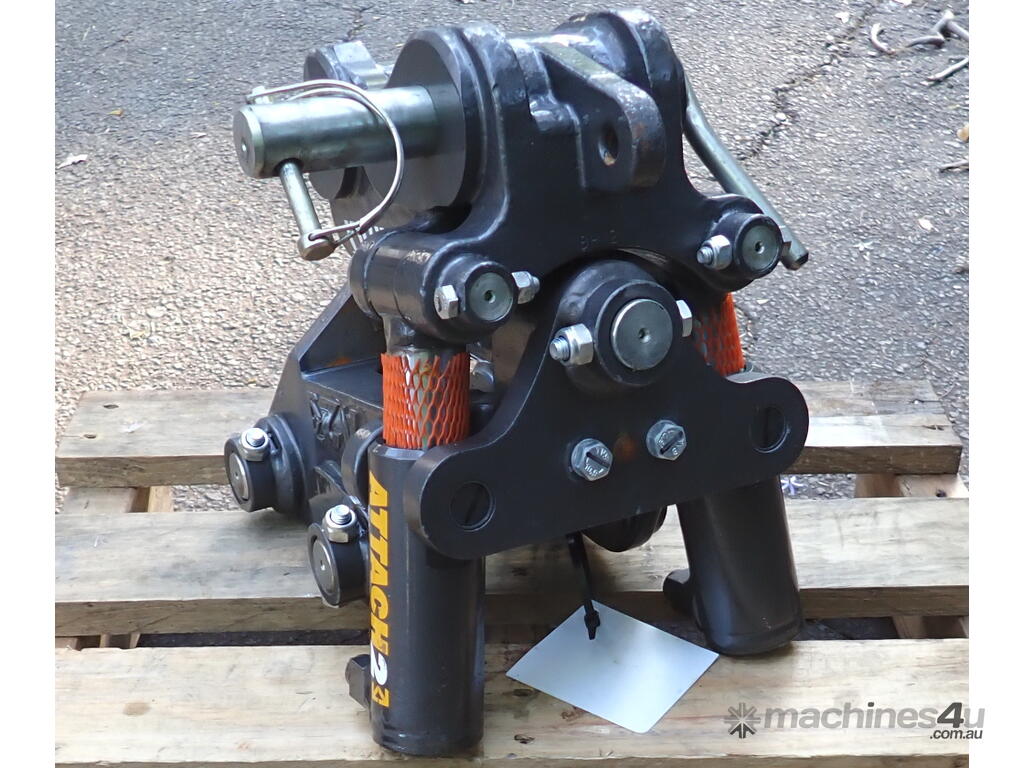

New 1-3 ton (30mm pin) Attach2 MiniTilt Hydraulic Tilting Excavator Hitch Coupler

New Attach2 MiniTilt Excavator Hydraulic Titling Quick Hitch Coupling to suit 1-3 Ton machines, only uses 1 set of Hydraulic Lines.

This is a Hydraulic Tilting Hitch Coupler, but it only needs 1 set of Auxiliary Hydraulic lines on your machine instead of the normal 2 sets. This is because the Tilt function is driven by the Hydraulics, but the bucket grab & release is done manually, just like a half hitch where you hook the lower front of the hitch onto your bucket's front pin, then push the rear pin through the bucket boss / hitch / other bucket boss.

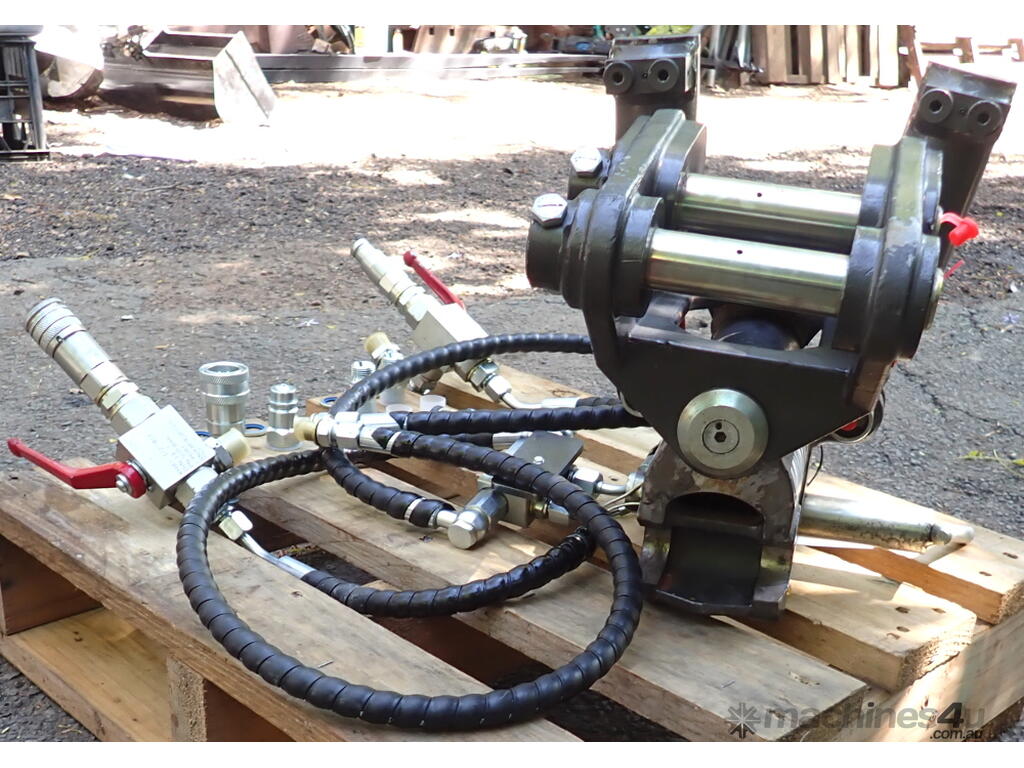

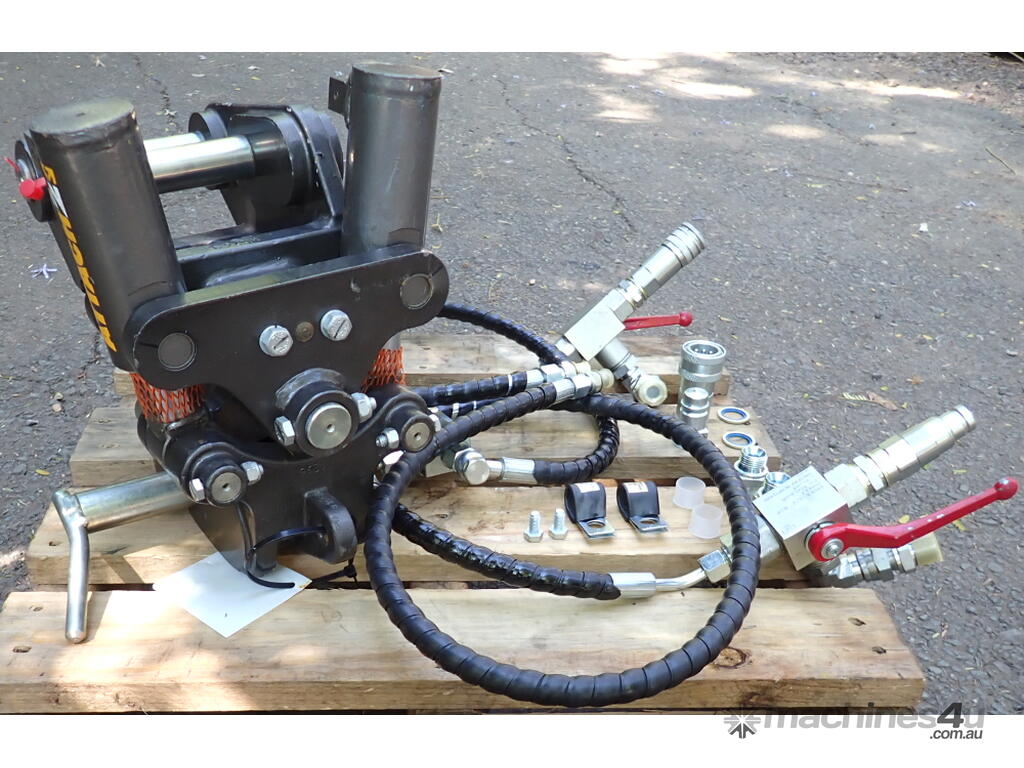

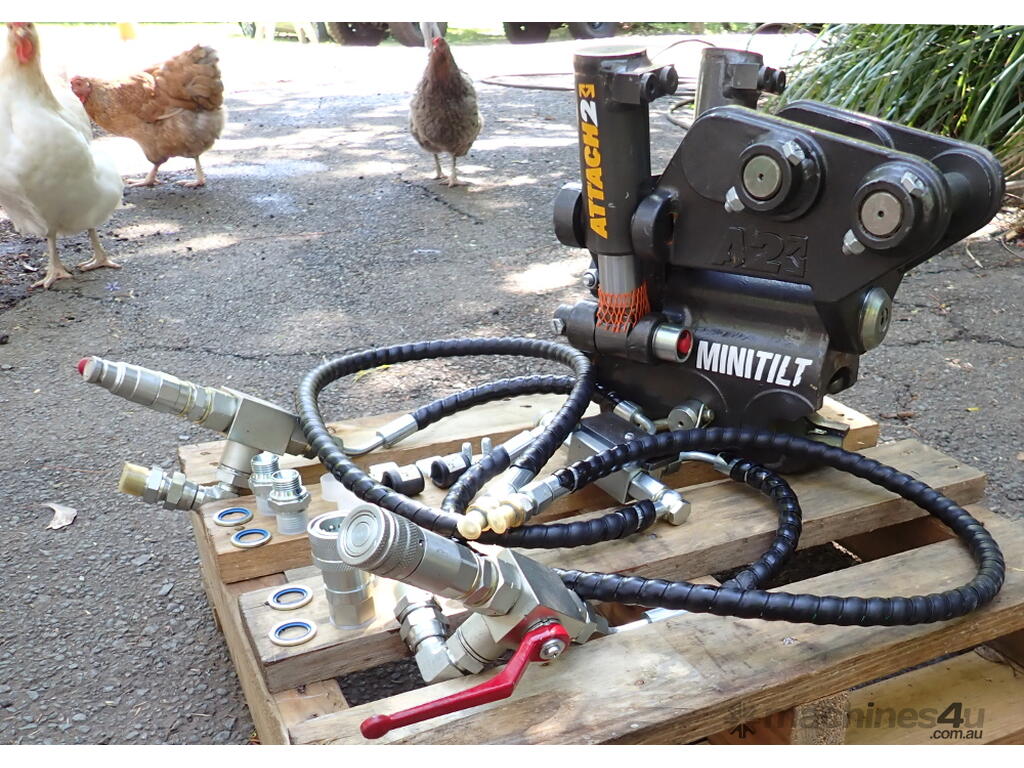

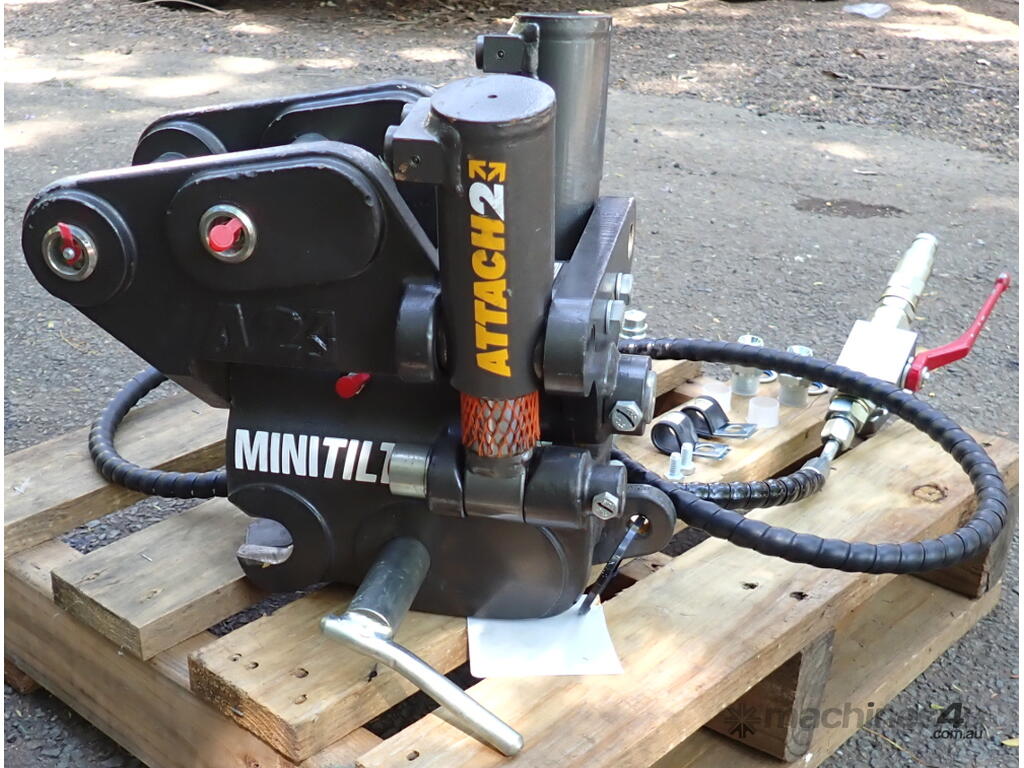

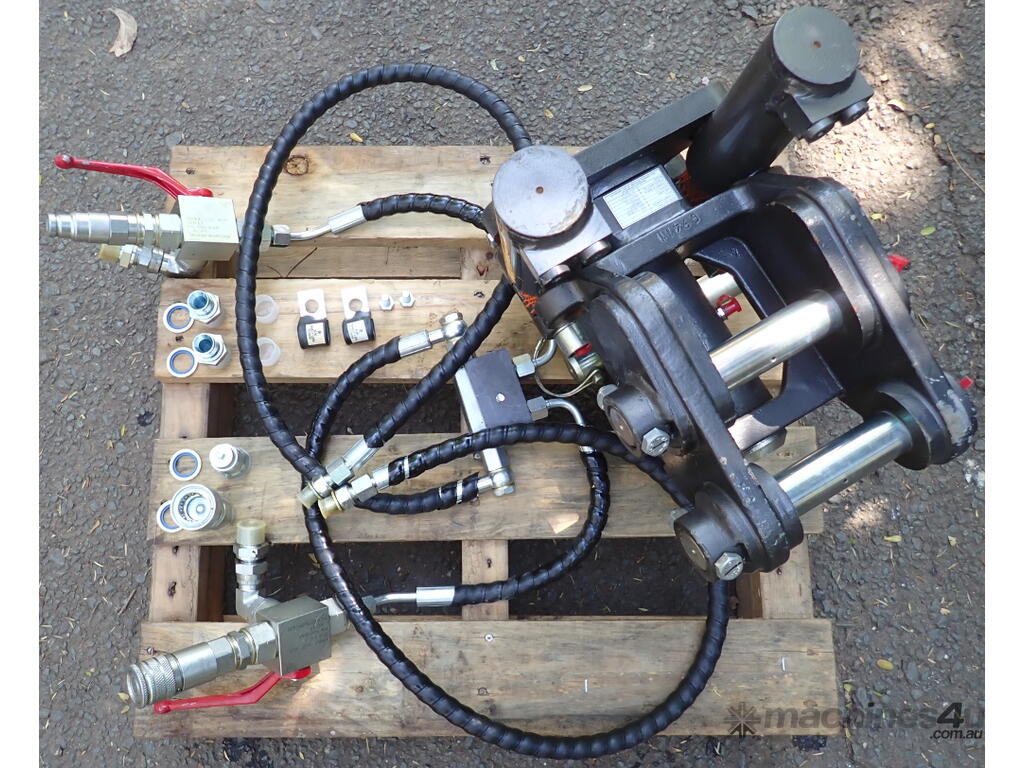

Comes with a manual and all the Hydraulic Plumbing Hoses and accessories as pictured (retail $499).

Tilt Range: 70°

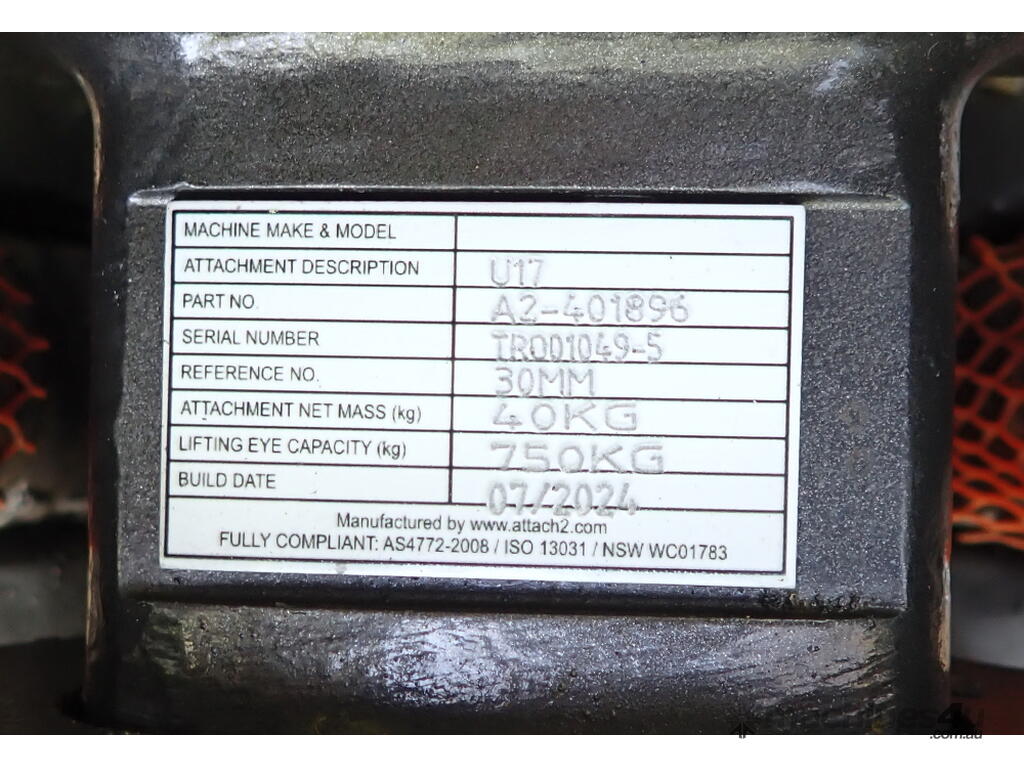

Rear Lifting Eye Hook Capacity: 750kg.

This is a well engineered, heavy duty Hydraulic Tilting Hitch, made in Australia by Attach2 Equipment: (see links in 'View Brochure' above...)
Promo Video: (see links in 'View Brochure' above...)


***** Headstock Dimensions:
(We have several of these hitches, all are the same 30mm pin but there are 3 choices of Pin Centers & Between The Ears spacing)

*** Pin Setup Dimensions (where your Dipper Arm goes in):
* Pin Diameter: 30mm.
* Pin Center to Pin Center (CtoC): Choose either (1)90mm or (2)134mm or (3)139mm.
* Between The Ears (BTE): (1)96mm or (2)112mm or (3)110mm Between the inside Ear Bosses of the hitch (all of which can be shaved back up to 120mm between the Ear Plates if you need more inside width for your excavator's dipper arm to fit in).

*** Pin Setup Dimensions (where the Hitch goes in your bucket):
* Pin Diameter: 30mm.
* Pin Center to Pin Center (CtoC): (1)85mm or (2)134mm or (3)139mm.
* Between The Ears (BTE): (1)95mm or (2&3)110mm (your buckets/attachments need to have at least this much width between the ears).


*** Variant (1) = CtoC:90mm(top),85mm(bottom)
* Should fit: Kubota U17.

*** Variant (2) = CtoC:134mm
* Should fit: Kubota KH 51 / KX 61 / KX 61-2 / U20 / U25-3, Takeuchi TB 14 / TB 15FR / TB 16, Wacker Neuson 1403 / 1404 / 1503 / 1903 / 2203 / 2503.
* Maybe fit: Bobcat 322 / 323 / E17 / X320 / X322, Case CX 14 / CX 15, Caterpillar 301.5 / 301.8, Daewoo Solar 015, Hanix H15B-2, Hyundai R 16-7, Kobelco SK 13SR / SK 13SR-2 / SK 15 / SK 15SR / SK 16 / SK 16E / SK 16MSR / SK 17 / SK 17E / SK 17SR-3, Komatsu PC 05-6 / PC 05-7 / PC 05 New Type / PC 05 Old Type / PC 07 / PC 07-1 / PC 07-2 / PC 07 New Type / PC 12R-8 / PC 12R-8E / PC 12 New Type / PC 15R-8 / PC 15 New Type, Libra 116, New Holland E 18 / EC 15, Pel Job EB 12, SMC MX15, Takeuchi TB 15, Volvo EC14 / EC15, Yanmar B 10 / B 12 / B 15 / B 17 / B 121 and possibly other machines with similar pin spacings.

*** Variant (3) = CtoC:139mm
* Should fit: Kobelco SK 15SR / SK 17SR-3, Kubota U25-3, New Holland E 18.
* Maybe fit: Caterpillar 301.5 / 301.8, Daewoo Solar 015, Hanix H15B-2, Hitachi UE20, Hyundai R 16-7, Kubota KH 51 / KX 61 / KX 61-2 / U20, Libra 116, New Holland EC 15, SMC MX15, Takeuchi TB 14 / TB 15FR / TB 16, Wacker Neuson 1403 / 1404 / 1503 / 1903 / 2203 / 2503 and possibly other machines with similar pin spacings.


Hitch dimensions: 345mm long, 250mm wide, 325mm high.
Weight: 41.5kg (+6.6kg for the additional accessories).


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
