New 1-3 ton (30mm pin) Mini Excavator Attachments Kit

New full Attachment Kit for 1-3 ton Mini Excavator Diggers using 30mm pins. $5,010 of value.

Headstock Setup for All Attachments:
* Pin Diameter: 30mm.
* Pin Center to Pin Center: 130mm.
* Between the Ears (BTE): 105mm Between the inside Ear Bosses (which can be shaved back up to 145mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).

* Should fit: Bobcat 322 / 323 / E17 / E20, Caterpillar 301.5 / 301.8, Daewoo Solar 015, Hanix H15B-2, Hyundai R 16-7, Komatsu PC 05-6 / PC 05-7 / PC 05 New Type / PC 07 / PC 07-1 / PC 07-2 / PC 07 New Type / PC 12R-8 / PC 12R-8E / PC 12 New Type / PC 15MRX-1 / PC 15R-8 / PC 15 New Type, Kubota KH 51 / KX 61 / KX 61-2 / U20, Libra 116, New Holland EC 15, SMC MX15, Takeuchi TB 14 / TB 15FR / TB 16, Wacker Neuson 1403 / 1404 / 1503 / 1903 / 2203 / 2503.

* Maybe fit: Airman AX12, Bobcat X320 / X322, Case CX 14 / CX 15, Hitachi EX12 / EX15 / EX16 / UE10, Kobelco SK 13SR / SK 13SR-2 / SK 15 / SK 15SR / SK 16 / SK 16E / SK 16MSR / SK 17 / SK 17E / SK 17SR-3, Komatsu PC 05 Old Type, Kubota U25-3, New Holland E 18, Pel Job EB 12, Takeuchi TB 15, Volvo EC14 / EC15, Yanmar B 10 / B 12 / B 15 / B 17 / B 121 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

Comes with 2x 30mm pins.

We will sell items individually for the below prices (if we have availability).

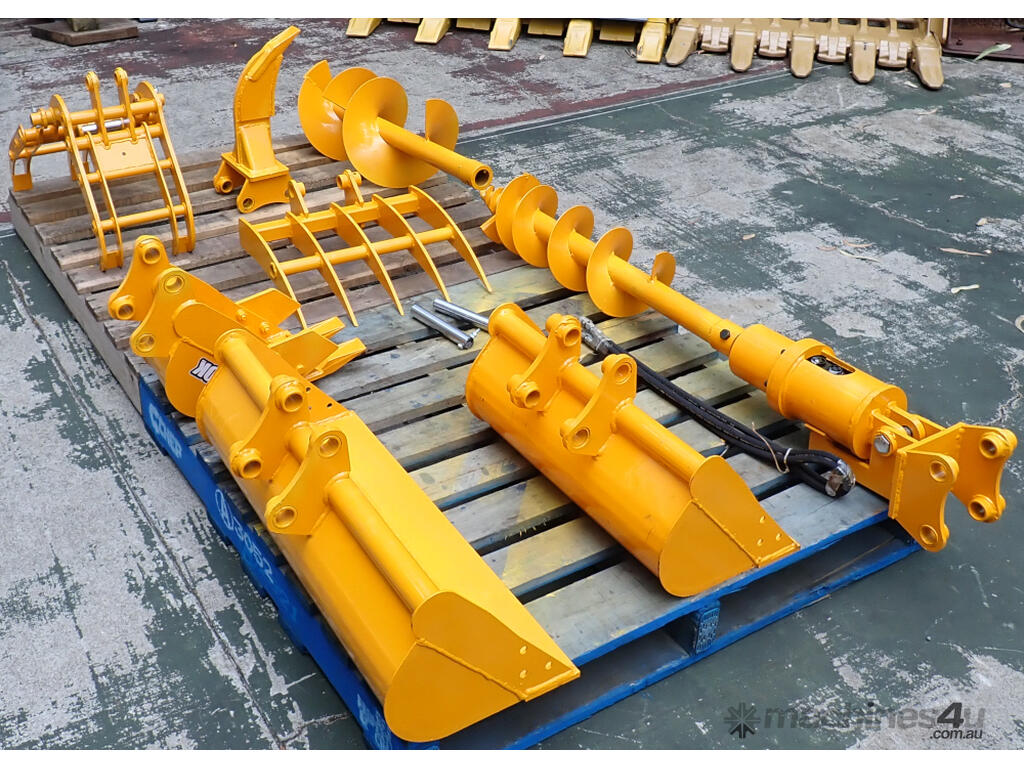

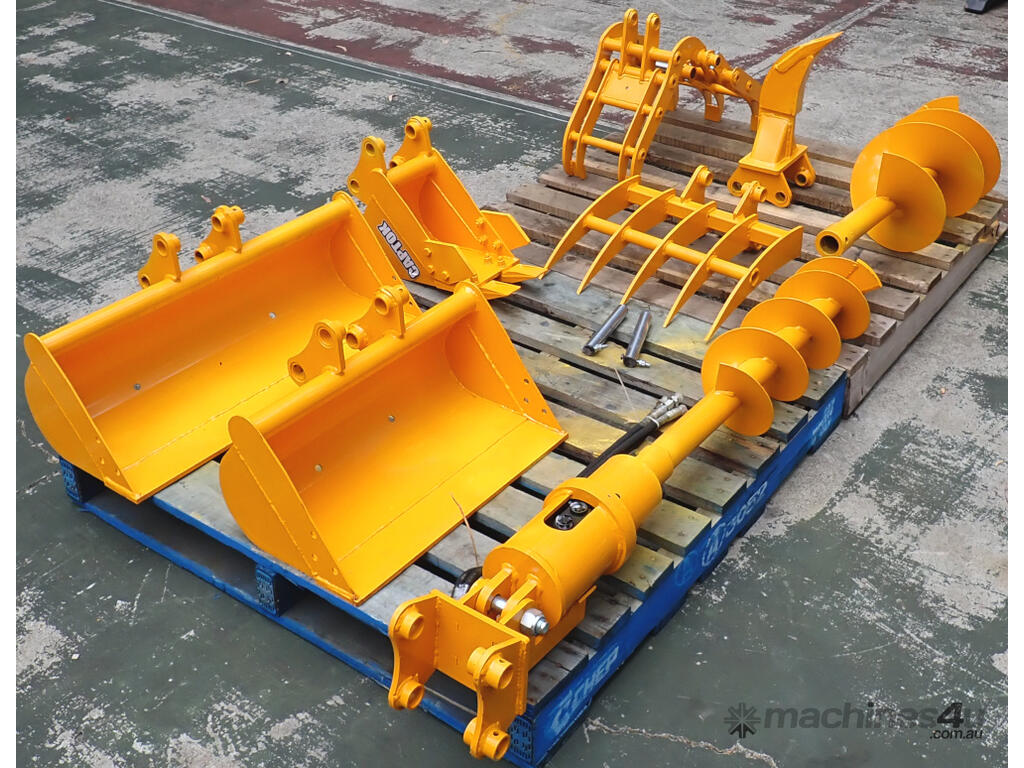

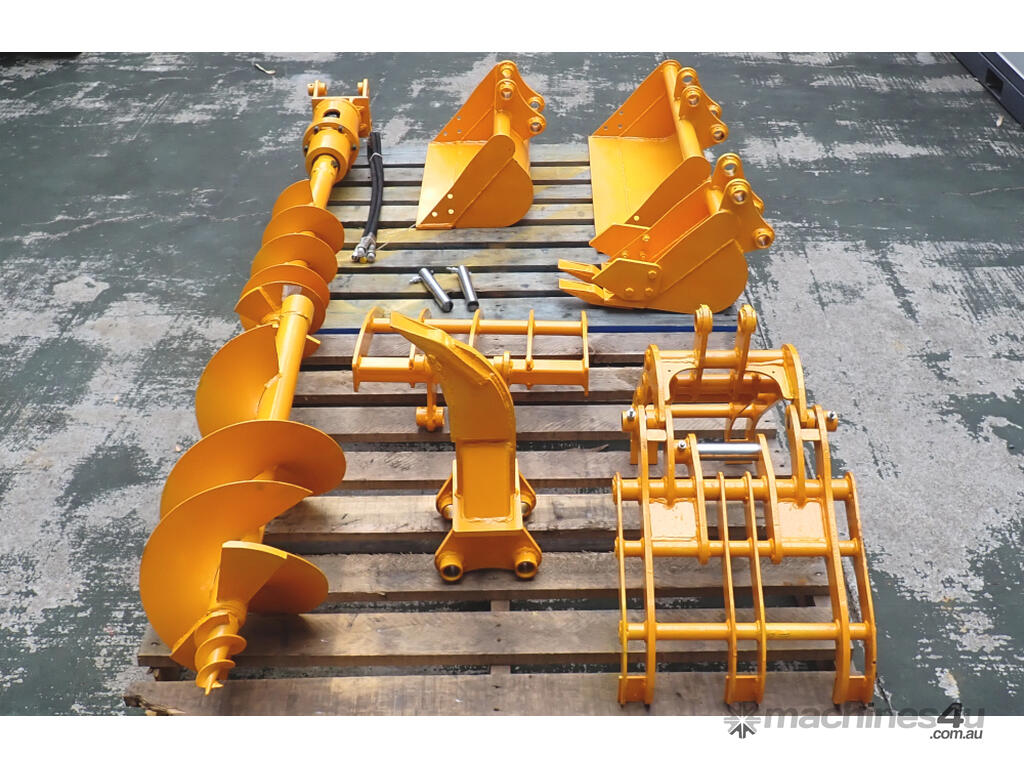

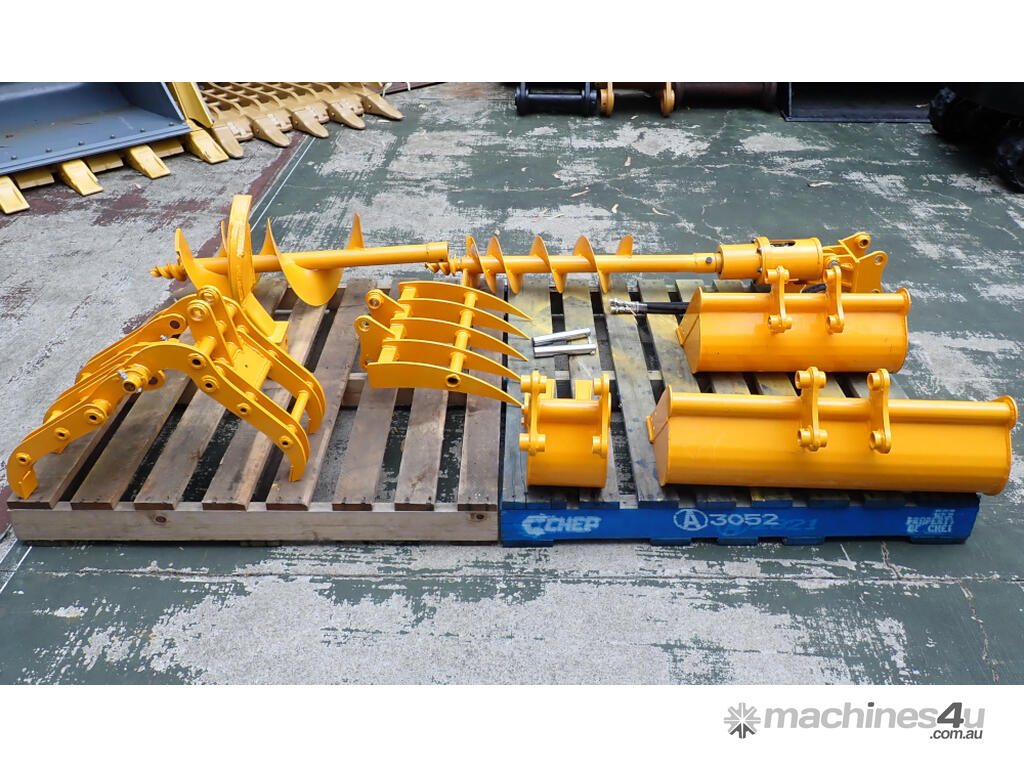

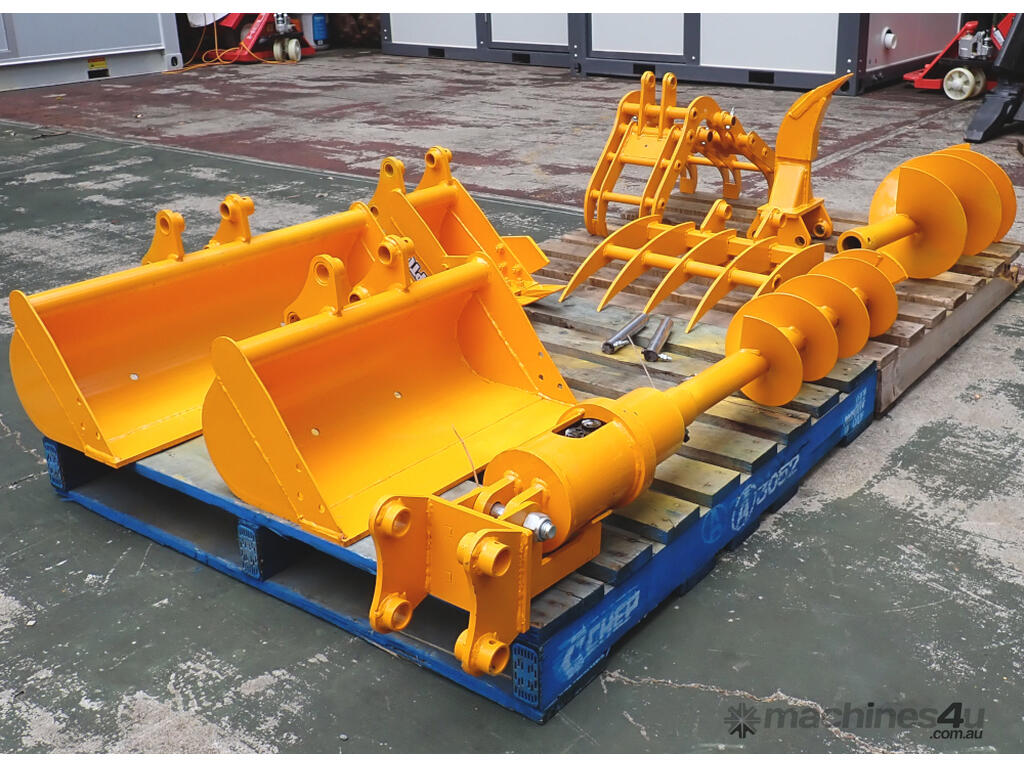

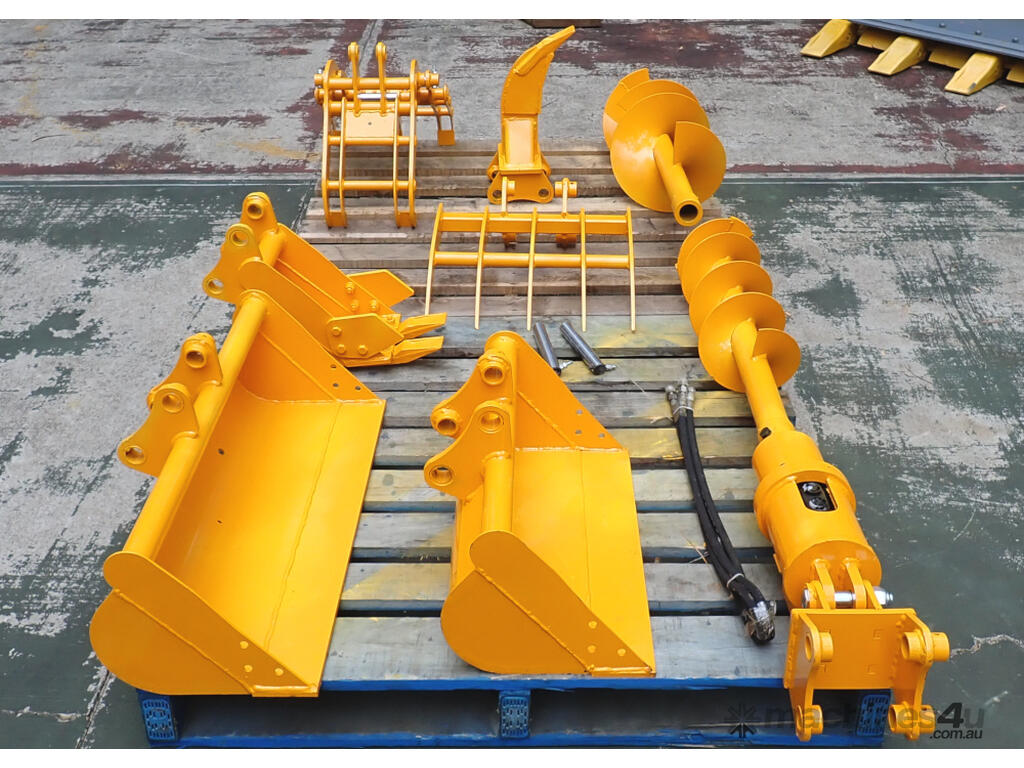

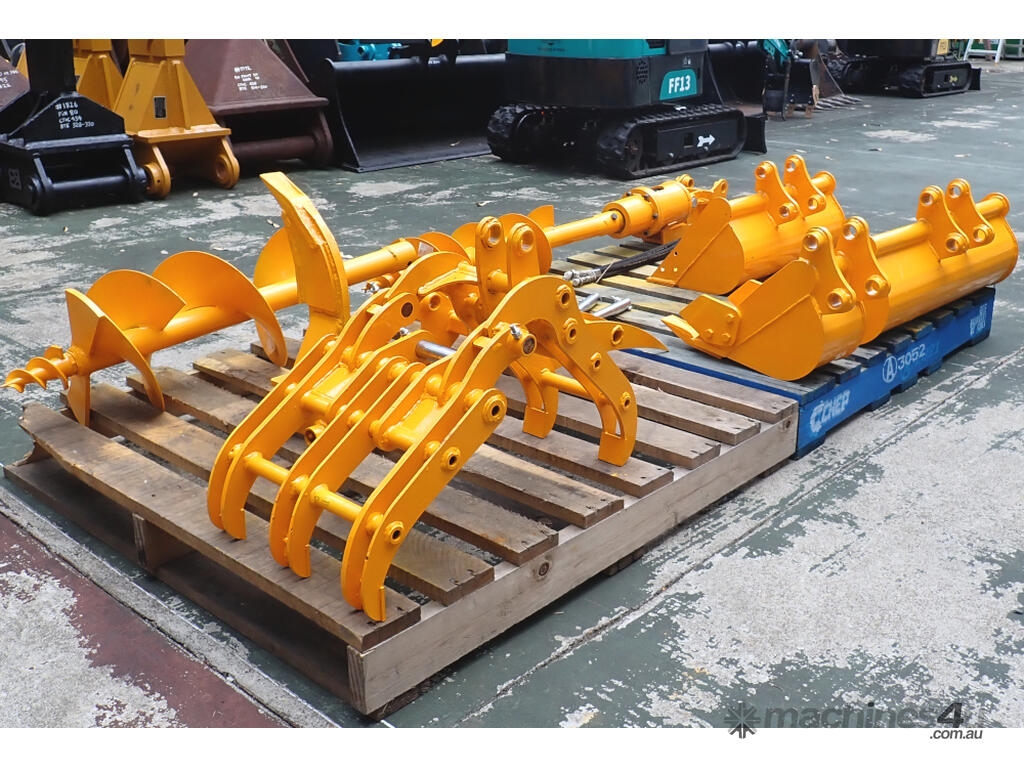

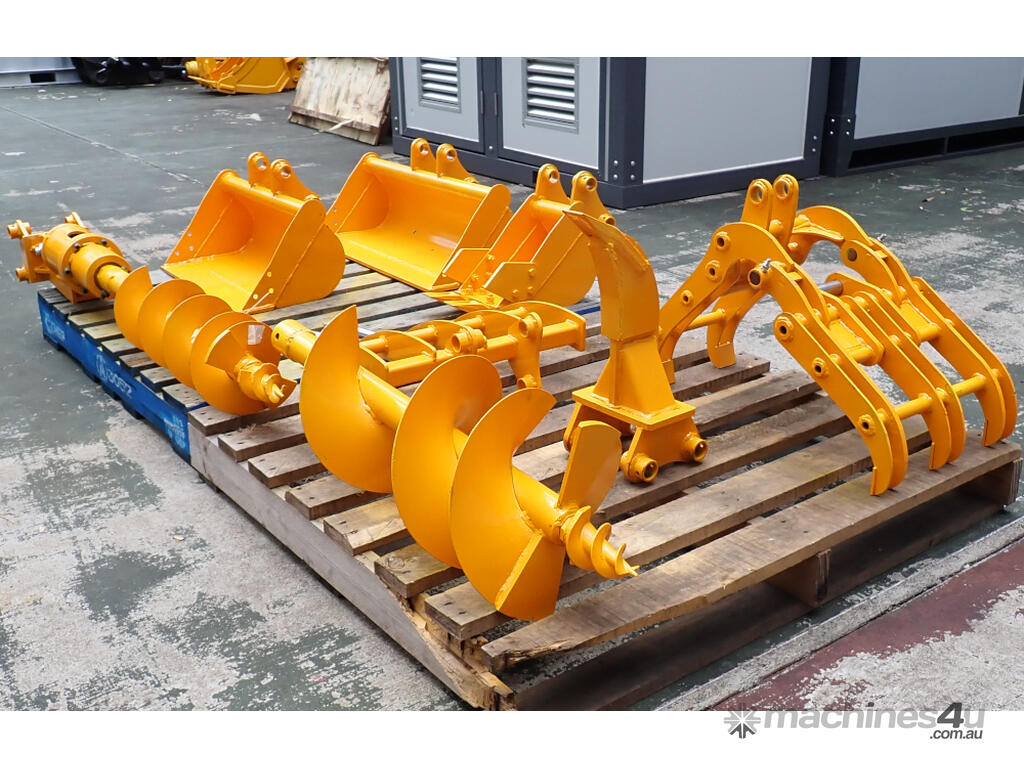

Kit Contains:

*** 200mm Trenching Bucket:
Digging narrow trenches for pipes & cables.
* Teeth for better penetration.
* Bolt-on Side Cutters to minimise wear on bucket.
WxDxH(mm)xKg: 225 x 497 x 349 x 15.6kg.
Alone: $430.

*** 600mm Mud Bucket:
More broad digging in soft to medium ground. (For harder ground, 1st break up the soil with the Ripper or 200mm Toothed Bucket).
* Has holes ready for optional bolt-on Side Cutters.
WxDxH(mm)xKg: 601 x 366 x 355 x 22.1kg.
Alone: $580.

*** 800mm Cleanup Mud Bucket:
Moving larger volumes of soft or looser / already dug soil quickly.
* Has holes ready for optional bolt-on Side Cutters.
WxDxH(mm)xKg: 801 x 370 x 357 x 27.4kg.
Alone: $690.

*** Ripper:
Ripping up tree roots, breaking up rock and loosening hard or rocky ground, tarmac, paved areas etc.
WxDxH(mm)xKg: 205 x 190 x 482 x 14.6kg.
Alone: $410.

*** Rake:
Clearing large weeds, lantana, brush, small trees etc.
WxDxH(mm)xKg: 498 x 186 x 525 x 12.4kg.
Alone: $490.

*** Auger Drive with 200mm & 300mm Augers:
Drilling holes for posts, retaining walls, fencing etc.
* Drive Motor & Headstock:
WxDxL(mm)xKg: 198 x 200 x 624 x 36.8kg.
* 200mm Auger:
Diam x Length(mm)xKg: 200 x 1005 x 12.6kg.
* 300mm Auger:
Diam x Length(mm)xKg: 300 x 1012 x 15kg.
* Includes 2 Hydraulic Hoses, 1.5m Long.
Alone: $1690.

*** Mechanical Grapple Grab:
Picking things up, logs, rubbish etc.
WxDxH(mm)xKg: 393 x 493 x 241 (closed/collapsed) x 28.3kg.
Mouth Opening Width: 664mm.
Alone: $720.

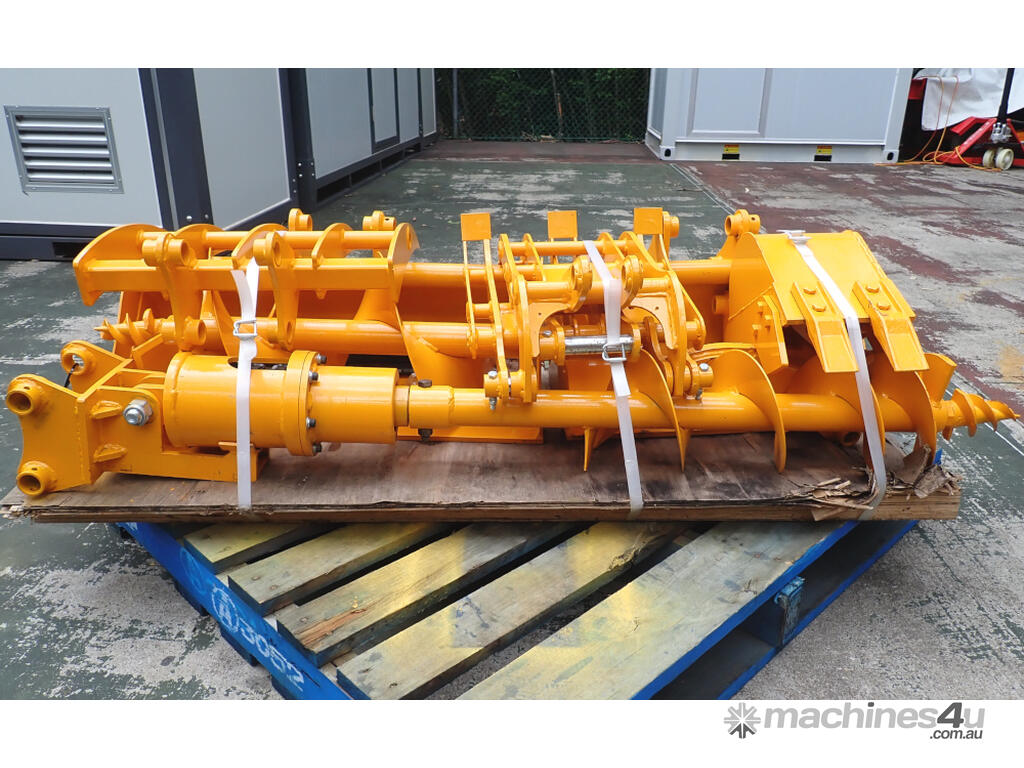

Shipping Dimensions (all strapped to skid, see pic# 10): 1590mm Long, 650mm Wide, 460mm High.
Weight: 197kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
