New 1.5-4 ton (35mm Pin) Excavator Hydraulic Grapple Grab

New Jea Wen ASC35 Excavator Hydraulic Grapple Grab suit 1.5-4 Ton machine.

Designed for Rock & Log work, but can also be used for demolition and general material handling, picking things up, moving them around and other careful placement tasks.

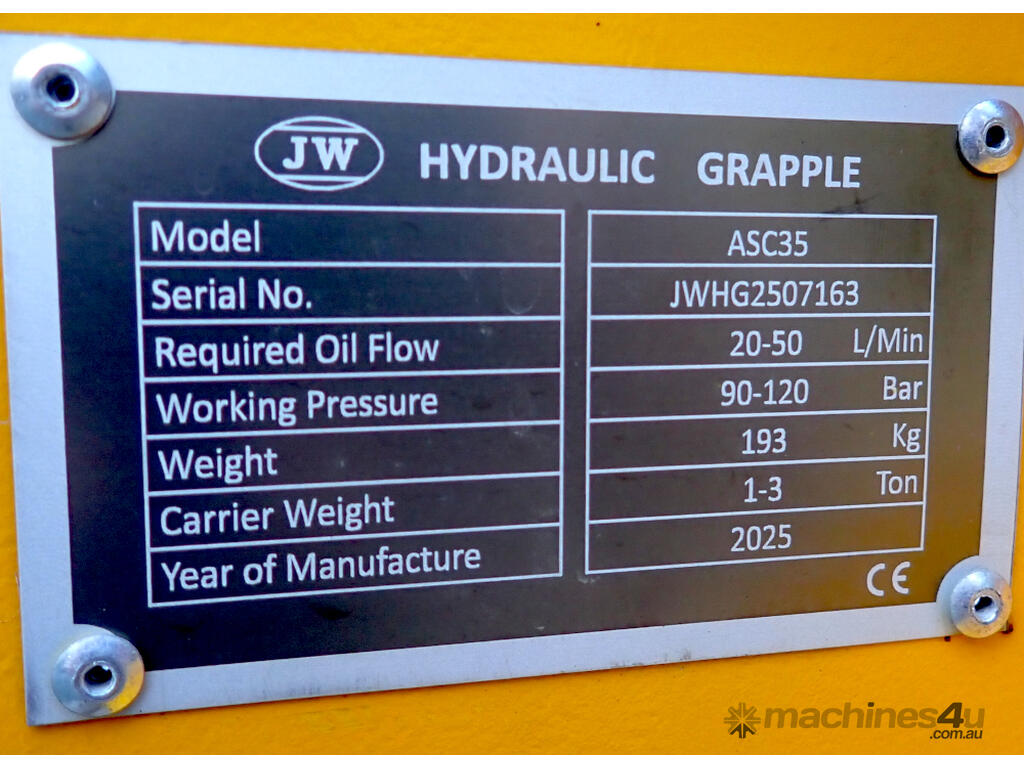

Required Oil Flow: 20-50 L/min.
Working Pressure: 90-120 bar.

Opening Width: 600mm.

Width of 2 Tynes: 260mm.
Width of 3 Tynes: 403mm.

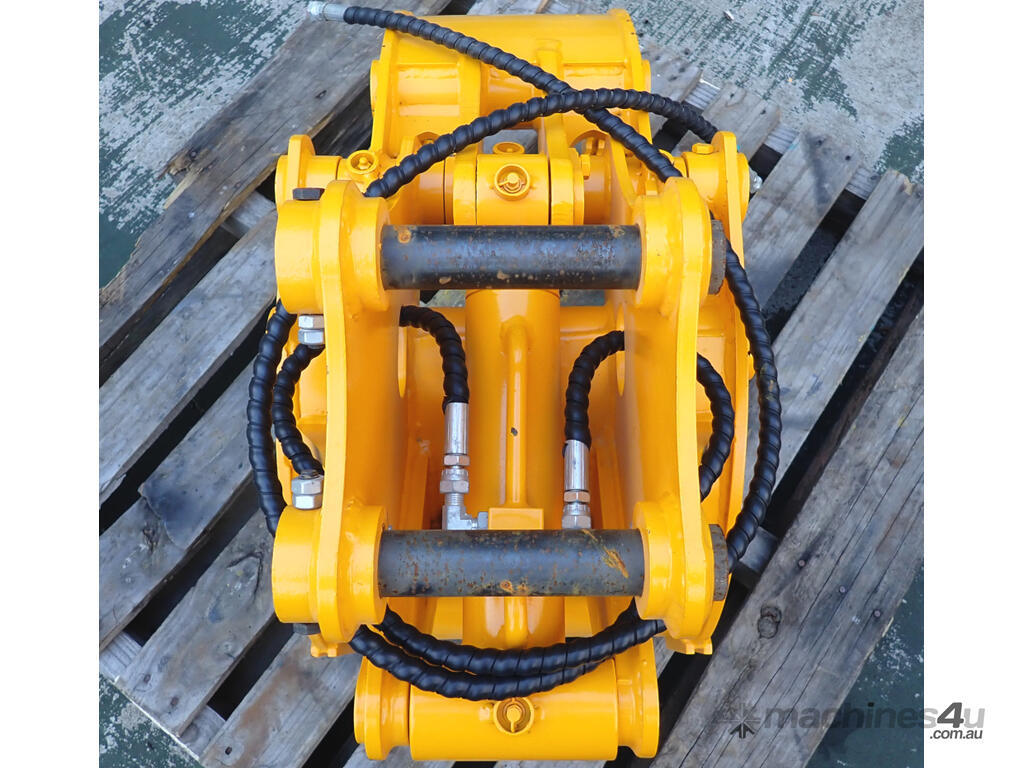

*** Current Headstock configuration:
* Pins: 35mm
* Pin Center to Pin Center (CtoC): 163mm
* Between the Ears (BTE): 136mm Between the inside Ear Bosses (which can be shaved back up to 168mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
*
* Should fit: Bobcat X325 / X328 / X331, Caterpillar 302 / 302.5, Libra 229S / 2345, New Holland EC 25, Pel Job EB 28-4 / EB306, Scat Trak 535, Volvo EC20, Yanmar B 19 / B 22 / B 201.
*
* Maybe fit: Airman AX22 / AX29U / AX30UR, Case CX 23 / CX 25 / CX 28 / CX 30 / CX 31, Daewoo Solar 027 / 030, Hanix H26B-2 / H30B-2, Hitachi EX22 / EX25, Kobelco SK 20 / SK 20SR-3 / SK 24 / SK 25 / SK 25SR / SK 25SR-2 / SK 27 / SK 27SR-2 / SK 27SR-3 / SK 30, Komatsu PC 20 / PC 20-6 / PC 30-6, Libra 225S, Nagano NS 25-3, New Holland EH 27.B, Pel Job EB 22 / EB 22-4 / EB 25-4, SMC MX30, Takeuchi TB 25 / TB 26 / TB 28FR / TB 125, Yanmar VIO20 / VIO20-1 / VIO20-2 / VIO20-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

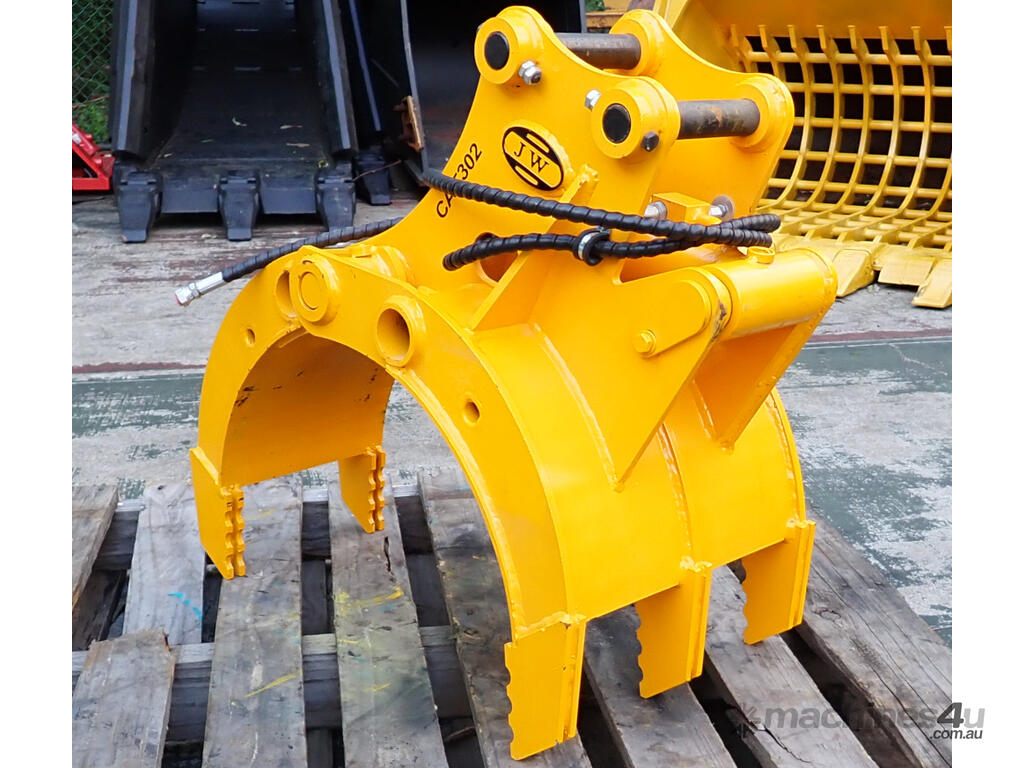

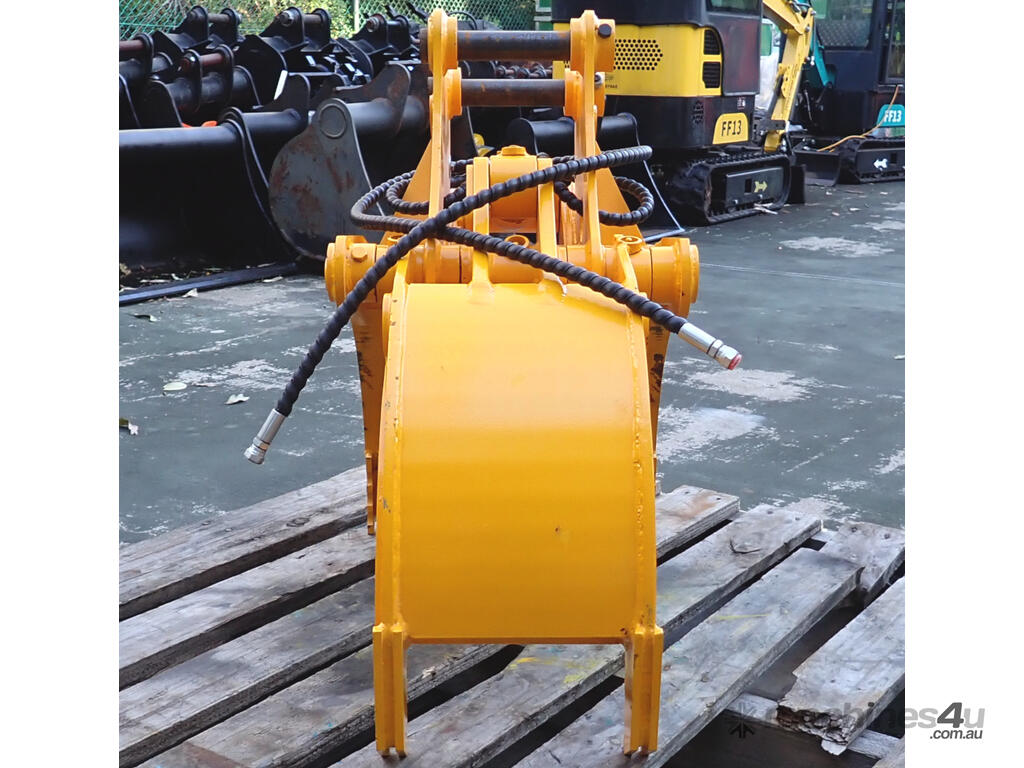

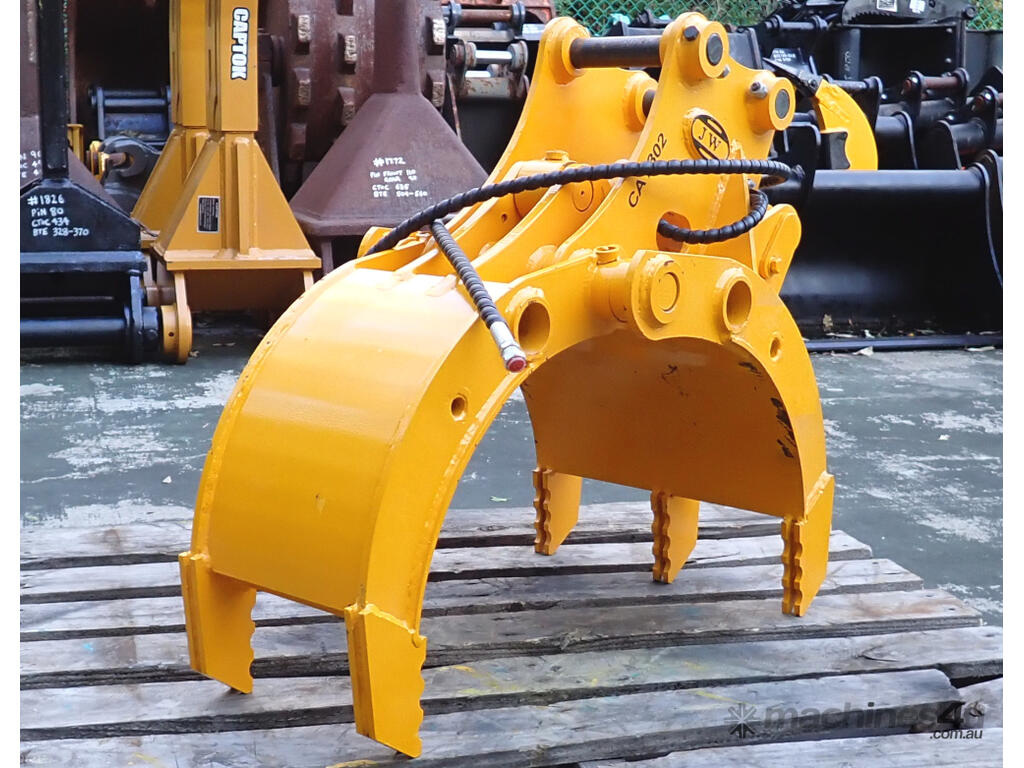

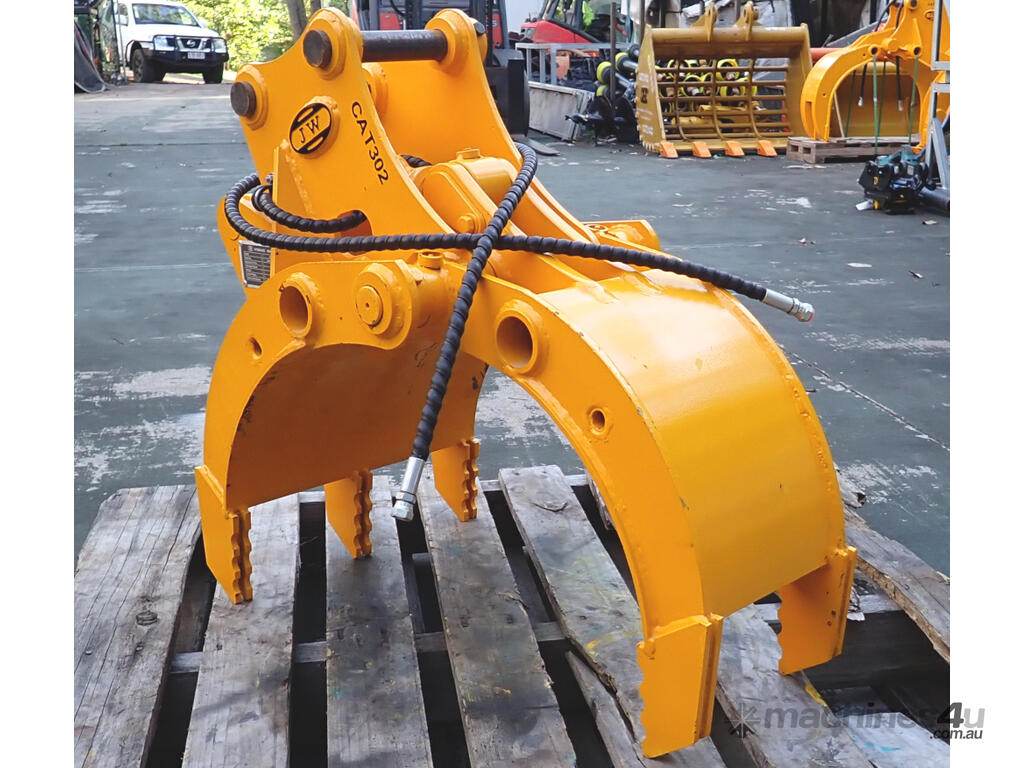

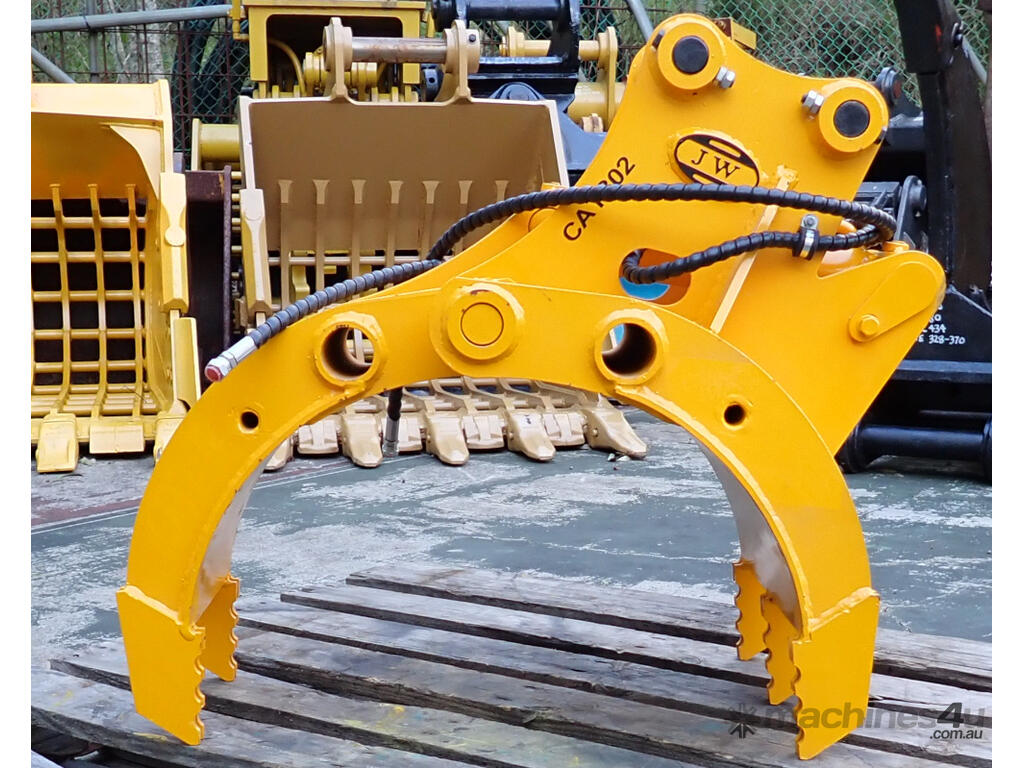

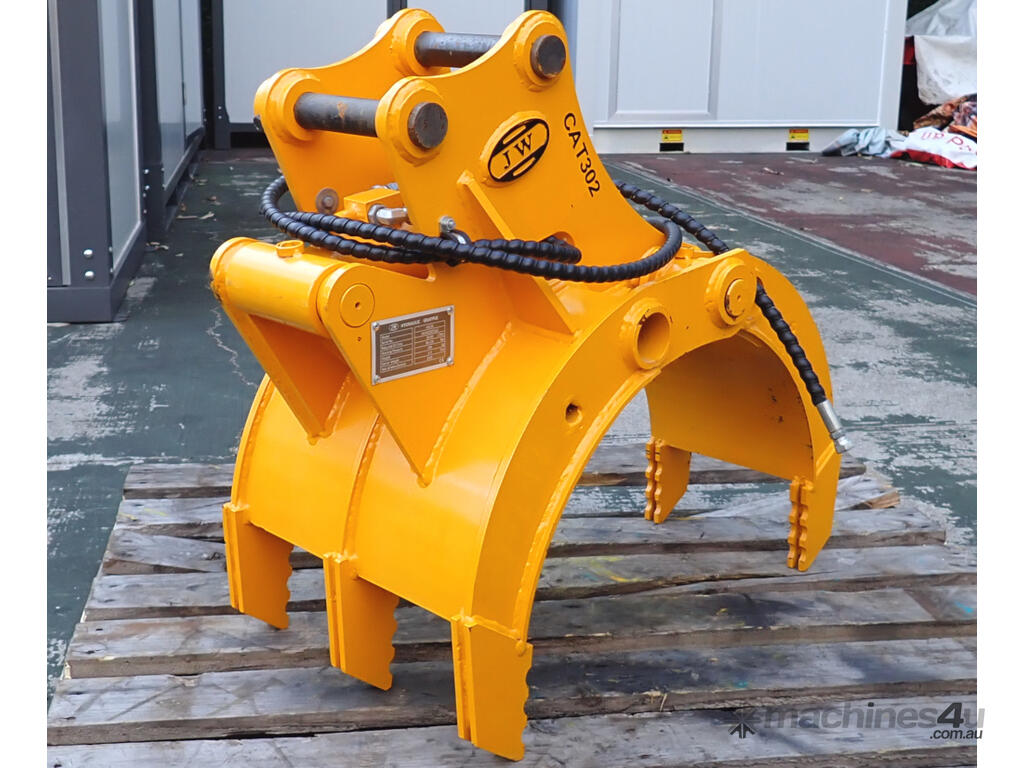

Grapple Dimensions (standing as in pics): 403mm wide, 823mm long, 700mm high. Weight: 106kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
