New 1.5-4 ton (35mm Pin) Excavator Hydraulic Thumb Bucket Grapple Grab

New Excavator Hydraulic Thumb Grapple Grab Bucket suit 1.5-4 Ton machine.
The bucket moves as a normal bucket attached to your hitch or to your dipper arm. The Thumb moves Hydraulically.

Designed for Rock & Log work, but can also be used for demolition and general material handling, picking things up, moving them around and other careful placement tasks.

* Opening width: 730mm.

* Required Oil Flow: 25-30 L/min.
* Working Pressure: 100-110 bar.


***** Headstock Dimensions:

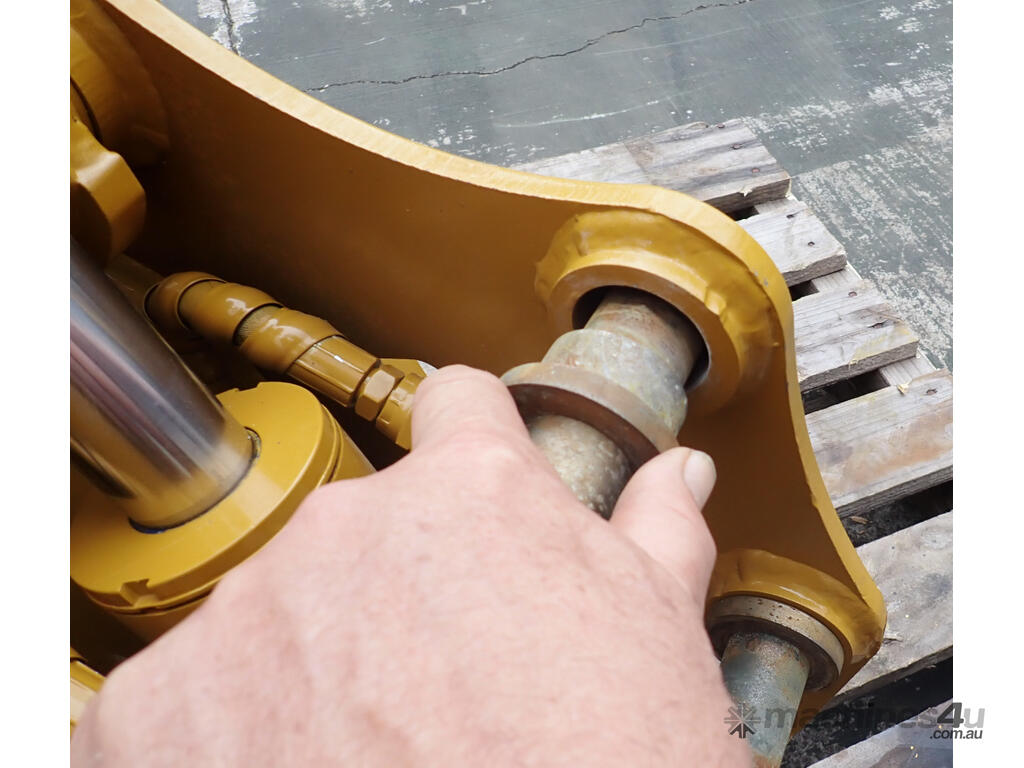

* The Pin Diameter is 35mm but they are fitted into collar bosses that fit into 45mm diameter Pin holes (see pic# 10), so pins up to 45mm diameter can be fitted without needing to bore out the holes in the headstock.
* The Pin Center to Pin Center (CtoC) is 165mm.
* The distance between the collar bosses is 136mm. Removing the collar bosses, the distance between the headstock bosses is 157mm, but these welded-on-bosses could also be shaved back on the insides to a maximum of 180mm (the distance Between the Ear Plates), if you need more inside width for your hitch or dipper arm to fit into.
*
* Should fit: Bobcat X325 / X328 / X331, Caterpillar 302.5, Libra 229S / 2345, New Holland EC 25, Pel Job EB 28-4 / EB306, Scat Trak 535, Volvo EC20, Yanmar B 19 / B 22 / B 201.
*
* Maybe fit: Airman AX22 / AX29U / AX30UR, Case CX 23 / CX 25 / CX 28 / CX 30 / CX 31, Daewoo Solar 027 / 030, Hanix H26B-2 / H30B-2, Hitachi EX22 / EX25, Kobelco SK 20 / SK 20SR-3 / SK 24 / SK 25 / SK 25SR / SK 25SR-2 / SK 27 / SK 27SR-2 / SK 27SR-3 / SK 30, Komatsu PC 20 / PC 20-6 / PC 30-6, Libra 225S, Nagano NS 25-3, New Holland EH 27.B, Pel Job EB 22 / EB 22-4 / EB 25-4, SMC MX30, Takeuchi TB 25 / TB 26 / TB 28FR / TB 125, Yanmar VIO20 / VIO20-1 / VIO20-2 / VIO20-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

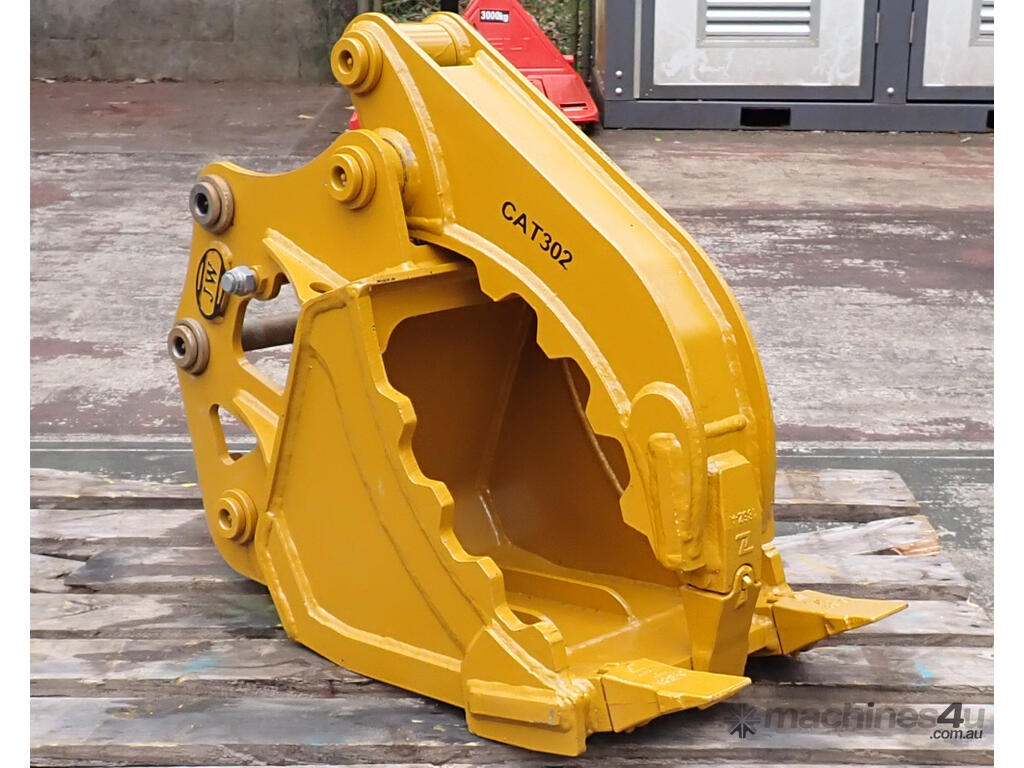

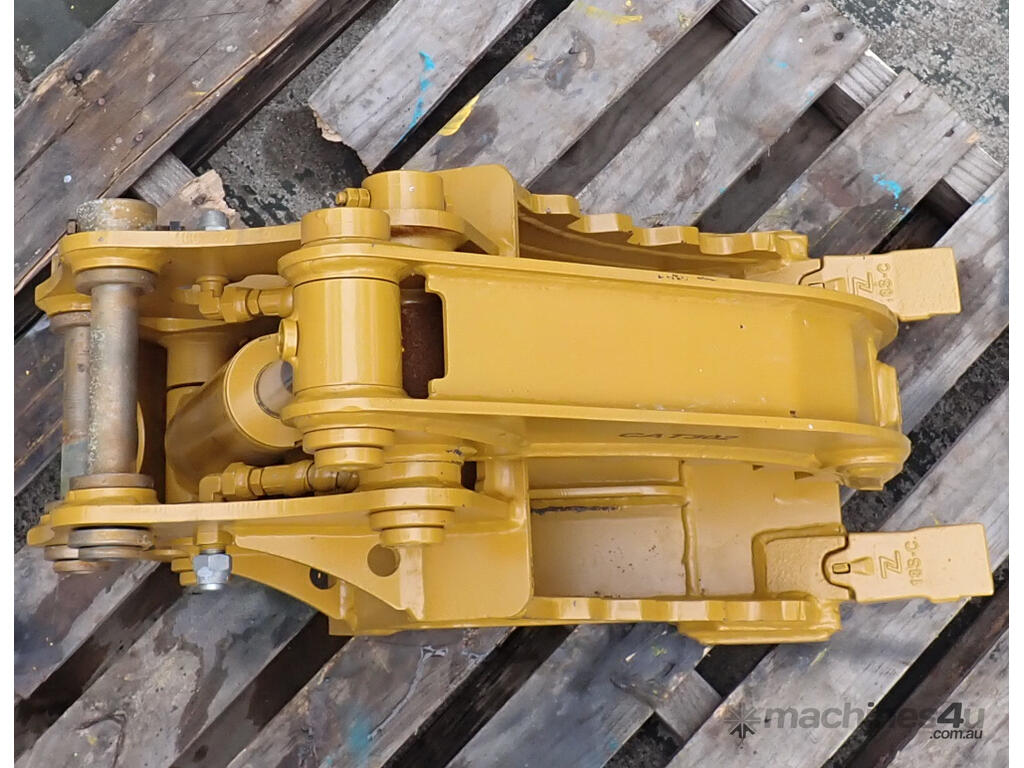

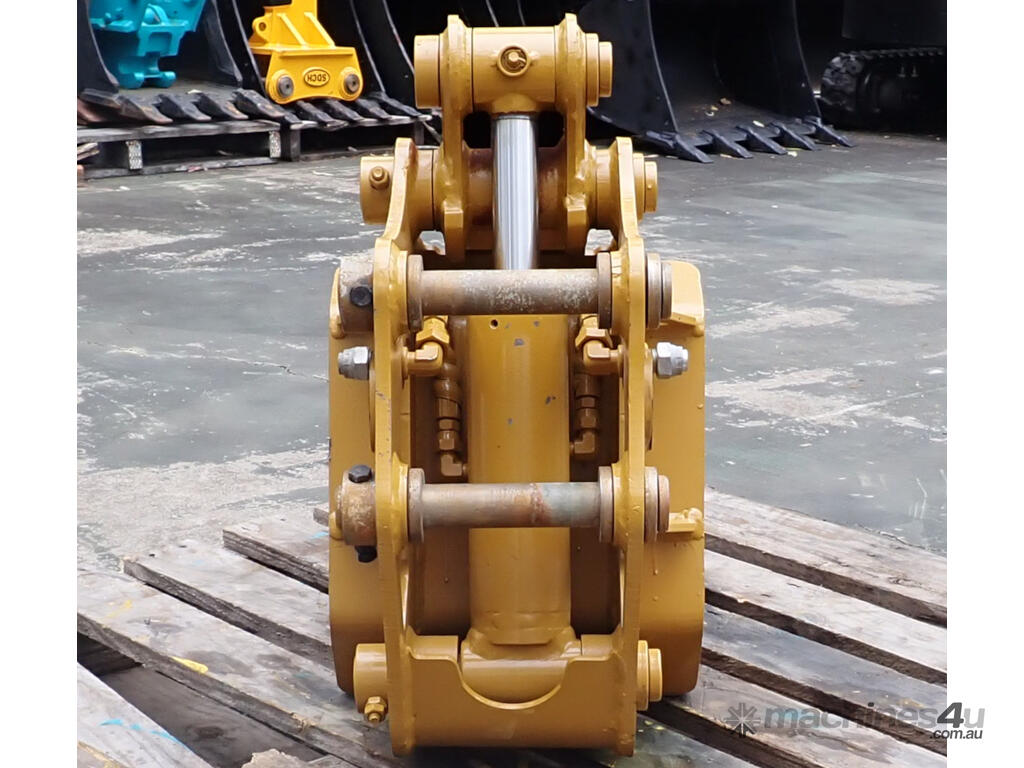

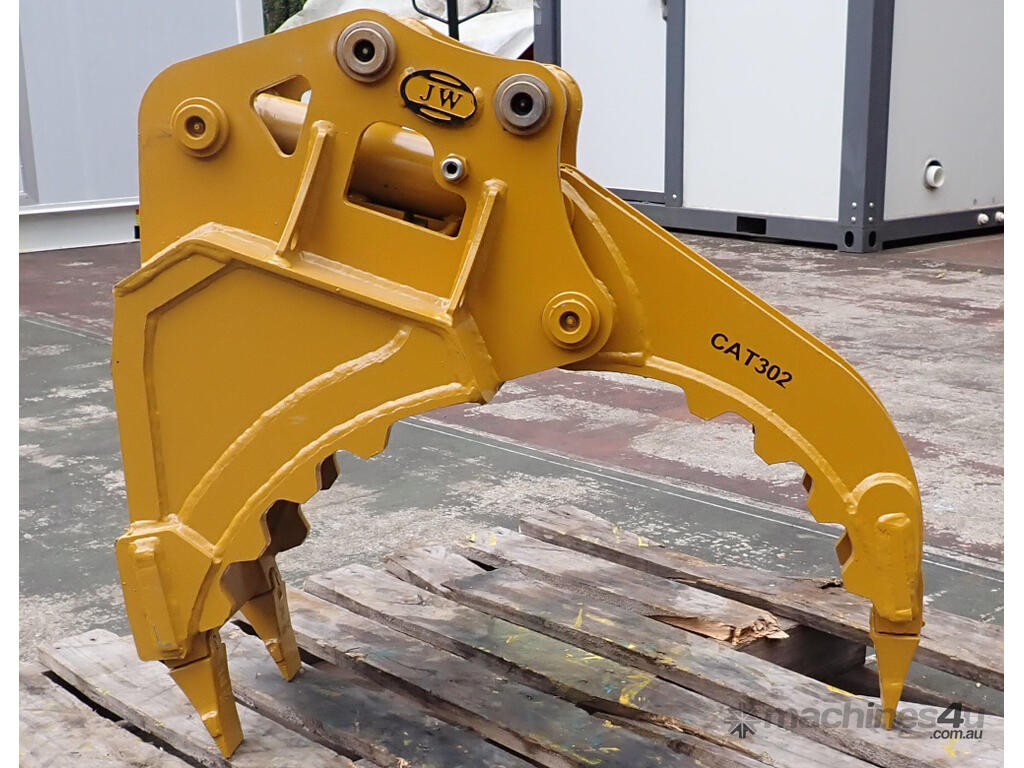

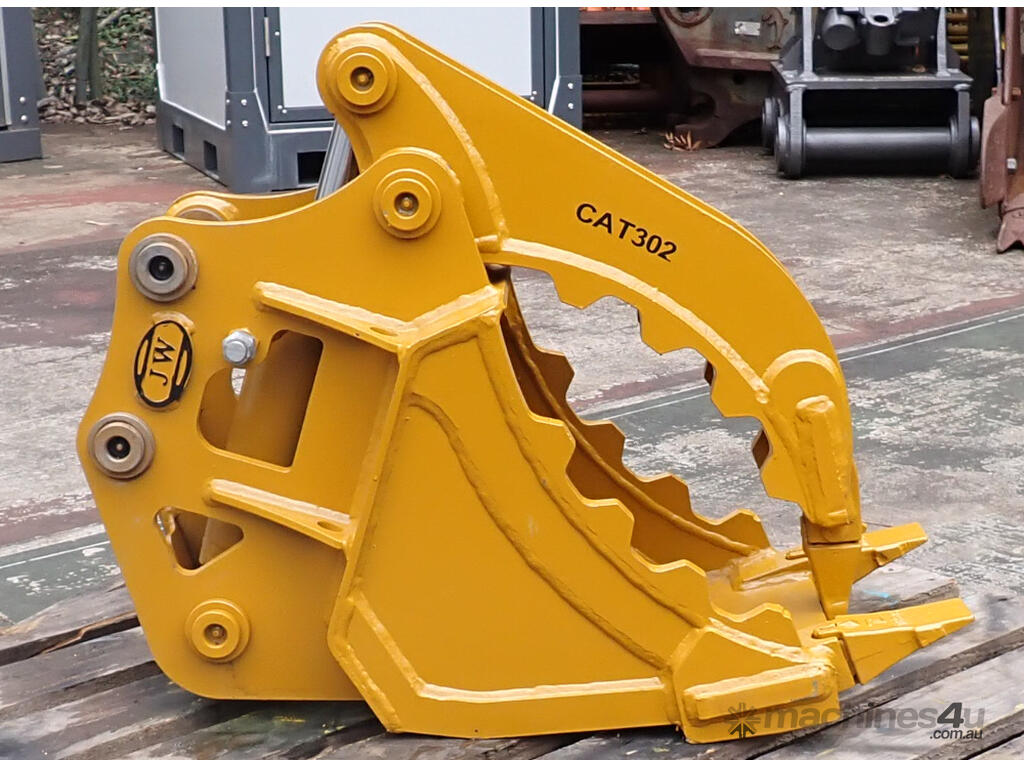

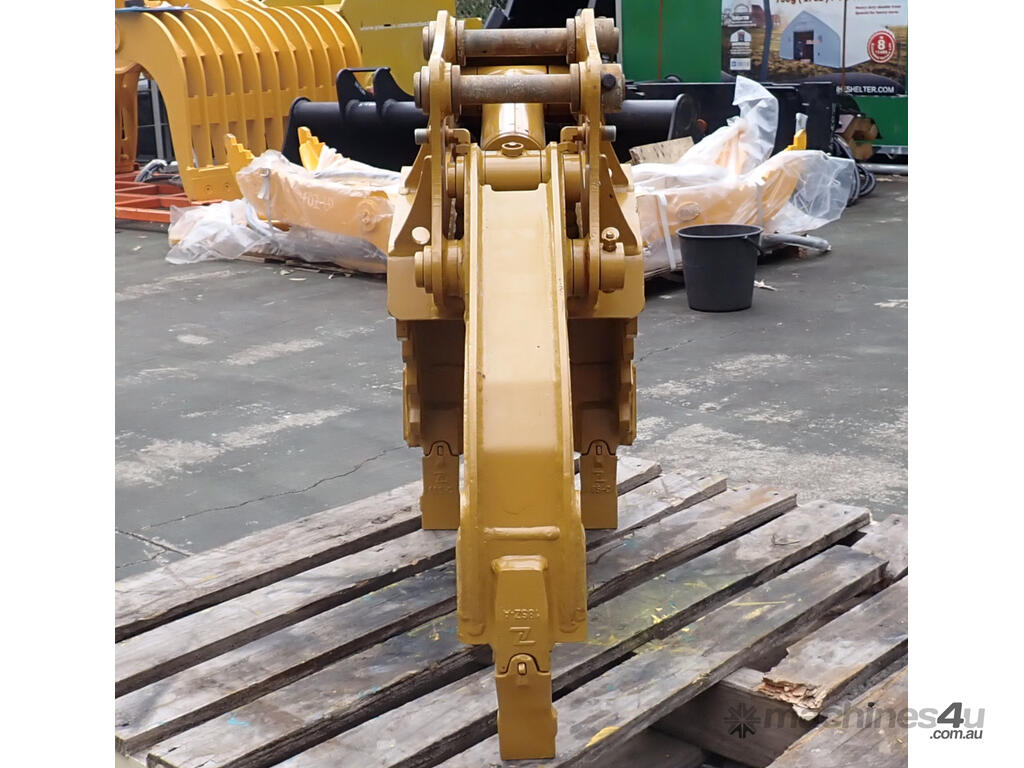

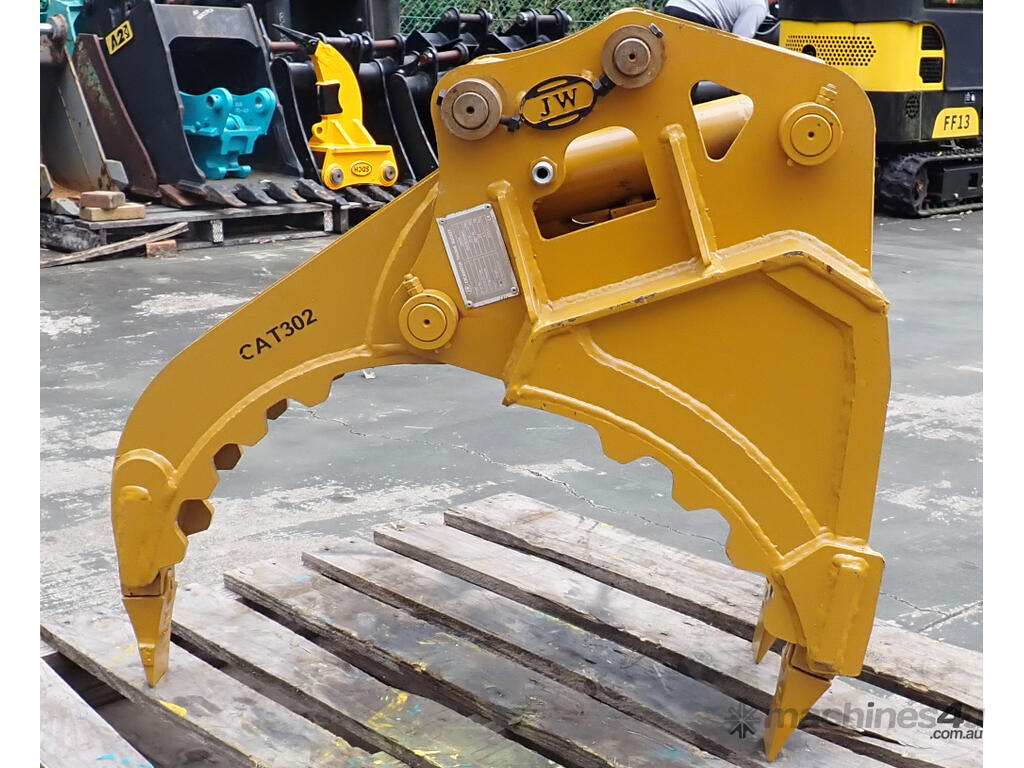

Dimensions (Sitting as in pics# 1-5): 365mm wide, 800mm long, 615mm high. Weight: 122kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
