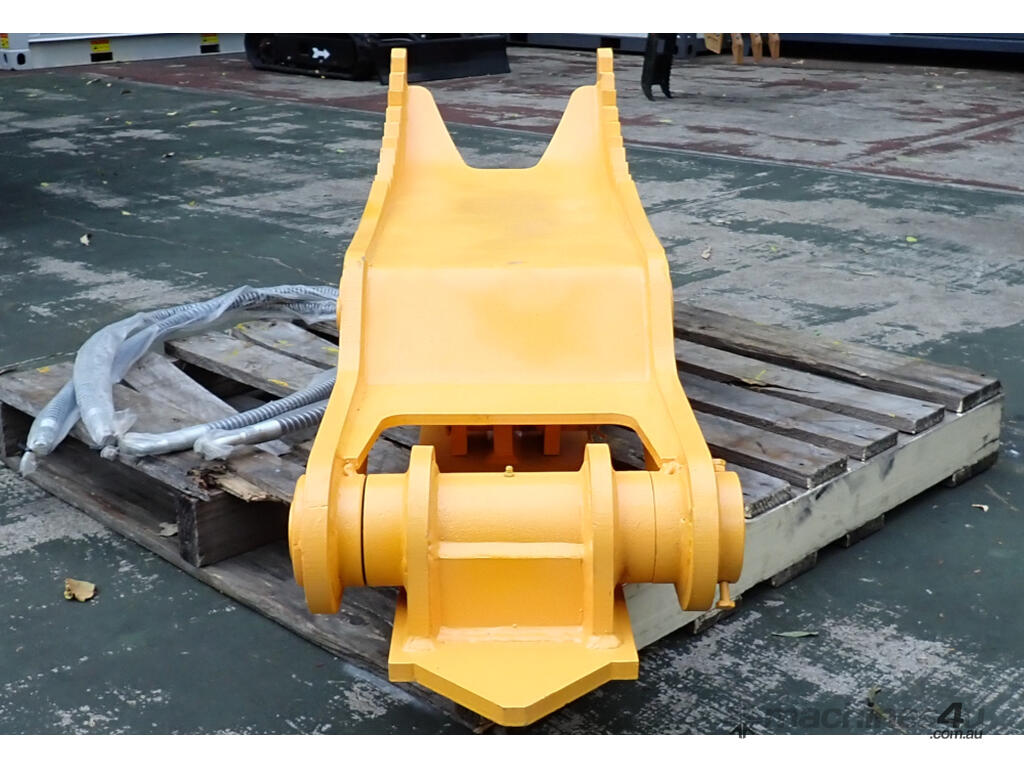

New 10-22 ton Excavator Hydraulic Thumb Clamp Grab

New SDCH-06 Excavator Hydraulic Thumb Clamp Grab suit 10-22 ton machine.

This thumb is complete and requires no extra brackets. The flat plate is simply welded to the inside of your machine's Dipper Arm, and the 2 hoses are connected to your machine's Auxiliary Hydraulic hose lines.

Made with quality hardened metals: Material Q345B/+NM400/+HARDOX400/500 Surface Hardness HRC50-56.

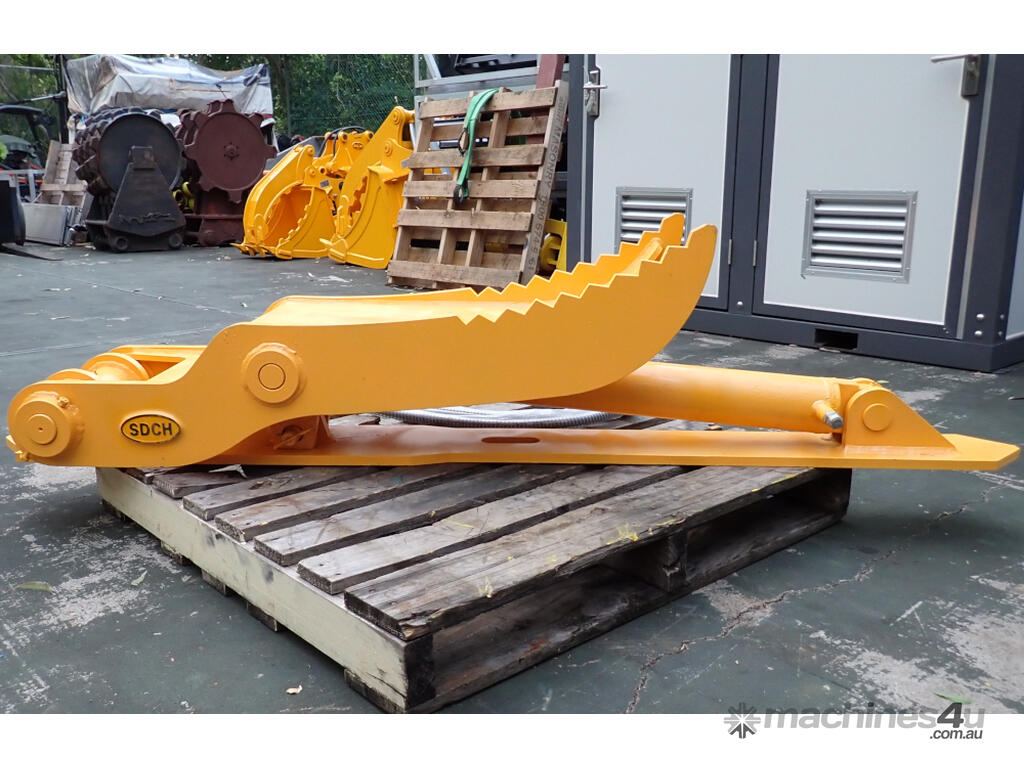

This is a well engineered, sturdy thumb made by SDCH Attachments.

*** THUMB DIMENSIONS:
* Jaw Width: 400mm.
* Jaw side plate thickness: 25mm.
* Jaw Length 1321mm (tip of tooth to center of pivot pin).

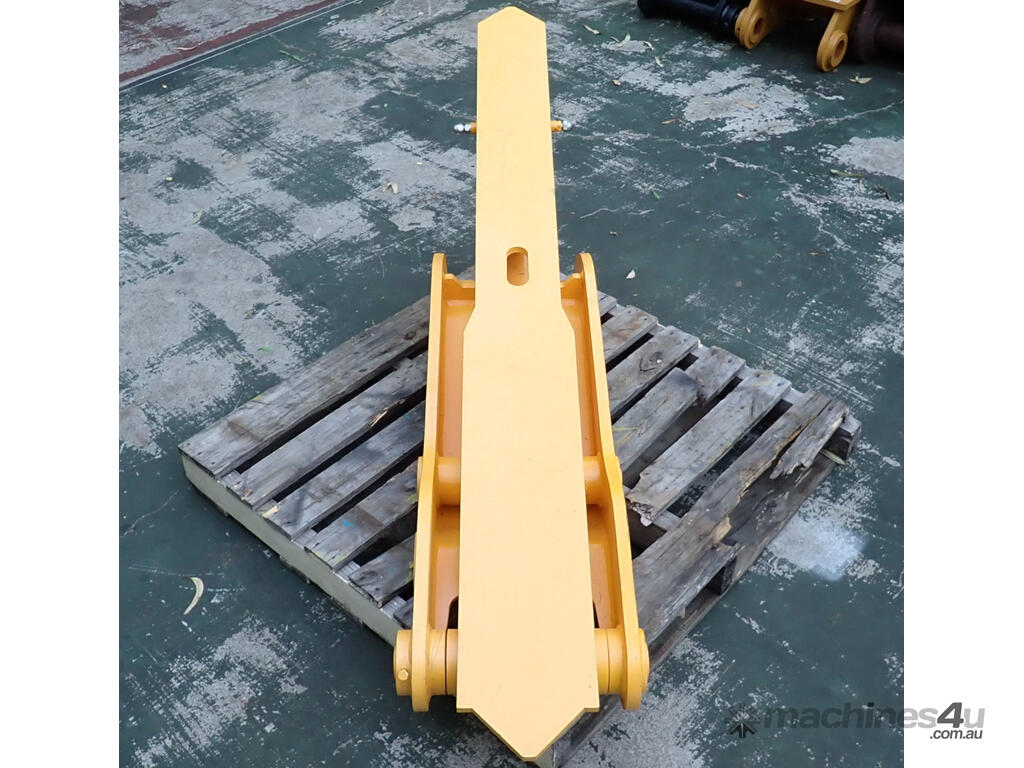

*** FLAT BASE PLATE (to be welded to the inside of your machine's Dipper Arm):
* Dimensions: 2138mm long, 242mm wide (at the bottom) x 191mm wide (at the top).
* Welded plate thickness: 20mm.

*** HYDRAULICS:
* Cylinder width: 110mm.
* Working Flow: 100-140 L/min.
* Hydraulic Pressure: 160-180 Bar.

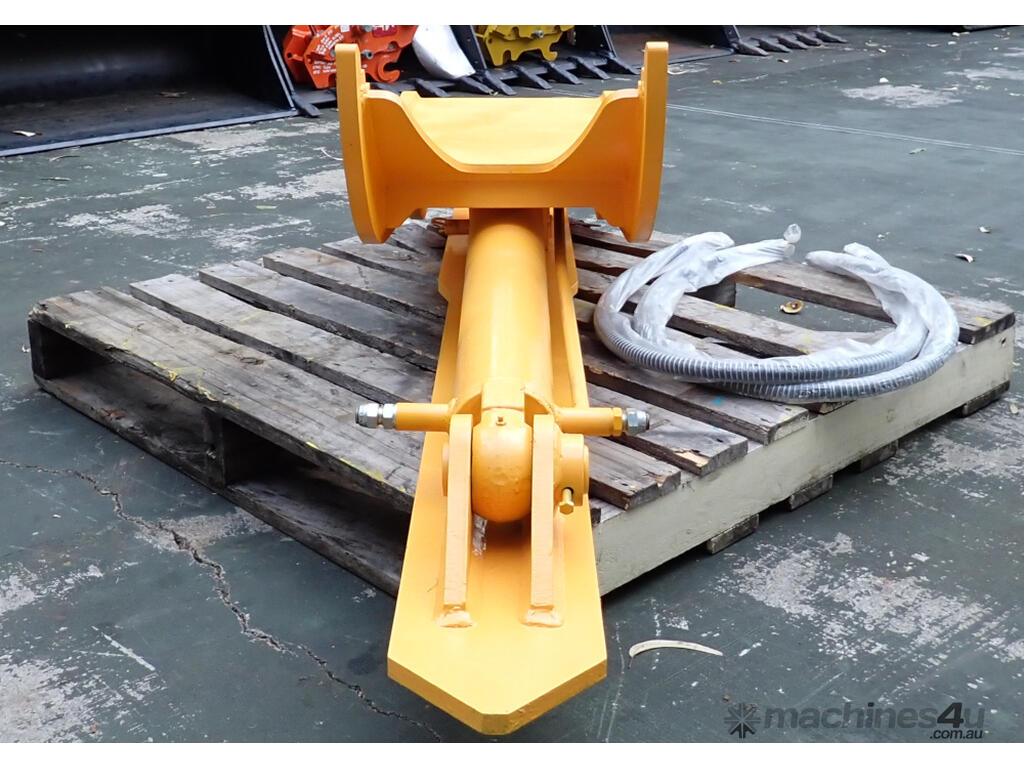

* Comes with the Hoses as pictured.

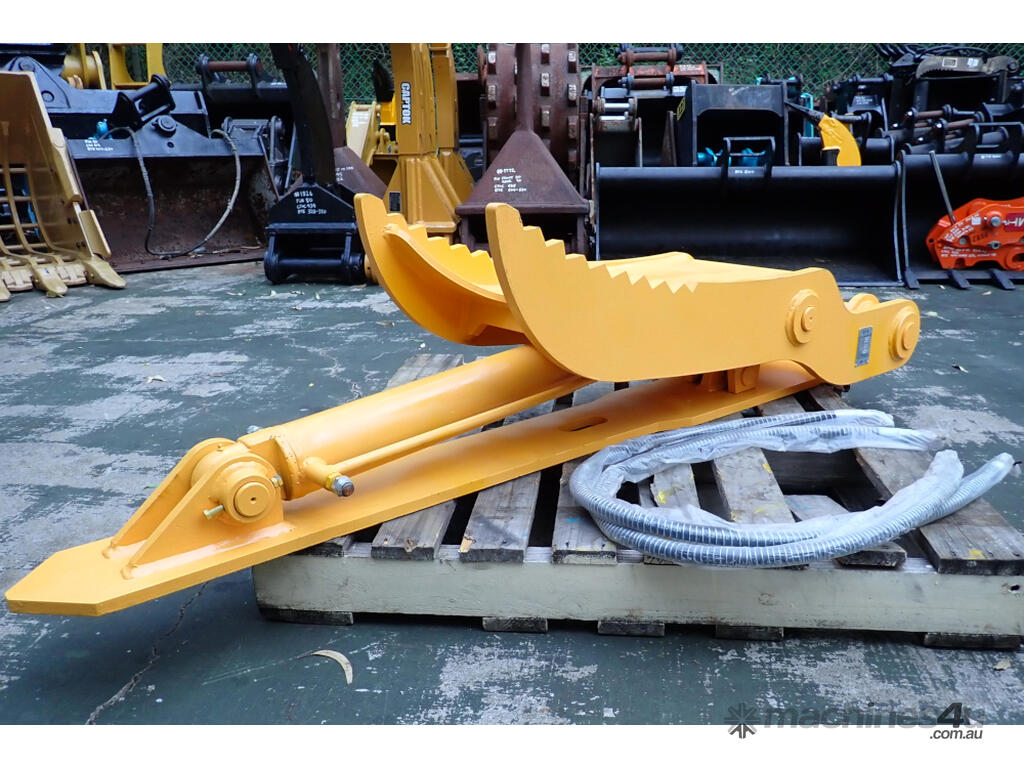

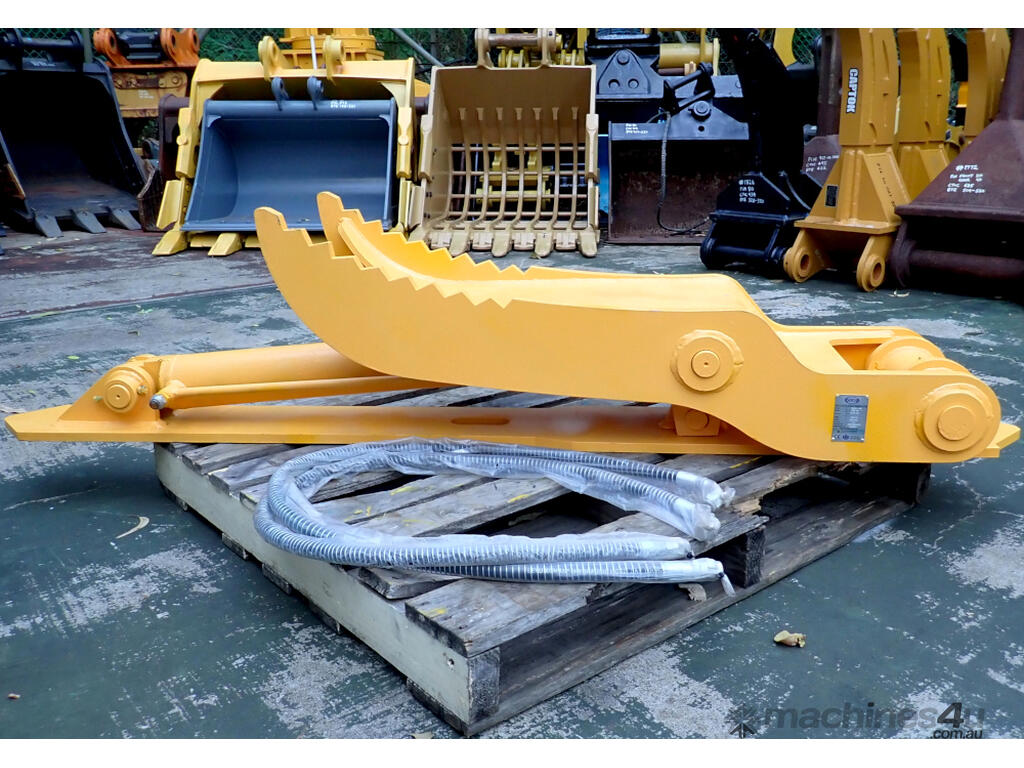

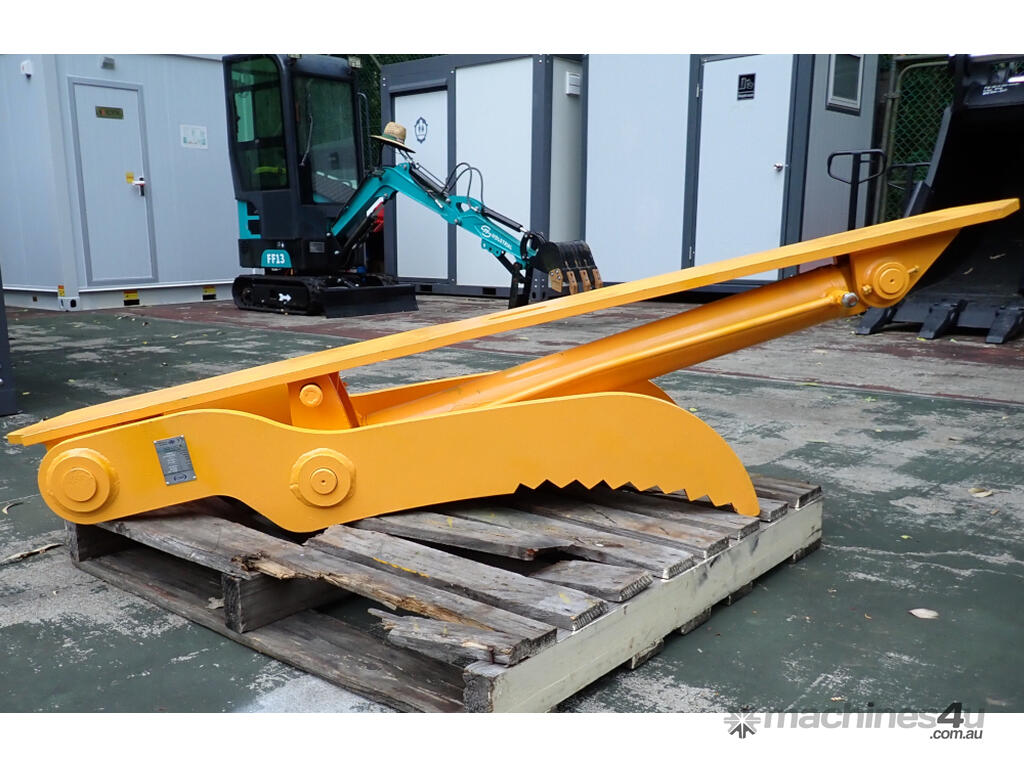

Shipping Dimensions (folded as in pic): 2138mm Long, 463mm Wide, 490mm High. Weight: 342kg (not including hoses).


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
