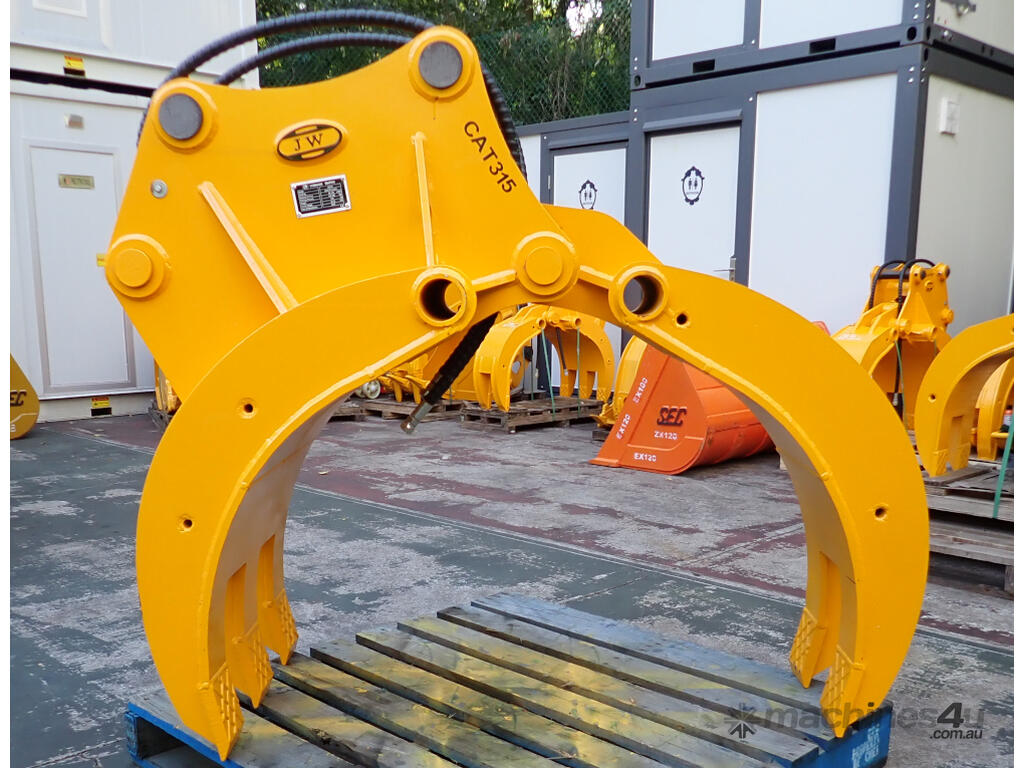

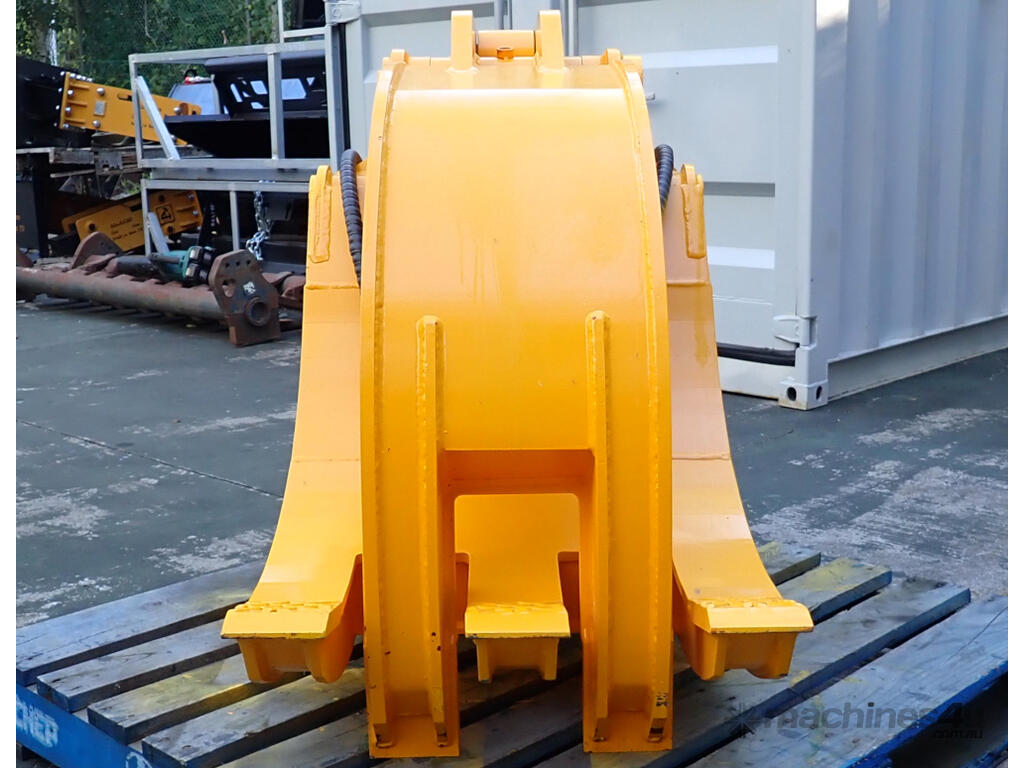

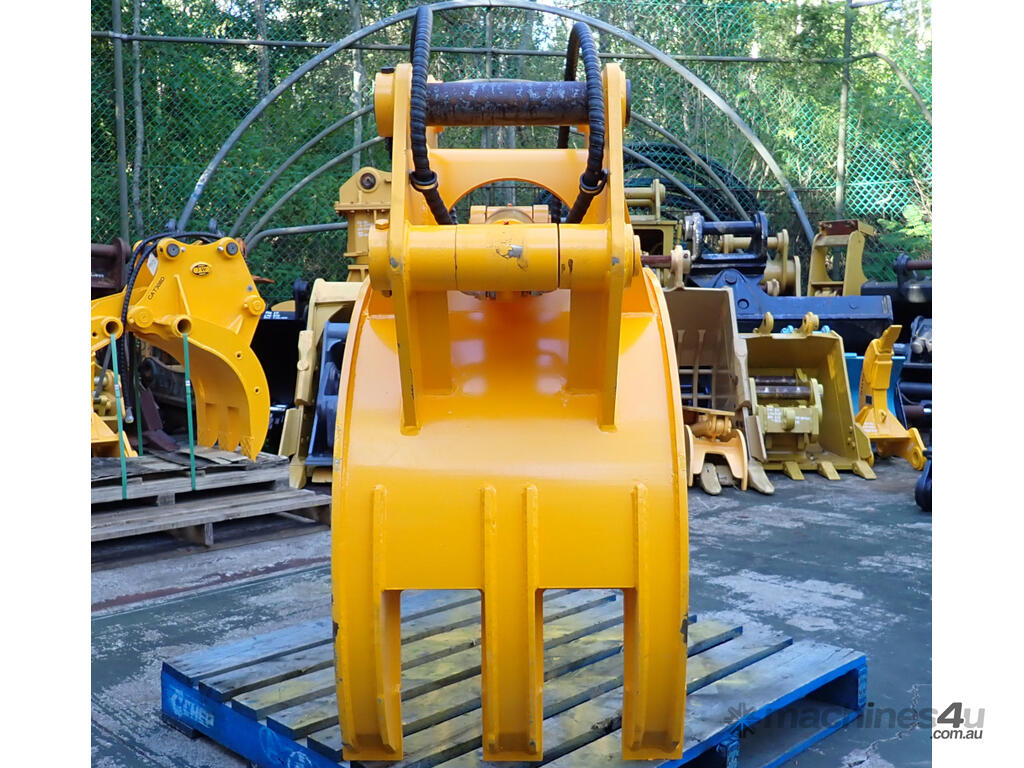

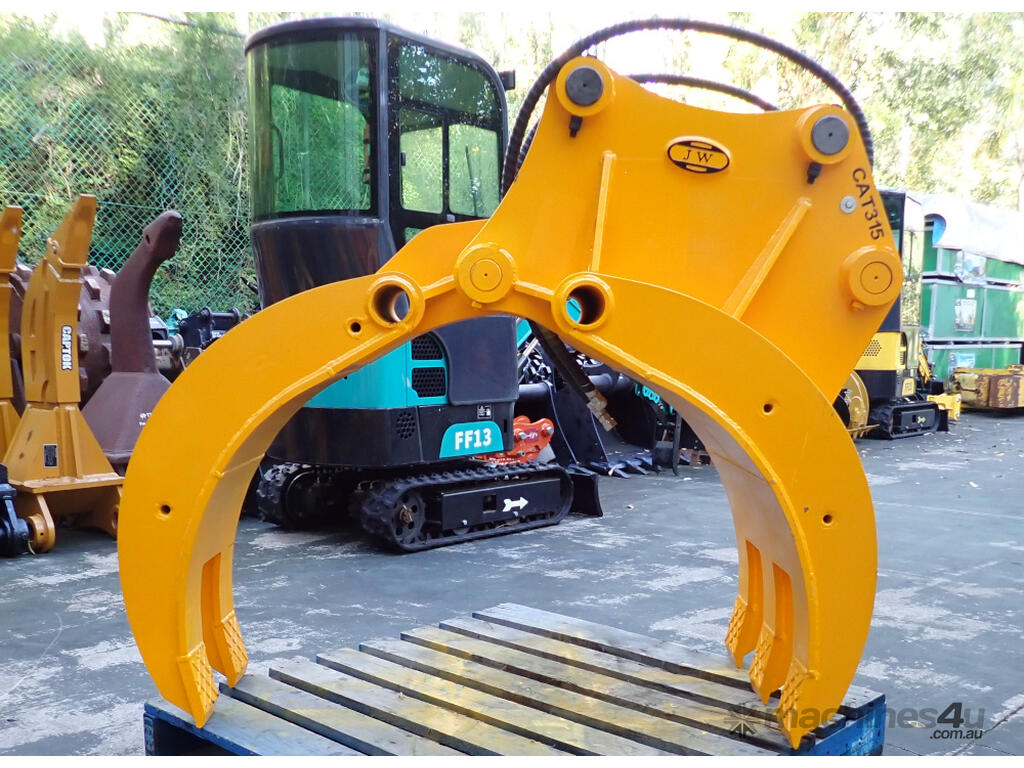

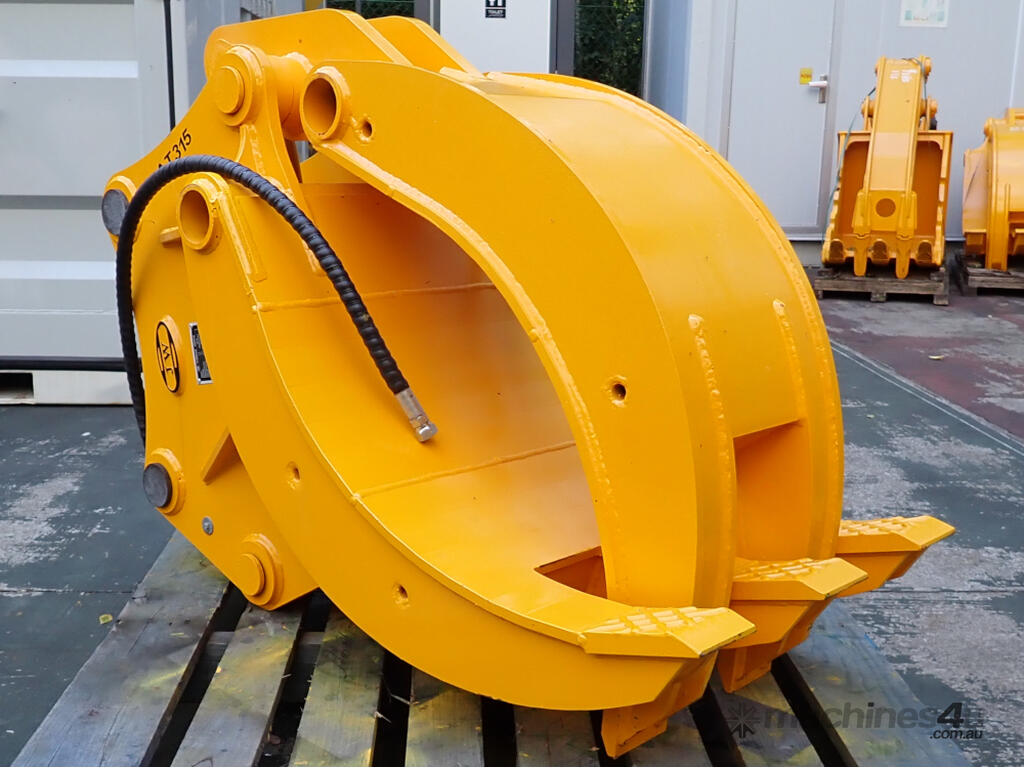

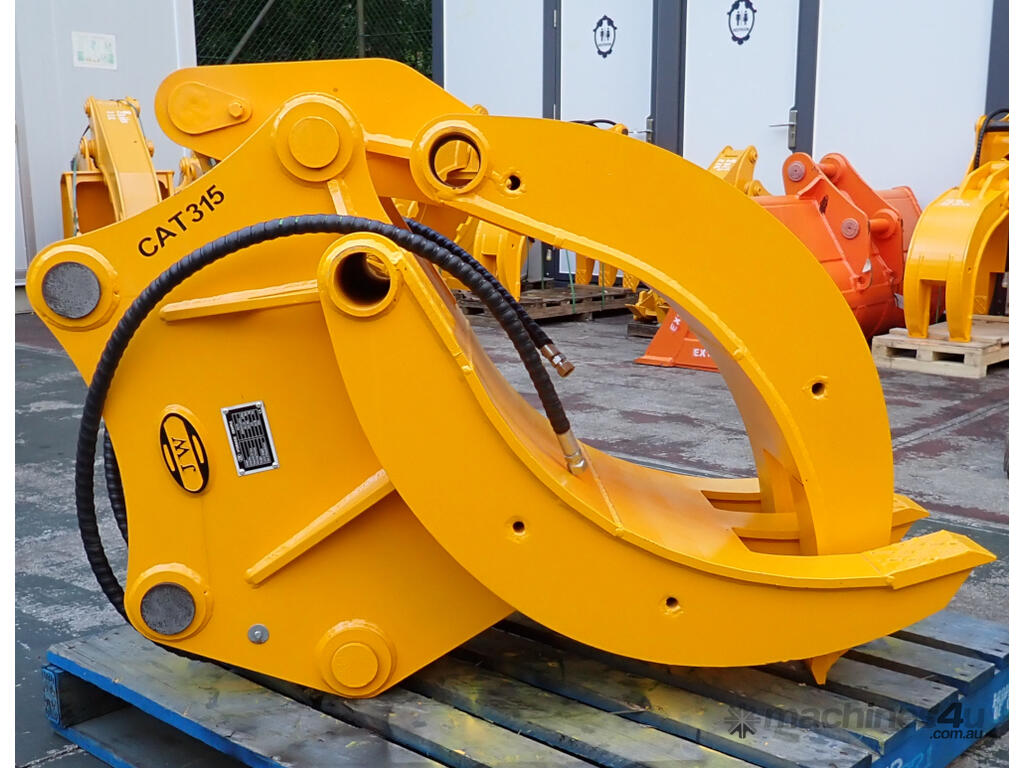

New 12-22 ton (70mm Pin) Excavator Hydraulic Grapple Grab suit Caterpillar

New Jea Wen ASC70 Excavator Hydraulic Grapple Grab suit 12-22 Ton machine.

Designed for Rock & Log work, but can also be used for demolition and general material handling, picking things up, moving them around and other careful placement tasks.

Required Oil Flow: 60-120 L/min.
Working Pressure: 120-180 bar.

Opening Width: 1150mm.

Width of 2 Tynes: 363mm.
Width of 3 Tynes: 614mm.

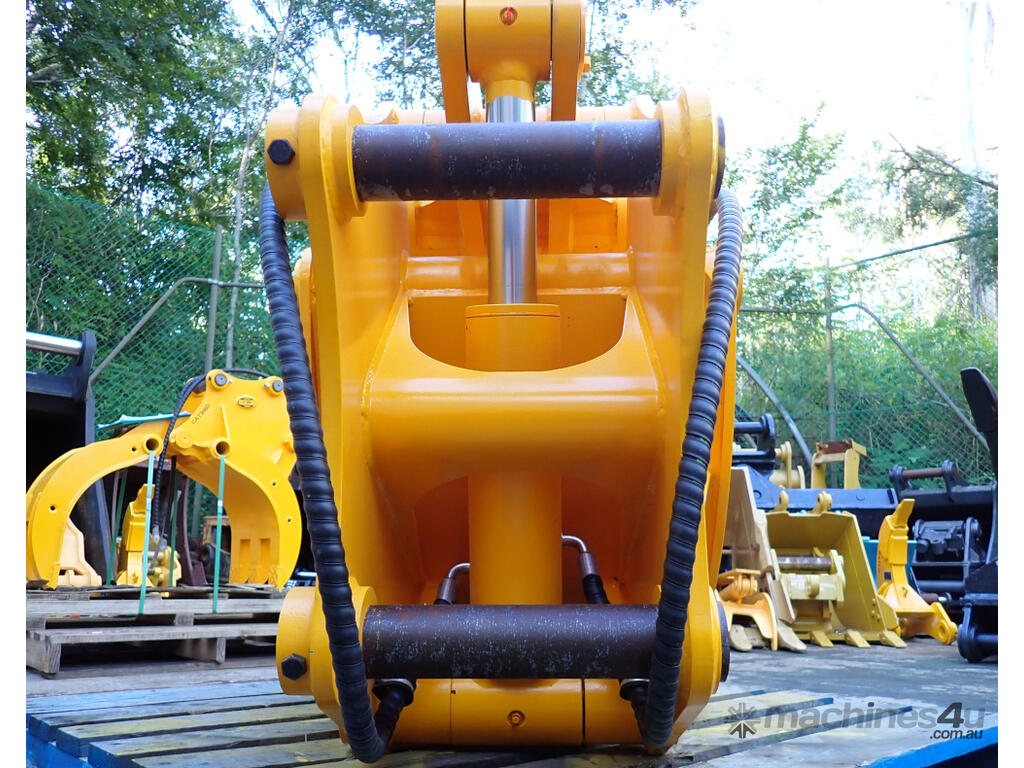

*** Current Headstock configuration:
* Pins: 70mm
* Pin Center to Pin Center (CtoC): 460mm
* Between the Ears (BTE): 281mm Between the inside Ear Bosses (which can be shaved back up to 319mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
*
* Should fit: Caterpillar 315 / 315B / 315B L / 315C L / 317.
*
* Maybe fit: Doosan DX170W-3, Kobelco ED190, Samsung MX175W / SE170 / SE170W, Volvo EC150 / EC160 / EC160B / EC160C / EC160D / EC180C / EW160B / EW160C / EW160D / EW170 / EW180 / EW180B / EW180C / EW210C / MX175WS / SE170W-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

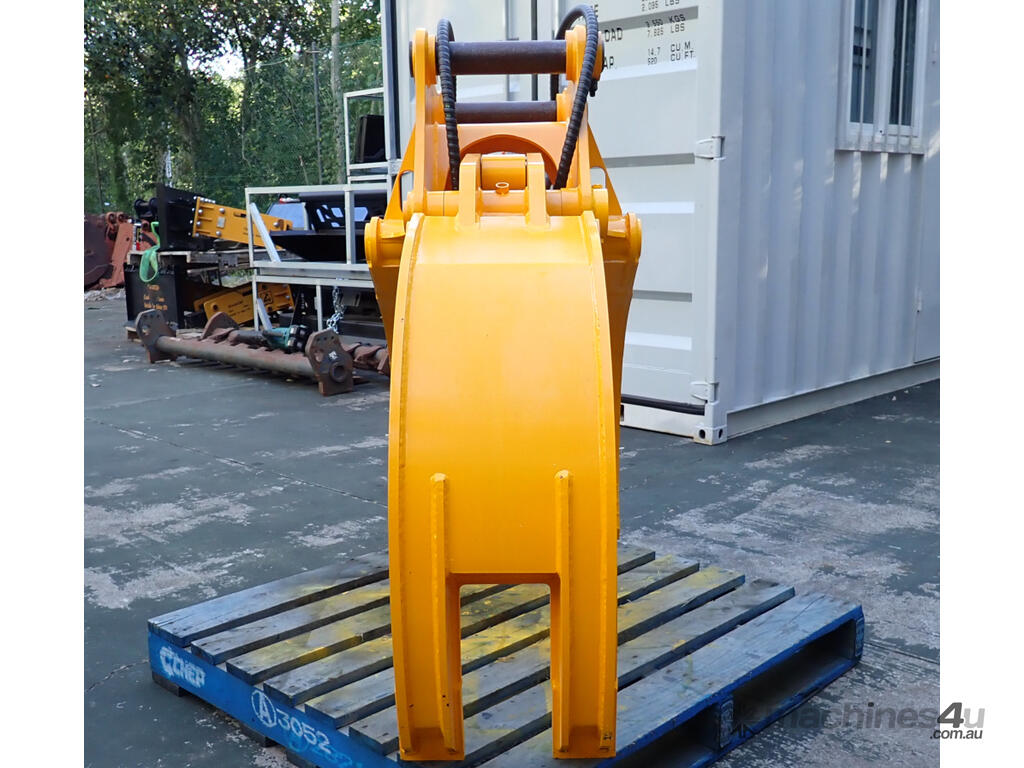

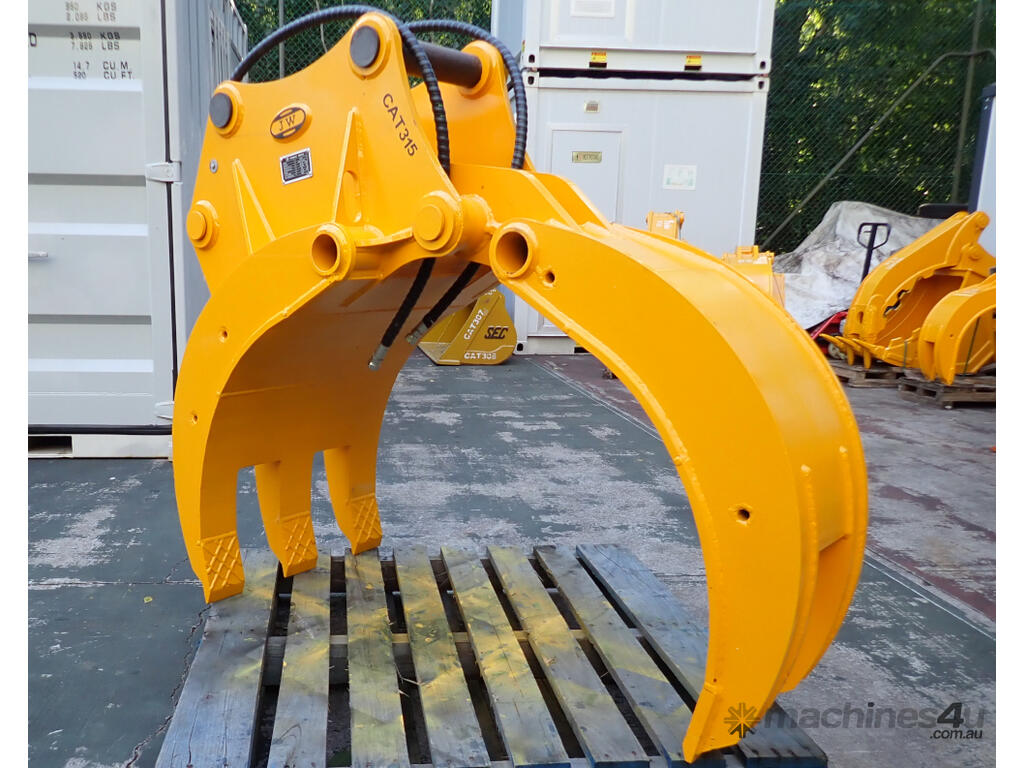

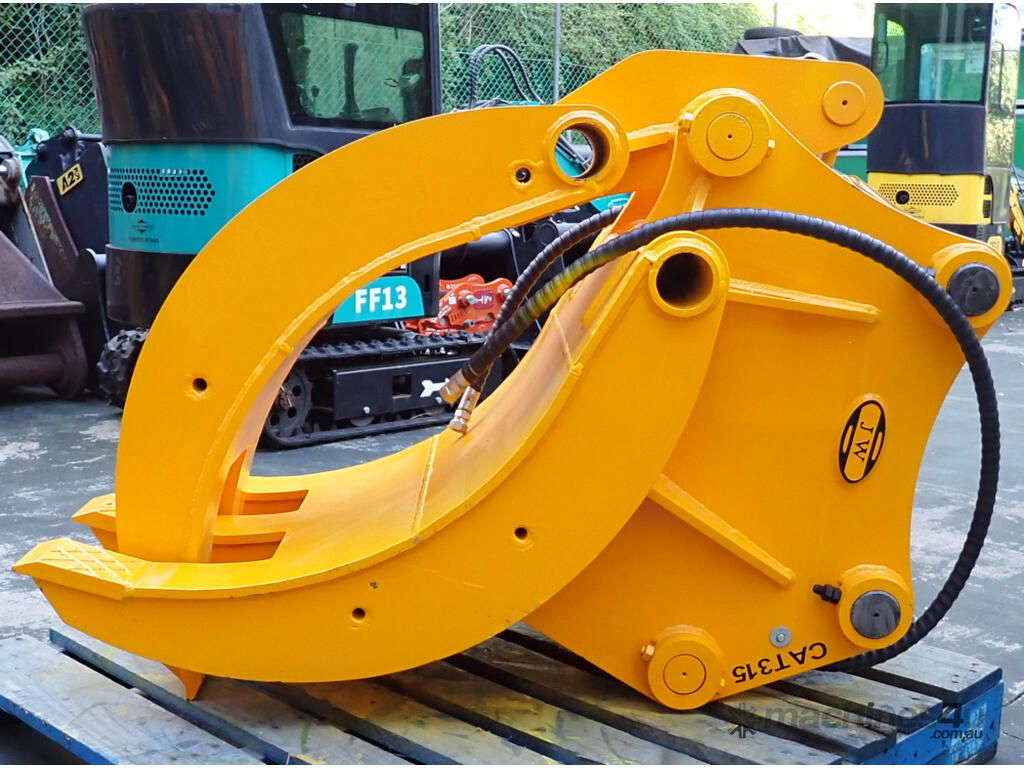

Shipping Dimensions (collapsed as in pics# 6-10): 614mm wide, 1317mm long, 909mm high. Weight: 554kg (including hoses).


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
