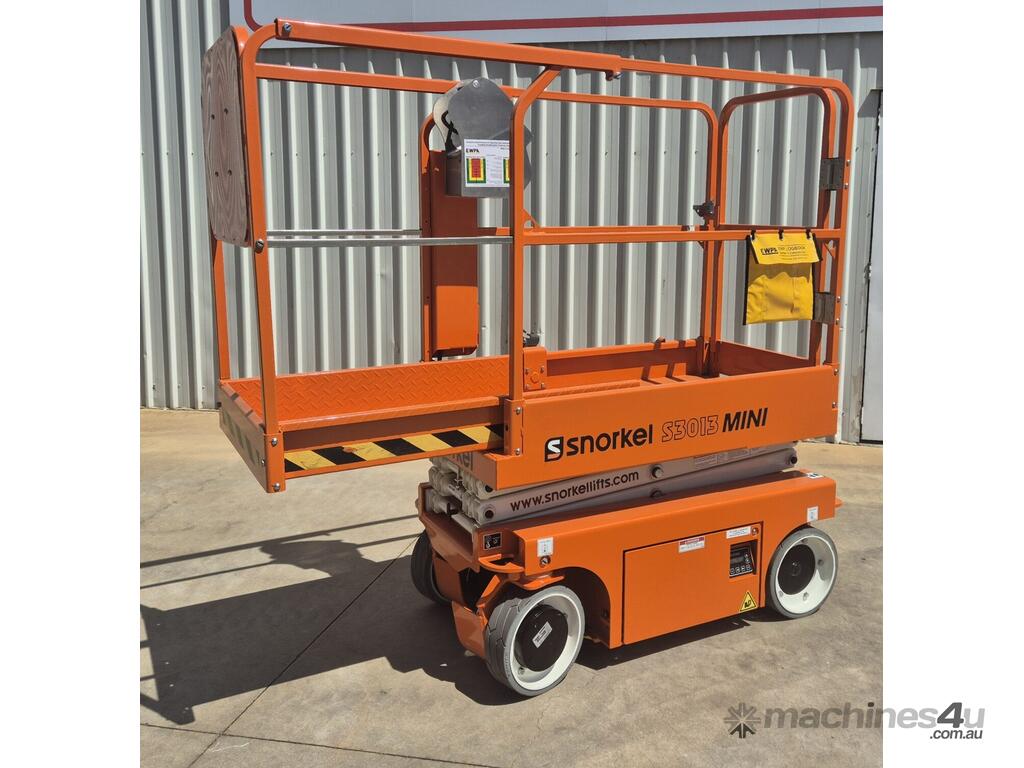

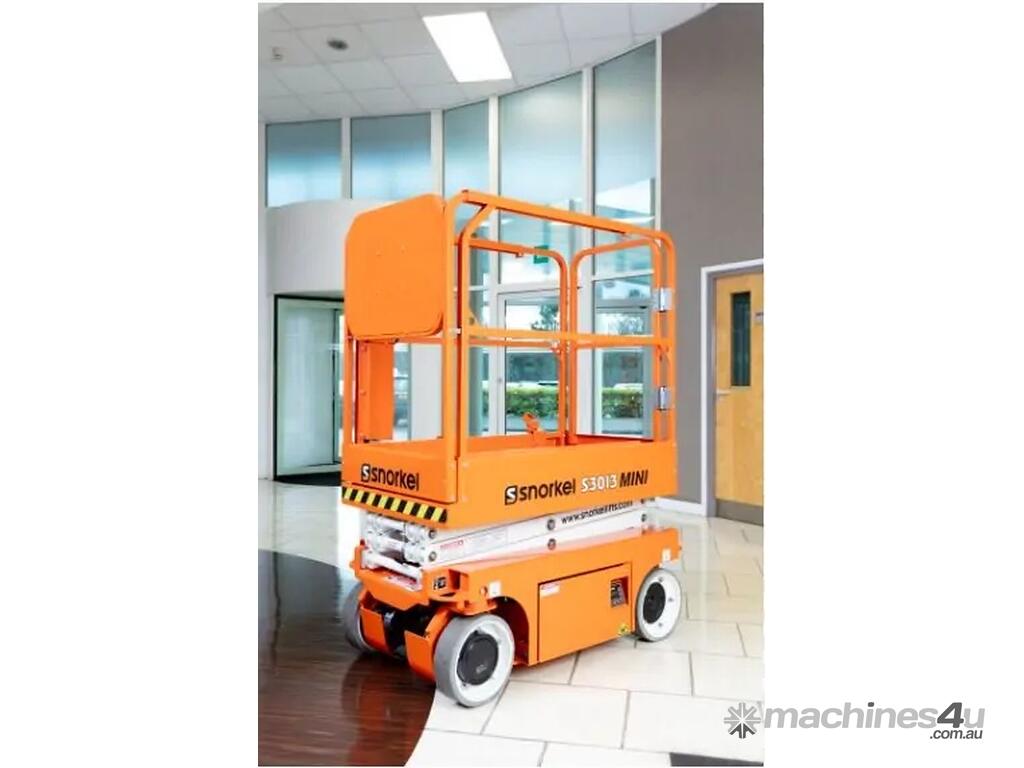

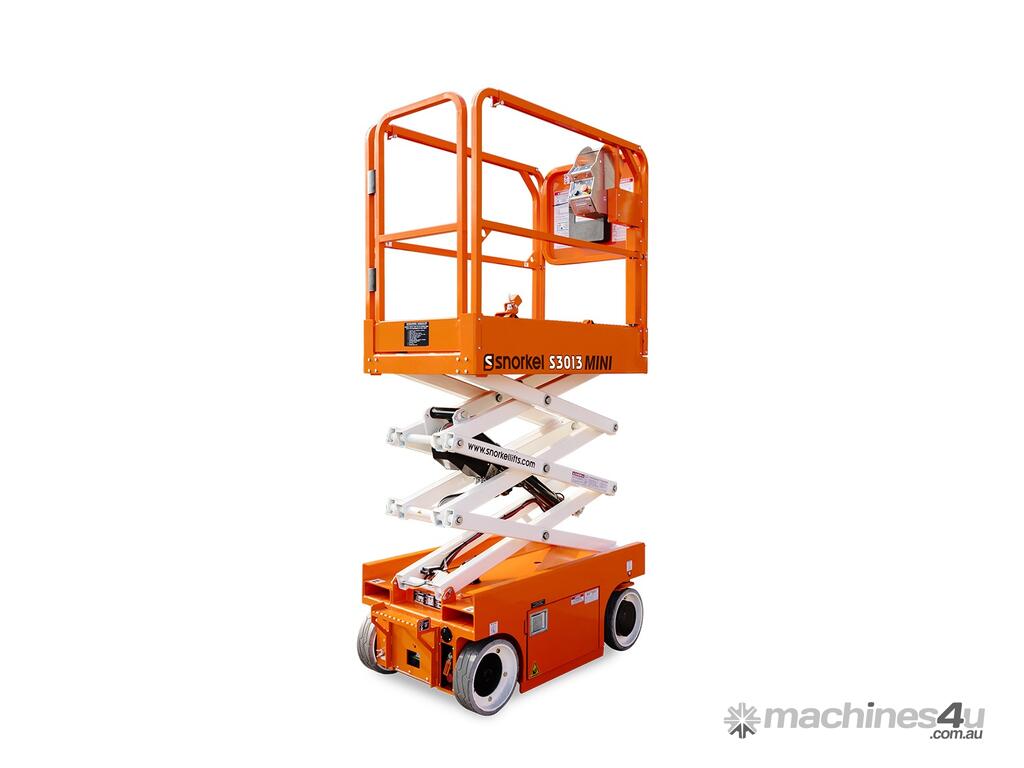

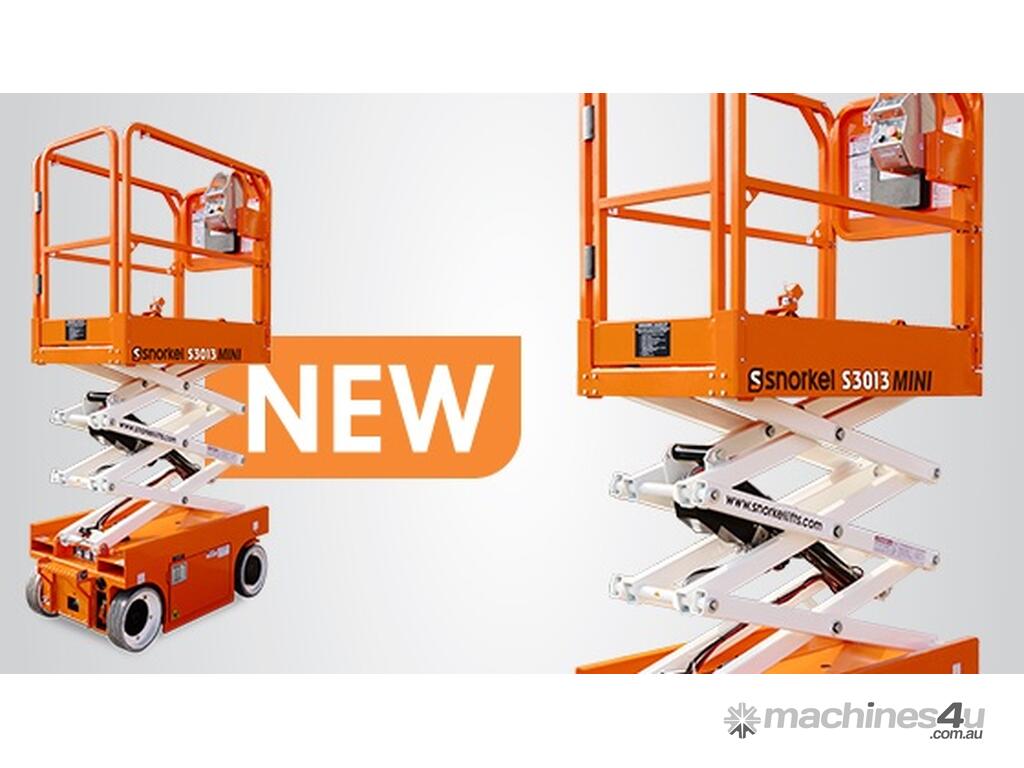

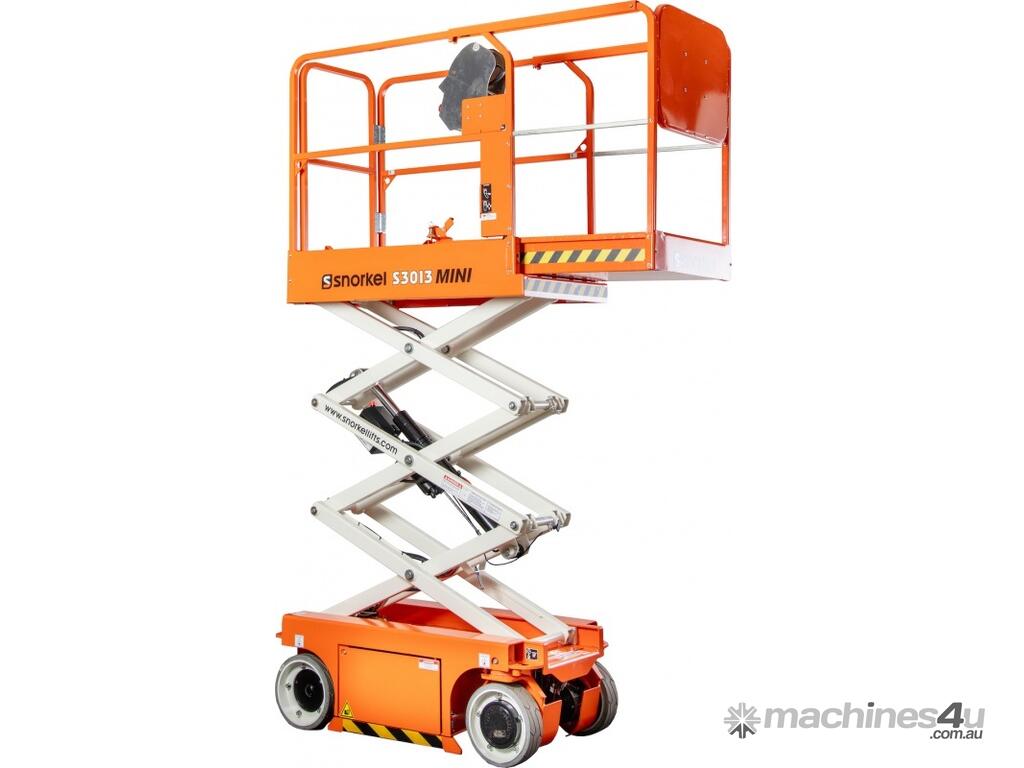

The Snorkel S3013 MINI scissor lift is mighty. It’s small enough to pass through a standard doorway, yet mighty enough to provide all day versatility for any sized job. Easy to use, efficient, and reliable, the compact S3013 MINI is a perfect choice for any indoor construction or maintenance application
- Full electric drive micro scissor
- 2 person Indoor / 1 person outdoor rated 100% operation

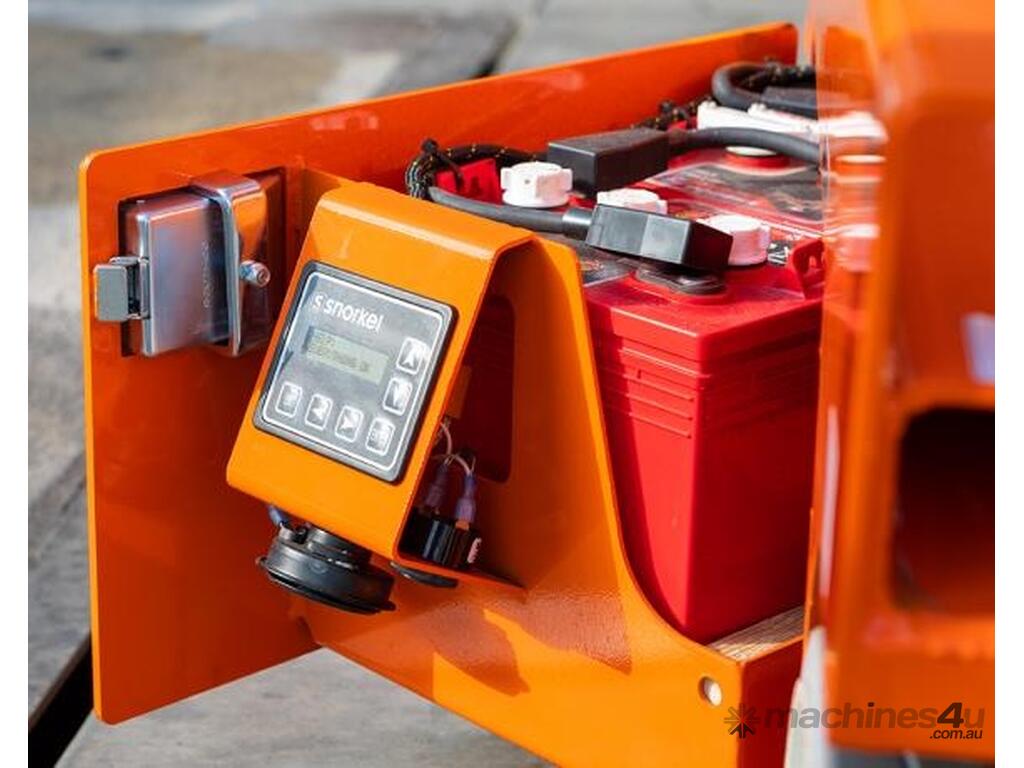

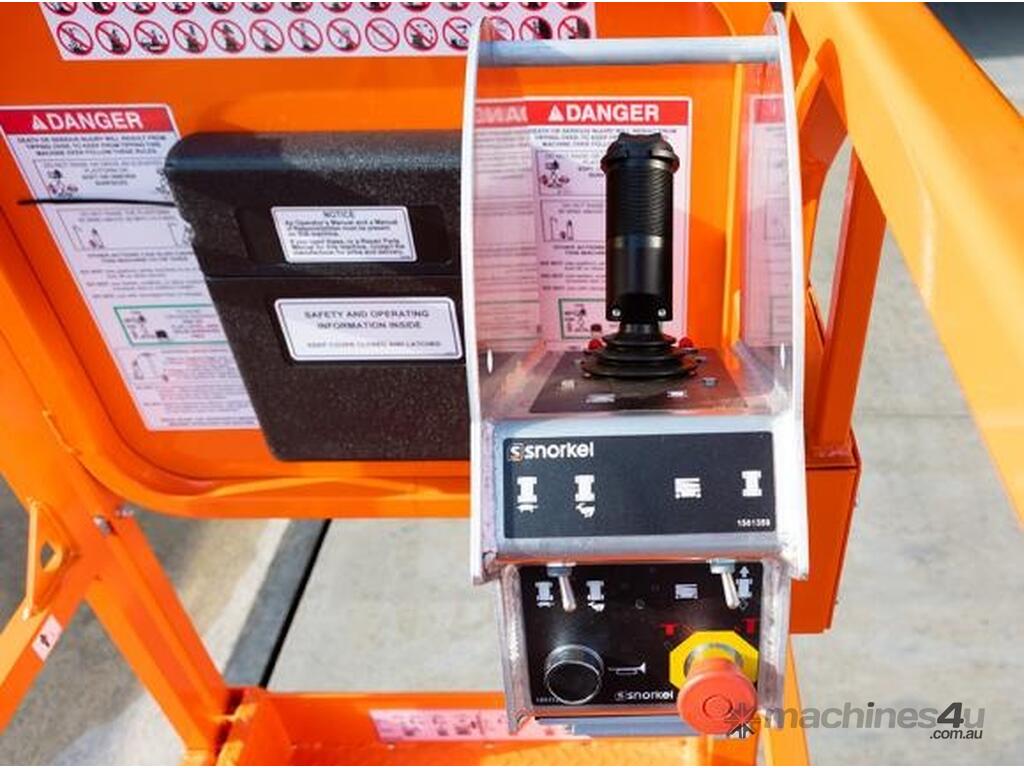

- Fixed control box with pendant controller
- Total machine weight 794kgs
- 272kgs platform capacity
5 year warranty on lithium batteries

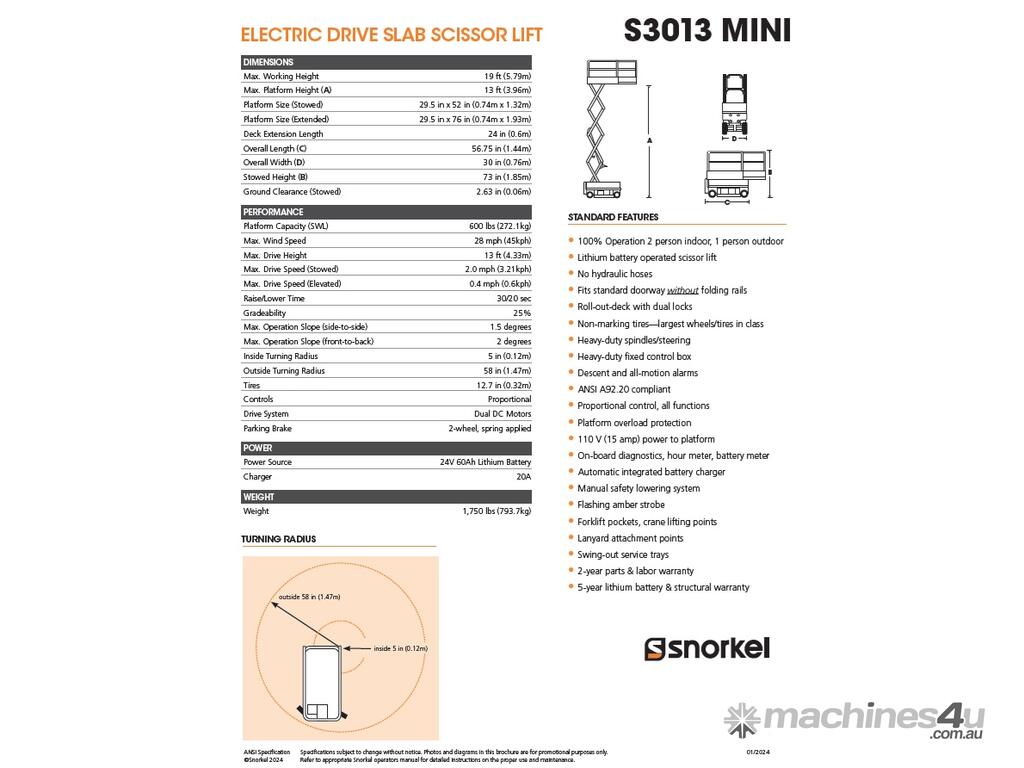

Max Working Height – 6m
Max. Platform Height – 4m
Platform Size (stowed) – 0.75m x 1.32m
Platform Size (extended) – 0.75m x 1.93m
Deck extension length – 0.61m
Overall length (with step) – 1.44m
Overall length (without step) – 1.39m
Overall Width – 0.76m
Min. Height (guardrails folded) – 1.59m
Stowed Height – 1.85m
Platform Capacity (SWL) – 272kg
Max Drive Height – 5.79m
Max Drive Speed (stowed) – 4.0km/h
Max Drive Speed (elevated) – 0.8km/h
Raise/Lower Time – 20/35 seconds
Gradeability – 25%
Inside Turning Radius – 0.13m
Outside Turning Radius - 1.47m
Controls - Proportional
Drive System – 2 wheel electric drive

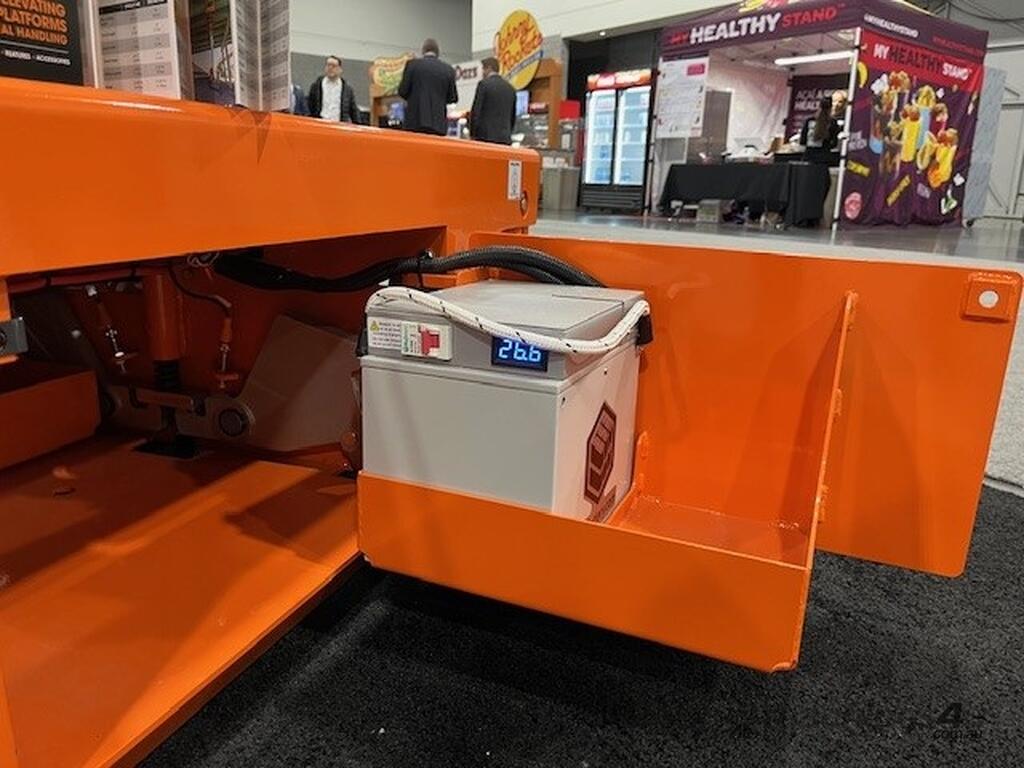

Power Source – Lithium Batteries
Weight – 794kg
