New 14-22 ton (70mm pin) Excavator Ripper suit Caterpillar

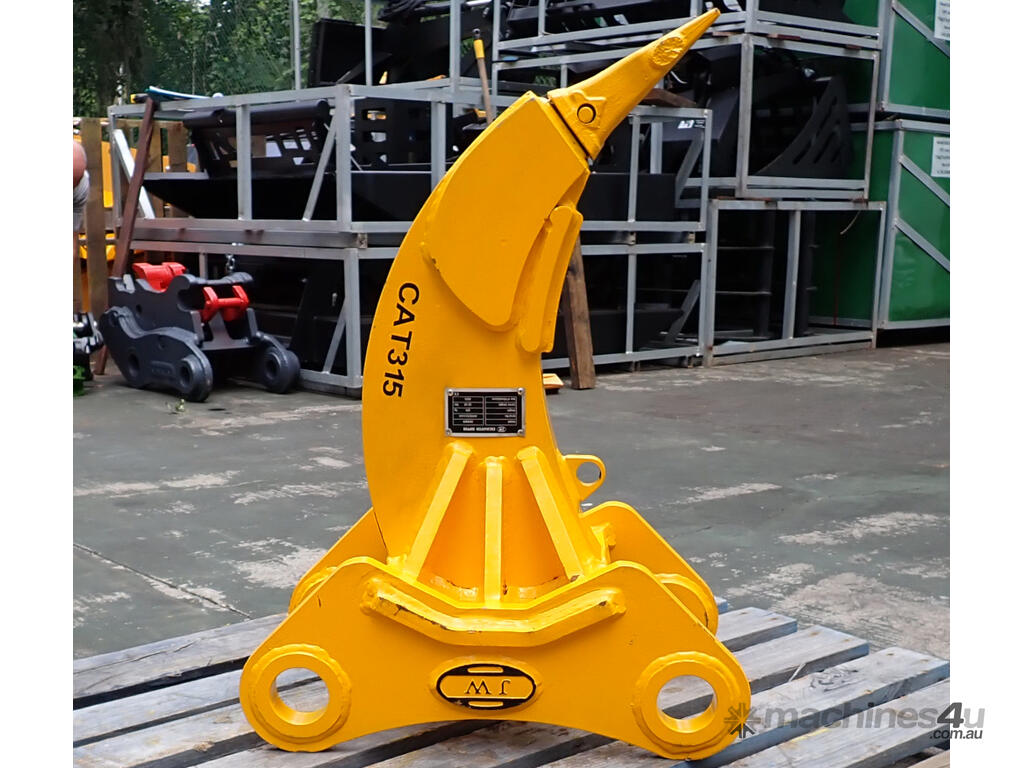

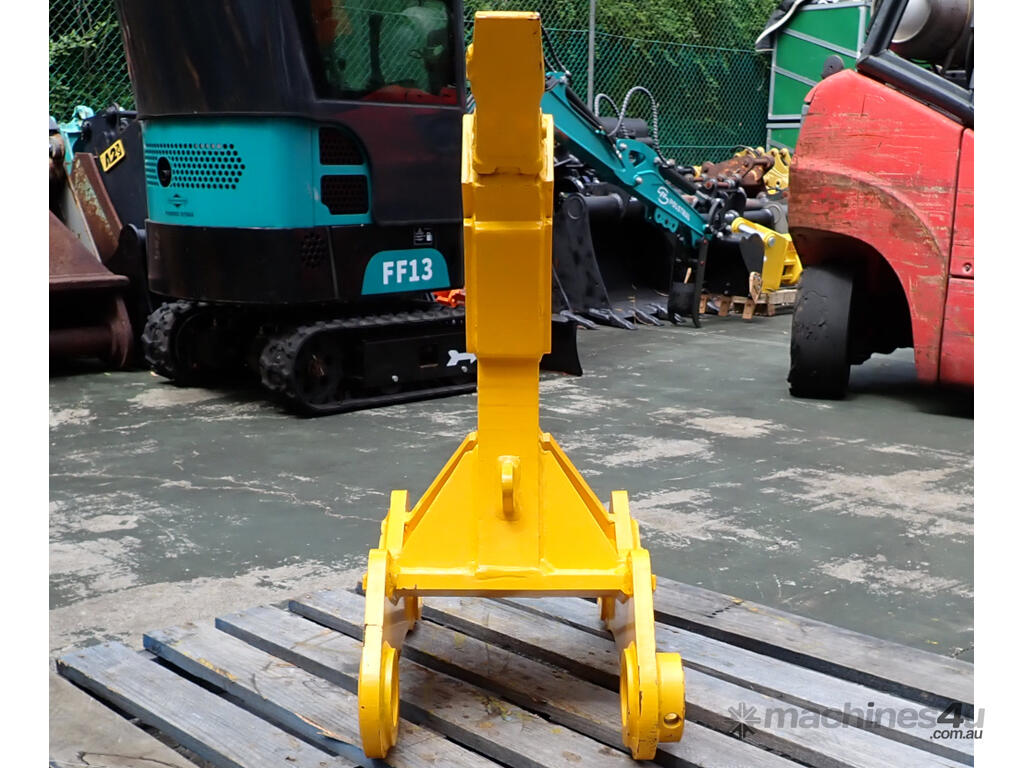

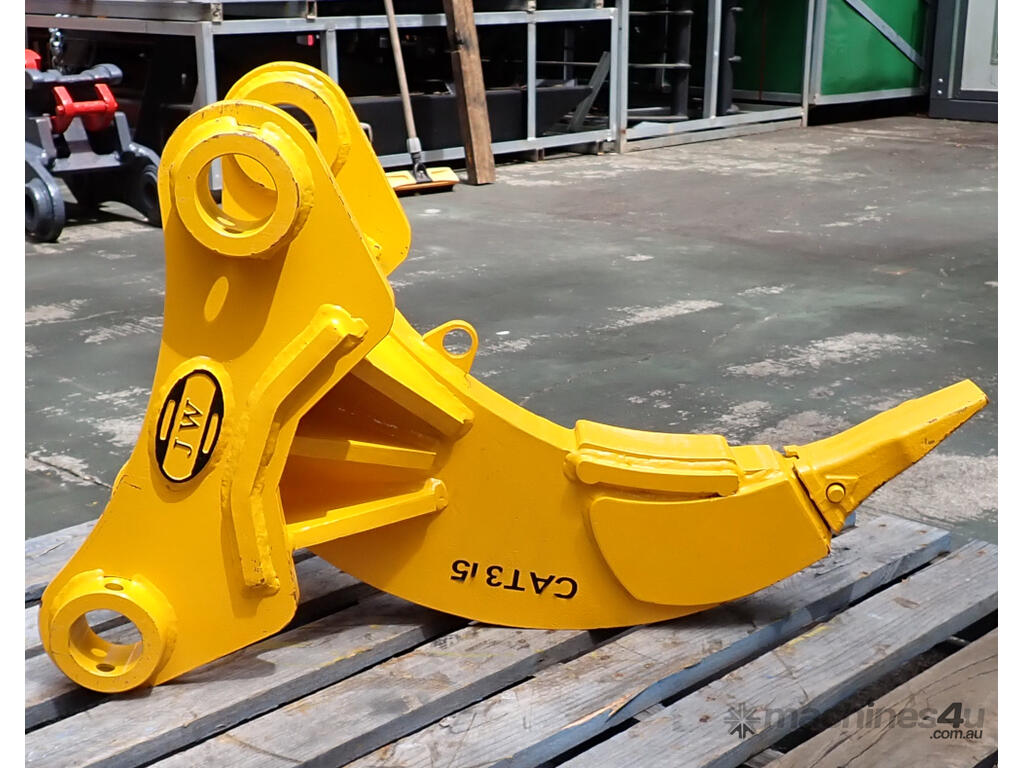

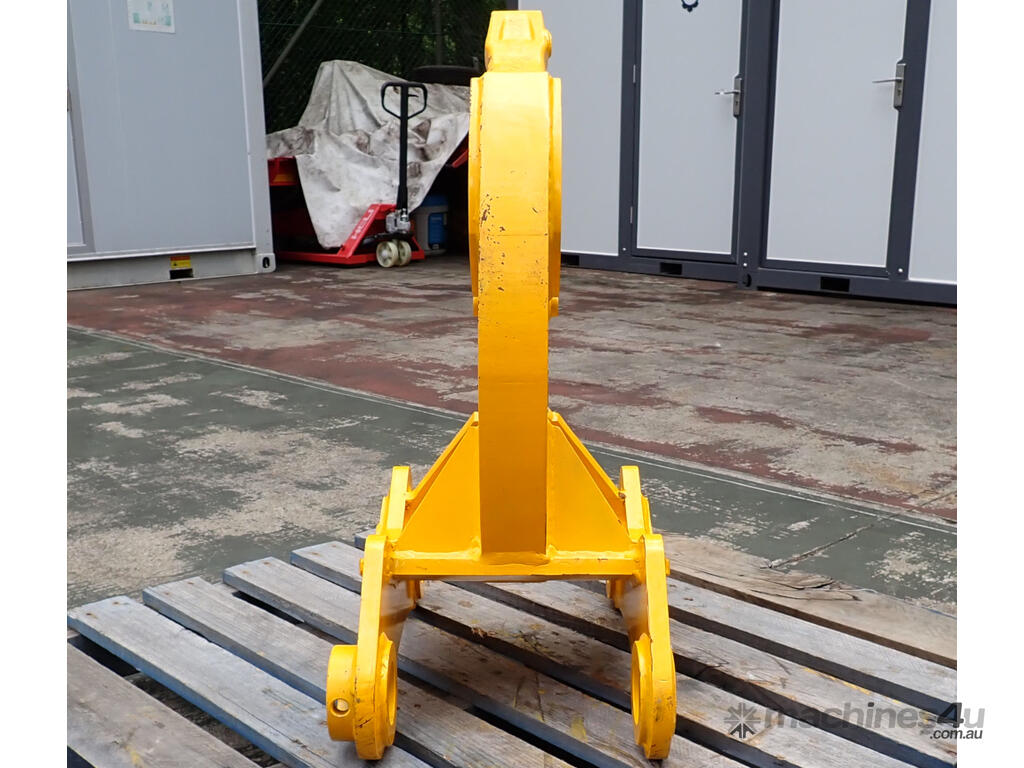

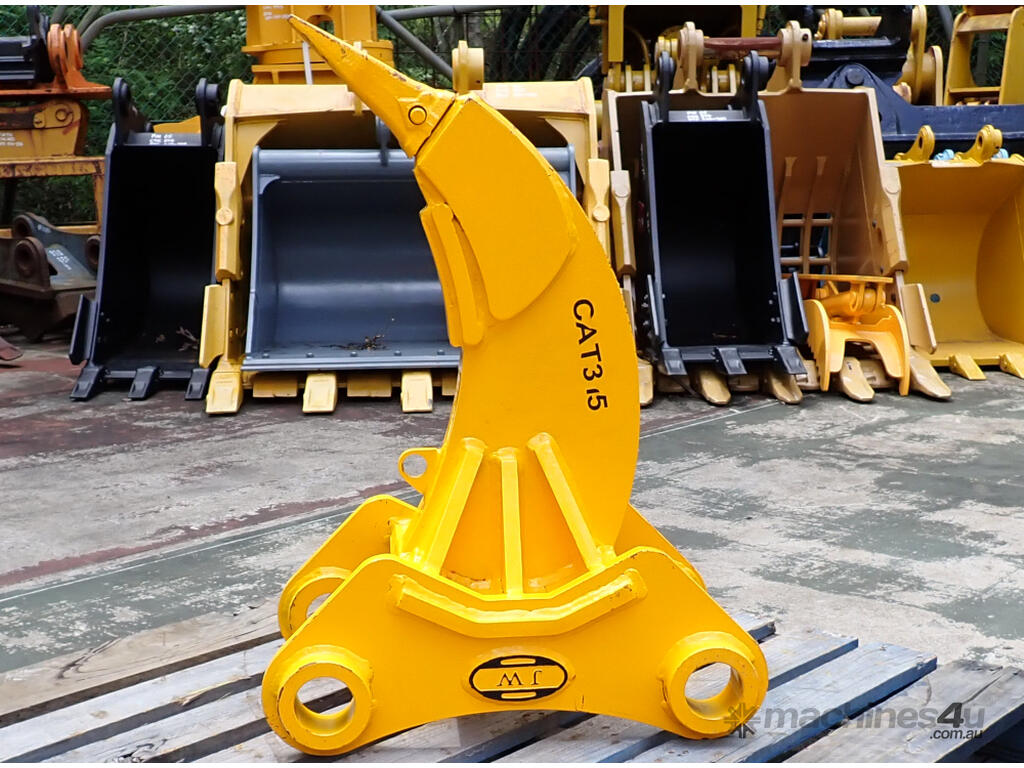

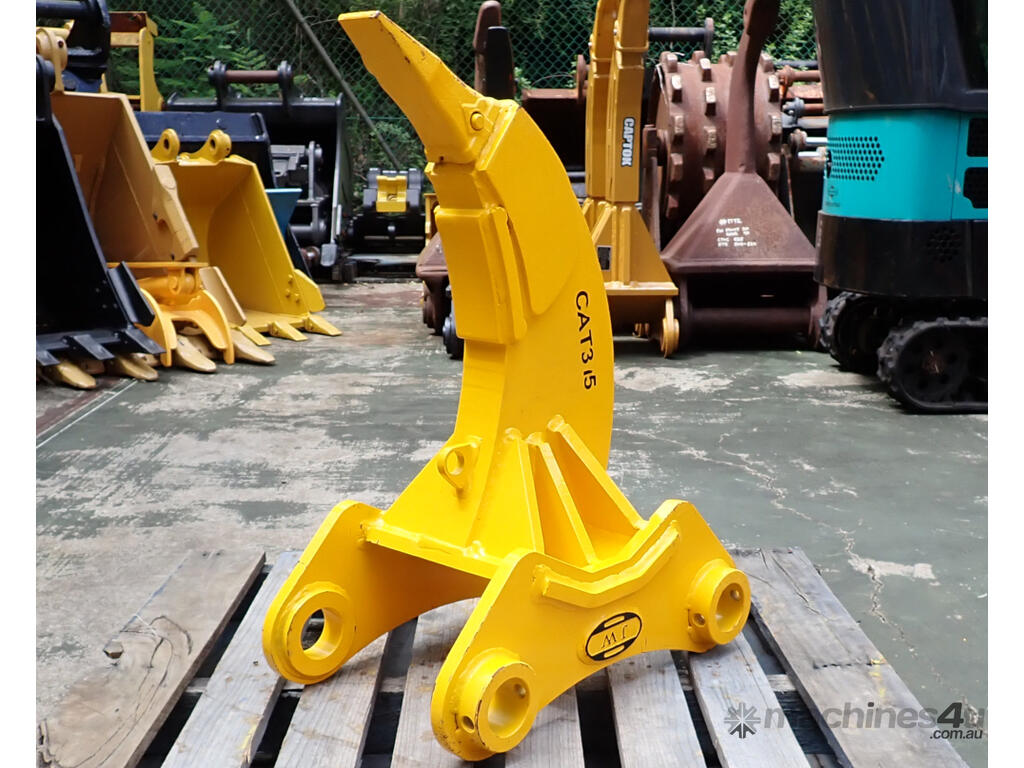

New Jea Wen JW06ER Excavator Ripper, suit 14-22 Ton machine.

Designed for Caterpillar 315 / 315B / 315B L / 315C L / 317 etc. but will fit other machines (see below list of machines we have found so far).

Great for ripping up tree roots, breaking up rock and loosening rocky ground, tarmac, paved areas etc.

This is a strong, well engineered & reinforced Ripper with a solid 80mm thick shank (105mm total width where the extra shield plates are welded on).

It also has a mid-mounted front lifting hook.

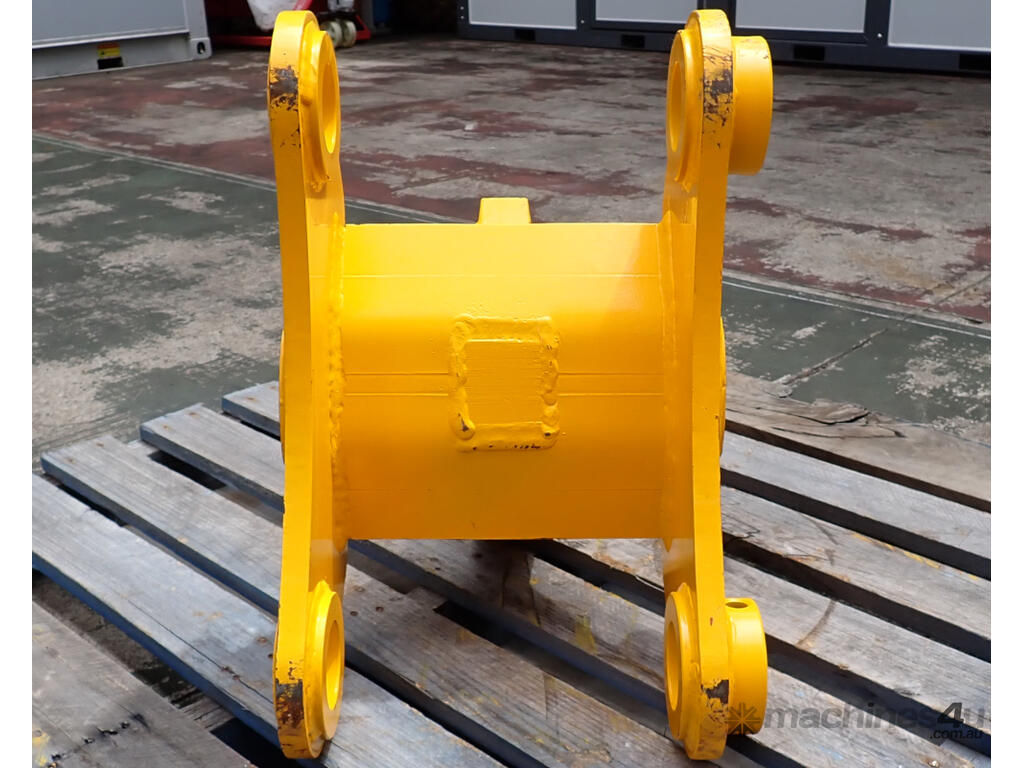

***** Current Headstock configuration:
* 70mm Pin Diameter
* 460mm Pin Center to Pin Center (CtoC)
* 281mm Between the inside Ear Bosses (which can be shaved back up to 304mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
*
* Should fit: Caterpillar 315 / 315B / 315B L / 315C L / 317.
*
* Maybe fit: Hyundai R200LC / R200W / R210LC-3, Kato 700, Kobelco ED190, Samsung MX175W / SE170 / SE170W, Volvo EC150 / EC160 / EC160B / EC160C / EC180C / EW160B / EW160C / EW170 / EW180 / EW180B / EW180C / EW210C / MX175WS / SE170W-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

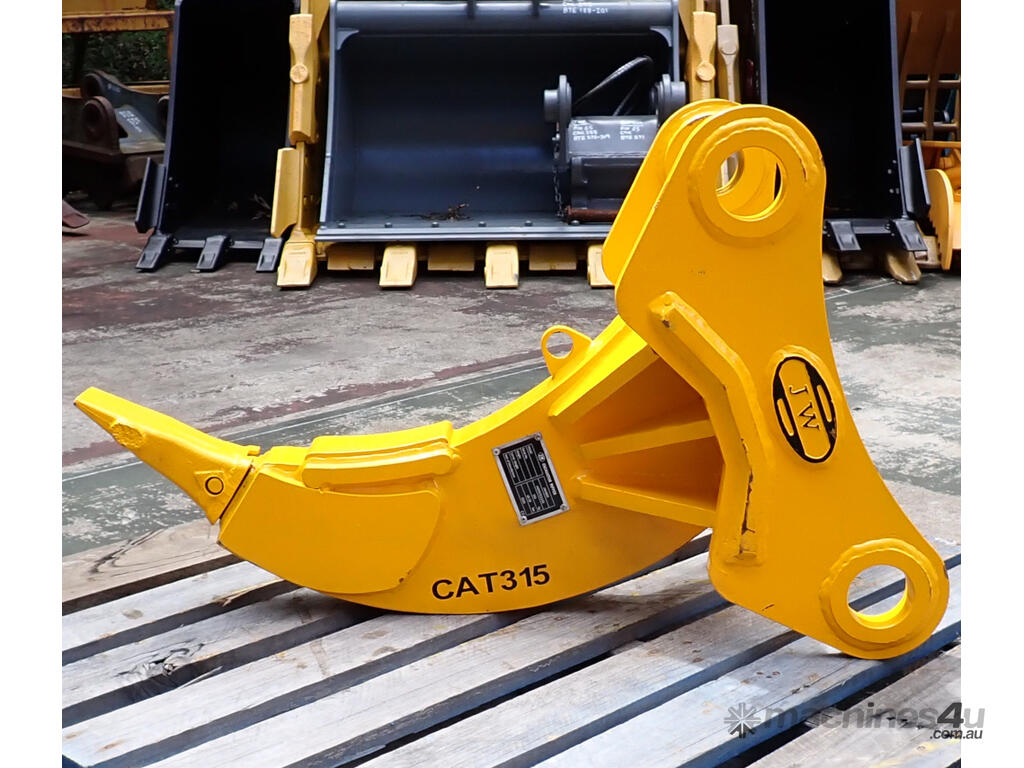

Dimensions (laying down as in pics# 6-10): 854mm long, 395mm wide, 608mm high. Weight: 152kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
