New Jea Wen JW07B Excavator Hydraulic Thumb Grapple Grab Bucket suit 14-32 Ton machine. The bucket moves as a normal bucket attached to your hitch or to your dipper arm. The Thumb moves Hydraulically.
Designed for Rock & Log work, but can also be used for demolition and general material handling, picking things up, moving them around etc.
Required Oil Flow: 90-110 L/min.
Working Pressure: 150-170 bar.
Opening Width: 1500mm.
Currently setup for 70mm pins but could easily be configured for 80mm pins by boring out the holes in the removable collars (see pic #10) and inserting bigger pins.
*** Headstock Dimensions:
* The Pin Diameter is 70mm but they are fitted into collar bosses that fit into 90mm diameter Pin holes (see pic# 10), so pins up to 90mm diameter can be fitted without needing to bore out the holes in the bucket's headstock.
* The Pin Center to Pin Center (CtoC) is 460mm.
* The distance between the collar bosses is 281mm. Removing the collar bosses, the distance between the headstock bosses is 300mm, but these welded-on-bosses could also be shaved back on the insides to a maximum of 315mm (the distance Between the Ear Plates), if you need more inside width for your hitch or dipper arm to fit into.
*** 70mm Pin configuration (current):
*
* Should fit: Caterpillar 315 / 315B / 315B L / 315C L / 317.
*
* Maybe fit: Doosan DX170W-3, Kobelco ED190, Samsung MX175W / SE170 / SE170W, Volvo EC150 / EC160 / EC160B / EC160C / EC160D / EC180C / EW160B / EW160C / EW160D / EW170 / EW180 / EW180B / EW180C / EW210C / MX175WS / SE170W-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).
*** As an 80mm Pin configuration (bore out Collars & insert 80mm pins):
*
* Should fit: Case 9021 / CX210 / CX210B / CX225SR, Daewoo Solar 170LC-V / 170W-3 / 200W-3 / 220LC-V, Doosan DX190W, Hitachi EX200 / EX215 / FH200 / FH215, Hitachi Zaxis 200 / 200 LC / 210 / 225US LC / 225USR, JCB JS200 / JS200LC / JS210 / JS220 / JS220LC / JS235, John Deere 200C LC / 200D LC / 225C LC RTS, Link-Belt 210LX, Sumitomo SH200-2 / SH200-3 / SH200LC-3 / SH210-5 / SH225X-3.
*
* Maybe fit: Case CX160, Caterpillar 318B L / 320 / 320B w/B Link / 320D w/B Link / 321 / 322B w/B Link / 322C w/B Link / 322C w/Reach Linkage / 324D w/Reach Linkage / 330C / 330D w/Long Linkage / B Family Linkage, JCB JS150LC / JS160 / JS160 / JS160LC / JS180, Link-Belt 160LX / 160X2 / 225SA / 2700 QUANTUM / 2800 QUANTUM, Sumitomo SH150 / SH160 / SH200 / SH200LC / SH215U-1 / SH215X-1 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

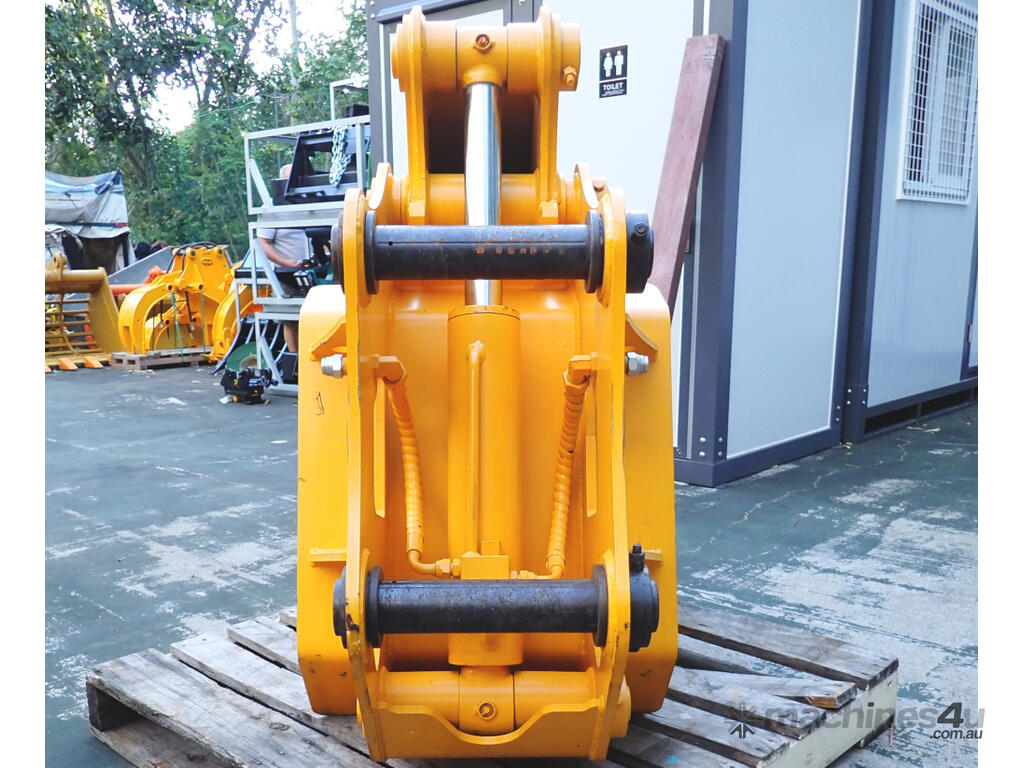

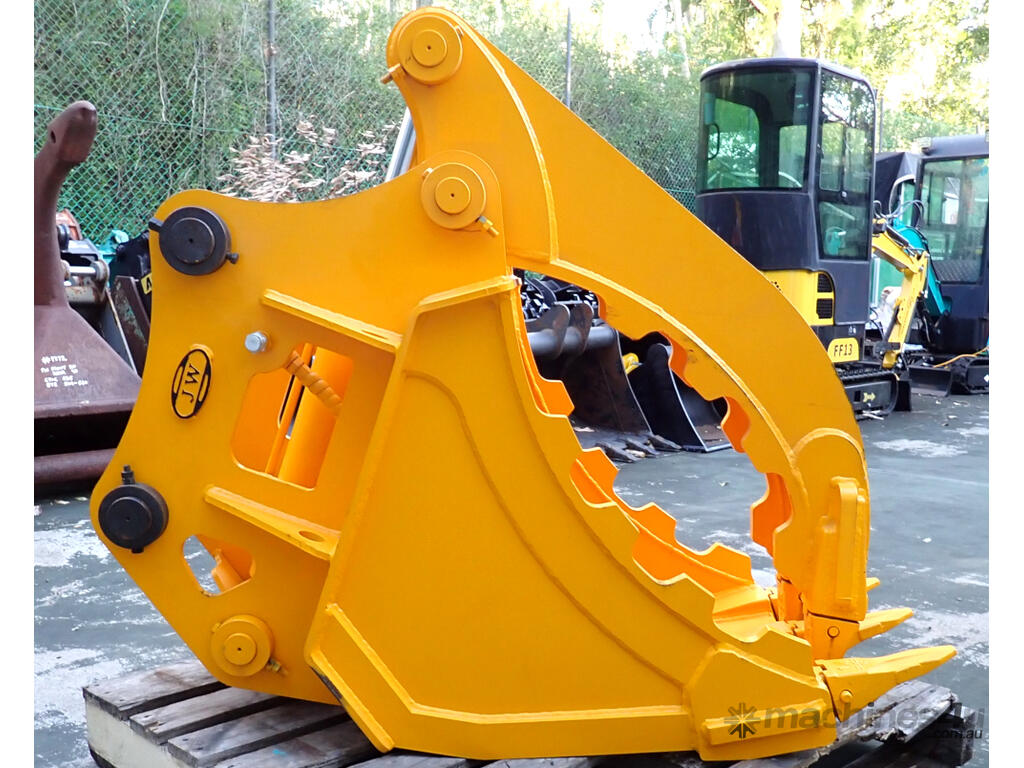

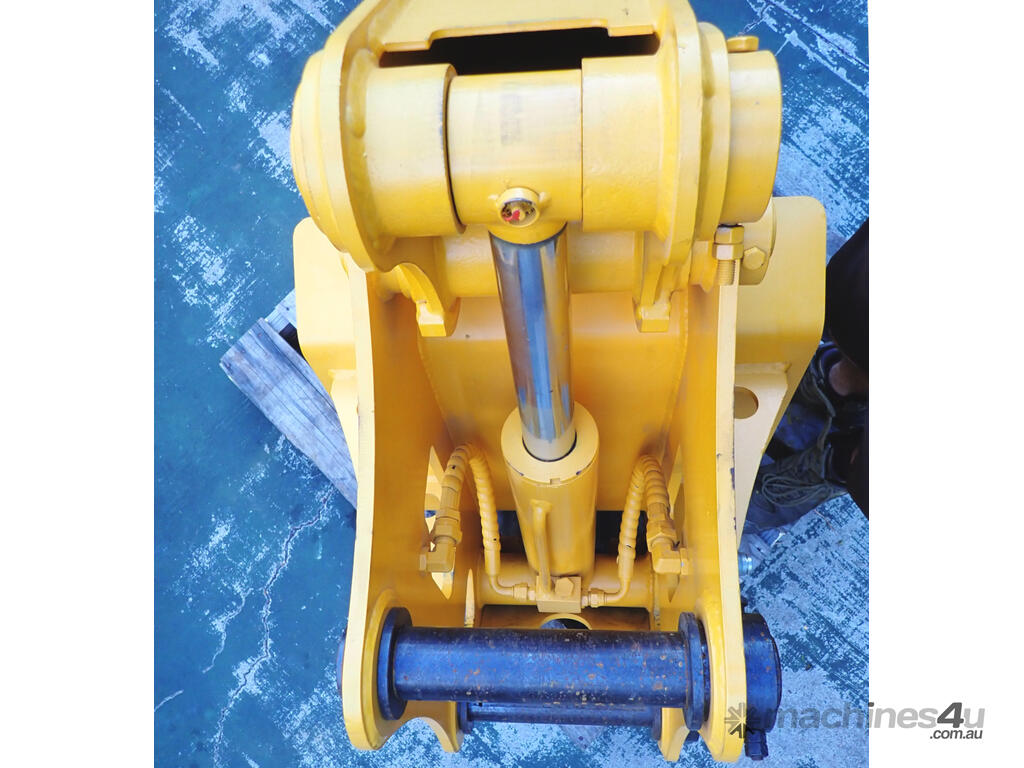

Dimensions (sitting in pics #1-9): W:623mm, L:1440mm, H:1186mm. 558kg.
Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
