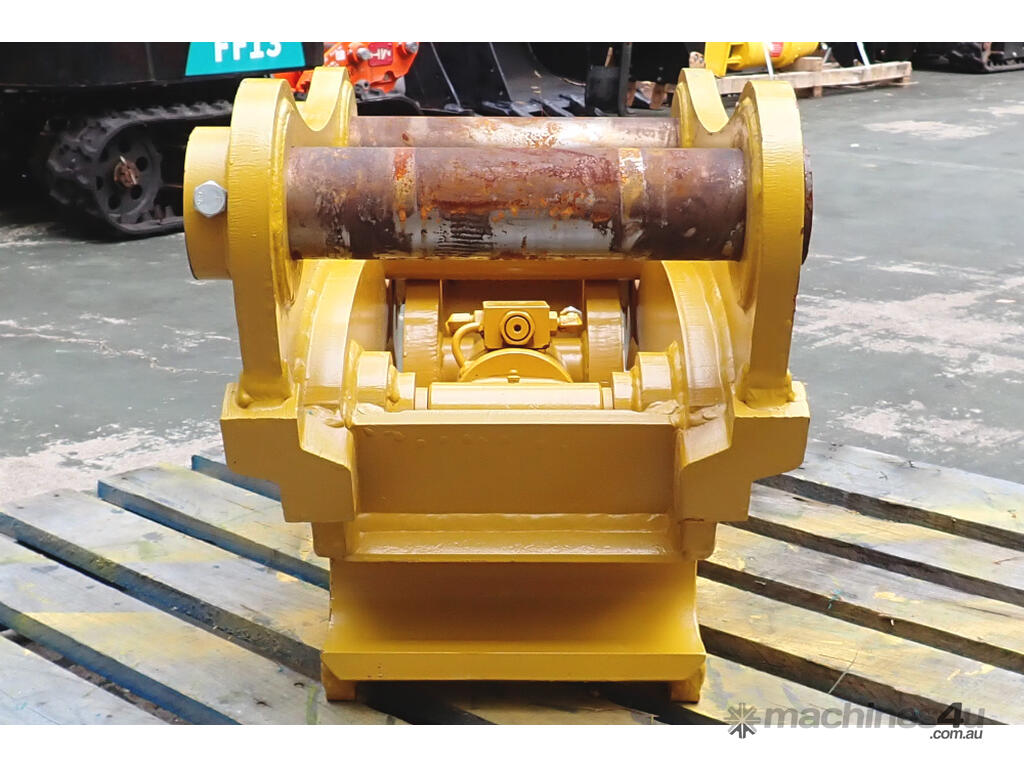

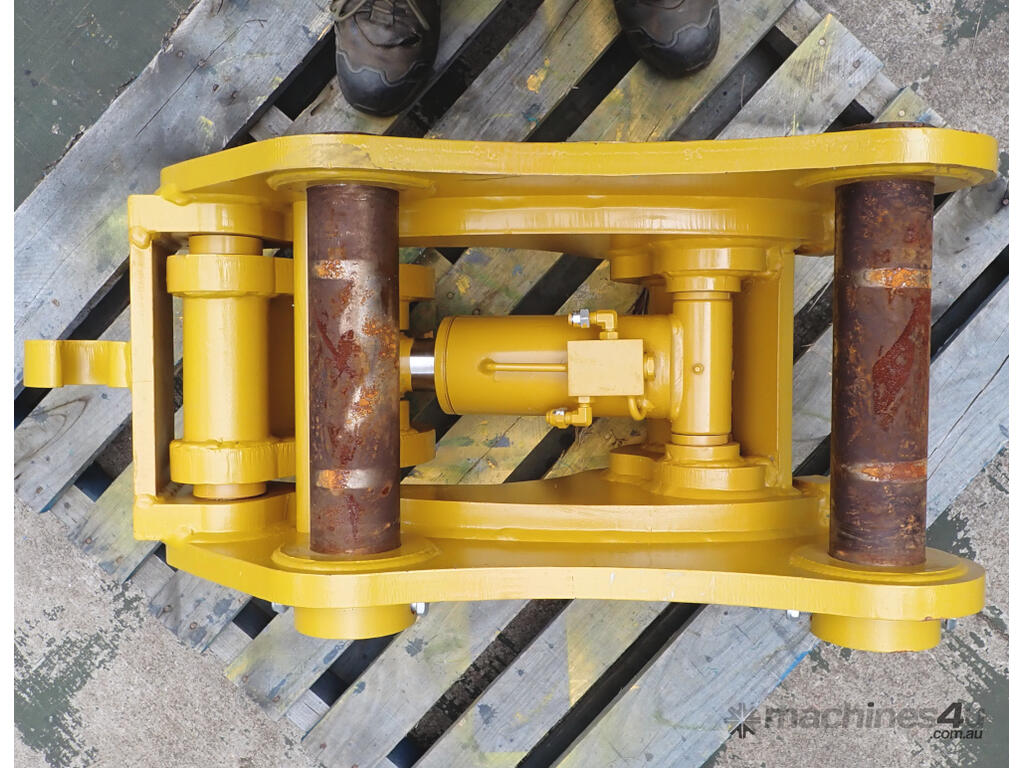

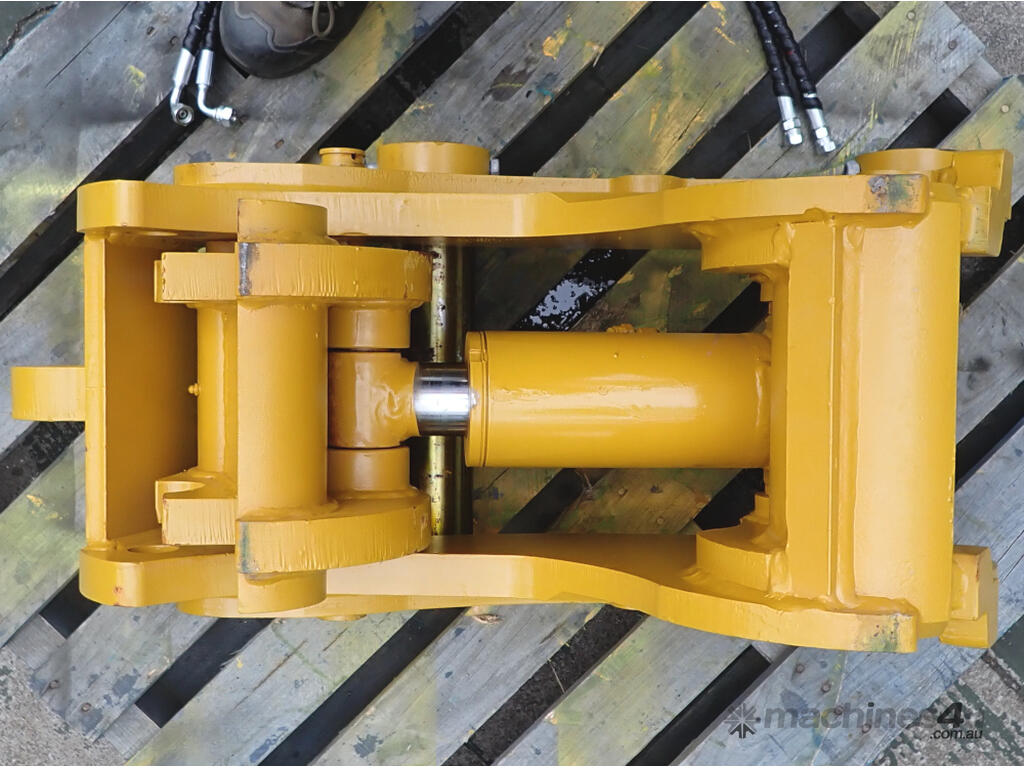

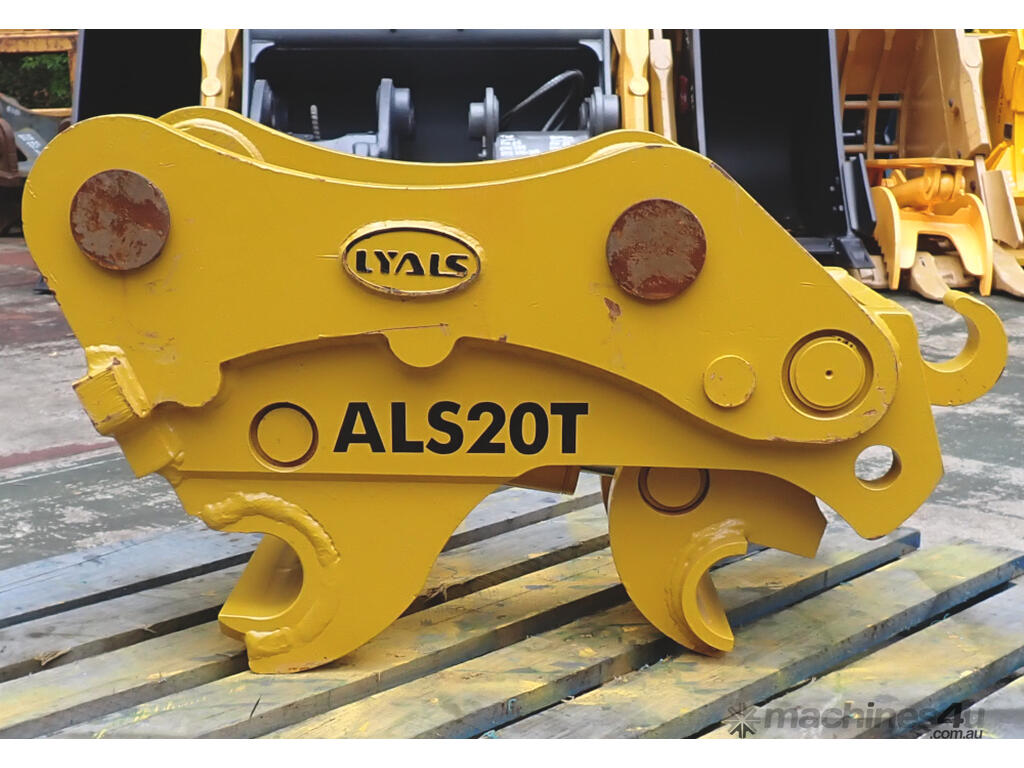

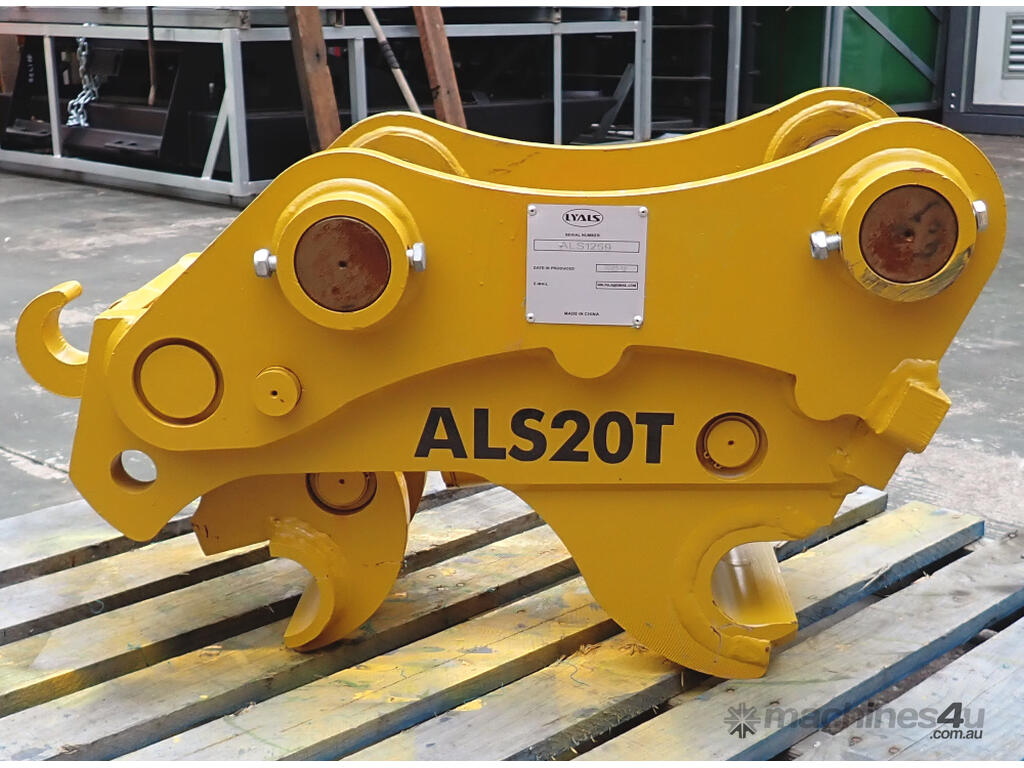

New 15-32 ton (80mm pin) Hydraulic Excavator Quick Hitch Coupling

New Lyals Excavator Hydraulic Quick Hitch Coupler to suit 15-32 Ton machines.

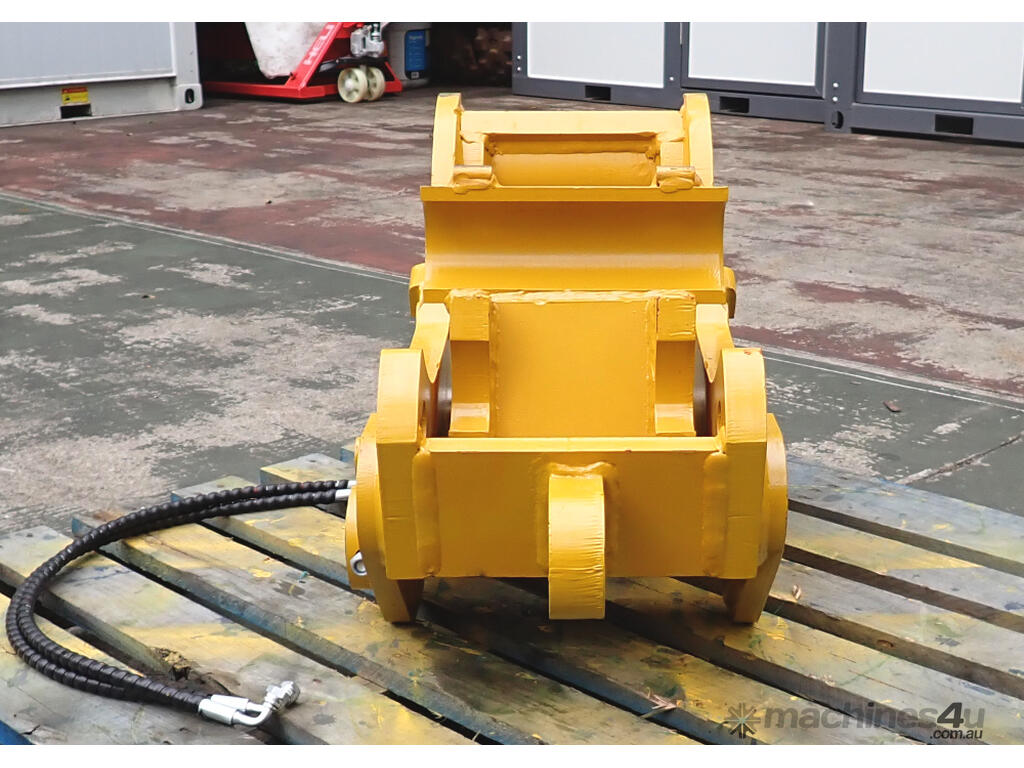

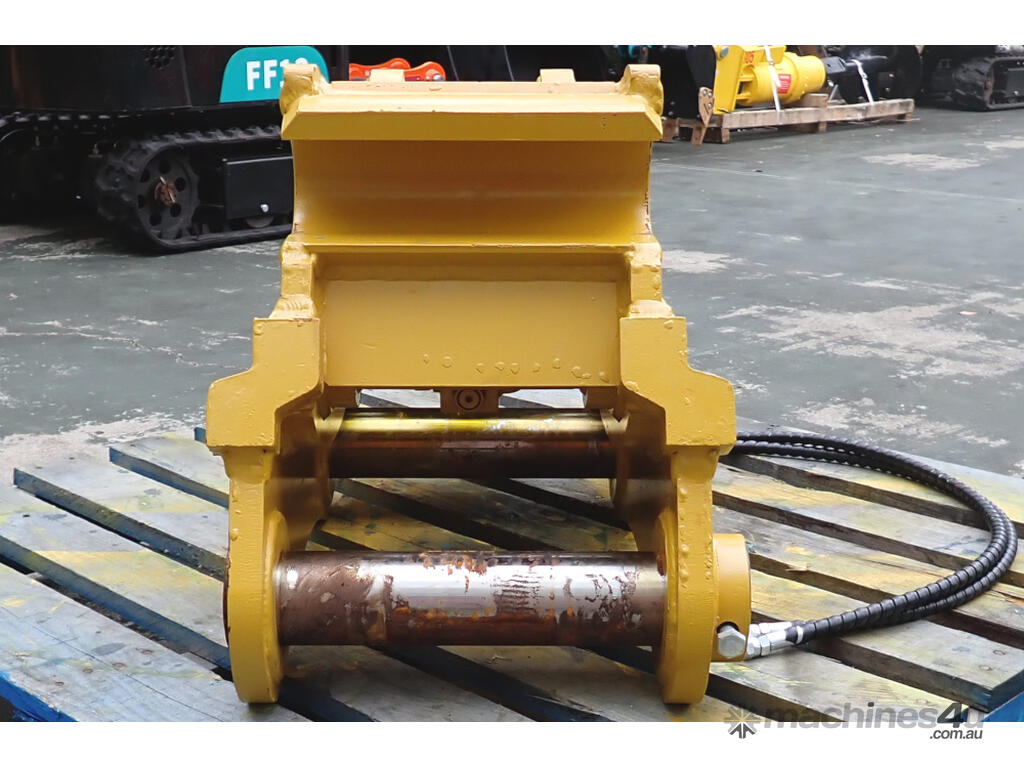

Has Lifting Eye Hook and comes with the hoses as seen in pics# 7-10.

This is a full hydraulic hitch but it uses a manually inserted locking pin to ensure the bucket stays on in case of loss of hydraulic pressure.


*** Pin Setup Dimensions (where your Dipper Arm goes in):
* Pin Diameter: 80mm.
* Pin Center to Pin Center (CtoC): 460mm.
* Between The Ears (BTE): 316mm Between the inside Ear Bosses of the hitch (which can be shaved back up to 326mm between the Ear Plates if you need more inside width for your excavator's dipper arm to fit in).

*** Pin Setup Dimensions (where the Hitch goes in your bucket):
* Pin Diameter: 80mm.
* Between The Ears (BTE): 312mm (your buckets/attachments need to have at least this much width between the ears).

* Should fit: Case 9021 / CX210 / CX210B / CX225SR, Daewoo Solar 170LC-V / 170W-3 / 200W-3 / 220LC-V, Doosan DX190W, Hitachi EX200 / EX215 / FH200 / FH215, Hitachi Zaxis 200 / 200 LC / 210 / 225US LC / 225USR, JCB JS200 / JS200LC / JS210 / JS220 / JS220LC / JS235, John Deere 200C LC / 200D LC / 225C LC RTS, Link-Belt 210LX, Sumitomo SH200-2 / SH200-3 / SH200LC-3 / SH210-5 / SH225X-3.
*
* Maybe fit: Case CX160, Caterpillar 318B L / 320 / 320B w/B Link / 320D w/B Link / 321 / 322B w/B Link / 322C w/B Link / 322C w/Reach Linkage / 324D w/Reach Linkage / 330C / 330D w/Long Linkage / B Family Linkage, JCB JS150LC / JS160 / JS160 / JS160LC / JS180, Link-Belt 160LX / 160X2 / 225SA / 2700 QUANTUM / 2800 QUANTUM, Sumitomo SH150 / SH160 / SH200 / SH200LC / SH215U-1 / SH215X-1 and possibly other machines with similar pin spacings.


Hitch dimensions: 892mm long, 440mm wide, 520mm high. Weight: 260kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
