New 2-5 ton (38mm pin) Doherty D-Lock Hydraulic Excavator Quick Hitch Coupler suit Yanmar

The price includes GST.

New 38mm pin Doherty D-Lock Hydraulic Excavator Quick Hitch Coupling to suit 2-5 Ton machines.
D-Lock Coupler is the most reliable, safe, cost effective and user friendly coupler on the global market:

Strong and well engineered. Made in Australia & New Zealand by Doherty Couplers and Attachments.

*** Features:
* Automatic front lock – Locks the front pin in the event the rear pin is not secured
* Highly visible front lock indicator
* Safety system does not rely on gravity
* Dual pin lock – Locks both front and rear pins in the event of loss of engagement force
* Unlock process is designed to release only when the operator intends to do so, in a controlled and safe manner
* Simple yet safe unlock procedure eliminates accidental releases
* Only requires two hydraulic lines
* Compact design – Improving machine performance
* No greasing or lubrication required

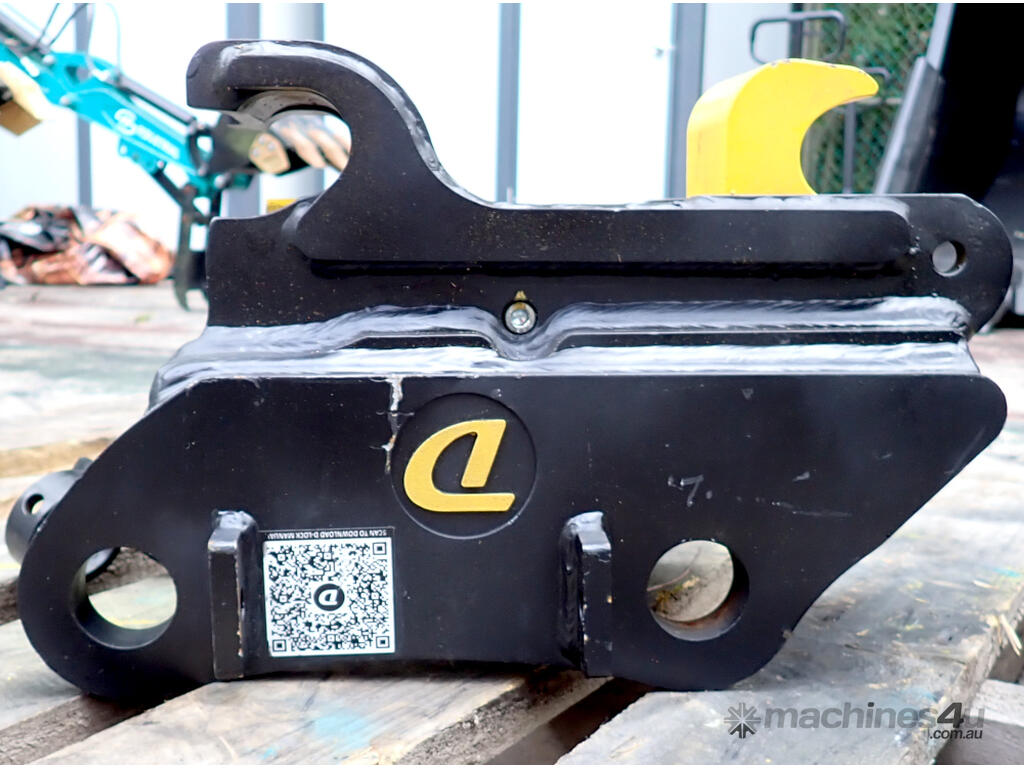

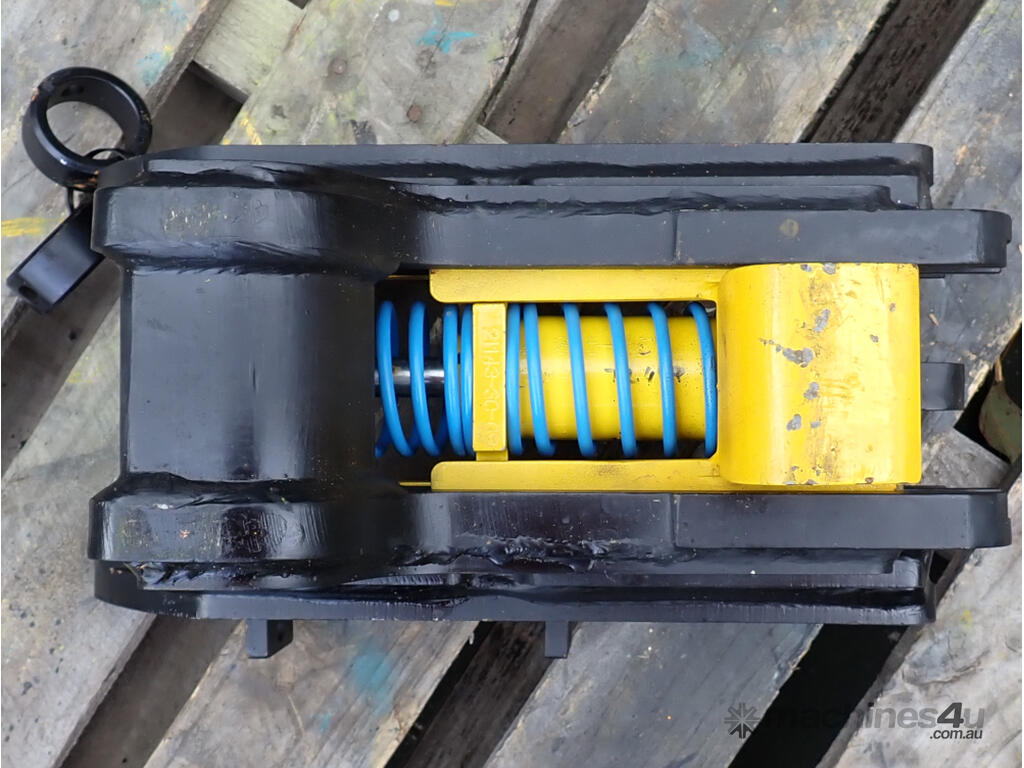

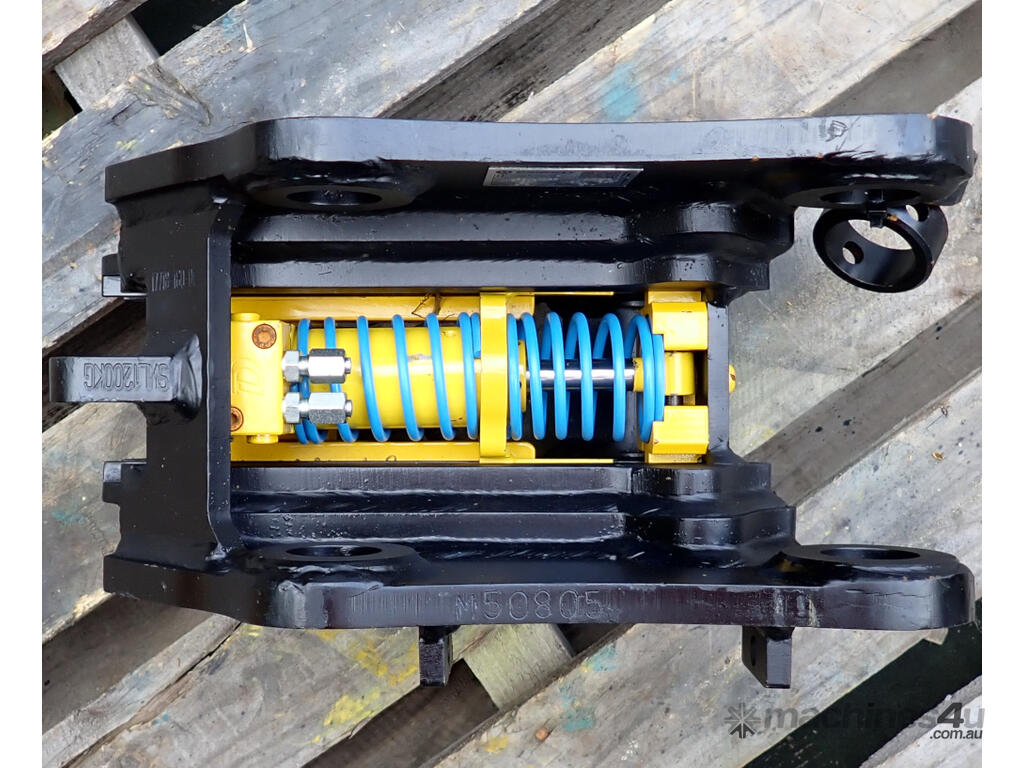

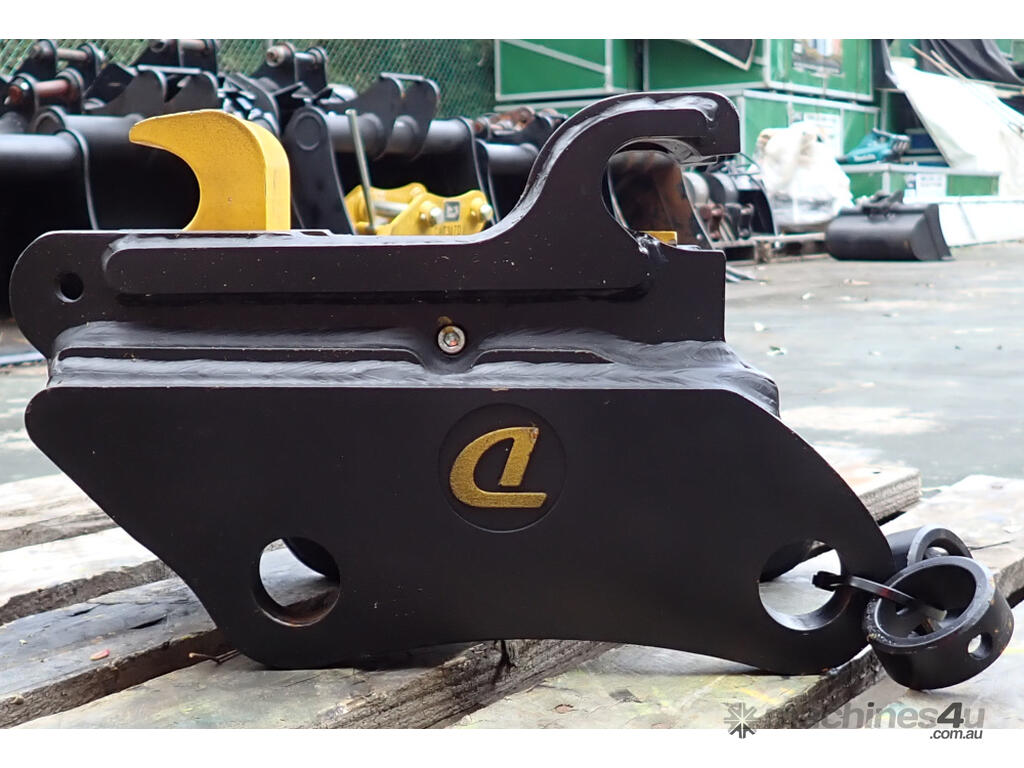

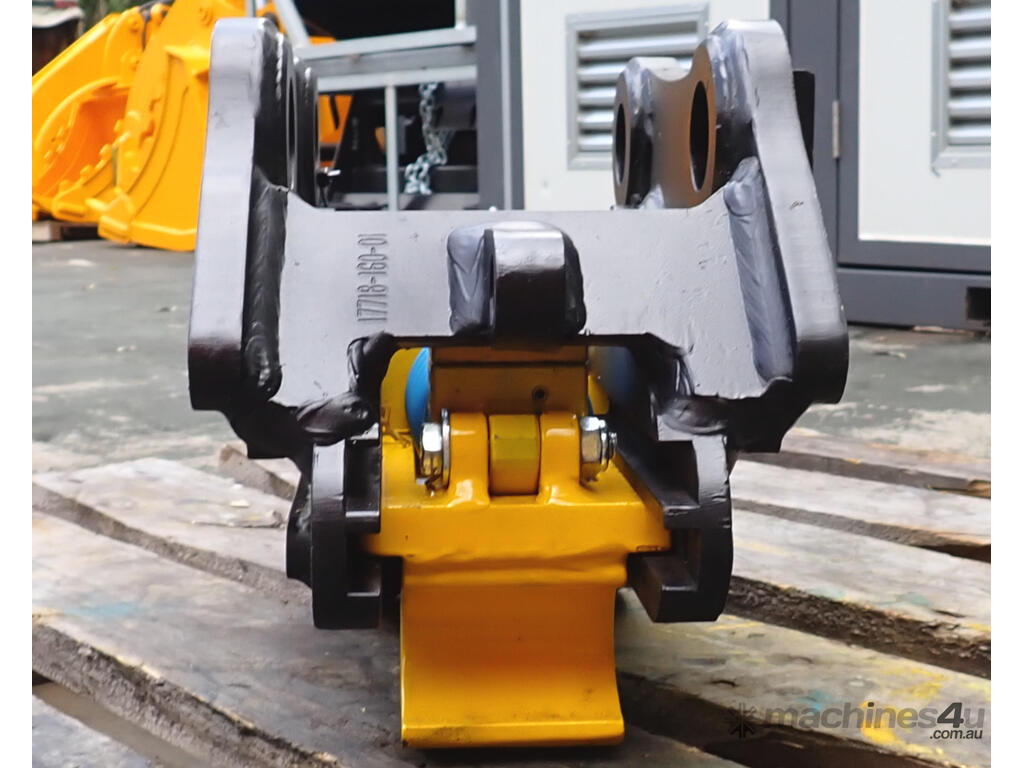

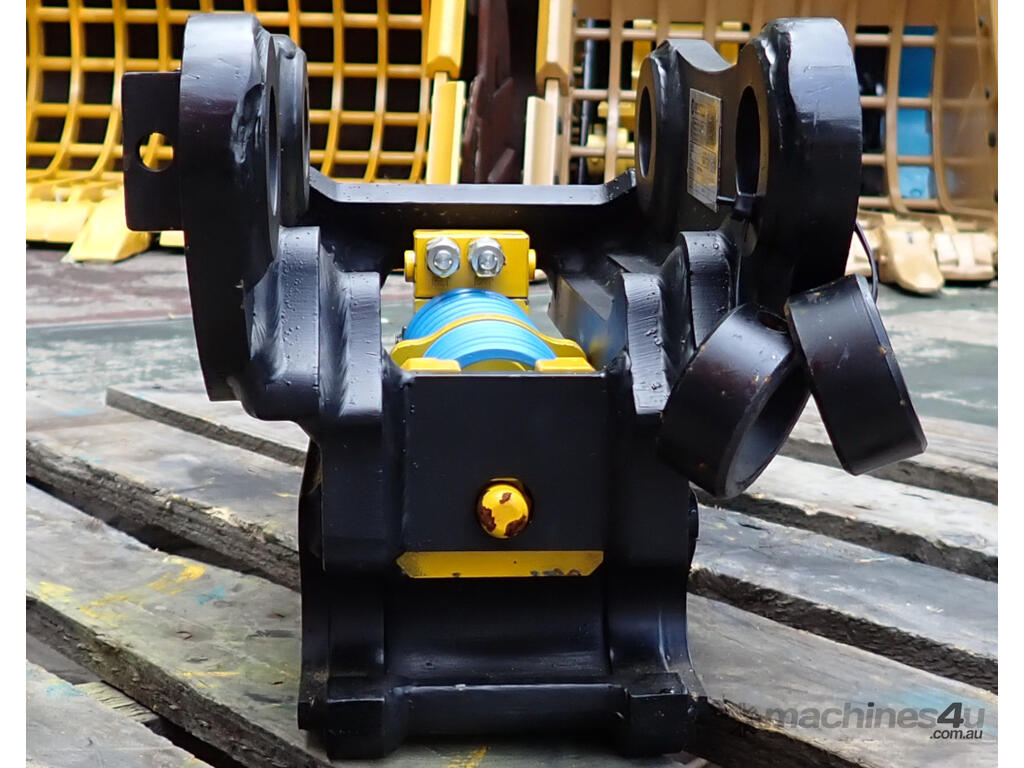

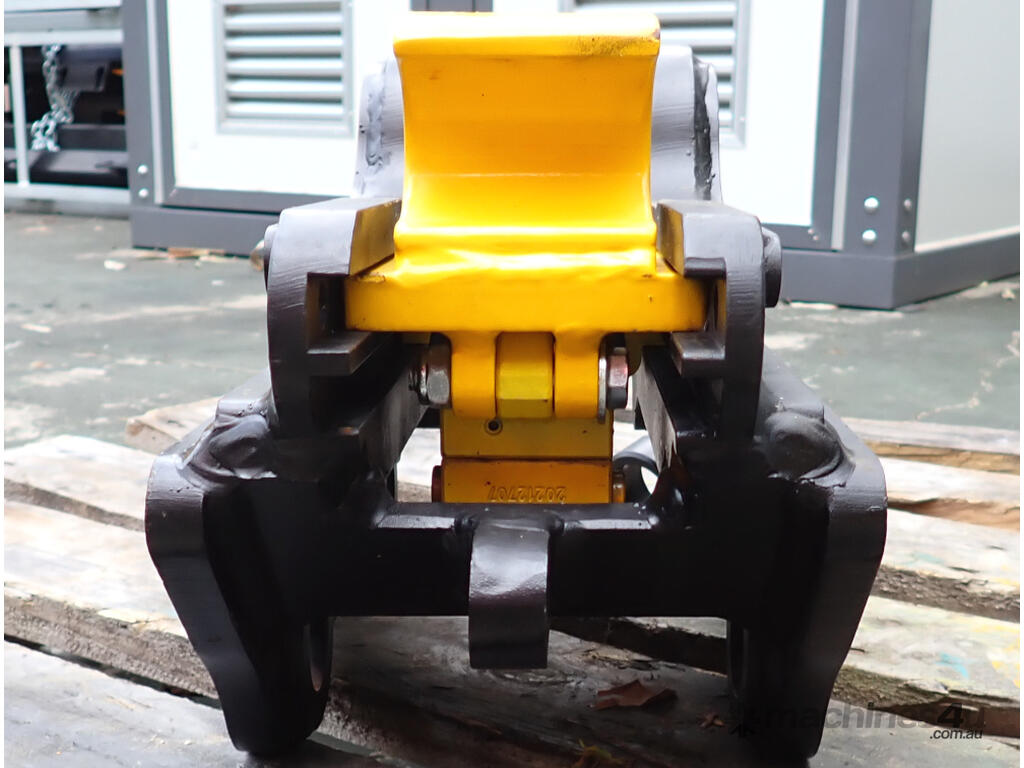

Has Lifting Eye Hook (see pics# 1-3, 5 & 7), SWL: 1200kg.


*** Pin Setup Dimensions (where your Dipper Arm goes in):
* Pin Diameter: 38mm.
* Pin Center to Pin Center (CtoC): 213mm.
* Between The Ears (BTE): 140mm Between the inside Ear Bosses of the hitch (which can be shaved back up to 159mm between the Ear Plates if you need more inside width for your excavator's dipper arm to fit in).
*
*** Pin Setup Dimensions (where the Hitch goes in your bucket):
* Pin Diameter: 38mm.
* Pin Center to Pin Center (CtoC): 212mm - 217mm Multi Pickup.

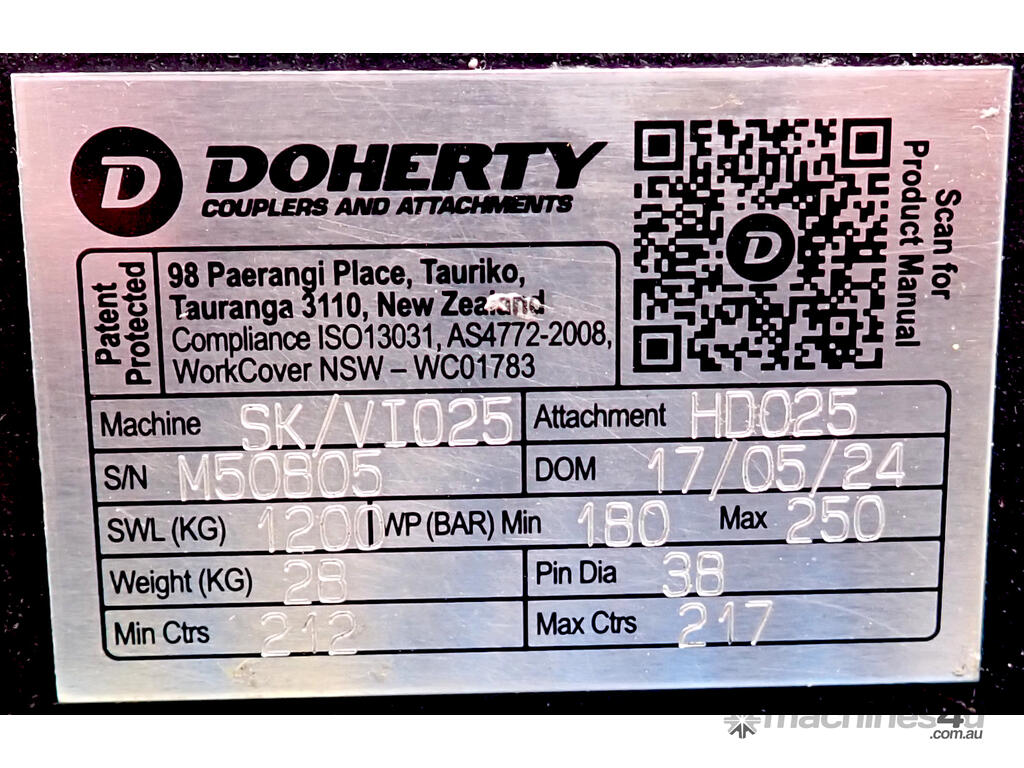

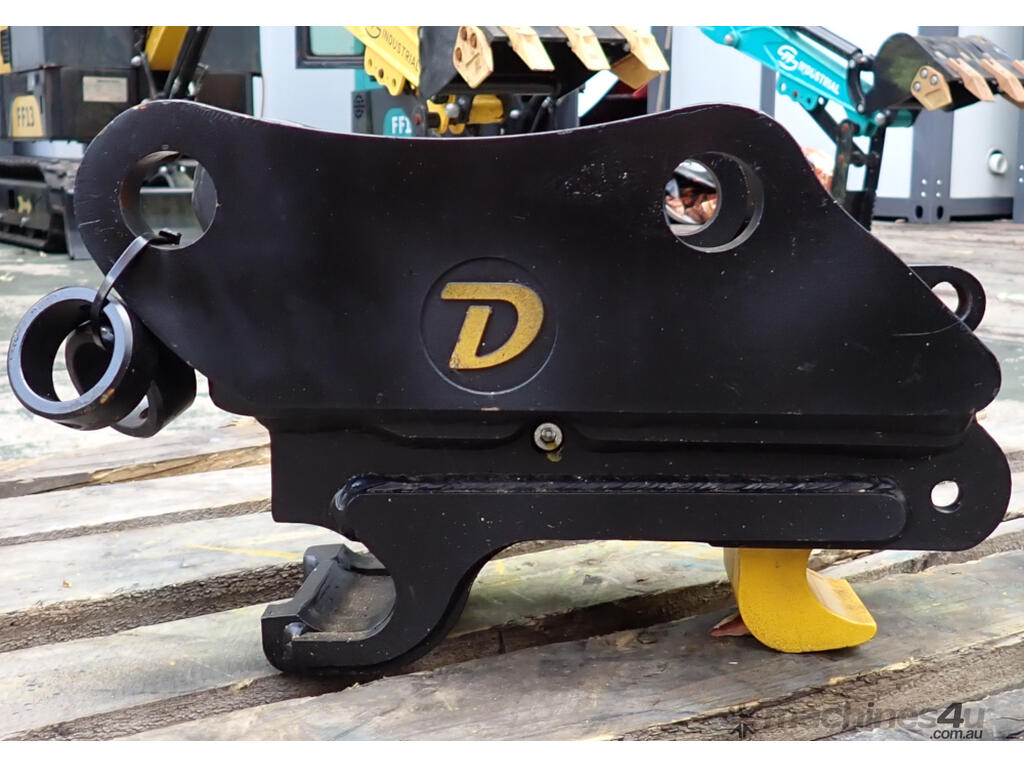

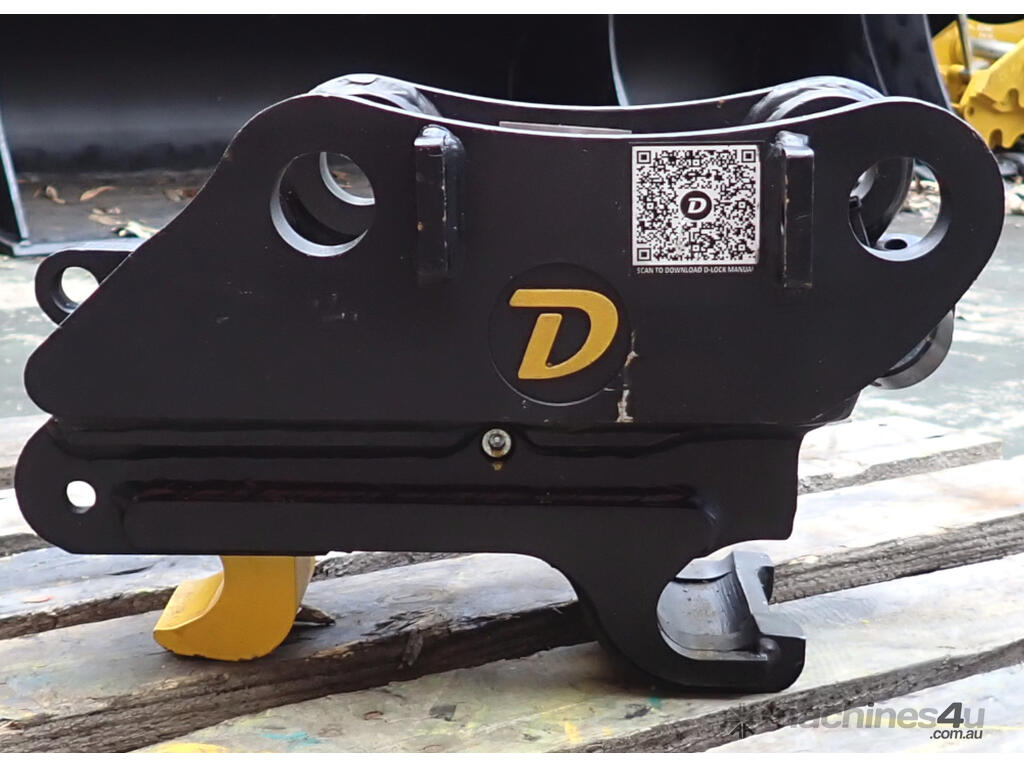

* Between The Ears (BTE): 140mm but there are extra spacer plates welded on each side (a hook shape with a long handle, see pics# 1-4 & 6-9) to fill the gap to suit the BTE of a Yanmar VIO25. These could be cut off to bring the lower hitch width down to 119mm if you need it narrower to fit into tighter buckets.
*
* Should fit: Yanmar B 25, Yanmar B 27, Yanmar B 30V, Yanmar B 37, Yanmar VIO25, Yanmar VIO27-2, Yanmar VIO30, Yanmar VIO30-1, Yanmar VIO35-2, Yanmar VIO40 Import to UK, Yanmar YB301, Yanmar YB351.


Hitch dimensions: 383mm long, 218mm wide, 241mm high. Weight: 31kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
