New 2-5 ton Excavator Hydraulic Thumb Grab

New Excavator Hydraulic Thumb suit 2-5 ton machine.

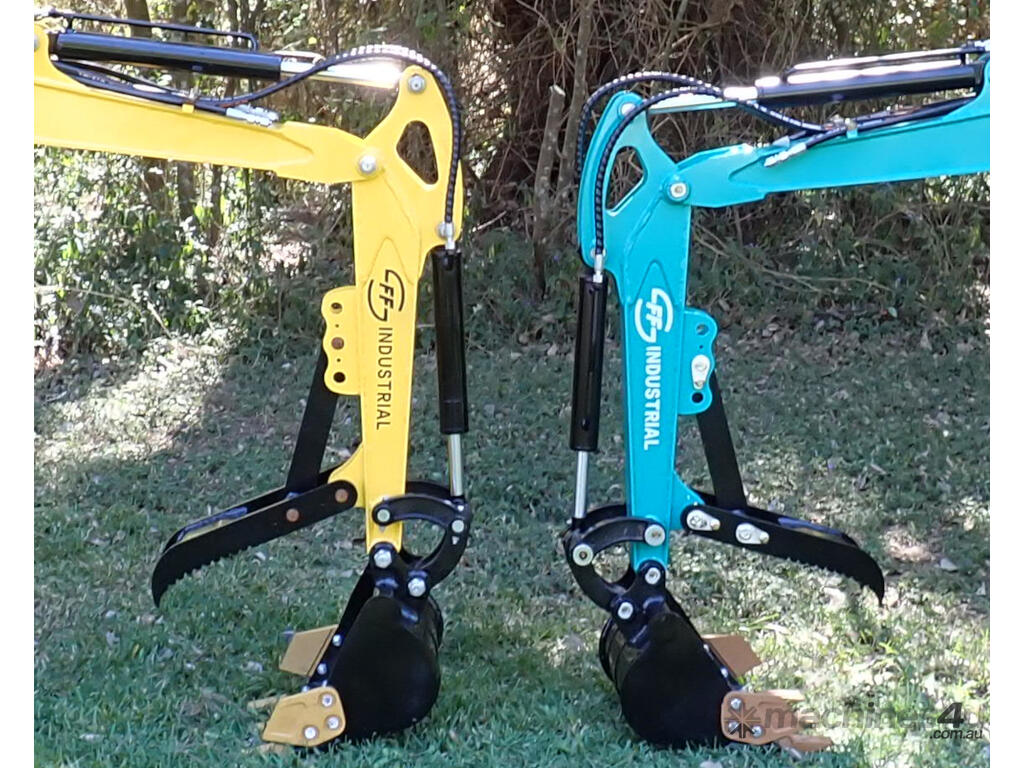

This Hydraulic Thumb suits most small excavators that have the lower mounting bracket ready welded to the inside of the machine's Dipper Arm.
If your machine does not have the lower mounting bracket already on the Arm you will need to source or make these simple brackets (see pic# 10 for an example, those thumbs are fixed, not hydraulic, but the lower brackets they bolt into are the same type setup for a Hydraulic Thumb).

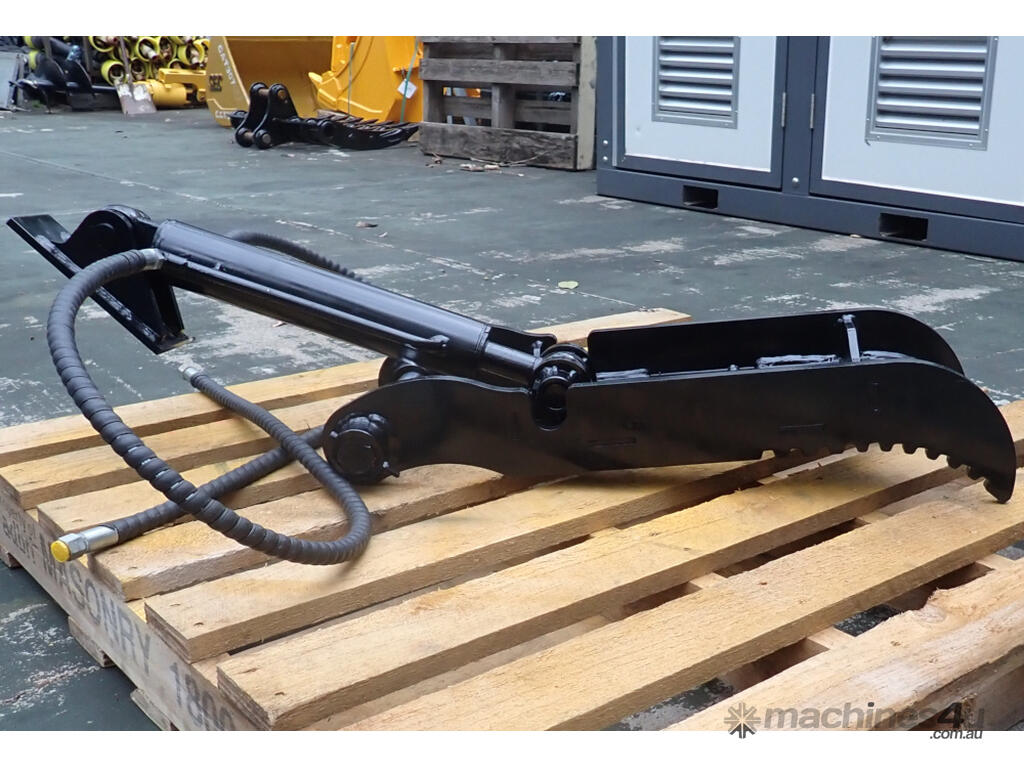

However, you do not need the top bracket on your dipper arm as the rectangular plate attached to the end of the hydraulic ram (see left side of pics# 9 & 10) gets welded to the inside of your dipper arm.

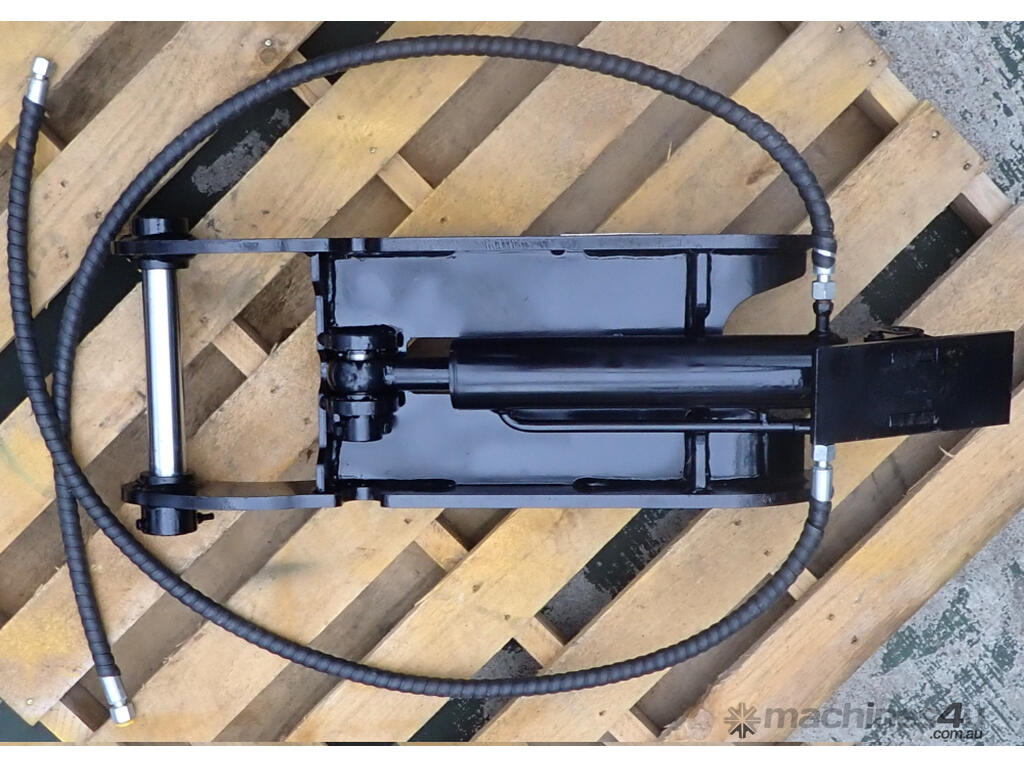

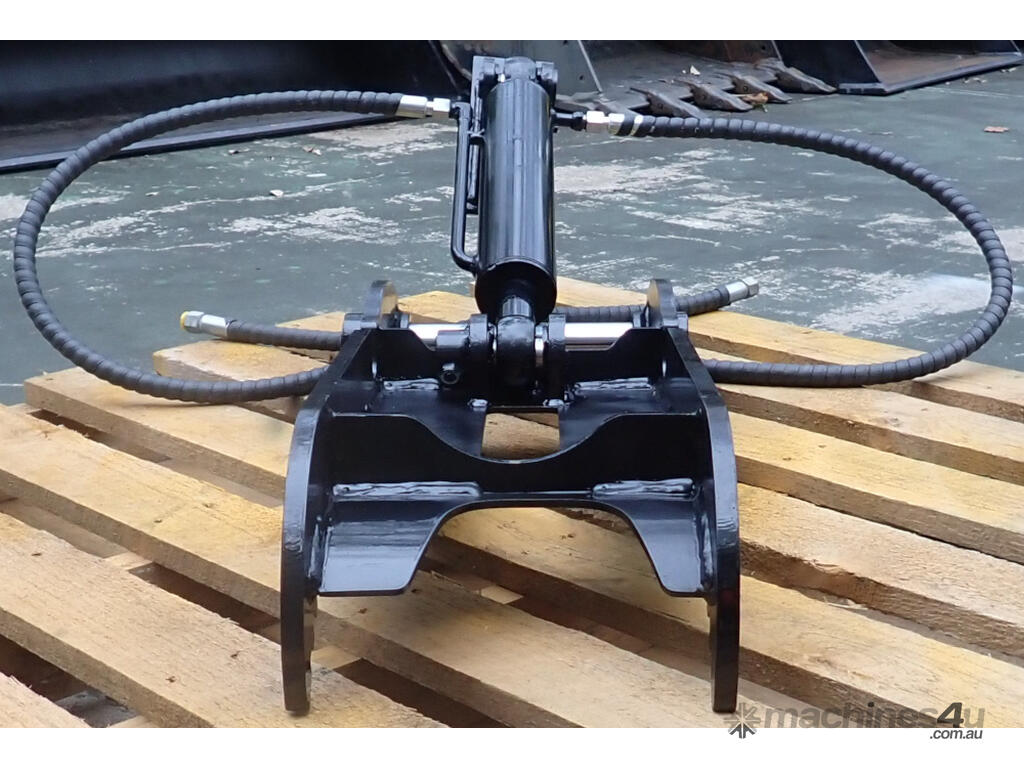

Comes with the Hoses as pictured (1.5m long).

* Width of Jaws at tip (Outside to Outside): 278mm
* Width of Jaw side plates: 14mm
* Ram Length Closed: Center of pin to Center of Pin: 550mm
* Ram Length Open: Center of pin to Center of Pin: 835mm
* Length of Jaw from Center of Pivot Pin to tip of teeth: 725mm

* Top Weld plate width: 93mm
* Top Weld plate length: 220mm

* Lower Pin Diameter: 40mm
* Lower Pin Length (gap between internal bosses): 218mm
* Lower Pin Length (gap between internal plates): 248mm

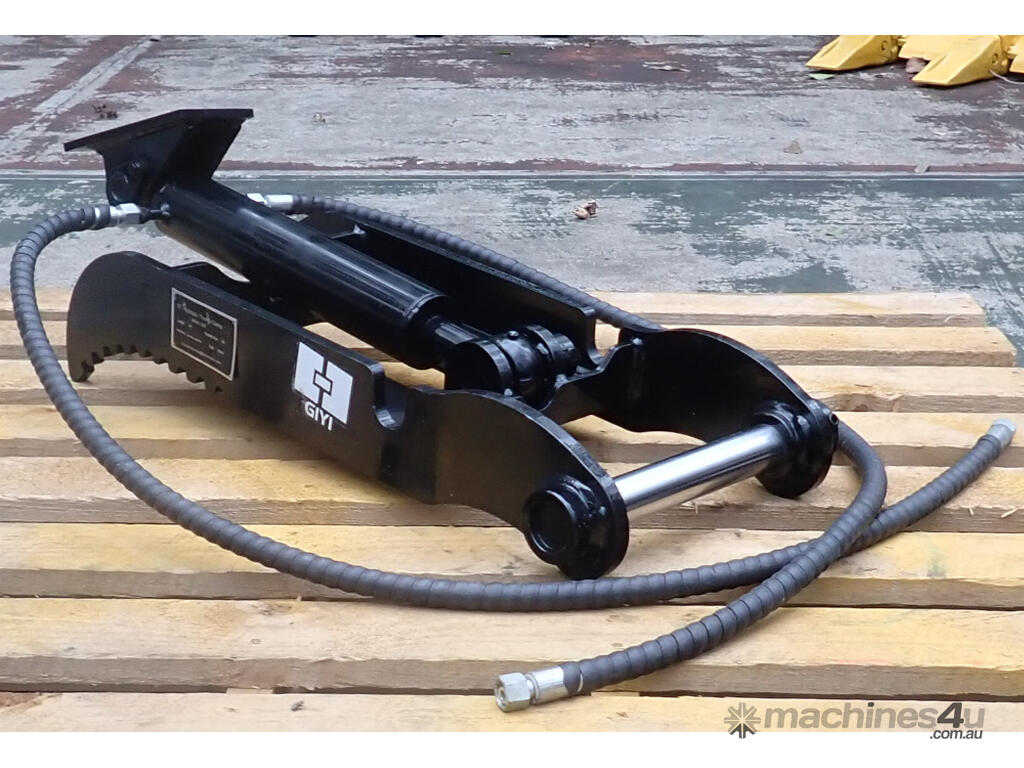

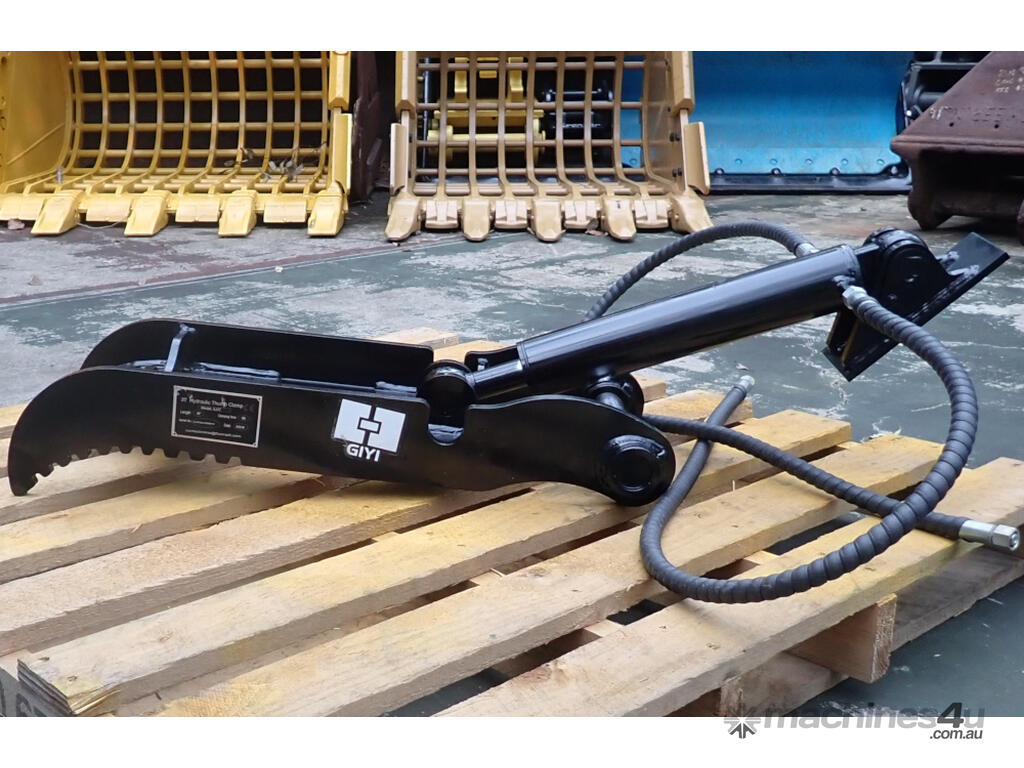

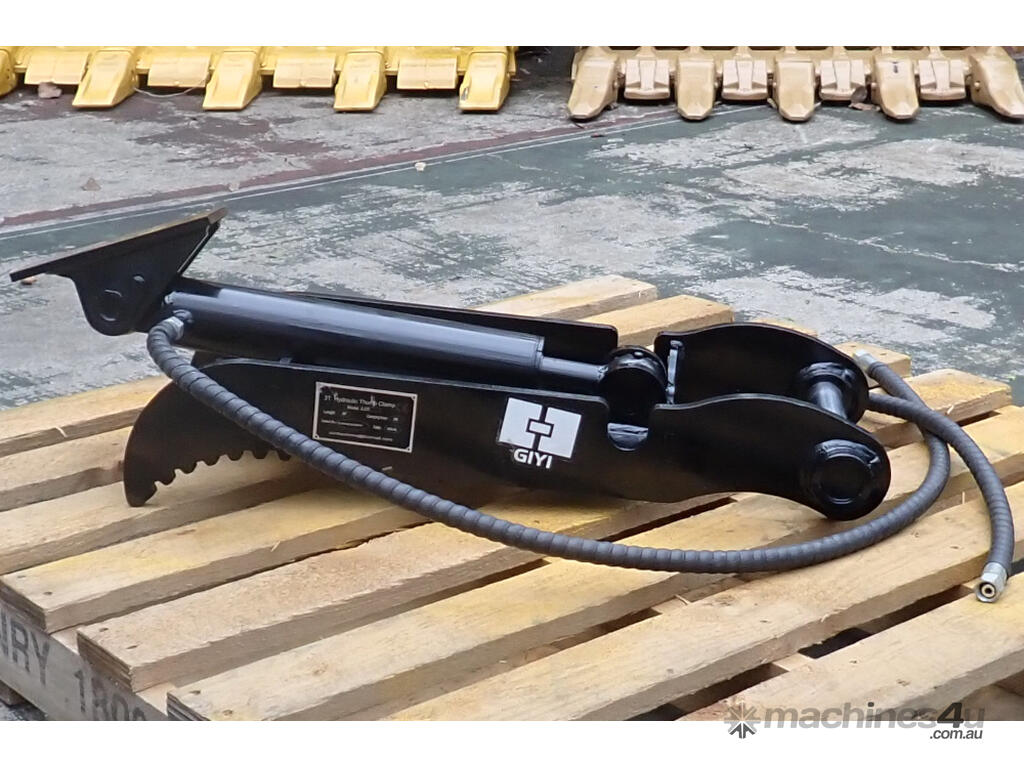

Shipping Dimensions (folded as in pic# 6-10): 935mm Long, 340mm Wide, 220mm High. Weight: 47kg (with hoses).


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
