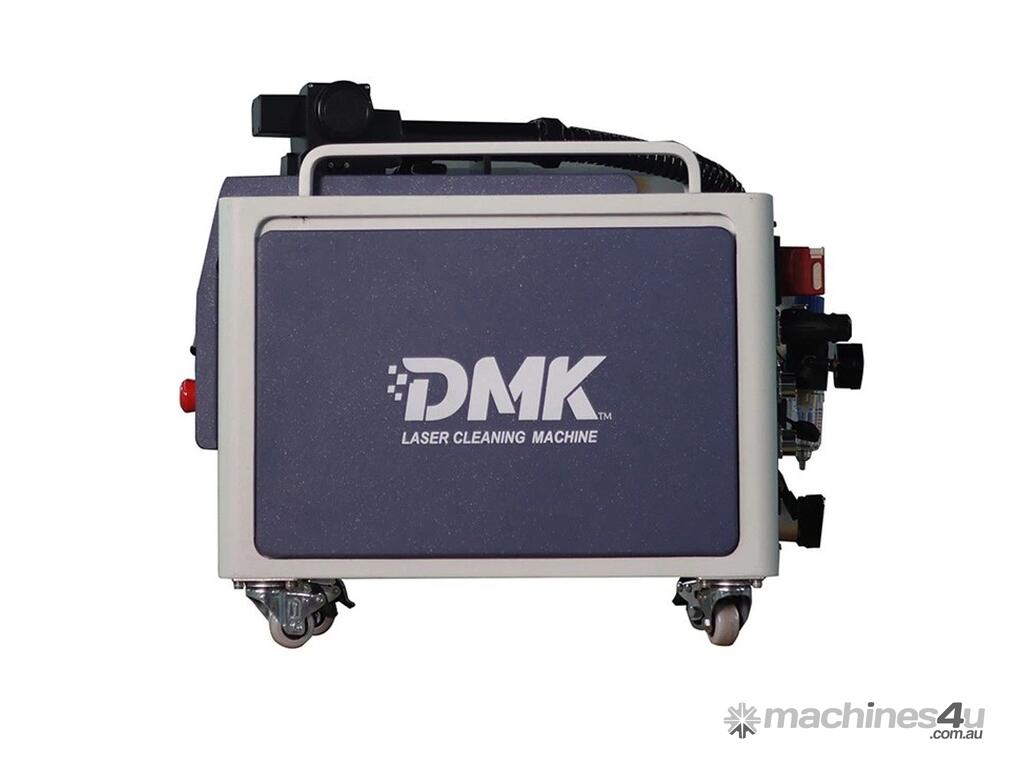

New 200w Laser Cleaning Machine

Advantages:
• Safe, non-contact, no damage to substrate;
• Environmental protection, no secondary pollution, and removed substances recyclable?
• Precision and controllable, optional area cleaning, and micron level
• precision control in thickness direction?
• Ultra high cost performance, laser cleaning equipment in the use of no consumables, only power consumption;

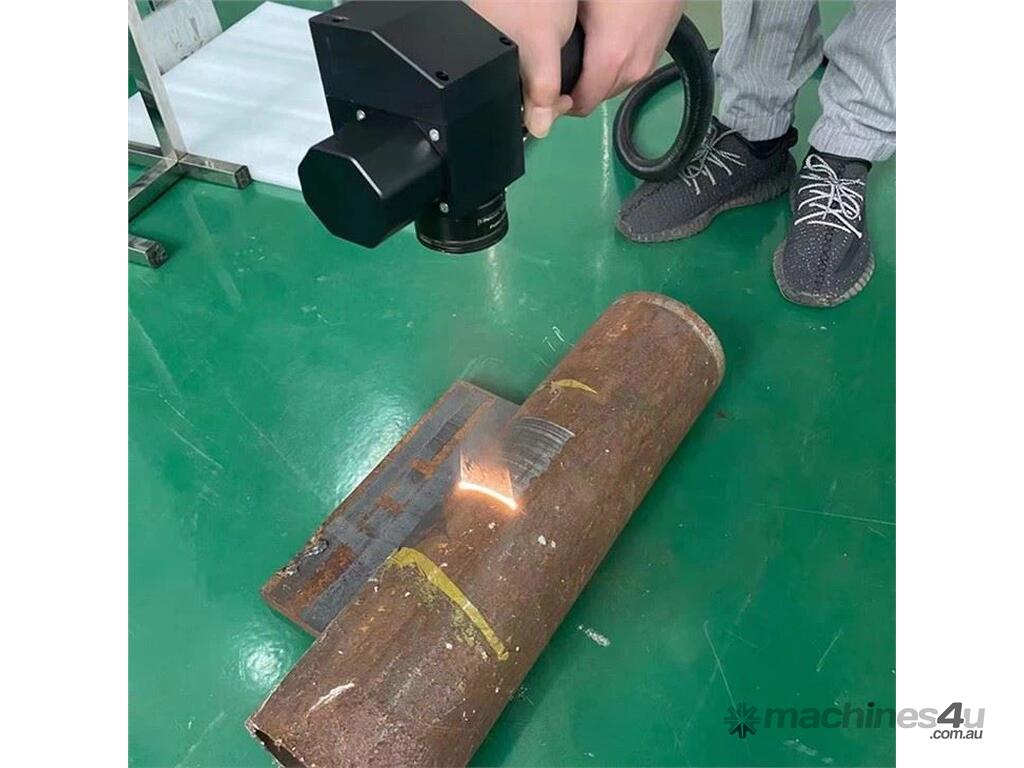

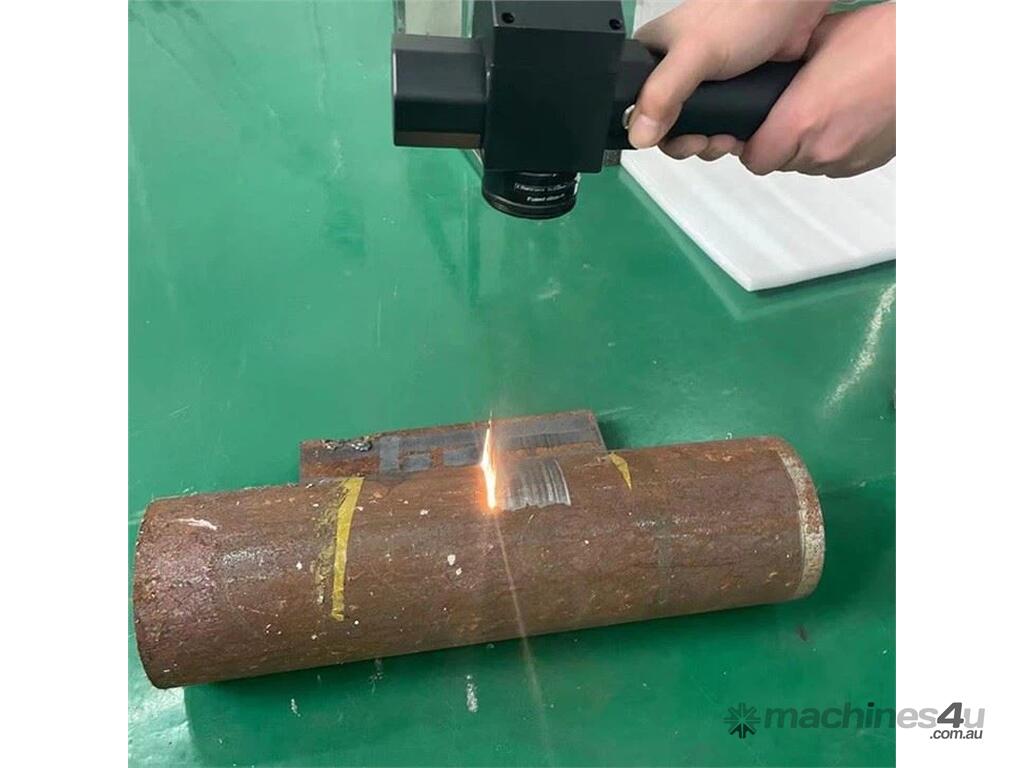

• 200W series laser cleaning machine can be used to remove rust, paint, oil and oxide film on all metal and some non-metal
surfaces, as well as the cleaning of black ash, carbon deposition and oil stain on the surface of parts after welding.
• 200W series laser cleaning machine can be used areas of aerospace, rail transit, automobile manufacturing, marine
shipping, electronic micro processing, food processing, stainless steel, aluminium alloy products, mould processing.

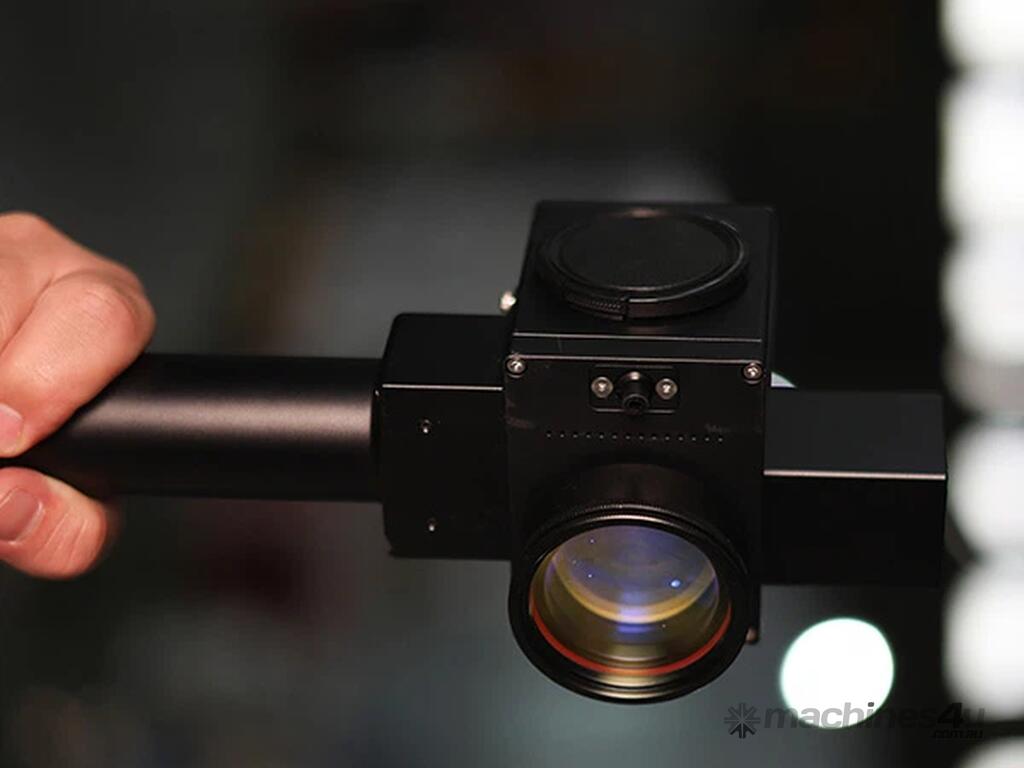

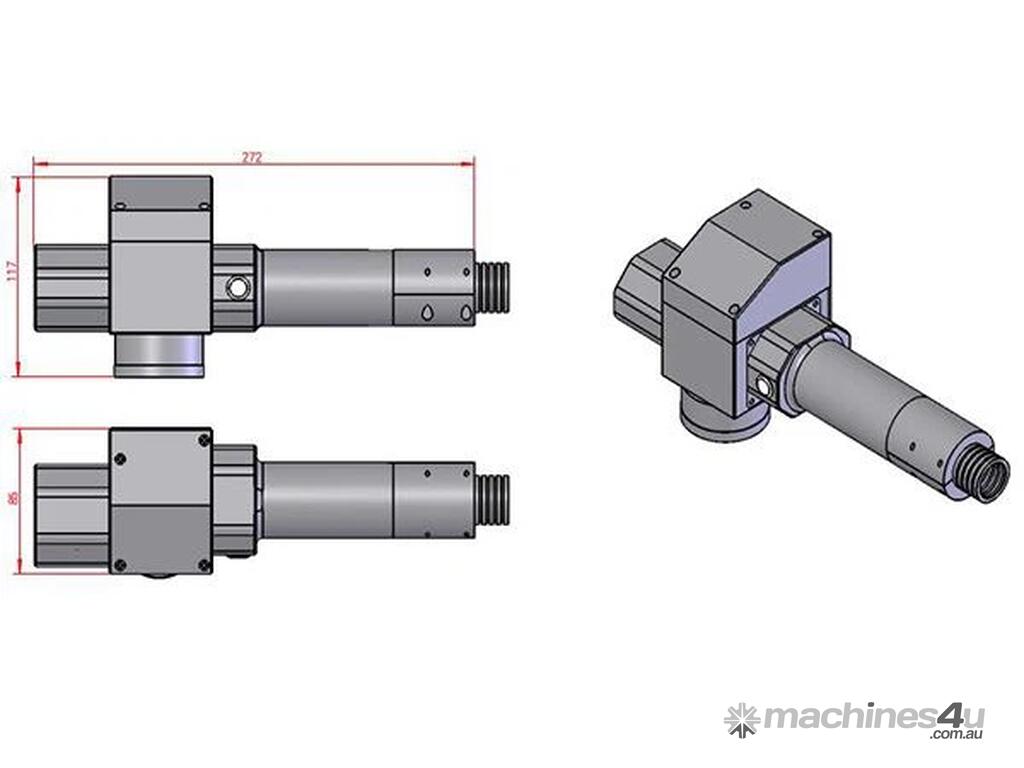

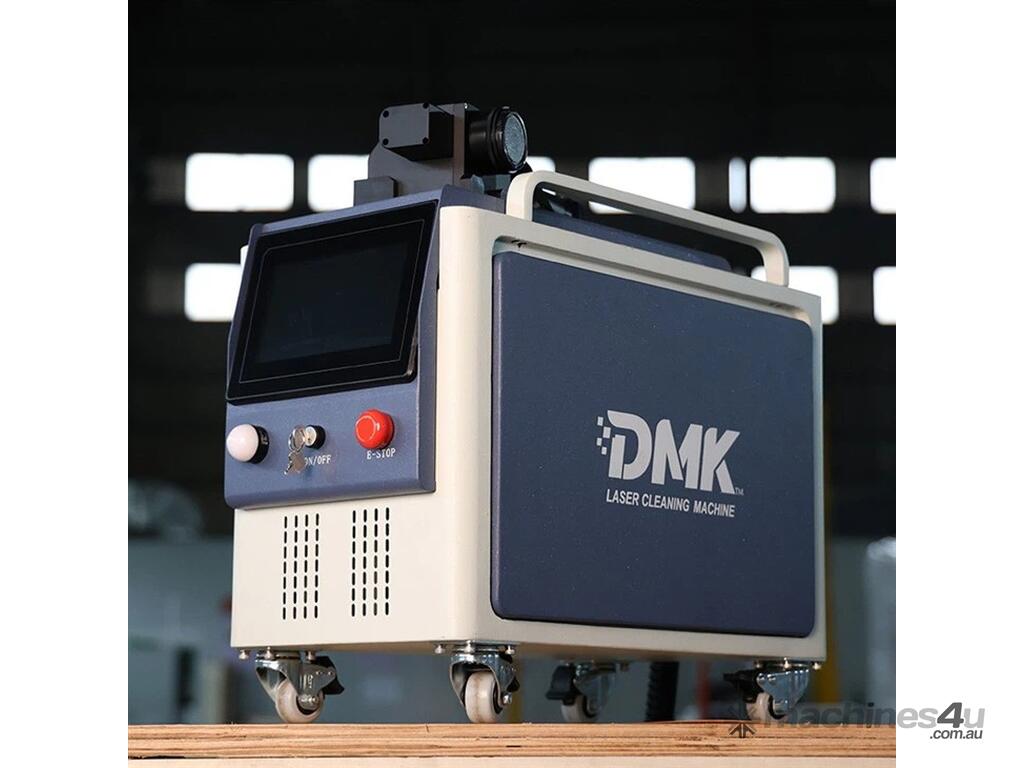

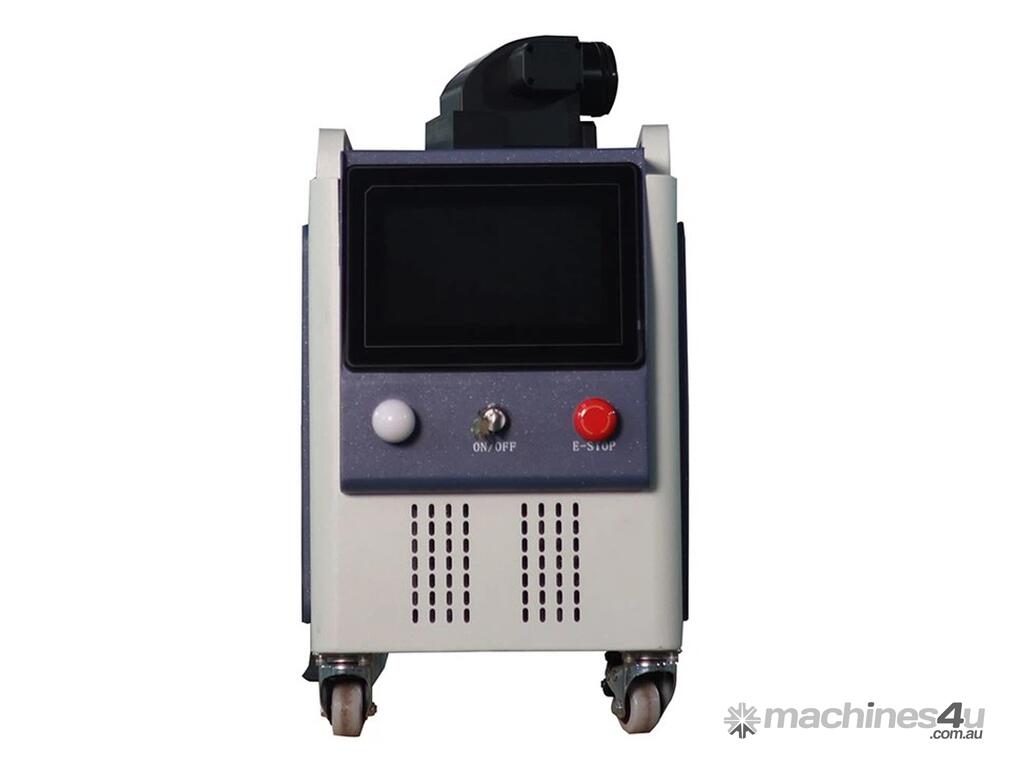

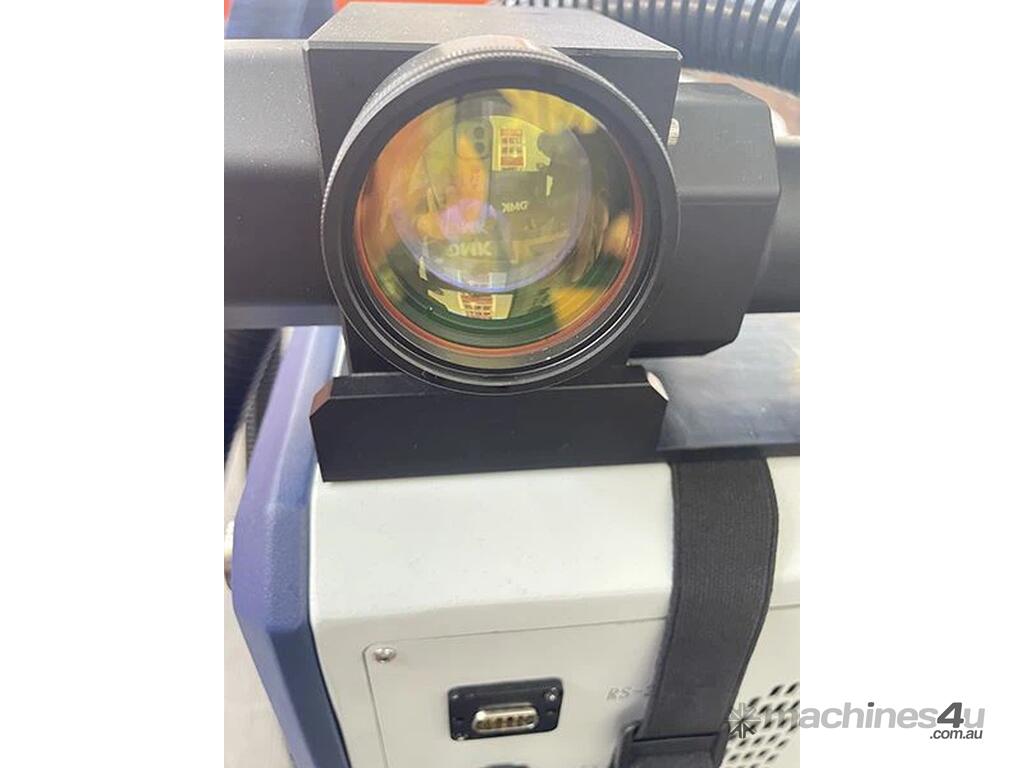

• 200W series laser cleaning machine weighs 58kg, and the hand-held head weighs only 1.4kg.

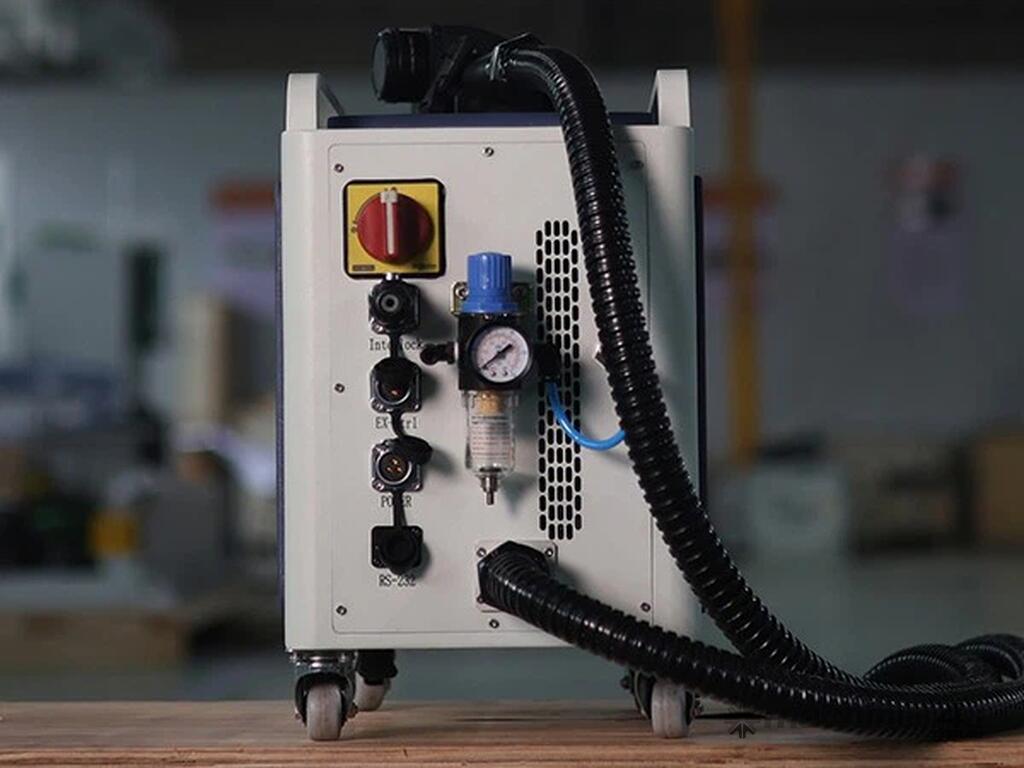

• it is light and convenient. The design of the portable box is convenient for users to use flexibly.

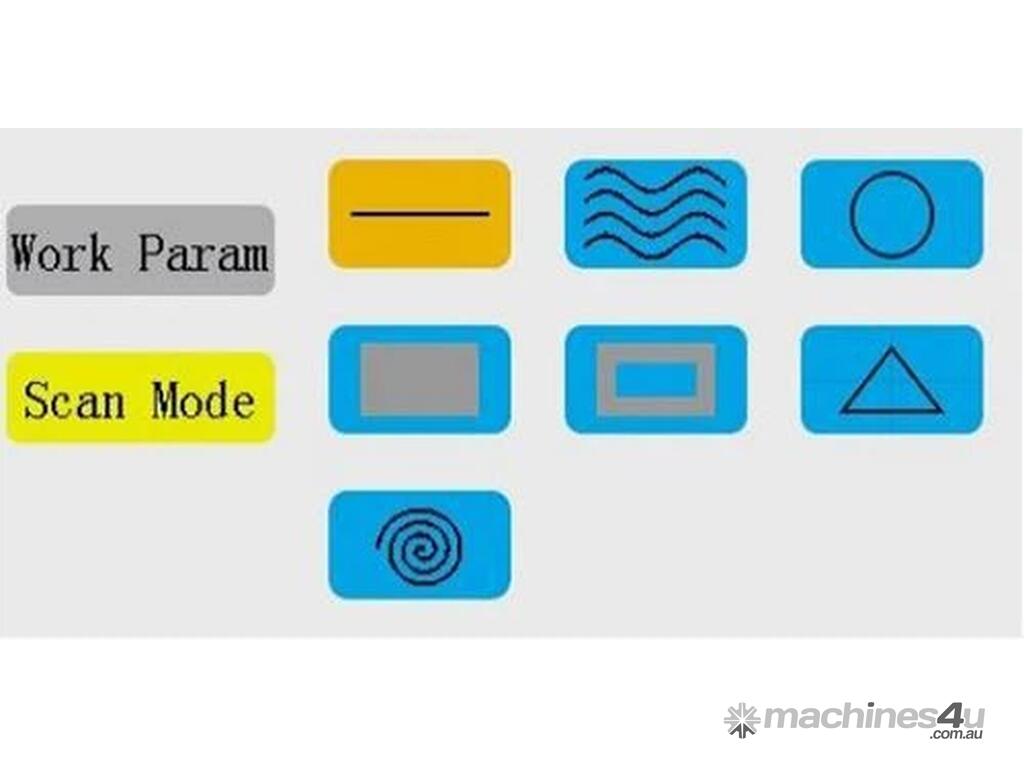

• A variety of scanning graphics are set to ensure the cleaning effect under complex working conditions.
• At the same time, it has ultra-high performance price ratio, no consumables, super energy saving, green environmental
protection and no pollution.






Product classification and key indicators

Model Pulse Power Beam Type Maximum Single Pulse Energy Fiber Standard Length Air Cooling/Water Cooling Product Dimensions L*W*H Overall Weight
DPL-100 100W single mode 1.5mj 5m Air Cooling 520mm *24mm * 420mm 26KG
DPL-200 200W single mode 1.5mj 5m Air Cooling 750mm *250mm * 630mm 50KG
DPL-200 200W multimode 5.0mj 5m Air Cooling 750mm *250mm * 630mm 55KG
DPL-300 300W single mode 1.5mj 5m Air Cooling 750mm *250mm * 630mm 60KG
DPL-300 300W multimode 5.0mj 5m Air Cooling 750mm *250mm * 630mm 65KG
DPL-300 300W multimode 12.5mj 5m Water Cooling 912mm *572mm * 880mm 170KG
DPL-500 500W single mode 1.5mj 5m Water Cooling 912mm *572mm * 880mm 180KG
DPL-500 500W multimode 15mj 10m Water Cooling 912mm *572mm * 880mm 180KG
•
• Typical cleaning application classification scenarios and recommended application equipment
•
Laser cleaning scene Application Scenario Description
Recommended cleaning equipment
Before and after welding
Cleaning of oil stain coating before welding of galvanised sheet, cleaning of oxidation colour after welding of stainless steel, black ash after welding of aluminum alloy, surface oxide skin of carbon steel weld
Pulse laser cleaning machine (1.5mj and 5mj)
Metal rust removal
Carbon steel surface dressing (with scale), steel structure surface derusting, gear shaft surface pitting pit cleaning
Both continuous and pulsed laser cleaners are available
Removal of paint and coatings
Paint with putty layer (thickness>1mm), paint without putty layer (thickness 200um-600um), paint layer thickness
