New 24-36 ton (90mm or 80mm pin) Doherty Hydraulic Excavator Quick Hitch Coupler suit Hyundai R290LC

New 90mm or 80mm pin Doherty D-Lock Hydraulic Excavator Quick Hitch Coupling to suit 24-36 Ton machines.

D-Lock Coupler is the most reliable, safe, cost effective and user friendly coupler on the global market:

Strong and well engineered. Made in Australia & New Zealand by Doherty Couplers and Attachments.

*** Features:
* Automatic front lock – Locks the front pin in the event the rear pin is not secured
* Highly visible front lock indicator
* Safety system does not rely on gravity
* Dual pin lock – Locks both front and rear pins in the event of loss of engagement force
* Unlock process is designed to release only when the operator intends to do so, in a controlled and safe manner
* Simple yet safe unlock procedure eliminates accidental releases
* Only requires two hydraulic lines
* Compact design – Improving machine performance
* No greasing or lubrication required

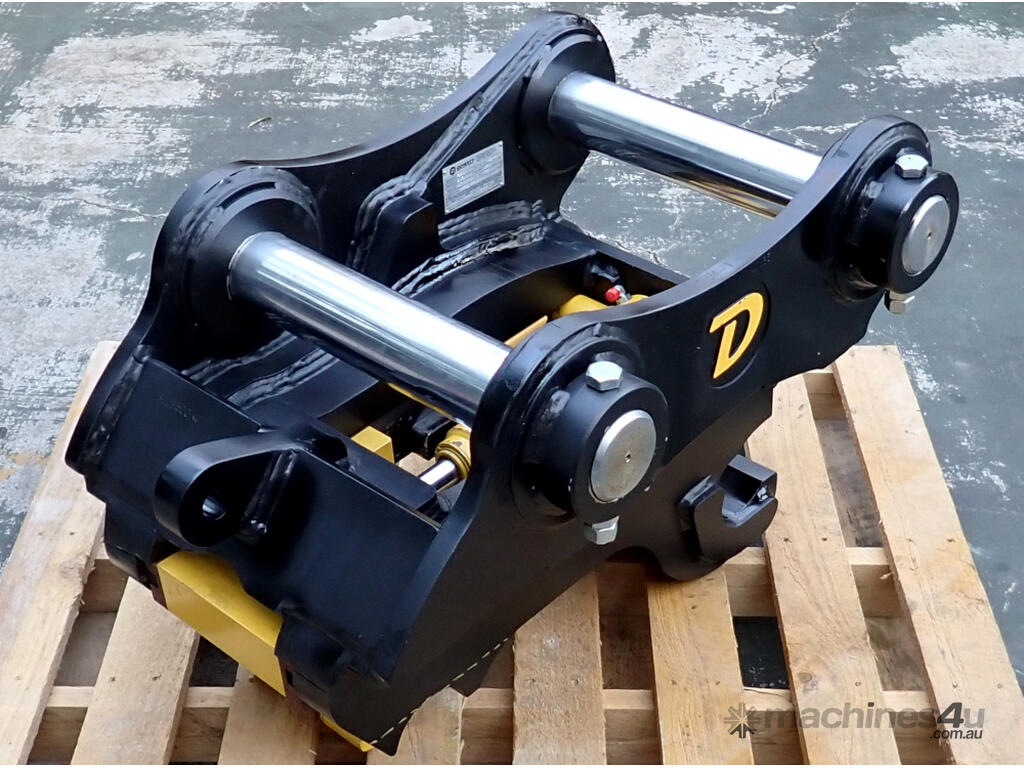

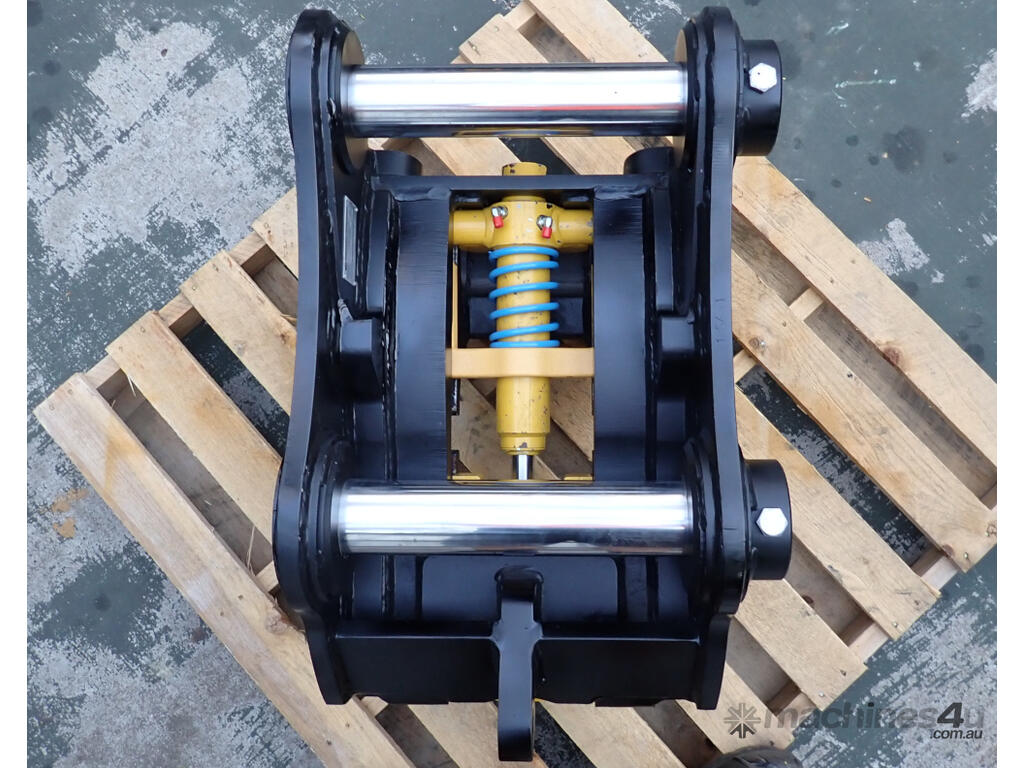

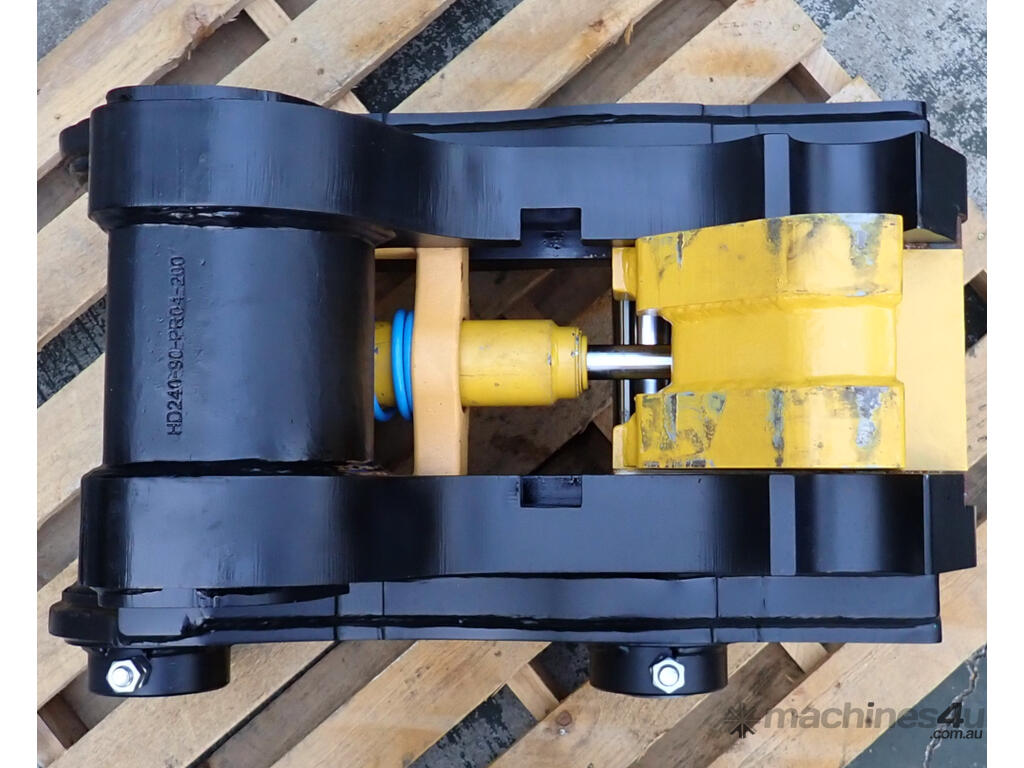

This hitch is specifically designed to suit the 510mm Pin Centers of a Hyundai R290LC as there are extra Pin support hooks placed to suit this exact distance (see extra curved black material below/above the yellow dashed line in pics# 2 / 8).
If the extra curved material is removed, the hydraulic 'sliding bed' (yellow) pin hold mechanism should pickup attachments with Pin Centers of less than 510mm.

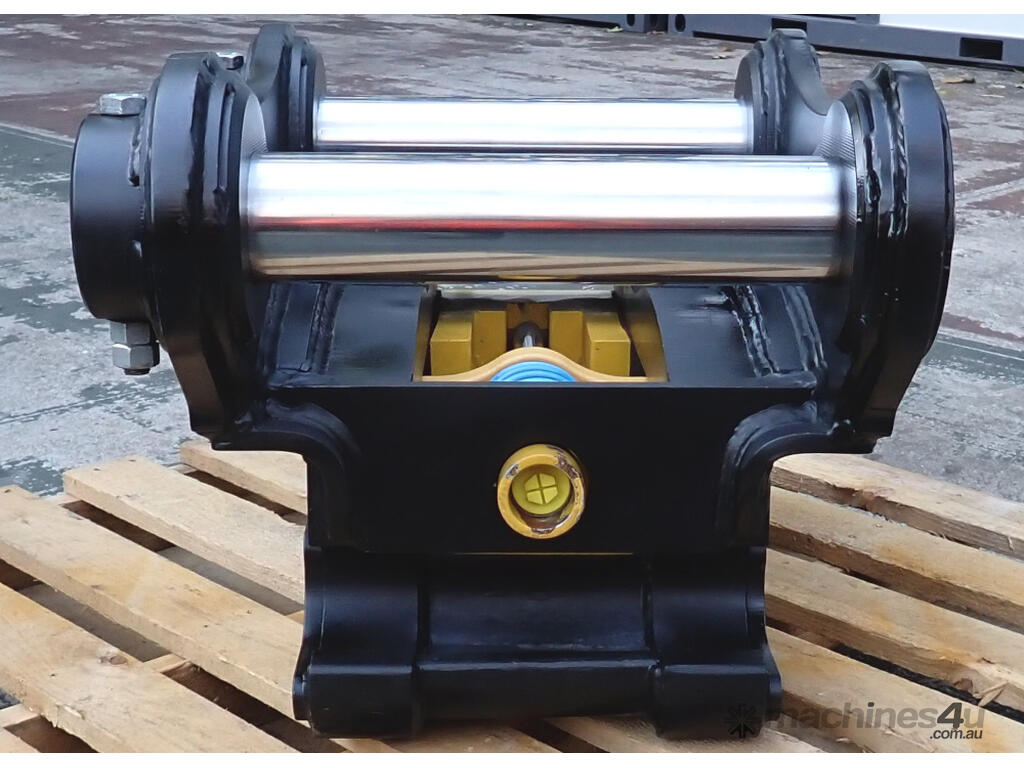

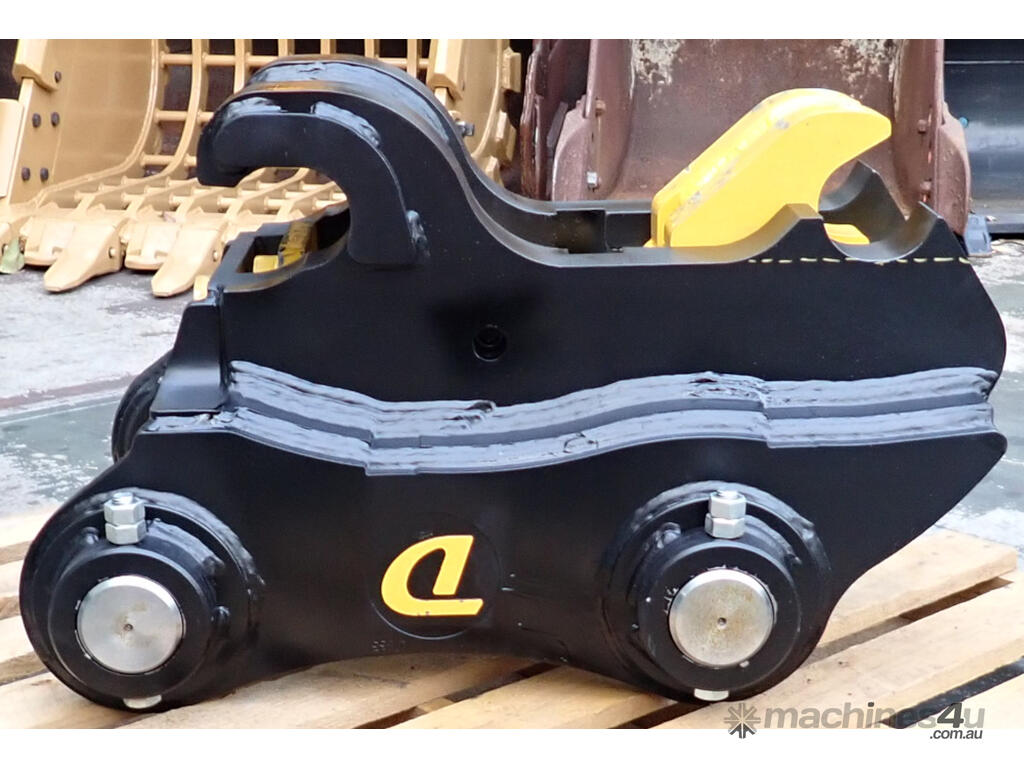

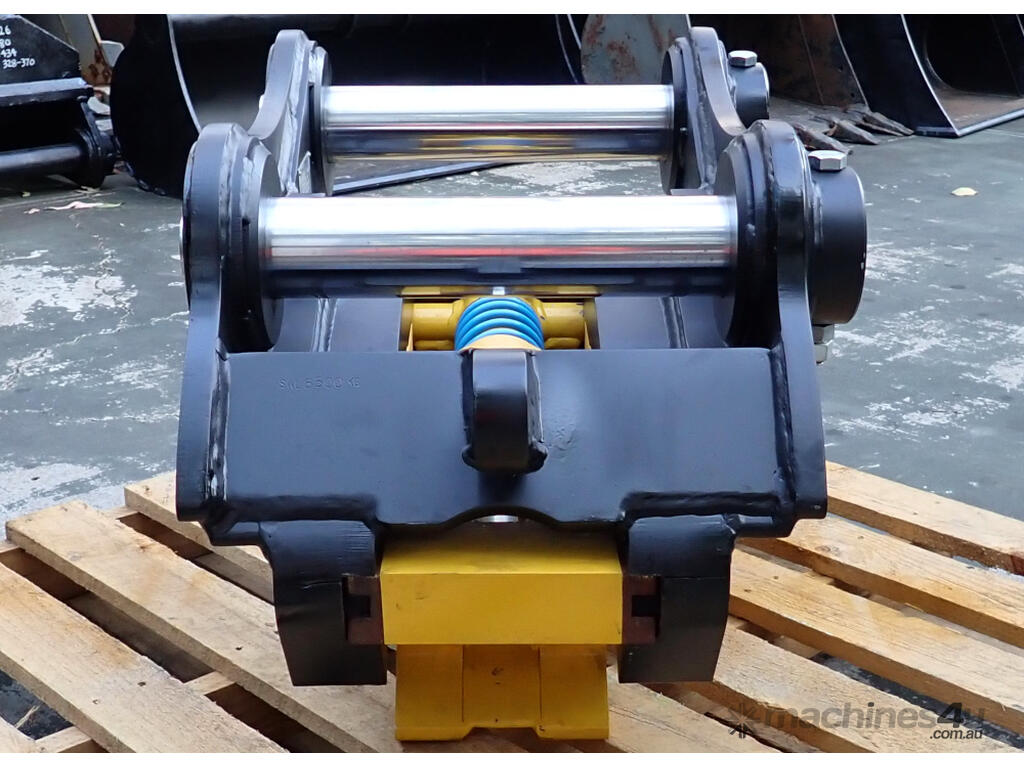

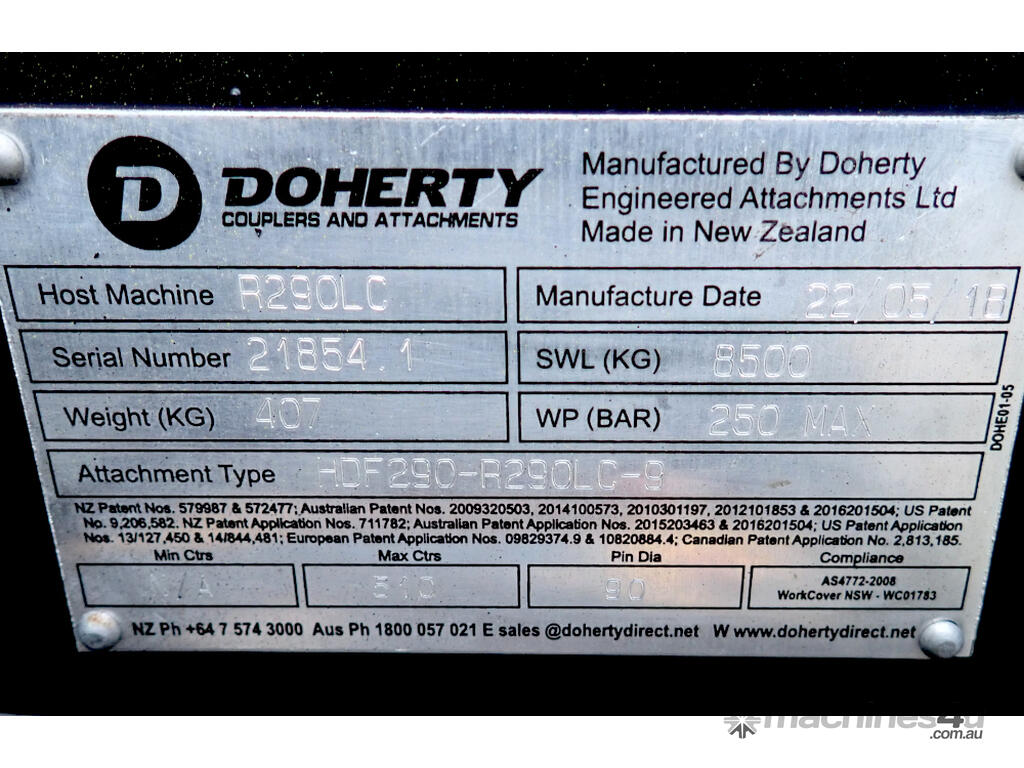

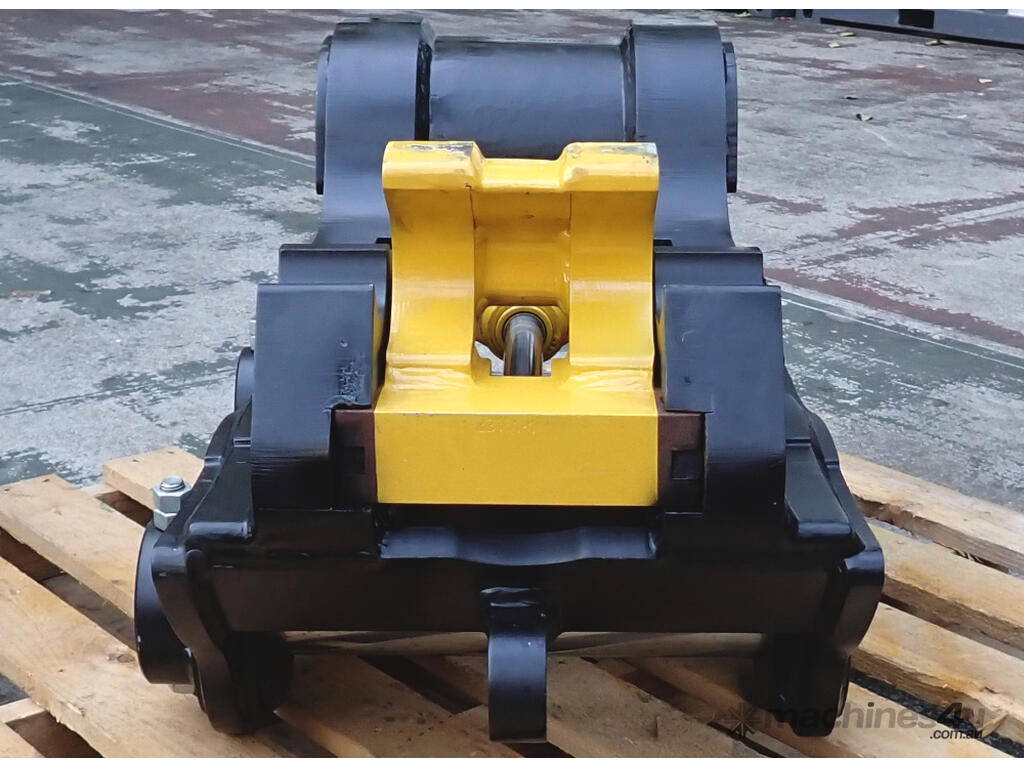

Has Lifting Eye Hook (see pics# 1,2, 4-7).


*** Pin Setup Dimensions (where your Dipper Arm goes in):
* Pin Diameter: 90mm.
* Pin Center to Pin Center (CtoC): 510mm.
* Between The Ears (BTE): 401mm Between the inside Ear Bosses of the hitch (which can be shaved back up to 424mm between the Ear Plates if you need more inside width for your excavator's dipper arm to fit in).
*
*** Pin Setup Dimensions (where the Hitch goes in your bucket):
* Pin Diameter: 90mm or 80mm.
* Pin Center to Pin Center (CtoC): 510mm (and possibly lower if the extra pin support hooks are removed as mentioned above).

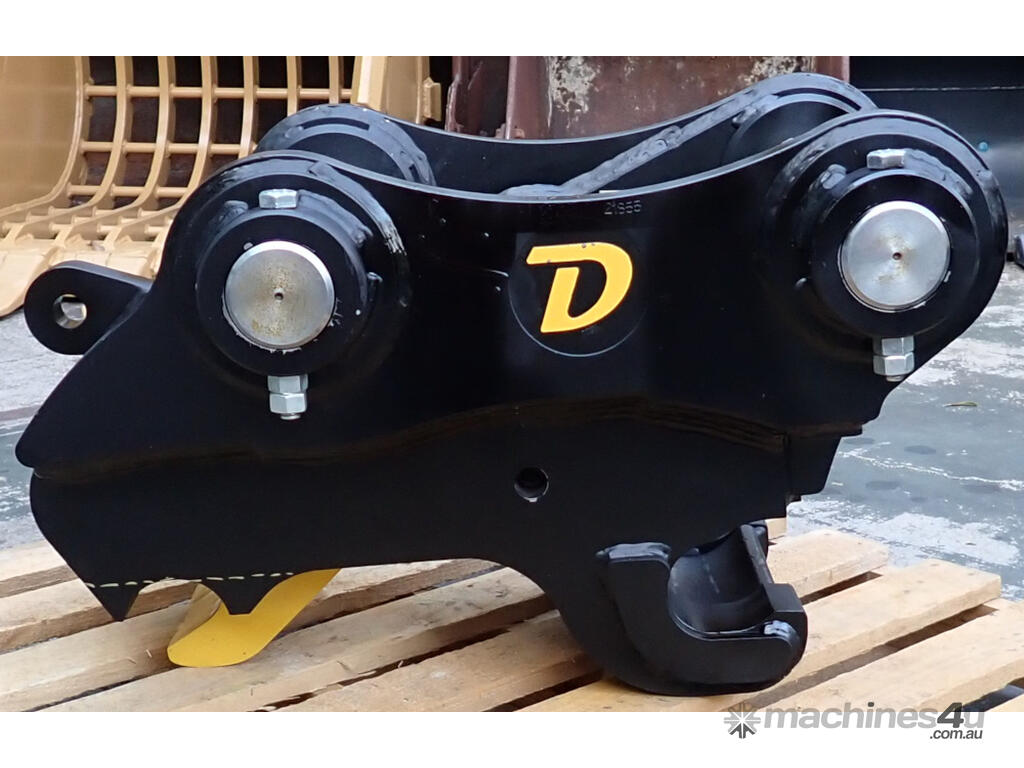

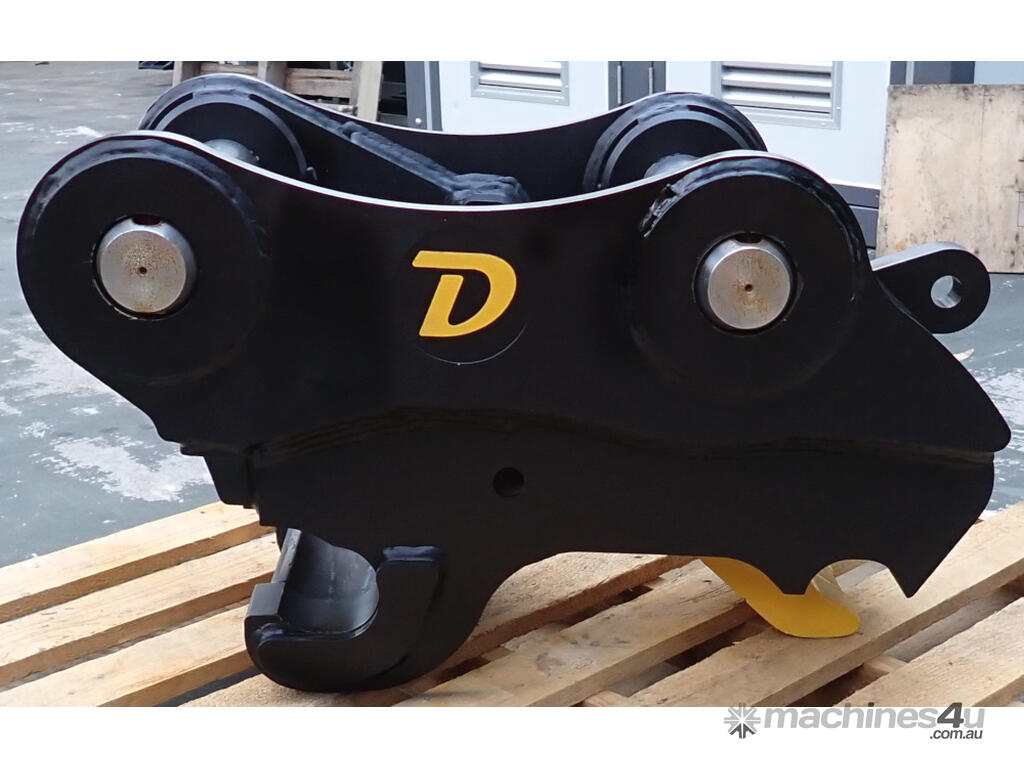

* Between The Ears (BTE): 391mm but there are extra spacer plates welded on (see pics# 1-4 & 7-9) to fill the gap to suit the BTE of a Hyundai R290LC. These could be cut off to bring the lower hitch width down to 359mm if you need it narrower to fit into tighter buckets.
*
* Should fit: Daewoo DX300 LC / Daewoo Solar 290LC-V / 300LC-V / 300LC-V SLR, Doosan DX300 / DX300LC-3 / S300LC-V / S470LC-V, Hyundai R250LC-3 / R250LC-7 / R280LC / R290LC / R290LC-3 / R290LC-3LR / R290LC-7, Kato 820, Komatsu PC290 / PC300 / PC300 Mighty / PC300-3 / PC300-5 / PC300-6 / PC300-7 / PC300LC-7 / PC340 / PC350 / PC360.
*
* Maybe fit: Kobelco SK220 / SK250LC / SK320 / SK330, Volvo EC240B / EC240C / EC250D and possibly other machines with similar pin spacings.


Hitch dimensions: 903mm long, 597mm wide, 546mm high. Weight: 472kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
