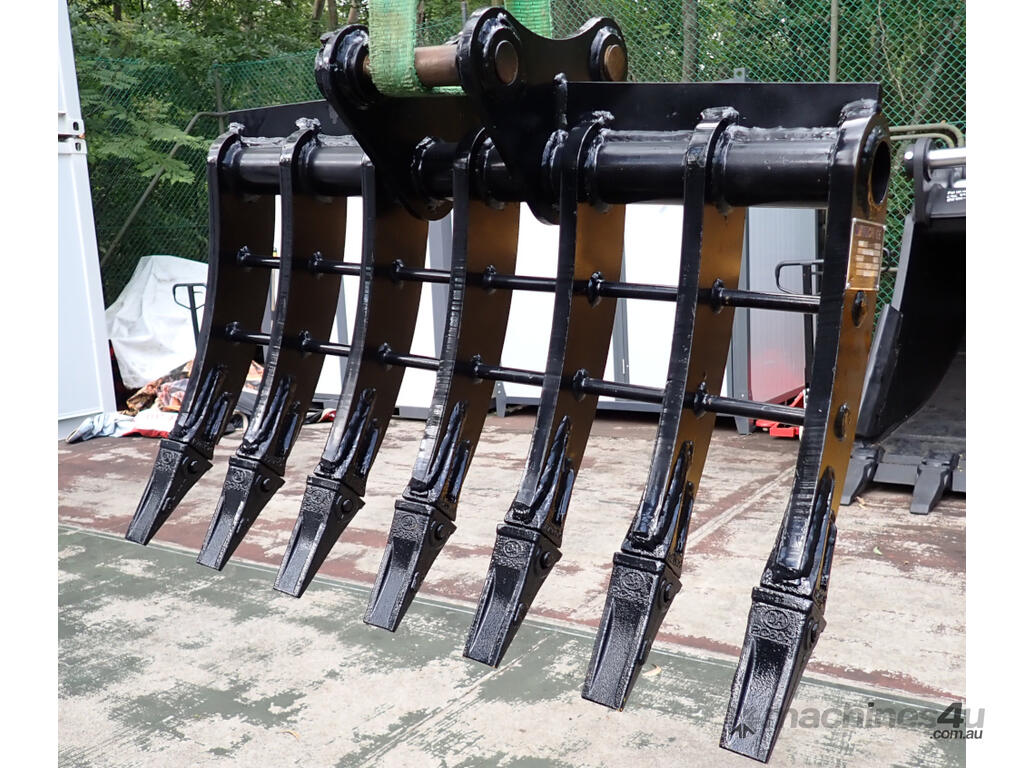

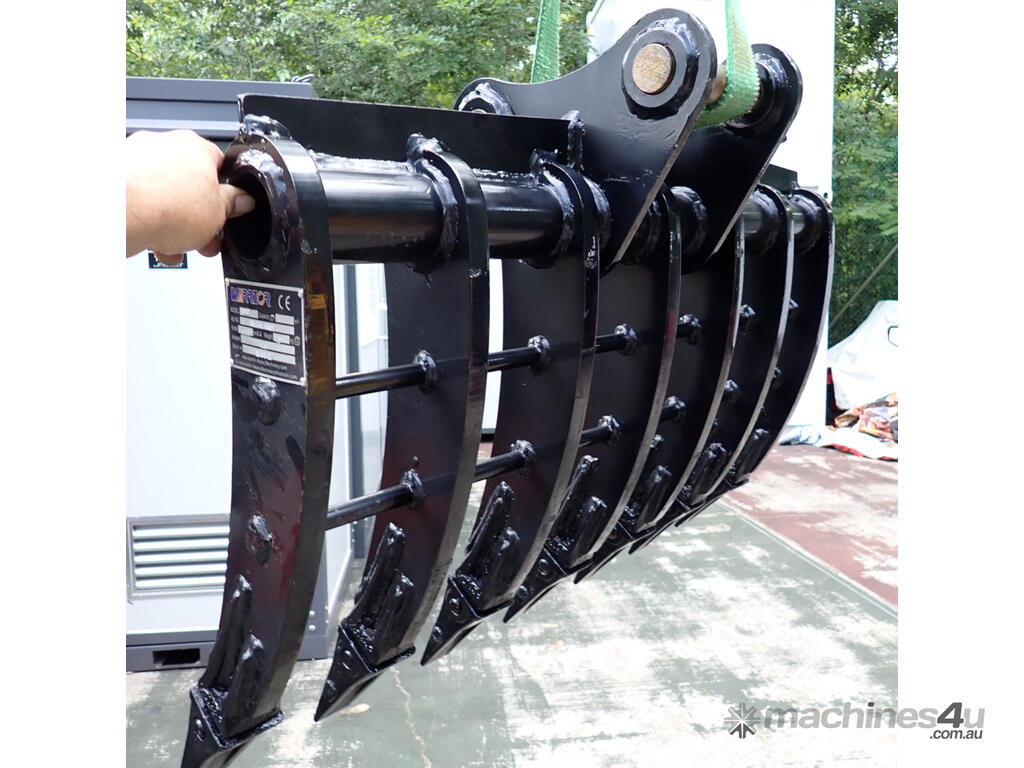

New 3-7 ton (45mm pin) 1000mm Heavy Duty Excavator Stick Rake

New 1000mm Warrior Excavator Stick Rake suit 3-7 Ton machine.

A Stick Rake is a great tool for fast clean up, vegetation management and sifting through soil to remove unwanted debris like roots, rocks and overgrowth.
It is a versatile attachment for tasks such as land clearing, firebreak creation and preparing land for construction and landscaping.

This is a solid, well built, heavy duty Stick Rake built for hard work.

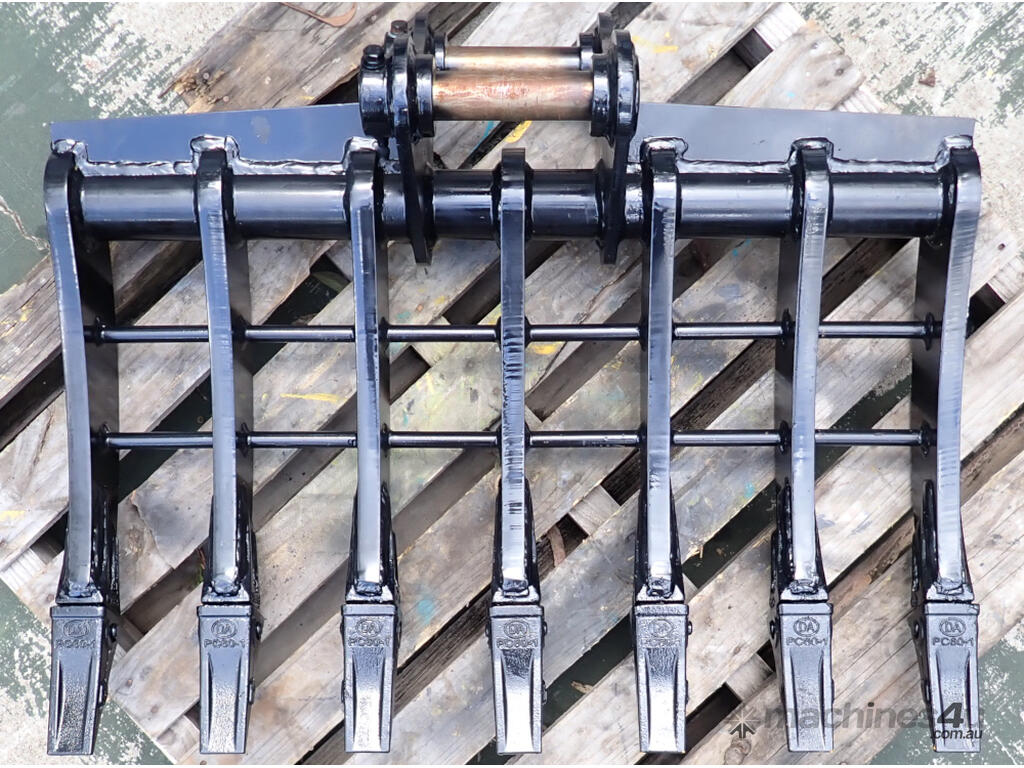

The solid tynes are 25mm thick, 120mm wide at the top and tapering down to 80mm before the gums of the teeth.
The gap between the tynes is 135mm.

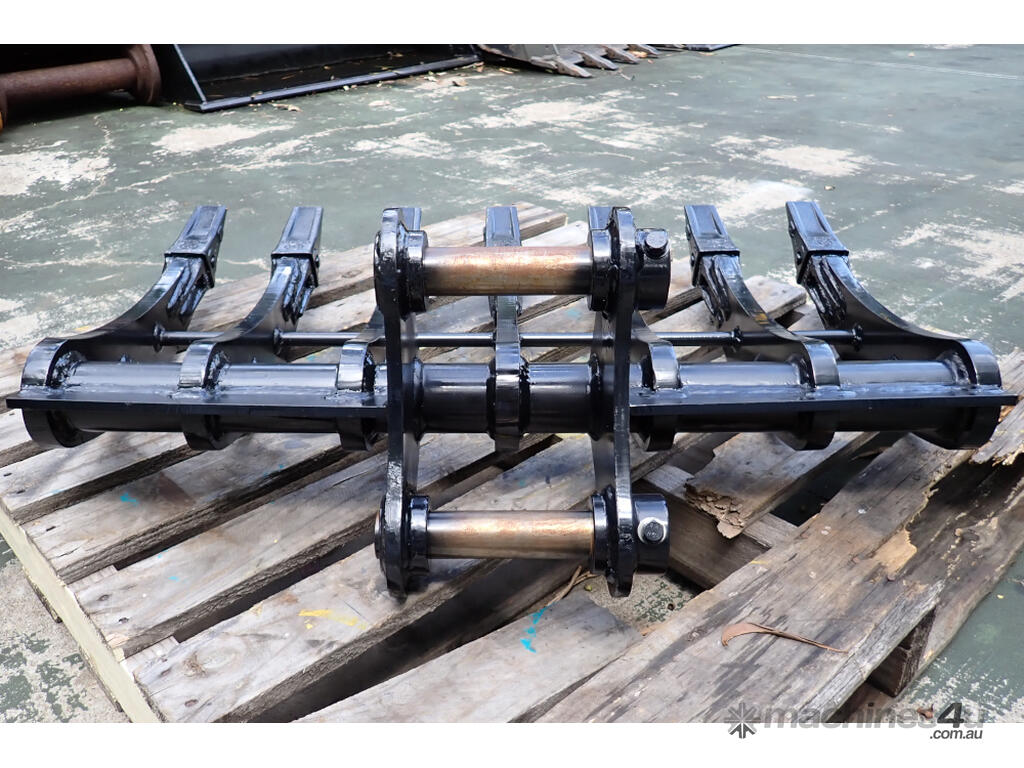

*** Current Headstock configuration:
* 45mm Pin Diameter
* 243mm Pin Center to Pin Center (CtoC)
* 148mm Between the inside Ear Bosses (which can be shaved back up to 188mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
*
* Should fit: Airman AX40 / AX40U / AX50U / AX50UU, Hitachi EX40 / EX40-2 / EX40U / EX45 / EX50U / EX58MU, Hitachi Zaxis 40U / 40U-2 / 48U-5A / 50U / 55U-5A, Hyundai R 55 / R 55-3 / R 55S, Kobelco SK 45 / SK 45SR, Komatsu PC 40 / PC 40-7 / PC 40-7E / PC 40FR / PC 40MR-2 / PC 40MRX / PC 40R-8 / PC 45-1 / PC 45R-8 / PC 45R-8E / PC 50FR / PC 50MR-2 / PC 50MRX-2 / PC 58UU-3, Kubota KH151 / KH161-3 / KH191 / KX151 / KX161-2 / KX161-3 / KX191 / RX501 / U45, Takeuchi TB 45 / TB 53FR / TB 53R / TB 145, Yanmar YB 50.
*
* Maybe fit: Bobcat 337 / 435 / X335 / X337 / X341, Case CX 47 / CX 50B, Caterpillar 304C CR / 304CR-ISJ / 305C CR / 305CR-ISJ, Daewoo Solar 055 / 055V / 055V PLUS, Doosan S 55-V, Hitachi EX55UR, IHI (Cheiftain) 40G/H/J / 45J, Kobelco 45SR-2 / 50SR-3 / SK 40SR-2 / SK 40SR-3 / SK 45SR-2 / SK 45SR-3 / SK 50SR-3 / SK 50UR-2, Komatsu PC 50UU-2, New Holland EH 50.B, Pel Job EB506, Volvo ECR50D / ECR58 / ECR58D and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

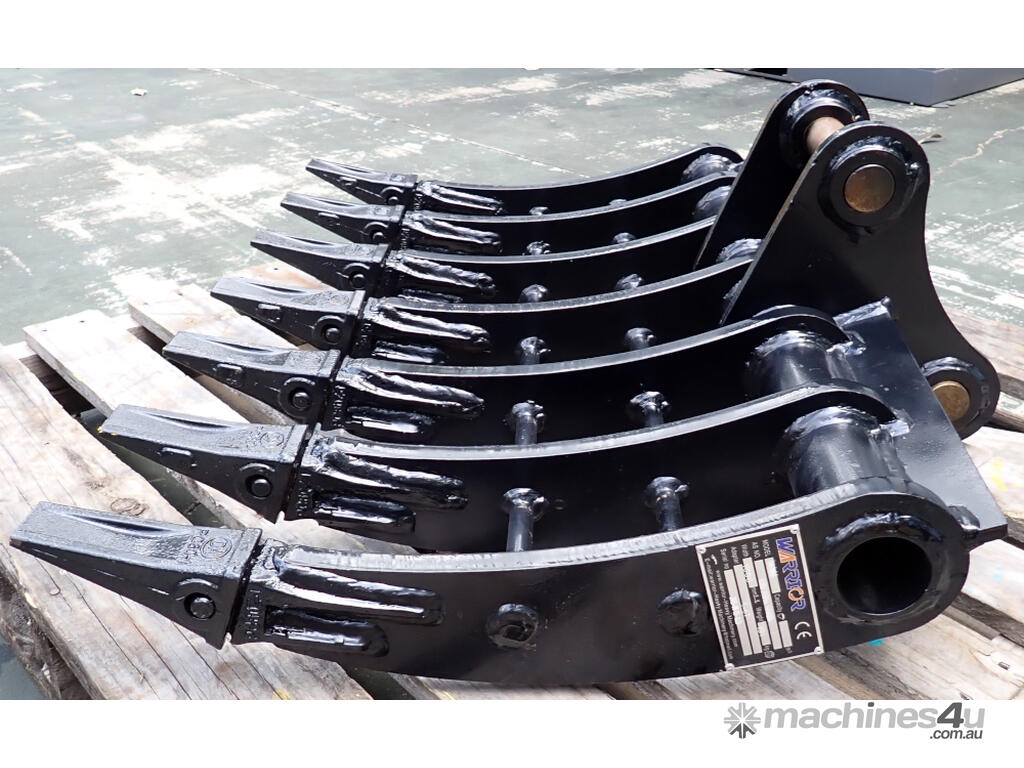

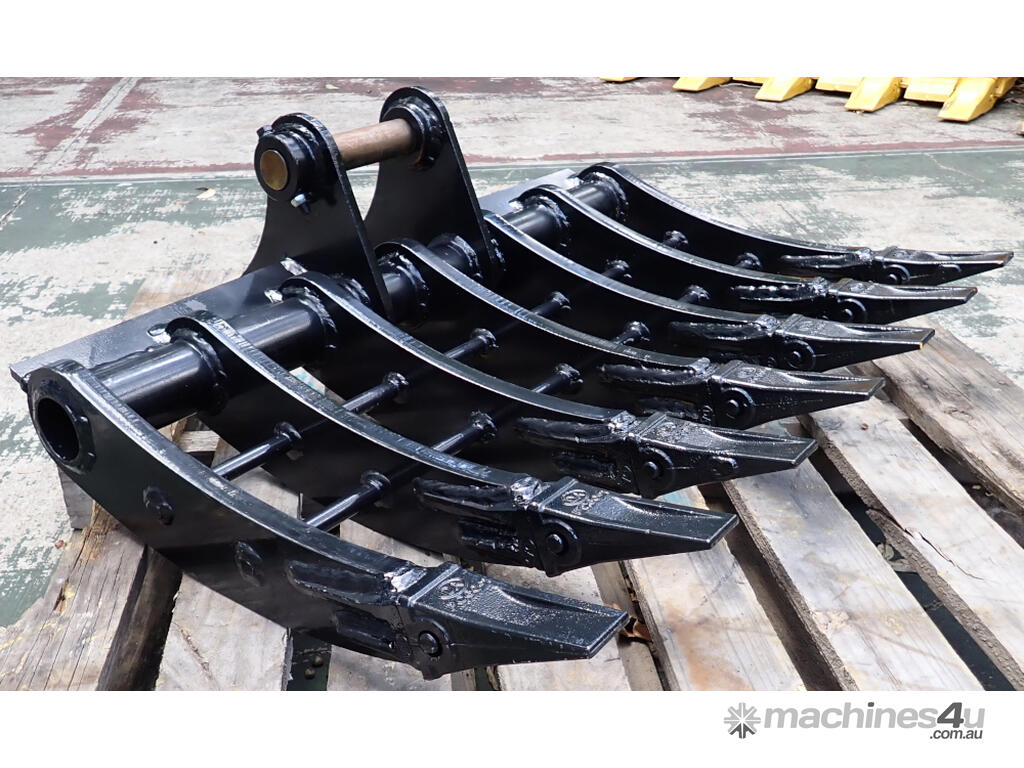

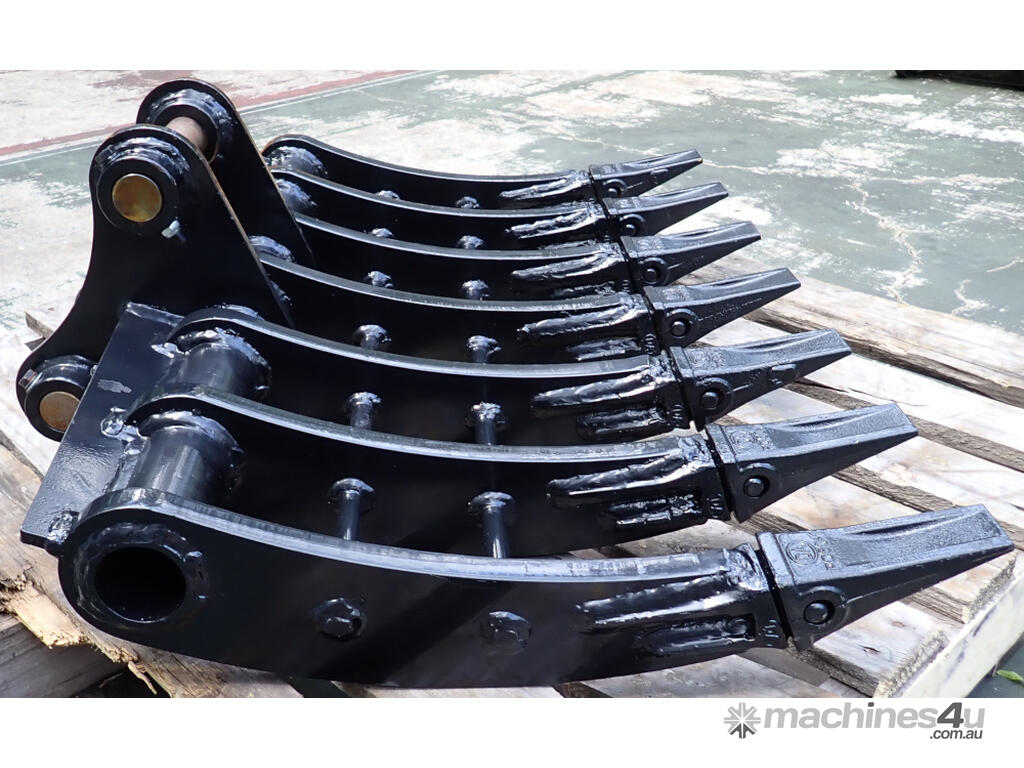

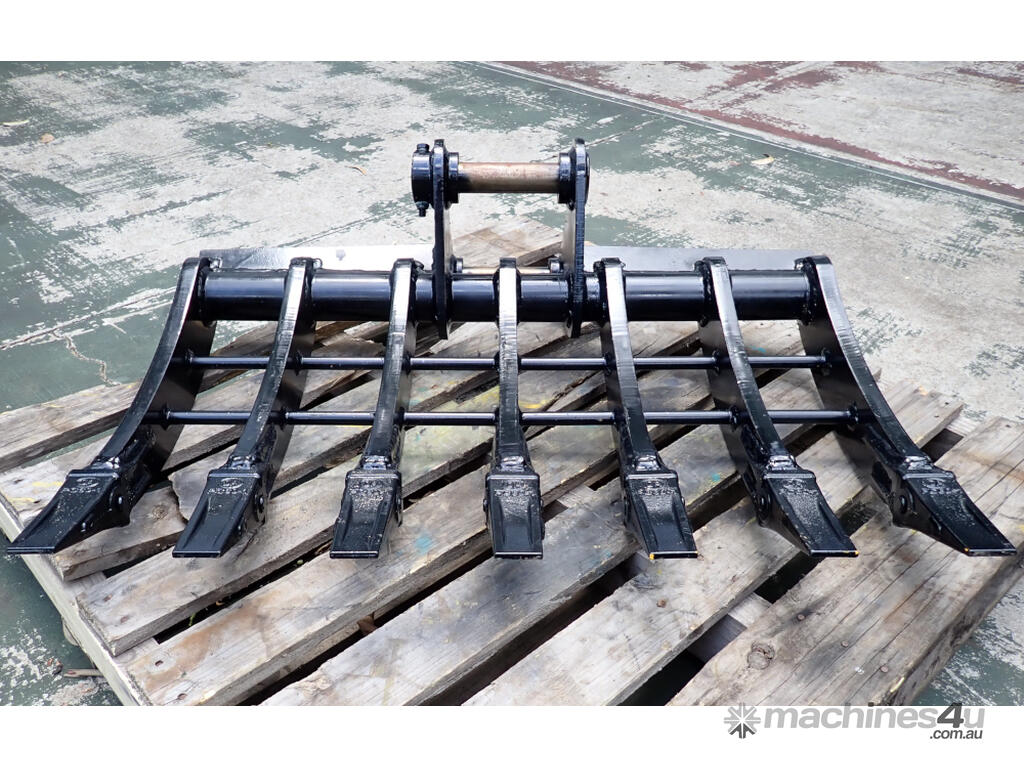

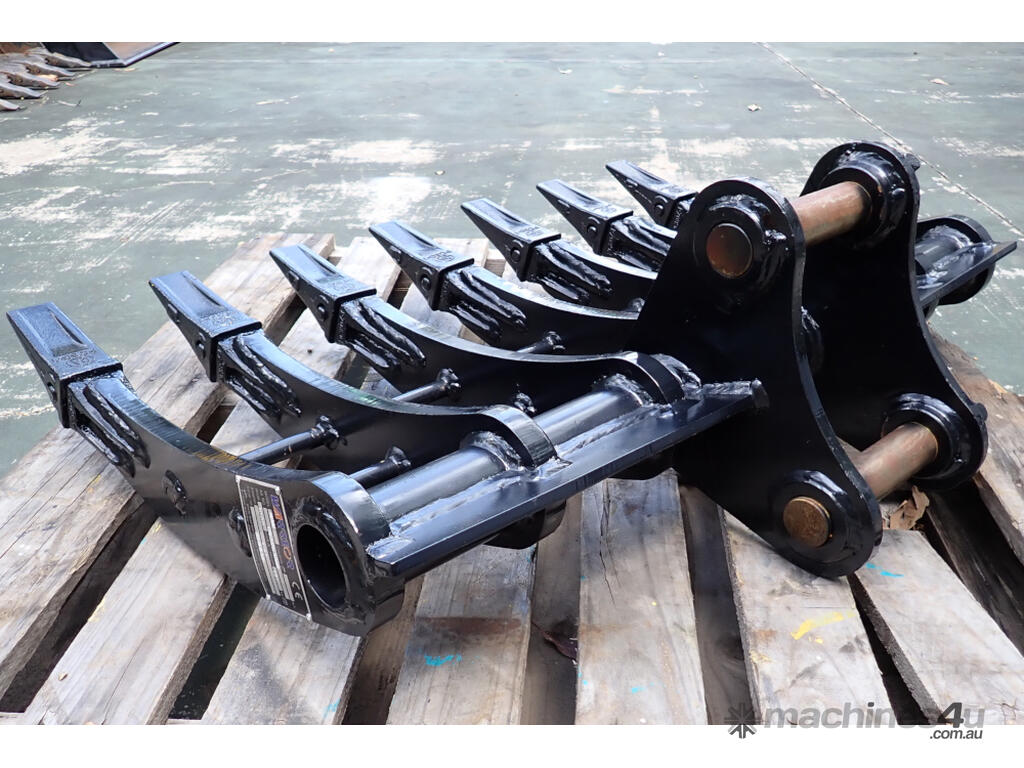

Shipping Dimensions (laying flat as in pics# 1-8): 1035mm Wide, 830mm Deep, 335mm High (at the headstock). Weight: 126kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
