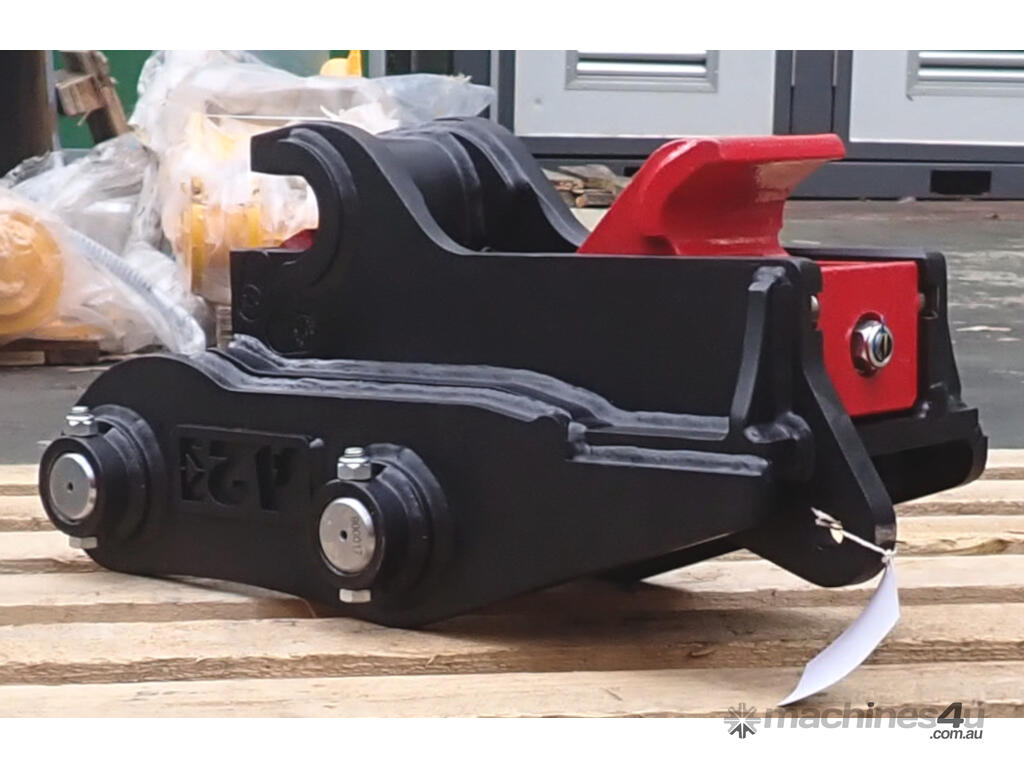

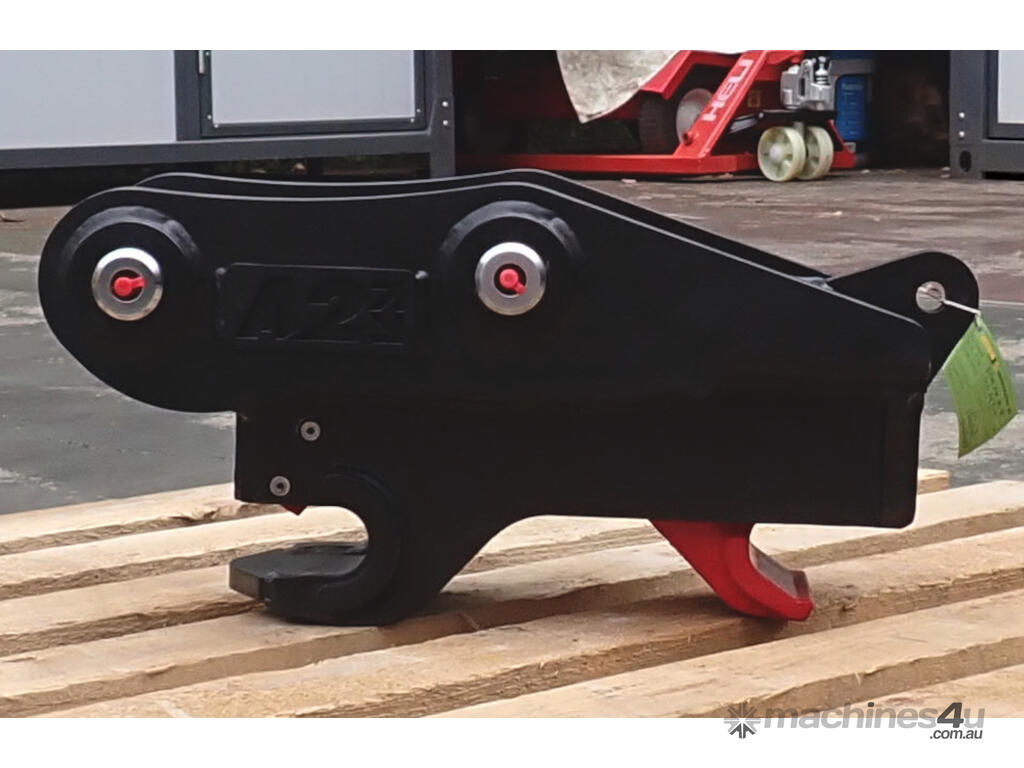

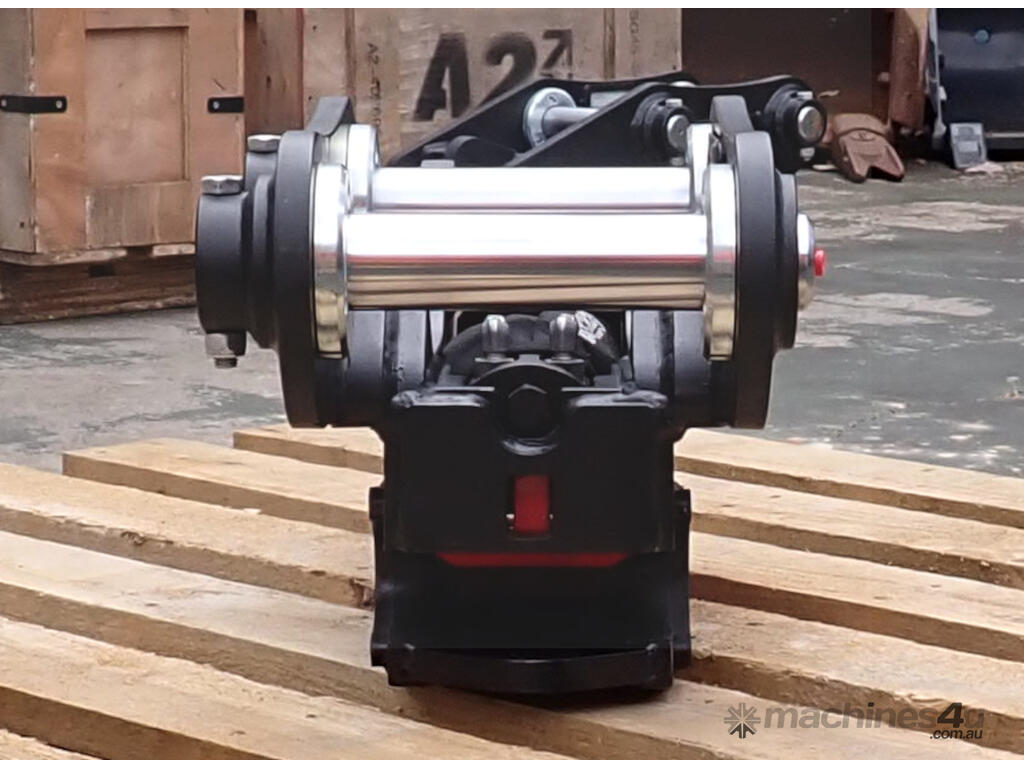

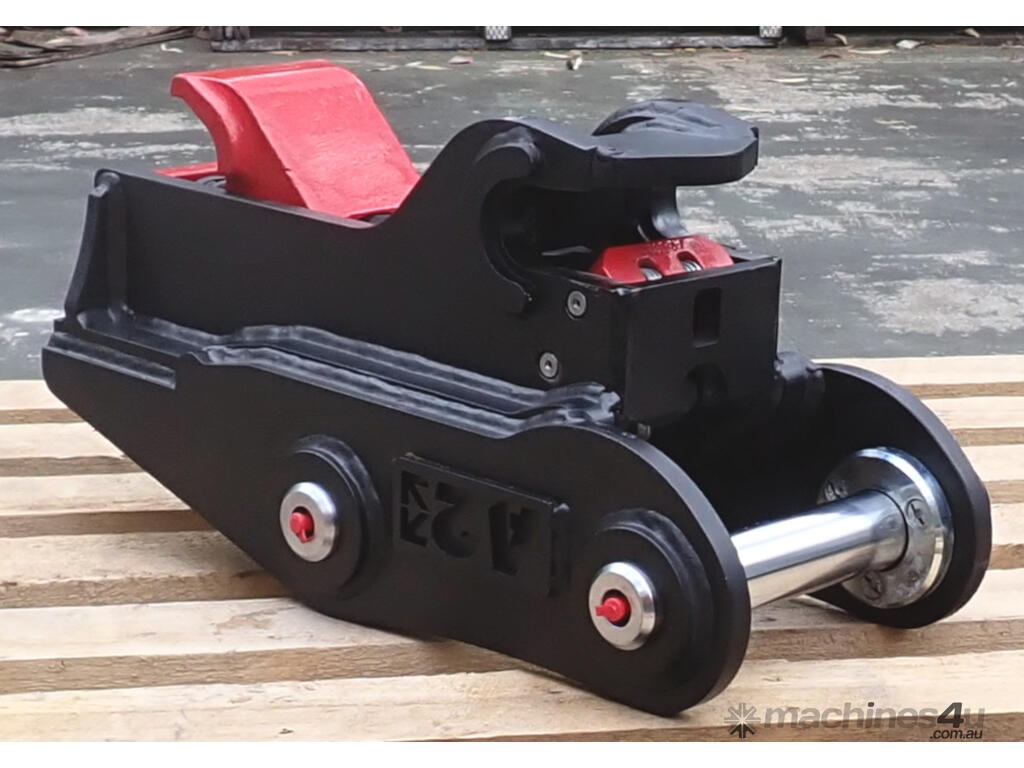

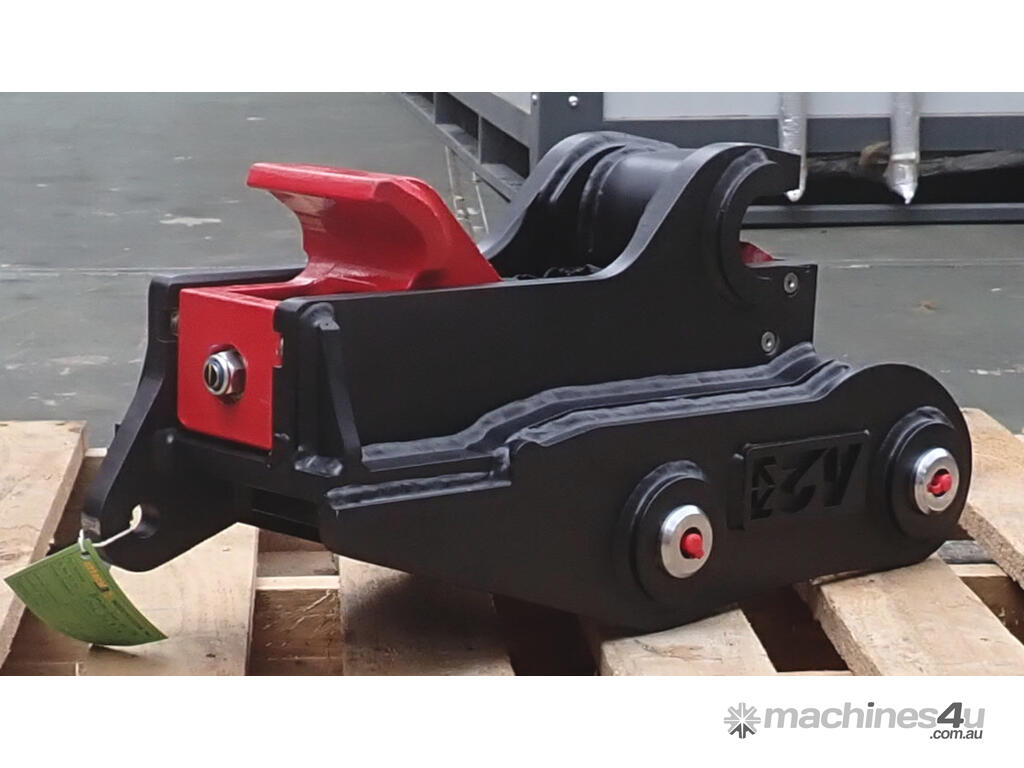

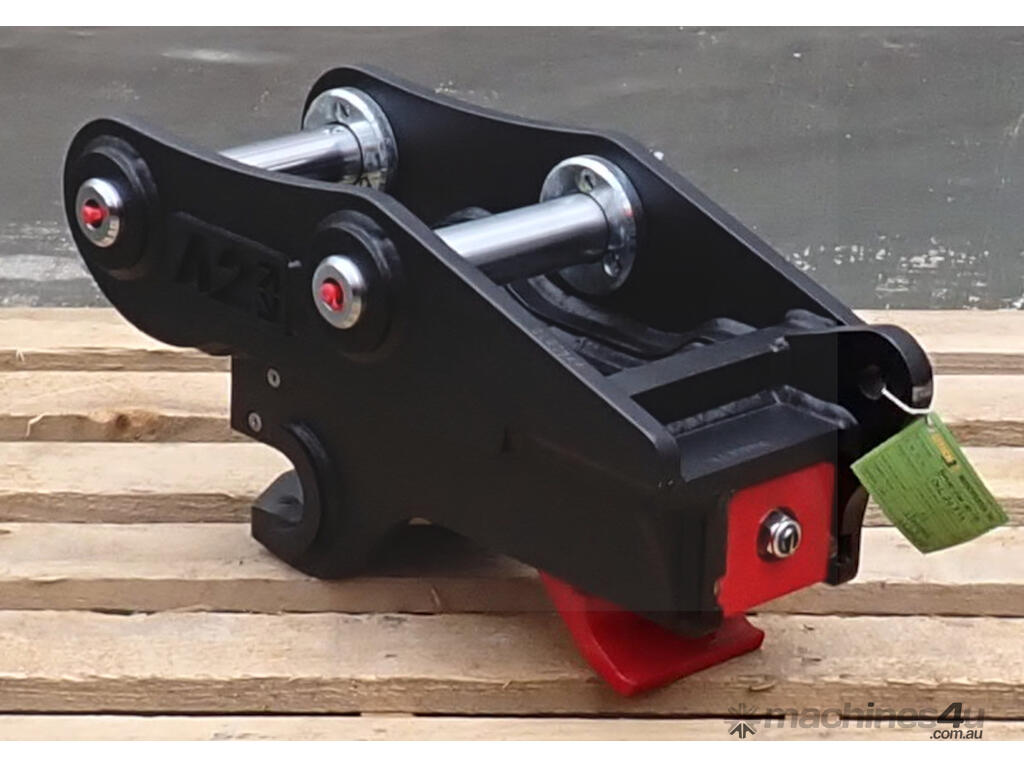

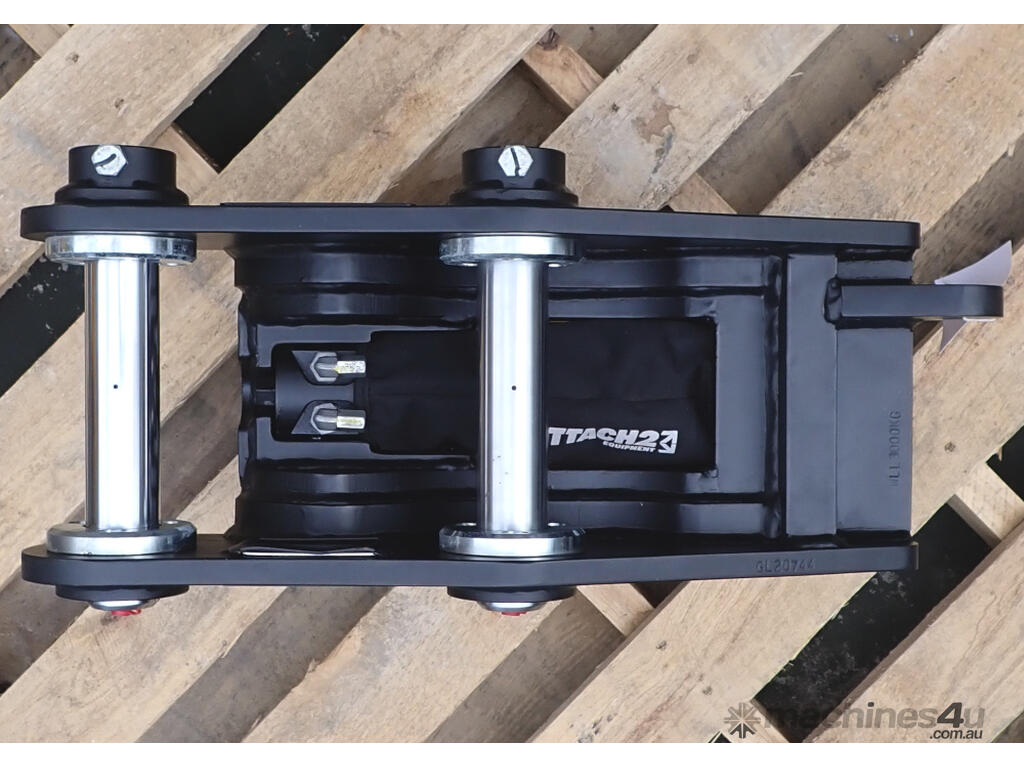

New 3-7 ton (45mm pin) Attach2 Sure-Grip Hydraulic Excavator Quick Hitch Coupling

New Attach2 Excavator Hydraulic Sure-Grip Multi Hitch to suit 3-7 Ton machines.

Sure-Grip Coupler is Fully Automatic with Dual Pin Locking (no need to leave the cab to remove / re-insert the safety pin).

This is a Multi Pin Center pickup hitch so it can grab attachments used on other machines with a 217mm-295mm Pin Center to Pin Center range.

It has a very low profile, light weight.

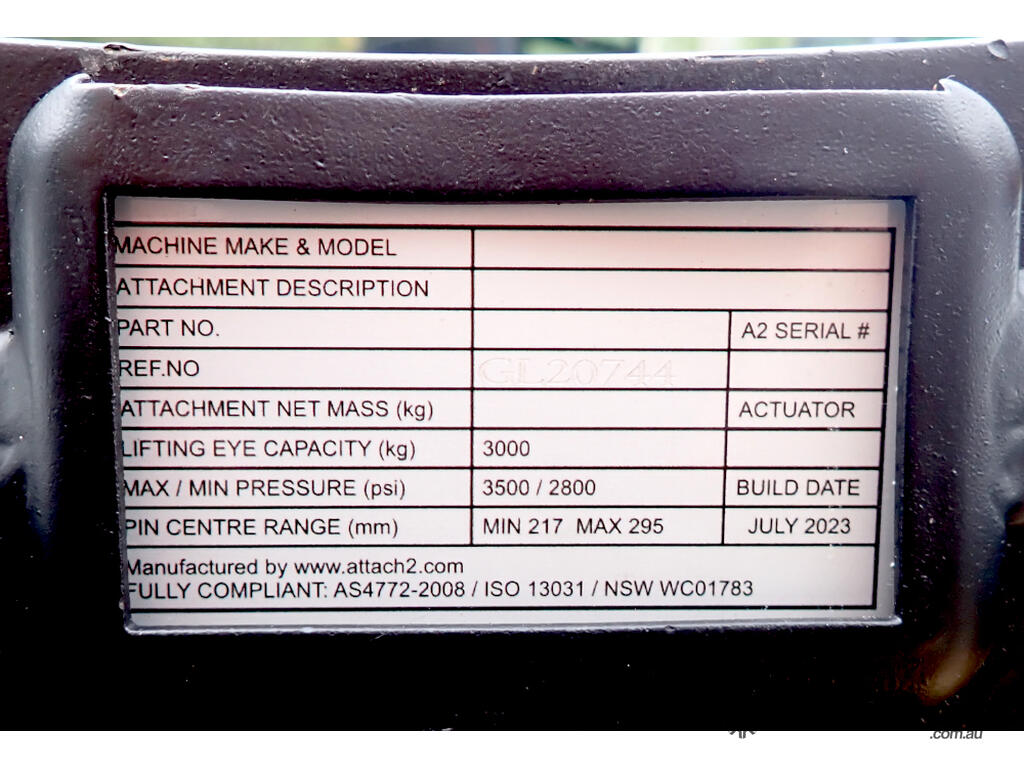

Lifting Eye rated: SWL 3,000kg.

Condition is New & Unused in perfect condition.

This is a well engineered, heavy duty Excavator Hitch, made by the respected Australian/NZ company Attach2 Equipment: (see links in 'View Brochure' above...)

Product Page: (see links in 'View Brochure' above...)


*** Pin Setup Dimensions (where your Dipper Arm goes in):
* Pin Diameter: 45mm.
* Pin Center to Pin Center (CtoC): 240mm.
* Between The Ears (BTE): 161mm Between the bolt-on inside Ear Boss Spacers of the hitch (which can be shaved back up to 190mm between the Ear Plates if you need more inside width for your excavator's dipper arm to fit in).
*
*** Pin Setup Dimensions (where the Hitch goes in your bucket):
* Pin Diameter: 45mm.
* Pin Center to Pin Center (CtoC): Variable Distance Pickup - 217mm-295mm.
* Between The Ears (BTE): 160mm (your buckets/attachments need to have at least this much width between the ears).
*
* Should fit: Airman AX40 / AX40U / AX50U / AX50UU, Hitachi EX40 / EX40-2 / EX40U / EX45 / EX50U / EX58MU, Hitachi Zaxis 40U / 40U-2 / 48U-5A / 50U / 55U-5A, Hyundai R 55 / R 55-3 / R 55S, Kobelco SK 45 / SK 45SR, Komatsu PC 40 / PC 40-7 / PC 40-7E / PC 40FR / PC 40MR-2 / PC 40MRX / PC 40R-8 / PC 45-1 / PC 45R-8 / PC 45R-8E / PC 50FR / PC 50MR-2 / PC 50MRX-2 / PC 58UU-3, Kubota KH151 / KH161-3 / KH191 / KX151 / KX161-2 / KX161-3 / KX191 / RX501 / U45, Takeuchi TB 45 / TB 53FR / TB 53R / TB 145, Yanmar YB 50.
*
* Maybe fit: Bobcat 337 / 435 / X335 / X337 / X341, Case CX 47 / CX 50B, Caterpillar 304C CR / 304CR-ISJ / 305C CR / 305CR-ISJ, Daewoo Solar 055 / 055V / 055V PLUS, Doosan S 55-V, Hitachi EX55UR, IHI (Cheiftain) 40G/H/J / 45J, Kobelco 45SR-2 / 50SR-3 / SK 40SR-2 / SK 40SR-3 / SK 45SR-2 / SK 45SR-3 / SK 50SR-3 / SK 50UR-2, Komatsu PC 50UU-2, New Holland EH 50.B, Pel Job EB506, Volvo ECR50D / ECR58 / ECR58D and possibly other machines with similar pin spacings.


Hitch dimensions: 615mm long, 290mm wide, 285mm high. Weight: 68kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
