New 4-10 ton (50mm pin) Excavator Fixed Thumb Mechanical Grapple Grab

New Hongwing PC50MG Excavator Mechanical Fixed Thumb Grapple Grab 4-10 Ton machine.

Designed for demolition, but can also be used for rock & log work and general material handling, picking things up, moving them around etc.

* 3 Tyne width: 631mm.
* 2 Tyne width: 384mm.

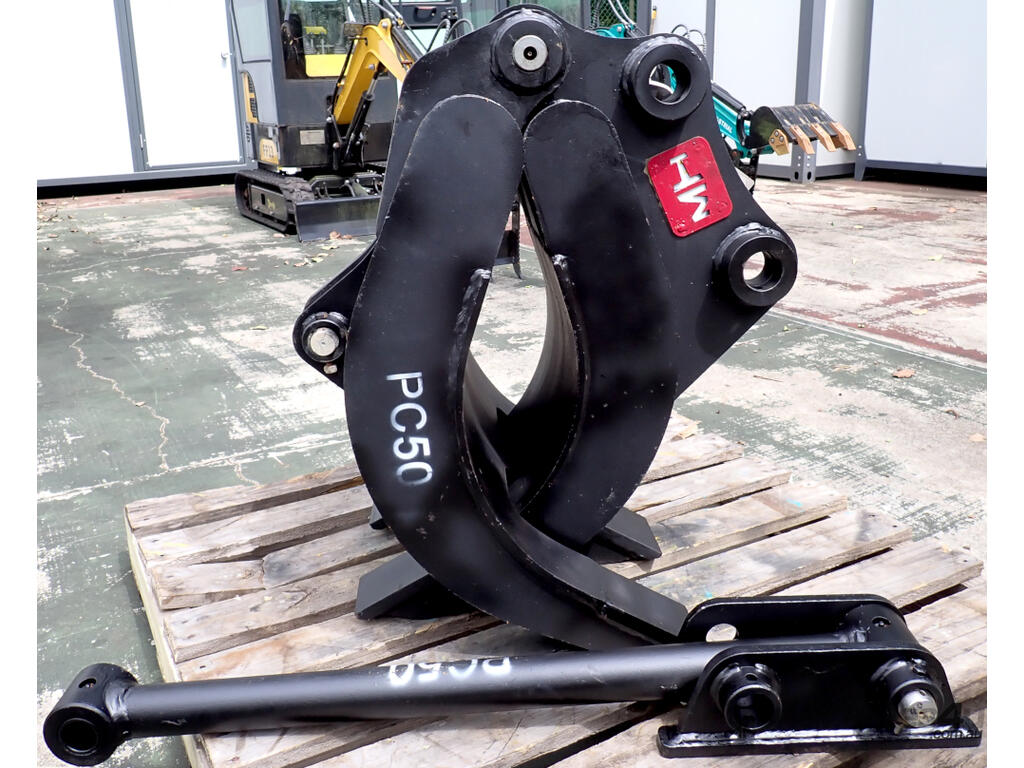

* Full Opening Width (as in pics# 8-10): 1545mm.

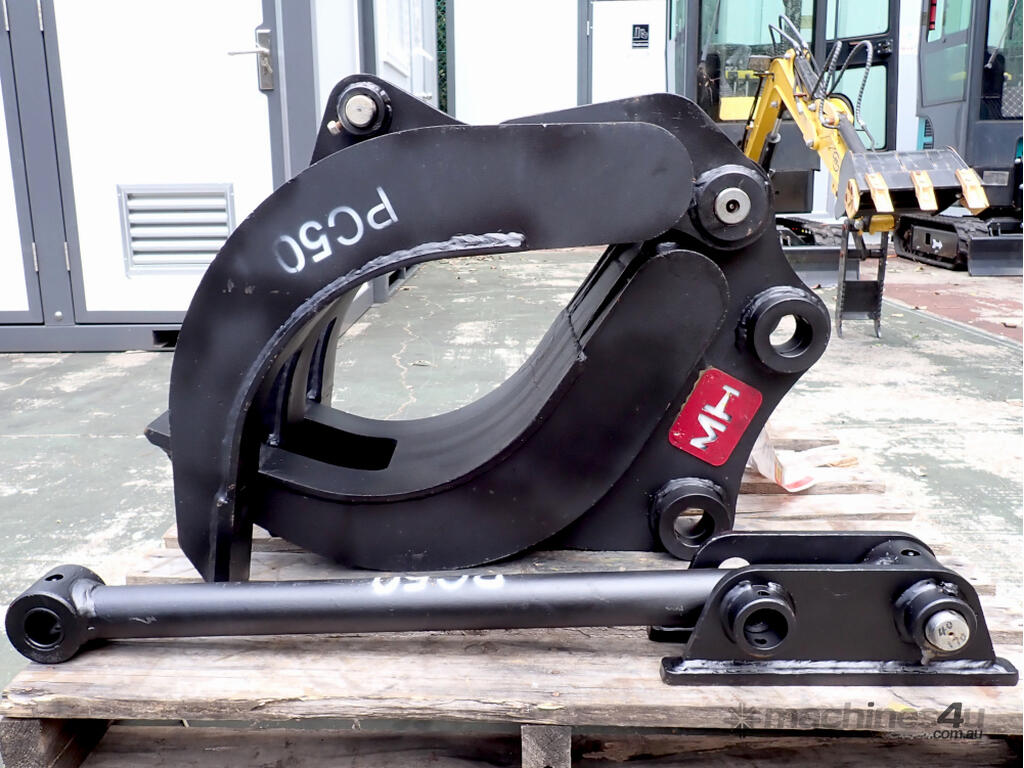

* Stick length (CtoC: Centre of hole at one end to Center of hole at the other): 952mm.
* Stick mount pin: 40mm.
* Stick Plate (to be welded on inside of dipper arm): 134mm wide x 369mm long.
* 2 Holes in Stick Plate: CtoC: 180mm.

Currently setup for 50mm pins but could easily be configured for 45mm pins by Lathing the pins in the middle to 45mm.


*** Current Headstock configuration:
* Pins: 50mm
* Pin Center to Pin Center (CtoC): 289mm
* Between the Ears (BTE): 183mm Between the inside Ear Bosses (which can be shaved back up to 217mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).


*** 50mm Pin configuration (current):
*
* Should fit: Case 9007 / 9007B / CX 75SR / CX 80SR, JCB JS 70 / JZ 70, Kato 180G, Kobelco 70SR / 80CS / SK 60 / SK 70SR / SK 70SR-1E / SK 75UR / SK 80MSR, Komatsu WB146-5,PS-5, Link-Belt 75SA (Mono & Offset) / 80SA / 1600 QUANTUM, New Holland EH 70 / EH 80 CS, Sumitomo LS 1600F2U / SH 60 / SH 60-2 / SH 60DX-2 / SH 60SP / SH 60SR / SH 60X-2 / SH 75U / SH 75U-2 / SH 75UU / SH 75X-2 / SH 75X-3, Sunward SWE 75, Takeuchi TB 70 / TB 70FR / TB 80FR / TB 175.
*
* Maybe fit: Bobcat 442 / X442, Caterpillar 308D / 308e2cr, Hitachi EX60-5 / EX60-5 Import / EX75-5 / EX80 Import, Hitachi Zaxis 75US / 80, John Deere 75C / 80C, Kato 140, Komatsu PC 60 / PC 60-5 / PC 60-6 / PC 60-7 / PC 70FR / PC 75UU / PC 75UU-1 / PC 75UU-2 / PC 75UU-3 / PC 78MR-6 / PC 80-1 / PC 80-2 / PC 80-3 / PC 90-1 / PC 95R-2 / SV100, Sany SY 75C, Schaeff HR31 / HR32, Terex HR32, Yanmar B 7 SIGMA / VIO70 / VIO75 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


*** As a 45mm Pin configuration (lathe the middle of the 50mm pins down to 45mm):
*
* Should fit: Daewoo Solar 070 / 075-V, Doosan S 75-V, Ferguson MF 760 / MF 860, Fermac 760 / 860, Hyundai R 55-7, Komatsu WB 93-2, Samsung SE 50-3, Volvo EC50/W / EC55 / EC55B / ECR58 / MX 55/W / SE 50-3.
*
* Maybe fit: Caterpillar 304CR-ISJ / 305CR-ISJ / 307 / 307C / 308 / E 70B, Daewoo Solar 055 / 055V / 070-3 / 080-3 / 080W-3, Hitachi EX55UR / EX55UR Import / EX60 / EX60-3 / EX60-5 UK Version, Kobelco SK 50UR-2, Komatsu PC 50UU-1, Samsung SE 50W, Volvo BL70 / BL71 / BL71B, Yanmar B 50 / B 50-2 / B 50-2B / VIO40-1 / VIO40-2 / VIO40V / VIO45 / VIO45-5 / VIO50 / VIO50-1 / VIO50-2 / VIO55 / VIO55-5 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

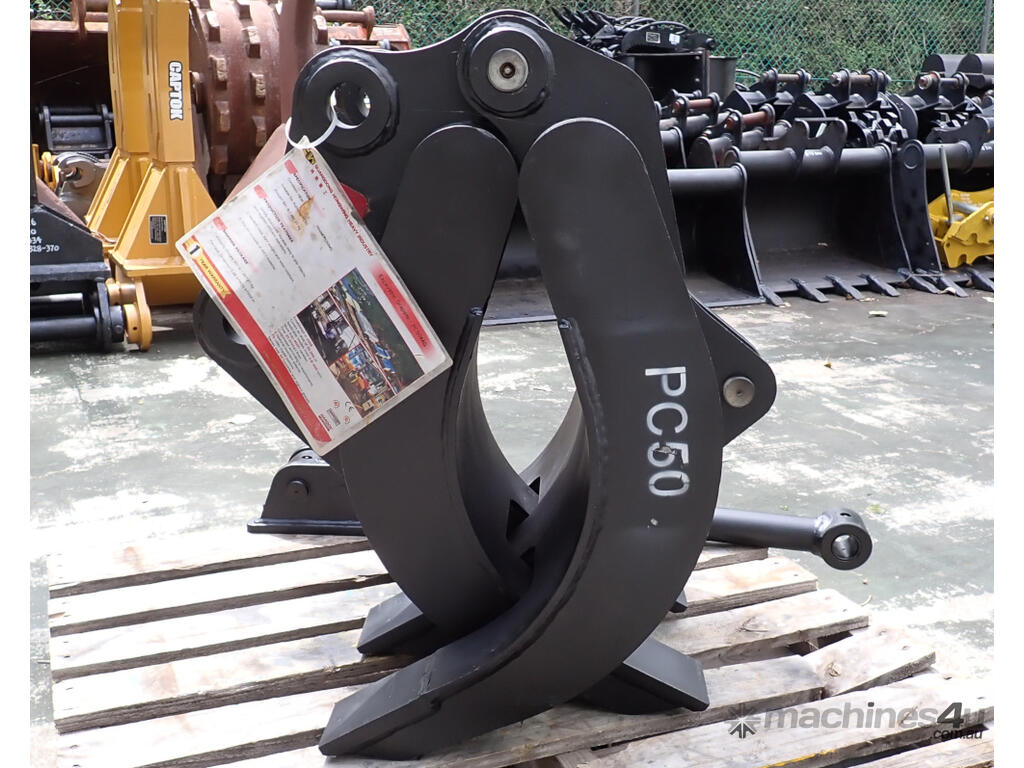

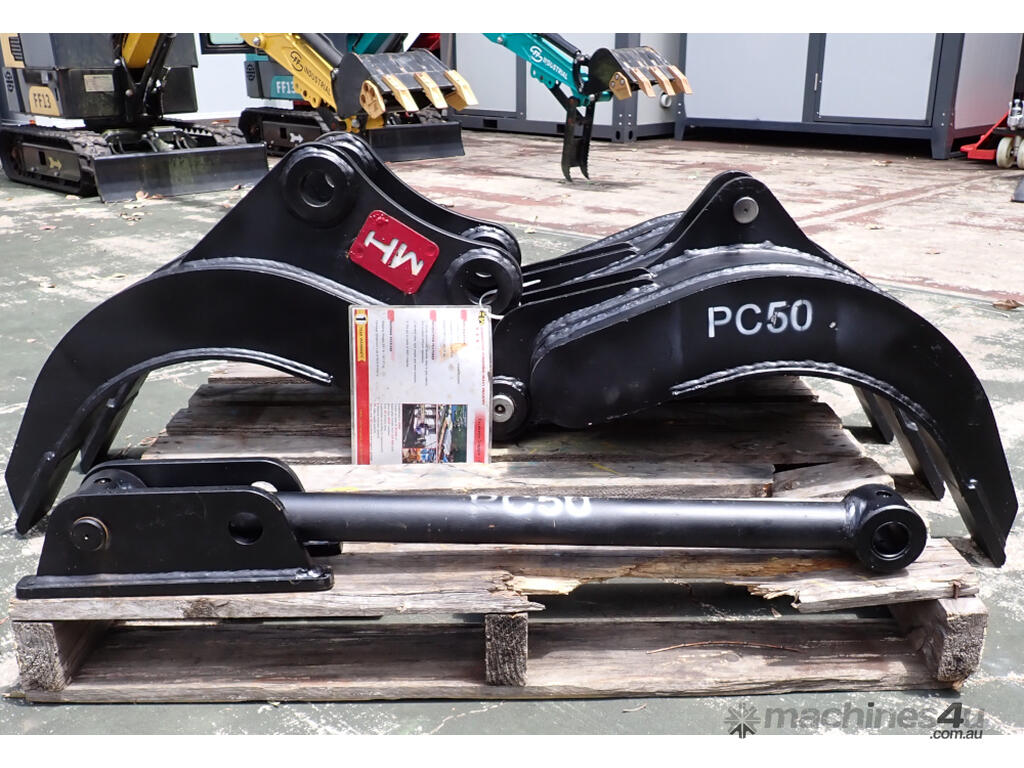

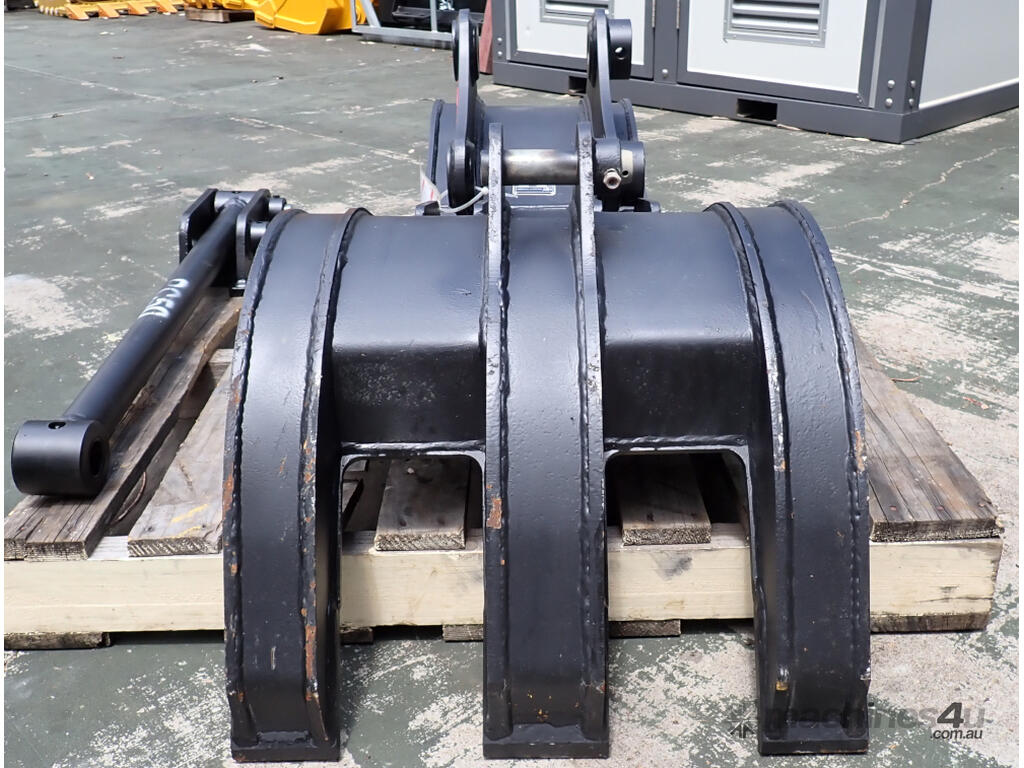

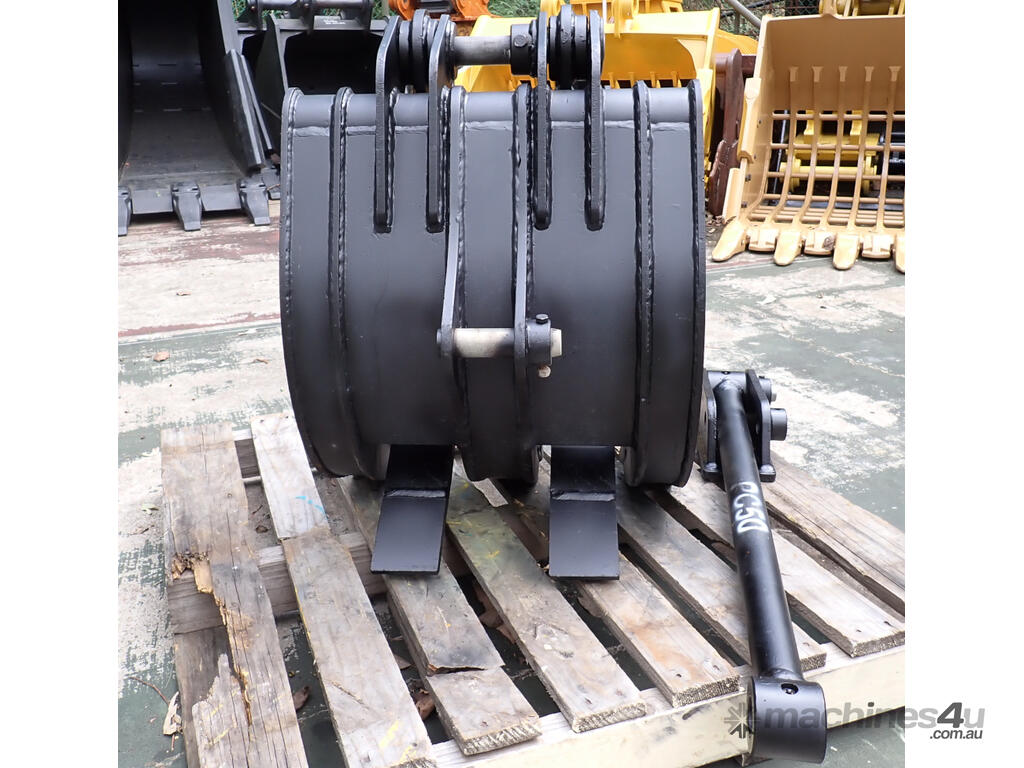

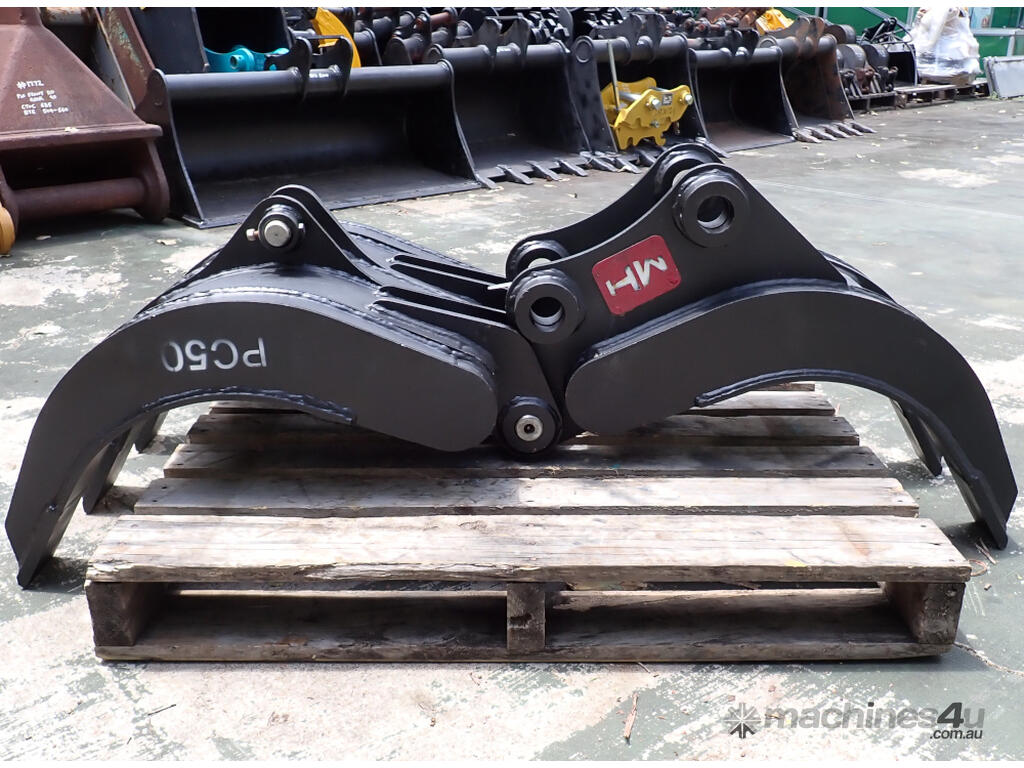

Dimensions (standing up as in pics #1-4): Width:631mm, Depth:721mm, Height:855mm.
Weight: 244kg + Stick: 29kg = 273kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
