New 4-10 ton (55 or 50 or 45mm Pin) Excavator Hydraulic Thumb Bucket Grapple Grab

New Excavator Hydraulic Thumb Grapple Grab Bucket suit 4-10 Ton machine.
The bucket moves as a normal bucket attached to your hitch or to your dipper arm. The Thumb moves Hydraulically.

Designed for Rock & Log work, but can also be used for demolition and general material handling, picking things up, moving them around and other careful placement tasks.

* Opening width: 1300mm.

* Required Oil Flow: 30-55 L/min.
* Working Pressure: 110-140 bar.


***** Headstock Dimensions:

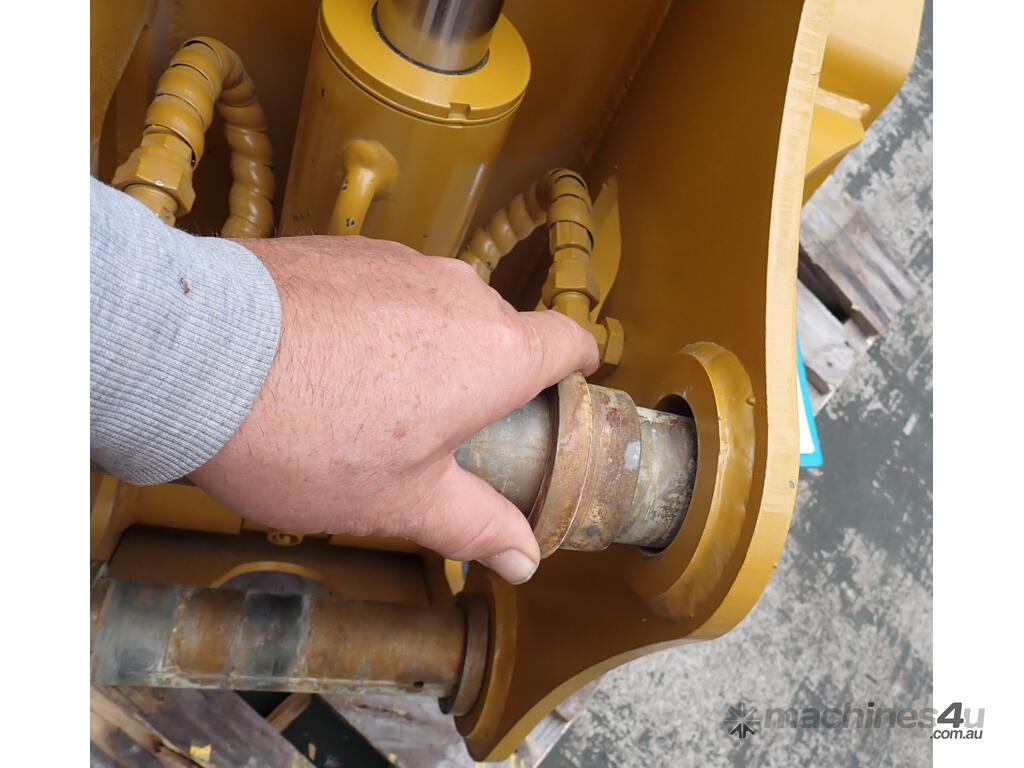

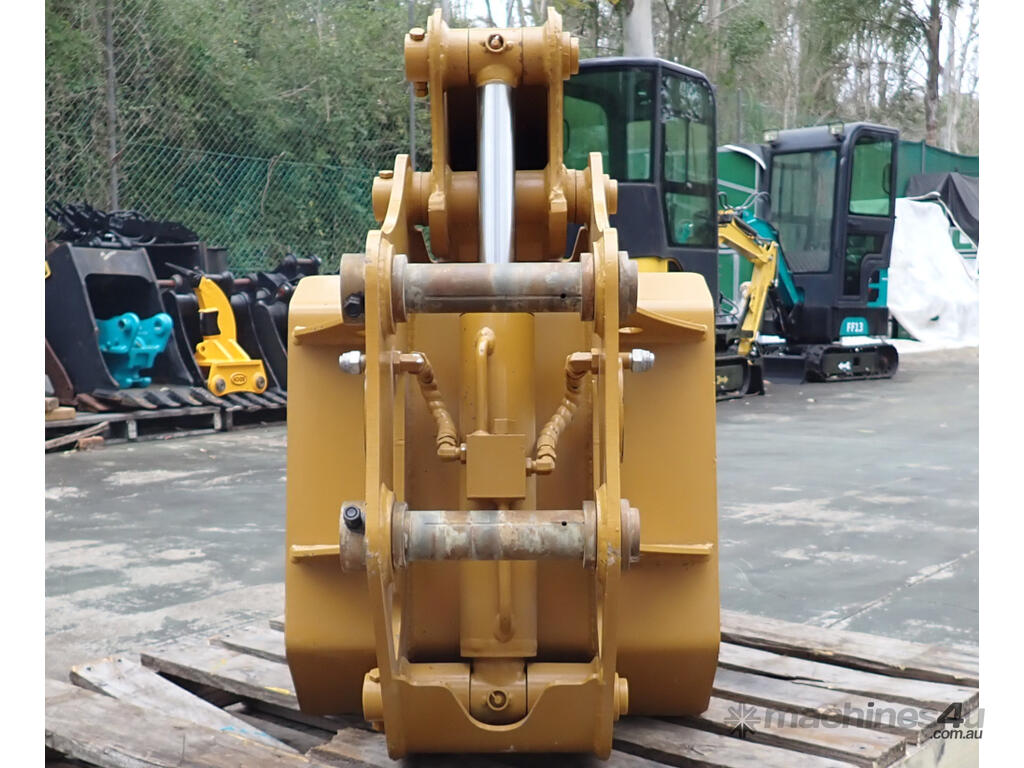

* The Pin Diameter is 55mm but they are fitted into collar bosses that fit into 65mm diameter Pin holes (see pic# 10), so pins up to 65mm diameter can be fitted without needing to bore out the holes in the headstock. This thumb bucket could easily be converted to suit a 45mm or 50mm Hitch by marking a texta line around the pins next to the collar bosses, then removing the pins and Lathe them down in the middle from 55mm to 45 or 50mm.
* The Pin Center to Pin Center (CtoC) is 275mm.
* The distance between the collar bosses is 195mm. Removing the collar bosses, the distance between the headstock bosses is 220mm, but these welded-on-bosses could also be shaved back on the insides to a maximum of 243mm (the distance Between the Ear Plates), if you need more inside width for your hitch or dipper arm to fit into.


*** As a 55mm Pin Configuration (Current):
*
* Should fit: Hyundai R 80-7.
*
* Maybe fit: Gehl GE 803, Wacker Neuson 8003 / 9503 / 75z3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


*** As a 50mm Pin Configuration (Remove the pins, Lathe them down in the middle from 55mm to 50mm):
*
* Should fit: Ackerman H3, Bobcat 442 / X442, Kato 140, Schaeff HR31 / HR32, Terex HR32, Yanmar B 7.
*
* Maybe fit: Bobcat zx125, Case 9007 / 9007B / CX 75SR / CX 80SR, Ingersoll-Rand ZX125, JCB JS 70 / JZ 70, Kato 180G, Kobelco 70SR / 80CS / SK 60 / SK 70SR / SK 70SR-1E / SK 75UR / SK 80MSR, Komatsu WB146-5,PS-5, Link-Belt 75SA (Mono & Offset) / 80SA / 1600 QUANTUM, New Holland EH 70 / EH 80 CS, Sumitomo LS 1600F2U / SH 60 / SH 60-2 / SH 60DX-2 / SH 60SP / SH 60SR / SH 60X-2 / SH 75U / SH 75U-2 / SH 75UU / SH 75X-2 / SH 75X-3, Sunward SWE 75, Takeuchi TB 70 / TB 70FR / TB 80FR / TB 175 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


*** As a 45mm Pin Configuration (Remove the pins, Lathe them down in the middle from 55mm to 45mm):
*
* Should fit: Doosan S 75-V, Hitachi EX55UR / EX55UR Import, Hyundai R 55-7, Kobelco SK 50UR-2, Komatsu PC 50UU-1, Samsung SE 50-3 / SE 50W, Volvo EC50/W / EC55 / EC55B / ECR58 / MX 55/W / SE 50-3, Yanmar B 50 / B 50-2 / B 50-2B / VIO40-1 / VIO40-2 / VIO40V / VIO45 / VIO45-5 / VIO50 / VIO50-1 / VIO50-2 / VIO55 / VIO55-5.
*
* Maybe fit: Case CX 47 / 50B, Caterpillar 304C CR / 304CR-ISJ / 305C CR / 305CR-ISJ / 307 / 307C / 308 / 308C, Daewoo Solar 055 / 055V / 055V PLUS / 070 / 075-V, Doosan S 55-V, Ferguson MF 760 / MF 860, Fermac 760 / 860, Hitachi EX58MU, Kobelco 45SR-2 / 50SR-3, Komatsu PC 50UU-2 / WB 93-2 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

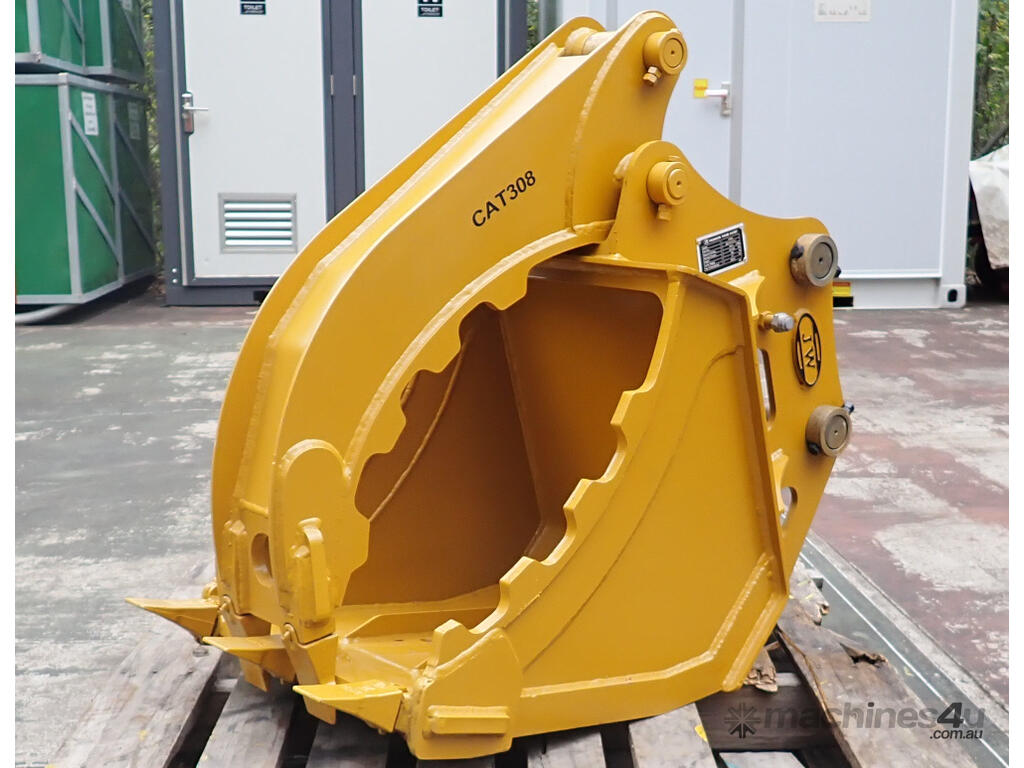

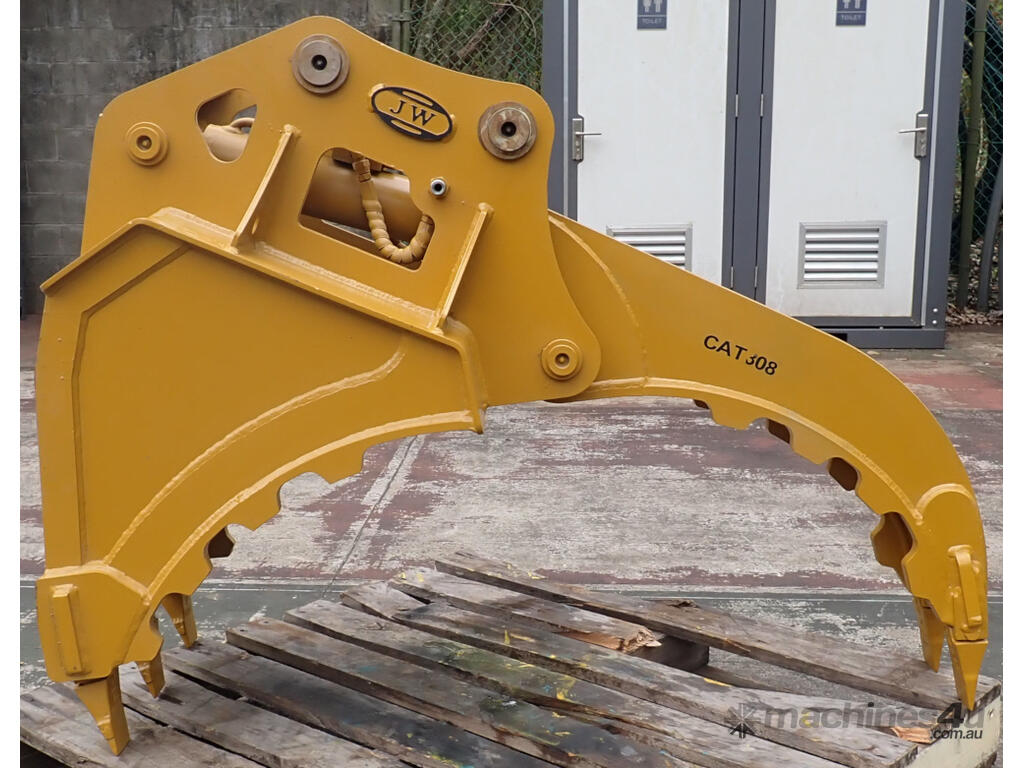

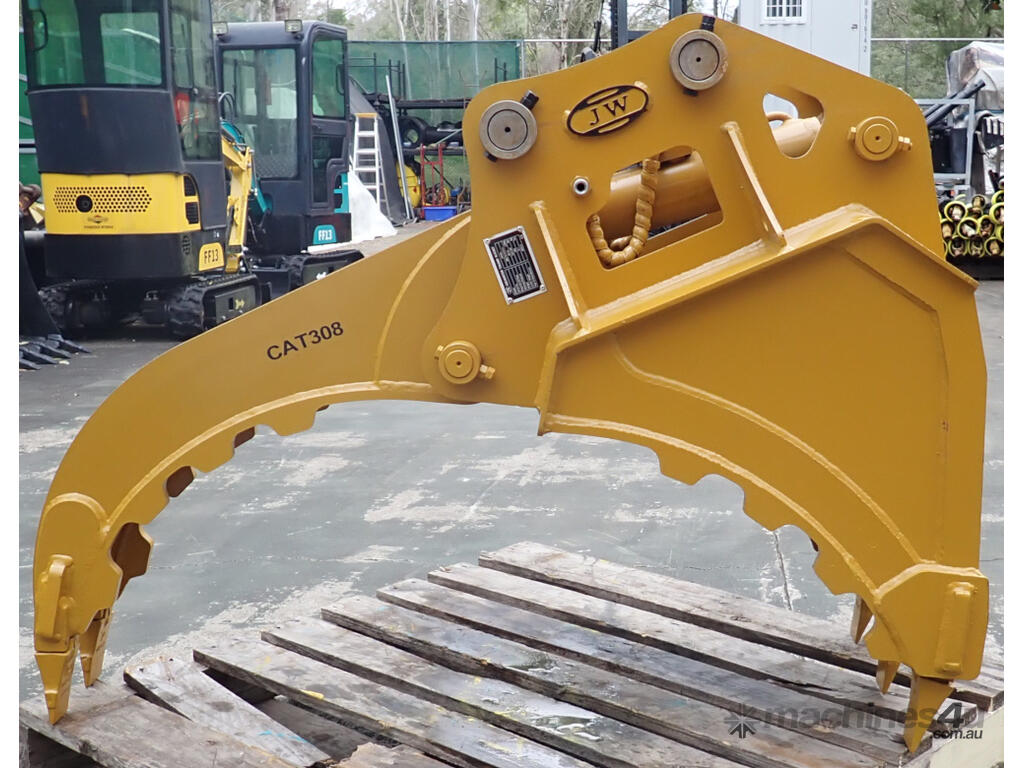

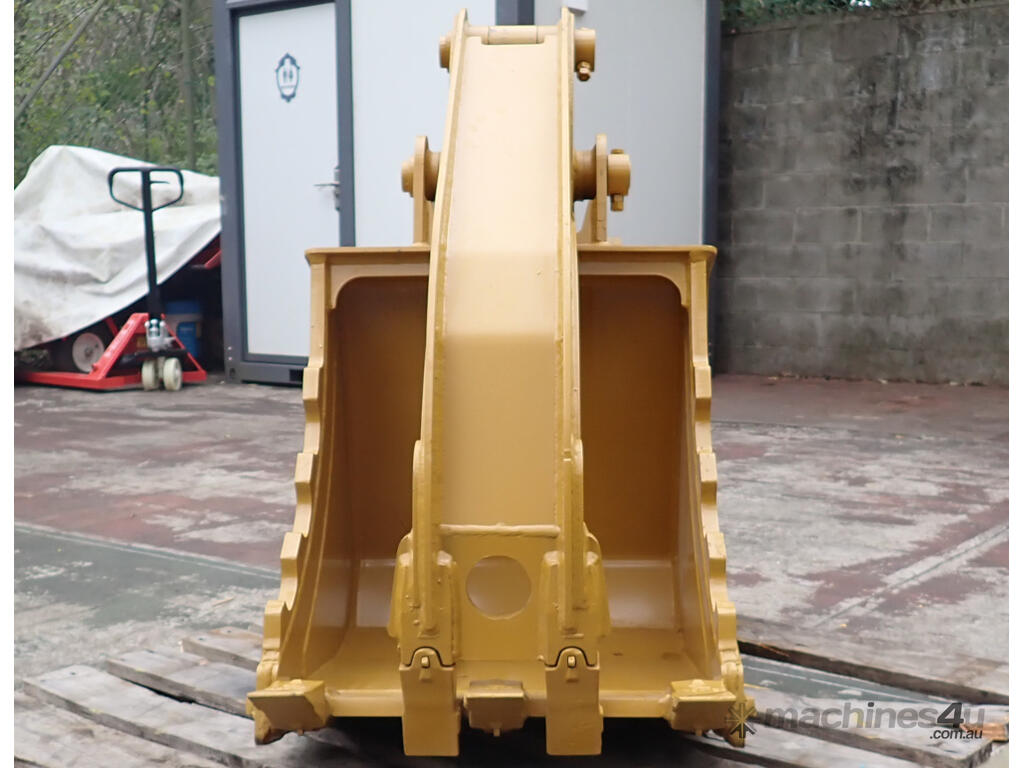

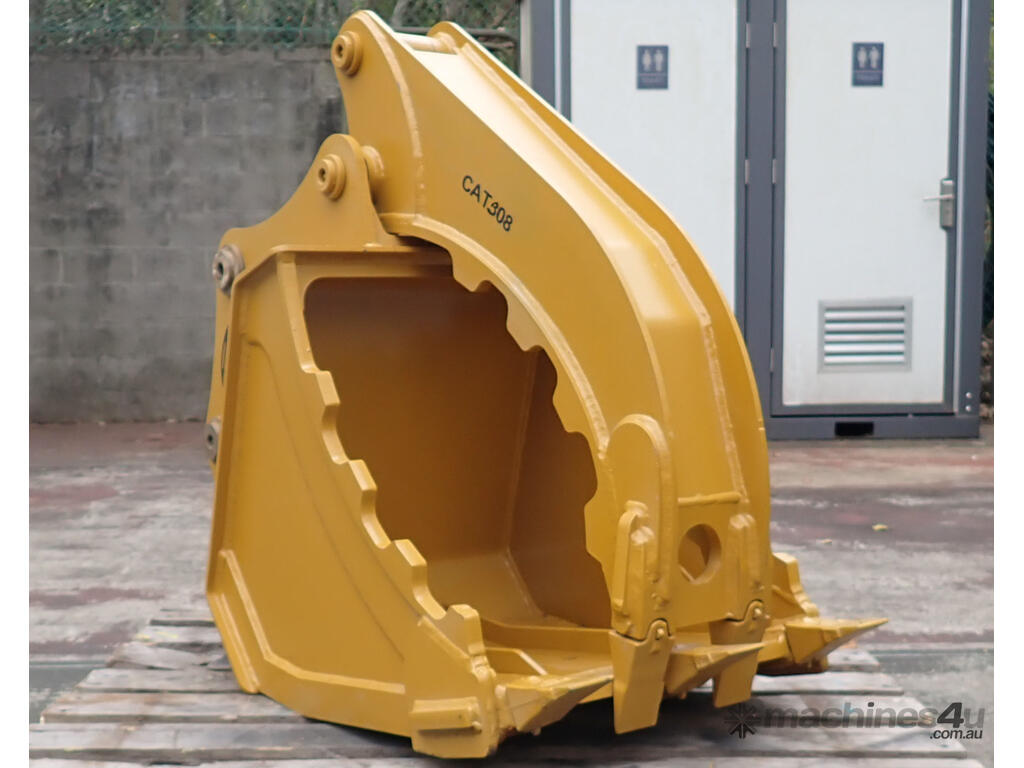

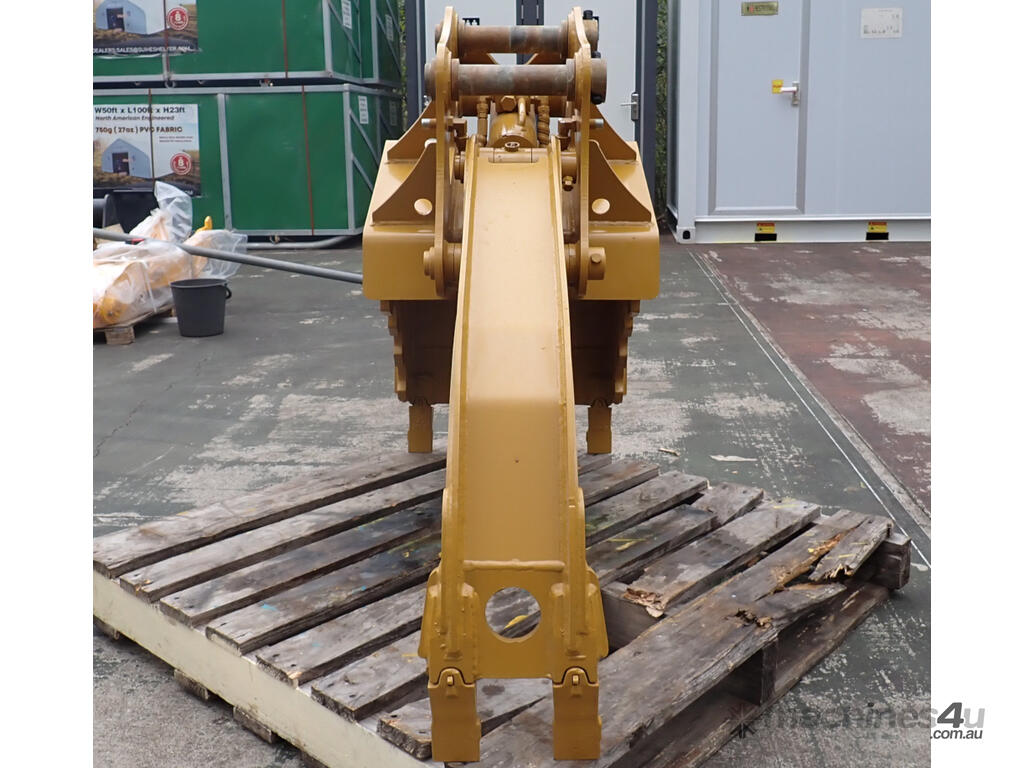

Dimensions (Sitting as in pics# 1-5): 578mm wide, 1070mm long, 950mm high. Weight: 254kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
