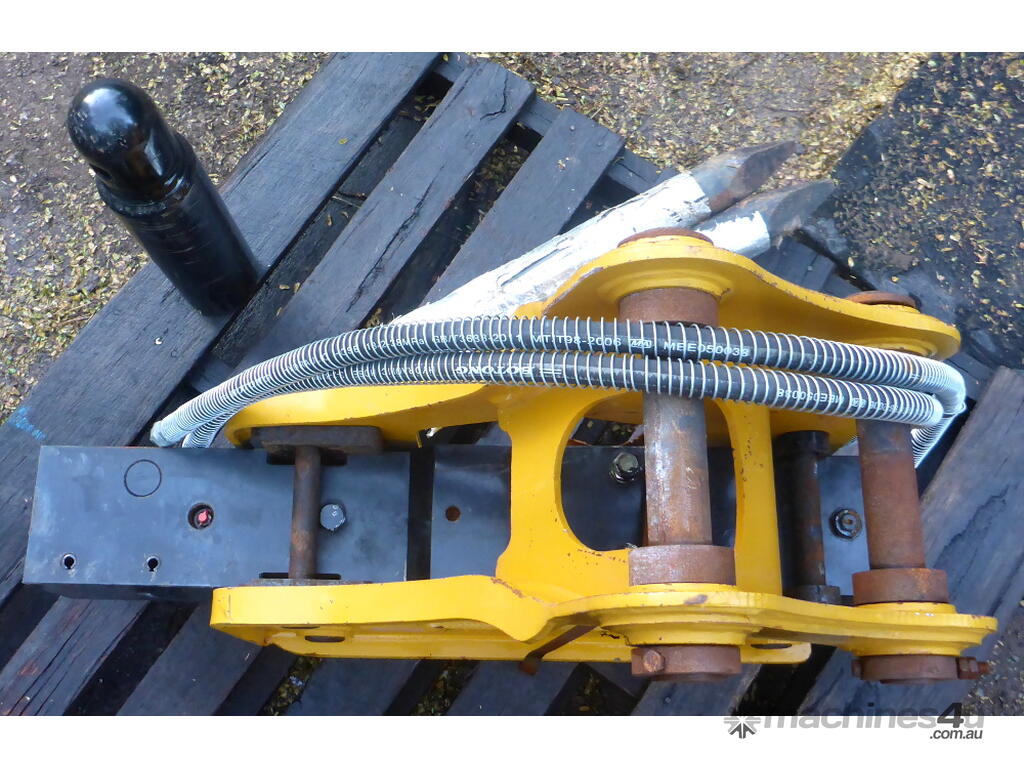

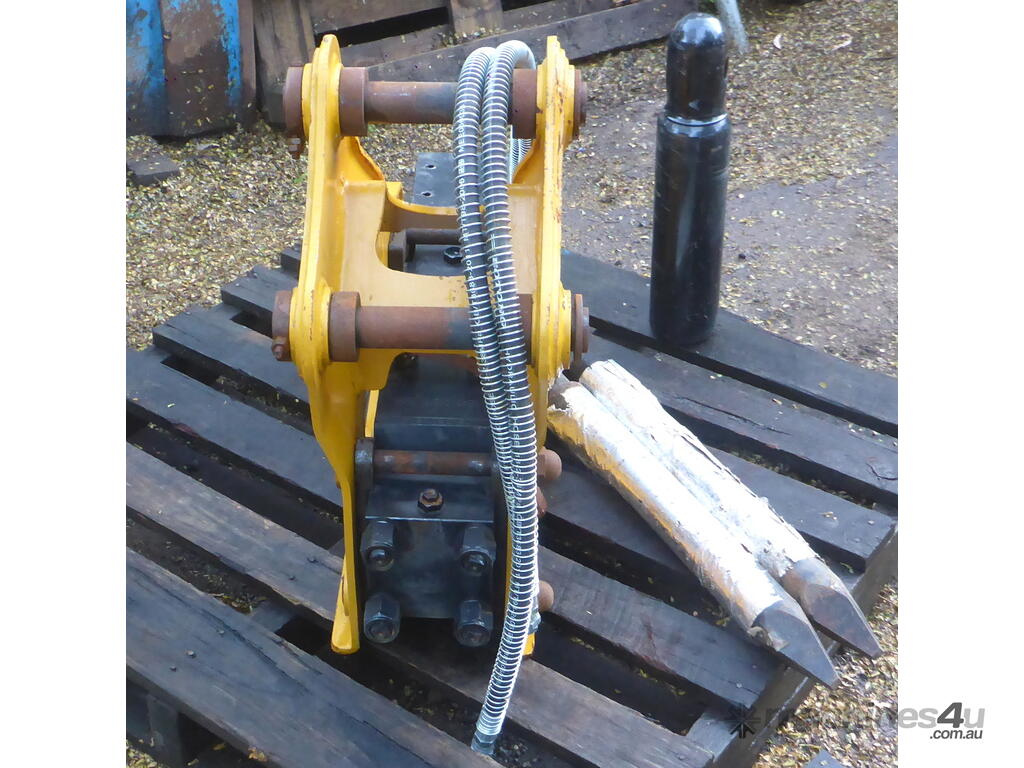

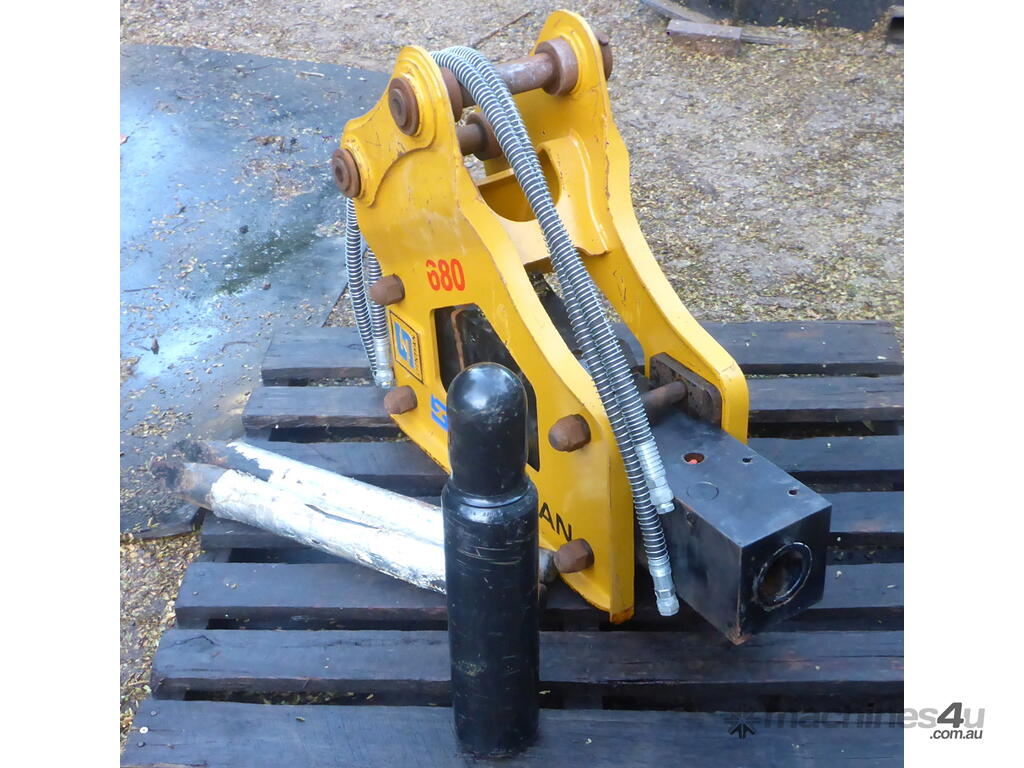

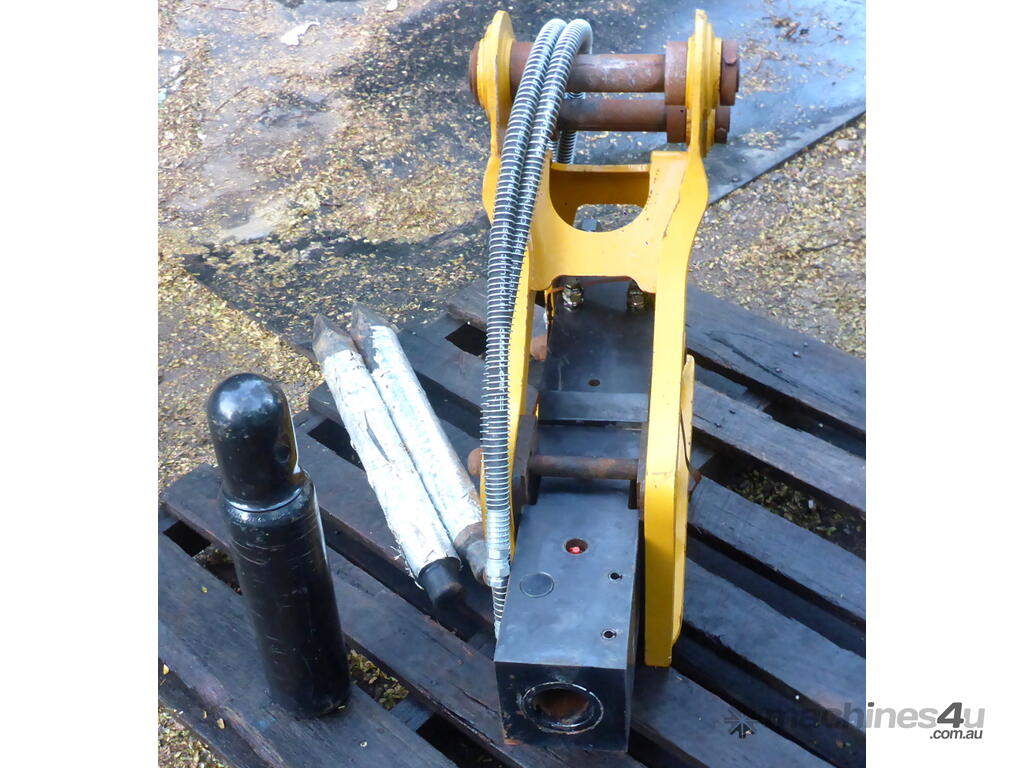

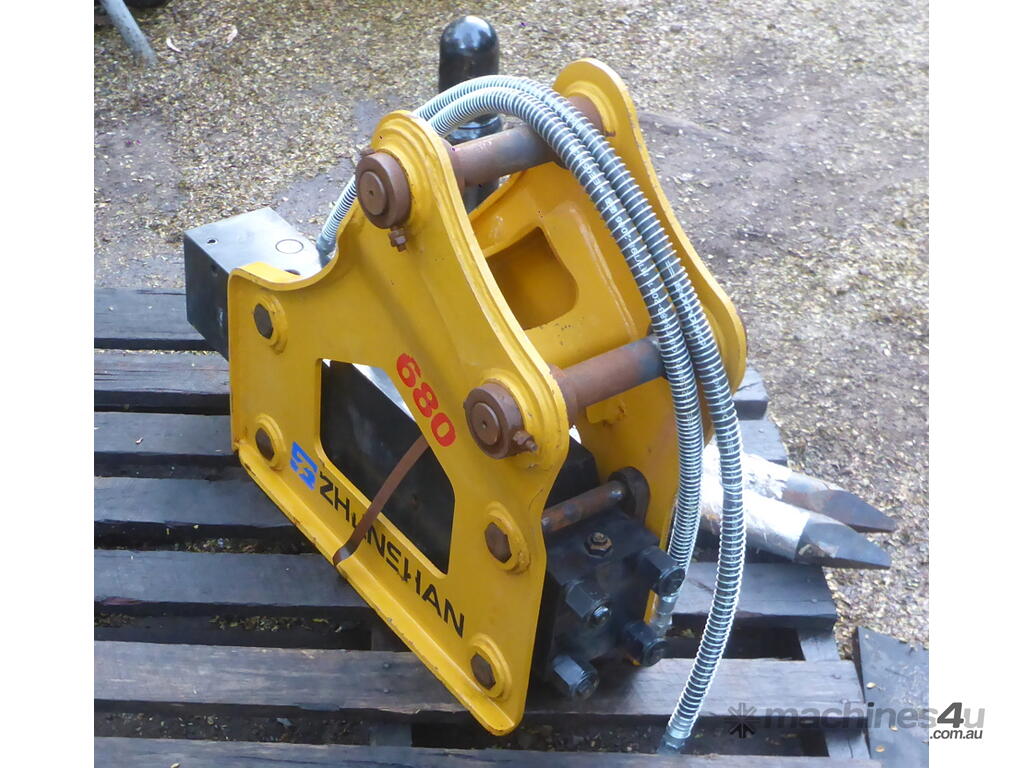

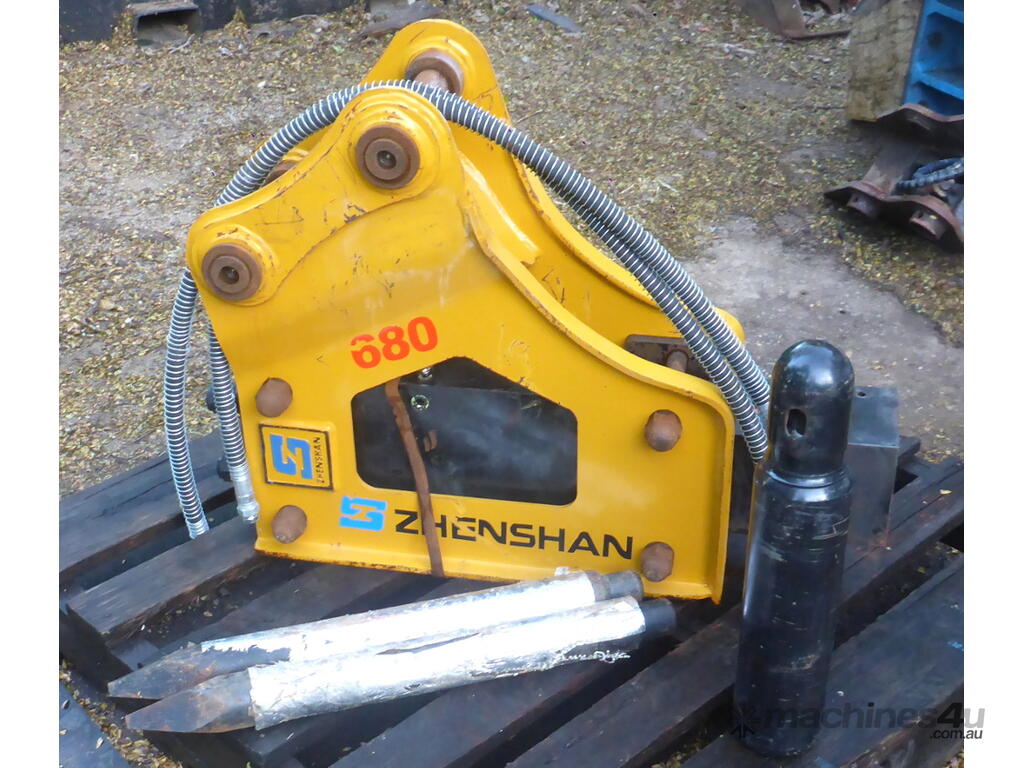

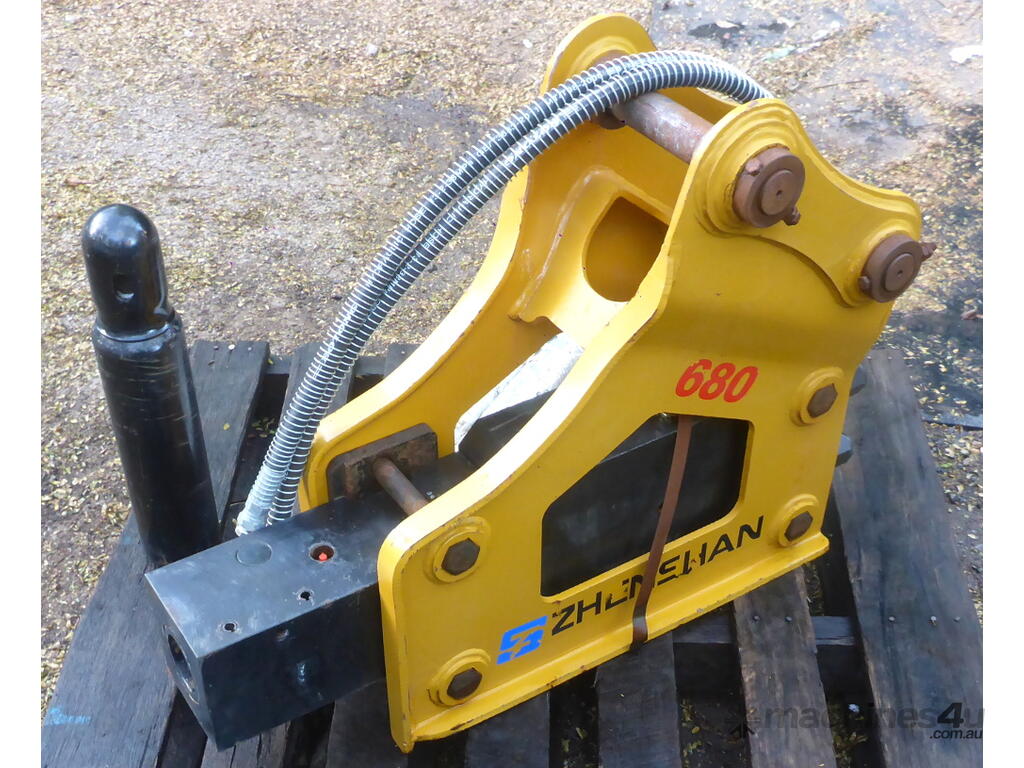

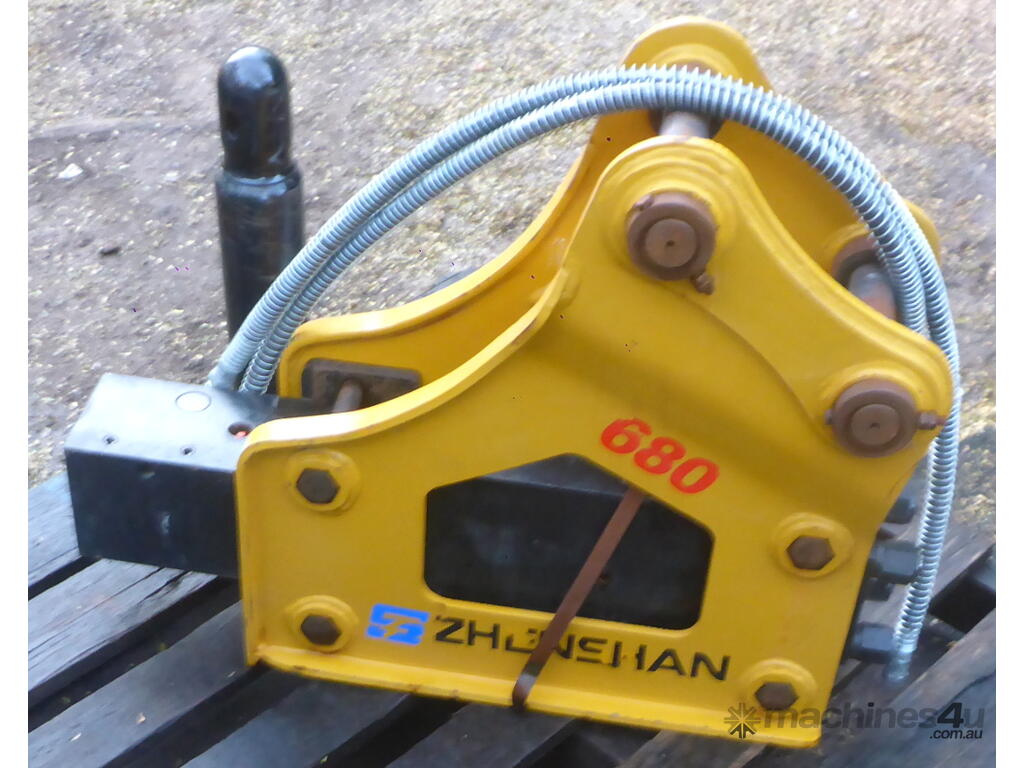

New Zhenshan 680 Excavator Hydraulic Hammer Rock Breaker to suit: 4-8 ton machine.
Great for loosening and breaking up rock, rocky ground, concrete, tarmac, paved areas, demolition etc.
Comes with 2x 67mm Point Moils, Hoses, Nitrogen Gas Bottle.
The Breaker is New & Unused, but has a few small chips and scratches in the paint.
The Hitch Headstock currently has 45mm Pins fitted into collar bosses that fit into 65mm diameter Pin holes, so pins up to 65mm diameter can be fitted without needing to bore out the holes in the headstock.
The Pin Center to Pin Center is 260mm.
The distance between the collar bosses is 160mm. Removing the collar bosses, the distance between the headstock bosses is 210mm, but these welded-on-bosses could also be shaved back on the insides to a maximum of 230mm (the distance Between the Ear Plates), if you need more inside width for your hitch or dipper arm to fit into.
Should fit: Caterpillar 304CR-ISJ, Caterpillar 305CR-ISJ, Caterpillar 304C CR, Caterpillar 305C CR, Daewoo Solar 055, Daewoo Solar 055V, Daewoo Solar 055V PLUS, Doosan S 55-V, Hitachi EX 55UR, Hitachi EX 55UR Import, Kobelco 45SR-2, Kobelco 50SR-3, Kobelco SK 50UR-2, Komatsu PC 50UU-1, Komatsu PC 50UU-2, Samsung SE 50W, Yanmar B 50, Yanmar B 50-2, Yanmar B 50-2B, Yanmar VIO40-1, Yanmar VIO40-2, Yanmar VIO40V, Yanmar VIO45, Yanmar VIO45-5, Yanmar VIO50, Yanmar VIO50-1, Yanmar VIO50-2, Yanmar VIO55, Yanmar VIO55-5.
Maybe fit: Ackerman H3, Bobcat 442, Bobcat X442, Bobcat zx125, Case CX 47, Case 50B, Daewoo Solar 070, Daewoo Solar 075-V, Doosan S 75-V, Ferguson MF 760, Ferguson MF 860, Fermac 760, Fermac 860, Hanix H75B-2, Hitachi EX 58MU, Hyundai R 55-7, Hyundai R 80-7, IHI 50, IHI 55J, IHI (Cheiftain) 55J, IHI (Cheiftain) 65UJ, IHI 70Z, Ingersoll-Rand ZX125, Kato 140, Kobelco 70SR, Kobelco SK 60, Kobelco SK 70SR, Kobelco SK 70SR-1E, Kobelco SK 75UR, Kobelco SK 80MSR, Komatsu PC 40, Komatsu PC 45R-8, Komatsu PC 45R-8E, Komatsu PC 58UU-3, Komatsu WB 93-2, Komatsu WB146-5, Komatsu PS-5, Kubota KH151, Kubota KH161-3, Kubota KH191, Kubota KX151, Kubota KX161-2, Kubota KX161-3, Kubota KX191, Kubota KX251, Kubota RX501, Kubota U45, Liebherr R308, Liebherr R310, Samsung SE 50-3, Schaeff HR31, Schaeff HR32, SMC MX80, Sumitomo SH 65U w/ Knuckle Boom, Takeuchi TB 70, Takeuchi TB 70FR, Takeuchi TB 80FR, Takeuchi TB 175, Terex HR32, Volvo EC 55, Volvo EC50/W, Volvo ECR 58, Volvo ECR 88, Volvo MX 55/W, Volvo SE 50-3, Wacker Neuson 5002, Wacker Neuson 6002, Wacker Neuson 6003, Wacker Neuson 6502, Wacker Neuson 6503, Wacker Neuson 50z3, Yanmar B 7, Yanmar YB 50 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch.
Breaker Dimensions (without moil or hoses): 930mm(L) x 335mm(W) x 695mm(H), Weight: 233kgs.
The Weight of all the additional items: 43kgs.
Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
