New Geith Excavator Hydraulic Coupler Quick Hitch to suit 5-10 Ton machines. Designed for Bobcat zx125, Ingersoll-Rand ZX125, Kato 180, Kobelco 70SR / SK 60 / SK 70SR / SK 70SR-1E / SK 75UR / SK 80MSR, Komatsu WB146-5,PS-5, Takeuchi TB 70 / TB 70FR / TB 80FR / TB 175 etc. but will fit other machines (see below list of machines we have found so far).
Condition is New but it was sitting for some time and started getting surface rust. We cleaned it and gave a fresh coat of paint to protect it.

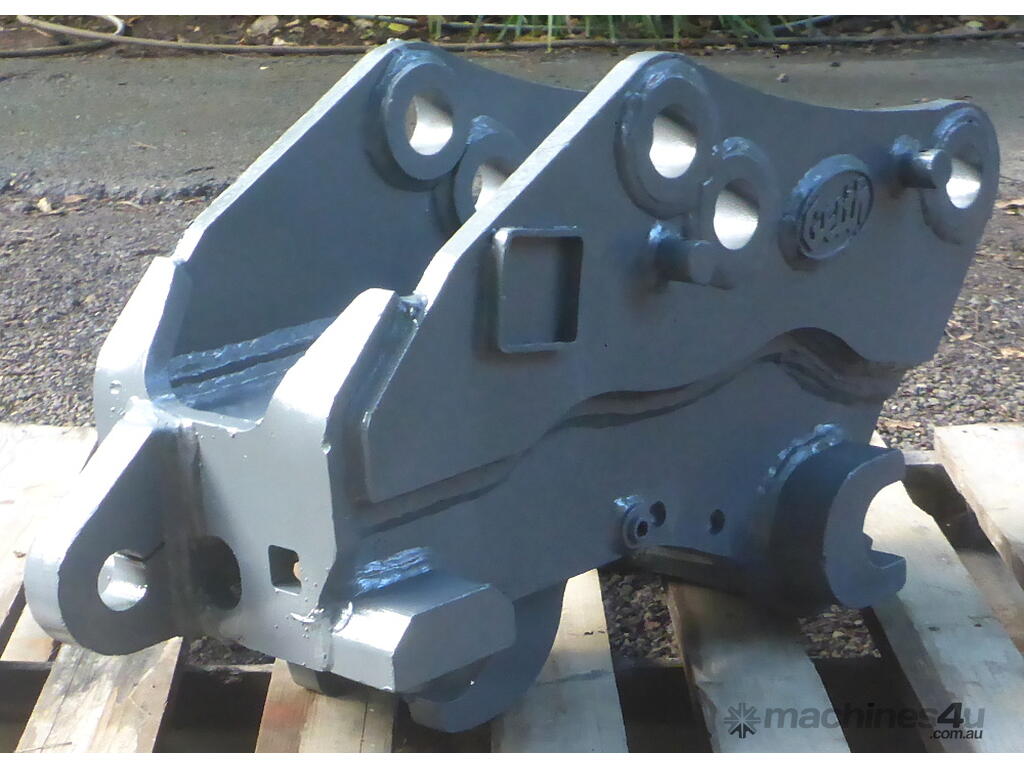

It has had extra wings added to take up the sideways slack when sitting in bigger buckets with a wide BTE (Between The Ears) spacing of 332mm or more (see pics# 7,9,10). These extra wings can be shaved back or cut off all together to allow it to fit in buckets with a smaller BTE of down to 210mm.

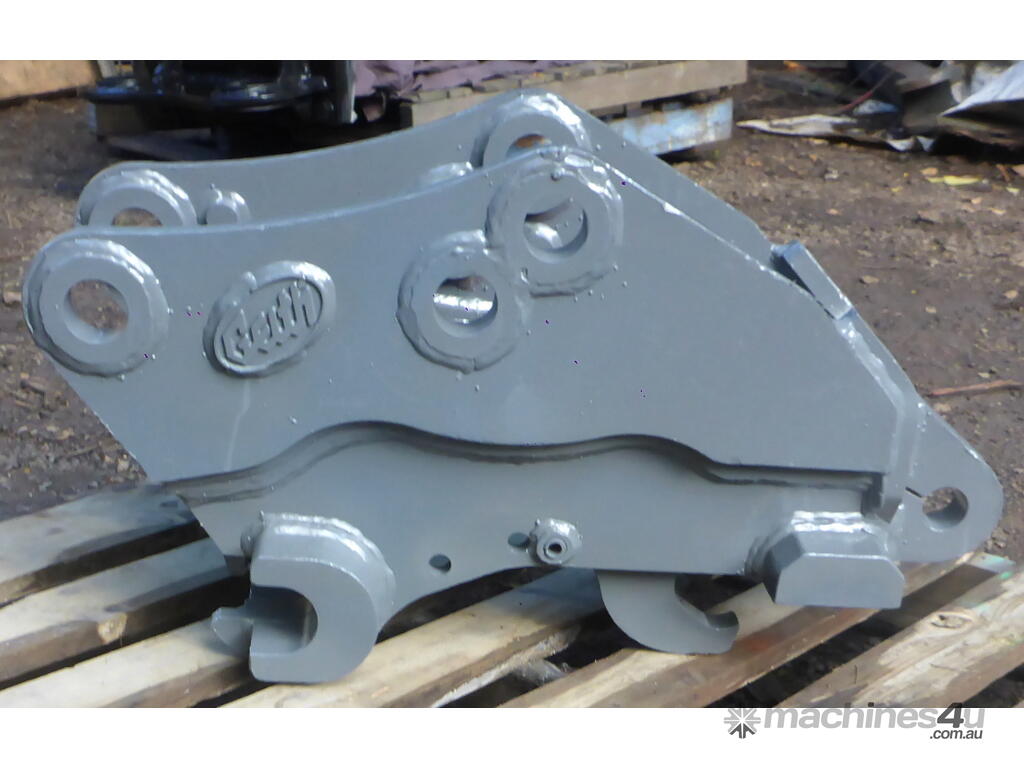

It also has 2 sets of rear pin holes where your machine's dipper arm goes in, to suit machines with either a 290mm or 365mm CtoC (Pin Center to Pin Center), (see pics# 1-3).
The pickup hooks that grab your bucket pins look like they will accommodate diameters of 50mm and up to 60mm Pins, so your 50mm Pin machine could grab buckets with up to 60mm Pins.
This is a quality built Hitch made in Ireland by Geith.
Pin Setup Dimensions (where your Dipper Arm goes in):
* Pin Diameter: 50mm.
* Pin Center to Pin Center (CtoC): 290mm or 365mm.
* Between The Ears (BTE): 202mm Between the inside Ear Bosses of the hitch (which can be shaved back up to 230mm between the Ear Plates if you need more inside width for your excavator's dipper arm to fit in).
Pin Setup Dimensions (where the Hitch goes in your bucket):
* Pin Diameter: 50-60mm.
* Pin Center to Pin Center (CtoC): this is a variable pin spacing hitch (Multi-Hitch), not sure on the full range of distances.
* Between The Ears (BTE): currently with the 4 extra wings attached is 332mm, shaving them back or fully removing them would allow the hitch to fit into bucket headstocks of down to 210mm Between the Ears.
*** Using the 290mm CtoC Pin Holes:
Should fit: Bobcat zx125, Ingersoll-Rand ZX125, Kobelco 70SR, Kobelco SK 60, Kobelco SK 70SR, Kobelco SK 70SR-1E, Kobelco SK 75UR, Kobelco SK 80MSR, Komatsu WB146-5,PS-5, Takeuchi TB 70, Takeuchi TB 70FR, Takeuchi TB 80FR, Takeuchi TB 175.
Maybe fit: Ackerman H3, Bobcat 442, Bobcat X442, Case 9007, Case 9007B, Case CX 75SR, Case CX 80SR, Caterpillar 308D, Caterpillar 308e2cr, Hitachi EX 60-5, Hitachi EX 60-5 Import, Hitachi EX 75-5, Hitachi EX 80 Import, Hitachi Zaxis 75US, Hitachi Zaxis 80, JCB JS 70, JCB JZ 70, John Deere 75C, John Deere 80C, Kato 140, Kato 180G, Kobelco 80CS, Komatsu PC 60, Komatsu PC 60-5, Komatsu PC 60-6, Komatsu PC 60-7, Komatsu PC 70FR, Komatsu PC 75UU, Komatsu PC 75UU-1, Komatsu PC 75UU-2, Komatsu PC 75UU-3, Komatsu PC 78MR-6, Komatsu PC 80-1, Komatsu PC 80-2, Komatsu PC 80-3, Komatsu PC 90-1, Komatsu PC 95R-2, Komatsu SV100, Link-Belt 75SA (Mono & Offset), Link-Belt 80SA, Link-Belt 1600 QUANTUM, New Holland EH 70, New Holland EH 80 CS, Sany SY 75C, Schaeff HR31, Schaeff HR32, Sumitomo LS 1600F2U, Sumitomo SH 60, Sumitomo SH 60-2, Sumitomo SH 60DX-2, Sumitomo SH 60SP, Sumitomo SH 60SR, Sumitomo SH 60X-2, Sumitomo SH 75U, Sumitomo SH 75U-2, Sumitomo SH 75UU, Sumitomo SH 75X-2, Sumitomo SH 75X-3, Sunward SWE 75, Terex HR32, Yanmar B 7, Yanmar B 7 SIGMA, Yanmar VIO70, Yanmar VIO75.
*** Using the 365mm CtoC Pin Holes:
Should fit: Kato 180.
Maybe fit: Case 488, Hitachi EX 90, JCB 3CX Std to Suit G65 Bush, MacMotor M8M.
Hitch dimensions: 780mm long, 332mm wide, 485mm high.
Weight: 150kg.
Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
