New 5-10 ton (50mm Pin) Excavator Hydraulic Grapple Grab

New Jea Wen ASC50 Excavator Hydraulic Grapple Grab suit 5-10 Ton machine.

Designed for Rock & Log work, but can also be used for demolition and general material handling, picking things up, moving them around and other careful placement tasks.

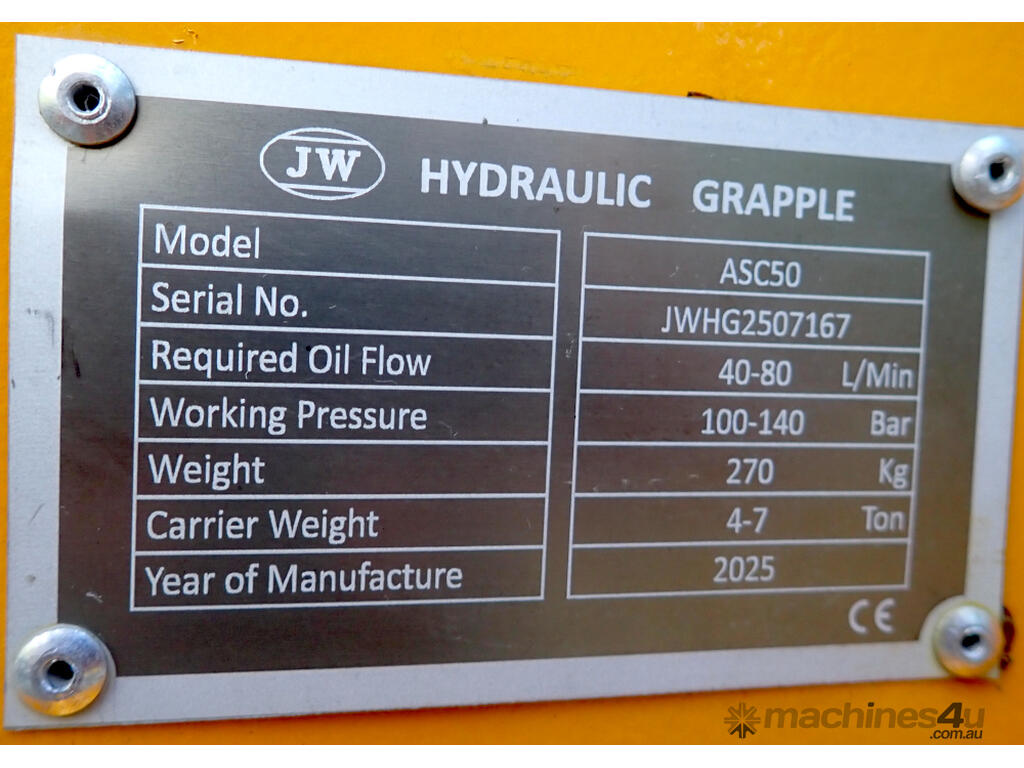

Required Oil Flow: 40-80 L/min.
Working Pressure: 100-140 bar.

Opening Width: 870mm.

Width of 2 Tynes: 290mm.
Width of 3 Tynes: 490mm.

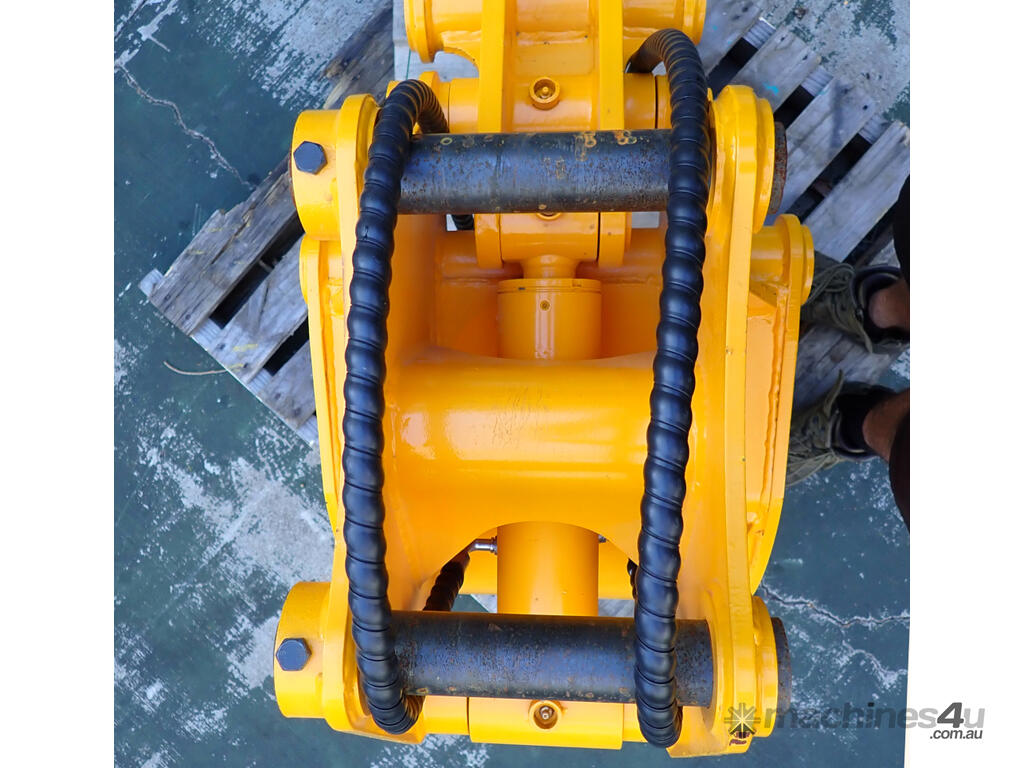

*** Current Headstock configuration:
* Pins: 50mm
* Pin Center to Pin Center (CtoC): 300mm
* Between the Ears (BTE): 200mm Between the inside Ear Bosses (which can be shaved back up to 216mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
*
* Should fit: Case 9007 / 9007B / CX 75SR / CX 80SR, Caterpillar 307 / 308D / 308e2cr, Hitachi EX60-5 / EX60-5 Import / EX75-5 / EX80 Import, Hitachi Zaxis 75US / 80, JCB JS 70 / JZ 70, John Deere 75C / 80C, Kato 180G, Kobelco 70SR / 80CS / SK 60 / SK 70SR / SK 70SR-1E / SK 75UR / SK 80MSR, Link-Belt 75SA (Mono & Offset) / 80SA / 1600 QUANTUM, New Holland EH 70 / EH 80 CS, Sany SY 75C, Sumitomo LS 1600F2U / SH 60 / SH 60-2 / SH 60DX-2 / SH 60SP / SH 60SR / SH 60X-2 / SH 75U / SH 75U-2 / SH 75UU / SH 75X-2 / SH 75X-3, Sunward SWE 75, Takeuchi TB 70 / TB 70FR / TB 80FR / TB 175.
*
* Maybe fit: Bobcat 442 / X442, Kato 140, Komatsu PC 60 / PC 60-5 / PC 60-6 / PC 60-7 / PC 70FR / PC 75UU / PC 75UU-1 / PC 75UU-2 / PC 75UU-3 / PC 78MR-6 / PC 80-1 / PC 80-2 / PC 80-3 / PC 90-1 / PC 95R-2 / SV100 / WB146-5,PS-5, Schaeff HR31 / HR32, Terex HR32, Yanmar B 7 SIGMA / VIO70 / VIO75 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

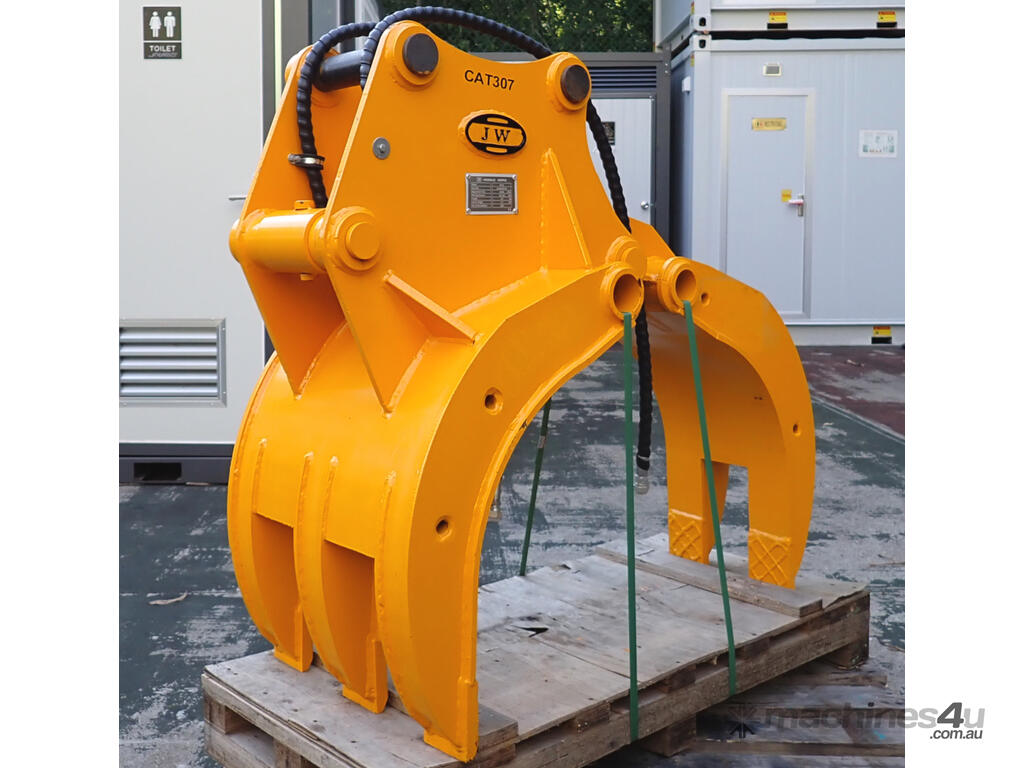

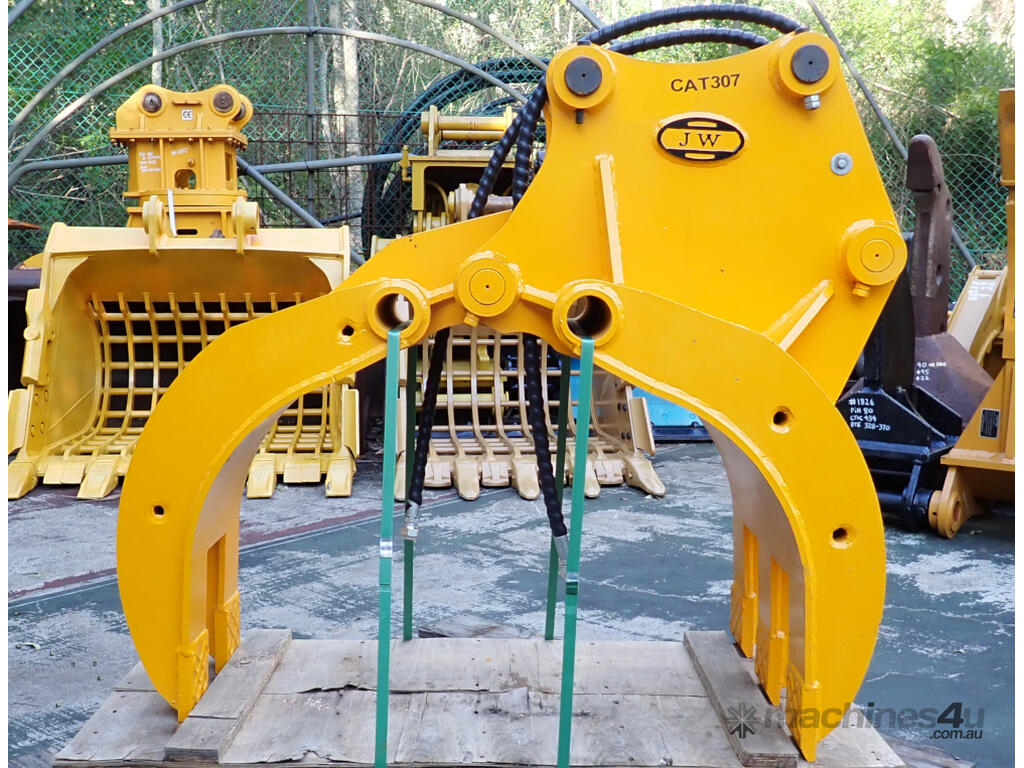

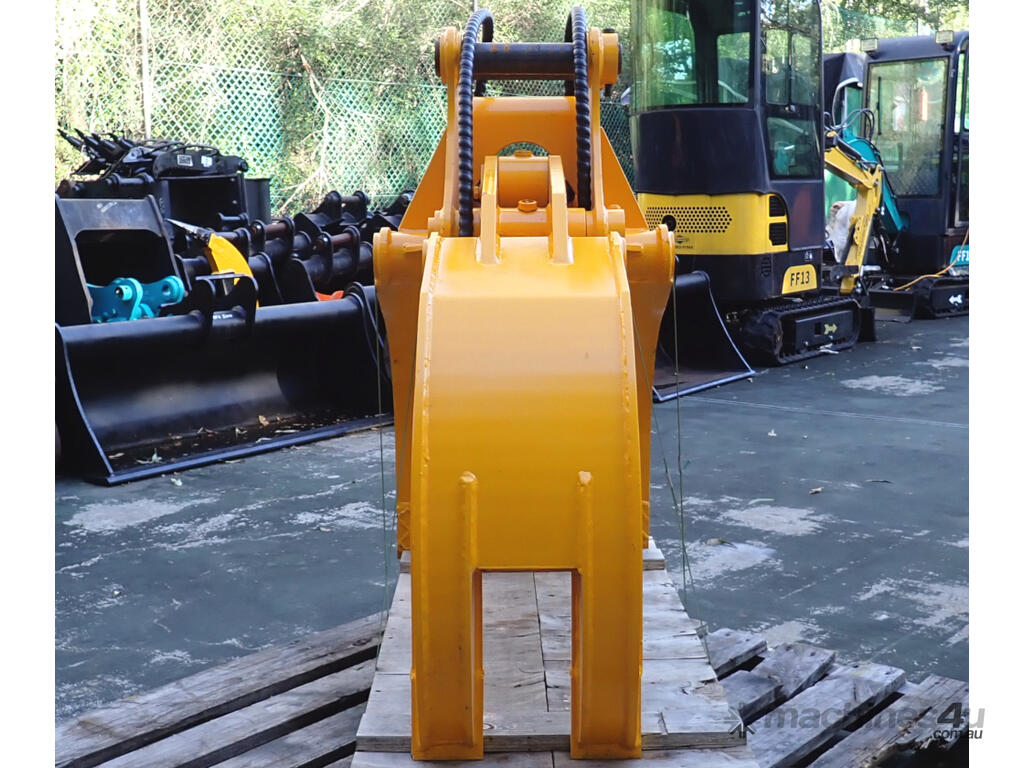

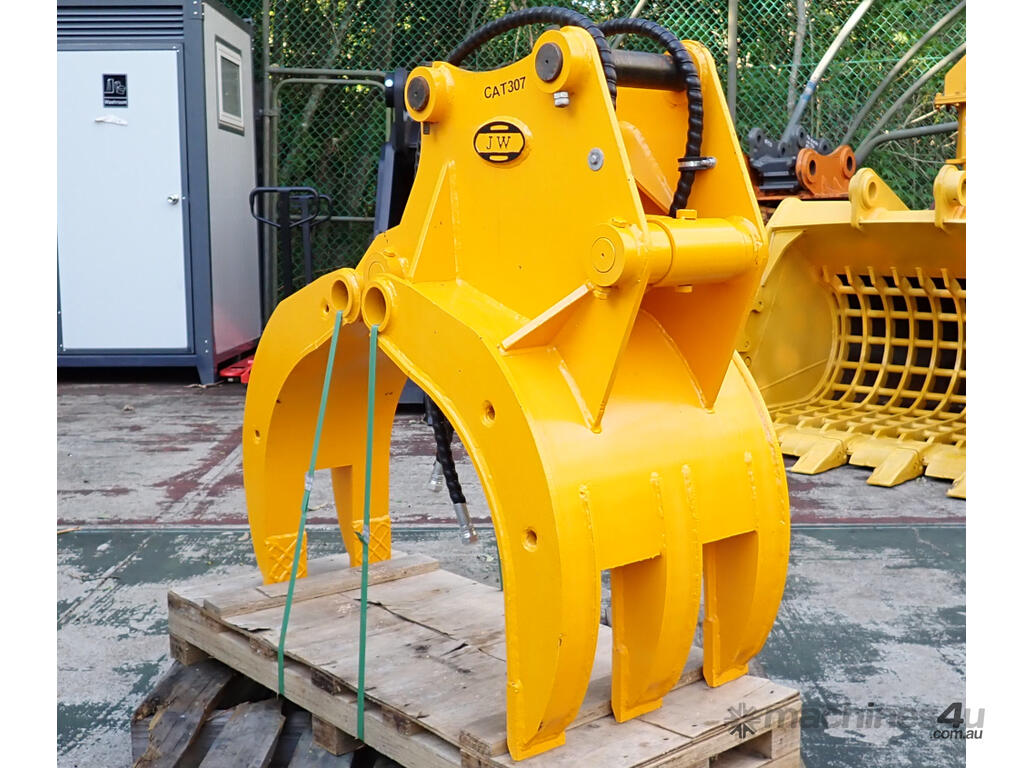

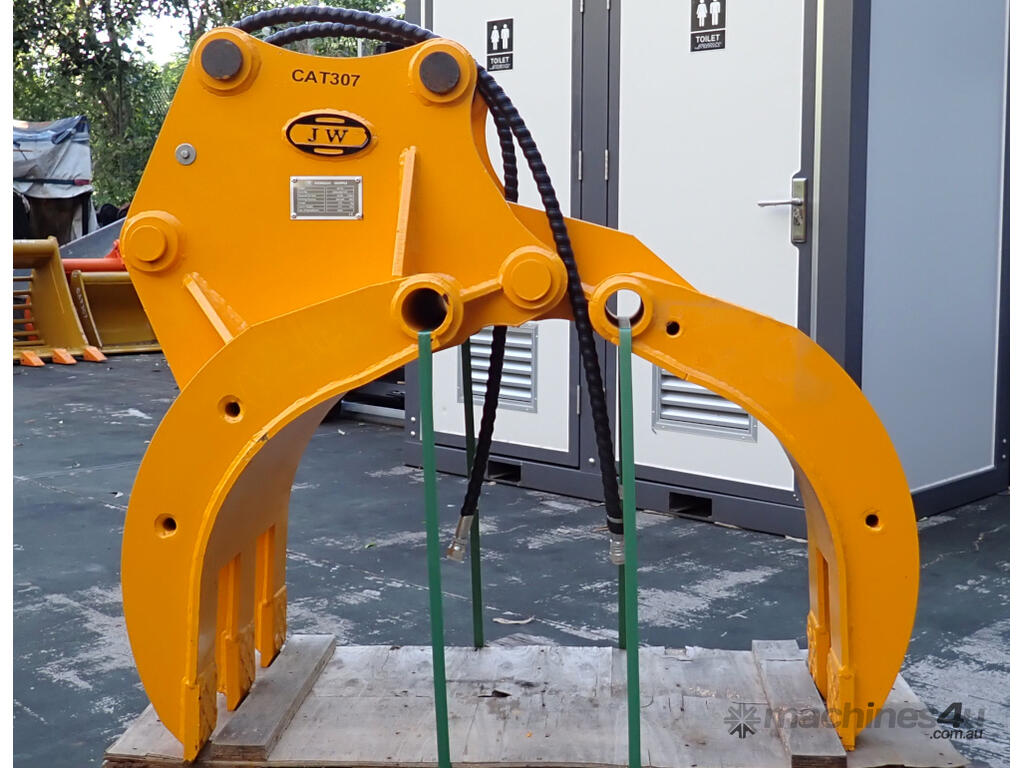

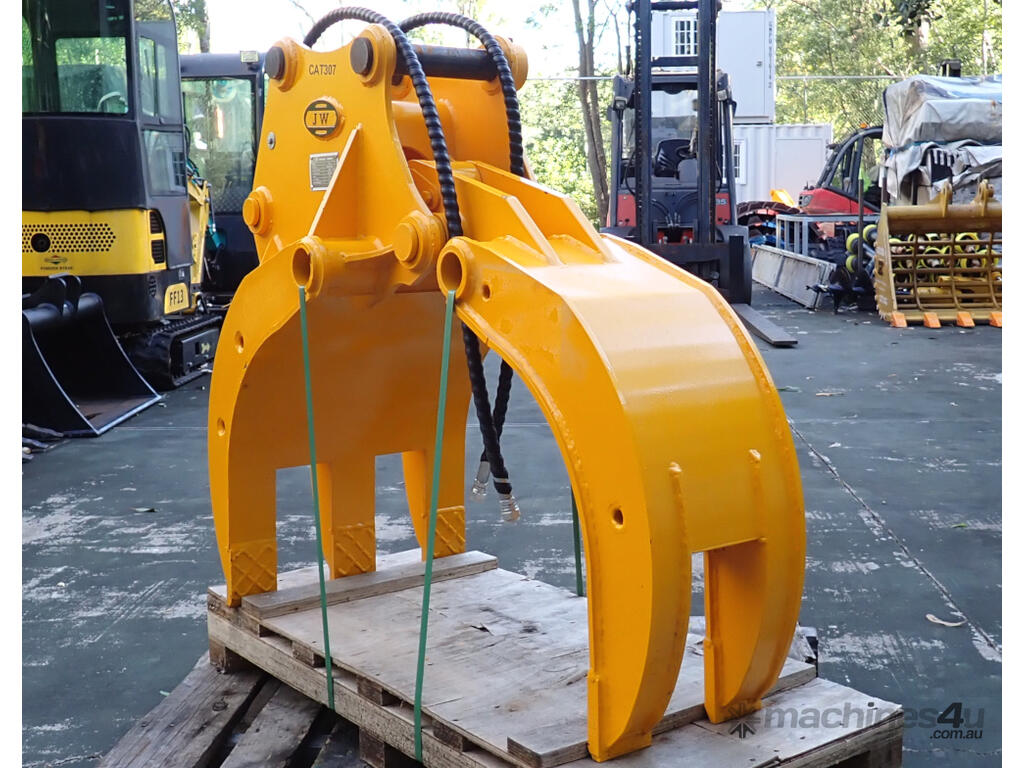

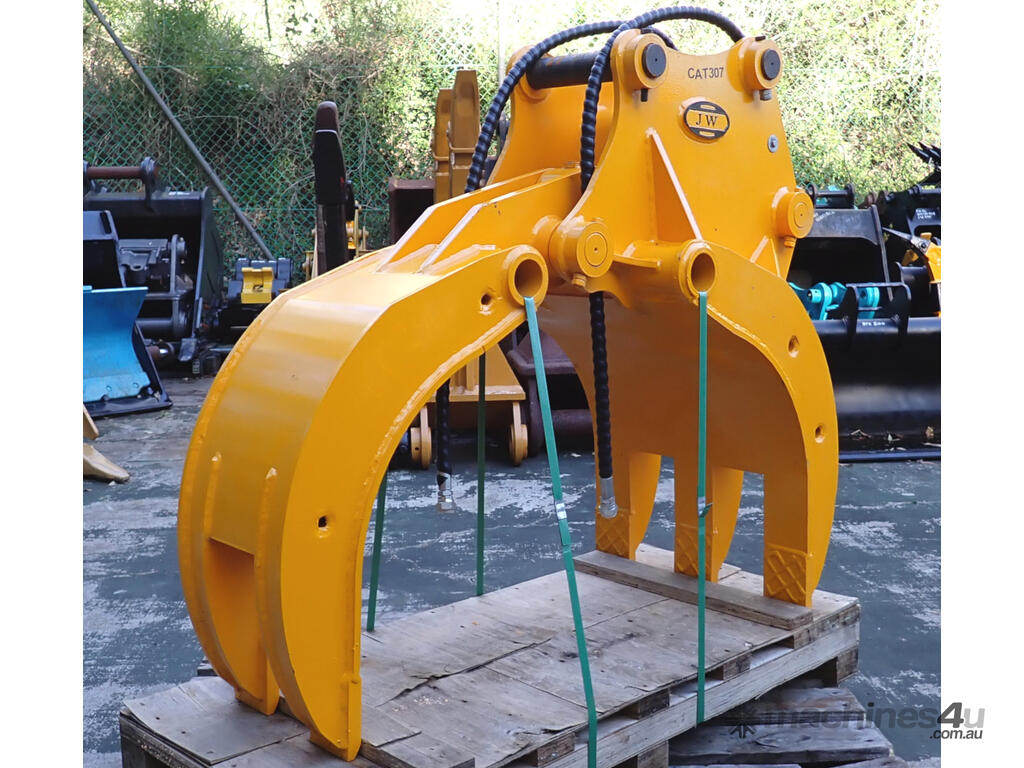

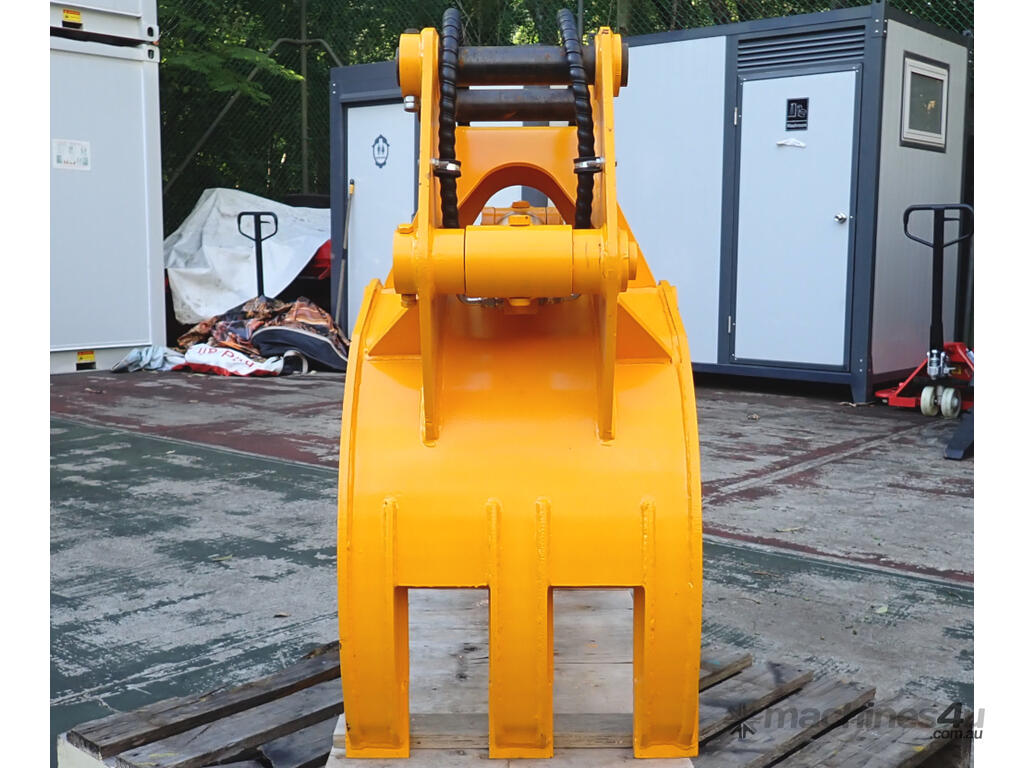

Grapple Dimensions (standing as in pics): 491mm wide, 1130mm long, 982mm high. Weight: 244kg.

Shipping Dimensions (strapped to pallet): 500mm wide, 1155mm long, 1118mm high. Weight: 254kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
