New 5-10 ton (50mm pin) Excavator Mechanical Quick Hitch Coupler

New Hong Wing Excavator Mechanical Quick Hitch Coupling to suit 5-10 Ton machines.

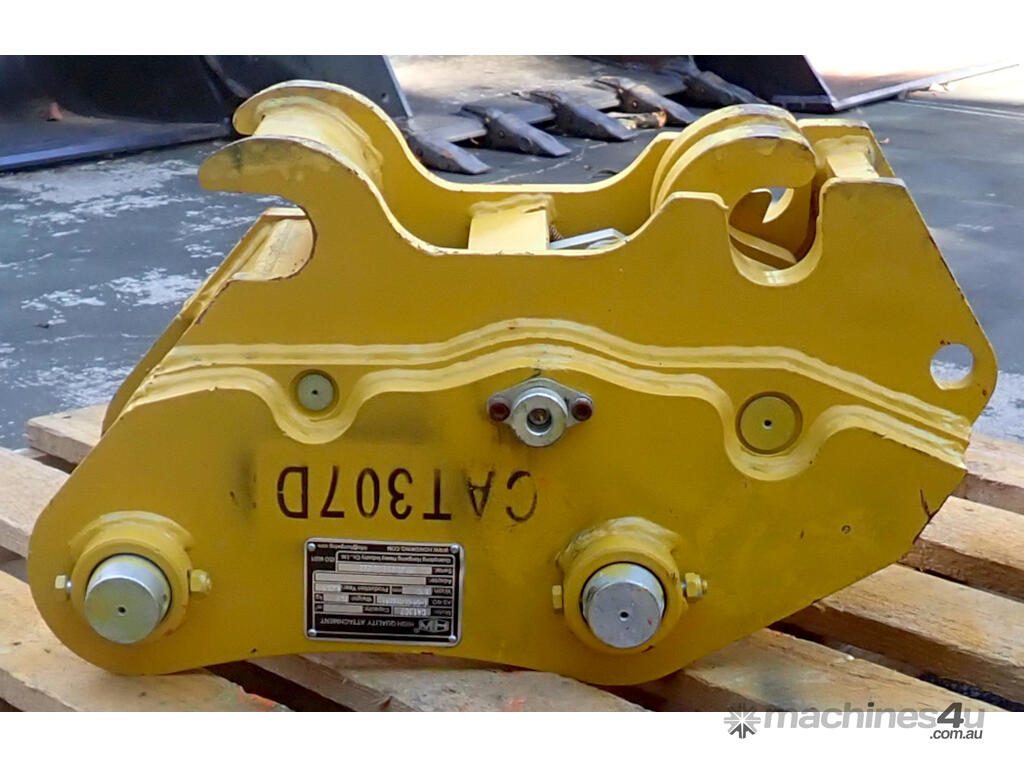

Want a quick hitch but don't have any spare auxiliary hydraulic lines for a hydraulic hitch? This hitch is identical to a hydraulic hitch setup except the rear bucket pin is held in place with a spring loaded pin hook (see pics# 5).

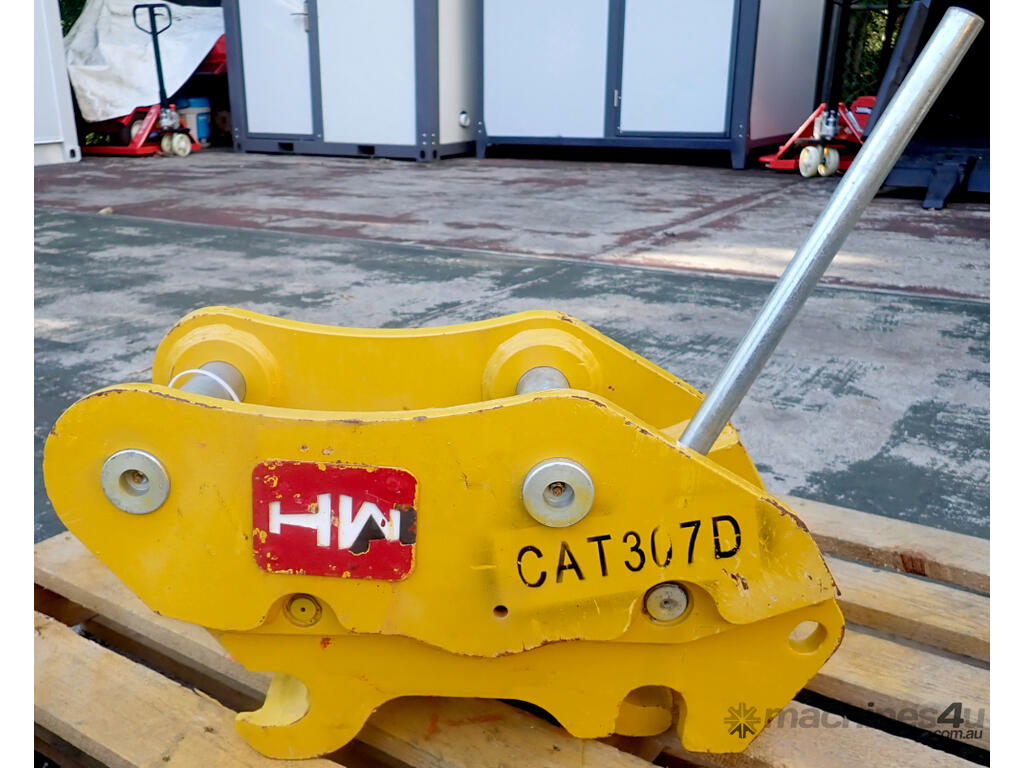

There is no need to pull either of the pins out of your buckets and try to line up the bucket holes with the hitch holes (like a half hitch requires). Instead you simply hook the hitch into your bucket's front pin just like a full hydraulic hitch, then use the lever pole supplied to open the rear hook, rock the hitch down to seat the rear pin in, then release the spring loaded hook over the rear pin.

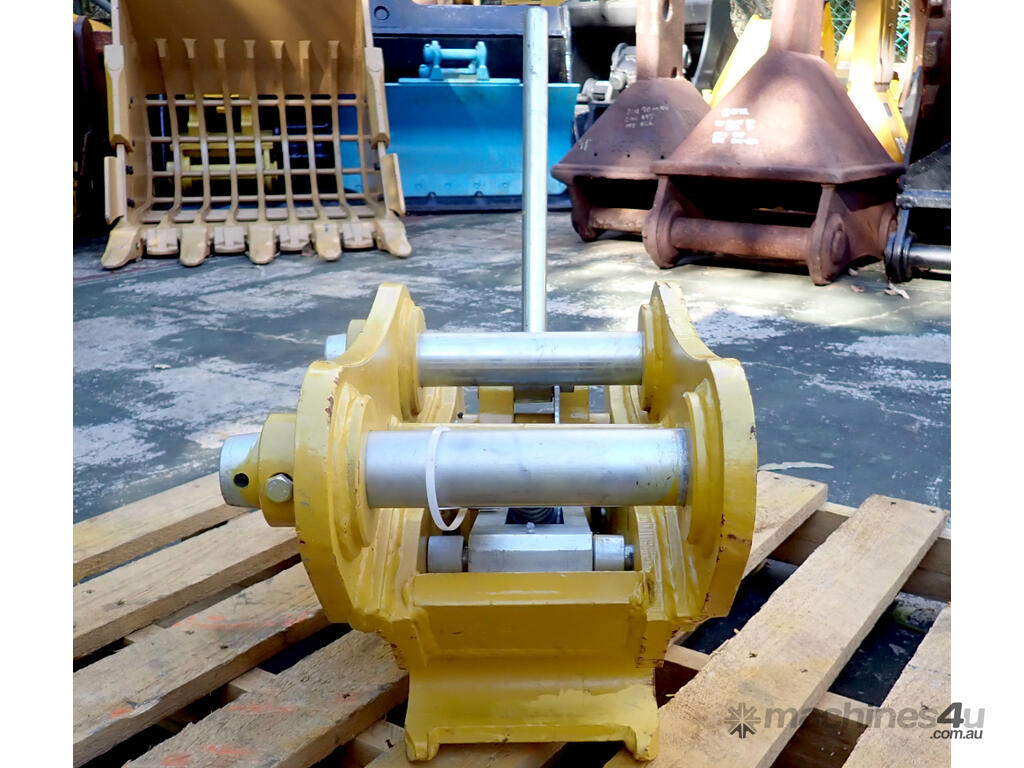

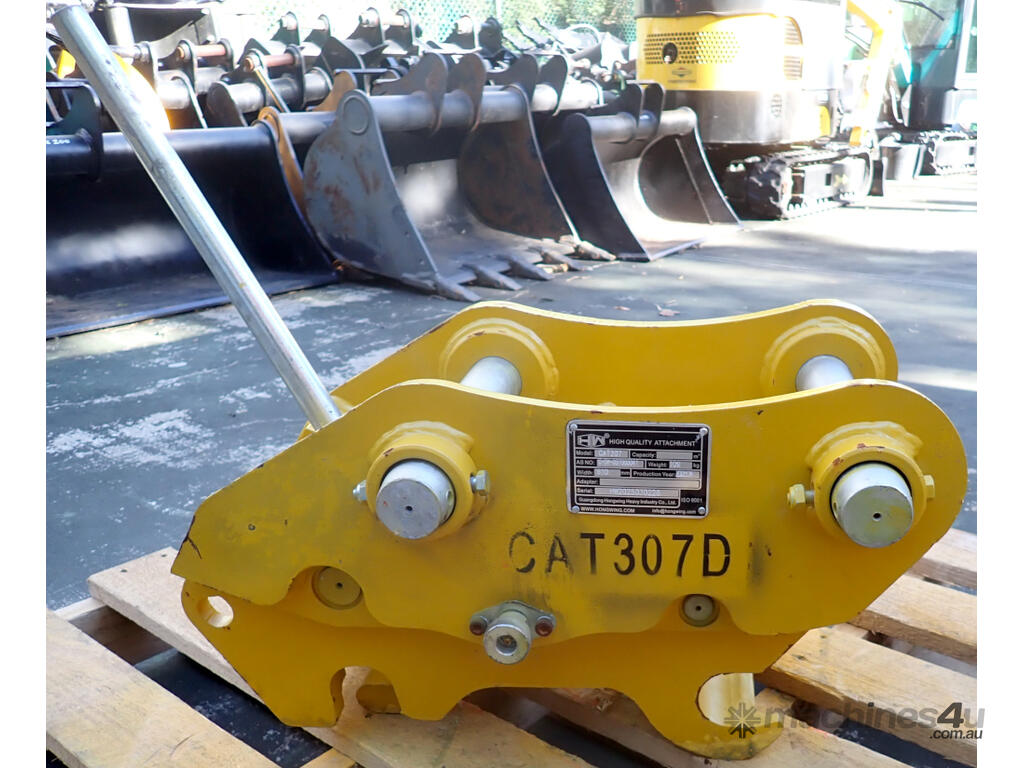

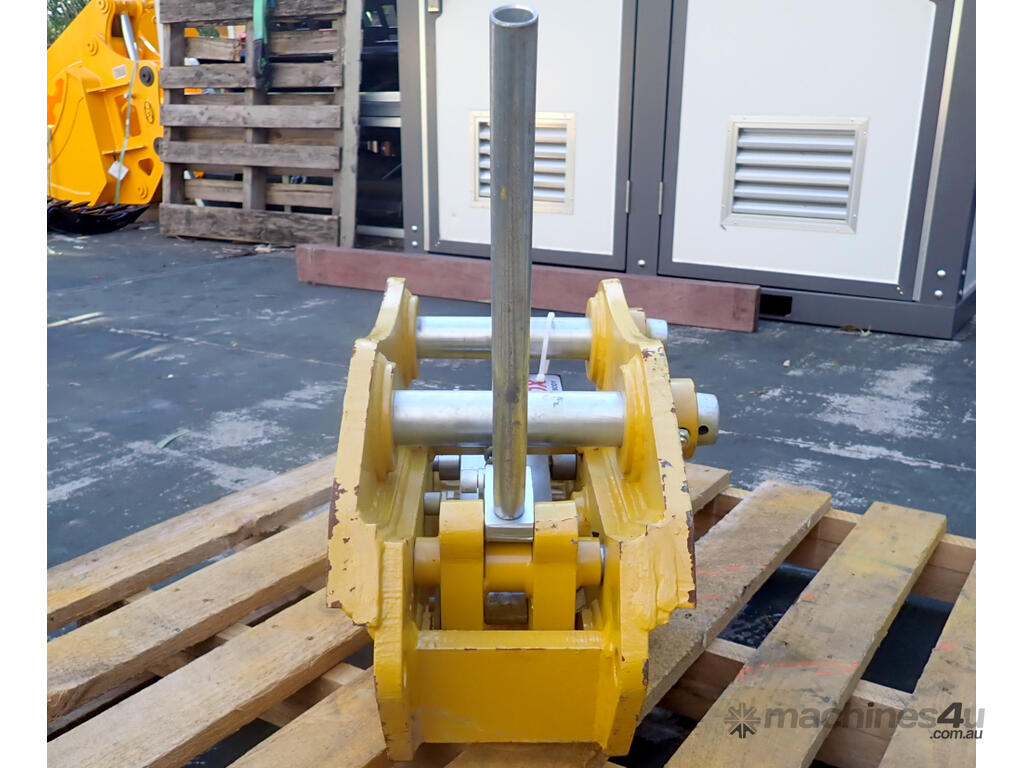

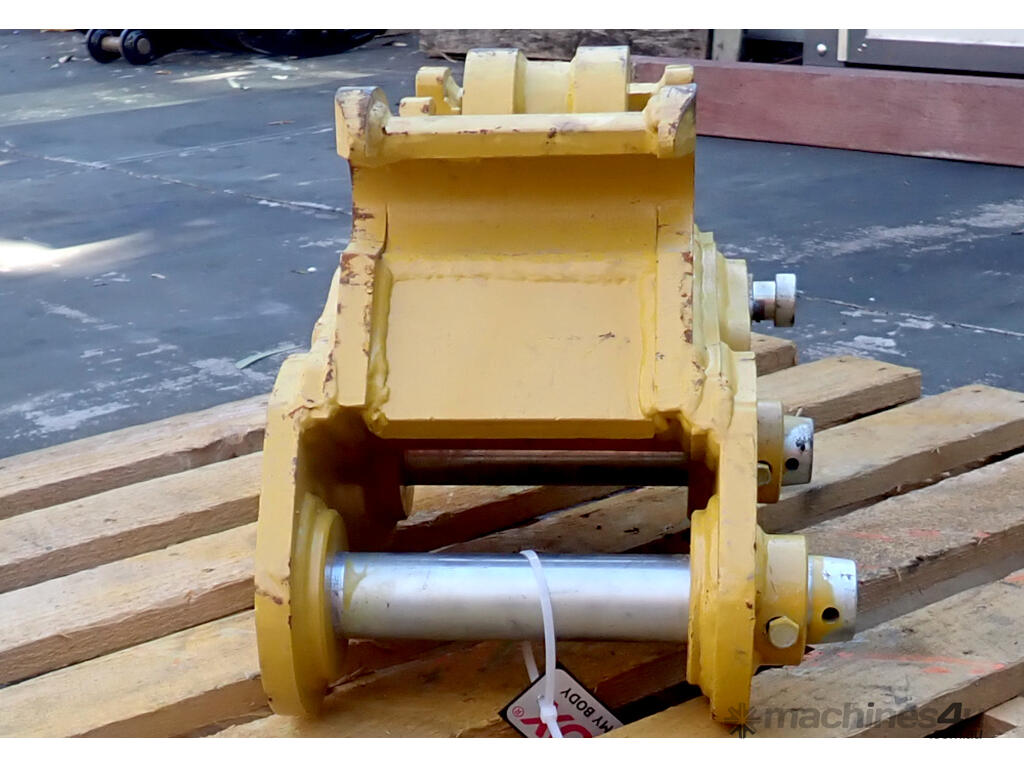

There is a spring loaded locking pin to ensure the bucket stays in the hitch (see silver pin on pics# 3, 5-7, 9-10).

There is also 2 rear lifting eye hooks.


***** Current Headstock Setup:
*
*** Upper Hitch: (where your machine's Dipper Arm goes into the hitch):
* Pin Size: 50mm.
* Pin Center to Pin Center (CtoC): 305mm.
* Between the Ears (BTE): 200mm Between the inside Ear Bosses (which can be shaved back up to 228mm between the Ear Plates if you need more inside width for your excavator's dipper arm to fit in).
*
*** Lower Hitch: (where the hitch goes into the Bucket):
* Pin Size: 50mm.
* Pin Center to Pin Center (CtoC): 305mm.
* Between the Ears (BTE): 199mm width (your buckets/attachments need to have at least this much width or more gap between the ears).
*
* Should fit: Caterpillar 307D, 308D.
*
* Maybe fit: Case 9007 / CX 75SR / CX 80SR, Caterpillar 308e2cr, Hitachi EX60-5 / EX60-5 Import / EX75-5 / EX80 Import, Hitachi Zaxis 75US / 80, JCB JS 70 / JZ 70, John Deere 75C / 80C, Kato 180G, Sany SY 75C, Sumitomo LS 1600F2U / SH 60 / SH 60-2 / SH 60DX-2 / SH 60SP / SH 60SR / SH 60X-2 / SH 75U / SH 75U-2 / SH 75UU / SH 75X-2 / SH 75X-3, Sunward SWE 75, Yanmar VIO70 and possibly other machines with similar pin spacings.


Hitch dimensions: 590mm Long, 337mm Wide, 340mm High. Weight: 102kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
