New 5-11 ton (50, 45, 55 or 60mm pin) Excavator Hydraulic Thumb Bucket Grapple Grab

New Jea Wen JW05B Excavator Hydraulic Thumb Grapple Grab Bucket suit 5-11 Ton machine. The bucket moves as a normal bucket attached to your hitch or to your dipper arm. The Thumb moves Hydraulically.

Designed for Rock & Log work, but can also be used for demolition and general material handling, picking things up, moving them around etc.

Required Oil Flow: 30-55 L/min.
Working Pressure: 110-140 bar.

Opening Width: 1300mm.

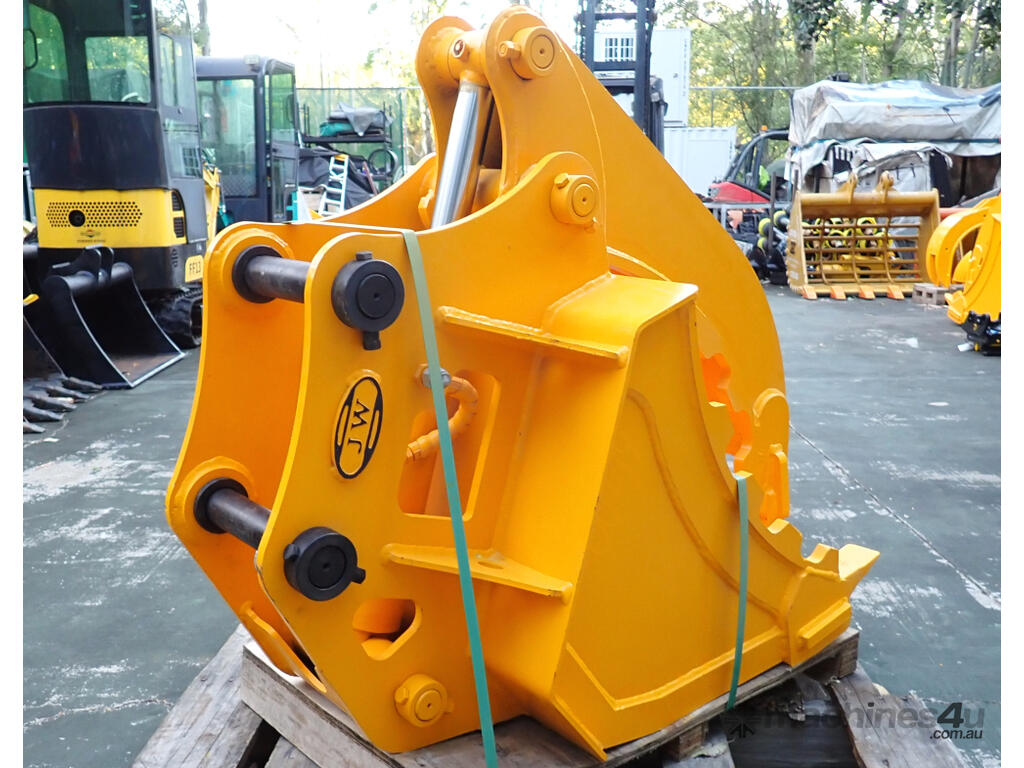

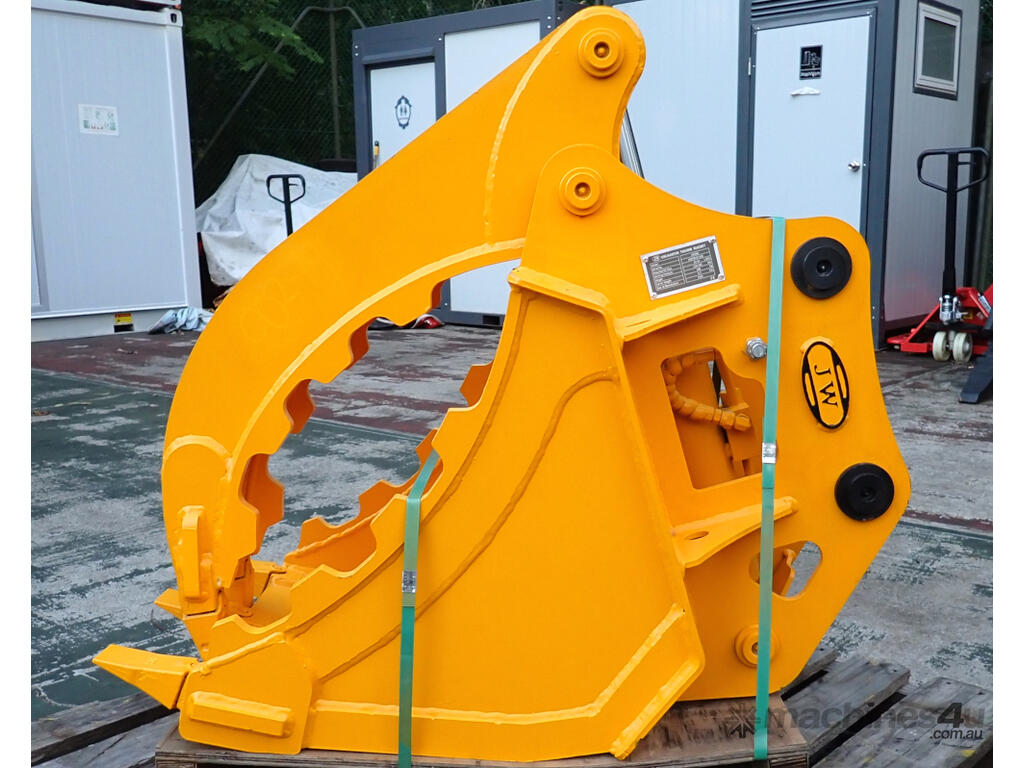

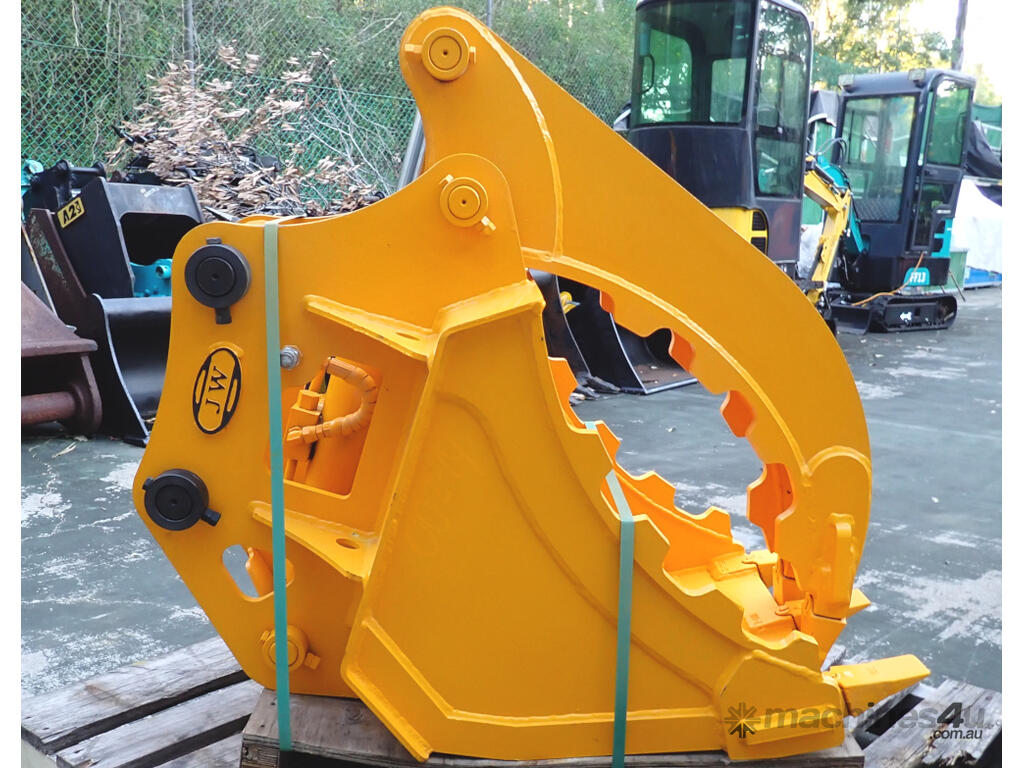

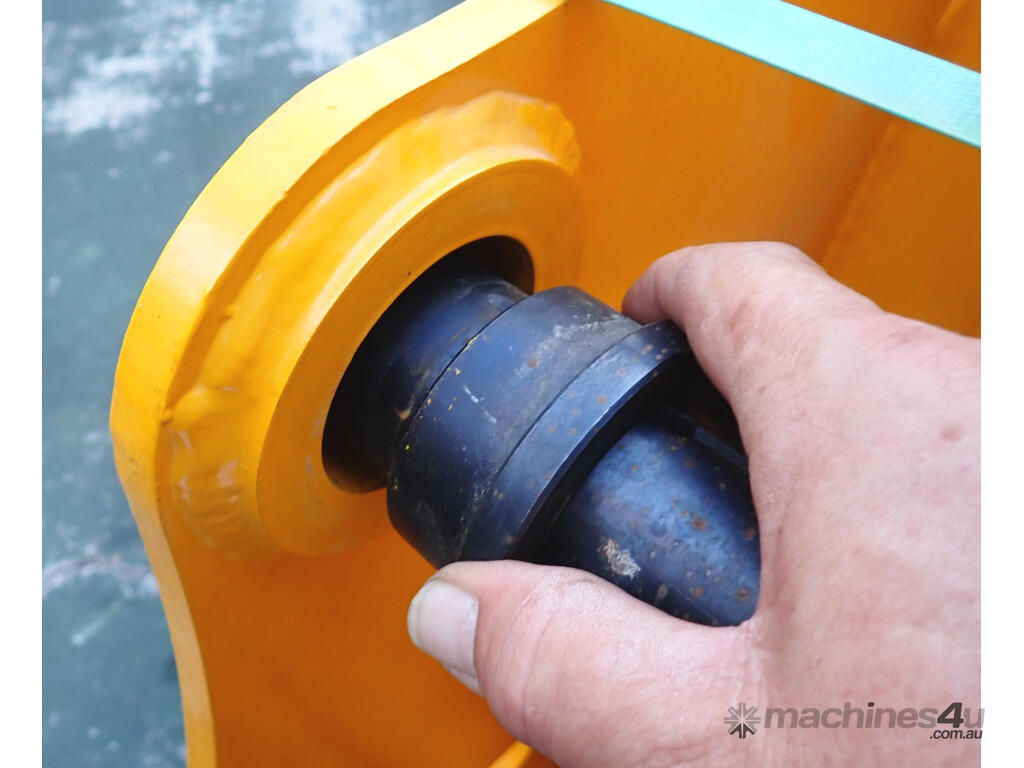

Currently setup for 50mm pins but could easily be configured for 45mm by Lathing the pins in the middle, or to 55mm or 60mm pins by boring out the holes in the removable collars (see pic #10) and inserting bigger pins.

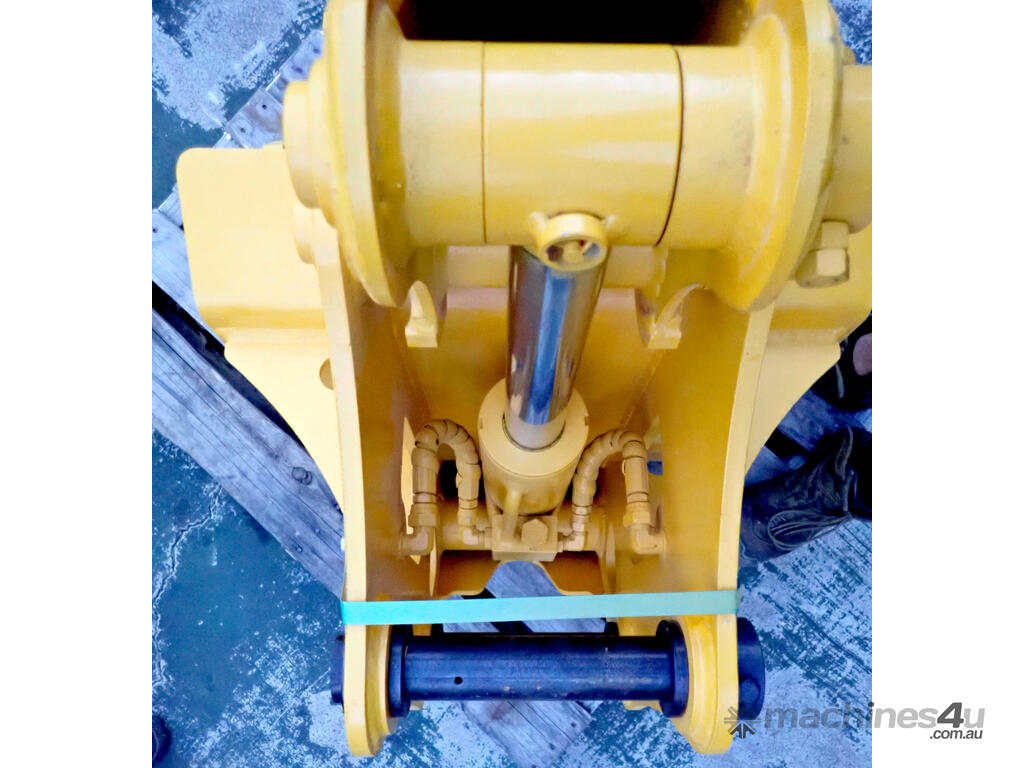

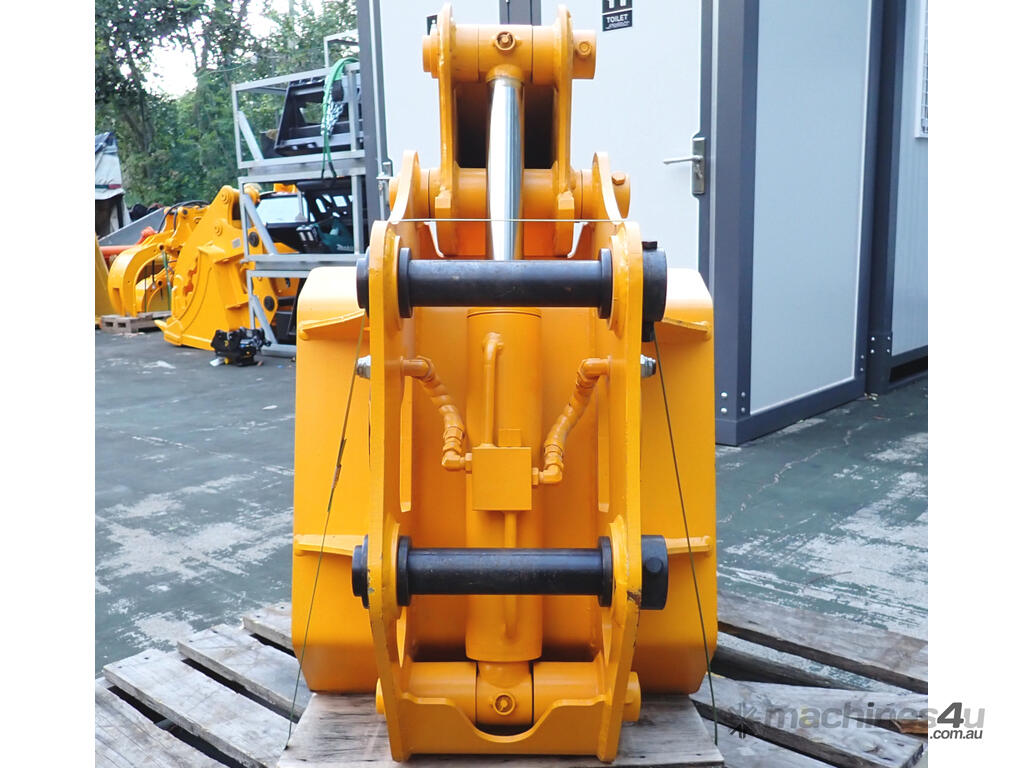

*** Headstock Dimensions:
* The Pin Diameter is 50mm but they are fitted into collar bosses that fit into 65mm diameter Pin holes (see pic# 10), so pins up to 65mm diameter can be fitted without needing to bore out the holes in the bucket's headstock.
* The Pin Center to Pin Center (CtoC) is 305mm.
* The distance between the collar bosses is 199mm. Removing the collar bosses, the distance between the headstock bosses is 221mm, but these welded-on-bosses could also be shaved back on the insides to a maximum of 244mm (the distance Between the Ear Plates), if you need more inside width for your hitch or dipper arm to fit into.


*** 50mm Pin configuration (current):
*
* Should fit: Case 9007 / 9007B / CX 75SR / CX 80SR, Caterpillar 308D / 308e2cr, Hitachi EX60-5 / EX60-5 Import / EX75-5 / EX80 Import, Hitachi Zaxis 75US / 80, JCB JS 70 / JZ 70, John Deere 75C / 80C, Kato 180G, Komatsu PC 60 / PC 60-5 / PC 60-6 / PC 60-7 / PC 70FR / PC 75UU / PC 75UU-1 / PC 75UU-2 / PC 75UU-3 / PC 78MR-6 / PC 80-1 / PC 80-2 / PC 80-3 / PC 90-1 / PC 95R-2 / SV100, Link-Belt 75SA (Mono & Offset) / 80SA / 1600 QUANTUM, New Holland EH 70 / EH 80 CS, Sany SY 75C, Sumitomo LS 1600F2U / SH 60 / SH 60-2 / SH 60DX-2 / SH 60SP / SH 60SR / SH 60X-2 / SH 75U / SH 75U-2 / SH 75UU / SH 75X-2 / SH 75X-3, Sunward SWE 75, Yanmar B 7 SIGMA / VIO70 / VIO75.
*
* Maybe fit: Bobcat 442 / X442 / zx125, Ingersoll-Rand ZX125, Kobelco 70SR / 80CS / SK 60 / SK 70SR / SK 70SR-1E / SK 75UR / SK 80MSR, Komatsu WB146-5,PS-5, Schaeff HR32, Takeuchi TB 70 / TB 70FR / TB 80FR / TB 175, Terex HR32, Yanmar B 7 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


*** As a 45mm Pin configuration (lathe the middle of the 50mm pins down to 45mm):
*
* Should fit: Caterpillar 307 / 308 / E 70B, Daewoo Solar 070-3 / 080-3 / 080W-3, Hitachi EX60 / EX60-3 / EX60-5 UK Version, Volvo BL70 / BL71 / BL71B.
*
* Maybe fit: Daewoo Solar 070 / 075-V, Doosan S 75-V, Ferguson MF 760 / MF 860, Fermac 760 / 860, Hyundai R 55-7, Komatsu WB 93-2, Samsung SE 50-3, Volvo EC50/W / EC55 / EC55B / ECR58 / MX 55/W / Volvo SE 50-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


*** As a 55mm Pin configuration (bore out Collars & insert 55mm pins):
*
* Should fit: Gehl GE 803, Hyundai R 95W-3, John Deere 310SG Std or Ext Stick / 315SG / 410G Std or Ext Stick / 410J, Wacker Neuson 8003 / 9503 / 75z3.
*
* Maybe fit: Hyundai R 80-7, Kato 250 / HD 307 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


*** As an 60mm Pin configuration (bore out Collars & insert 60mm pins):
*
* Should fit: Hanix H50B-2, Kubota KX 80-3.
*
* Maybe fit: Hanix H75B-2, Kubota KX251, Liebherr R308 / R310, SMC MX80, Volvo ECR88 / ECR88C, Wacker Neuson 12002 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

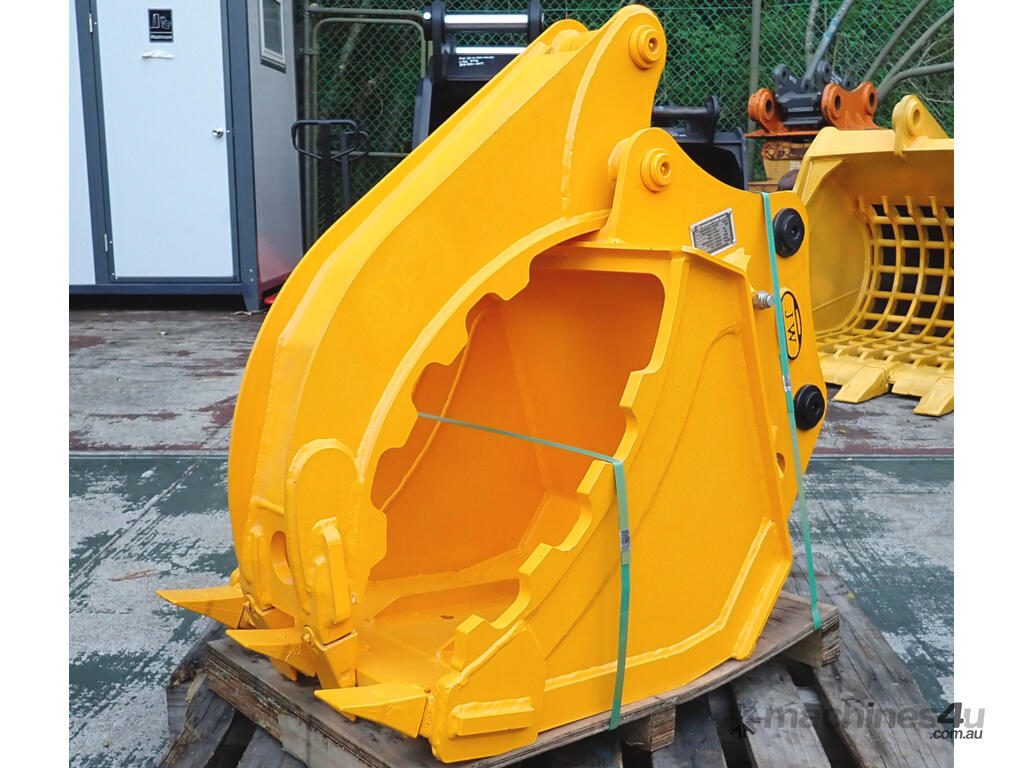

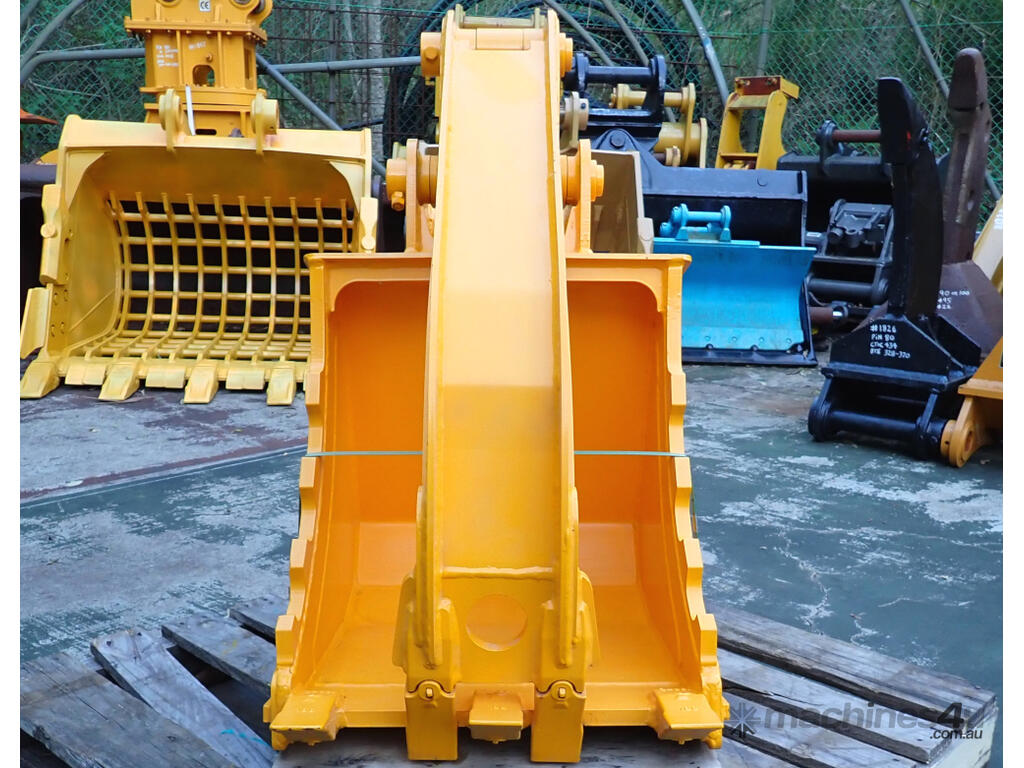

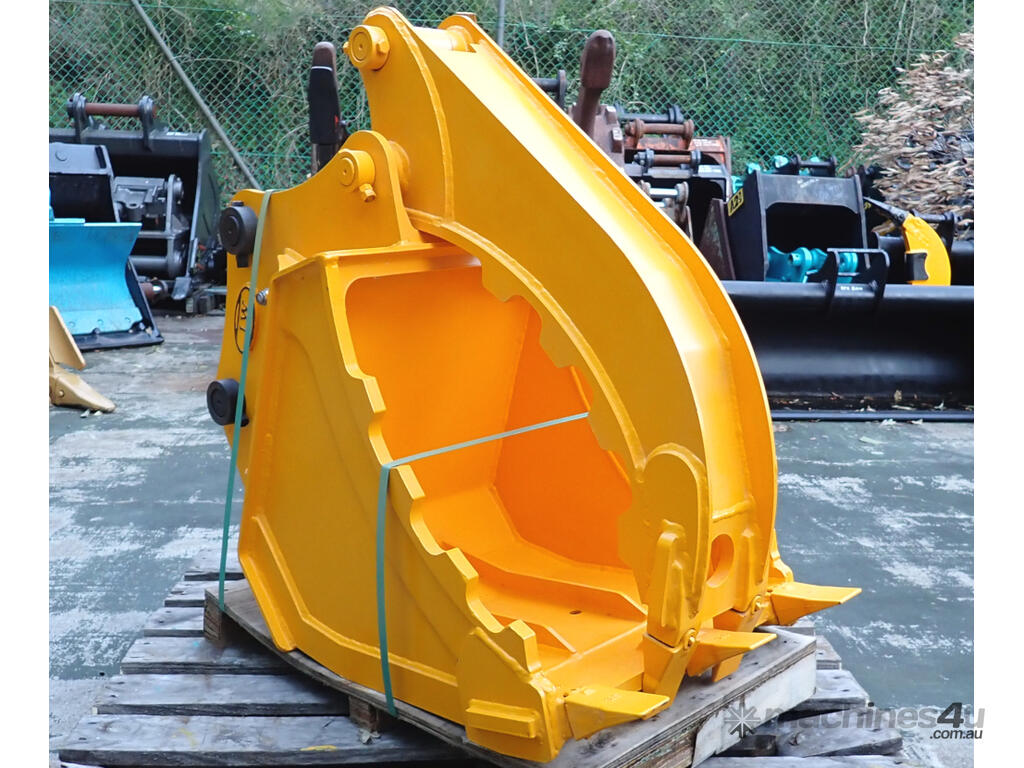

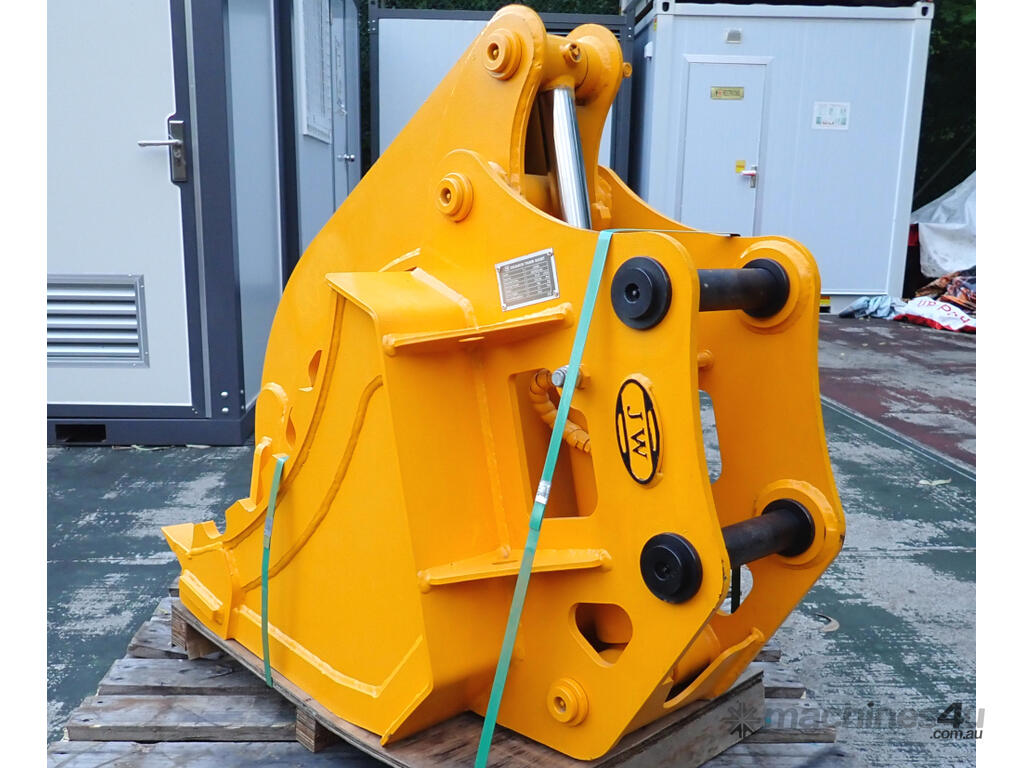

Dimensions (sitting as in pics): 570mm wide, 1070mm long, 950mm high. Weight: 255kg.

Shipping Dimensions (strapped to pallet): 570mm wide, 1070mm long, 1020mm high. Weight: 262kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
