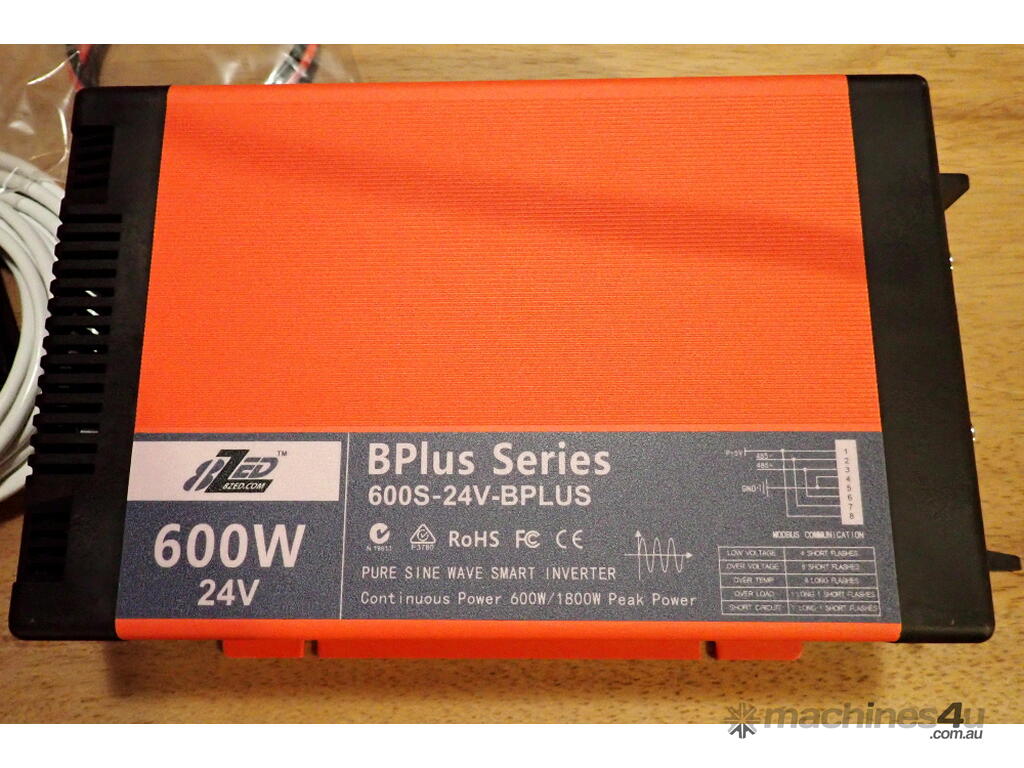

New 600w/1800w peak 24Vdc-240Vac Pure Sine Wave Smart Power Inverter

RRP $560.

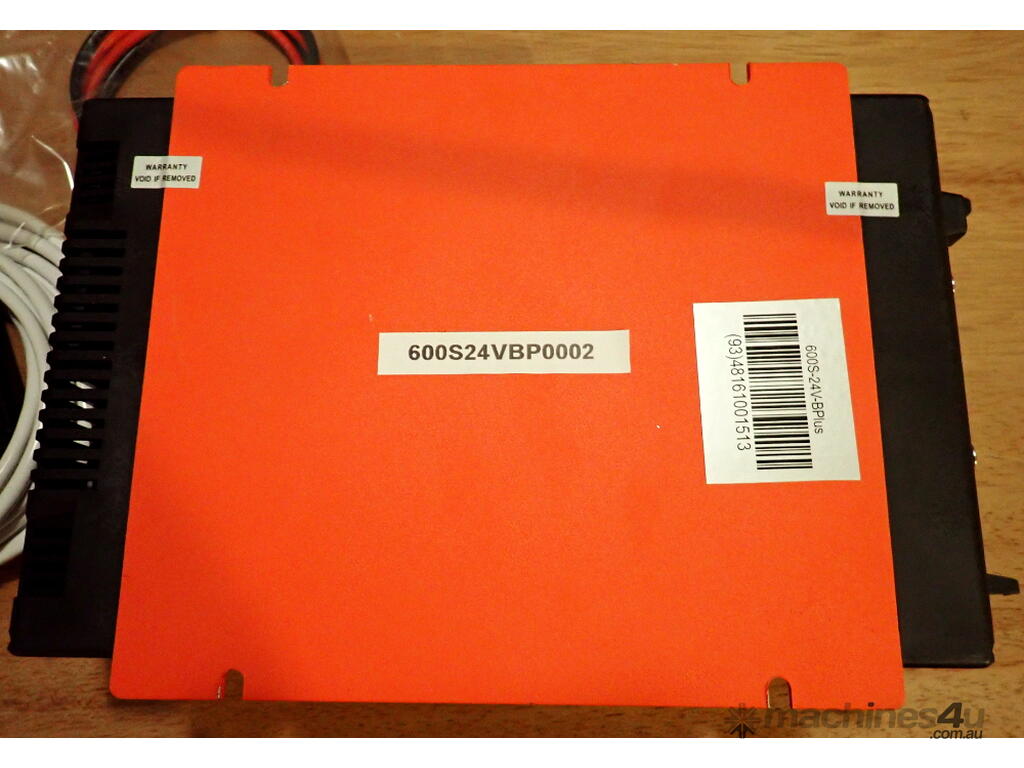

Model: CNBOU / 8ZED 600S-24V-BPlus. This is Brand New, Unused stock in perfect condition that has come from a closed Solar shop. This is Not a Grid-Connect Inverter, it is for Off-Grid use with a 24volt Battery setup.

Great for fixed or portable Off Grid applications such as: Homes, Offices, Work Sites, Caravans, Motor Homes, Work & Recreational Vehicles, Boats & Yachts, Backup Power Systems etc.

The display screen can be used more than 30 meters away. Editable parameters include: AC output frequency 50HZ/60HZ conversion, degree Fahrenheit/Celsius switching, battery type selection, under voltage value adjustment, screen display of AC output voltage, DC (battery) voltage, five levels of battery capacity display, output power, output frequency, inverter temperature and software & hardware version number and other information.

BPlus products are equipped with an RS485 interface, an international standard MODBUS communication protocol, and can be connected to any of the same equipment and terminals in communication protocols.

FEATURES:
1. Optimized for 24VDC voltage system.
2. 1,800 watts surge power design same as low-frequency inverter.
3. 600 watts full power long time running at a low-temperature design. Over-temperature up to 90°C.
4. No static or humming noises. Temperature and load(75% start) dual control fan.
5. DC low & over-voltage protection, over-load protection, over-temperature protection, and short circuit indication.
6. Anti-reverse protection, Max 94% conversion efficiency.
7. Provide standard MODBUS communication.

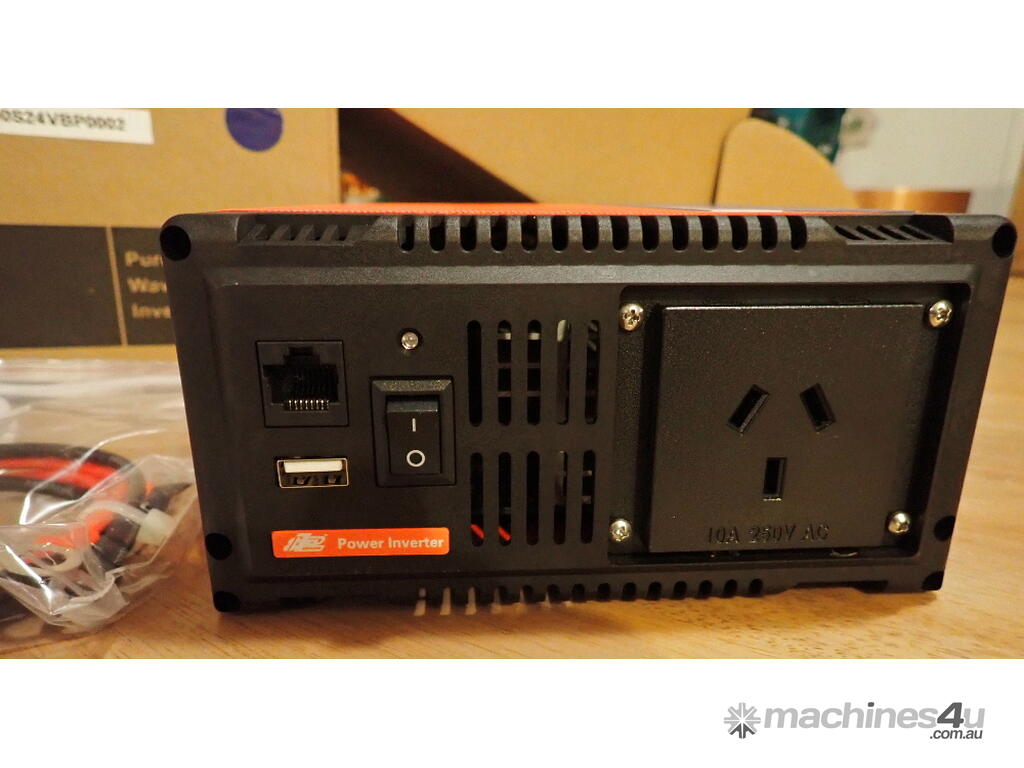

8. USB charger 2.1 amp.
9. Cabled LCD Display >30 meters.

QUALITY CONTROL:
1. Standard: Direttiva 2014/35UE,EN 60950-1,EN
2. Certification: Direttiva 2014/30,EN 55022,EN ,EN
3. Standard high-quality components.
4. Quality inspection of the 5 processes of the assembly line.
5. PCB ultrasonic cleaning and all PCB Three anti-paint protection.
6. 100% full power 30 minutes aging for different load types.
7. Before packing 5 function testing, including sine wave, low/over voltage, USB charger, and short circuit.

When deciding the sufficient required power output of an Inverter, allow for some electrical appliances that initially need many times more than their rated (running) power to get started (Power Tools, Pumps, Compressors, Refrigerators, Air Conditioners, some Cooking appliances etc.).

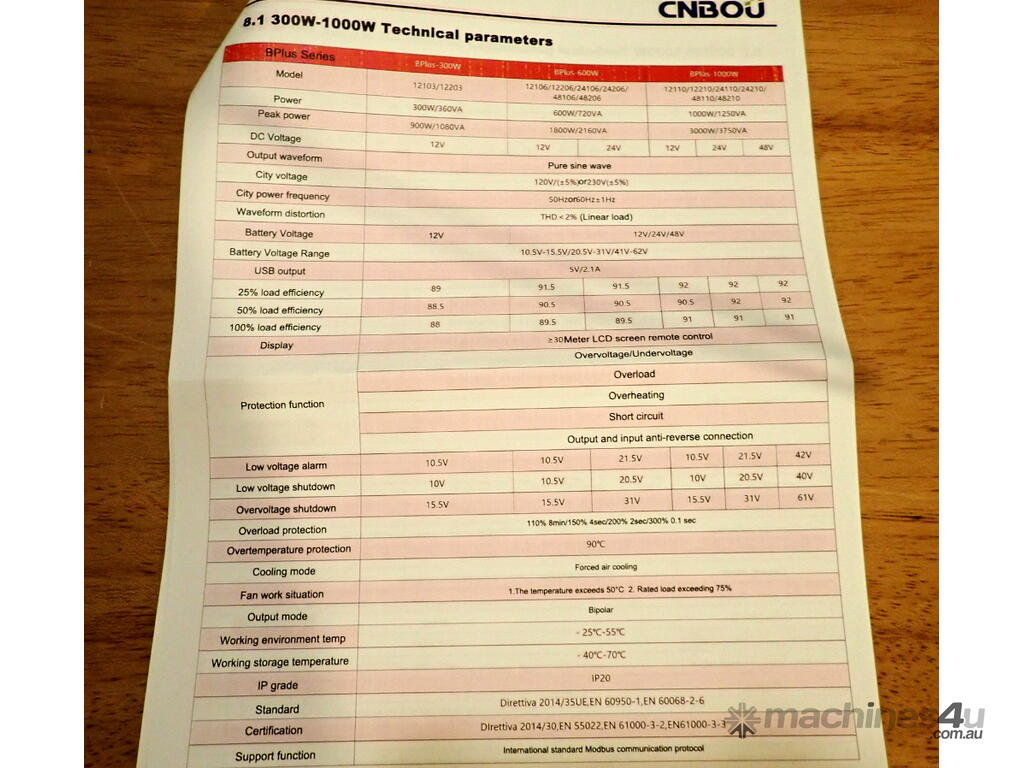

SPECIFICATIONS:
Volts & Power...
* Input Voltage Range: 20.5-31 VDC.
* Output Voltage: 230 VAC +/-5%.
* Output Frequency: 50Hz / 60Hz (selectable) +/- 1Hz.
* Output Waveform: Pure Sine Wave (<2% THD).
* Continuous Power Output: 600 Watts.
* Peak Output Power: 1,800 Watts.
* Efficiency: 91.5% 25% Load.
* Efficiency: 90.5% 50% Load.
* Efficiency: 89.5% 100% Load.
Temperature...
* Effective Ambient Temperature Operation: -25°C ? +55°C.
* Cooling Fan Activation: 50°C / Rated load exceeding 75%.
* Thermal Overheat Protection cut out (manual restart): 90°C.
Protections...
* DC Low Voltage Protection: Yes.
* Low Input Voltage Alarm: 21.5V.
* Low Input Voltage Shut Down: 20.5V.
* DC High Voltage Protection: Yes.
* High Input Voltage Shut Down: 31V.
* DC Battery Reverse Polarity Protection: Yes.
* AC Overload Protection: Yes (110% 8min / 150% 4sec / 200% 2sec / 300% 0.1 sec)
* AC Short Circuit Protection: Yes.
* Over Temperature Protection: Yes.

COMES WITH:

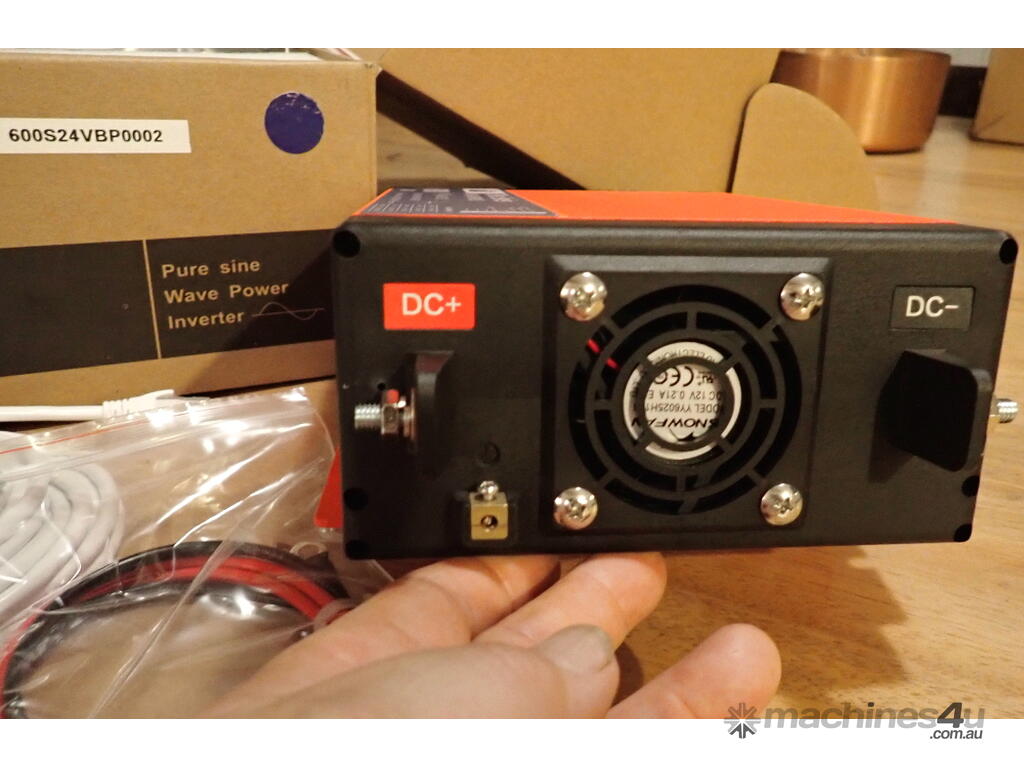

* 1x Positive (red) & 1x Negative (black) Cables to connect to your Battery Bank.

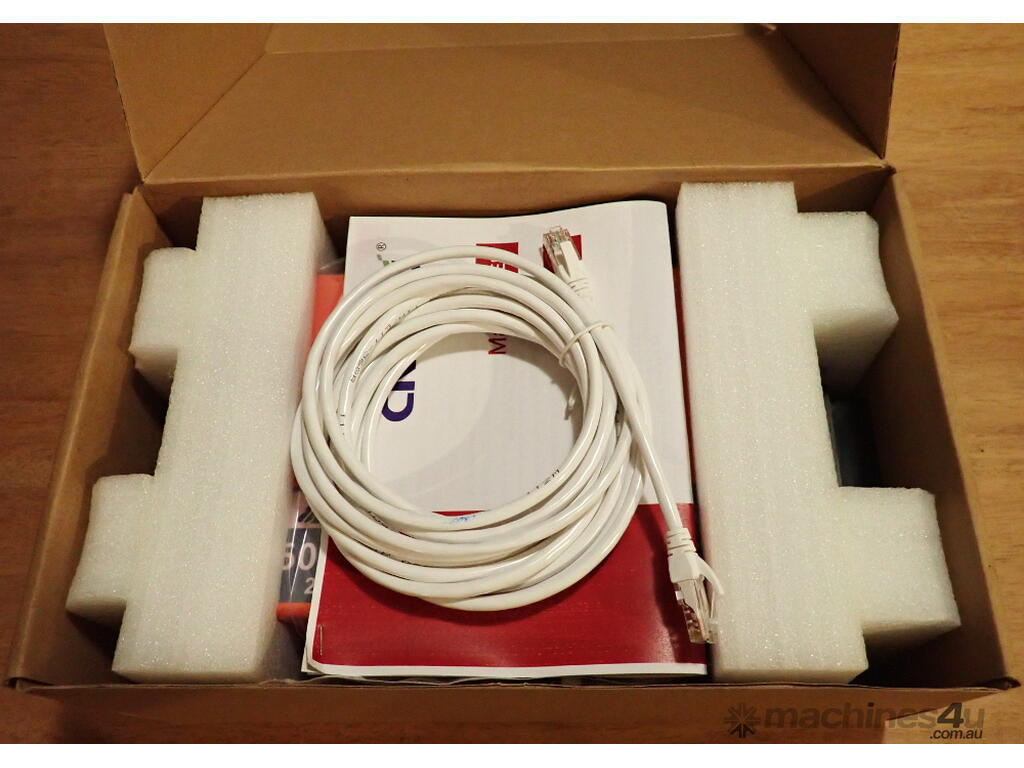

* Cable to connect Inverter & Display Screen.

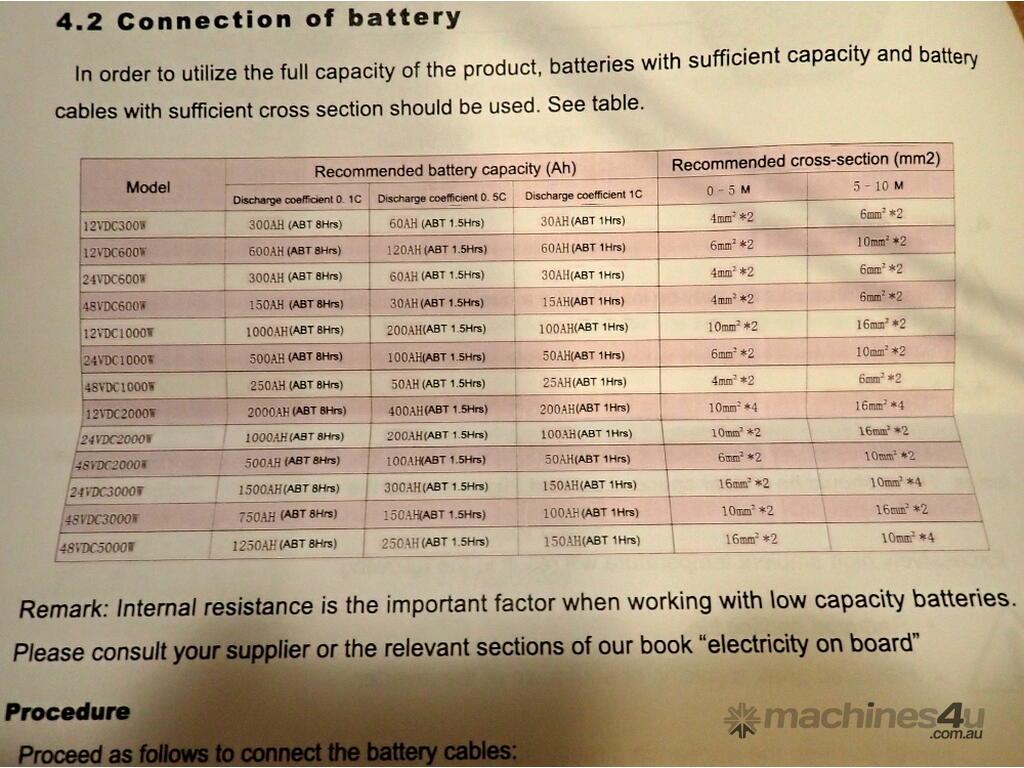

* Product Manual.

Inverter Dimensions: 285mm Long x 180mm Wide x 82mm High. Weight: 2kg.
Shipping Dimensions: 350mm Long x 220mm Wide x 135mm High. Weight: 2.57kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
