New 9-18 ton (60mm pin) Excavator Mechanical Quick Hitch Coupler

New Hong Wing Excavator Mechanical Quick Hitch Coupling to suit 9-18 Ton machines.

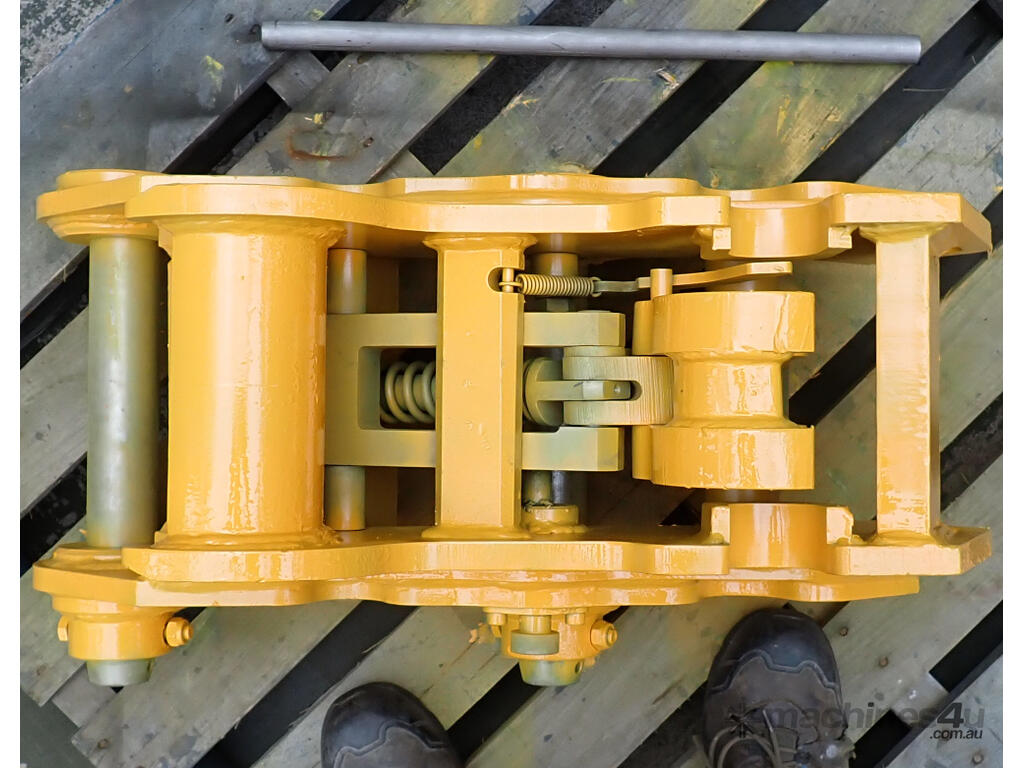

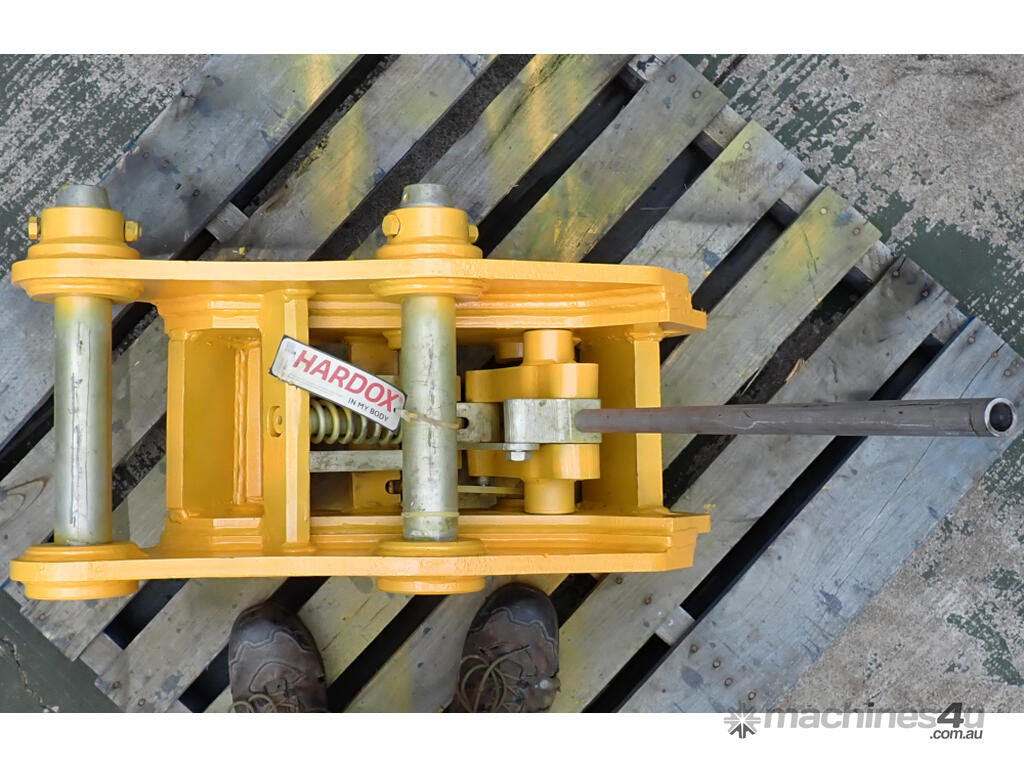

Want a quick hitch but don't have any spare auxiliary hydraulic lines for a hydraulic hitch? This hitch is identical to a hydraulic hitch setup except the rear bucket pin is held in place with a spring loaded pin hook (see pics# 5-6, 9).

There is no need to pull either of the pins out of your buckets and try to line up the bucket holes with the hitch holes (like a half hitch requires).

Instead you simply use the lever pole supplied to open up the rear hook, then move the hitch over your bucket's front pin and rock the hitch down to seat the rear pin in the bucket just like a full hydraulic hitch, then release the spring loaded hook over the rear pin.

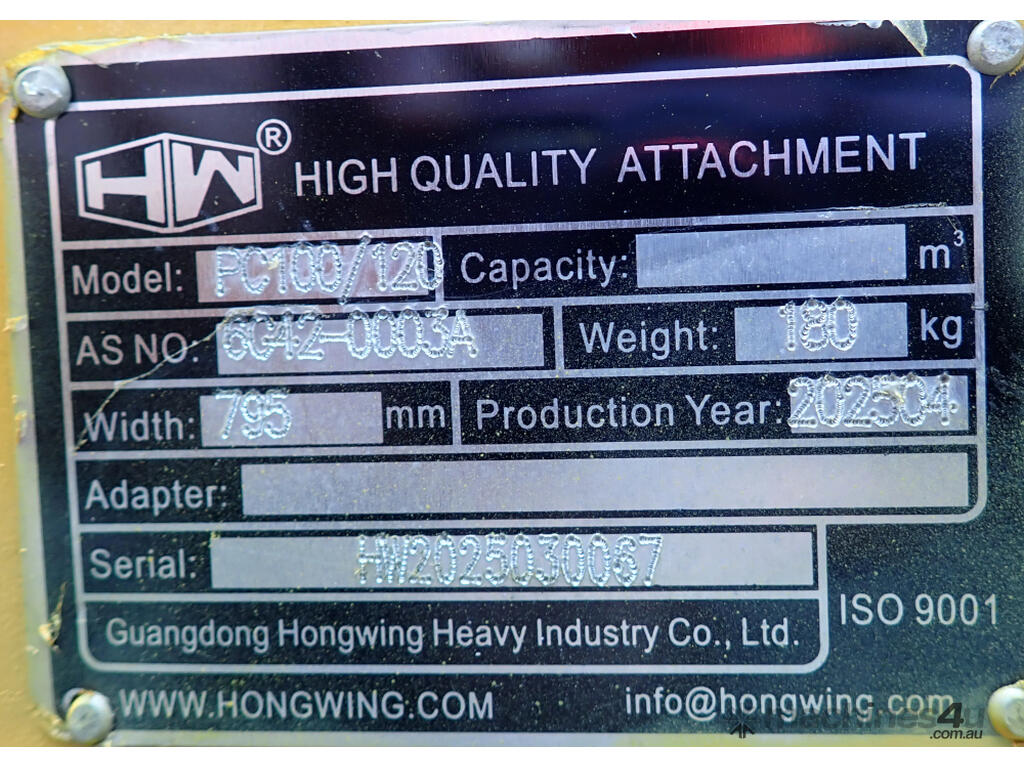

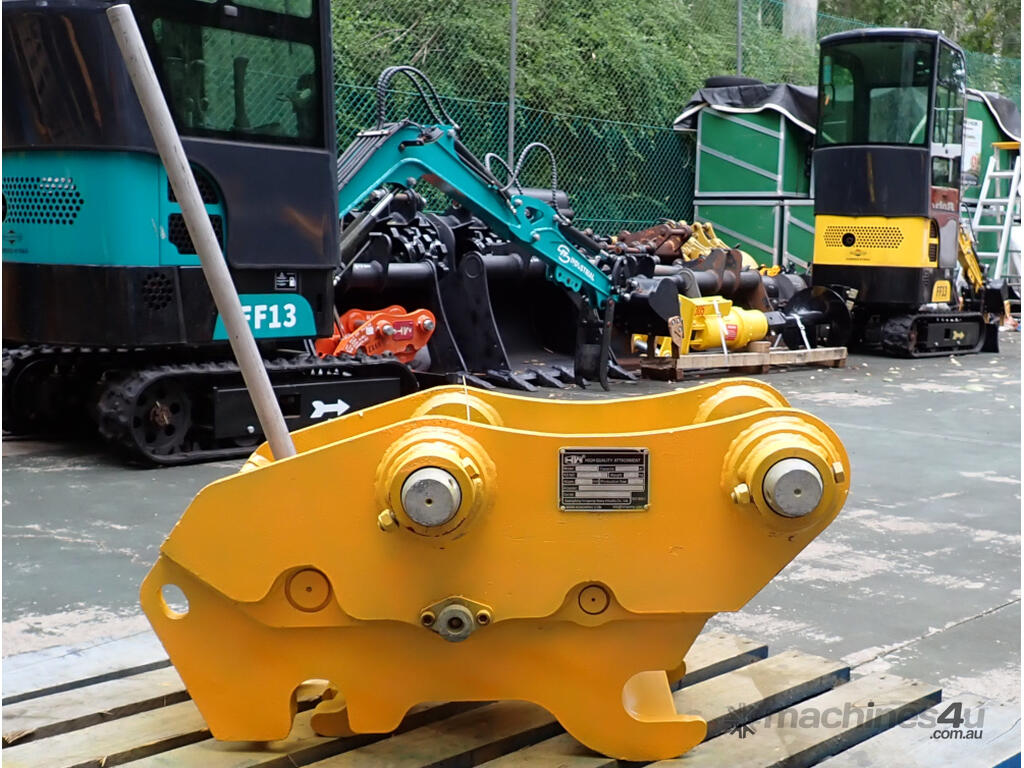

There is a spring loaded locking pin to ensure the bucket stays in the hitch (see silver pin on pics# 3, 7, 9-10).

There is also 2 rear lifting eye hooks holes.


***** Current Headstock Setup:
*
*** Upper Hitch: (where your machine's Dipper Arm goes into the hitch):
* Pins: 60mm.
* Pin Center to Pin Center (CtoC): 374mm.
* Between the Ears (BTE): 261mm Between the inside Ear Bosses of the hitch (which can be shaved back up to 290mm between the Ear Plates if you need more inside width for your excavator's dipper arm to fit in).
*
*** Lower Hitch: (where the hitch goes into the Bucket):
* Pins: 60mm.
* Pin Center to Pin Center (CtoC): 375mm.
* Between The Ears (BTE): 260mm (your buckets/attachments need to have at least this much width between the ears).
*
* Should fit: Kobelco SK100, Kobelco SK100LC, Kobelco SK115SR, Komatsu PC100-3, Komatsu PC100-5, Komatsu PC100-6, Komatsu PC120, Komatsu PC120 Mighty, Komatsu PC120-3, Komatsu PC120-5, Komatsu PC120-6, Komatsu PC128UU-2, Komatsu PC138USLC-2, Komatsu PC150HD, Komatsu PC158USLC-2, Komatsu PW100-1, Komatsu PW100-3, New Holland EC160LC, New Holland EW160, New Holland EW200, New Holland FX140, New Holland FX200.
*
* Maybe fit: Benati 14-15 ton, Caterpillar 205, Caterpillar 206, Caterpillar 211, Caterpillar 212, Hydrema M1100, Liebherr 912, New Holland EC130LC, O & K MH & RH 4CS, O & K MH 2-12, Volvo EC160, Volvo EC160 Direct Mount, Volvo EW160, Volvo EW160 Direct Mount, Wacker Neuson 12002 and possibly other machines with similar pin spacings.


Hitch dimensions: 782mm Long, 440mm Wide, 411mm High. Weight: 180kg (182kg with Lever Pole).


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
