New 9-22 ton (60, 65 or 70mm pin) Excavator Hydraulic Thumb Bucket Grapple Grab

New Jea Wen JW06B Excavator Hydraulic Thumb Grapple Grab Bucket suit 9-22 Ton machine. The bucket moves as a normal bucket attached to your hitch or to your dipper arm. The Thumb moves Hydraulically.

Designed for Rock & Log work, but can also be used for demolition and general material handling, picking things up, moving them around etc.

Required Oil Flow: 90-110 L/min.
Working Pressure: 150-170 bar.

Opening Width: 1500mm.

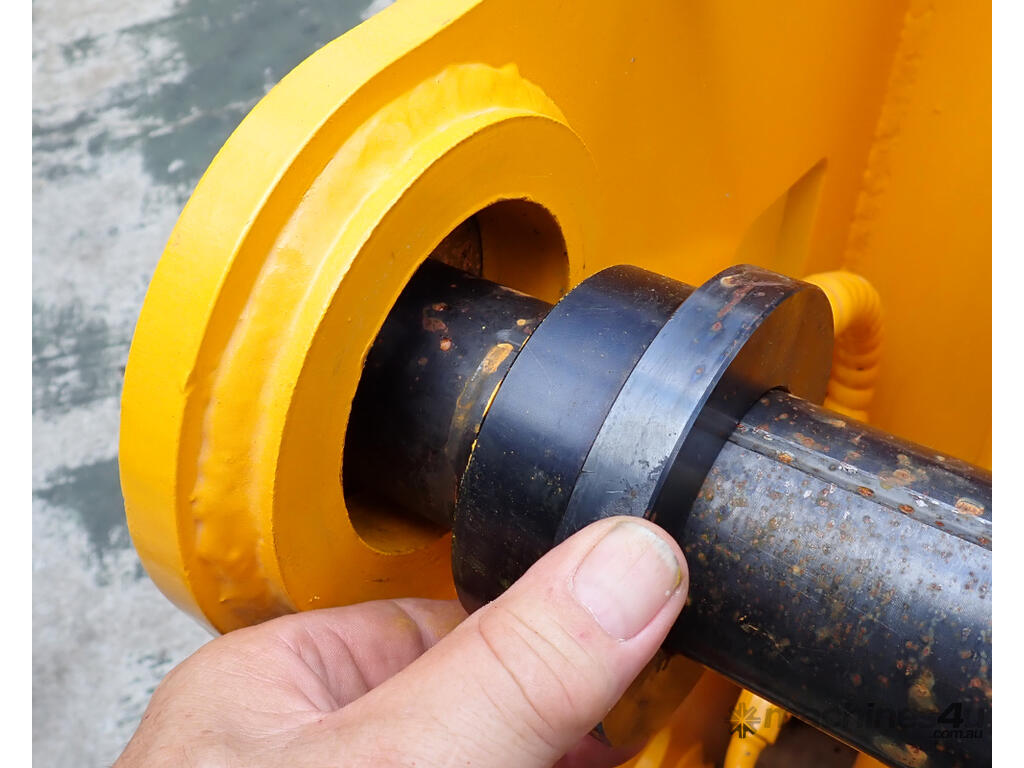

Currently setup for 60mm pins but could easily be configured for 65mm or 70mm pins by boring out the holes in the removable collars (see pic #10) and inserting bigger pins.


*** Headstock Dimensions:
* The Pin Diameter is 60mm but they are fitted into collar bosses that fit into 90mm diameter Pin holes (see pic# 10), so pins up to 90mm diameter can be fitted without needing to bore out the holes in the bucket's headstock.
* The Pin Center to Pin Center (CtoC) is 374mm.
* The distance between the collar bosses is 260mm. Removing the collar bosses, the distance between the headstock bosses is 290mm, but these welded-on-bosses could also be shaved back on the insides to a maximum of 316mm (the distance Between the Ear Plates), if you need more inside width for your hitch or dipper arm to fit into.


*** 60mm Pin configuration (current):
*
* Should fit: Kobelco SK100 / SK100LC / SK115SR, Komatsu PC100-3 / PC100-5 / PC100-6 / PC120 / PC120 Mighty / PC120-3 / PC120-5 / PC120-6 / PC128US-2 / PC128UU-2 / PC138USLC-2 / PC150HD / PC158USLC-2 / PW100-1 / PW100-3, Liebherr 912, New Holland EC160LC / EW160 / EW200 / FX140 / FX200, Volvo EC160 / EC160 Direct Mount / EW160 / EW160 Direct Mount.
*
* Maybe fit: Caterpillar 205 / 206 / 211 / 212, Hydrema M1100, Kato 550SEV, New Holland EC130LC, O & K MH & RH 4CS / O & K MH 2-12 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


*** As a 65mm Pin configuration (bore out Collars & insert 65mm pins):
*
* Should fit: Case 9013 / CX130 / CX135 / CX135SR, Kobelco K905 / SK120 / SK130 / SK130LC / SK135 / SK135SR, Link-Belt 130LX / 135SA / 2650 QUANTUM, Samsung SE130-3 / SE130LC-3 / SE130W / SE130W-3, Sumitomo SH100 / SH100-2 / SH100CT-2 / SH120 / SH120-2 / SH120CT-2 / SH135U-2 / SH135X-2 / SH145U / SH200LC-3LR, Terex TXC 140LC-1, Volvo EC130-3 / EC140 / EC140B / EC140C / EC140D / EC145D / EC210C LR / EC290C LR / ECR145C / EW130 / EW140C / MX135WS/LS / SE130W-3/LC-3.
*
* Maybe fit: Caterpillar 311 / 311C / 311D / 312 / 312B / 312C L / 312D / 313 / 314C LCR / 314D / 320D, Daewoo Solar 130LC-V / 130W-2 / 130W-3 / 130W-V / 140LC-V, Doosan DX140LC-3 / DX140W / DX140W-3 / DX300LC-3 SLR / S130LC-V / S140LC-V / S140W-V / S255SLR / S300SLR, Halla HE130W, Hitachi EX110-5 / EX120-2 / EX120-3 / EX120-4 / EX120-5 / EX135 / EX135UR, Hitachi Zaxis 135US, Hyundai R120 / R130LC / R130LC-3 / R130W / R140LC-7, JCB 805B / 814S / JS110 / JS130 / JZ140, John Deere 135C RTS, Kato HD 512, Sumitomo SH120-3 / SH125-3 / SH125X-3 / SH130-5 / SH135-3 / SH135X-3, Takeuchi TB 1140, Yuchai YC135-7 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


*** As a 70mm Pin configuration (bore out Collars & insert 70mm pins):
*
* Should fit: Fuchs 331, Liebherr 902 LITRONIC / R904 LITRONIC, Samsung SE130 / SE130-1 / SE130-2 / 150.
*
* Maybe fit: Ackerman EC200 / H7, Hyundai R160LC-3 / R170W / R180LC-3, Kobelco ED180 / SK160LC / SK170-6E, Komatsu PC150 / PC150-5 / PC150-6 / PC160 / PC160-6 / PC160LC-7 / PC180, New Holland EH160LC, Volvo EW180B and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

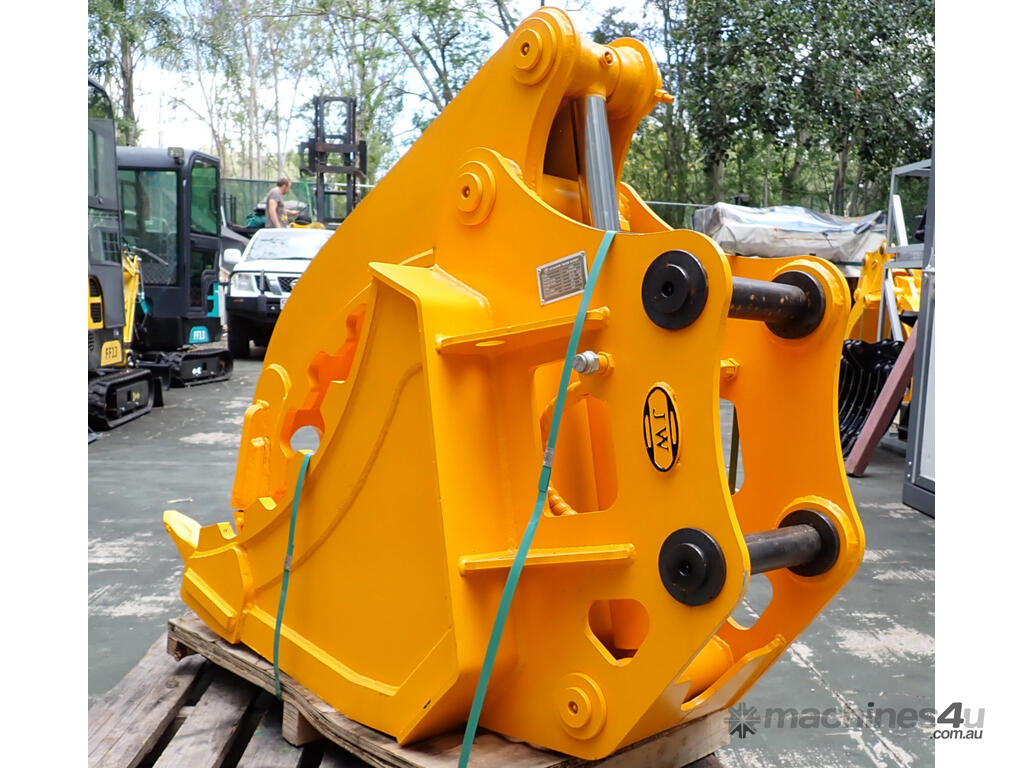

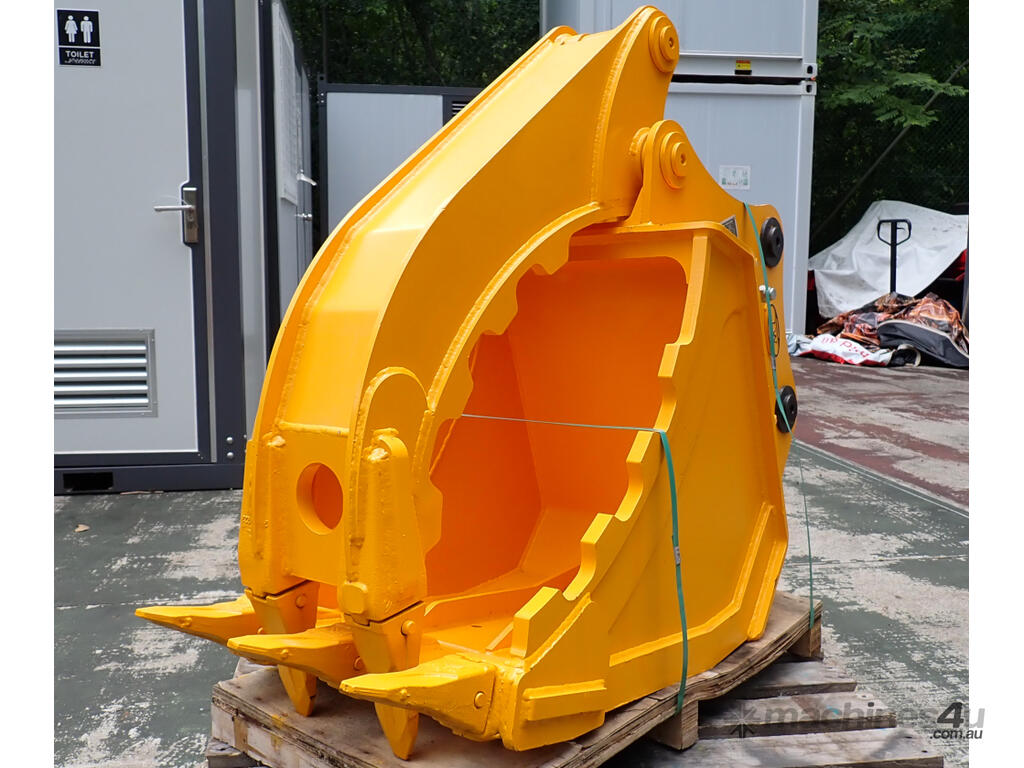

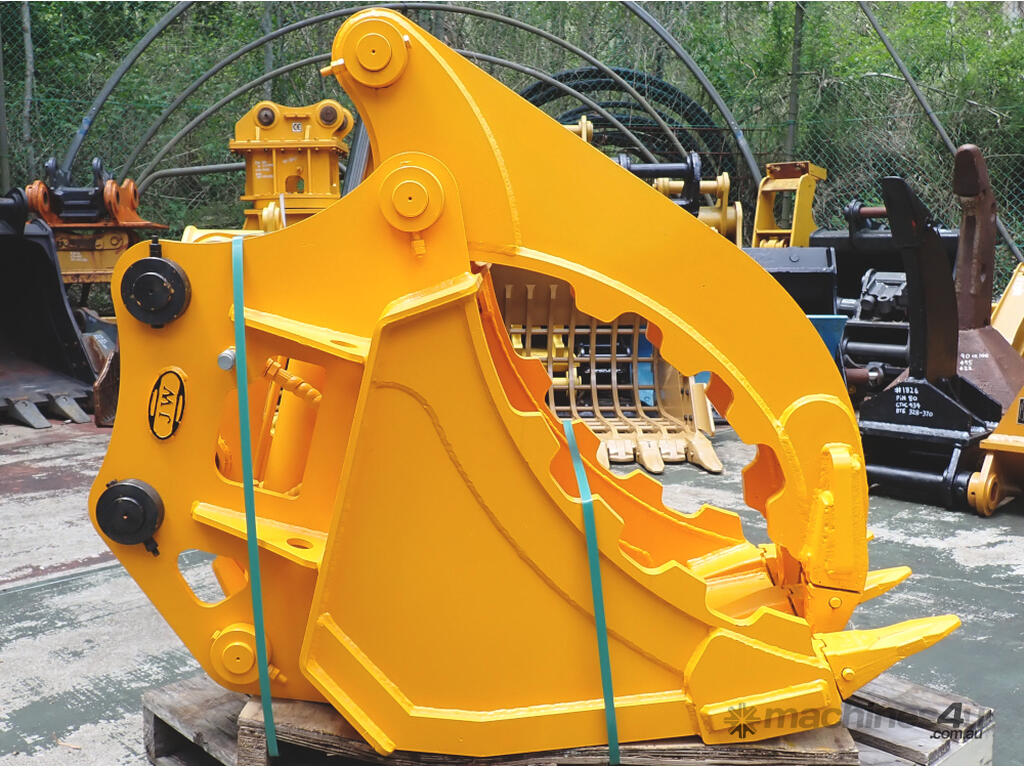

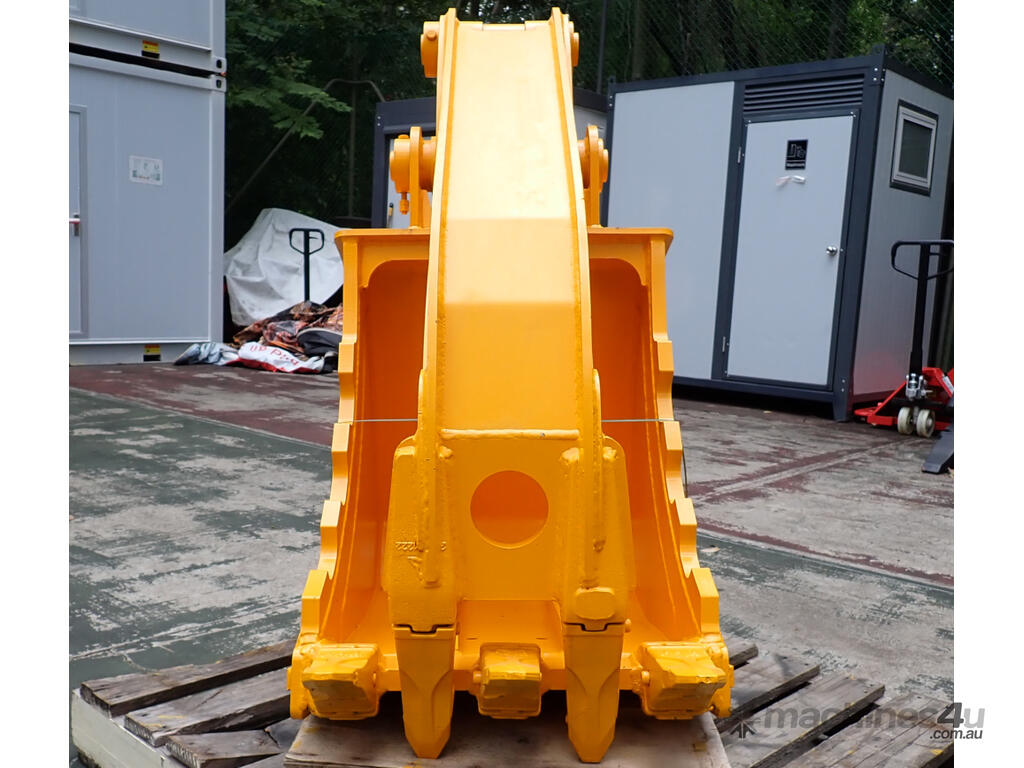

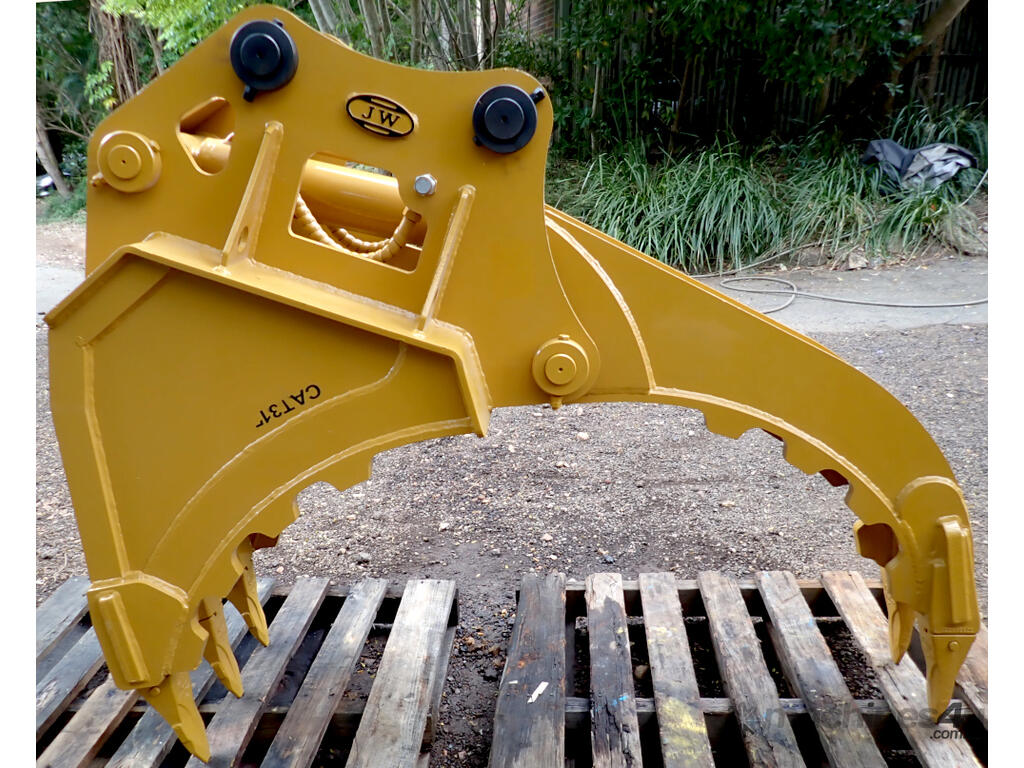

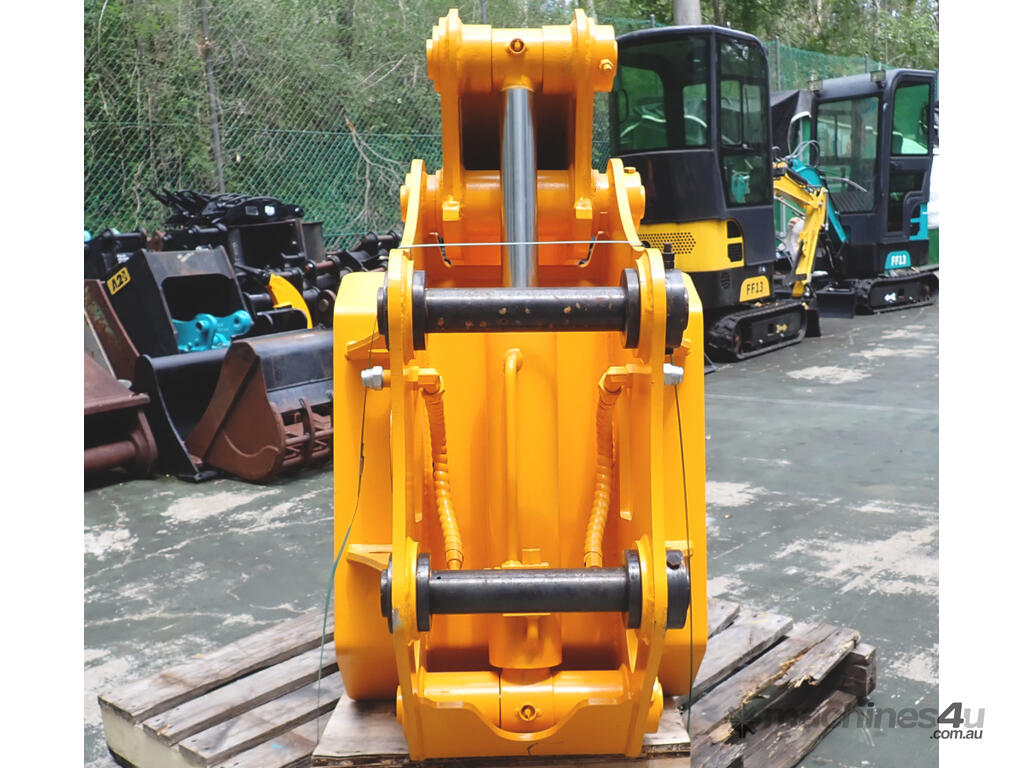

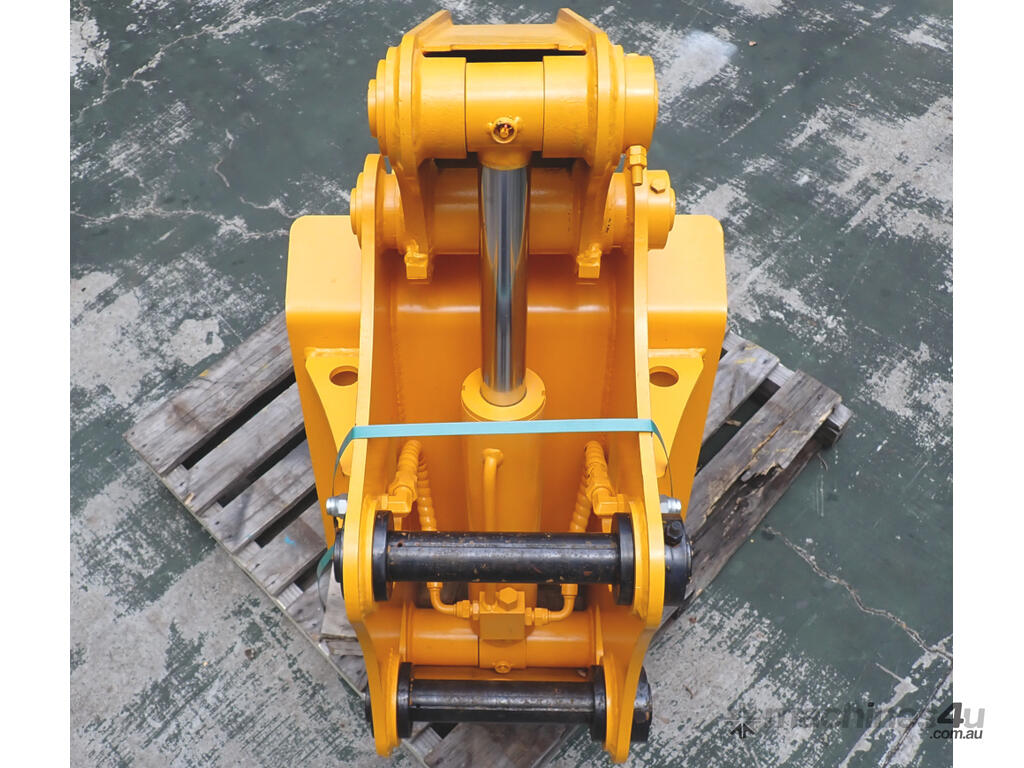

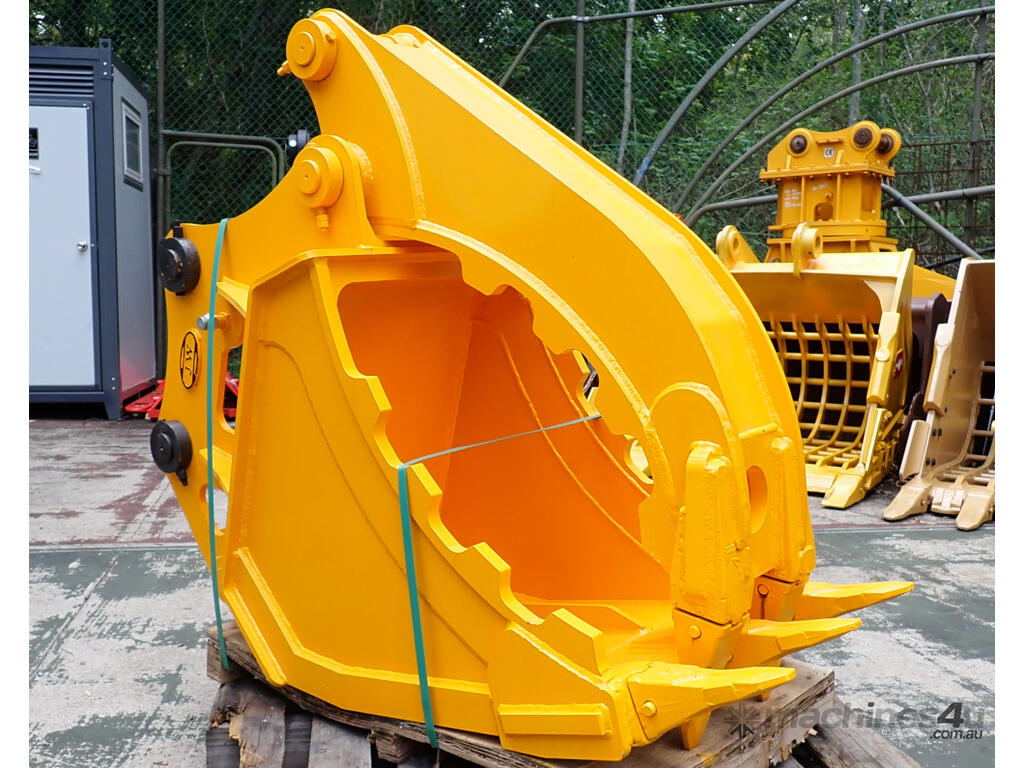

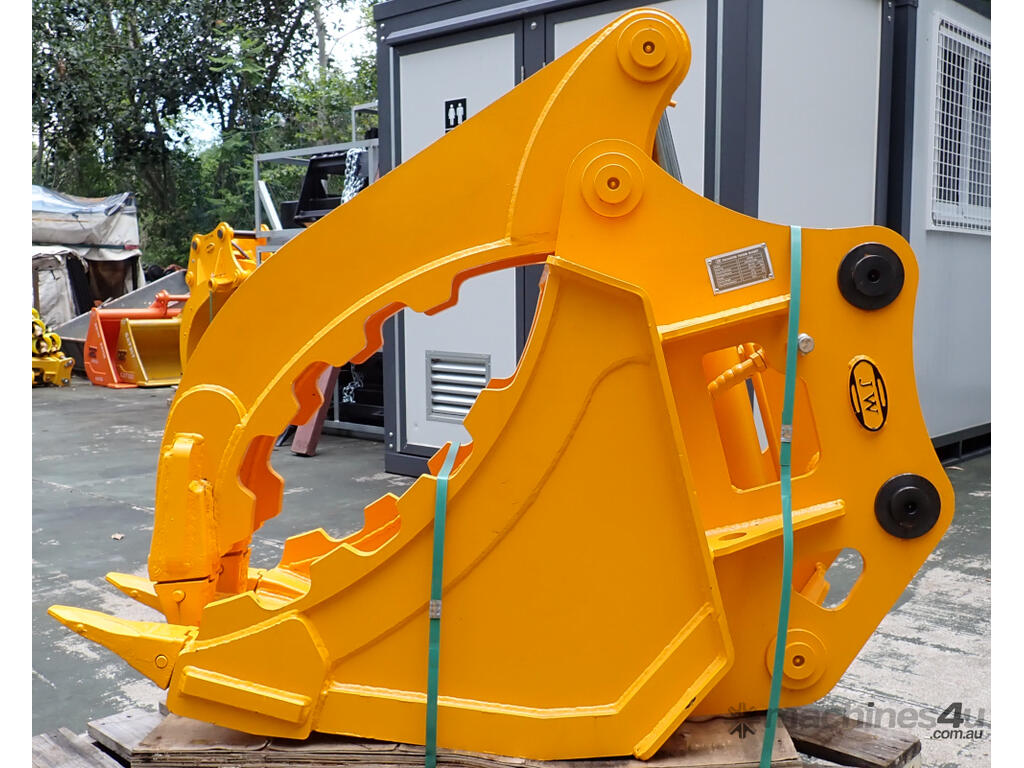

Dimensions (sitting in pics #1-9): W:624mm, L:1445mm, H:1185mm. 542kg.

Shipping Dimensions (strapped to pallet): W:700mm, L:1480mm, H:1295mm. 564kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
