New Jen Wea JW06B Excavator Hydraulic Thumb Grapple Grab Bucket suit 9-22 Ton machine. The bucket moves as a normal bucket attached to your hitch or to your dipper arm. The Thumb moves Hydraulically.
Designed for Rock & Log work, but can also be used for demolition and general material handling, picking things up, moving them around etc.

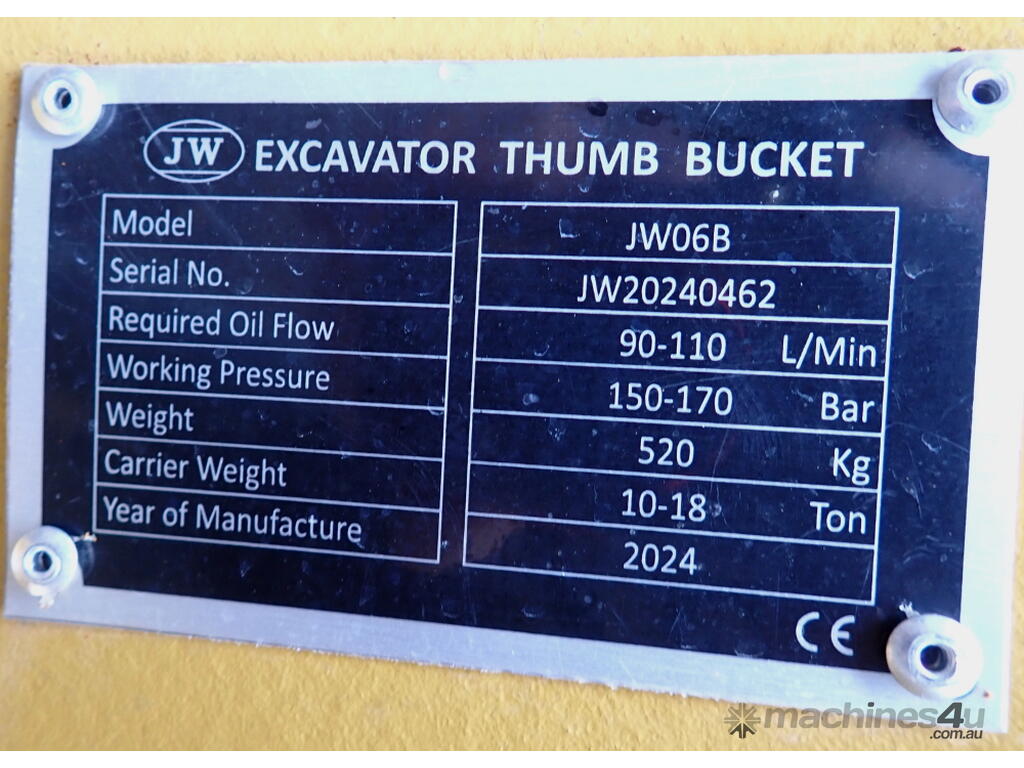

Required Oil Flow: 90-110 L/min.
Working Pressure: 150-170 bar.
Opening Width: 1500mm.
Currently setup for 65mm pins but could easily be configured for 60mm by Lathing the pins in the middle, or to 70mm pins by boring out the holes in the removable collars (see pic #9) and inserting bigger pins.
Headstock Dimensions:

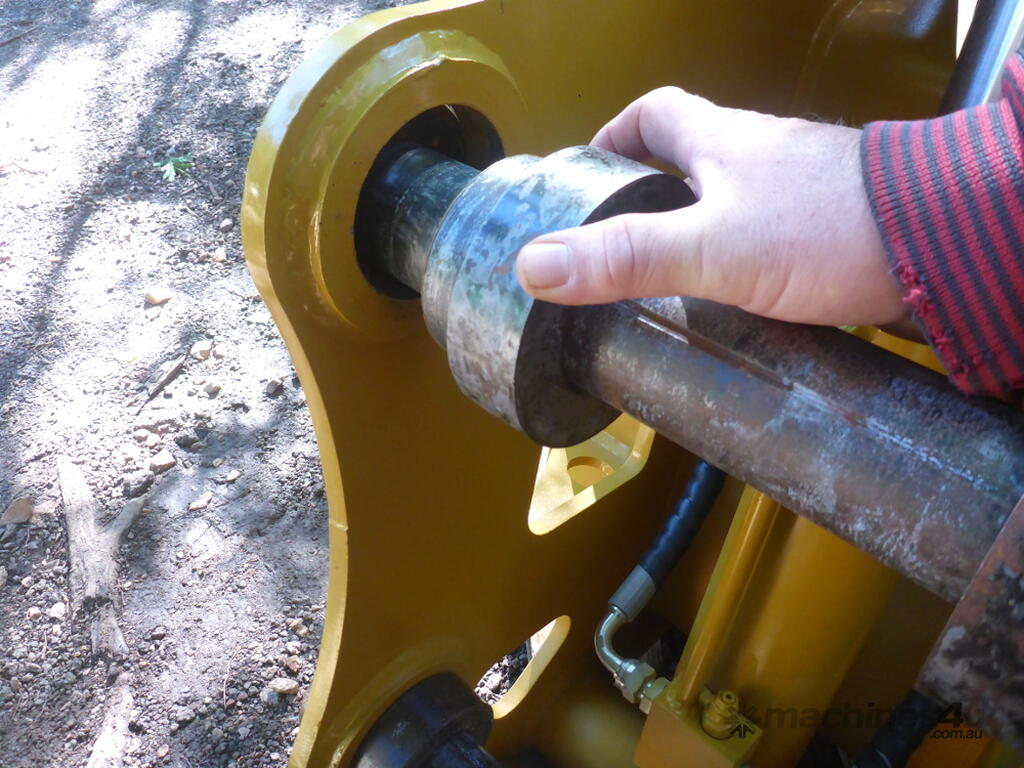

* The Pin Diameter is 65mm but they are fitted into collar bosses that fit into 90mm diameter Pin holes (see pic# 9), so pins up to 90mm diameter can be fitted without needing to bore out the holes in the bucket's headstock.
* The Pin Center to Pin Center (CtoC) is 405mm.
* The distance between the collar bosses is 255mm. Removing the collar bosses, the distance between the headstock bosses is 290mm, but these welded-on-bosses could also be shaved back on the insides to a maximum of 316mm (the distance Between the Ear Plates), if you need more inside width for your hitch or dipper arm to fit into.
*** 65mm Pin configuration (current):
Should fit: Caterpillar 311 / 311C / 311D / 312 / 312B / 312C L / 312D / 313 / 314C LCR / 314D / 320D, Doosan DX140LC-3 / DX140W / DX140W-3 / DX300LC-3 SLR, Halla HE130W, JCB 805B / 814S, Kato HD 512.
Maybe fit: Case 9013 / CX130 / CX135 / CX135SR, Daewoo Solar 130-2 / 130-3 / 130LC-V / 130W-2 / 130W-3 / 130W-V / 140LC-V, Doosan S130LC-V / S140LC-V / S140W-V / S255SLR / S300SLR, Halla HE130, Hitachi EX100 / EX120 / EX120-1 / EX130 / FH120 / FH130 / UHO62 / UHO63, Hyundai R120 / R130LC / R130W / R130LC / R130LC-3 / R140LC-7, JCB JS110 / JS130 / JZ140, Kobelco 115SRDZ / 135SRLC / K905 / SK120 / SK130 / SK130LC / SK135 / SK135SR, Link-Belt 130LX / 135SA / 2650 QUANTUM, New Holland EH130LC, Samsung SE130-3 / SE130LC-3 / SE130W / SE130W-3, Sumitomo SH100 / SH100-2 / SH100CT-2 / SH120 / SH120-2 / SH120CT-2 / SH135U-2 / SH135X-2 / SH145U / SH200LC-3LR, Terex TXC 140LC-1, Volvo EC130-3 / EC140 / EC140B / EC140C / EC140D / EC145D / EC210C LR / EC240C LR / EC290C LR / ECR145C / EW130 / EW140C / MX135WS/LS / SE130W-3/LC-3, Yuchai YC135-7 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).
*** As a 60mm Pin configuration (lathe the middle of the 65mm pins down to 60mm):
Should fit: Kato 550SEV, O & K MH 2-12.
Maybe fit: Benati 14-15 ton, Caterpillar 446B, Kobelco SK100 / SK100LC / SK115SR, Komatsu PC100-3 / PC100-5 / PC100-6 / PC120 / PC120 Mighty / PC120-3 / PC120-5 / PC120-6 / PC128US-2 / PC128UU-2 / PC138USLC-2 / PC150HD / PC158USLC-2 / PW100-1 / PW100-3, Liebherr 912, New Holland EC160LC / EW160 / EW200 / FX140 / FX200, Volvo EC160 / EC160 Direct Mount / EW160 / EW160 Direct Mount and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).
*** As a 70mm Pin configuration (bore out Collars & insert 70mm pins):
Should fit: Hyundai R160LC-3 / R170W / R180LC-3, Kobelco ED180 / SK160LC / SK170-6E, Komatsu PC150 / PC150-5 / PC150-6 / PC160 / PC160-6 / PC160LC-7 / PC180, New Holland EH160LC.
Maybe fit: Ackerman H7 / EC200, Doosan DX170W-3, Fuchs 331, Kobelco ED190, Liebherr 902 LITRONIC / R904 LITRONIC, Samsung MX175W / SE130 / SE130-1 / SE130-2 / SE150 / SE170 / SE170W, Volvo EC150 / EC160 / EC160B / EC160C / EC160D / EC180C / EW160B / EW160C / EW160D / EW170 / EW180 / EW180B / EW180C / EW210C / MX175WS / SE170W-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

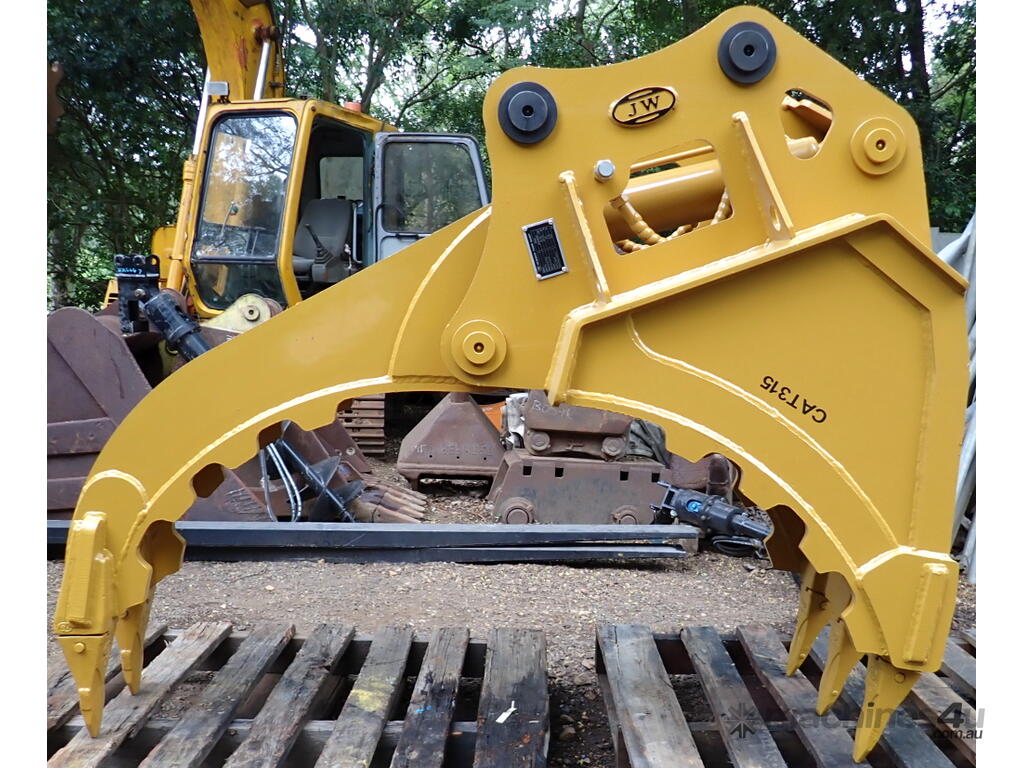

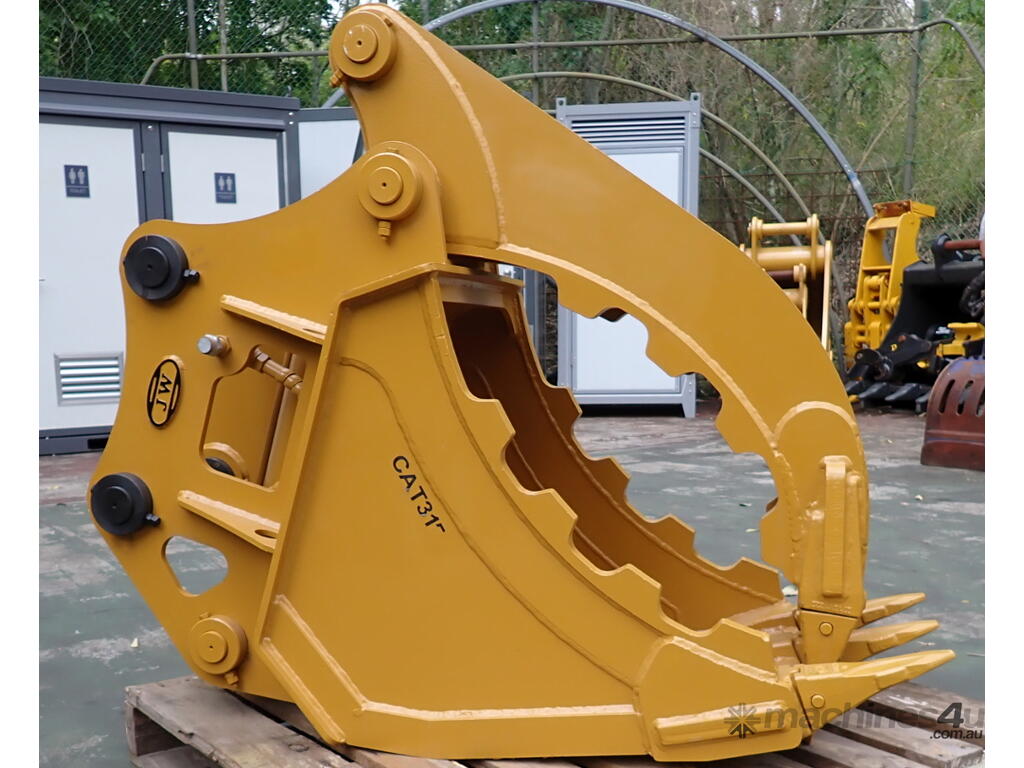

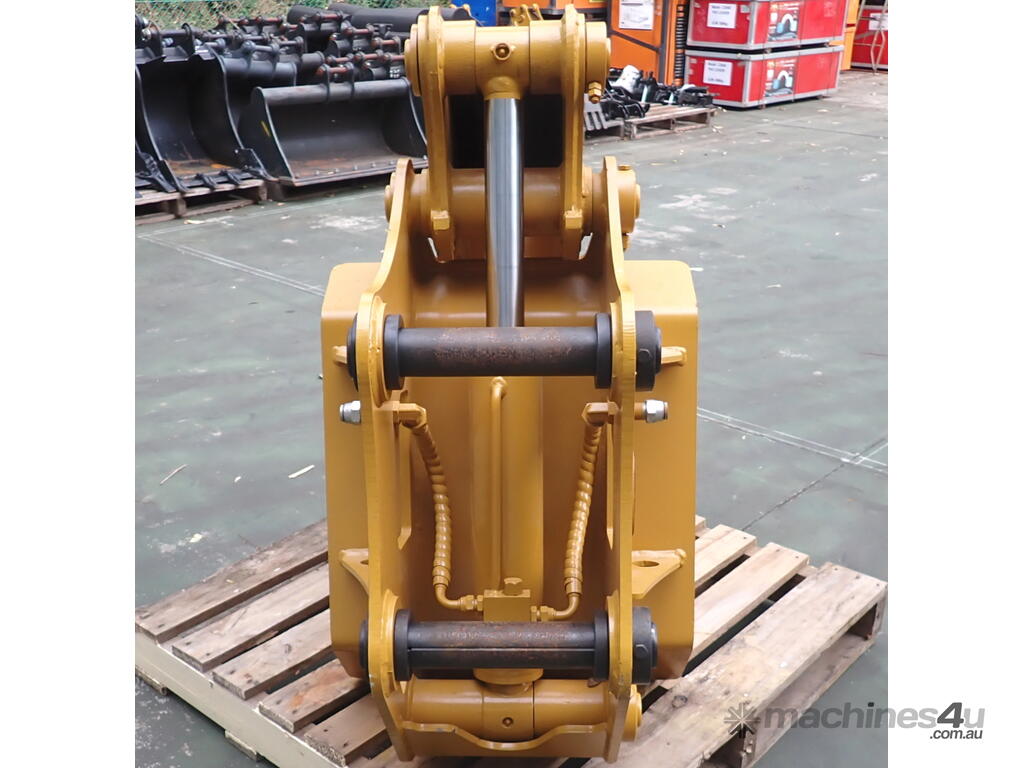

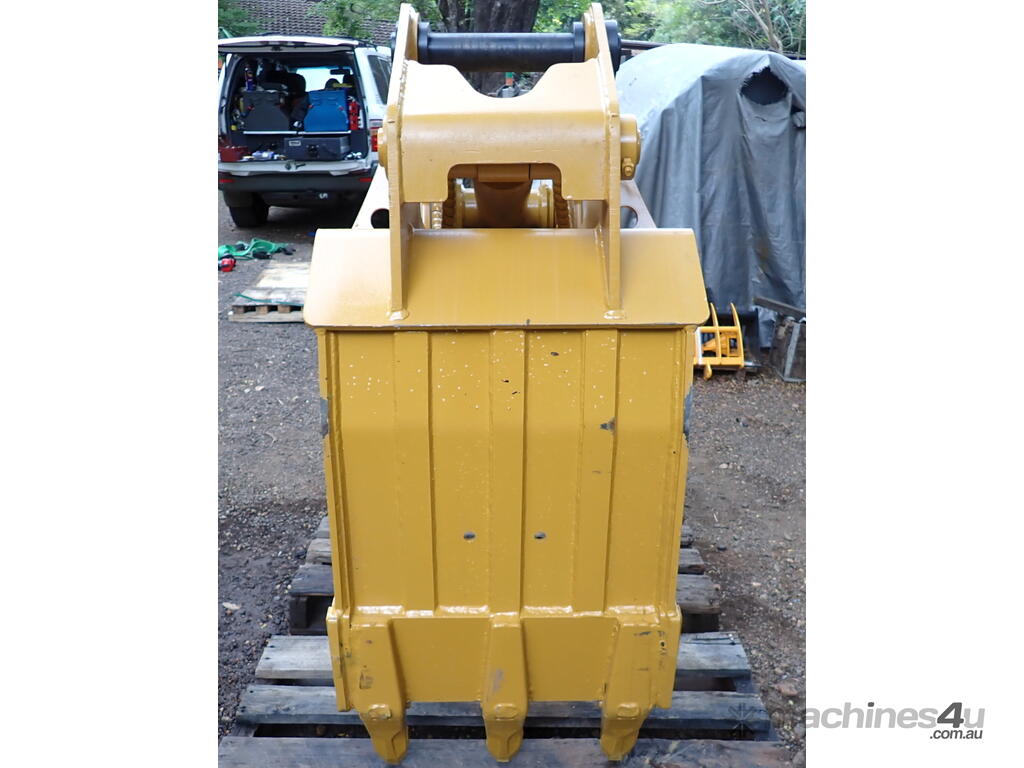

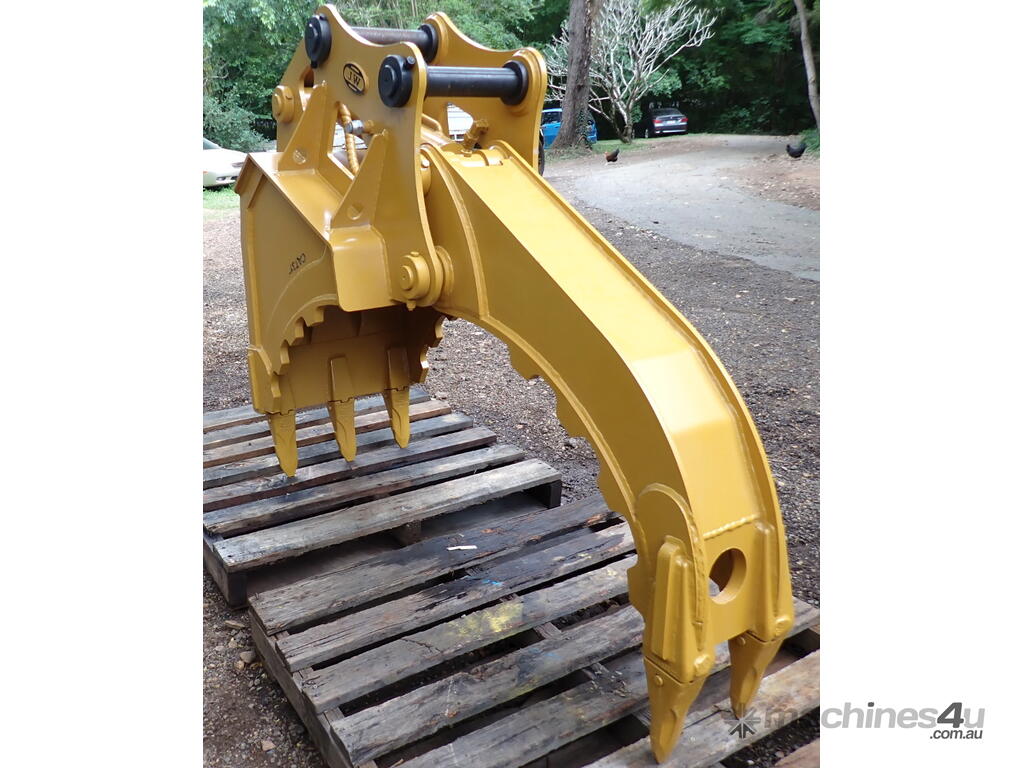

Dimensions (sitting in pics #1-5): W:620mm, L:1450mm, H:1175mm. 542kg.
Shipping Dimensions (strapped to pallet): W:700mm, L:1480mm, H:1295mm. 555kg.
Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
