New 9-22 ton (65mm Pin) Excavator Hydraulic Grapple Grab

New Jea Wen ASC65 Excavator Hydraulic Grapple Grab suit 9-22 Ton machine.

Designed for Rock & Log work, but can also be used for demolition and general material handling, picking things up, moving them around and other careful placement tasks.

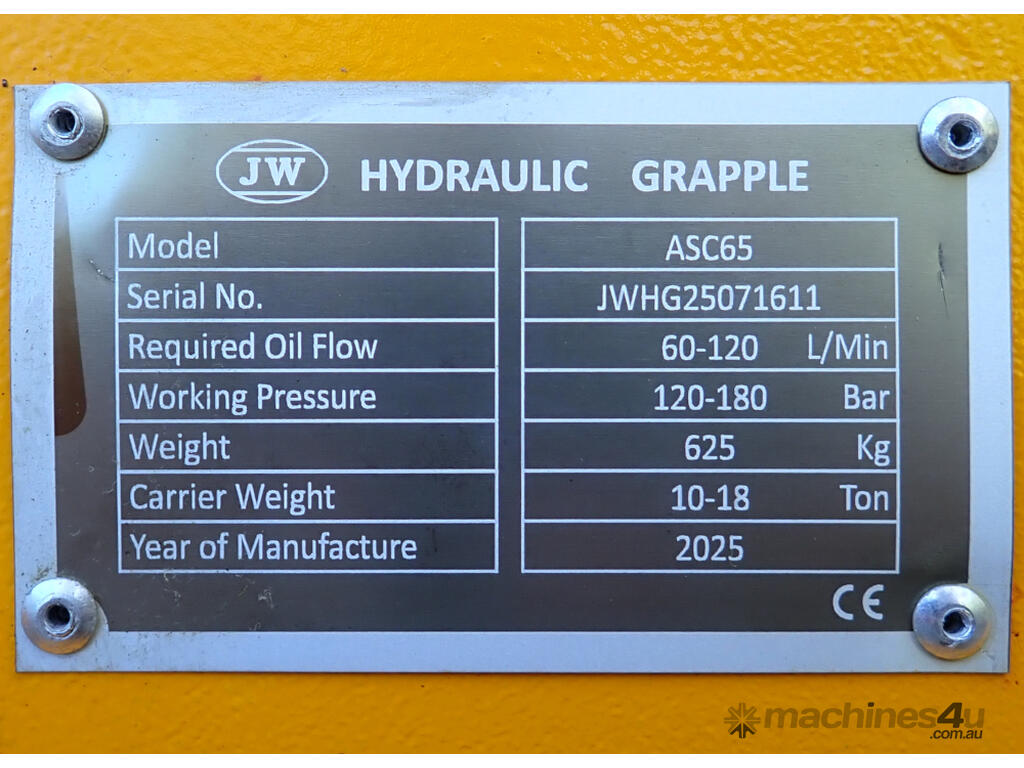

Required Oil Flow: 60-120 L/min.
Working Pressure: 120-180 bar.

Opening Width: 1150mm.

Width of 2 Tynes: 367mm.
Width of 3 Tynes: 615mm.

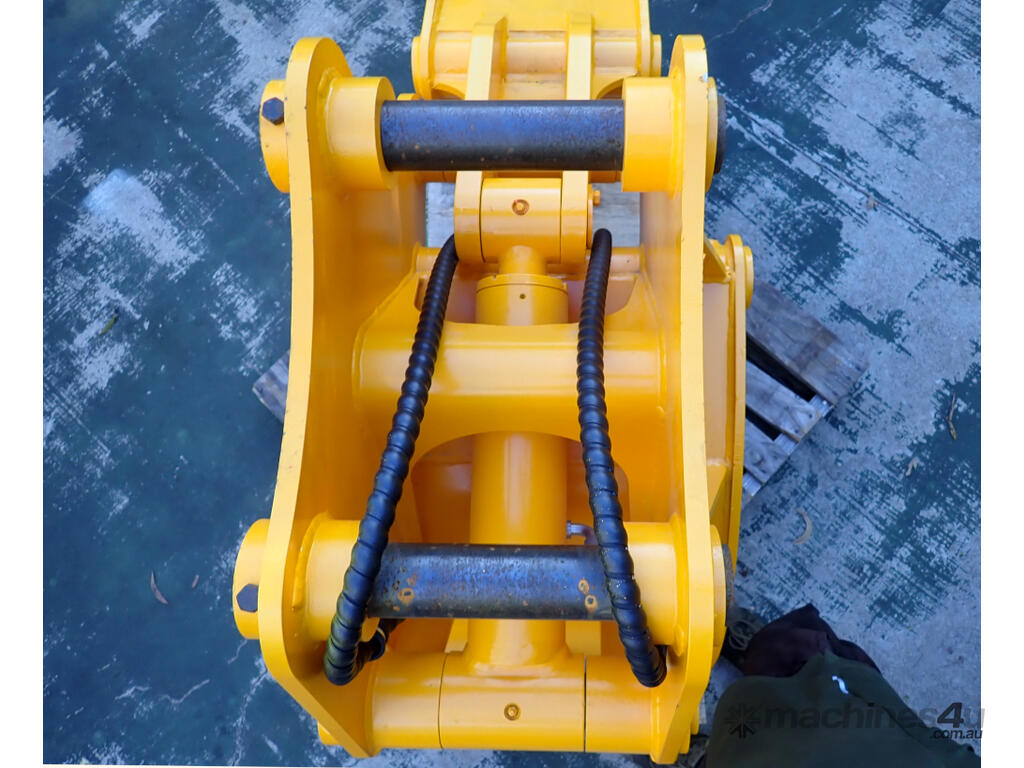

*** Current Headstock configuration:
* Pins: 65mm
* Pin Center to Pin Center (CtoC): 410mm
* Between the Ears (BTE): 221mm Between the inside Ear Bosses (which can be shaved back up to 317mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
*
* Should fit: Caterpillar 311 / 311C / 311D / 312 / 312B / 312C L / 312D / 313 / 314C LCR / 314D / 320D, Daewoo Solar 130-2 / 130-3, Doosan DX140LC-3 / DX140W / DX140W-3 / DX300LC-3 SLR, Halla HE130 / HE130W, Hitachi EX100 / EX120 / EX120-1 / EX130 / FH120 / FH130 / UHO62 / UHO63, JCB 805B / 814S, Kato HD 512, Kobelco 115SRDZ / 135SRLC, New Holland EH130LC.
*
* Maybe fit: Case 9013 / CX130 / CX135 / CX135SR, Daewoo Solar 130LC-V / 130W-2 / 130W-3 / 130W-V / 140LC-V, Doosan S130LC-V / S140LC-V / S140W-V / S255SLR / S300SLR, Hyundai R120 / R130LC / R130LC-3 / R130W / R140LC-7, JCB JS110 / JS130 / JZ140, Kobelco K905 / SK120 / SK130 / SK130LC / SK135 / SK135SR, Link-Belt 130LX / 135SA / 2650 QUANTUM, Samsung SE130-3 / SE130LC-3 / SE130W / SE130W-3, Sumitomo SH100 / SH100-2 / SH100CT-2 / SH120 / SH120-2 / SH120CT-2 / SH135U-2 / SH135X-2 / SH145U / SH200LC-3LR, Terex TXC 140LC-1, Volvo EC130-3 / EC140 / EC140B / EC140C / EC140D / EC145D / EC210C LR / EC210C LR / EC290C LR / ECR145C / EW130 / EW140C / MX135WS/LS / SE130W-3/LC-3, Yuchai YC135-7 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

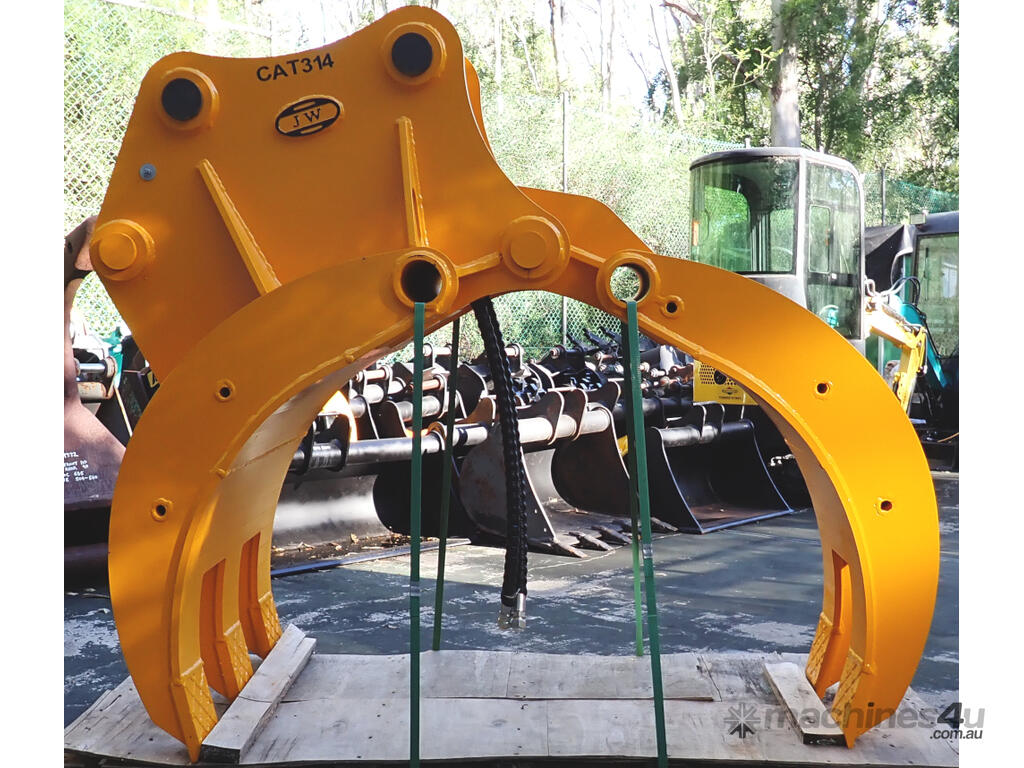

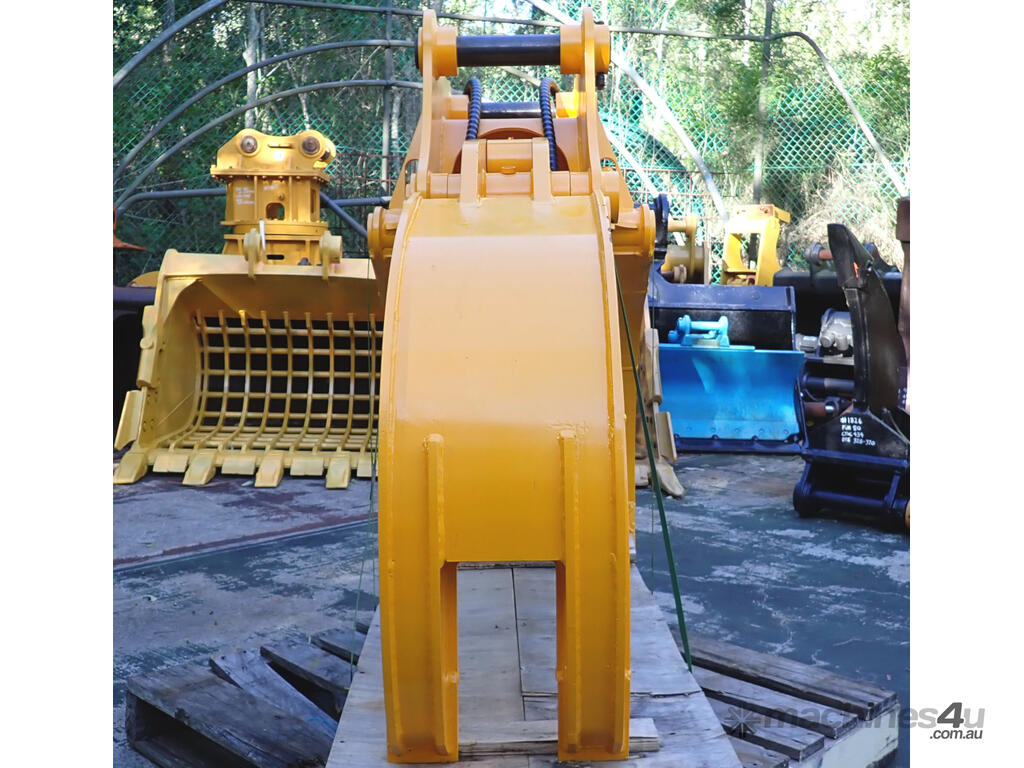

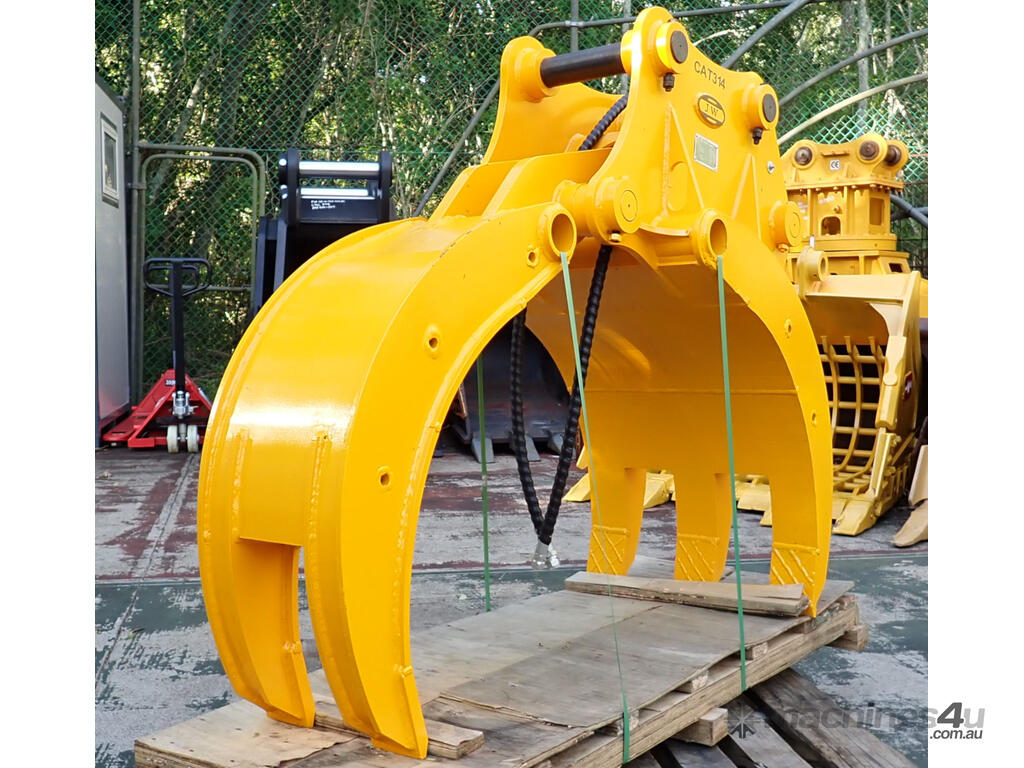

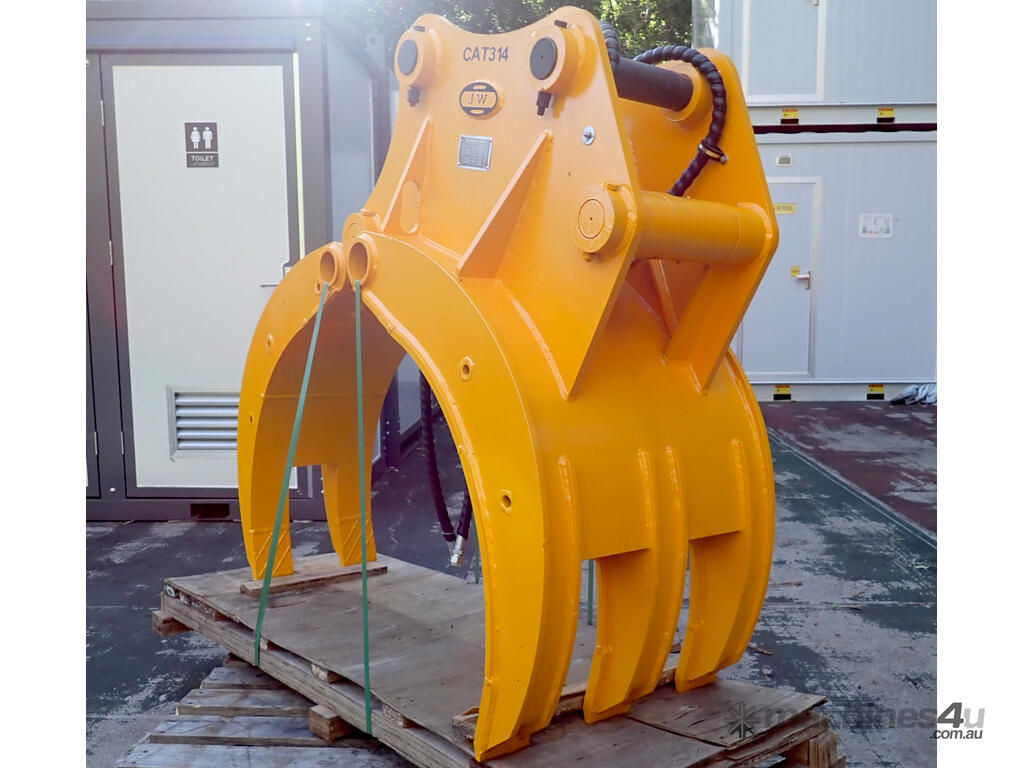

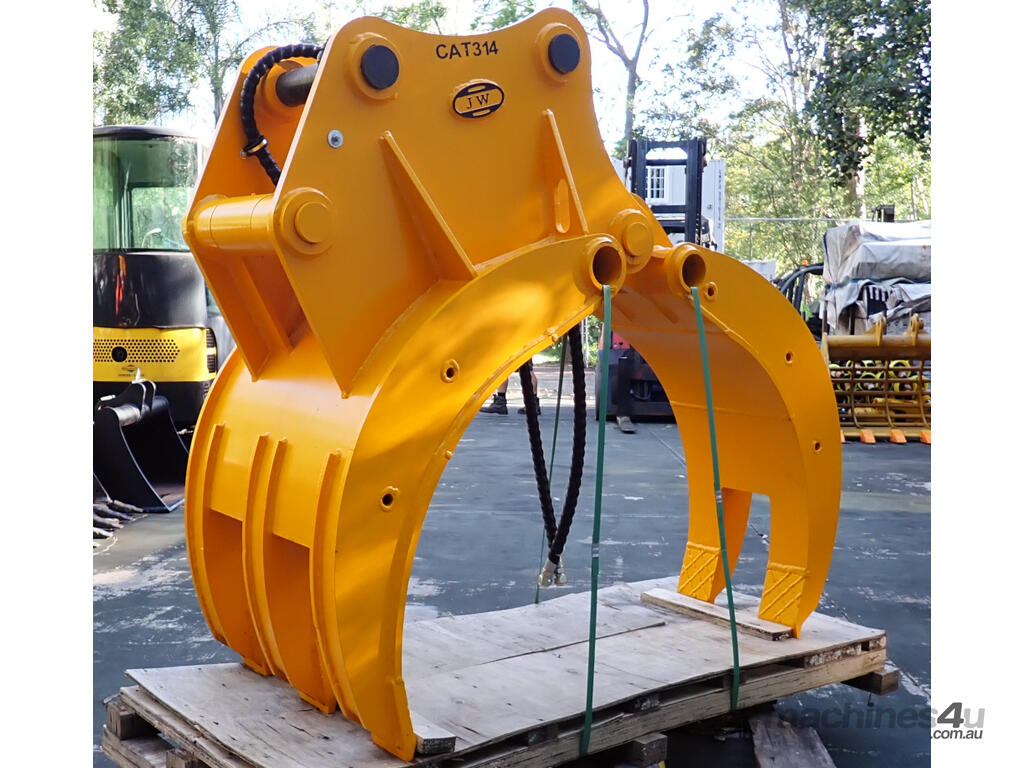

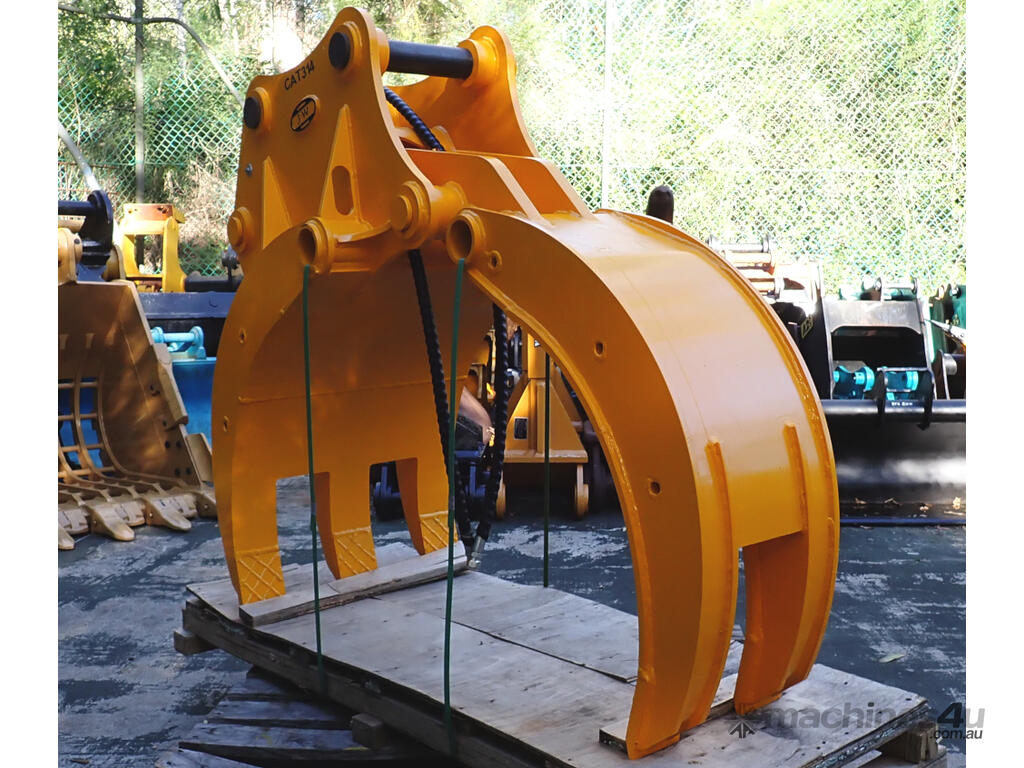

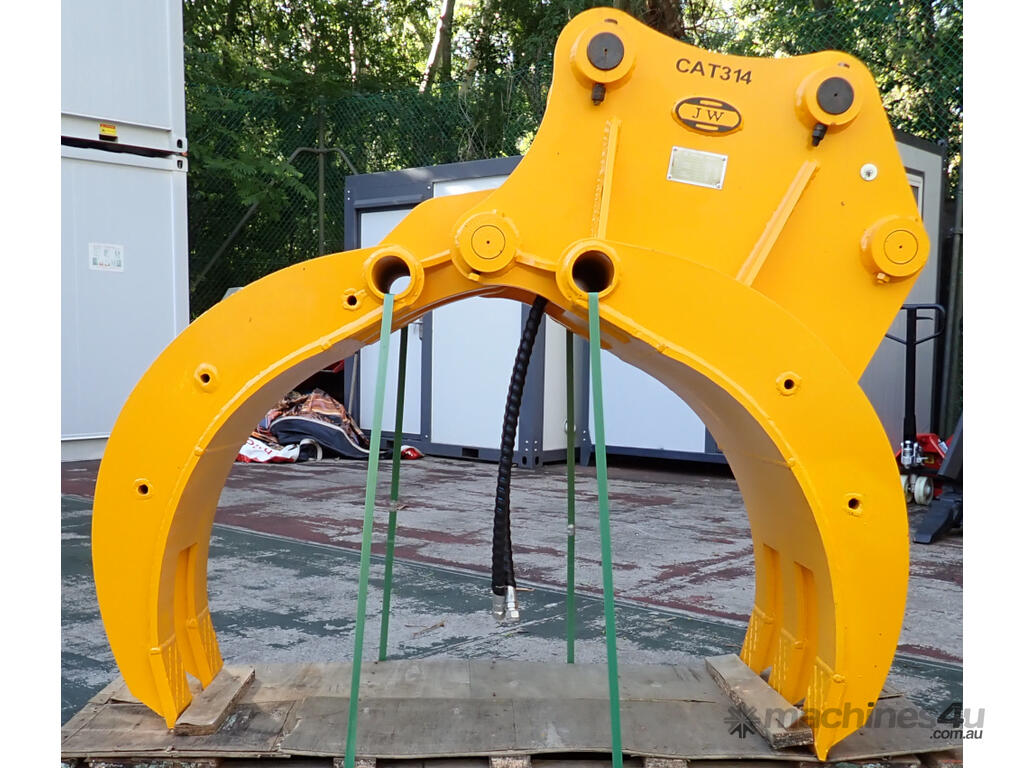

Grapple Dimensions (standing as in pics): 620mm wide, 1515mm long, 1310mm high. Weight: 556kg.

Shipping Dimensions (strapped to pallet): 670mm wide, 1700mm long, 1450mm high. Weight: 570kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
