New 9-22 ton (65mm or 60mm pin) Hydraulic Excavator Quick Hitch Coupler

New Excavator Hydraulic Coupling Quick Hitch to suit 9-22 Ton machines.

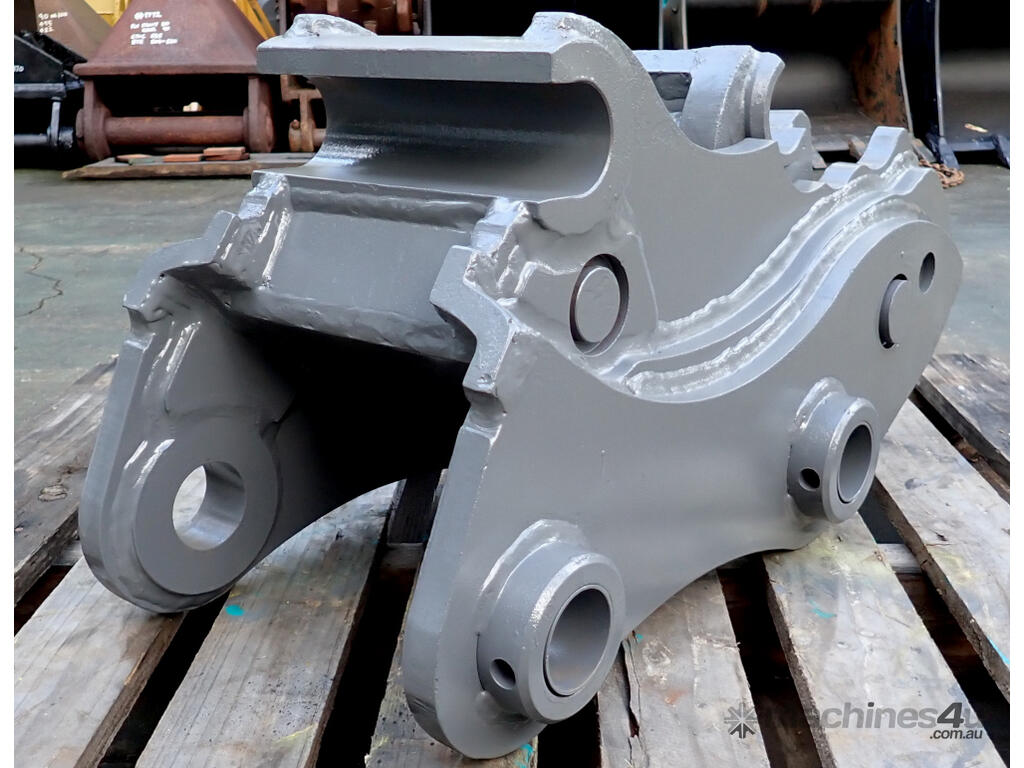

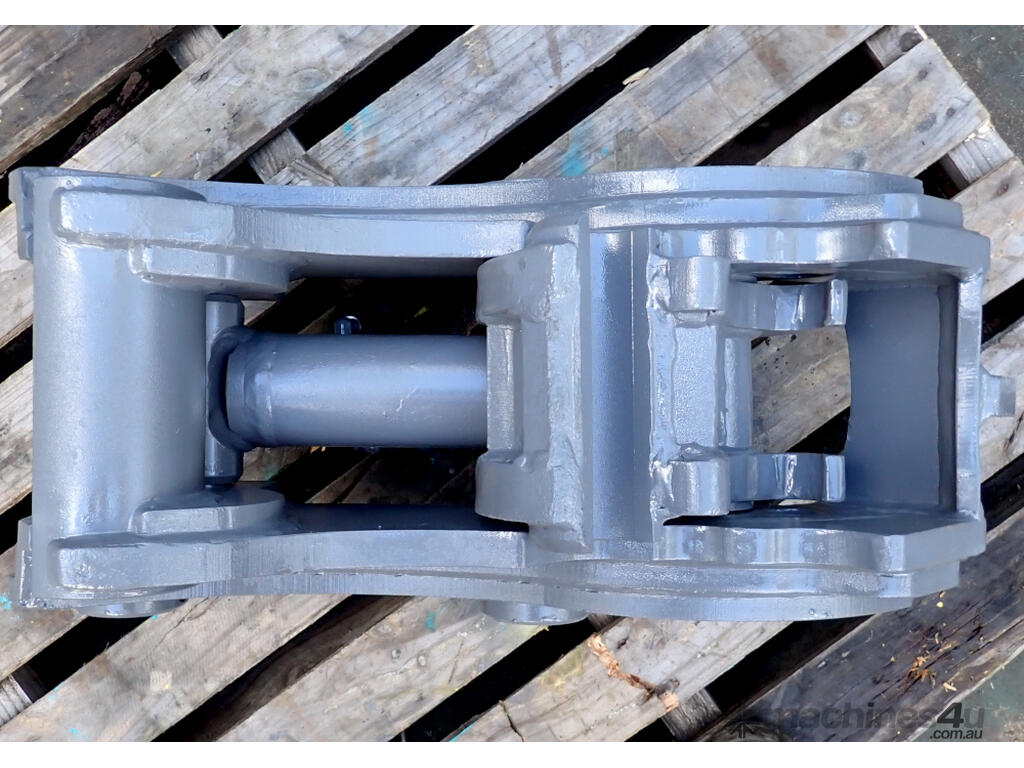

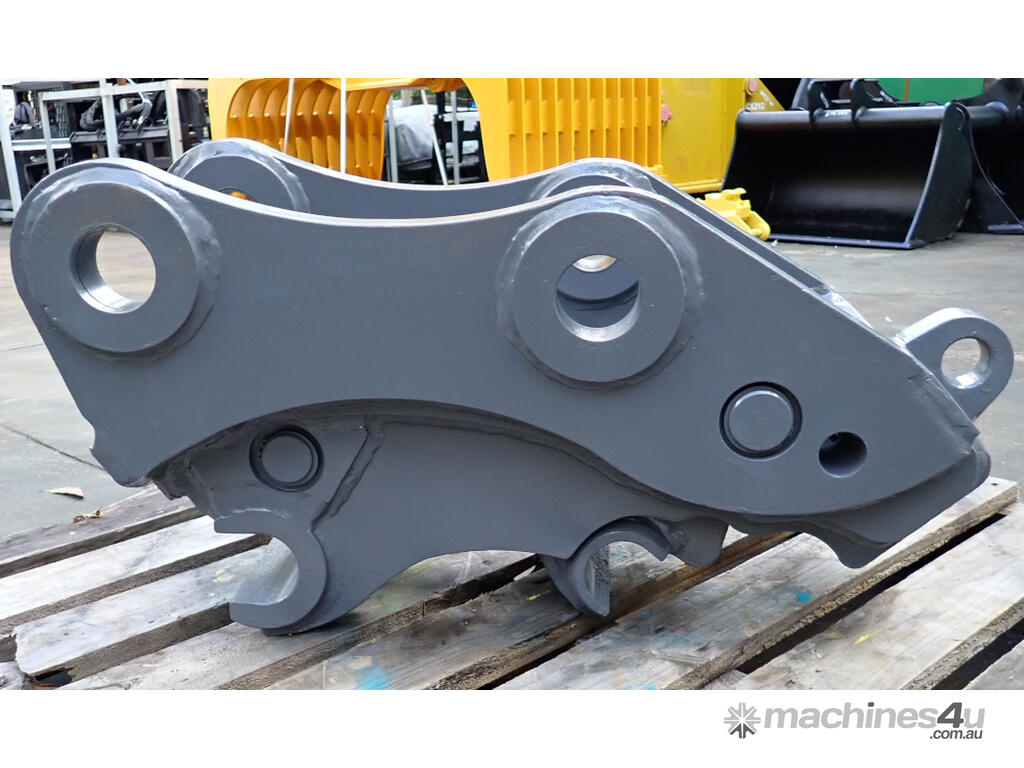

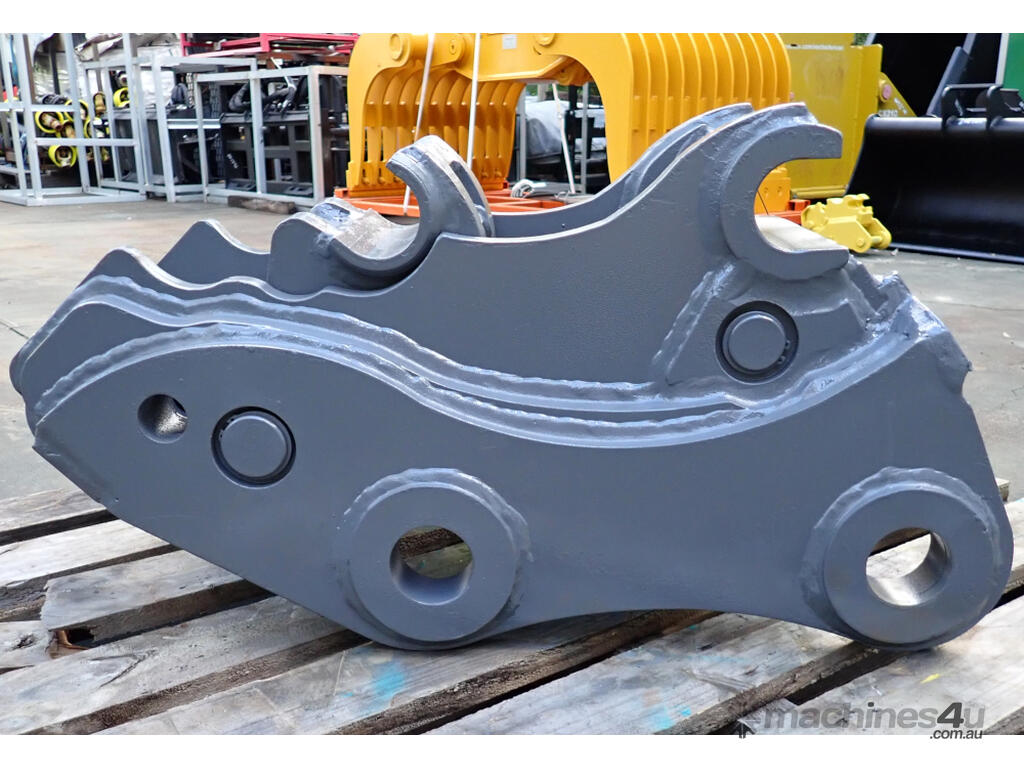

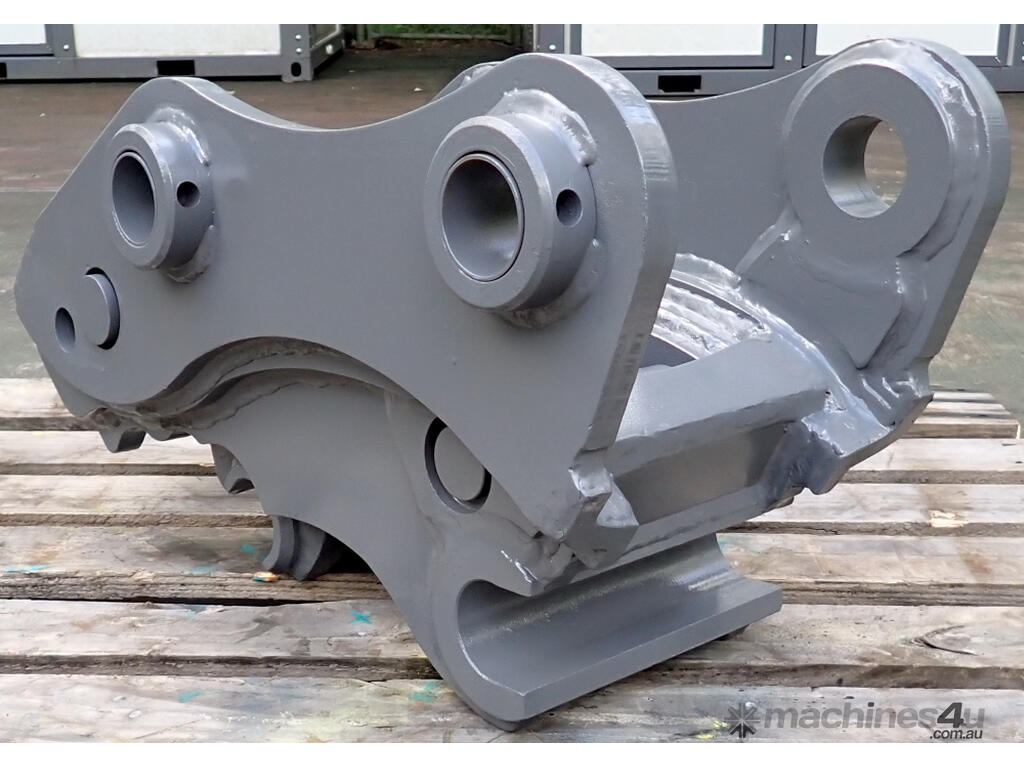

Has Lifting Eye Hook (see pics# 1-3, 5, 9).

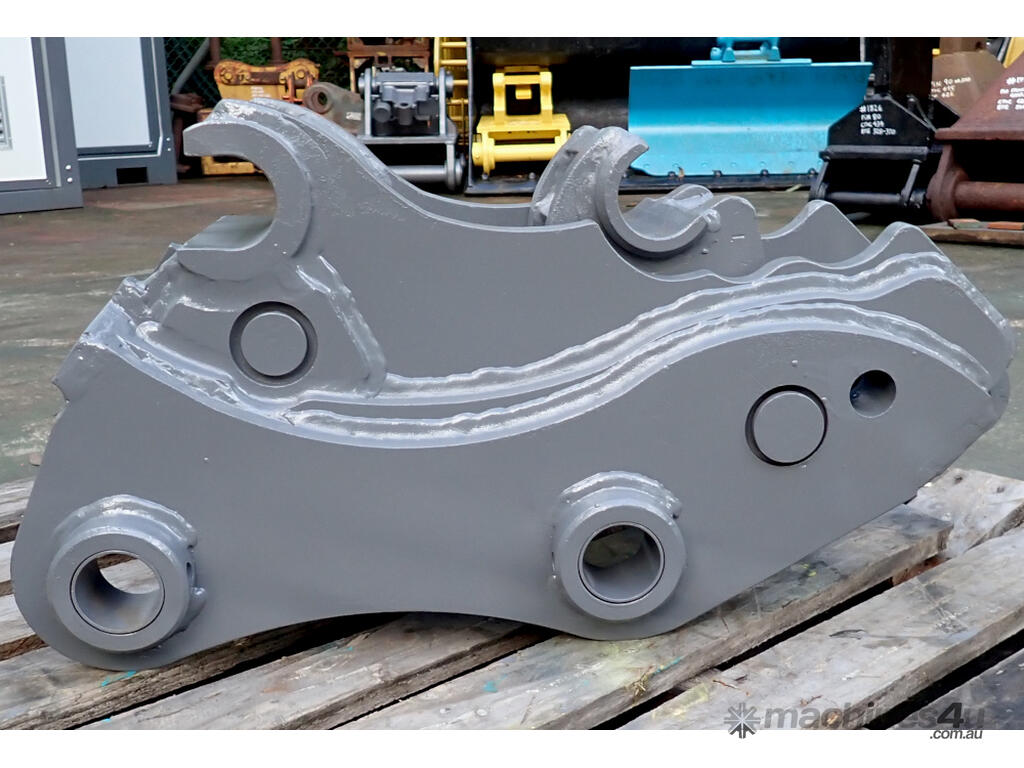

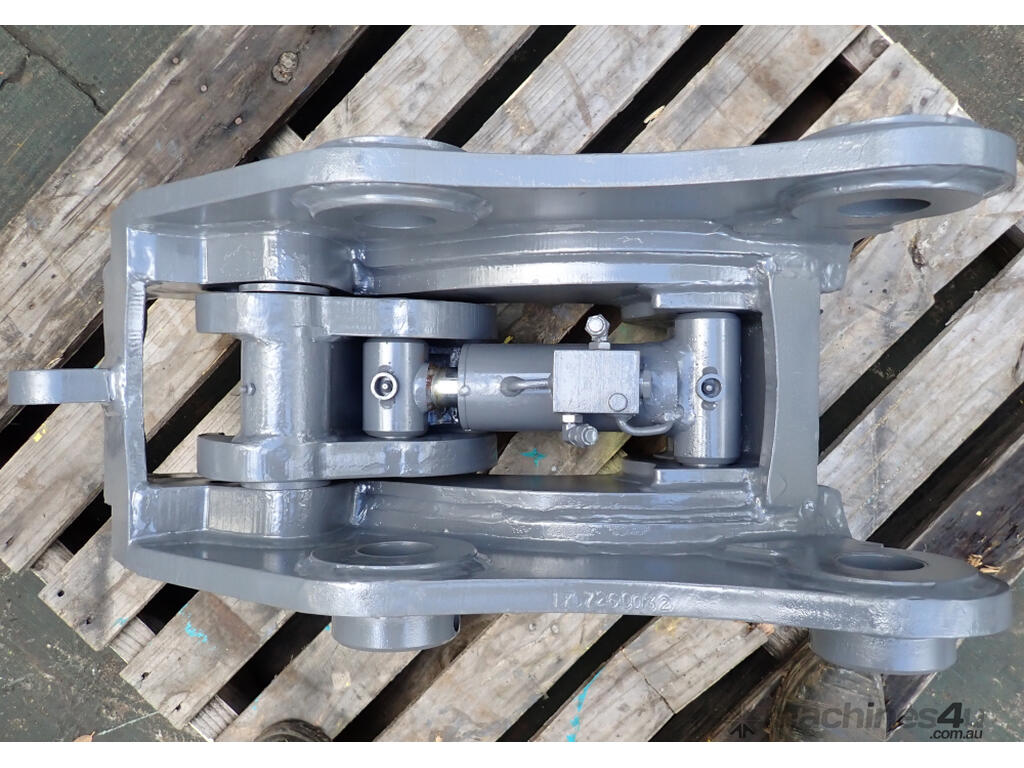

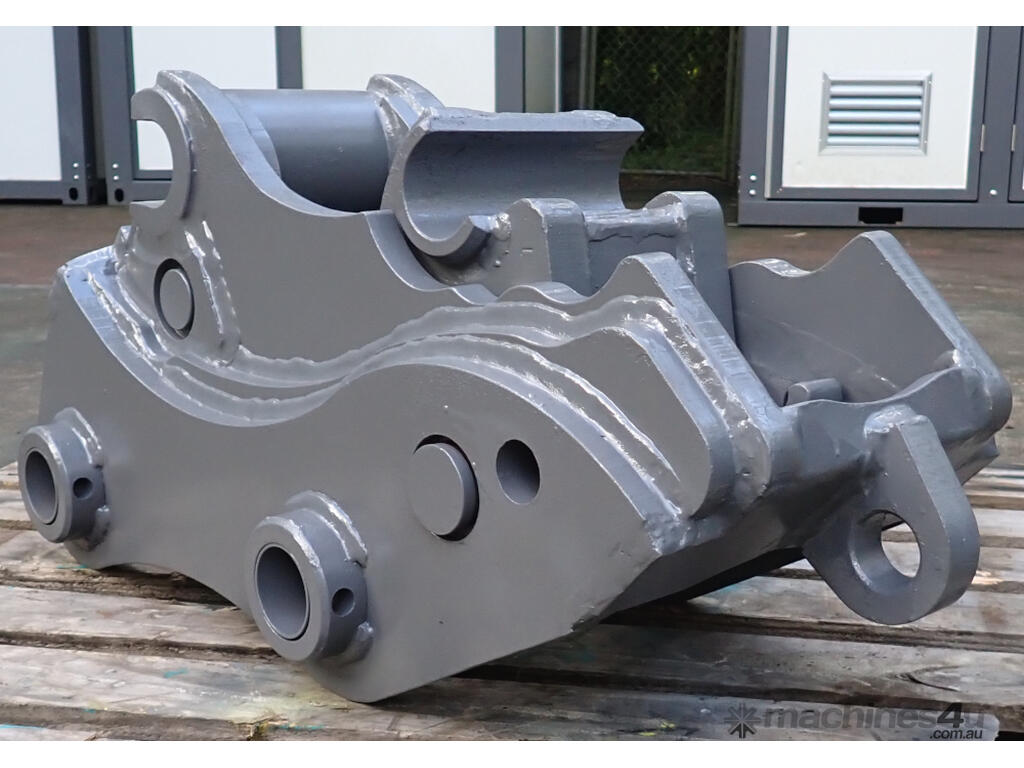

The hitch is natively designed for 65mm pins but one side has bushes inserted to reduce the holes down to 60mm (see pics# 1, 2, 4, 6, 7, 9).
This was done with the intention of using the 65mm pin hitch on a 60mm pin machine so it could pick up 60mm & 65mm pin buckets (65mm pin attachments are more common than 60mm).
You can use it as a normal 65mm pin hitch:
* Simply knock the 2x bushes out and it will fit your 65mm pin machine.
...or use it on your 60mm pin machine:
* Insert 2x more 65mm OD / 60mm ID bushes on the other side of the hitch and it will fit your 60mm pin machine.


***** Current Headstock configuration:
*
*** Pin Setup Dimensions (where your Dipper Arm goes in):
* Pin Diameter: 65mm (knock the 2x 60mm bushes out) or 60mm pins (insert 2x more 60mm bushes on the other side).
* Pin Center to Pin Center (CtoC): 370mm.
* Between The Ears (BTE): 261mm Between the inside Ear Bosses of the hitch (which can be shaved back up to 282mm between the Ear Plates if you need more inside width for your excavator's dipper arm to fit in).
*
*** Pin Setup Dimensions (where the Hitch goes in your bucket):
* Pin Diameter: 65mm (should also support 60mm pins).
* Between The Ears (BTE): 256mm (your buckets/attachments need to have at least this much width between the ears).


*** As a 65mm Pin Configuration (knock the 2x 60mm bushes out):
*
* Should fit: Hitachi EX110-5 / EX120-2 / EX120-3 / EX120-4 / EX120-5 / EX135UR, Hitachi Zaxis 135US, John Deere 135C RTS, Kobelco K905 / SK120 / SK130 / SK130LC / SK135 / SK135SR, Samsung SE130-3 / SE130LC-3 / SE130W-3, Takeuchi TB1140, Volvo EC130-3 / EC140 / EC140B / EC140C / EC210C LR / EC240C LR / EC290C LR / ECR145C / EW130 / EW140C / MX135WS/LS / SE130W-3/LC-3.
*
* Maybe fit: Case 9013 / CX130 / CX135 / CX135SR, Caterpillar 311 / 311C / 311D / 312 / 312D / 313 / 314C LCR / 314D / 320D, Daewoo Solar 130LC-V / 130W-2 / 130W-3 / 130W-V / 140LC-V, Doosan DX140W / DX300LC-3 SLR / S130LC-V / S140LC-V / S140W-V / S255SLR / S300SLR, Halla HE130W, Hitachi EX135, Hyundai R120 / R130LC / R130LC-3 / R130W / R140LC-7, JCB 805B / 814S / JS110 / JS130 / JZ140, Link-Belt 130LX / 135SA / 2650 QUANTUM, Sumitomo SH100 / SH100-2 / SH100CT-2 / SH120 / SH120-2 / SH120-3 / SH120CT-2 / SH125-3 / SH125X-3 / SH130-5 / SH135-3 / SH135U-2 / SH135X-2 / SH135X-3 / SH145U / SH200LC-3LR, Terex TXC 140LC-1, Yuchai YC135-7 and possibly other machines with similar pin spacings.


*** As a 60mm Pin Configuration (insert 2x more 60mm bushes on the other side):
*
* Should fit: Kobelco SK100 / SK100LC / SK115SR, Komatsu PC100-3 / PC100-5 / PC100-6 / PC120 / PC120 Mighty / PC120-3 / PC120-5 / PC120-6 / PC128US-2 / PC128UU-2 / PC138USLC-2 / PC150HD / PC158USLC-2 / PW100-1 / PW100-3, New Holland EC160LC / EW160 / EW200 / FX140 / FX200, Volvo EC160 / EC160 Direct Mount / EW160 / EW160 Direct Mount.
*
* Maybe fit: Hydrema M1100, Liebherr 912, New Holland EC130LC, O & K MH & RH 4CS, Wacker Neuson 12002 and possibly other machines with similar pin spacings.


Hitch dimensions: 840mm long, 381mm wide, 432mm high. Weight: 184kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
