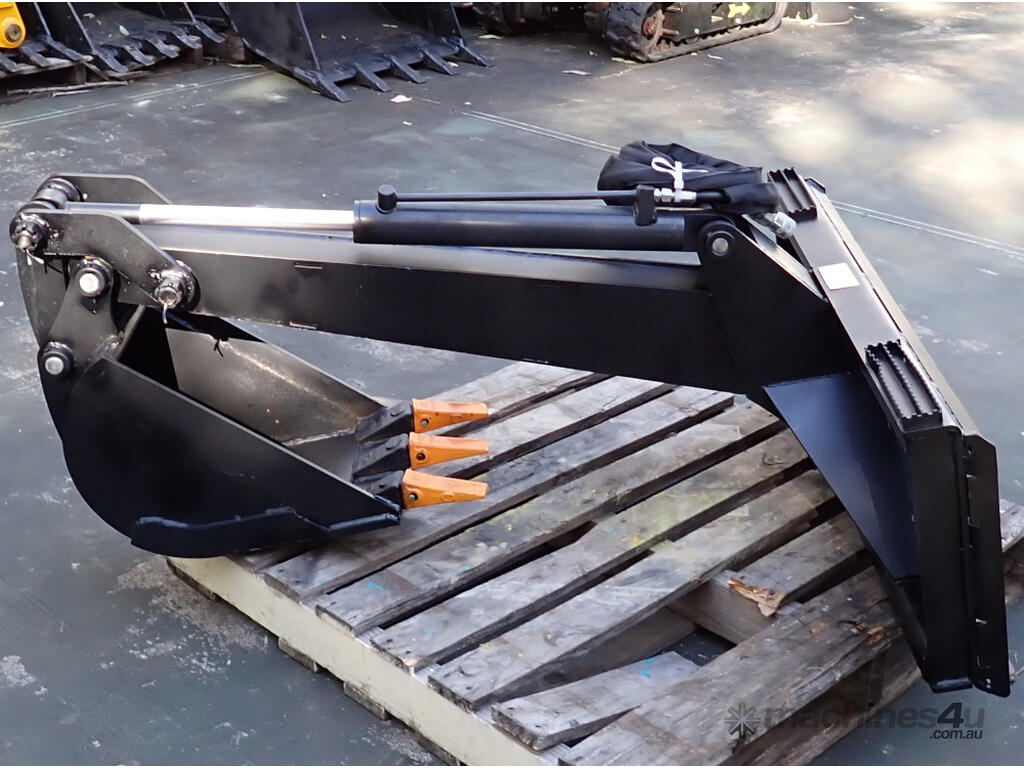

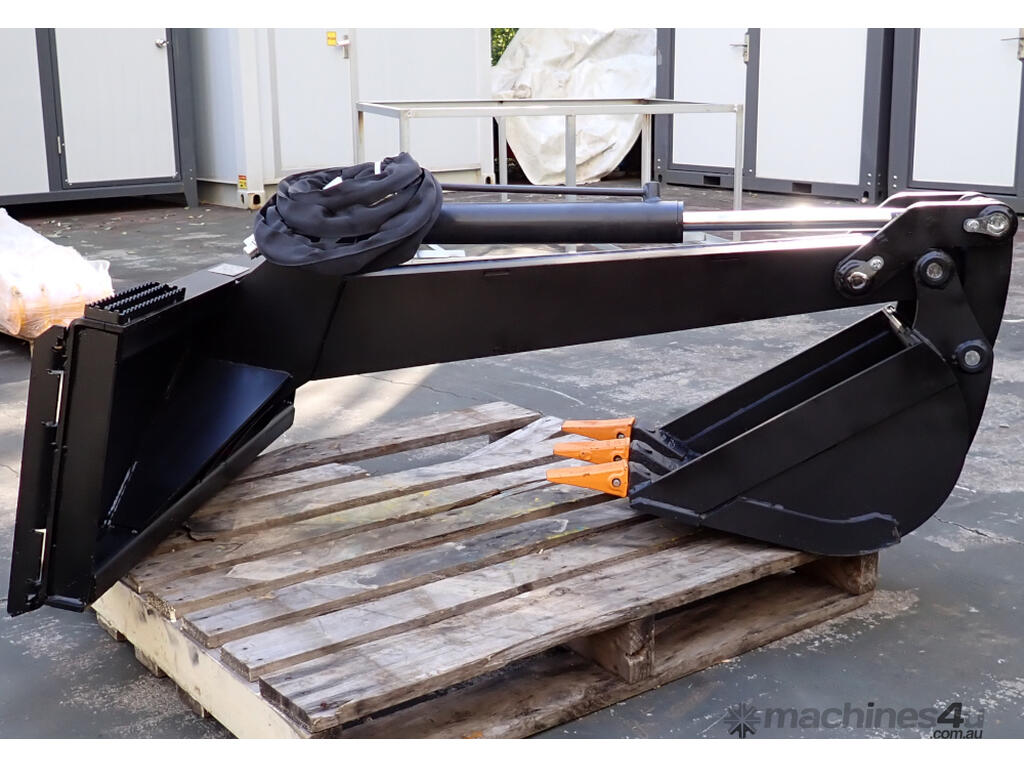

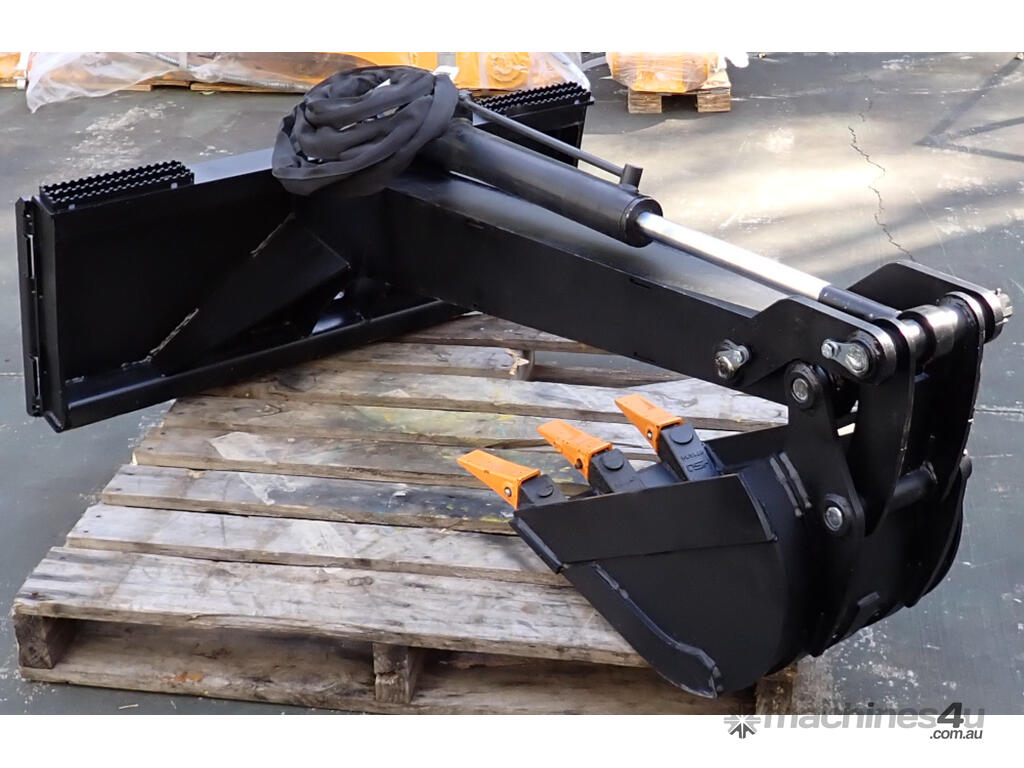

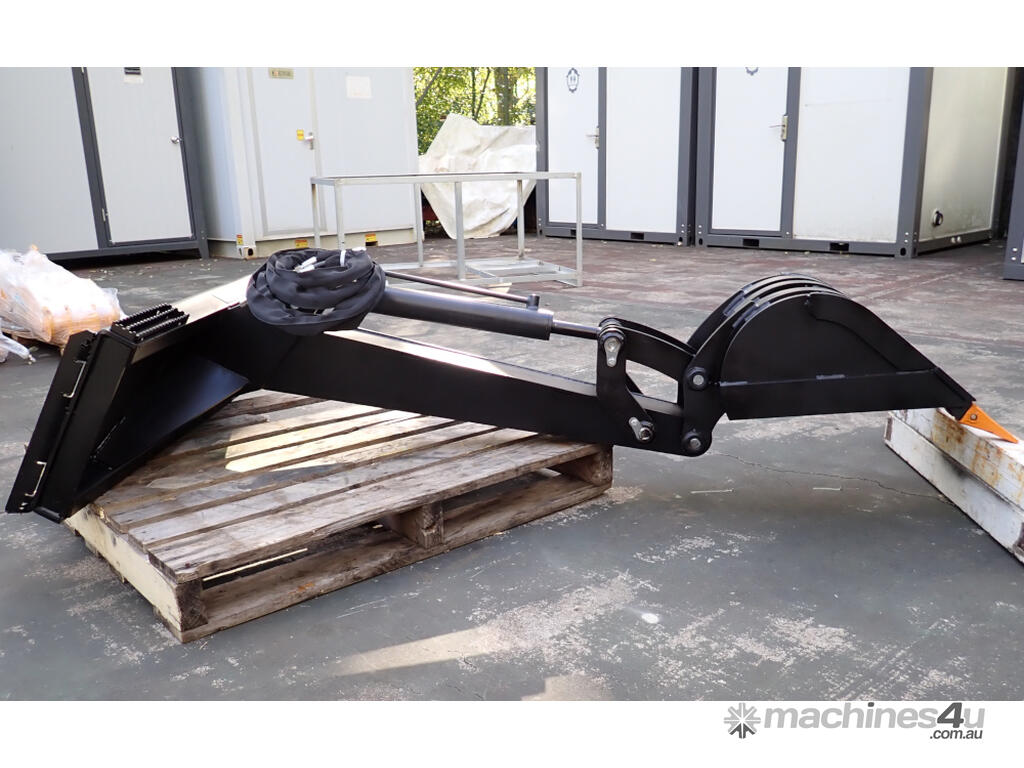

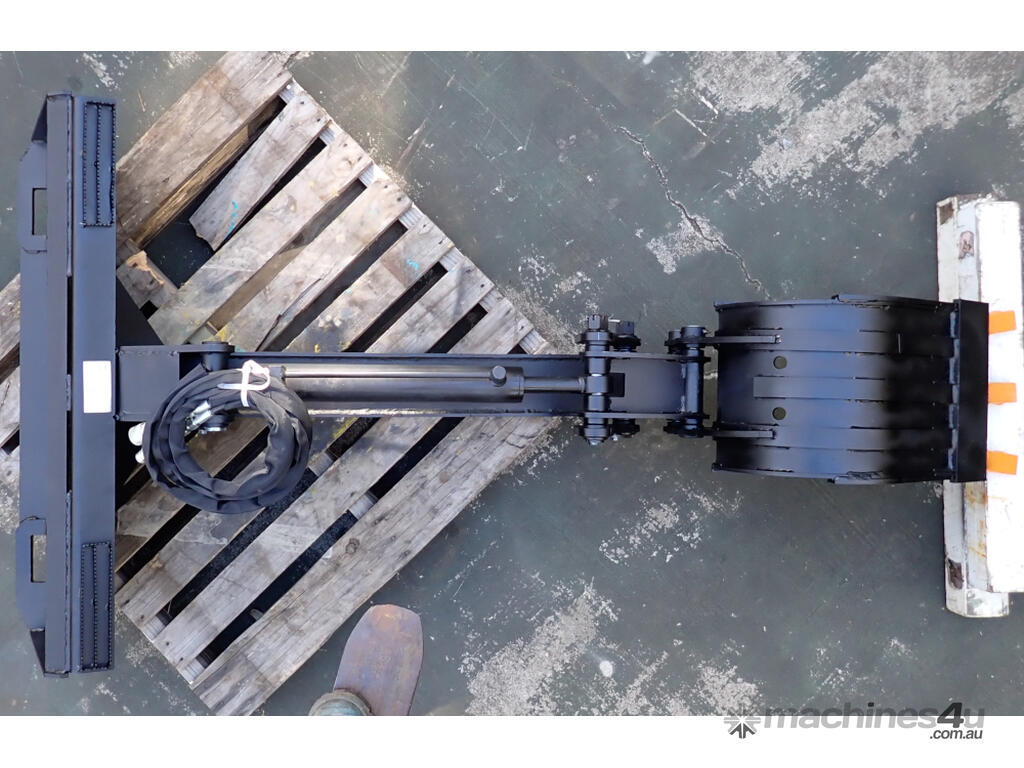

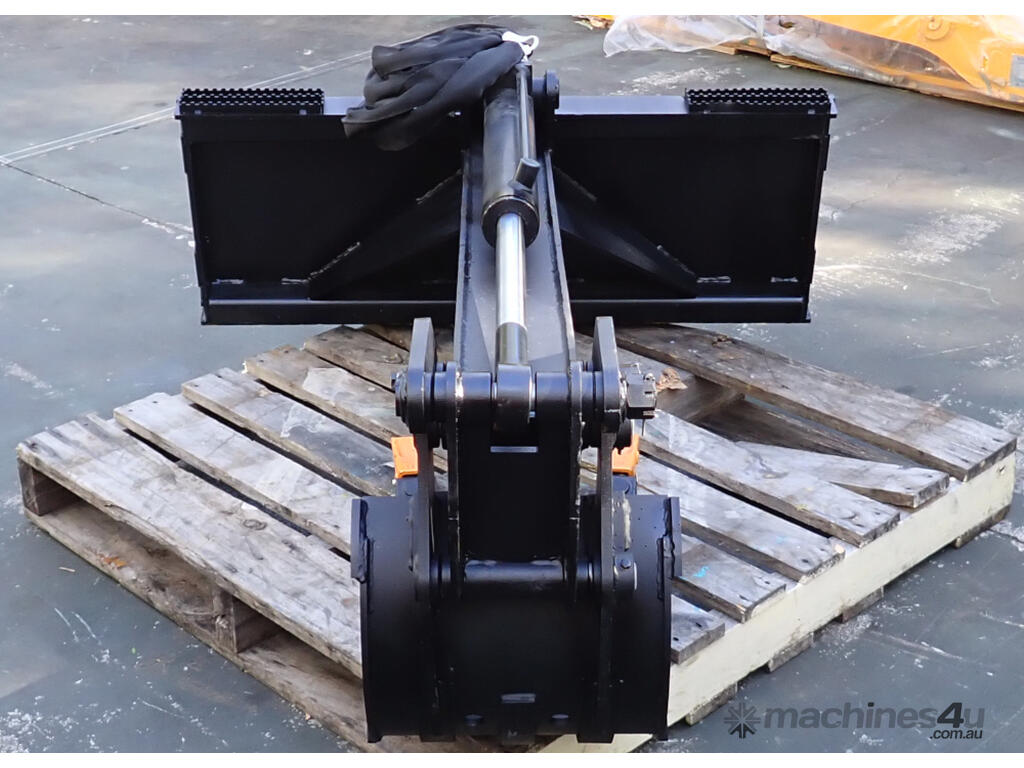

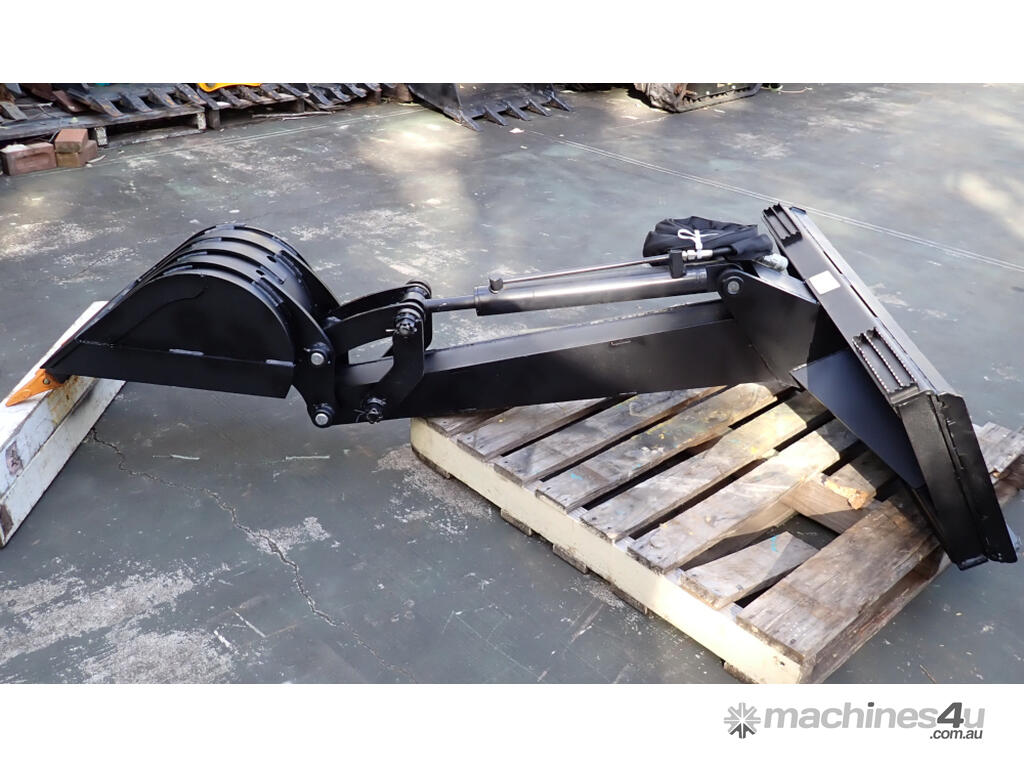

New Backhoe Arm for Skid Steer, Tractor, Track Loader

New Suihe Tractor / Skid Steer Loader Backhoe Arm.
Use your Skid Steer, Positrack or Tractor to dig deep trenches just like an excavator arm.

The Arm length is around 1230mm to the center of the bucket's pivot pin, so the digging depth is 1230mm + the length of the bucket.

* Working Pressure mpa 14-21MPa (2030-3045 Psi).

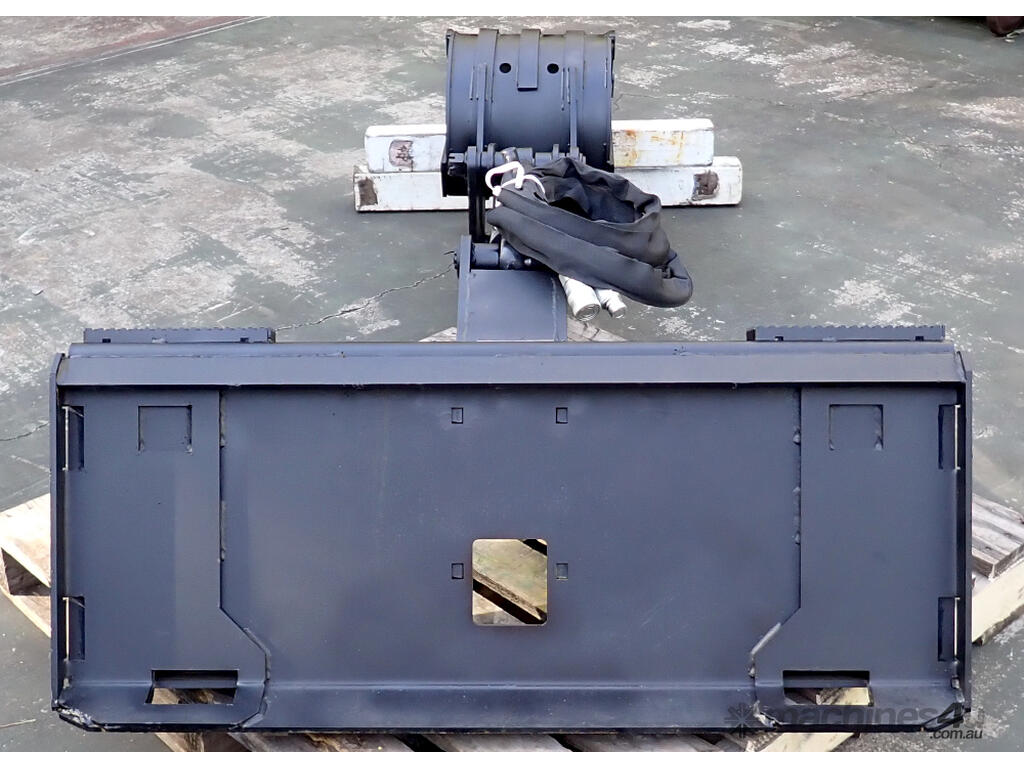

* Universal Quick Attach Mount.
* Includes Hoses fitted with Quick Release Couplings.

Backhoe Arm Headstock Configuration:
* 30mm Pin Diameter
* 165mm Pin Center to Pin Center (CtoC)
* 158mm Dipper Arm width (any other attachments you fit need to have at least this much gap width between the ears to fit).

Bucket Supplied:
* Width: 382mm (at the front cutting edge)
* Bucket Volume 0.03m³
* 2 Drainage holes (helps water drain out when dredging dams etc)


Dimensions: 1600mm Long, 1158mm Wide, 695mm High. Weight: 249kg.

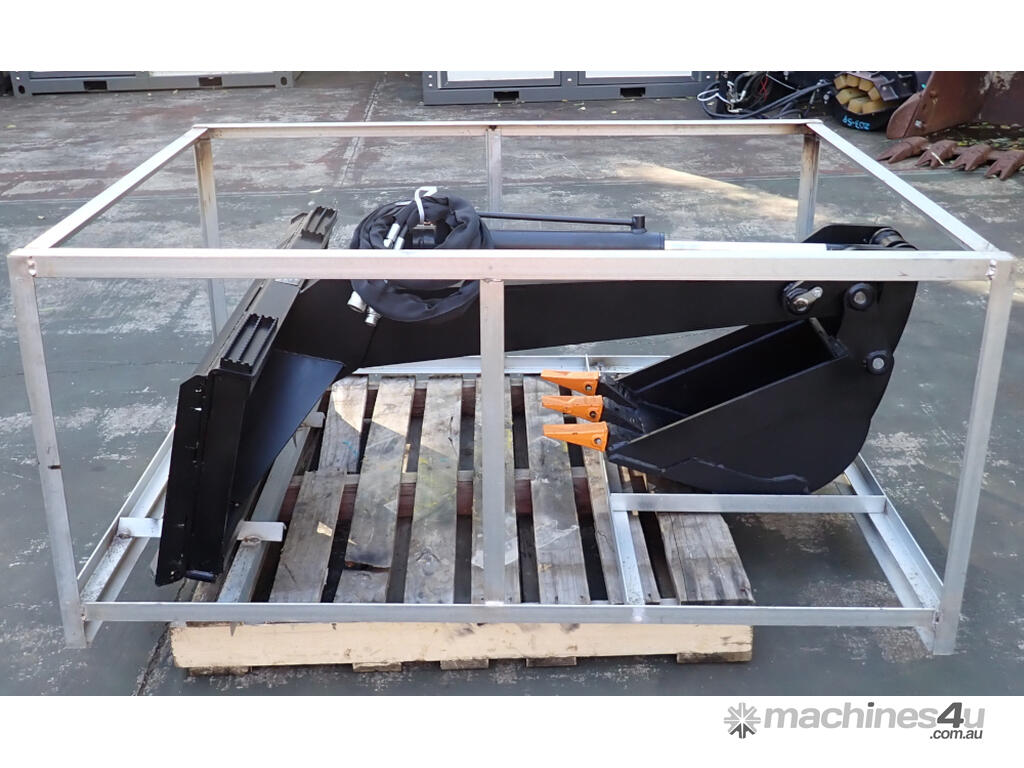

Shipping Dimensions (in Cage): 1695mm Long, 1259mm Wide, 785mm High. Weight: 299kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
