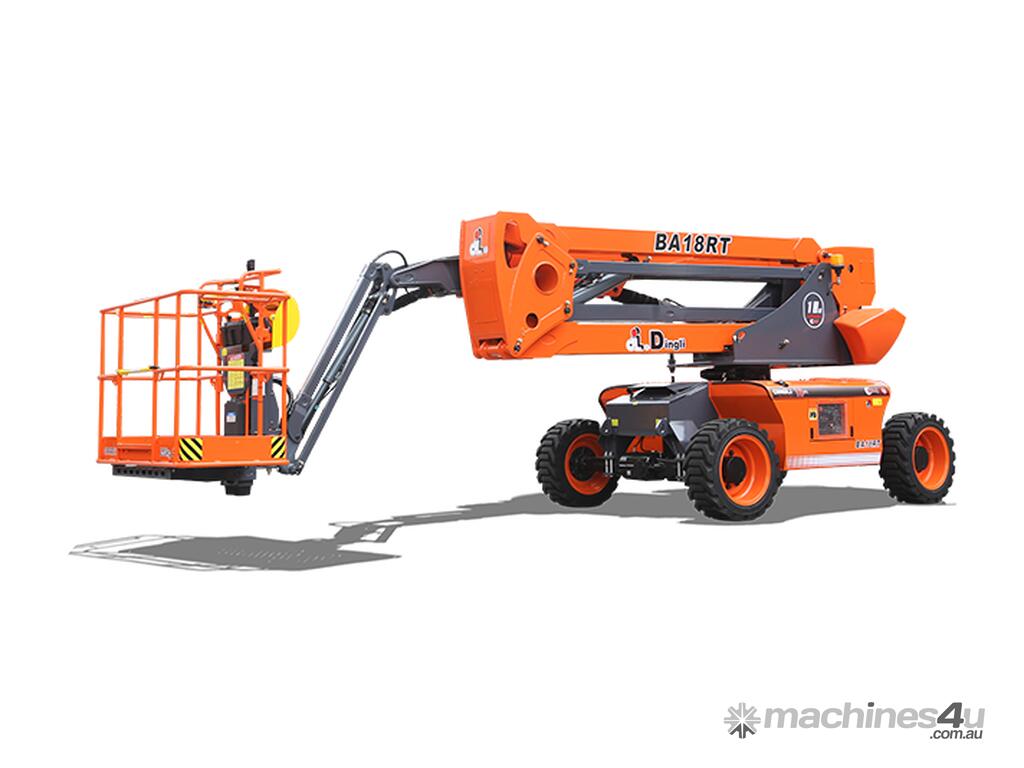

Dingli D Series 18m Diesel Articulating Boom Lift
The Dingli D Series is a high-performance 18m diesel articulating boom built for construction, maintenance and industrial access work. Dingli is Australia’s largest EWP supplier and the third largest globally, known for strong reliability and innovation. The D Series uses a modular platform with shared components across the range for easier servicing and lower maintenance. A low-power engine improves fuel efficiency the lowered chassis layout increases stability and axle-integrated 4WD provides confident rough-terrain capability.
Features
- Max Working Height: 18.04m
- Platform Height: 16.04m
- Horizontal Outreach: 9.64m
- Up and Over Clearance: 8.23m
- Platform Capacity: 250kg
- Platform Size: 1.83m × 0.79m
- Jib Movement: 132°
- Platform Rotation: 180°
- Turret Rotation: 360° continuous
- Drive Speed (Stowed): 6.0km/h
- Gradeability: 40%
- Turning Radius: 2.92m inside, 4.49m outside
- Tyres: 315/55D20
- Power: Kubota D1105 diesel, 18kW
- Fuel Tank: 115L
- Hydraulic Tank: 145L
- Weight: 7,920kg
Applications
- Construction and building access
- Facility and industrial maintenance
- Electrical and mechanical installation
- Outdoor repair and inspection work
