New Jisan 15-32 ton (80mm Pin) Excavator Rotating Hydraulic Sorting Grapple Grab

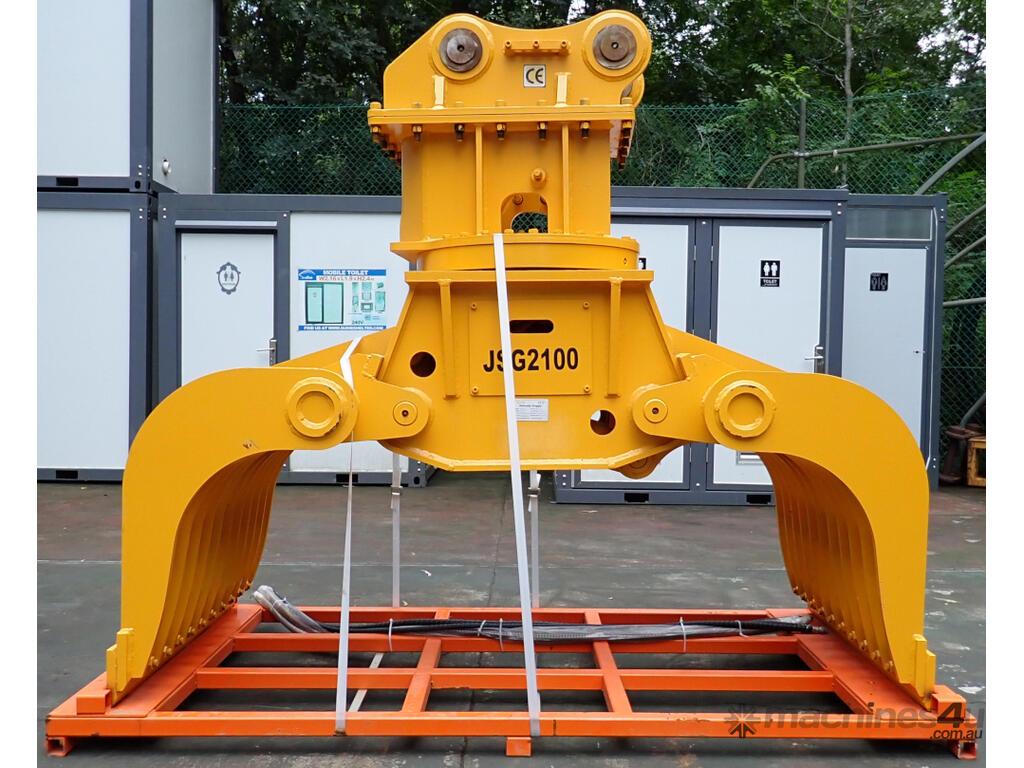

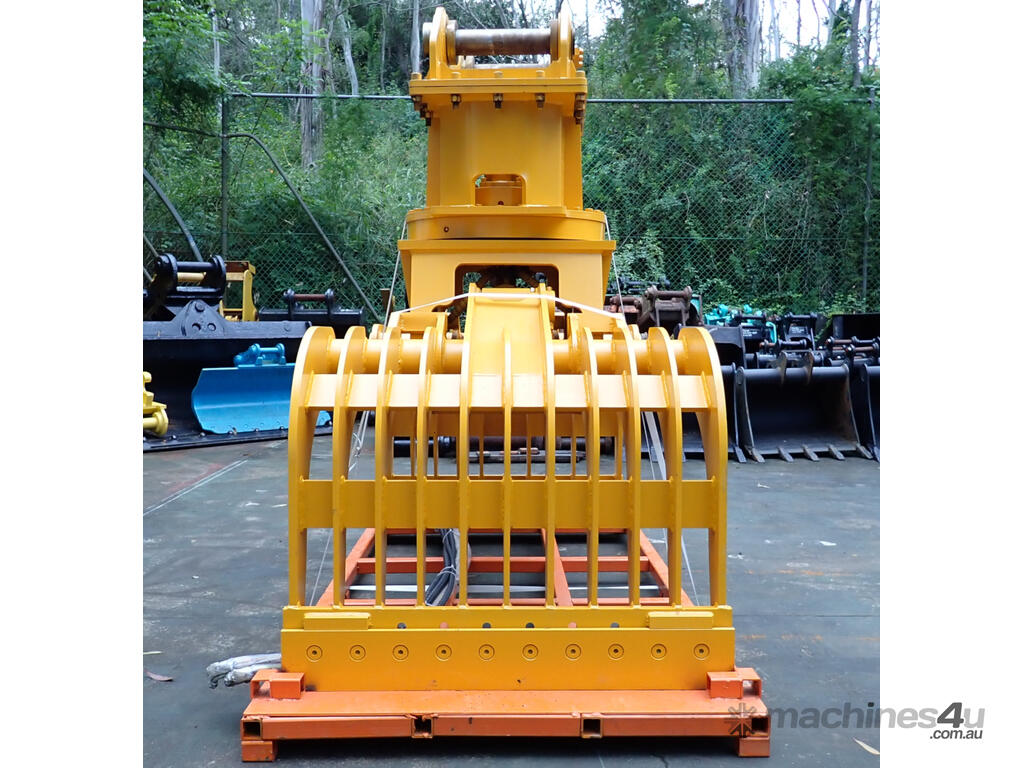

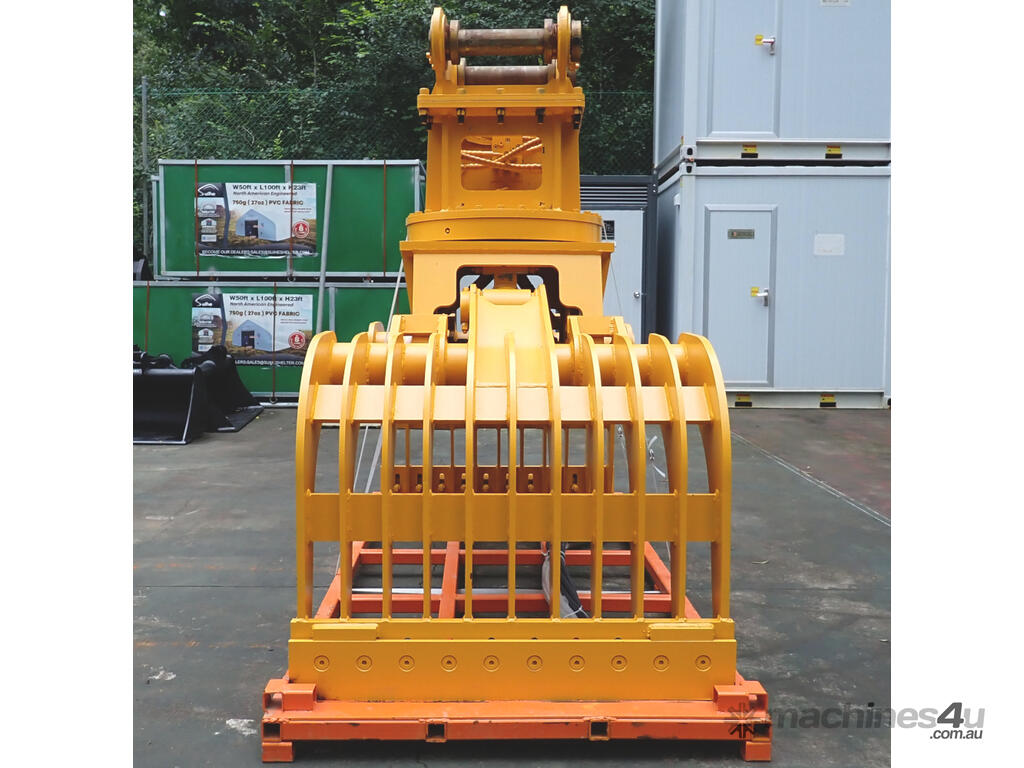

New Jisan Heavy Industry Ltd JSG2100 Excavator Rotating Hydraulic Sorting & Demolition Grapple Grab suit 15-32 Ton machine.

Ideally designed for Trash, Sorting & Demolition work, but can also be used for Log & Forestry, Rock and general material handling, picking things up, moving them around and other careful placement tasks.
Great for landscapers to position rocks and sandstone blocks when building retaining walls etc. and moving logs around in forestry.

* Full 360 degrees continuous rotation.
* Built from Hardox steel.
* Opening Width: 2200mm.
* Fully protected cylinder with belly plate underneath.
* Every pin greaseable with protected grease nipples designed for a long life.
* High clamping force with oversized piston allows secure gripping of any load.
* Has removable Bolt-On Blade edges.

Driving Pressure: 320 bar (4641 PSI).
Driving Flow: 200-250 L/min.

Comes with the Steel Skid & Hydraulic Hoses pictured.

Currently setup for 80mm pins but could easily be configured for 90mm by boring out the holes in the removable collars (see pic #10) and inserting bigger pins.


*** Current Headstock Dimensions:
*

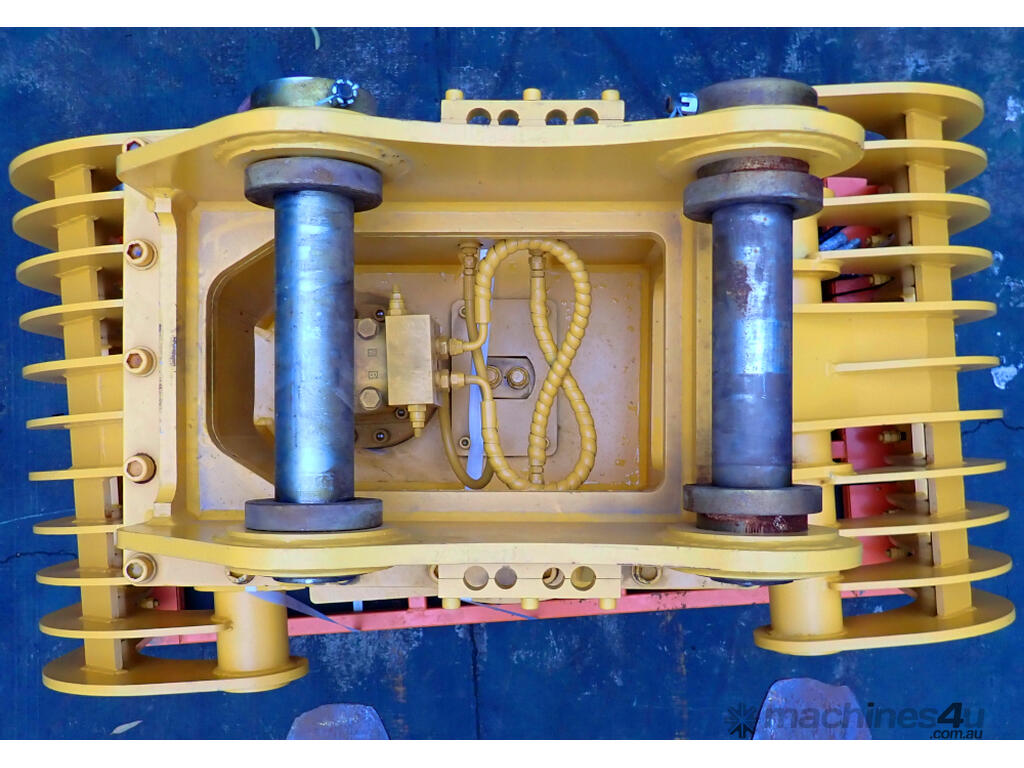

* The Pin Diameter is 80mm but they are fitted into collar bosses (see pic# 10) that fit into 110mm diameter Pin holes, so pins up to 110mm diameter can be fitted without needing to bore out the holes in the grabs's headstock.
* The Pin Center to Pin Center (CtoC) is 445mm.
* The distance between the collar bosses is 310mm. Removing the collar bosses, the distance between the headstock bosses is 361mm, but these welded-on-bosses could also be shaved back on the insides to a maximum of 381mm (the distance Between the Ear Plates), if you need more inside width for your hitch or dipper arm to fit into.
*
* Should fit: Case 9021 / CX160 / CX210 / CX210B / CX225SR, Caterpillar 318B L / 320 / 320B w/B Link / 320D w/B Link / 321 / 322B w/B Link / 322C w/B Link / 324D w/Reach Linkage / 330C / 330D w/Long Linkage / B Family Linkage, JCB JS150LC / JS160 / JS160LC / JS180 / JS200 / JS200LC / JS210 / JS220 / JS220LC / JS235, Kobelco 200SRLC / SK200 / SK210LC / SK210LC-VI, Komatsu PC200 / PC200 Mighty / PC200-3 / PC200-5 / PC200-6 / PC200-7 / PC200LC-8 / PC210 / PC210-6 / PC220-3 / PC220-5 / PC220LC-6 / PC220LC-7 / PC220LC-8 / PC240 / PC250-6 / PC270 / PC270LC-6 / PC270LC-7 / PC280 / PW210, Link-Belt 160LX / 160X2 / 210LX / 225SA / 2700 QUANTUM / 2800 QUANTUM, New Holland EH215LC, Sumitomo SH150 / SH160 / SH200 / SH200-2 / SH200-3 / SH200LC / SH200LC-3 / SH210-5 / SH215U-1 / SH215X-1 / SH225X-3.
*
* Maybe fit: Caterpillar 320B w/C Link / 320C w/C Link / 321 w/Mass Linkage / 322C w/Reach Linkage / 325B w/C Link / 325C w/C Link / 325C w/Reach Linkage / E300 Series / C Family Linkage, Daewoo Solar 170LC-V / 170W-3 / 175LC-V / 200W-3 / 200W-V / 220LC-V / 225LC-V / 225NLC-V / 225SLR / 250LC-V / 255LC-V, Doosan DX180LC / DX180LC-3 / DX180W-3 / DX190W / DX210W / DX225 / DX225LC-3 / DX255 / DX255LC-3 / S175LC-V / S180W-V / S210W-V / S225LC-V / S255LC-V / S470LC-V, Halla HE280, Hitachi EX150-5 / EX160 / EX200 / EX215 / FH200 / FH215, Hitachi Zaxis 160 / 200 / 200 LC / 210 / 225US LC / 225USR, Hyundai R210LC-7, John Deere 200C LC / 200D LC / 225C LC RTS, Kobelco SK210 / SK235SR, Liebherr 912 / 912 LITRONIC / 922 LITRONIC, LiuGong 922 / 925, Samsung SE210 Early Series / SE210-3 / SE210LC-2 / SE210LC-3, Terex TXC 175LC / TXC 180LC / TXC 225LC / TXC 255LC, Volvo EC210 / EC210B / EC210C / EC220D / ECR235C / ECR235D / EW230C / MX225LS / SE210LC-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


*** As a 90mm Pin configuration (bore out Collars to 90mm holes & insert 90mm pins):
*
* Should fit: Link-Belt 240LX / 290LX / 3400 QUANTUM / 3900 QUANTUM.
*
* Maybe fit: Case CX240 / CX290, JCB JS240 / JS240LC (XO Machines) / JS260 / JS260LC (XO Machines), Samsung SE240LC / SE240-3, Sumitomo SH220 / SH220-2 / SH220-3 / SH220LC / SH240 / SH290 / SH300-5, Volvo EC240 / MX255LS / SE240LC-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


Grapple Dimensions (opened up as in pics): 2200mm Long, 1110mm Wide, 1950mm High. Weight: around 2,100kg.
Shipping Dimensions (including steel skid & hoses): 2405mm Long, 1220mm Wide, 2050mm High. Weight: 2,163kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
