New Lincoln Electric Power Wave S500ce Welder Power Source

Power Wave® S500 CE Advanced Process Welder K3168-1 New Surplus Stock

PORTABLE, POWERFUL, MULTI-PROCESS

The multi-process Power Wave® S500 is packed with Lincoln Electric performance technology and innovation. Built to be the best in class advanced process welding machine, the Power Wave® S500 features advanced welding waveforms optimized to provide the highest quality arc for nearly any application.

Features
Modular Platform - Allows for system customization to your welding needs. Modules can be stacked beneath power source for clean and convenient configuration whether stationary or on a cart.

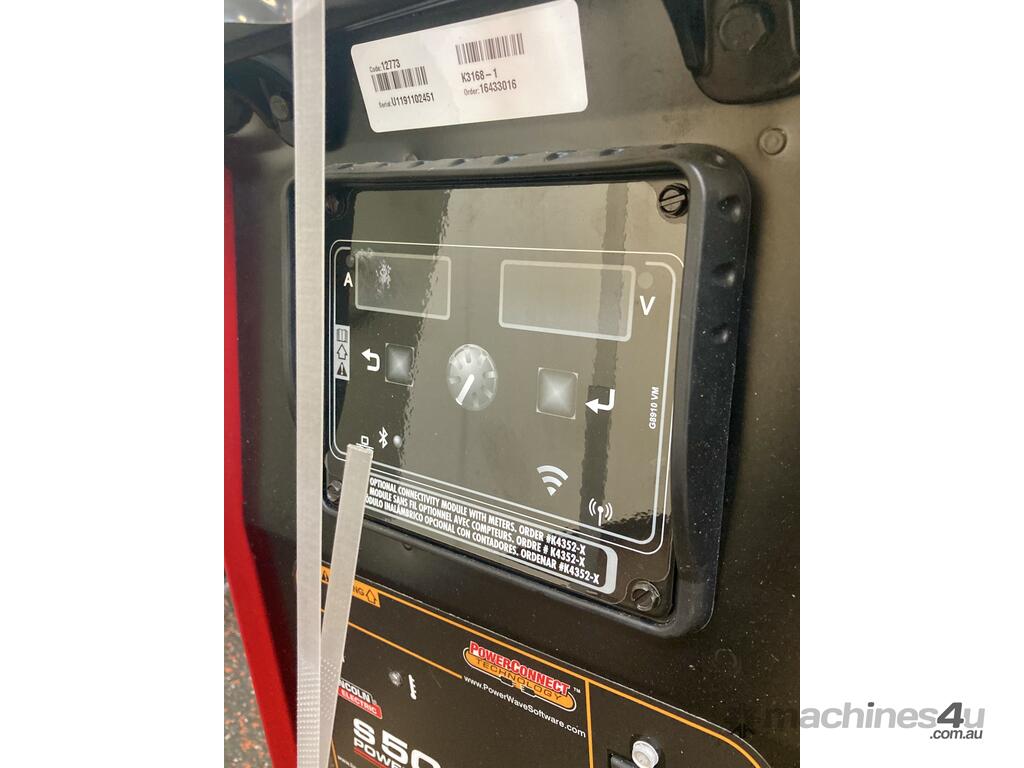

Advanced Connectivity and Control - All Power Wave® systems come standard with access to Lincoln Electric Power Wave® Manager and Lincoln Electric Checkpoint® Production Monitoring allowing for advanced remote configuration, process control, and quality assurance.
Advanced Connectivity - All Power Wave® systems come standard with access to Lincoln Electric Power Wave® Manager and Lincoln Electric Checkpoint® Production Monitoring allowing for advanced remote configuration, process control, and quality assurance.
Compact and Durable - IP23 rated to withstand harsh environments.
Patented PowerConnect® Technology - Automatically adjusts to input power from 200-600V, 50 or 60 Hz, single phase or three phase. Welding output remains constant through the entire input voltage range.
Tribrid®Power Module - Exceptional welding performance with high power factor and efficiency.
115V (10A) AC Duplex Auxiliary Power Receptacle - Features patent-pending Surge Blocker™Technology to ensure simultaneous welding performance is not compromised by high starting current devices such as grinders (typically requiring 60A or more peak surge current).
Smart Fan Operation - Only runs when needed to minimize noise and energy consumption.

Product Weights & Dimensions
Dimensions(H x W x D): 571mm x 356 mm x 630 mm (22.5 in x 14 in x 24.8 in)
Net Weight: 68.04kg (150 lbs)

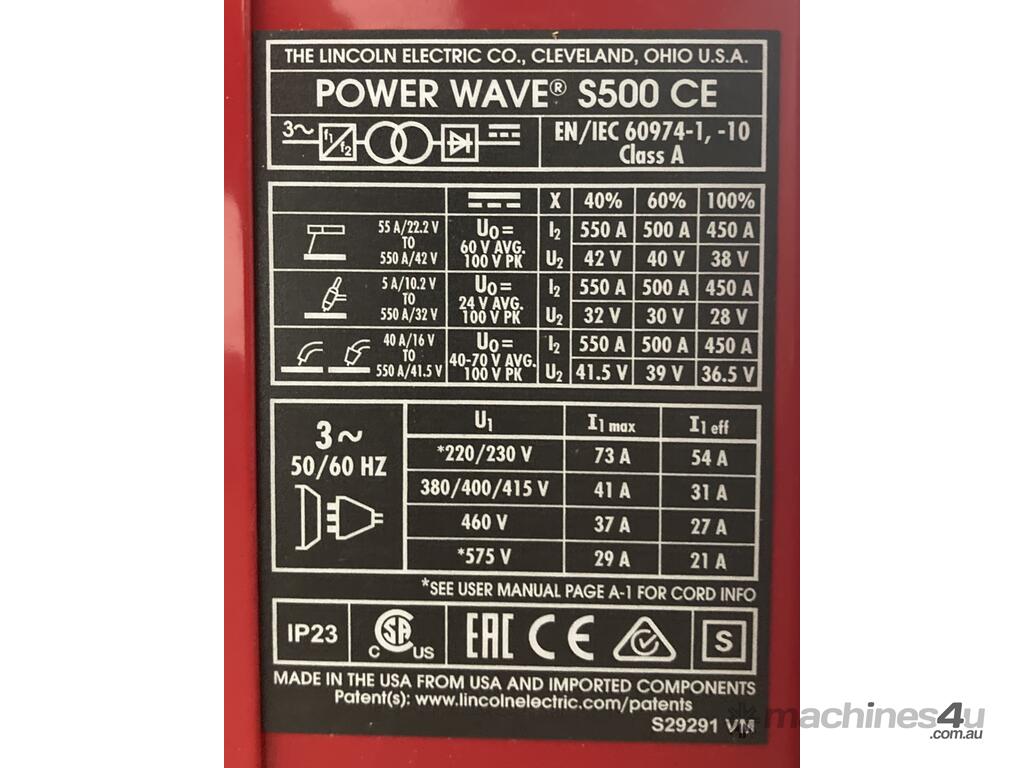

General Specification
Input Voltage: 200/208,220/230/240,380/400/415,460,575
Input Current: 3PH/40% - 80/73/41/37/29A,3PH/100% - 60/54/30/27/21A
Input Hertz: 50,50/60,60
Input Phase: 3
Input Power: 208/230/380-415/460/575/3/50/60
Mode Icon: CC/CV
Output Range: 5-550ADC
Polarity: DC
